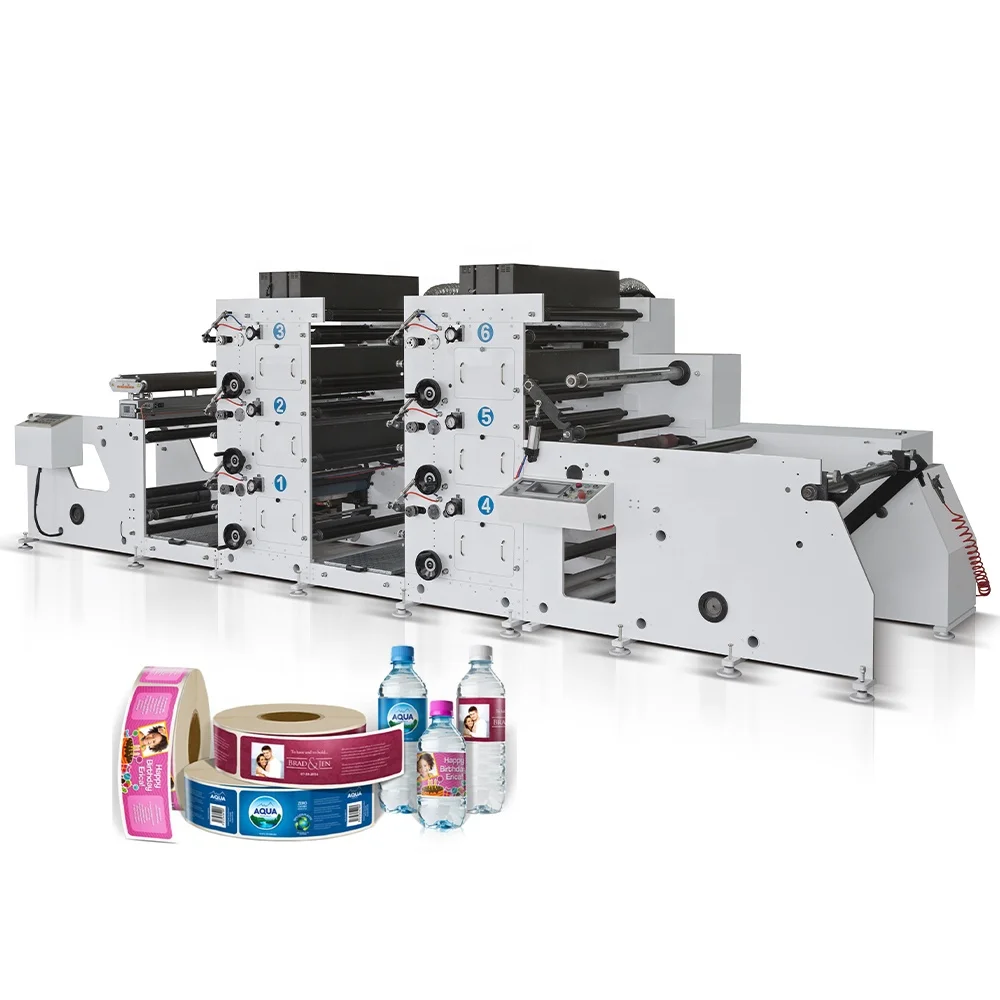

Одноцветная УФ сушилка шириной 320 мм наклейка рулонная флексографская печатная машина
- Категория: >>>
- Поставщик: Ruian Loyal Machinery Co. Ltd.
Сохранить в закладки 1600499871641:
Описание и отзывы
Характеристики
Products Description
Application:
It is suitable for printing paper cup, paper board, high-grade self-adhesive label and so on.
Advantage:
The product has the characteristics of wide printing range, no pollution of ink, high economic benefit and fast printing speed.
1. Main motor adopts imported electric frequency speed regulation.
2. Automatic tension control is used for unwinding.

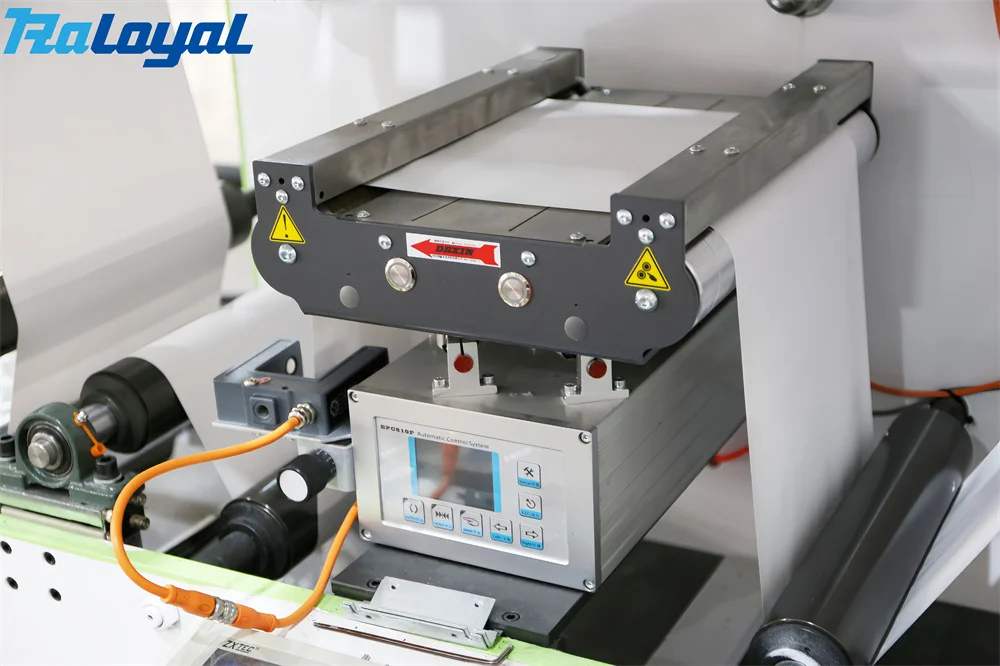

3. Ultrasonic rectification is used for web guide.

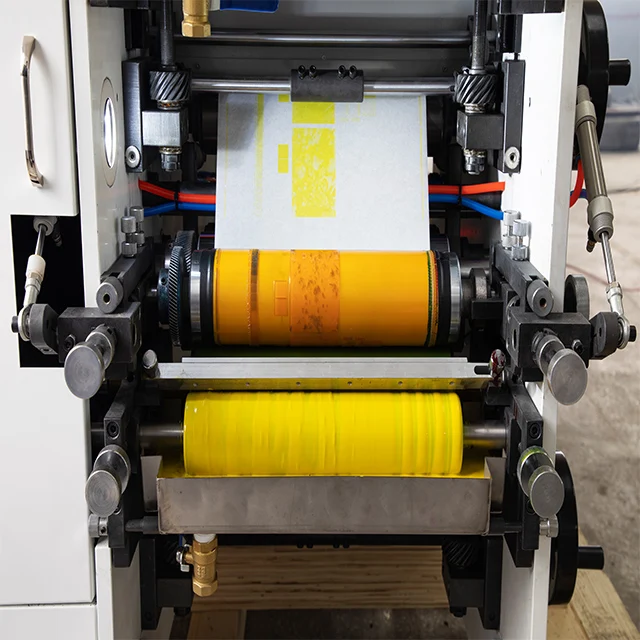

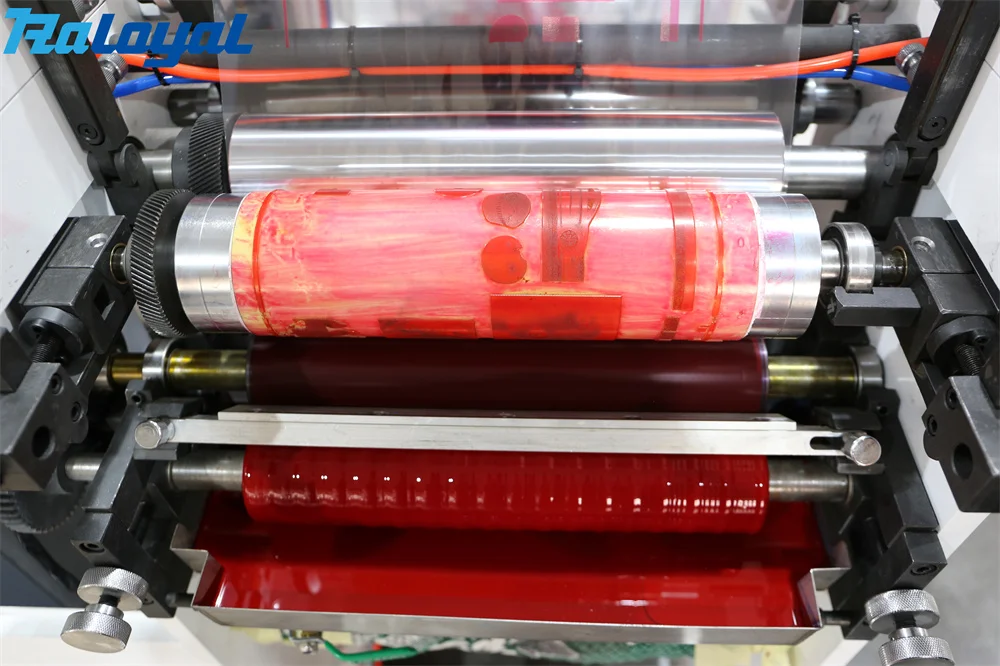

4. Part of the printing, using ceramic anilox rollers, has the characteristics of long service life, wear resistance, corrosion
resistance.
5. Printing unit adopts 360 degree weekly alignment adjustment. The printing units can be individually joined or loosened so that
other printing units continue to print.
6. Each printing unit is equipped with infrared drying device.
7. Machine with die cutting function.
8. Automatic metering.
9. Parking roller can be automatically disengaged, and low speed dynamic convey to prevent dry ink.
10. Rolls for paper, printing, automatic infrared drying, die cutting and rewinding finished once.
1. Main motor adopts imported electric frequency speed regulation.
2. Automatic tension control is used for unwinding.
3. Ultrasonic rectification is used for web guide.
4. Part of the printing, using ceramic anilox rollers, has the characteristics of long service life, wear resistance, corrosion
resistance.
5. Printing unit adopts 360 degree weekly alignment adjustment. The printing units can be individually joined or loosened so that
other printing units continue to print.
6. Each printing unit is equipped with infrared drying device.
7. Machine with die cutting function.
8. Automatic metering.
9. Parking roller can be automatically disengaged, and low speed dynamic convey to prevent dry ink.
10. Rolls for paper, printing, automatic infrared drying, die cutting and rewinding finished once.
Technical Parameter
Model | RY1-320 | RY1-450 | RY1-560 | RY1-850 |
Printing speed | 100m/min | 100m/min | 100m/min | 100m/min |
Printing color | 1 | 1 | 1 | 1 |
Paper max width | 320mm | 450mm | 560mm | 560mm |
Max printing width | 310mm | 440mm | 550mm | 550mm |
Max unwinding diameter | 600mm | 600mm | 600mm | 600mm |
Max rewinding diameter | 550mm | 550mm | 550mm | 550mm |
Printing perimeter | 175-320mm | 175-320mm | 175-320mm | 175-320mm |
Precision | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
Application Scene
Cold Foiling Stamping Labels & Stickers
√ Metallization printing effect
Varnishing & UV Glazing
√ Varnishing
Full Color Printing Labels & Papers
√ Full color printing
Details Images
Advantages
Automatic Cylinder Lifting
Automatic cylinder lifting when machine stop, to avoid the material soak in ink too long time to broken

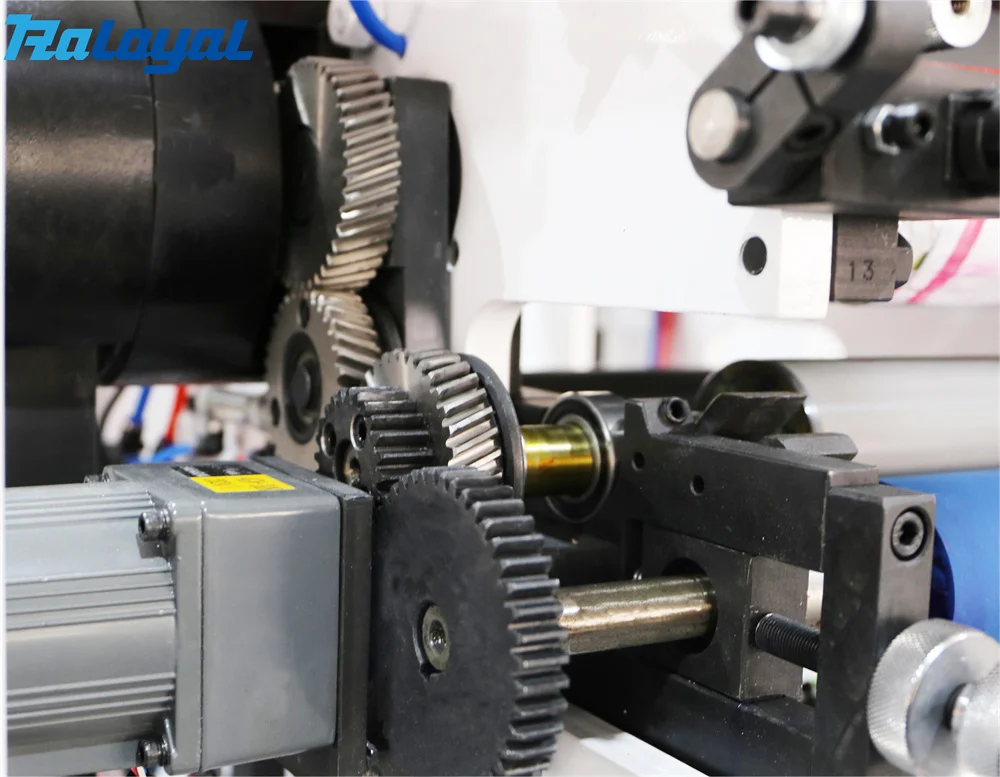

Self Processing Gear + Bevel Gear
This gear is made by ourself, self processing gear+bevel gear to arrure the printing precision also lifetime
PLC and Touch Screen Control
PLC touch screen control as standard, friendly operation
Schneider Inverter
Schneider Electric
Corona Treatment
Corona treatment for film material
Customer Feedback
Related Products
Why Choose Us
1. Quality Control
Incoming Quality Control
Our quality team will inspect the incoming parts before storage by sampling.
Process Quality Control
Our quality team will pick the first pcs of each kind part to inspect before assembly and also inspect randomly on site.
Outgoing Quality Control
Our quality team will inspect the machine’s appearance, features and characteristic etc. before delivery to meet and exceed client’s expectation.
2. Packing & Delivery
3. Certifications
4. Our Service
Inquiry and consulting support.
Sample material testing support.
Lead the customer to visit our factory if required.
12 months guarantee, life-long time technic maintenance and support.
Online Guidance support. Spare parts supports.
24 Hours * 7 days service online.
Company Profile
COMPANY PROFILE
Ruian Loyal Machinery Co.,Ltd located in Ruian city, southeast of China, specializing in the slitting machine, die cutting machine, printing machine making for more than 10 years in the application of label /flexible packing /electric protector film/new energy and paper industry.
RaLoyal have been always devoted to provide a global solution to the demands of markets in constant development with competitive and tailored equipment including the latest solutions in innovation, technology and sustainability for customers. We have set agent in Germany,Venezuela, which can provide immediate technical support available to minimize the waiting time for customers.
We deeply believe that Raloyal will become your loyal partner and supplier once we have a chance to start the cooperation!
