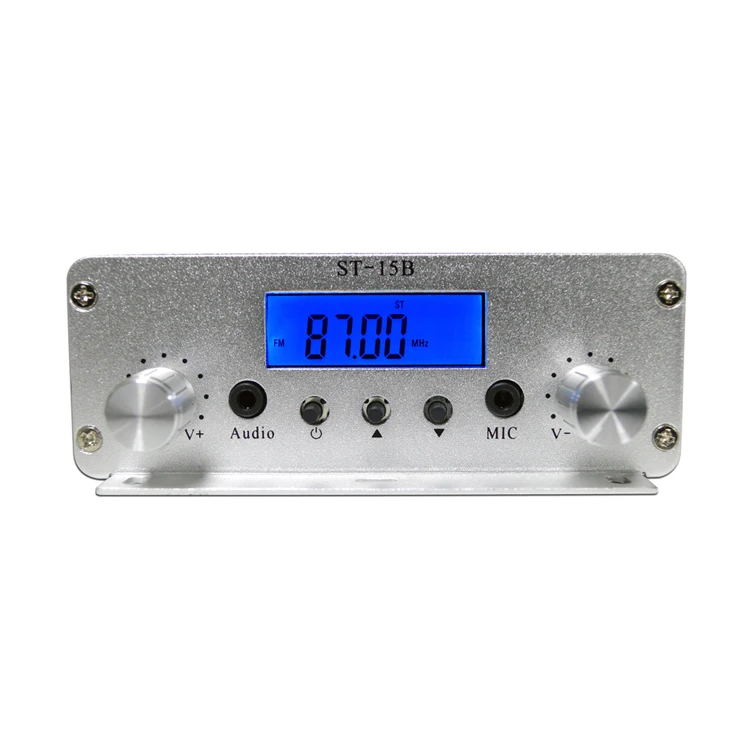

Передатчик FM 15 Вт ST-15B стерео PLL FM-радио передатчик с блоком питания 87 мхц-108 мхц-100
74,00 $ - 76,00 $

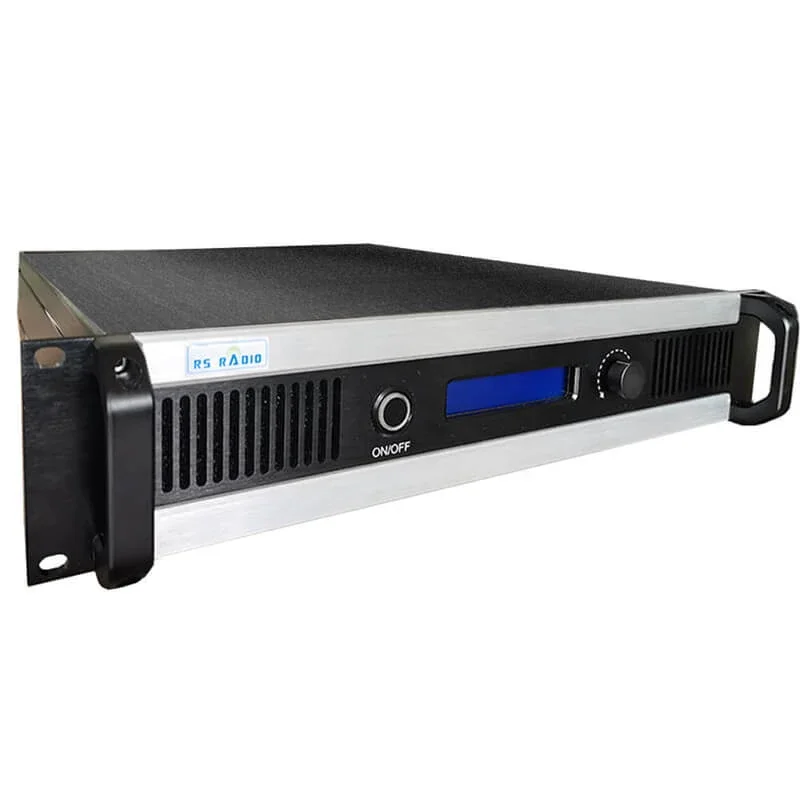

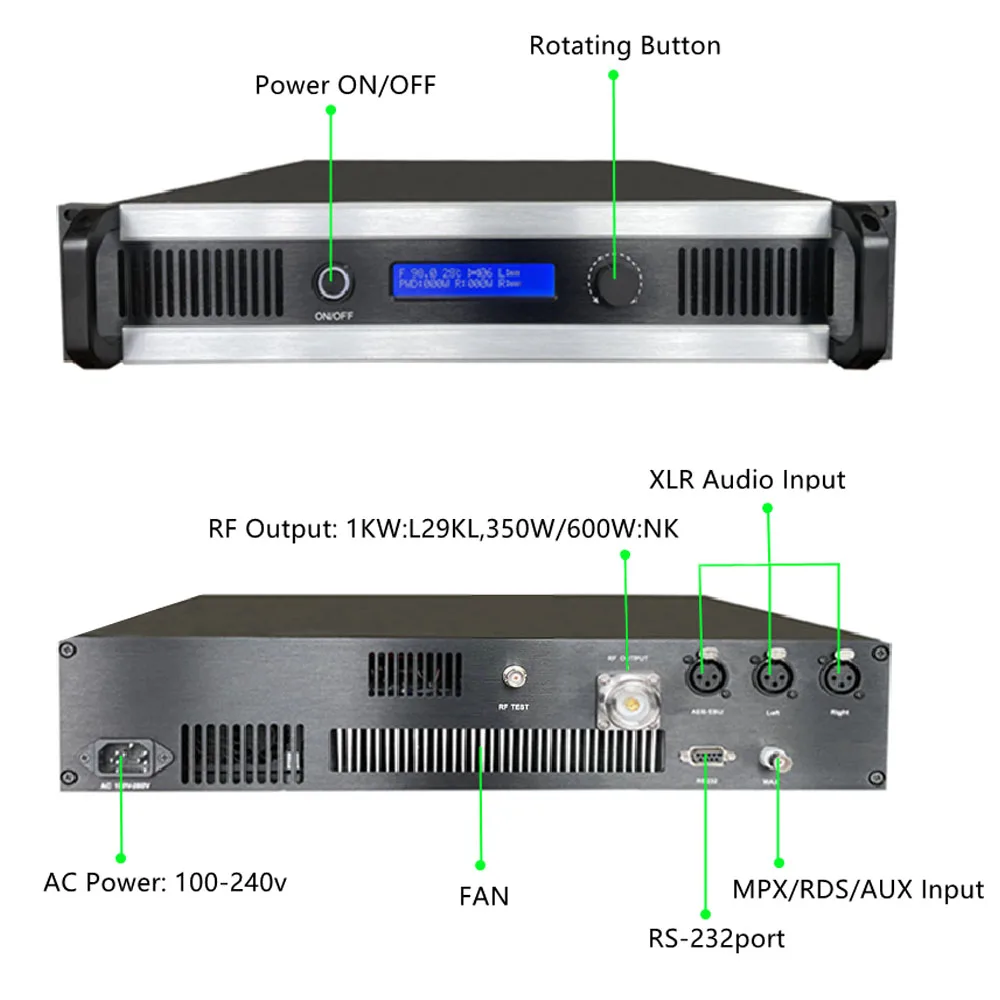

FM трансмиттер RS 500 Вт для комплекта трансляций
- Категория: Radio & TV Broadcasting Equipment >>>
- Поставщик: Liaoning Risheng Electronic Technology Co. Ltd.
Сохранить в закладки 1600501392979:
Описание и отзывы
Характеристики
Product Details
The DSP(Digital Sound Processing) technology makes the RS- FM500W FM transmitter an enjoyable sound broadcasting device for all music lovers, you’ll no longer be bothered by the noises or distortions.
As quality assurance, RS RADIO Provides 5 YEAR warranty for this professional broadcast transmitter, you’ll have no worries to use it for the radio station.
As quality assurance, RS RADIO Provides 5 YEAR warranty for this professional broadcast transmitter, you’ll have no worries to use it for the radio station.
Product Description
1. Frequency Range： | 87.5MHz ~108 MHz |
2. Frequency Setting step： | 10KHz |
3.Carrier Frequency precision： | ±200Hz |
4.Residual Wave Radiation： | ≥65dBc |
5.Audio Input Impedance： | 600Ω,Balance |
6.Separation： | 60dB Pilot Signal Modulation：8%~10% |
7.Sub-carrier Suppression： | ≥65dB |
8..Audio Input Level： | ±10dBm,step 0.01dB |
9.S/N： | ≥75dB(30H~15kHz,100%) |
10.Audio Harmonic Distortion： | <0.05% |
11.Audio response： | ±0.05dB(30Hz~15KHz) |
12..Output Load Impedance： | 50Ω |
13.Output Power： | 0~500W |
14.Deviation： | ±75kHz |
15.Size： | 460mm*480mm*88mm |
16.Weight： | 15KG |
Product Application
FREQUENTLY APPLICABLE USES:
1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
1). Community Radio stations
2). LPFM radio stations
3). City radio stations
4). Christian Church radio stations
Features
Features:
1. PRIMARY APPLICATION: high quality at a very attractive price.Ideal for use as transmitters in stand-alone applications.
Adjustable power output from 10 to 100%.
2. RELIABILITY/CONTINUITY: APC (Automatic Power Control) and Foldback protection ensure reliable operation under any operating conditions.
3. AUDIO PERFORMANCE: low distortion and intermodulation values and a high noise/signal ratio.
4. OPERATING EFFICIENCY: incorporate a PFC (Power Factor Corrector) power supply, that provides the utmost efficiency for enhanced energy saving and environmental protection, which added to LD-MOSFET technology ensure high efficiency, better than 70% across the bandwidth.
5. EASE OF MAINTENANCE: advanced module engineering ensures extreme of access and simple maintenance. Includes an high performance air filter. The power supply is plug-in type, easily removable.
6. INTERFACE CONTROL: total control thanks to microprocessor easily programmed from menu with all key parameters displayed on LCD.

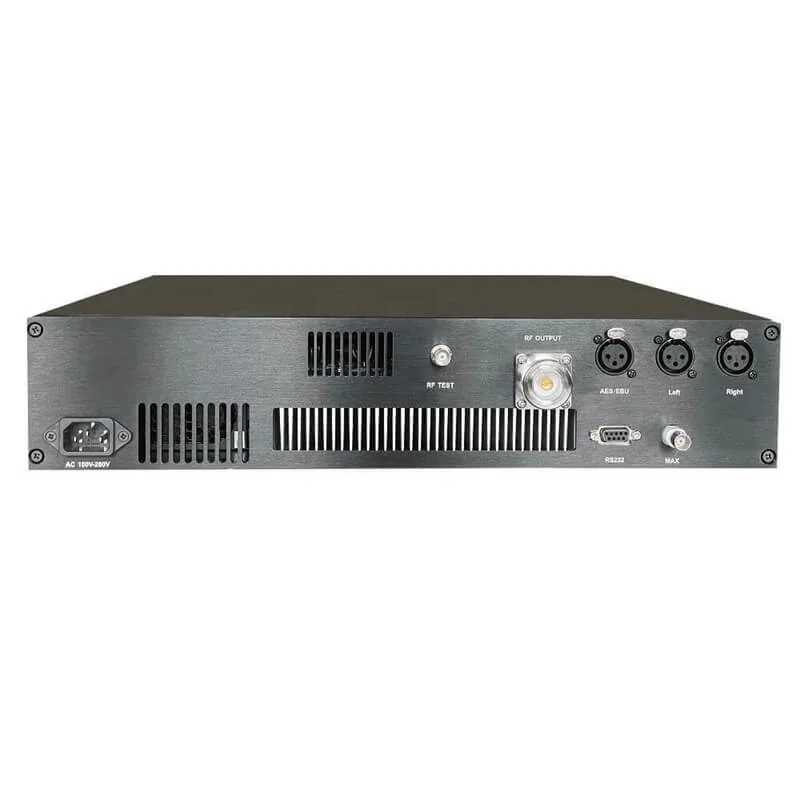

7. INPUT/OUTPUT INTERFACE: built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals. TOSLINK, AES/ EBU digital audio inputs are available as an option.
8. REMOTE CONTROL: built-in telemetry system via GSM modem or via WEB/SNMP (option).
9. REGULATORY COMPLIANCE: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.
1. PRIMARY APPLICATION: high quality at a very attractive price.Ideal for use as transmitters in stand-alone applications.
Adjustable power output from 10 to 100%.
2. RELIABILITY/CONTINUITY: APC (Automatic Power Control) and Foldback protection ensure reliable operation under any operating conditions.
3. AUDIO PERFORMANCE: low distortion and intermodulation values and a high noise/signal ratio.
4. OPERATING EFFICIENCY: incorporate a PFC (Power Factor Corrector) power supply, that provides the utmost efficiency for enhanced energy saving and environmental protection, which added to LD-MOSFET technology ensure high efficiency, better than 70% across the bandwidth.
5. EASE OF MAINTENANCE: advanced module engineering ensures extreme of access and simple maintenance. Includes an high performance air filter. The power supply is plug-in type, easily removable.
6. INTERFACE CONTROL: total control thanks to microprocessor easily programmed from menu with all key parameters displayed on LCD.
7. INPUT/OUTPUT INTERFACE: built-in high-performance stereo coder, L&R analogue audio inputs, Mono inputs, MPX composite signal and auxiliary inputs for SCA / RDS signals. TOSLINK, AES/ EBU digital audio inputs are available as an option.
8. REMOTE CONTROL: built-in telemetry system via GSM modem or via WEB/SNMP (option).
9. REGULATORY COMPLIANCE: state-of-the-art technology in full compliance with EC, FCC and CCIR standards.
OUTSTANDING FEATURES:
1) OVERHEAT PROTECTION:
The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
1) OVERHEAT PROTECTION:
The transmitter will switch to auto-protection with alarm message and a beep sound once the working temperature gets higher than normal range.
2) OVER SWR PROTECTION:
SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM
When the fan stops running, the alarm message will be displayed on the screen
4) ADJUSTABLE POWER OUTPUT
The RF out of this 500w FM transmitter is continuously adjustable from 0-500 watt at the stepping of 0.1watt, which means you can tune it to 50w...100w...300w...,500with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs.
The transmitter implements digital FM modulator module as its core,combining with RF power amplifier.In the transmitter,DSP&DDS are used to execute all-digital processing,
such as digital filtering,pre-emphasis,the generation of pilot frequency,stereo coding and FM modulating.A AGC circuit is used to keep the set power stable.
High performance and very good reliability has been proved by the large usage of RS RADIO-500W transmitters.Also it is low cost and small size.
RF amplifier uses NXP LDMOS transistor BLF188XR, making it able to withstand severe load mismatch of more than 65: 1 VSWR at 5dB compression point.
SWR is the indication of antenna system connection with transmitter. Once the connection is bad and causing a high SWR Value, the transmitter will switch to automatic protection mode by showing alarm message on the screen with a beeping sound meanwhile.
3) FAN ERROR ALARM
When the fan stops running, the alarm message will be displayed on the screen
4) ADJUSTABLE POWER OUTPUT
The RF out of this 500w FM transmitter is continuously adjustable from 0-500 watt at the stepping of 0.1watt, which means you can tune it to 50w...100w...300w...,500with just one transmitter you’ll get multiple modes of outputs and easy to tune as per your needs.
The transmitter implements digital FM modulator module as its core,combining with RF power amplifier.In the transmitter,DSP&DDS are used to execute all-digital processing,
such as digital filtering,pre-emphasis,the generation of pilot frequency,stereo coding and FM modulating.A AGC circuit is used to keep the set power stable.
High performance and very good reliability has been proved by the large usage of RS RADIO-500W transmitters.Also it is low cost and small size.
RF amplifier uses NXP LDMOS transistor BLF188XR, making it able to withstand severe load mismatch of more than 65: 1 VSWR at 5dB compression point.
Certificate
Payment and shipping
Contact Information
Похожие товары

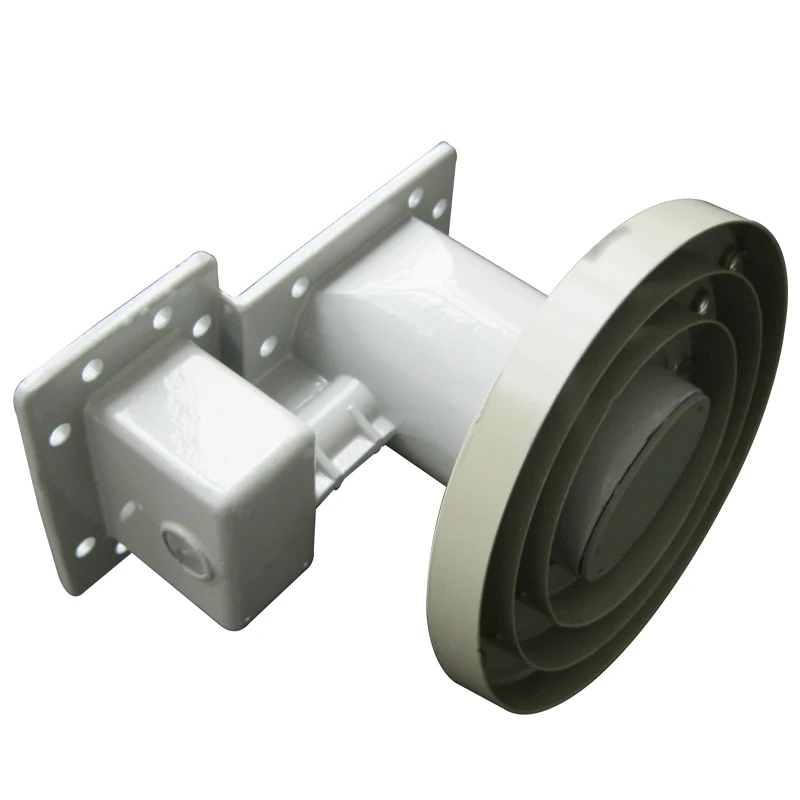

Заводская цена исходный сигнал с двойной поляризацией для диапазона c lnb приема спутникового
Поставщики Бесплатная пробная версия тестовый сервер smarters xnxx смарт-12 месяцев лучший телевизионный liste список каналов коробки с кодом ХХХ 4k m3u
20,00 $ - 29,00 $

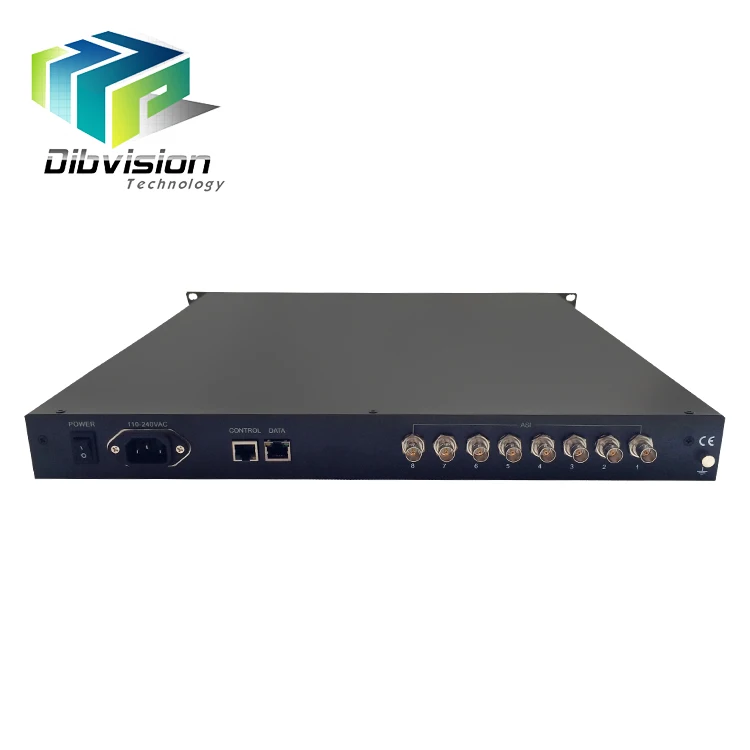

Цифрового ТВ 8-канальный asi/ip к asi Мультиплексор и скремблер до 4 CAS одно-cryption
Манекен

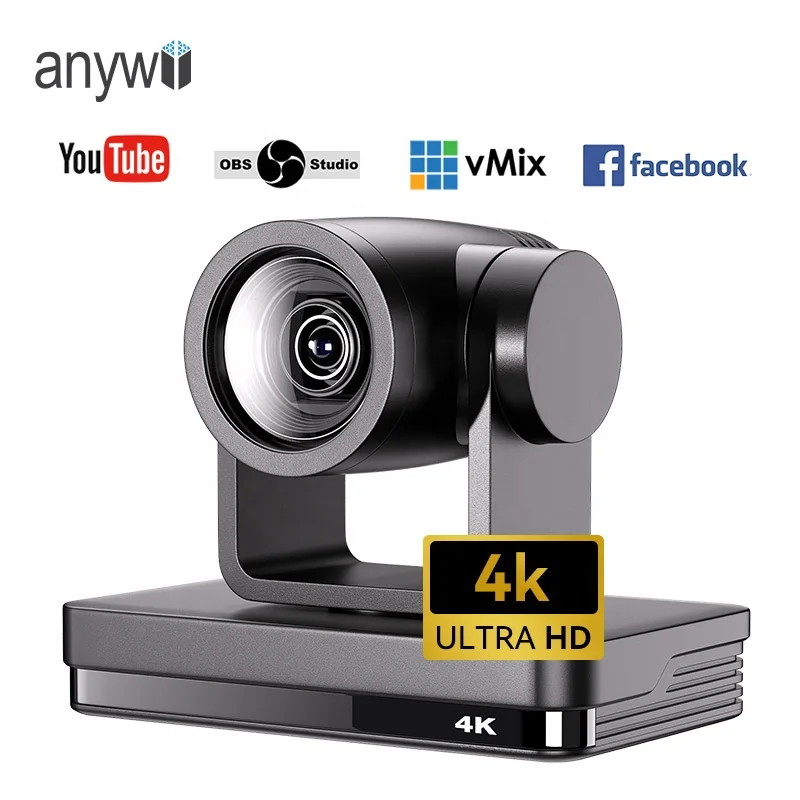

Anywii ndi hx live stream 4k ptz камера Профессиональная прямая трансляция ip poe для прямой трансляции sdi
460,00 $ - 520,00 $
Хрустальная панель IPTV подписка реселлер iptv m3u Поддержка android и smart tv все
16,90 $ - 23,40 $

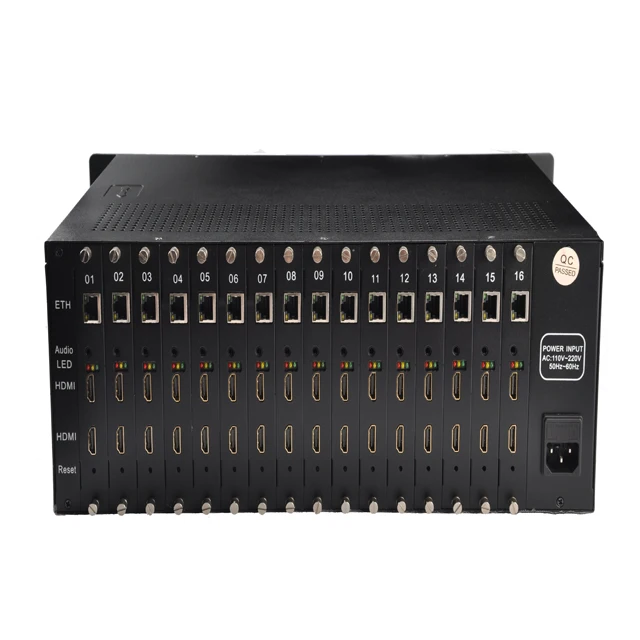

DMB-8916plus 16 каналов h.265 HDMI кодировщик кодирующее устройство телевидения по протоколу Интернета для IPTV/OTT программы
