Сварочный аппарат для производства топливных баков мотоциклов
3 000,00 $ - 5 000,00 $
Пневматический сварочный аппарат tig для обода автомобиля и
- Категория: Seam Welders >>>
- Поставщик: Bobo Machine Co. Ltd.
Сохранить в закладки 1600501436196:
Описание и отзывы
Характеристики
Product Description
Summary

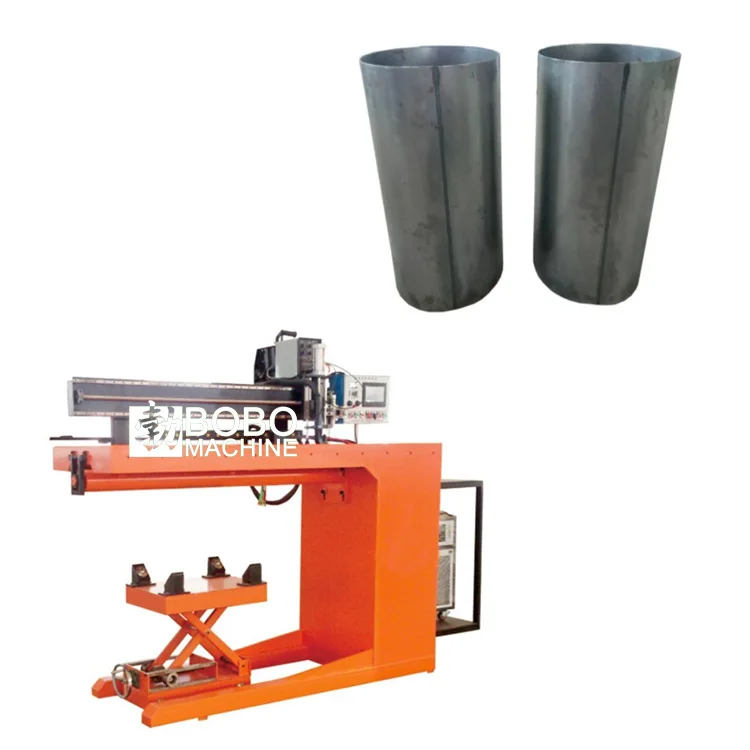

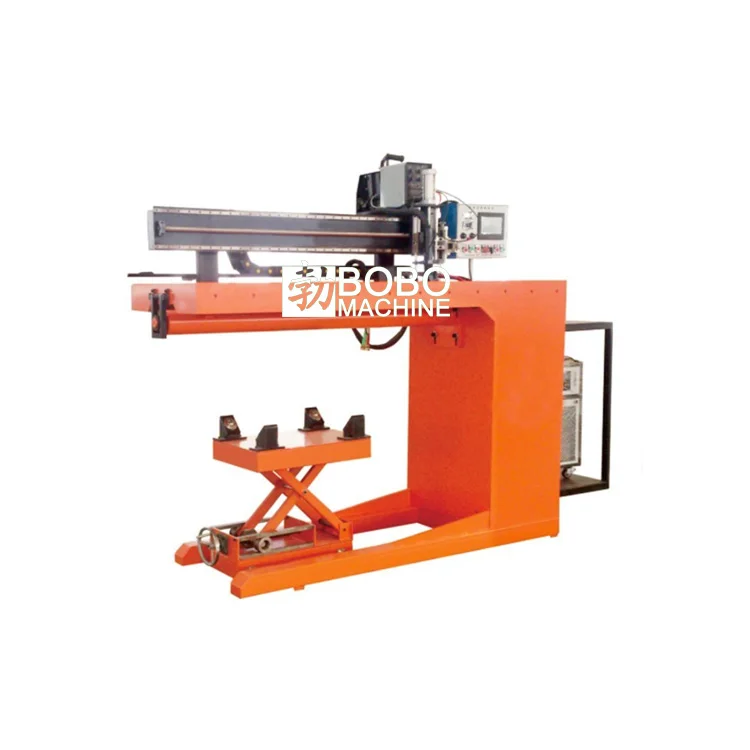

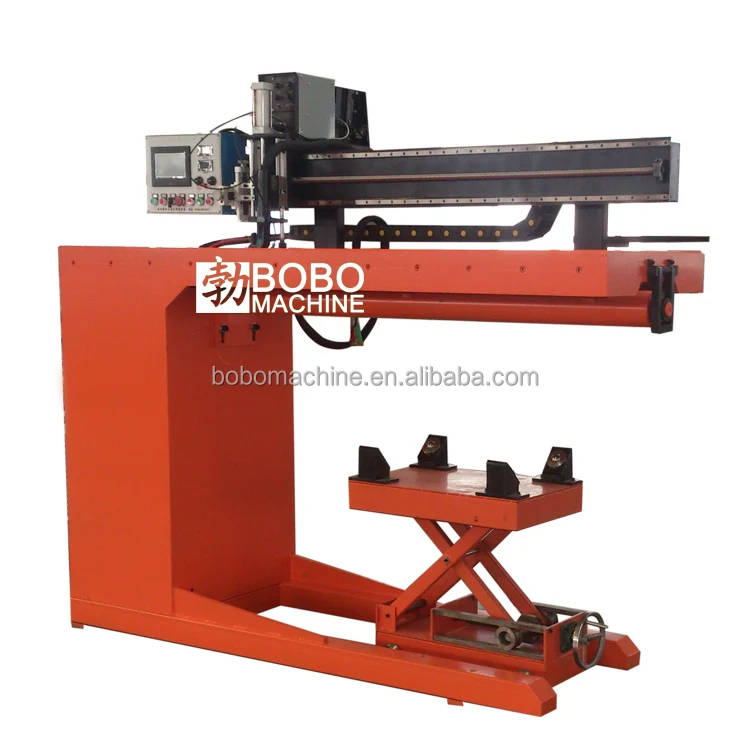

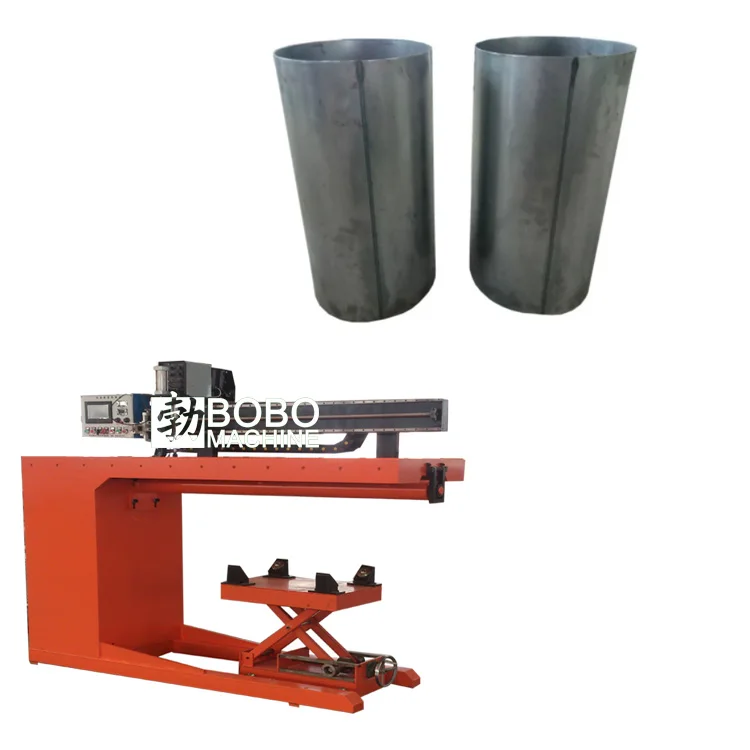

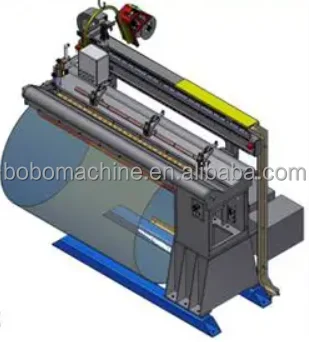

The welding machine adopts suspension structure, annealing stress treatment after welding of two suspension beams to ensure that the beam length is not deformed, pneumatic keyboard type pressing structure, along the straight seam on both sides of the close arrangement to ensure that the butt weld in the whole welding length range of uniform pressing, the left and right keyboard pressing plate spacing can be adjusted to adapt to the welding of different workpiece. According to the thickness size of the workpiece, airbag type is used to ensure enough compression force to prevent thermal deformation in the welding process. Welding shaft core inlaid with copper lining plate, according to the cylinder or plate workpiece processing different welding process groove, groove center has a vent, provide gas protection function of welding back, to achieve the purpose of single-sided welding double-sided forming. All cables, air lines are installed in the drag chain, neat appearance and avoid cable breakage. High precision welding walking system is used to weld high quality and low deformation linear welds (manual adjustment can be assisted if necessary during the welding process).
Specification
Model | BO-1000 |
Weld length of workpiece | ＜1000mm |
Diameter of workpiece cone | 50-1100mm |
Thickness | 6.5mm |
Butt clearance and staggered side | ≤0.2mm |
Deviation of seam line | ＜0.5mm |
Control input power | 220V 50HZ |
The host power | 1KW (excluding welding power supply) |
Load duration | 100% |
Mobile stroke | 1000mm |
Cross trimming stroke | X100 mm,Y100 mm |
Lifting stroke of welding gun | 75mm |
Equipment size (l × W × H) | 1900mm×1000mm×2200mm |
Packing and Shipping
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
About Us
FAQ
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q: What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
