OEM 355V 96Ah литий ионный EV аккумуляторной батареи 345V 100AH 200AH LiFePO4 35Kwh 40Kwh 50Kwh по созданию электрических транспортных средств пакеты
- Категория: Auto Batteries >>>
- Поставщик: Hunan CTS Technology Co. LTDHunan LTD
Сохранить в закладки 1600501481396:
Описание и отзывы
Характеристики
CTS High Power 50kwh 100kwh ev car battery pack lithium ion for car 400V 614V 100ah 200ah electric car lithium battery
╣Our Advantages
✅ 12+ Years battery experience.
✅ Cost-effective solutions .✅ Low MOQ: 10-1000 EVs per year.
✅ 30+ people R&D team, expert in custom product development .
✅ 24 hours quick response and expert technical support.
✅ One Stop Battery Solution (Battery + PDU + OBC + DC Charger )

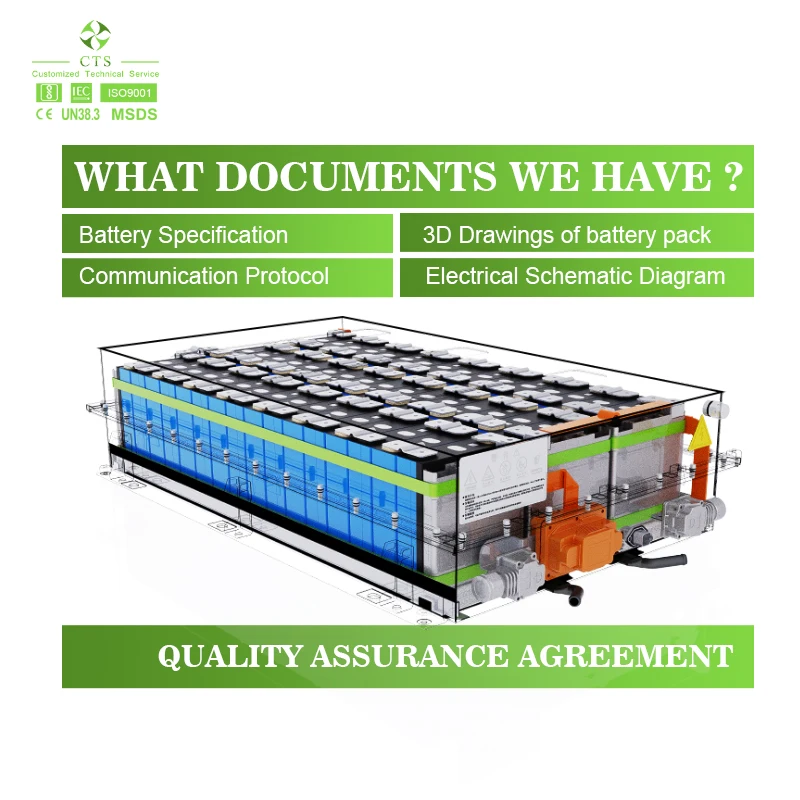

✅ Clear Technical Documentation(Battery Specification, 3D Drawings, Electrical Schematic Diagram, Communication Protocol, Quality Assurance Agreement)
✅ Clear Technical Documentation(Battery Specification, 3D Drawings, Electrical Schematic Diagram, Communication Protocol, Quality Assurance Agreement)
╣PRODUCT DESCRIPTION
Parameters of 614v 100Ah Lifepo4 battery (Chat with engineer here !!!) | ||||||
No. | Items | Technical requirement | Note | |||
1 | Battery Type | Lifepo4 | 20S | |||
2 | Capacity | 100Ah | @25℃ | |||
3 | Volatge | 614.4V | ||||
4 | Power | 61.44kWh | ||||
5 | Weight | 500kg | ||||
6 | Working Voltage range(DC ) | 480-700.8V | ||||
7 | Continuous discharge current | 100A | @EOL，@25℃ | |||
8 | Peak discharge current | 200A | For 30 seconds | |||
9 | Dimension (L/W/H, mm) | 1780*720*345mm, | ||||
10 | Cooling method | Liquid cooling | ||||
96V 144V 320V 400V battery packs | ||||||||||
Models | CTS72200 | CTS96300 | CTS144200 | CTS345210 | CTS400100 | |||||
Battery Type | Lifepo4 | Lifepo4 | NMC | Lifepo4 | Lifepo4 | |||||
Voltage | 73.6V | 102.4 | 144V | 345.6V | 400V | |||||
Capacity | 200Ah | 300Ah | 200Ah | 210Ah | 100Ah | |||||
Energy(kWh) | 14.7kWh | 30.72KWh | 28.8kWh | 72.58kWh | 40kWh | |||||
Working Voltage range | 57.5~83.95V | 80~116.8V | 120~168V | 270~394V | 315~456V | |||||
Continuous discharge current | 200A | 300A | 200A | 210A | 100A | |||||
Peak discharge current | 500A | 600A | 500A | 600A | 300A | |||||
Max charge current | 100A | 150A | 100A | 210A | 100A | |||||
Dimension（mm） | 750*530*245 | 1200* 500* 380 | 1000*600*245 | 1800*880*300 | 1200*680*280 | |||||
Weight | 118kg | 230kg | 195kg | 650kg | 320kg | |||||
Models | CTS537150 | CTS614100 | CTS614206 | CTS614412 | CTS800150 | |||||
Battery Type | Lifepo4 | Lifepo4 | Lifepo4 | Lifepo4 | Lifepo4 | |||||
Voltage | 537.6V | 614.4V | 614.4V | 614.4V | 800V | |||||
Capacity | 150Ah | 100Ah | 206Ah | 412Ah | 150Ah | |||||
Energy(kWh) | 80.64kWh | 61.44kWh | 126kWh | 253kWh | 120kWh | |||||
Working Voltage range | 480~700.8V | 480~700.8V | 480~700.8V | 480~700.8V | 625~912V | |||||
Continuous discharge current | 100A | 100A | 200A | 400A | 150A | |||||
Peak discharge current | 300A | 300A | 600A | 800A | 250A | |||||
Max charge current | 100A | 100A | 200A | 400A | 150A | |||||
Dimension | 1780*720*345 | 1780*720*345 | 1060*630*245 *4pcs | 1060*630*245 *8pcs | 2300*850*400 | |||||
Weight | 520kg | 520kg | 950kg | 1760kg | 1000kg | |||||
╣Related Products
Application field
Hunan CTS Technology Co.,ltd (CTS Battery) is a leading provider of customized EV battery solutions, for electric cars, buses, trucks, boats, and engineering vehicles etc...
Company Profile
Hunan CTS established in 2011, which is a manufacturer specializing in the R & D, production, sales and service of lithium battery cells and lithium battery packs, focusing on one-stop customized lithium battery products, such as electric vehicle batteries, electric truck batteries, electric boat batteries, energy storage battery system, mobile charging station etc...
With Thirty-people R& D team who has rich experience, CTS focuses on power battery customization for middle and high end markets by selecting first grade lithium cells with high energy density. We always followed Strict quality control ensures the higher quality of products. With the concept of "customers the first, quality the life", we strictly follow I S O 9 0 0 1 and I A T F 16949 management system through the production of every detail, each battery must be strictly tested before its delivery. our battery products selling well in all cities and provinces around China, also exported to multiple countries around the world，such as ,America, Australia, Canada,Italy, U K, Germany, South Korea, Thailand, etc. our battery products approved MSDS, UN38.3, CE, IEC 62619 certifications...
With Thirty-people R& D team who has rich experience, CTS focuses on power battery customization for middle and high end markets by selecting first grade lithium cells with high energy density. We always followed Strict quality control ensures the higher quality of products. With the concept of "customers the first, quality the life", we strictly follow I S O 9 0 0 1 and I A T F 16949 management system through the production of every detail, each battery must be strictly tested before its delivery. our battery products selling well in all cities and provinces around China, also exported to multiple countries around the world，such as ,America, Australia, Canada,Italy, U K, Germany, South Korea, Thailand, etc. our battery products approved MSDS, UN38.3, CE, IEC 62619 certifications...
