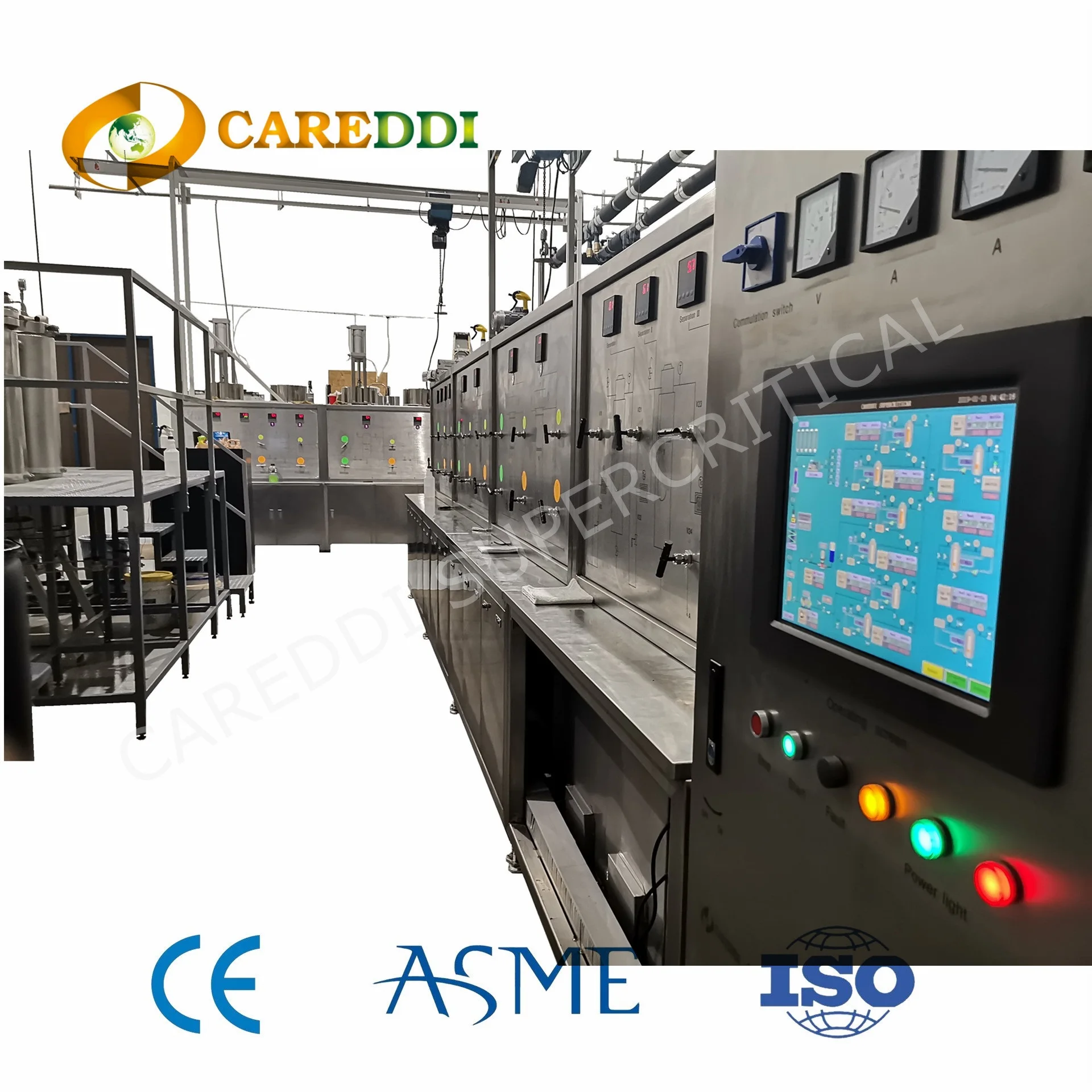

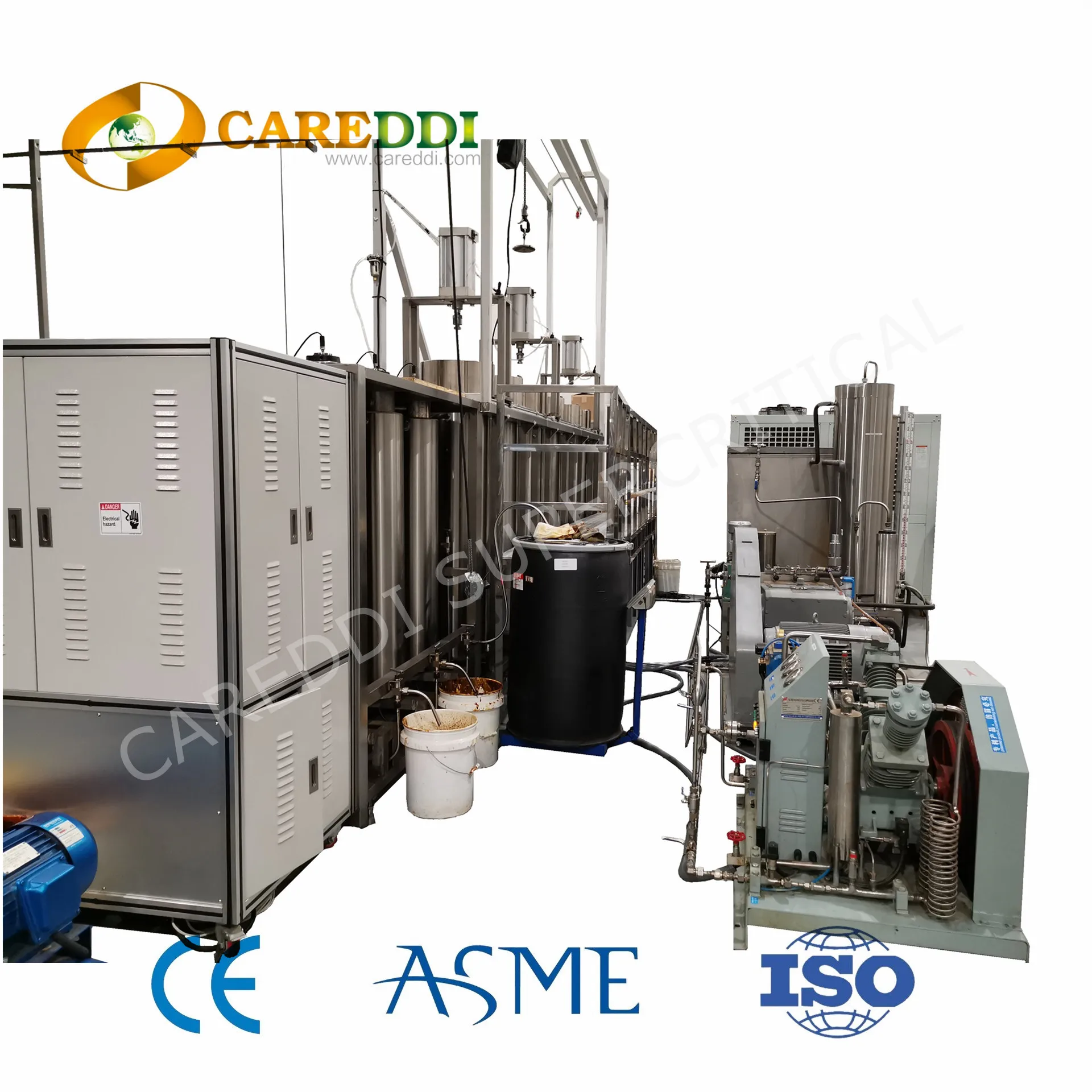

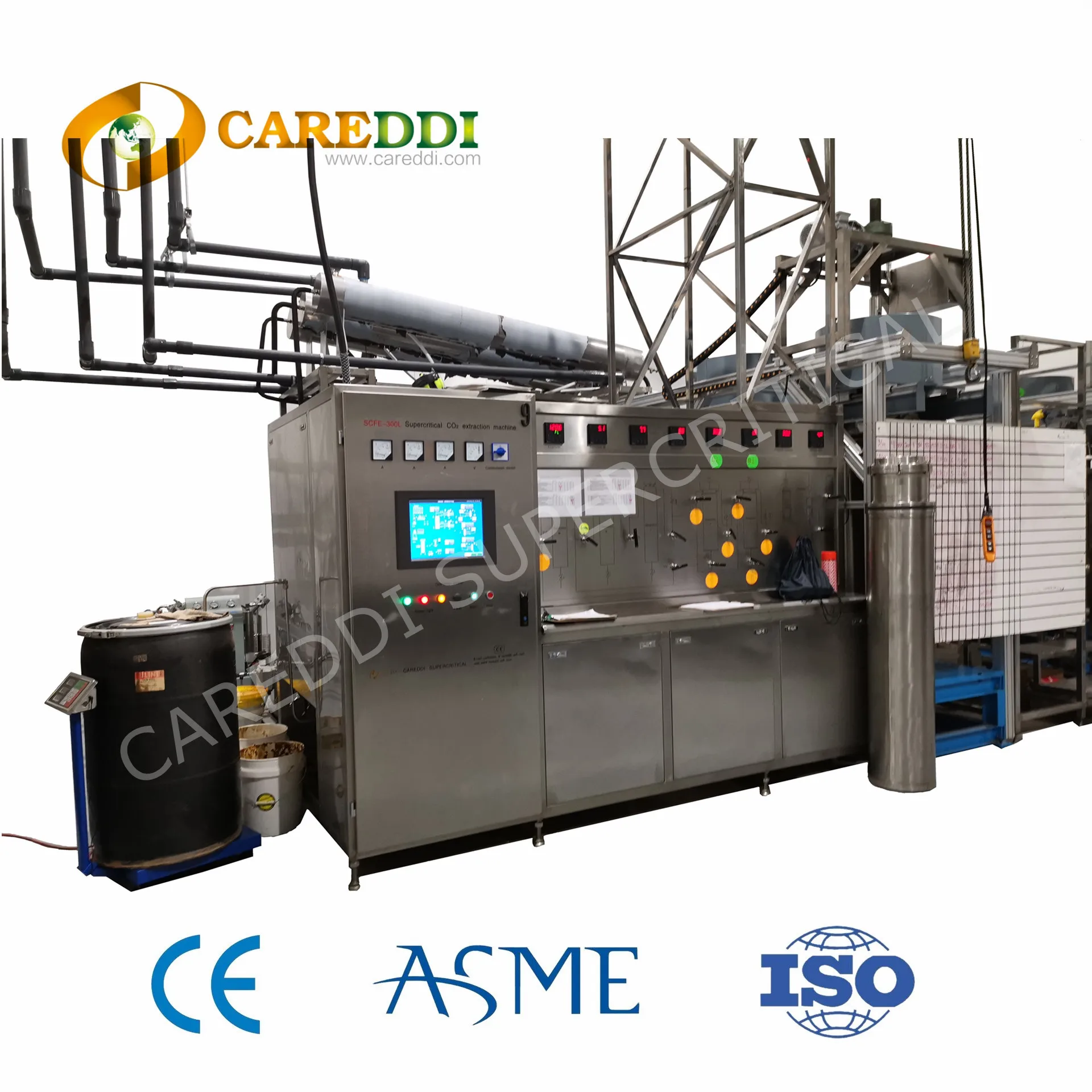

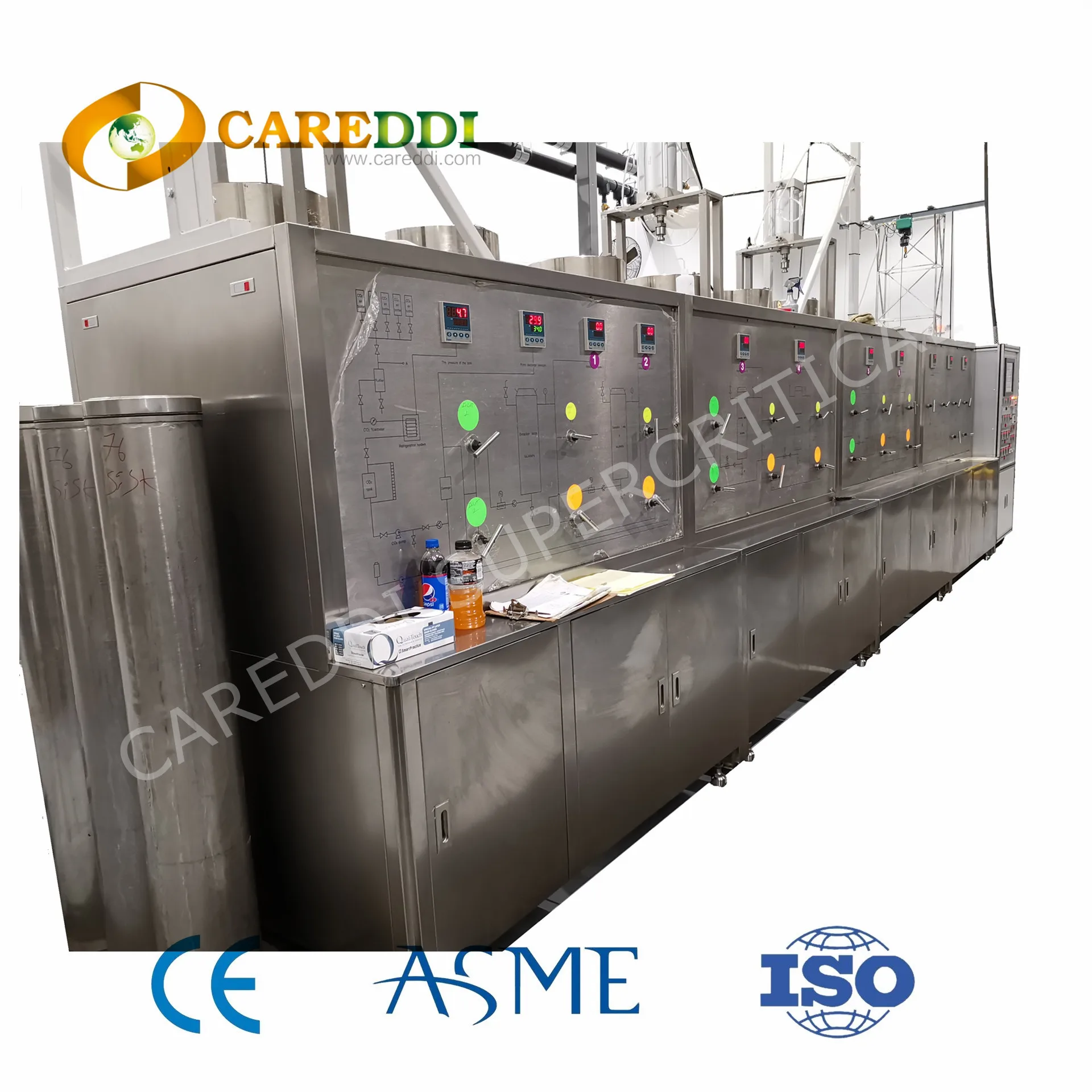

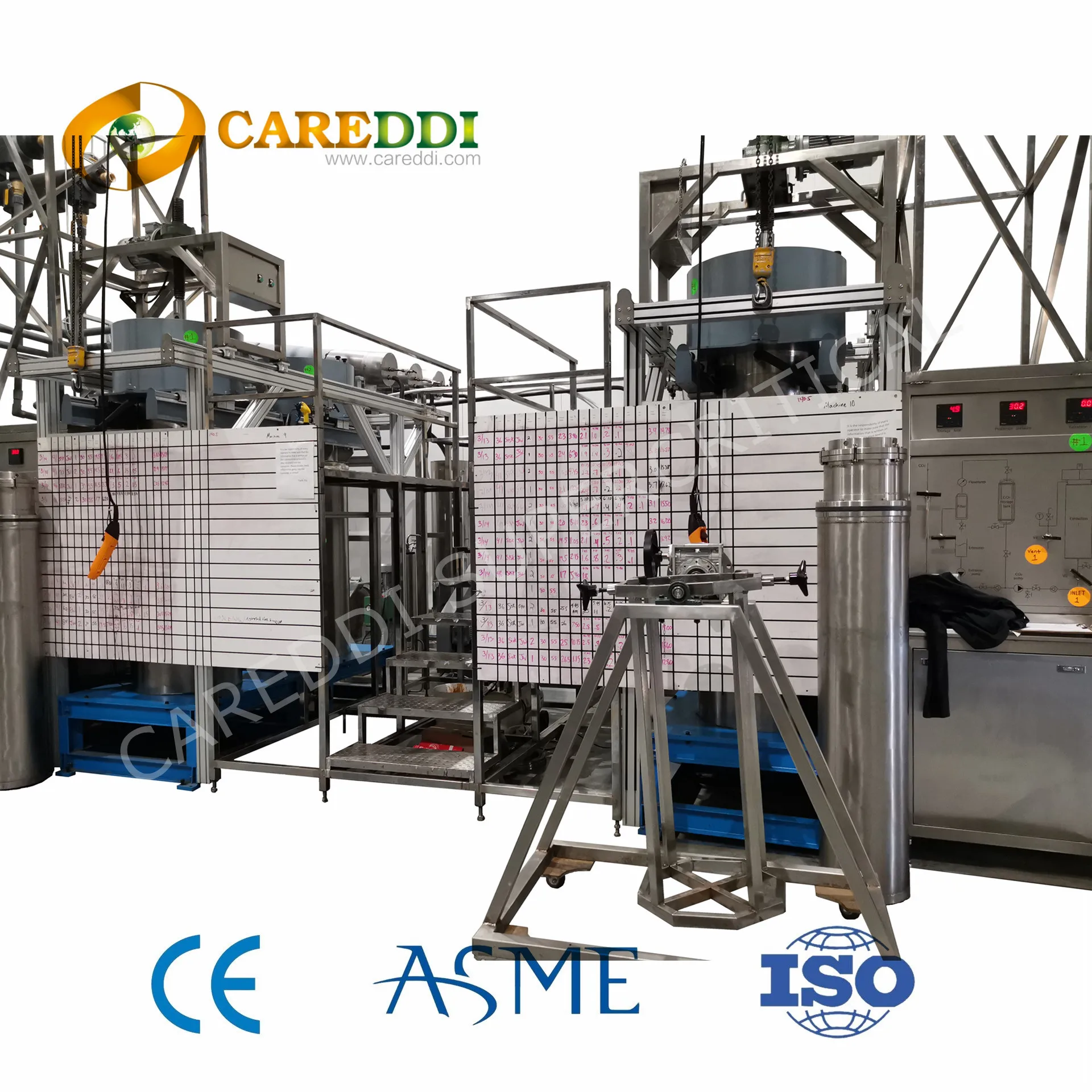

Лидер продаж в США модель 300L (50Lx6) специально разработанная для Экстракции Масла сверхкритическое оборудование экстракции
- Категория: Chemical & Pharmaceutical Machinery >>>
- Поставщик: Careddi Technology Co. Ltd.
Сохранить в закладки 1600501558697:
Описание и отзывы
Характеристики
Product Description
What is Supercritical CO2 Fluid Extraction Machine (What is supercritical co2 extraction?)
Supercritical Fluid Extraction (SFE) is a type of extraction method technology using supercritical fluid as the solvent to separate the valuable ingredients from the raw biomass material.
For example to extract essential oils from all kinds of plants, ginger oil, nutmeg oil, black coffee oil, vanilla oil, seabuckthorn seeds oil, frankincense oil, nicotine etc. The most popular supercritical fluid is carbon dioxide (CO2) as CO2 is clean, innocuous and easily to get, especially the CO2 fluid has the characteristic of super solubility for fat-soluble ingredients at supercritical state.
In addition, the solubility of ingredients of different polarities, different density, and different molecular weights will change when we set different parameters of pressure, temperature and flow rate.
Therefore, we can optimize the best process conditions to separate the valuable ingredients by adjusting the temperature, pressure and flow rate.
●The best sale and top one model in USA specially designed for oil extraction and till now, over 100 sets have been sold to USA and Europe since the first set was made in 2016.
●The regular buyers include Gencanna, Zelios, Elemental processing, etc. It has two models, with and without Siemens PLC controlling system.
●Now we have new design with three separators and three filters based on the requirements of Gencanna for better extract results.

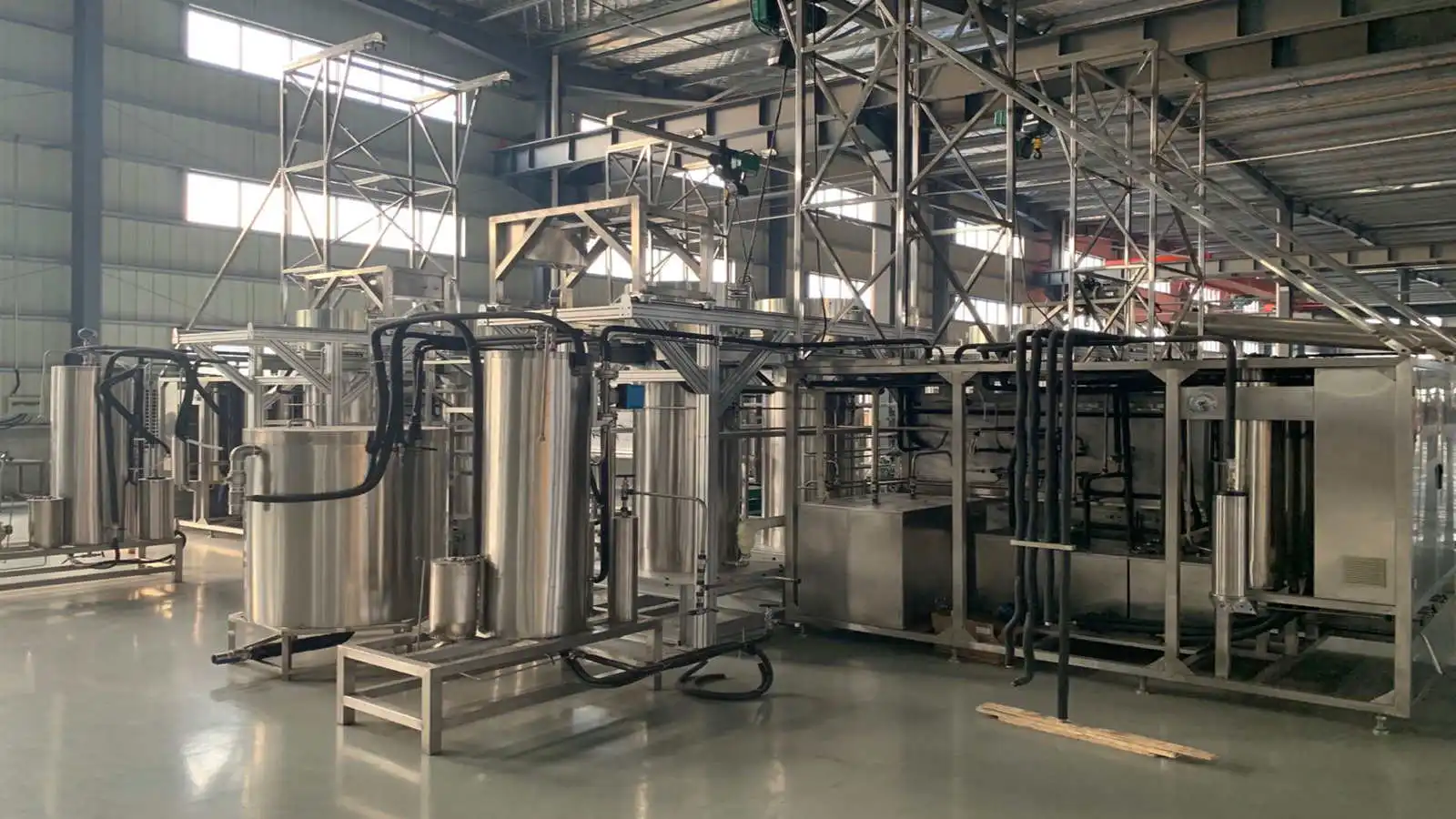

●About 10 sets of this model can be put together for biomass production
●Customized version is available.
Drawing

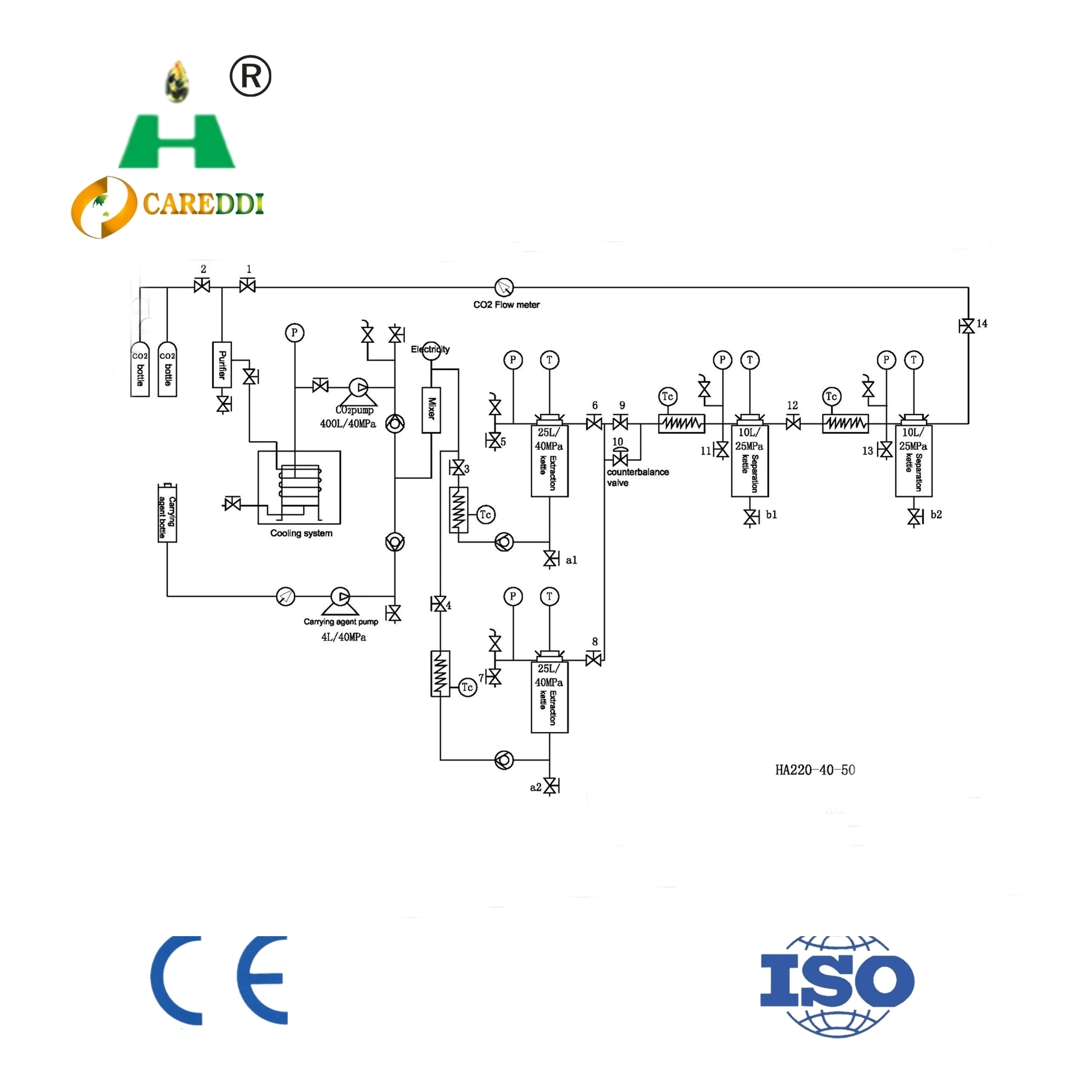

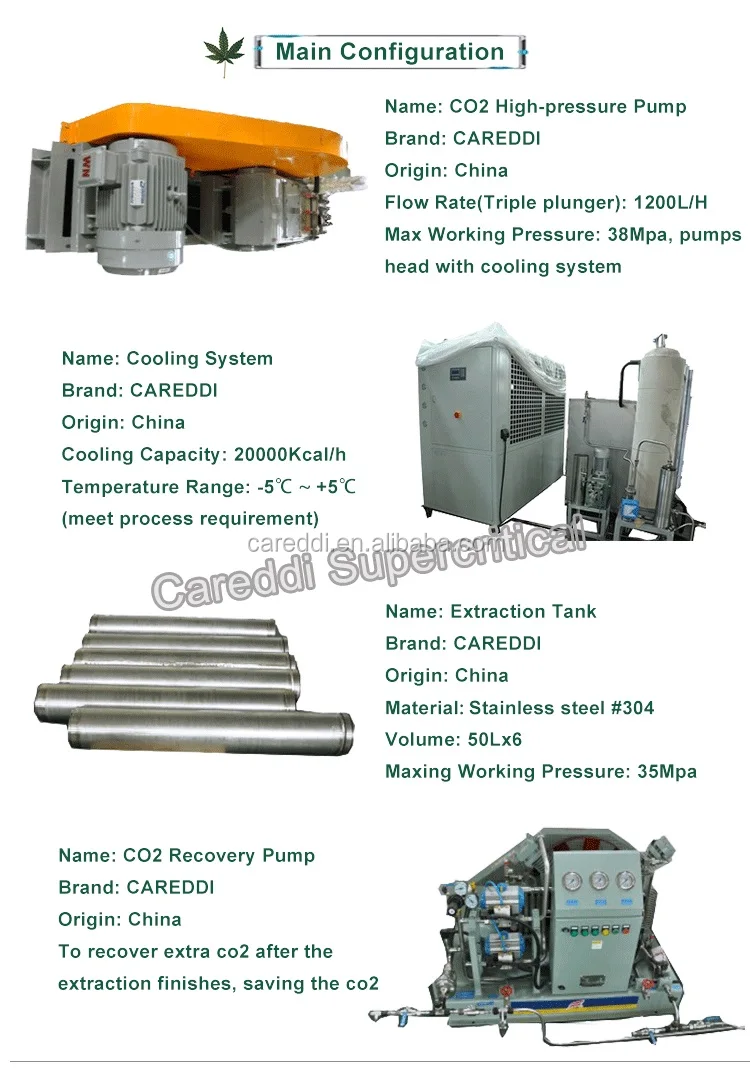

What does Careddi Supercritical CO2 Extraction System consist of?
Specification
item | value |
Place of Origin | China |
Jiangsu | |
Brand Name | Careddi |
Model Number | 1L |
Application | Liquid |
Condition | New |
Warranty | 2 years |
Applicable Industries | Manufacturing Plant |
Key Selling Points | Competitive Price |
Working principle and process of SCFE Extraction and Separation
(How does co2 extraction work?)
(How does co2 extraction work?)
The CO2 will become into liquid when the temperature is between 5-8℃ and the pressure is above 4.5Mpa. The chiller system can keep the CO2 circulation system in the temperature range of 5-8℃.The CO2 high pressure pump can pump the CO2 liquid into the extractors and increase the pressure to high pressure range of 35Mpa(the maximum pressure can be customized), and the pressure can be adjusted by back pressure regulator valve. The heating system can provide a suitable temperature to extractors and separators, and the temperature can be adjusted automatically.

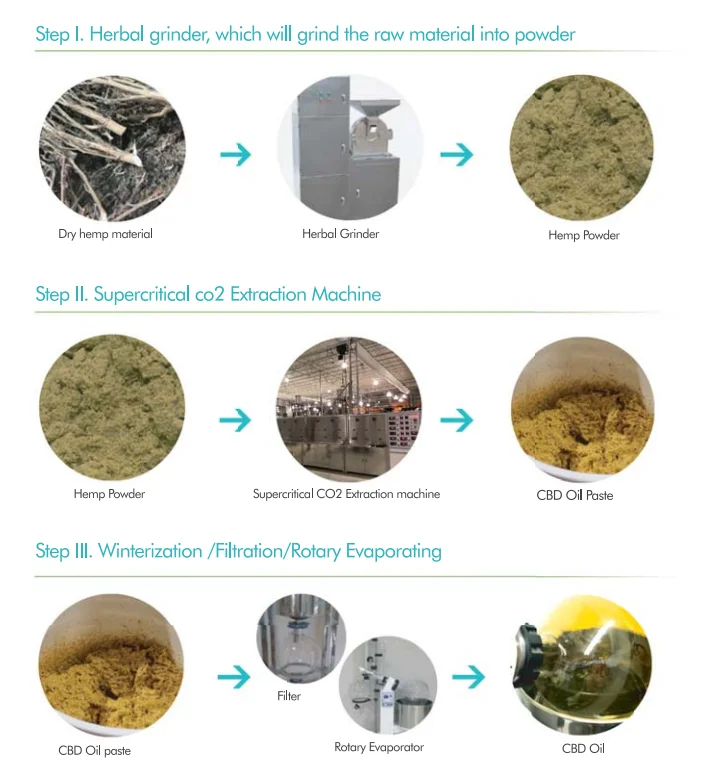

The extraction and separation process can be described as following steps.
1.Start running the chiller and heating system.(temperatures will meet the set points)
2.Loading raw biomass material into the cylinder of extractor.
3.Start running the CO2 high pressure pump, pumping CO2 into the extractor to increase the pressure to the optimized parameter.(Most of materials extraction pressure is between 15-35Mpa).
4.After the pressure meet the set point, open valve and let CO2 fluid circulated in the whole system. The CO2 fluid will enter into the extractor from the bottom, come out from top through raw biomass material. The valuable ingredients will be dissolved into the CO2 when CO2 go through, and come out together with CO2. The extraction happened.
5.The mixture of CO2 and valuable ingredients which come out from extractor will enter into the separators. The valuable
ingredients will be separated with CO2 in separators because of the separator has lower pressure, the valuable ingredients will be stored inside the separator and can be collected after 30 min extraction time.
6.Normally the extraction time is around 90 min if the oil rate is less than 20%, extraction time will be longer if the material
oil rate is higher.
Applications
Applications of Careddi Supercritical CO2 Extraction machine (essential oil extractor)
Careddi CO2 Extraction machine widely used as plant oil extractor for many kinds of plants.
Supercritical CO2 extraction for black coffee oil
Supercritical CO2 extraction for de-caffeine
Supercritical CO2 extraction for frankincense oil
Supercritical CO2 extraction for tobacco leaves oil, nicotine
Supercritical CO2 extraction for all kinds of seeds like grape seeds oil, seabuckthorn seeds oil, tea tree seeds oil.
Supercritical CO2 extraction for all kinds of herbs like citronella oil, angelica oil, orange peel oil, lemon grass oil, evening
primrose oil, rosemary oil etc.
Supercritical CO2 extraction for all kinds of spices like ginger oil, cinnamon oil, nutmeg oil, clove oil, turmeric oil, vanilla
oil, chili color oil, black pepper oil, mint oil etc.
Supercritical CO2 extraction for black coffee oil
Supercritical CO2 extraction for de-caffeine
Supercritical CO2 extraction for frankincense oil
Supercritical CO2 extraction for tobacco leaves oil, nicotine
Supercritical CO2 extraction for all kinds of seeds like grape seeds oil, seabuckthorn seeds oil, tea tree seeds oil.
Supercritical CO2 extraction for all kinds of herbs like citronella oil, angelica oil, orange peel oil, lemon grass oil, evening
primrose oil, rosemary oil etc.
Supercritical CO2 extraction for all kinds of spices like ginger oil, cinnamon oil, nutmeg oil, clove oil, turmeric oil, vanilla
oil, chili color oil, black pepper oil, mint oil etc.
Company Profile
Careddi Supercritical is a reliable producer for Supercritical CO2 Extraction system, we have a Research team started to develop the supercritical CO2 extraction machine over than 29 years. Now, we have produced full range of models widely used in lab and commercial production. Our sales in the Chinese market share is over than 90%. Please visit our website www.careddi-scf.com for more information.
Advantages of Careddi Supercritical co2 extraction machine(co2 extractor)
1.Unique highly integrated system, small size occupied but high efficiency.
99% of the system assembled before shipping, easily installation at customer site.
2.Max working pressure 50Mpa(500 Bar),
3.Pressure and temperature can be easily adjusted and controlled precisely
4.Friendly CO2 flow route design with self-explanatory flow chart for easy training and easy operation
5.Special design on the pressure-balance, can save CO2 consume maximum
6.High efficiency CO2 high pressure pump, can increase the pressure in shortest time
7.Special design inside the pump piston system, to let the pump has very long life time with few maintenance requirements.
8.High quality Back-pressure regulator
9.Triple safety protection, over pressure protection gauge and safety valves
10.Low extraction temperature which is suitable for extraction and purification of heat sensitive valuable ingredients.
11.Fast extraction speed, completely extracted, no toxicity, non-flammable, safe application an non-pollution upon environment.
12.Being capable to provide inert environment to avoid oxidation of the products and affection of effective content of extracts.
13.No residue of solvent, no nitrate and ions of heavy metal
2.Max working pressure 50Mpa(500 Bar),
3.Pressure and temperature can be easily adjusted and controlled precisely
4.Friendly CO2 flow route design with self-explanatory flow chart for easy training and easy operation
5.Special design on the pressure-balance, can save CO2 consume maximum
6.High efficiency CO2 high pressure pump, can increase the pressure in shortest time
7.Special design inside the pump piston system, to let the pump has very long life time with few maintenance requirements.
8.High quality Back-pressure regulator
9.Triple safety protection, over pressure protection gauge and safety valves
10.Low extraction temperature which is suitable for extraction and purification of heat sensitive valuable ingredients.
11.Fast extraction speed, completely extracted, no toxicity, non-flammable, safe application an non-pollution upon environment.
12.Being capable to provide inert environment to avoid oxidation of the products and affection of effective content of extracts.
13.No residue of solvent, no nitrate and ions of heavy metal

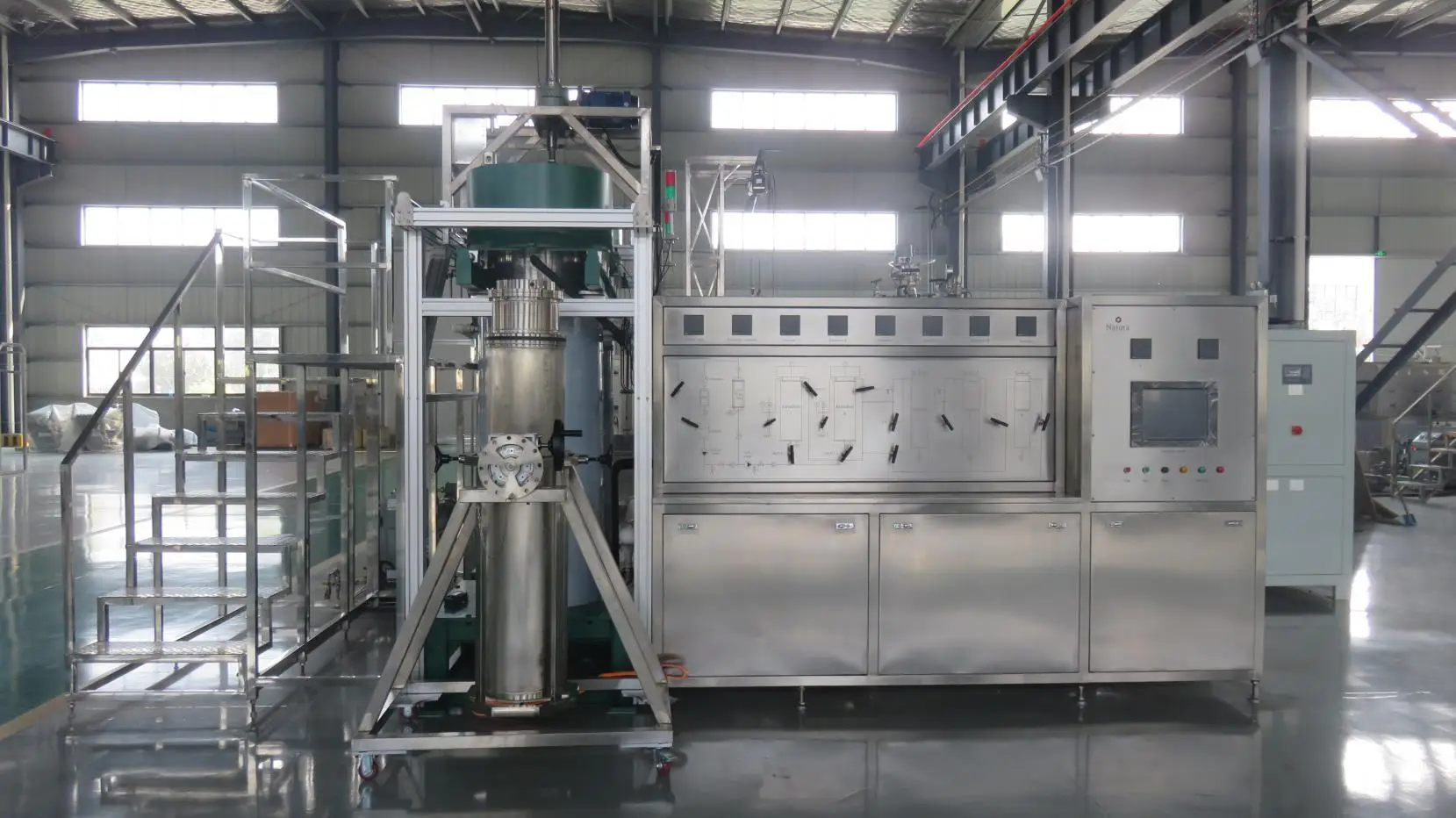

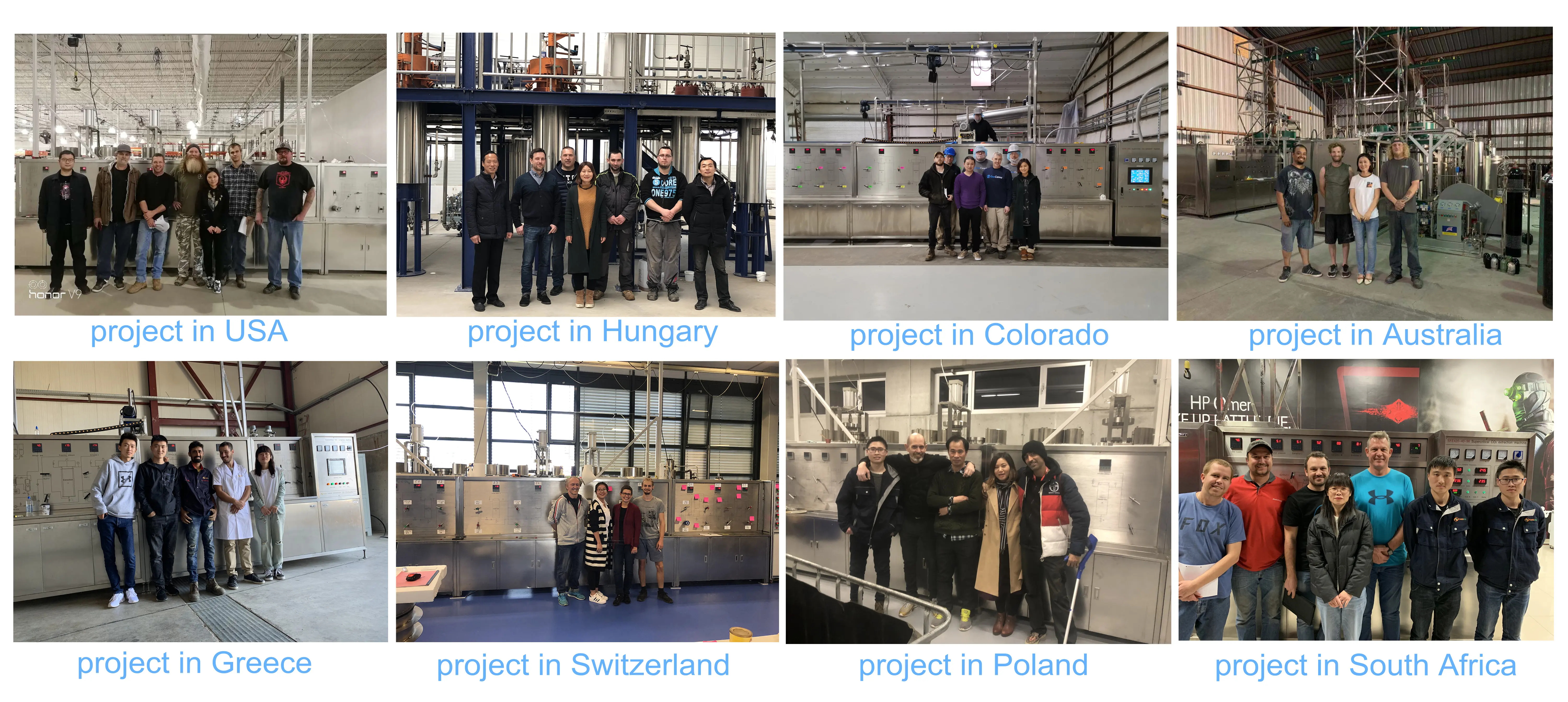

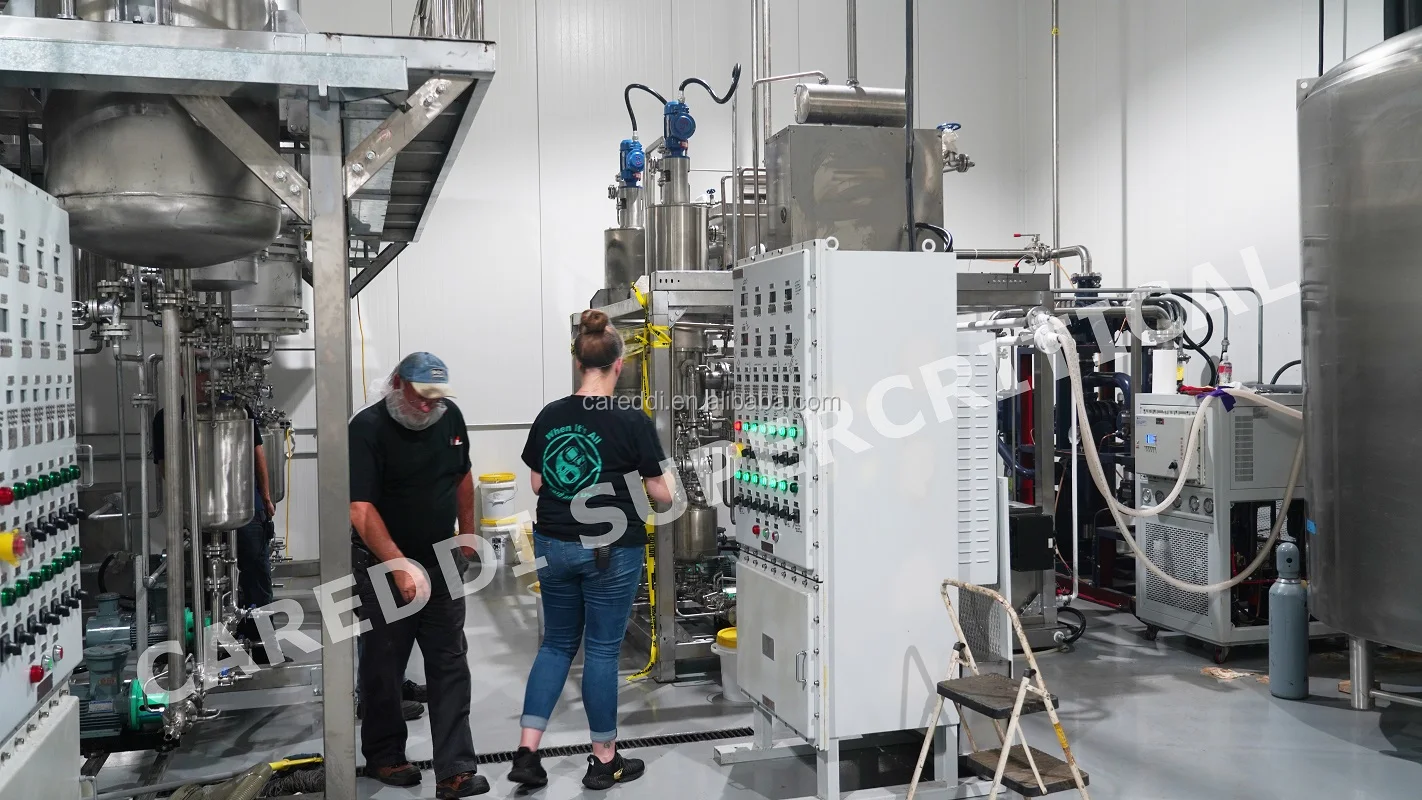

Successful Project
ABOUT US
Careddi Supercritical Limited is the largest manufacturer of Supercritical CO2 Extraction machine in China and specialized in designing and manufacturing supercritical co2 extraction system over than 30 years. Till now, Careddi had produced full capacity range supercritical co2 extraction machines from small lab scale to large industrial commercial production scale.
Careddi sold and installed hundreds of CO2 extraction projects successfully in the countries of USA, Canada, Australia, Spain, Greece, Hungary, Switzerland, Sweden, Italy, Serbia, Ukraine, Netherland, Slovenia, Albania, Bulgaria, Romania, Argentina, South Africa, Uganda, Conga, Malawi, Madagascar, Columbia, Malaysia, India, Thailand, etc. All the buyers are satisfied with our high quality machines and great service. And we have good experience in extracting many kinds of material like hops, chili color , Agarwood oil, seabuckthorn seeds oil, cinammon, coconut oil etc.

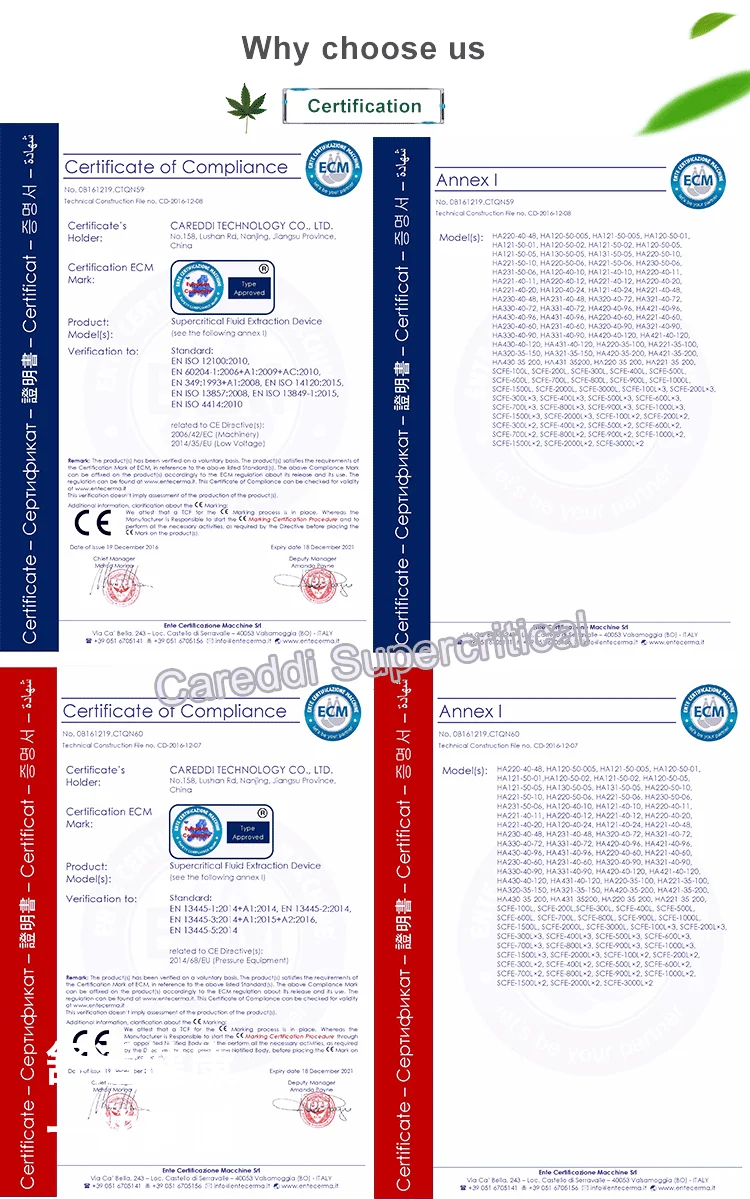

Attached is the CE certificate of our machines.
Standard models available as follows
Please check following link to see the video of our machines working in different extractions.
https://www.youtube.com/channel/UCTpYz1aRo-PUlfqSNGPX5tA (Careddi Youtube Channel )
https://youtu.be/yG4CRG8f4_4 (16 MACHINES, EACH MACHINE 300L, KENTUCKY)
https://youtu.be/1h8um38wi8Y (14 MACHINES, EACH MACHINE 300L, KENTUCKY)
https://youtu.be/i9xpOqTHXUY (6 MACHINES, EACH MACHINE 300L, COLORADO)
https://youtu.be/Dj_RRDz0Wn4 (CAREDDI SUPERCRITICAL INTRODUCTION VIDEO)
Packing & Delivery
By Sea
The normal package is wooden box(Size:L*W*H) If export European countries,the wooden box will be fumigated.If container is too tight, we will use PE film for packing or pack it according to customers special request. co2 extraction machine
The normal package is wooden box(Size:L*W*H) If export European countries,the wooden box will be fumigated.If container is too tight, we will use PE film for packing or pack it according to customers special request. co2 extraction machine
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2010,sell to North America(35.00%),Western Europe(15.00%),South America(10.00%),Northern Europe(10.00%),Africa(5.00%),Central America(5.00%),Southern Europe(5.00%),Eastern Europe(3.00%),Southeast Asia(3.00%),Oceania(3.00%),Mid East(3.00%),South Asia(3.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Supercritical Co2 Extraction Machine,Molecular Distillation Equipment
4. Why should you buy from us not from other suppliers?
Provide Supercritical co2 extraction machine full range from lab to large scale production. Machine range
Model 1L, 2L, 5L, 5Lx2, 10L, 10Lx2, 25Lx2, 50Lx2, 50Lx6, 150Lx2, 150Lx4, 300Lx4, 1000Lx2, 1500Lx2, 1500Lx3 etc
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish
We are based in Jiangsu, China, start from 2010,sell to North America(35.00%),Western Europe(15.00%),South America(10.00%),Northern Europe(10.00%),Africa(5.00%),Central America(5.00%),Southern Europe(5.00%),Eastern Europe(3.00%),Southeast Asia(3.00%),Oceania(3.00%),Mid East(3.00%),South Asia(3.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Supercritical Co2 Extraction Machine,Molecular Distillation Equipment
4. Why should you buy from us not from other suppliers?
Provide Supercritical co2 extraction machine full range from lab to large scale production. Machine range
Model 1L, 2L, 5L, 5Lx2, 10L, 10Lx2, 25Lx2, 50Lx2, 50Lx6, 150Lx2, 150Lx4, 300Lx4, 1000Lx2, 1500Lx2, 1500Lx3 etc
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,PayPal;
Language Spoken:English,Chinese,Spanish
Похожие товары
Разделитель капель для удаления тумана лопастного типа морского
50,00 $ - 100,00 $

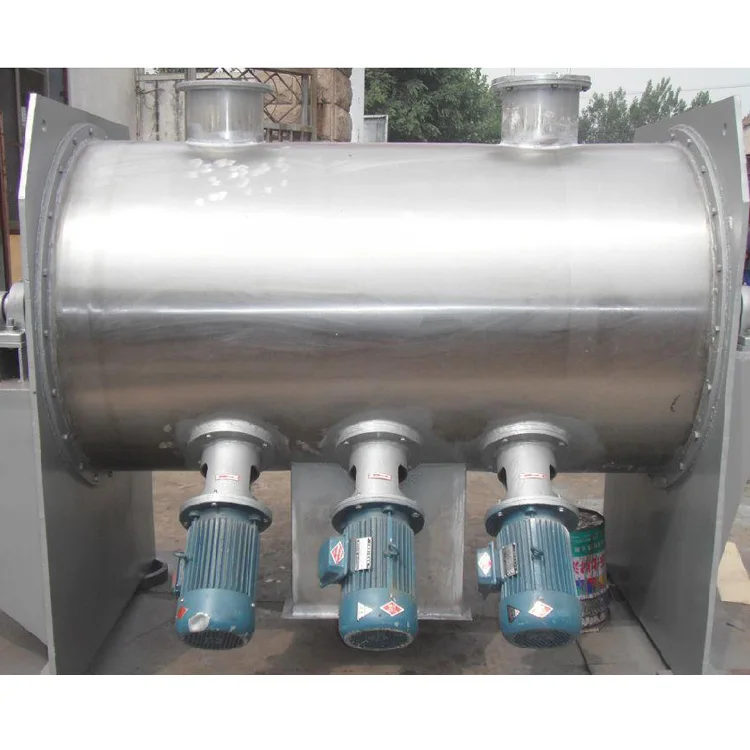

Горячая Распродажа высокоскоростной смешивающий станок LDH для аккумуляторных
950,00 $

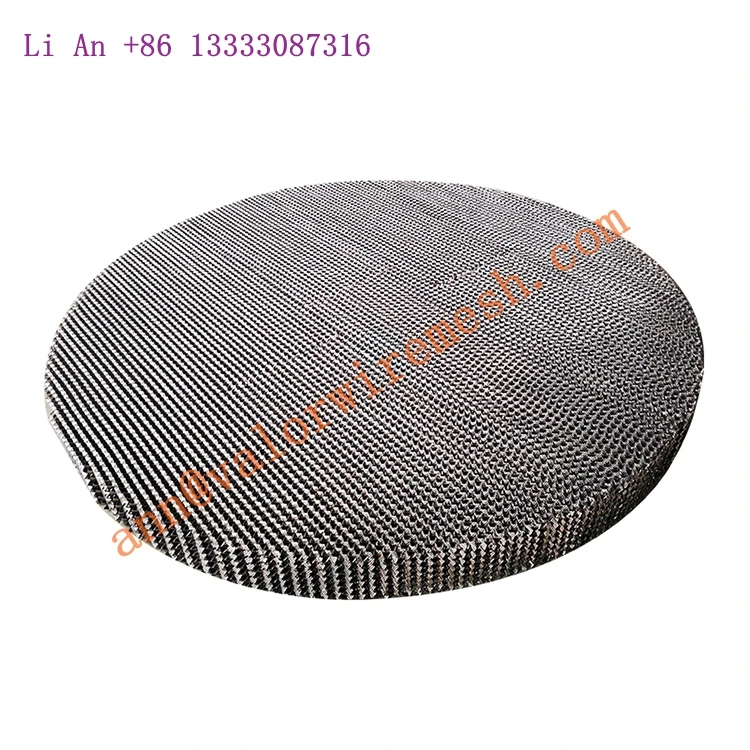

Установка для нефтеперерабатывающего завода структурная упаковка в дистилляционную башню Металлическая Башня Упаковочная поверхность и
Экстракция оливкового масла и экстракция травы с экстрактом сверхкритической жидкости модель
19 999,00 $ - 79 999,00 $

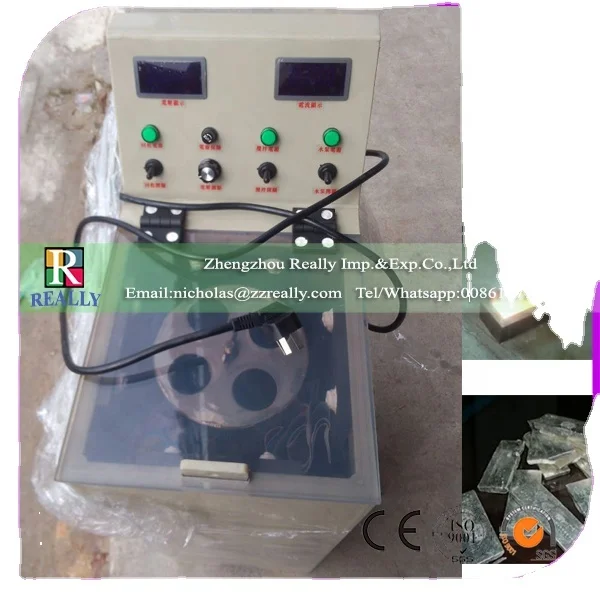

OEM низкое потребление электропластины промышленности сточных вод профессиональное оборудование для экстракта золота

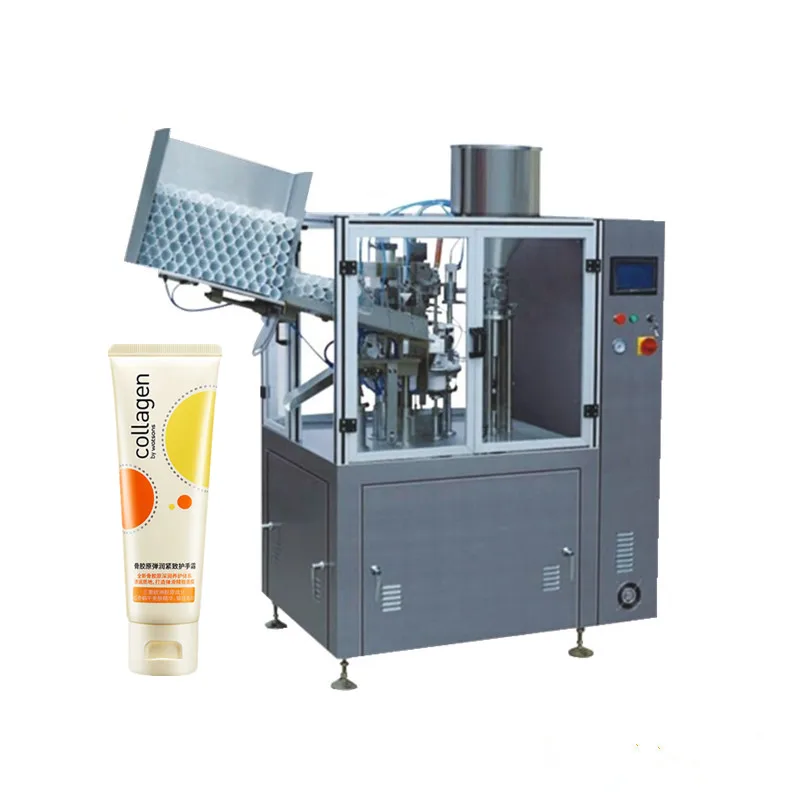

Ротационная Машина для наполнения зубной пастой и крема для рук, косметический тюбик, наполнитель и герметик

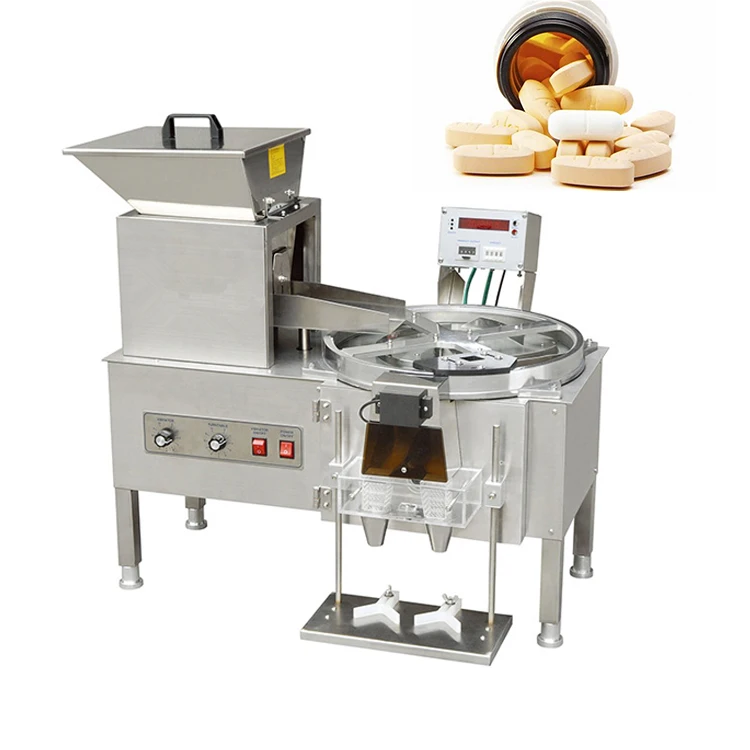

Высокое Качество Gummy Медвежонок конфеты аптека Таблетки Счетная машина
