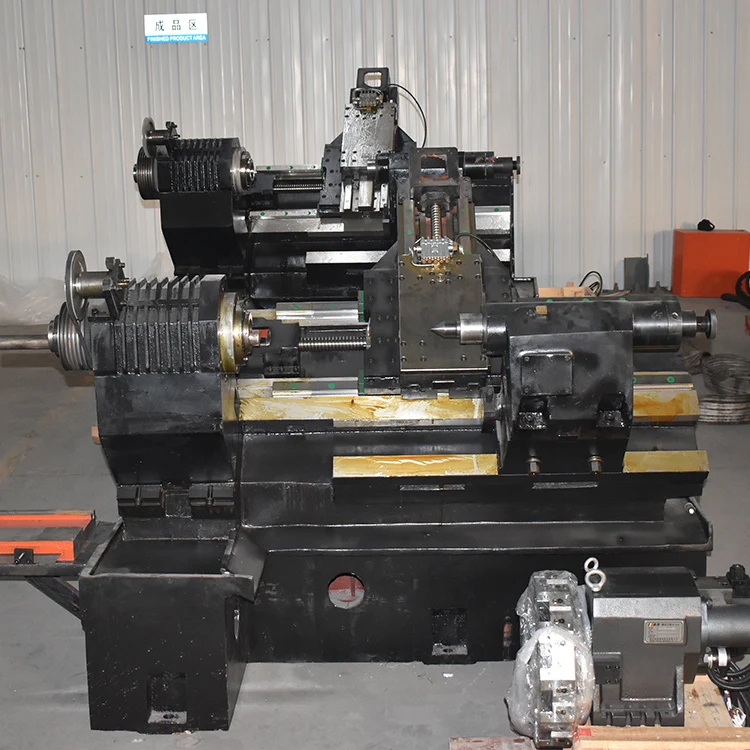

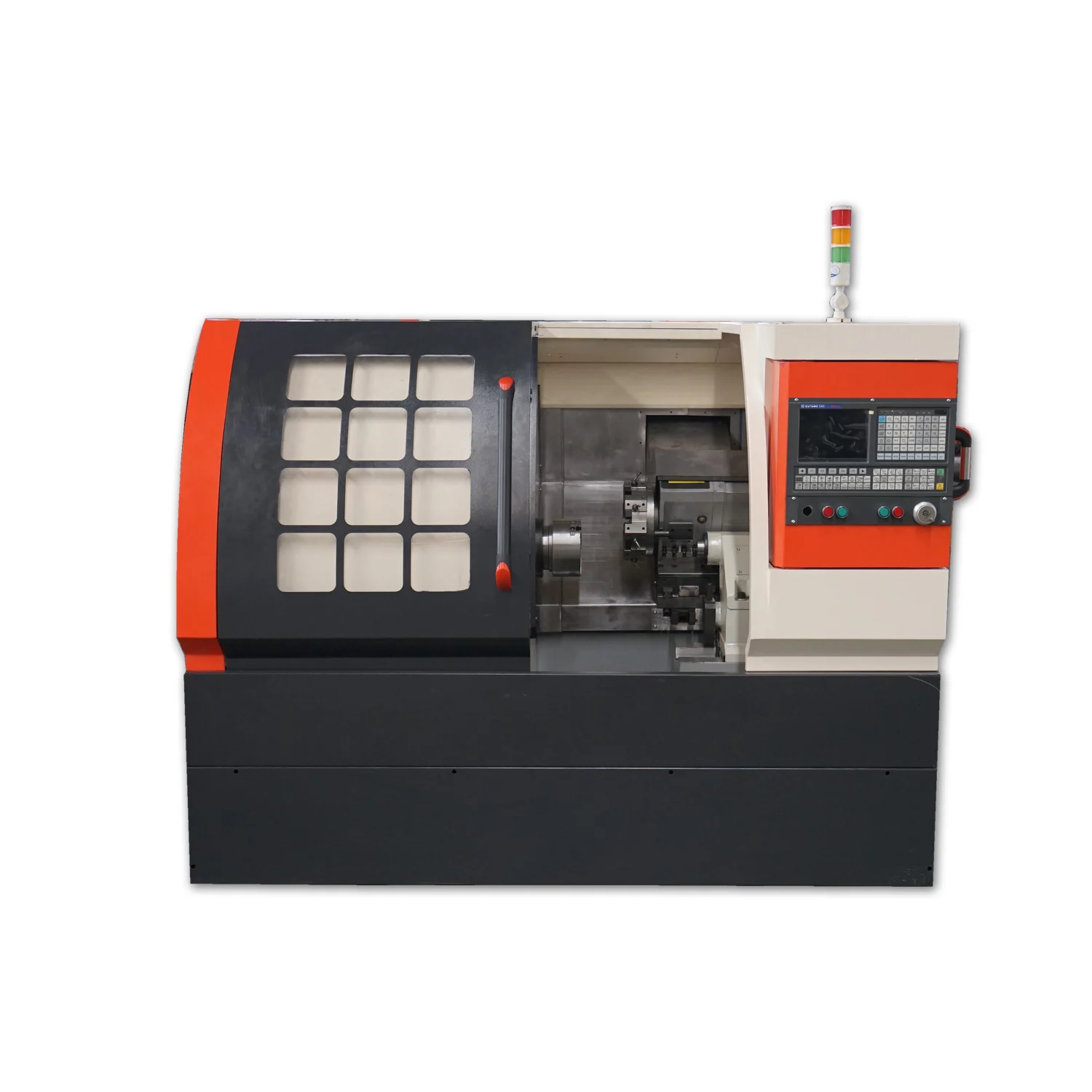

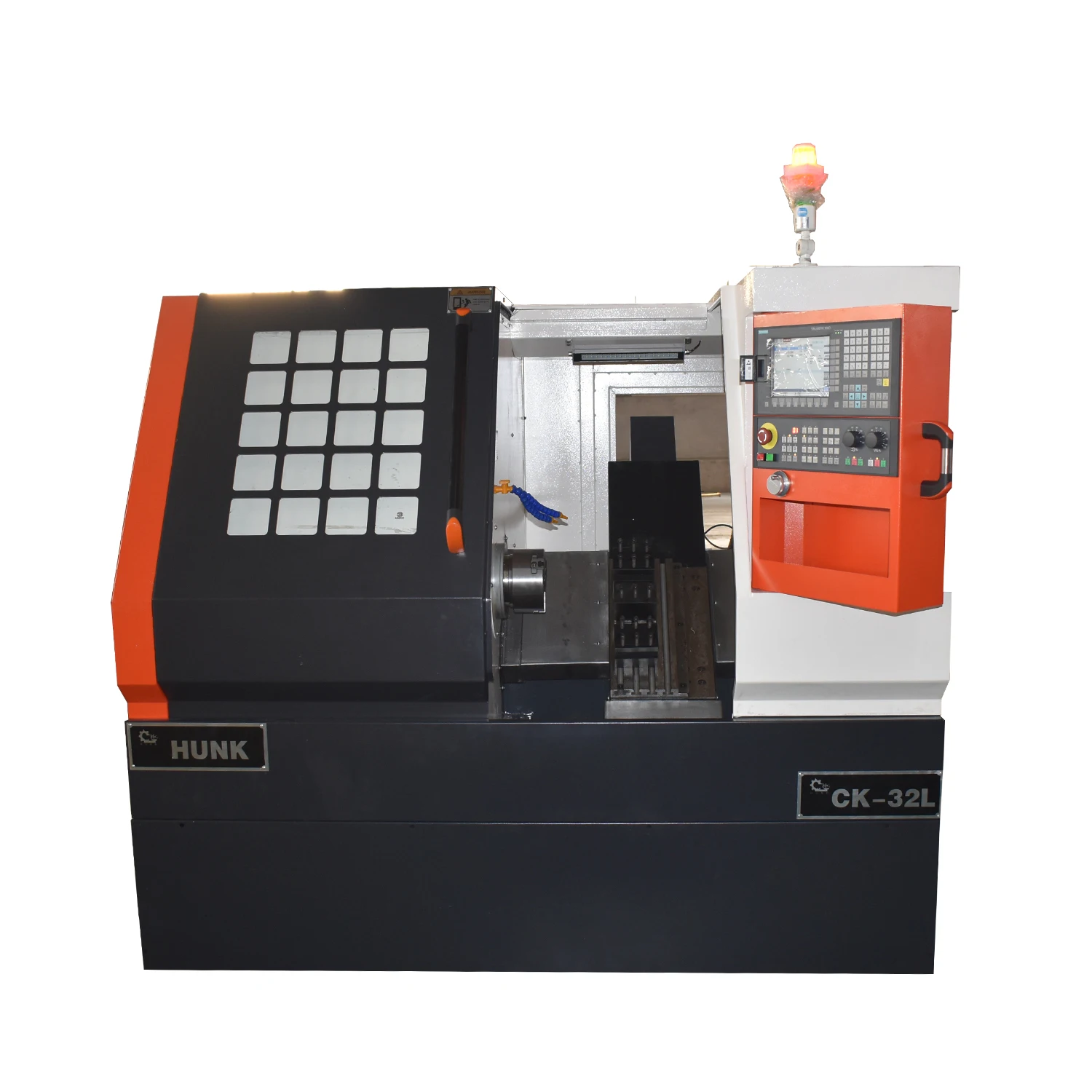

Горизонтальный Токарный станок с ЧПУ Электрический токарный револьверный CK36 наклонной кроватью 360
- Категория: >>>
- Поставщик: Jinan Shangneng CNC Equipment Co. Ltd.
Сохранить в закладки 1600501608593:
Описание и отзывы
Характеристики
Application
It can complete the processing of vehicles, groove, inner (outer) hole, spherical, R cone angle, curved shape, cone shape, face shape, male thread single head, thread single head and multiple thread processing. It is applicable for multi and mass production, and can meet the processing demands for complex and high precision parts.
Product Description
Specification
Item | CK36L |
Max.Swing over bed | 360mm |
Max.awing over slide | 160mm |
Max.processing length | 350mm |
Max.cutting Dia. | 254mm |
Max.Bar Dia. | 55mm |
Spindle speed | 4000rpm |
Spindle Nose ISO Form | A2-5 |
Thru-hole Dia. | 58mm |
Chuck Dia. | 200mm (8") |
Motor power | 3.7/5.5KW servo |
Body Structure | 30°integrated |
X axis travel | 200mm |
Z axis travel | 350mm |
X/Z axis Rapid speed | 24/24m/min |
Type | 63-8T |
Tool size | 20*20mm |
Tailstock Sleeve Dia. | 52mm |
Tailstock Sleeve Travel | 60mm |
Tailstock Sleeve Tapper | MT4 |
Processing precision | IT6 |
Re-positioning precision | X:0.006, Z:0.008mm |
Roughness | Ra≤0.8 |

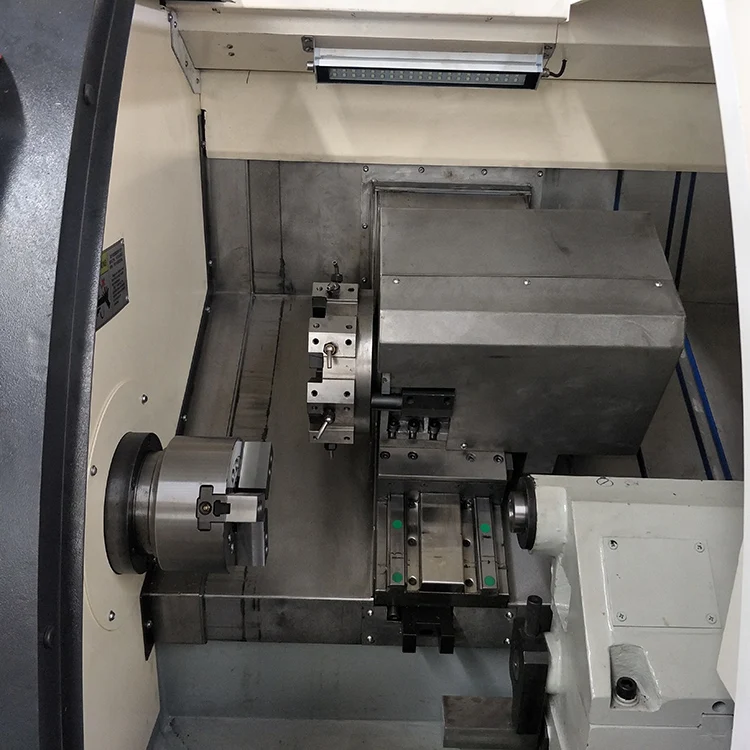

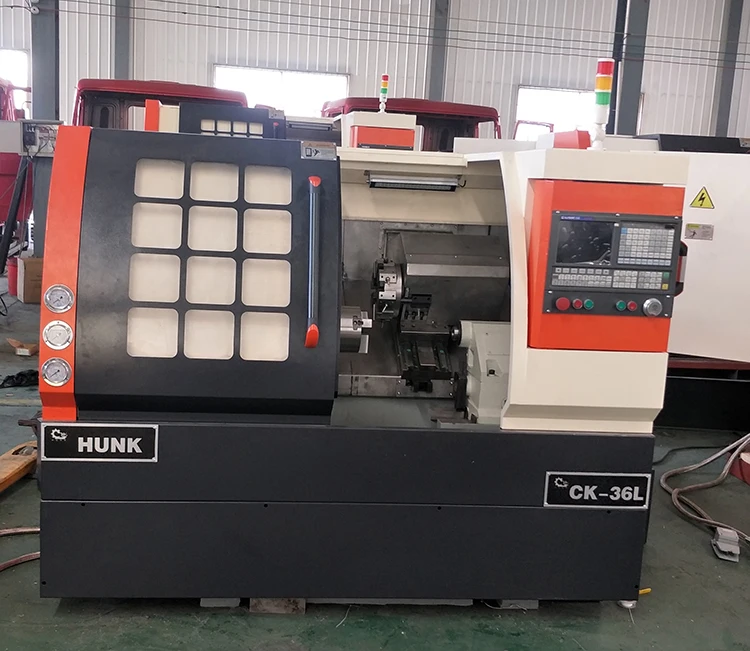

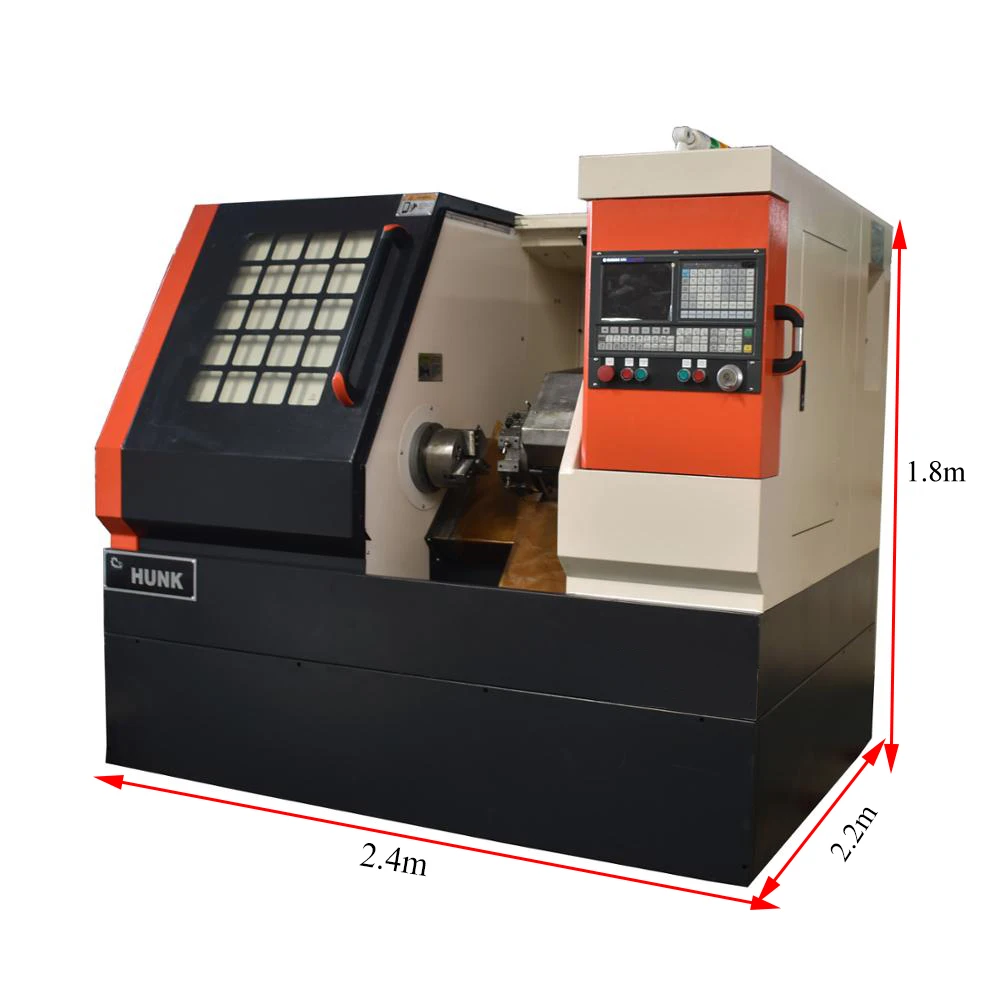

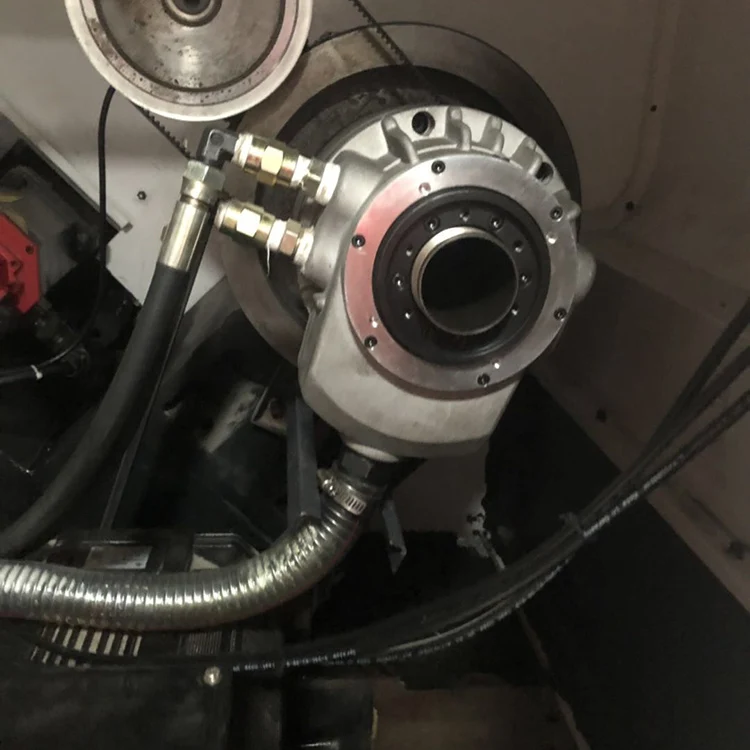

Details Images
Packing & Delivery
About us
Jinan Sunligh CNC Equipment Co.,Ltd located in the beautiful capital Jinan City, Integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.
Now our products have a large market share and have a high popularity in domestic. Sales and service net work have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
Похожие товары
MOSFET 30V Vds 12V ВГС СОТ-23 по ограничению на использование опасных материалов в производстве SI2300DS-T1-GE3 IC MOSFET N-CH 30V 3.6A SOT23-3
0,10 $ - 1,00 $
Начните бизнес по производству волос отсюда, оптовая продажа, бразильские натуральные накладные волосы из 100% натуральных пучков, поставщики волос
6,44 $ - 7,53 $

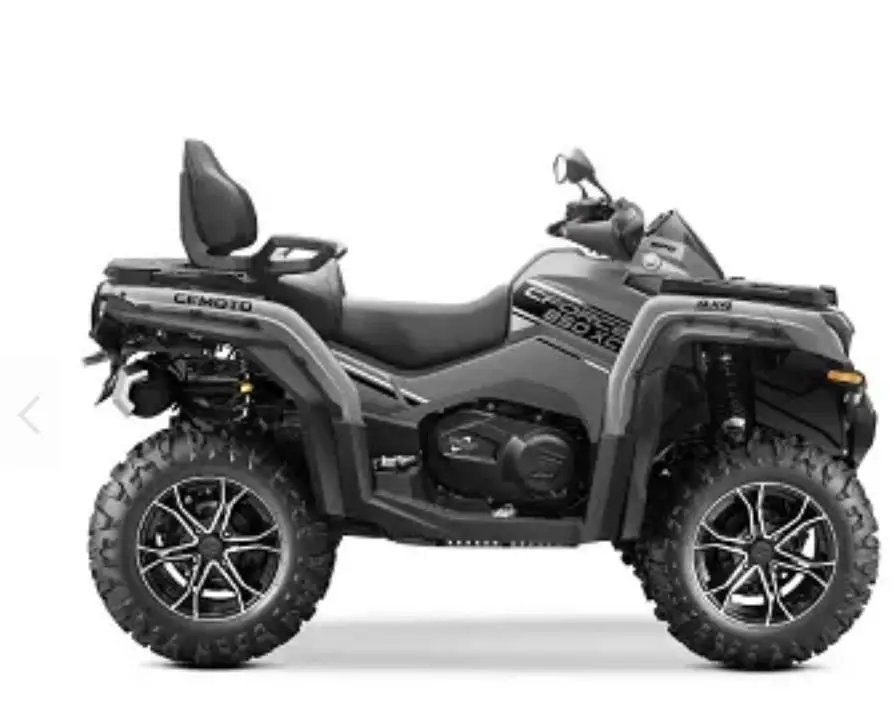

Новая модель 2022 CF MOTO 800CC ATV 4x4 CFORCE 800
1 499,00 $
Лидер продаж, обычный белый свежий чеснок, китайский белый чеснок, оптовая цена
0,50 $ - 0,80 $

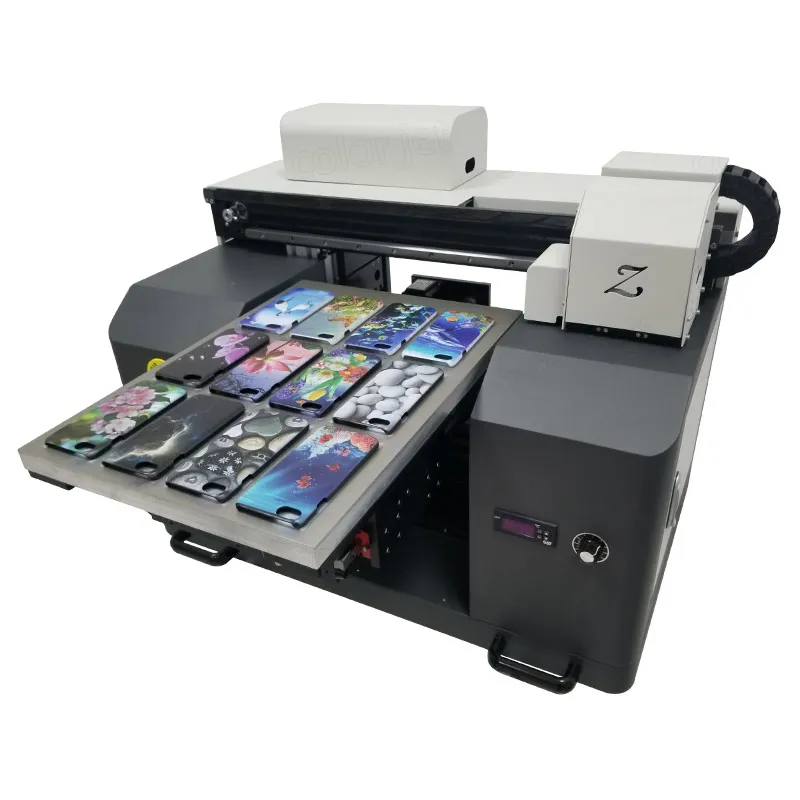

CJ A3 цифровой УФ планшетный принтер для телефона чехол свеча кружка с поворотным
