K87430 осевой цилиндрический роликовый подшипник серии K упорные игольчатые роликовые подшипники
0,01 $
Подшипник TP типа 101 6x238 125x58 738 мм цилиндрические роликовые упорные подшипники
- Категория: Thrust Roller Bearings >>>
- Поставщик: Anhui Kaifu Bearing Import Export Co. Ltd.
Сохранить в закладки 1600501636284:
Описание и отзывы
Характеристики
TP Type Bearing 101.6x238.125x58.738 mm Cylindrical Roller Thrust Bearing 40TPS116
Product Description
Drawings:
Part of the bearing specification:
| bearing | Dimensions | Mass | ||
| Number | d (mm) | D (mm) | H (mm) | kg |
| 20TP103 | 50.8 | 152.4 | 34.925 | 34.925 |
| 20TP104 | 50.8 | 177.8 | 34.925 | 34.925 |
| 30TP106 | 76.2 | 152.4 | 34.925 | 34.925 |
| 30TP107 | 76.2 | 177.8 | 34.925 | 34.925 |
| 30TP108 | 76.2 | 203.2 | 34.925 | 34.925 |
| 30TP109 | 76.2 | 228.6 | 34.925 | 34.925 |
| 35TP113 | 88.9 | 132.558 | 25.4 | 25.4 |
| 40TP114 | 101.6 | 177.8 | 44.45 | 44.45 |
| 40TP115 | 101.6 | 203.2 | 44.45 | 44.45 |
| 40TP116 | 101.6 | 228.6 | 44.45 | 44.45 |
| 40TP117 | 101.6 | 254 | 44.45 | 44.45 |
| 50TP119 | 127 | 203.2 | 44.45 | 44.45 |
| 50TP120 | 127 | 228.6 | 44.45 | 44.45 |
| 50TP121 | 127 | 254 | 50.8 | 50.8 |
| 50TP122 | 127 | 279.4 | 50.8 | 50.8 |
| 50TP123 | 127 | 304.8 | 50.8 | 50.8 |
| 60TP124 | 152.4 | 228.6 | 50.8 | 50.8 |
| 60TP125 | 152.4 | 254 | 50.8 | 50.8 |
| 60TP126 | 152.4 | 279.4 | 50.8 | 50.8 |
| 60TP127 | 152.4 | 304.8 | 50.8 | 50.8 |
| 70TP129 | 177.8 | 254 | 50.8 | 50.8 |
| 70TP130 | 177.8 | 279.4 | 50.8 | 50.8 |
| 70TP131 | 177.8 | 304.8 | 50.8 | 50.8 |
| 70TP132 | 177.8 | 355.6 | 76.2 | 76.2 |
| 80TP134 | 203.2 | 304.8 | 76.2 | 20.5 |
| 80TP135 | 203.2 | 355.6 | 76.2 | 33 |
| 80TP136 | 203.2 | 406.4 | 76.2 | 44.5 |
| 90TP139 | 228.6 | 355.6 | 76.2 | 29.3 |
| 90TP140 | 228.6 | 406.4 | 76.2 | 43.6 |
| 100TP143 | 254 | 406.4 | 76.2 | 39.5 |
| 100TP144 | 254 | 457.2 | 95.25 | 68.8 |
| 100TP145 | 254 | 508 | 95.25 | 91.7 |
| 120TP151 | 304.8 | 457.2 | 95.25 | 56.7 |
| 120TP152 | 304.8 | 508 | 114.3 | 104.5 |
| 120TP153 | 304.8 | 609.6 | 114.3 | 168.5 |
| 140TP158 | 355.6 | 508 | 95.25 | 62.6 |
| 140TP159 | 355.6 | 558.8 | 95.25 | 89.6 |
| 140TP160 | 355.6 | 609.6 | 95.25 | 125.3 |
| 160TP164 | 406.4 | 558.8 | 114.3 | 85.9 |
| 160TP165 | 406.4 | 609.6 | 114.3 | 121.4 |
| 160TP166 | 406.4 | 660.4 | 114.3 | 168.8 |
| 180TP168 | 457.2 | 660.4 | 127 | 148.8 |
| 180TP169 | 457.2 | 711.2 | 127 | 195.3 |
| 180TP170 | 457.2 | 762 | 139.7 | 280.7 |
| 200TP171 | 508 | 711.2 | 139.7 | 178 |
| 200TP172 | 508 | 762 | 139.7 | 232.2 |
| 200TP173 | 508 | 812.8 | 152.4 | 317 |
| 220TP174 | 558.8 | 762 | 139.7 | 192.7 |
| 220TP175 | 558.8 | 812.8 | 139.7 | 250.6 |
| 220TP176 | 558.8 | 863.6 | 152.4 | 340.9 |
| 240TP177 | 609.6 | 812.8 | 139.7 | 206.5 |
| 240TP178 | 609.6 | 863.6 | 139.7 | 269 |
| 240TP179 | 609.6 | 914.4 | 152.4 | 364.7 |
| 20TPS103 | 50.8 | 160.325 | 46.038 | 5.2 |
| 20TPS104 | 50.8 | 185.725 | 46.038 | 7.12 |
| 30TPS106 | 76.2 | 160.325 | 46.038 | 4.5 |
| 30TPS107 | 76.2 | 185.725 | 46.038 | 6.4 |
| 30TPS108 | 76.2 | 211.125 | 46.038 | 8.7 |
| 35TPS113 | 88.9 | 138.908 | 33.338 | 1.9 |
| 40TPS114 | 101.6 | 187.327 | 58.738 | 7 |
| 40TPS115 | 101.6 | 212.725 | 58.738 | 10 |
| 40TPS116 | 101.6 | 238.125 | 58.738 | 13.4 |
| 40TPS117 | 101.6 | 266.7 | 58.738 | 17.1 |
| 50TPS119 | 127 | 215.9 | 58.738 | 8.4 |
| 50TPS120 | 127 | 241.3 | 58.738 | 11.8 |
| 50TPS121 | 127 | 266.7 | 66.675 | 17.6 |
| 50TPS122 | 127 | 292.1 | 66.675 | 22.1 |
| 50TPS123 | 127 | 317.5 | 66.675 | 27.2 |
| 60TPS124 | 152.4 | 241.3 | 66.675 | 10.8 |
| 60TPS125 | 152.4 | 266.7 | 66.675 | 15.2 |
| 60TPS126 | 152.4 | 292.1 | 66.675 | 20.1 |
| 60TPS127 | 152.4 | 317.5 | 66.675 | 25.2 |
| 70TPS129 | 177.8 | 266.7 | 66.675 | 12.7 |
| 70TPS130 | 177.8 | 292.1 | 66.675 | 17.7 |
| 70TPS131 | 177.8 | 317.5 | 66.675 | 23.3 |
| 70TPS132 | 177.8 | 374.65 | 101.6 | 52.6 |
| 80TPS134 | 203.2 | 323.85 | 101.6 | 29.8 |
| 80TPS135 | 203.2 | 374.65 | 101.6 | 47.7 |
| 80TPS136 | 203.2 | 428.625 | 101.6 | 68.2 |
| 90TPS139 | 228.6 | 374.65 | 101.6 | 42.2 |
| 90TPS140 | 228.6 | 428.625 | 101.6 | 63.3 |
| 100TPS143 | 254 | 428.625 | 101.6 | 56.2 |
| 100TPS144 | 254 | 479.425 | 127 | 99.5 |
| 100TPS145 | 254 | 530.225 | 127 | 131.8 |
| 120TPS151 | 304.8 | 479.425 | 127 | 82.1 |
| 120TPS152 | 304.8 | 530.225 | 152.4 | 139.4 |
| 120TPS153 | 304.8 | 631.825 | 152.4 | 236.9 |
| 140TPS158 | 355.6 | 530.225 | 123.825 | 89.2 |
| 140TPS159 | 355.6 | 581.025 | 123.825 | 125 |
| 140TPS160 | 355.6 | 631.825 | 123.825 | 170.9 |
| 160TPS164 | 406.4 | 581.025 | 152.4 | 123.9 |
| 160TPS165 | 406.4 | 635 | 152.4 | 174.4 |
| 160TPS166 | 406.4 | 685.8 | 152.4 | 229.8 |
Spherical Roller Thrust Bearing:
Thrust roller bearings are separable bearings, can only withstand axial load and a slight impact, to limit the shaft (or shell) of the axial displacement in one direction, it can be used as single-axis to the position. But its carrying capacity is far greater than the thrust ball bearings.
Thrust roller bearings are mainly used for heavy-duty machine tools, power marine gear boxes, oil rig, electrical and other machinery in the vertical.
Specifications:
1.high precision ball bearing
2.ISO standard bearing
3.High quality & competitive price
4.Many famous brand is available
5.Low noise &long life
6. Chrome Steel ,stainless steel

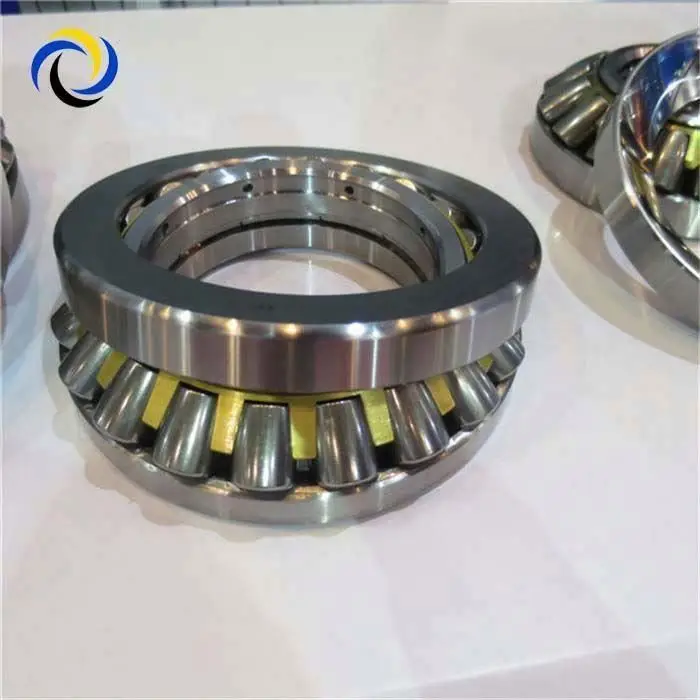

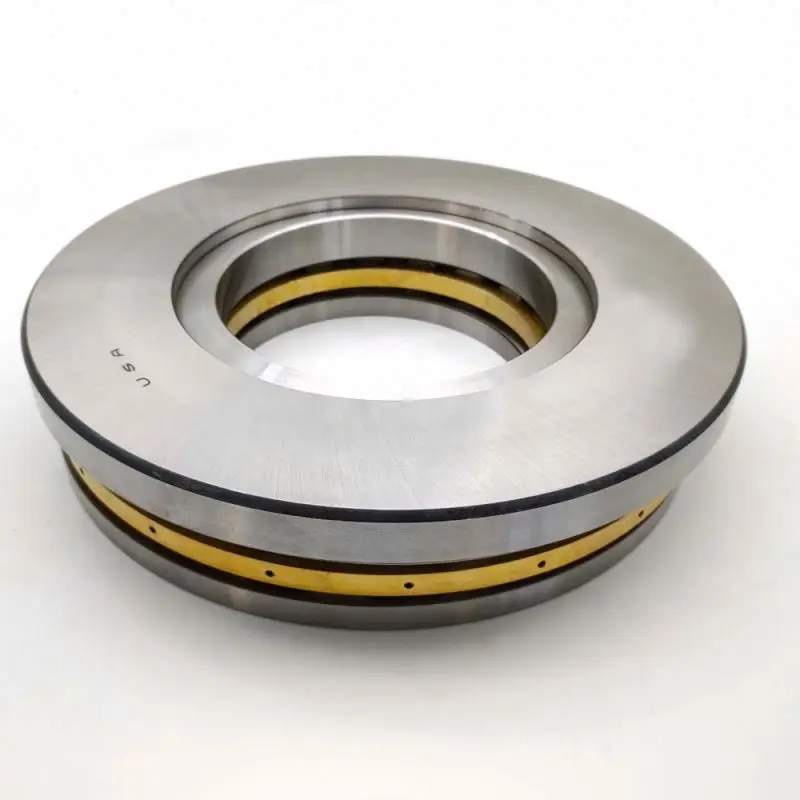

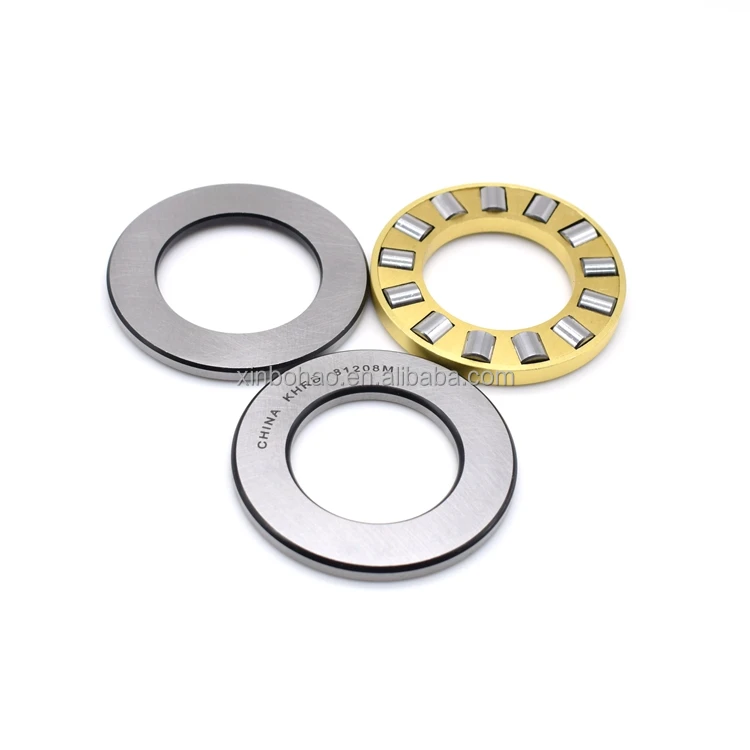

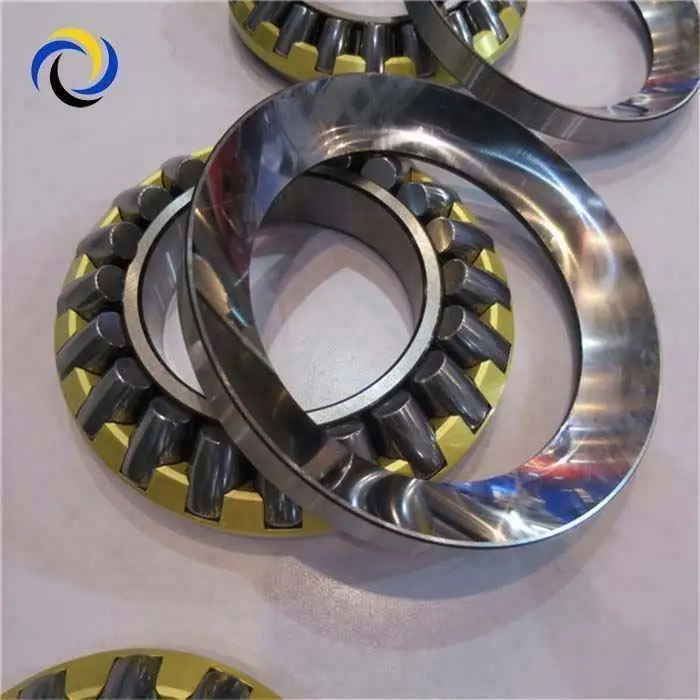

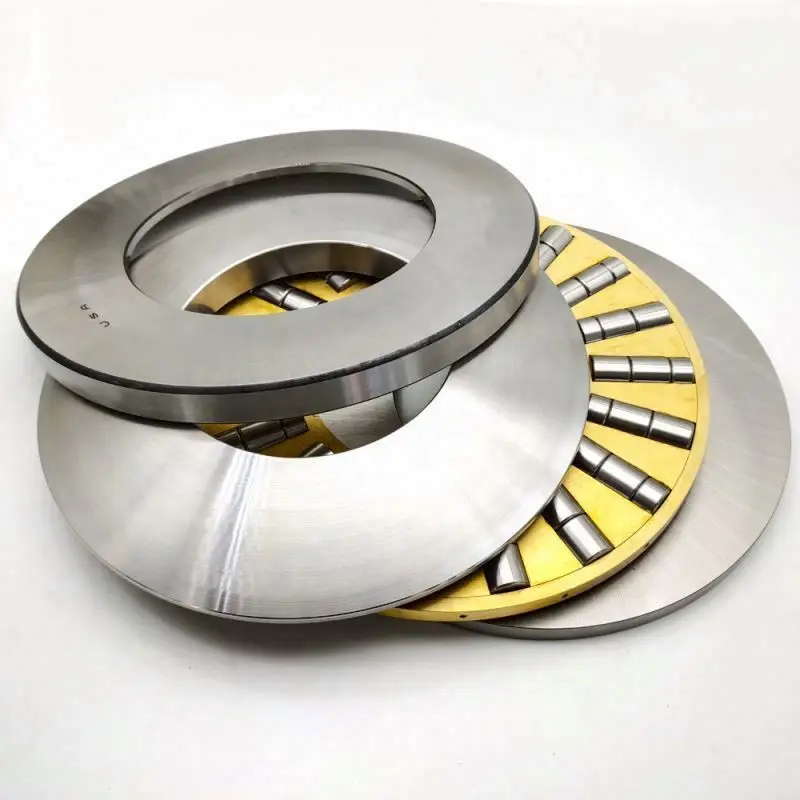

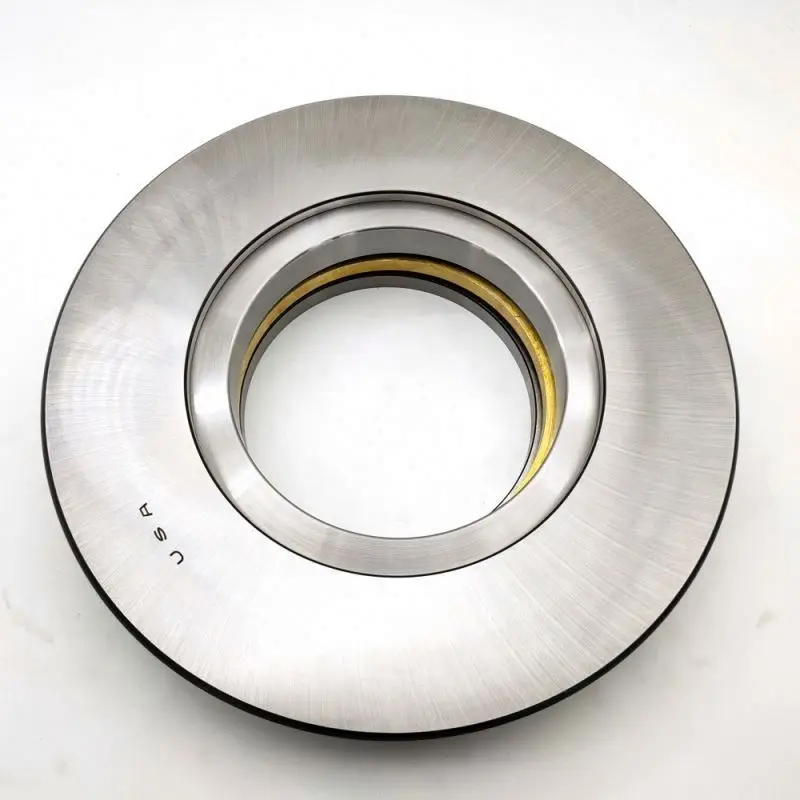

Product show:
| Product | TP Type Bearing 101.6x238.125x58.738 mm Cylindrical Roller Thrust Bearing |
| Precision Rating | ABEC1,ABEC3,ABEC5 |
| Clearance | C0,C2,C3,C4,C5 is available |
| Sealed Cap | Open |
| Paypal | Acceptable |
| OEM | Accept |
| Vibration Level code | V1,V2.V3 |
| Material | Gcr15 |
| Seals Type | ZZ/ZRS.RZ/RS. Open |
| Number of row | single row |
| Bore Size(d) | 101.6 MM |
| Outside Diameter | 238.125 MM |
| Thickness | 58.738 MM |
| Regular export packing | Plastic drum+White box+ carton |
| industrial packaging or as your requiremen. | |
| MOQ | 1 pcs |
| Delivery Time | 3-7 days after receiving your payment |
| Payment Terms | L/C,T/T,Western Union,MoneyGram,Paypal |
| Port of shippment by sea | Shanghai,guangzhou,qingdao |
| Place of Origin | Anhui, China |
| Samples | Available |
Company Information
introduction:
Anhui Kai Fu Bearing import&export Co., Ltd. is Specializing in production the bearings , our bearing are widely used by big mechanical corporations. Kai Fu bearing has high-quality management team,experienced pratitioners,and quick response and professional service team,and meanwhile is equipped with first-class automatic production lines as well as complete quality management machines and system.
we sincerely hope to establish a good business relationship with you in The future.
Our Advantages:
1. Manufacturer,the most competive price and good quality
2. Perfect group of technical engineers give you the best support
3.Well-trained group of international sales provide the best service
4.OEM brand aviliable
5.Rich stock and quick delivery
Main Product:
1. Deep groove ball bearing
2. Angular contact ball bearing
3. Ceramic bearing
4. Cylindrical roller bearing
5. Self-aligning ball bearing
6. Spherical roller bearing
7. Tapered roller bearing
8. Pillow block ball bearing
9. Wheel bearing
10. Other famous brand and OEM
Our factory:
Packaging & Shipping
1.small quantity, can delivery by global express: DHL TNT FedEx ARAMEX EMS UPS. this is door to door.
2.large quantity, can delivery by air,by sea ,this is port to port.
FAQ
1.Q:Are you a factory or trading company?
A:Anhui Kaifu Bearing Co.,Ltd is specialized in manufacturing and exporting Bearing.
We have own factory and Warehouse located in Anhui city.
2.Q:Can I get some samples and do you offer the sample free?
A:Yes, sure, we are honored to offer you samples.If we have stock, we can send you free sample.
And you just need to pay freight. If there have no stock, you need to pay sample fee and freight.
3.:Does the sample fee can be return back?
A: If you place an order, we can return part of sample fee even all of fee to you.
It also depends on the Quantity of order and the type of sample.
4.Q:What is the MOQ for bearing?
A: Our MOQ is 1 pc.
Our Services
OEM Service:
We can reserch ,design ,and produce the bearings according to the customers requirements.
If you are interested in our products Trust Spherical Roller Bearing in Anhui kaifu bearing Co.,Ltd ,
Welcome to contact us for more detailed information,
We will serve you more!
Name: ellen zhang
skype: kfbearing002
qq: 2305896411
