Машина для производства пластиковой кровельной черепицы из ПВХ линия глазурованной

Сохранить в закладки 1600502095220:


Цена:89 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

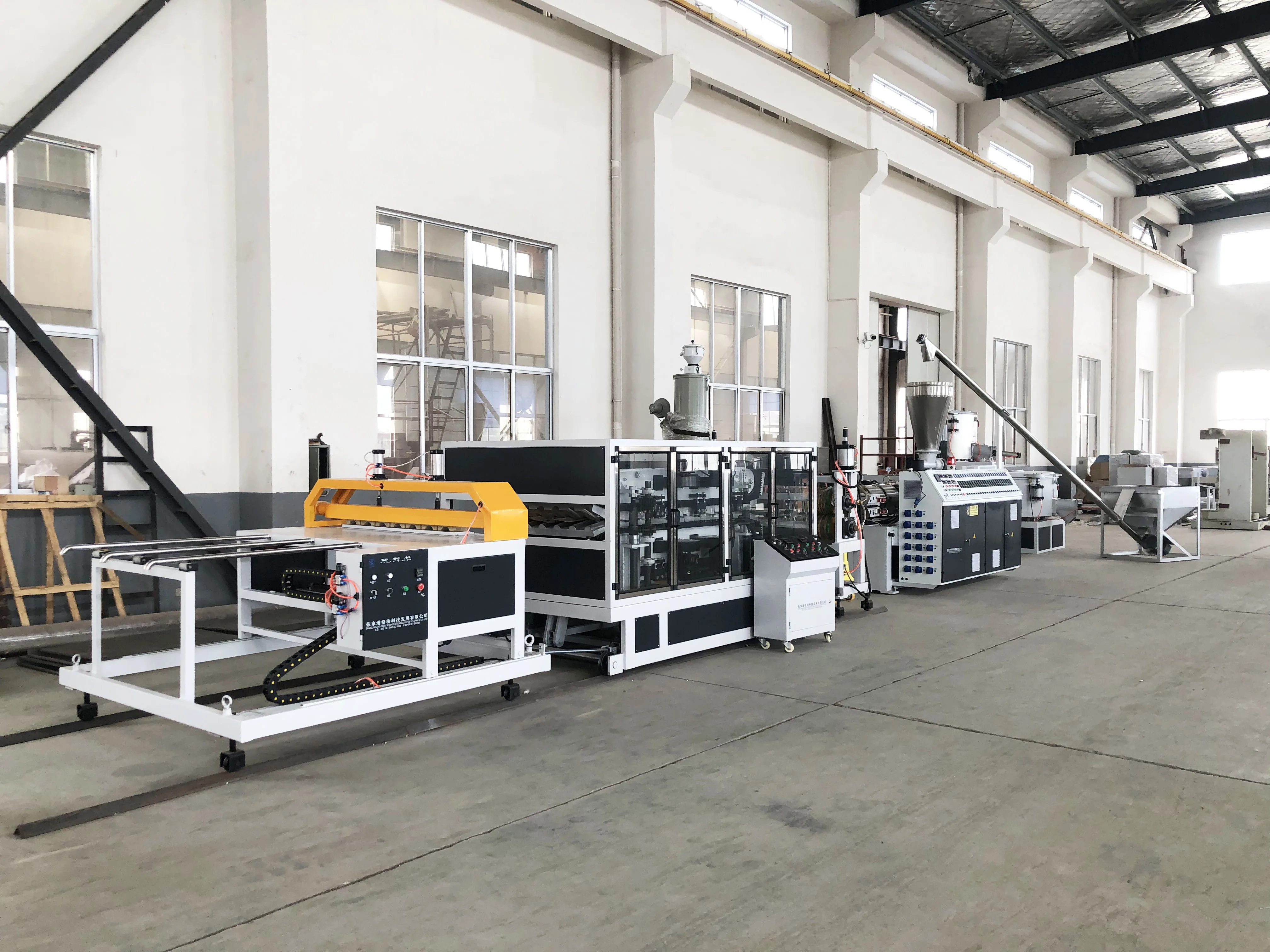

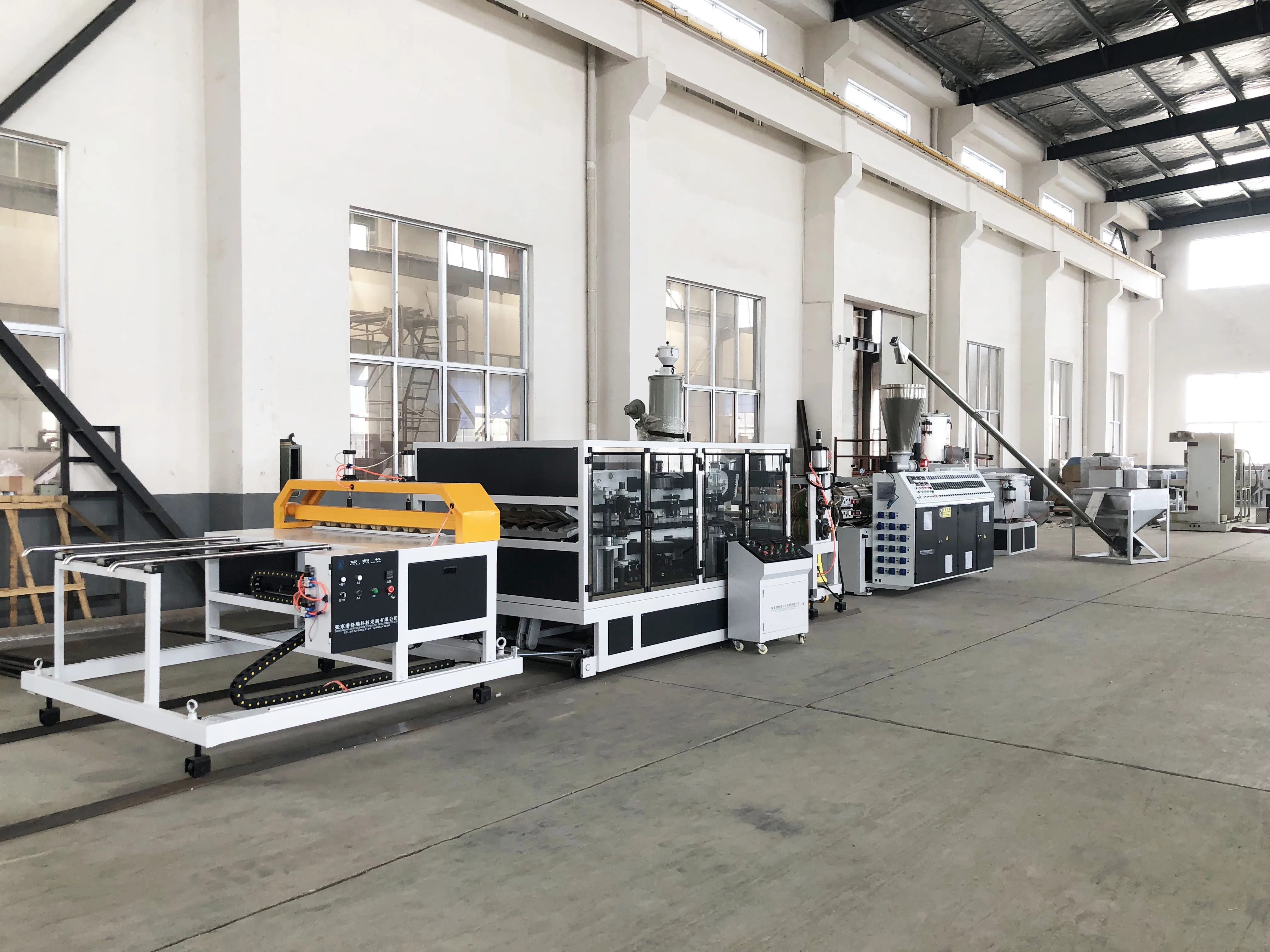

Production line is mainly used for the production of PVC+ASA/PVC multi layers composite resin tile, glazed tile, specification have width 880mm and 1050mm or customized, thickness 1-3mm, pitch 220mm ,250mm.PVC layer consists of SJZ80/156 conical twin screw extrusion machine production, ASA layer extruded by the SJ50 single screw extrusion machine, equipment and T type mold, molding machine, cutting machine and stack frame. Supply formula guide service and staple raw material purchase Professional analyzing and design by considering production cost and tile's performance.



Details Images






Extruded Part
PVC glazed resin roof tile extruder machine




SJSZ80/156 Conical twin screw extruder
SJ50/30 Single screw extruder
For PVC material
For ASA material


Mold and Forming Part


Clothes rack type Mould

Mold width: 1300mm
Head surface: 0.04-0.05mm
Effective width:1300mm
Heating zones: 7 zones
Powder: 3.5kw*7zones





Distributor

The distributor is designed as a block The overall flow channel is designed with 3d melt flow simulation software, produced in
processing center ,reached micron level, ensuring the one-time manufacturing of the mold and greatly reducing the number of mold
repairs.


Embossing Machine

Roller diameter: 240mmRoller length:1360mm
Motor power: 0.75kw*2sets
Roller material: #45 steel, surface hard chromium plating process


Forming Machine

Quantity of module: 44pcs(22 pairs) normally, can customized
Material: aluminum alloy
Extrusion line speed:0-3m/min
Max haul-off power: 50KW
Driver motor power: 5.5kw
Cooling mode:fan cooling, 0.55kw*8sets




Transverse cutter

Cutting motor:2.2kw
Center height:1000±50mm
Max cutting dimension:1200*100mm




Auxiliary machine





Ridge tile forming machine
Oven
Top ridge tile, hip ridge tile, thress way and end ridgeRidge tile mould: Alloy aluminum
Two layer structure , double station, more effective work. Put the flat tile to the Oven, when the temperature reach to 150℃,put the flat tile to the Ridge tile forming machine.


Cooperative Brand




Mixing Unit
Crusher
Milling Machine
SRL-Z300/600 High speed mixing unit SRLZ-500/1000 High speed mixing unit
PC 500 Crusher
Power: 37kw




Final Product
Two-layers(3 or 4 also can produce) PVC resin Roof Tile Width: 880mm/ 1050mm
Thickness: 1.5-3mm normally
Raw material: PVC powder, CaCo3, ASA
Using life: 30 years (according to formula)


Cooperative Brand




Packing&Shipping


1.For the loose cargo we will packing by wooden box
2.For the full container loading we are packing the machine by film and some on pallet accordingly
3.We can shipping the goods by air or by sea
4.We will send pictures of cargo loading to our client to check and keep recording
5.We can send cargo to client’s warehouse to loading




Customer Photos




Our Services


Meeting with clients
We often have a meeting with our clients for kinds of projects , discussed and confirm everything carefully.we are responsible
for our client and project .

Checking on quality
Our after sales service teamwork is very strictly on quality.our machine will be checked very carefully on every steps,Meanwhile,we send our engineer to install equipment on client.


Company Introduction


Our company occupies an area of 20,000 square meters, and we own 7,000-square-meter international standard factory building.
Ourcompany is a professional comprehensive plastic machinery manufacturer which integrates researching, developing and manufacturing together. We have obtained the ISO9001 certificate.We produce various plastic machines, such as single-screw-stem extruders, conedouble -screw-stem extruders, high-speed mixers, sets of production lines of pipes, plates, sheet materials and various kinds of auxiliary machines. They are well sold in Chin and about 30 foreign countries, such as Russia, Malaysia, Lebanon, Myanmar and South Africa. They are praised by masses of our consumers.






FAQ


Q: Are you machinery factory or trading company?
A: We are machinery factory

Q: If we have very special request for the production line,could you help me to do the design?
A: Experienced mechanical designer customized-design provided.

Q: How can we visit your company and machines?
A: We are located in Zhangjiagang City which is about 2.5 hours nearby Shanghai Airport.If customer want to visit our factory,we will pick up you at the airport.

Q: What`s the payment method?
A: T/T, L/C, etc

Q: How long is the warranty?
A: 12 months

Q: How long is the delivery time?
A: Under normal conditions, products are delivered within 45 working days.
