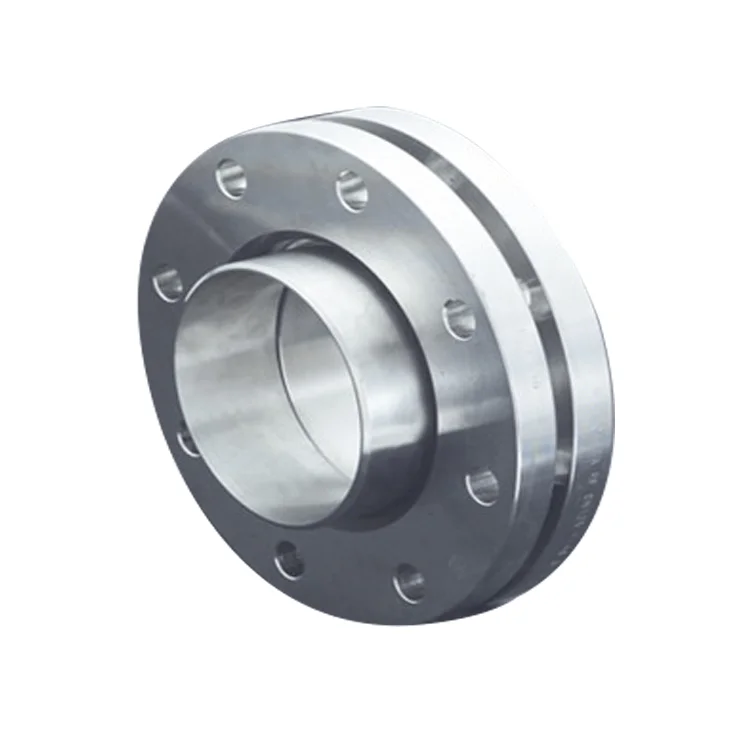

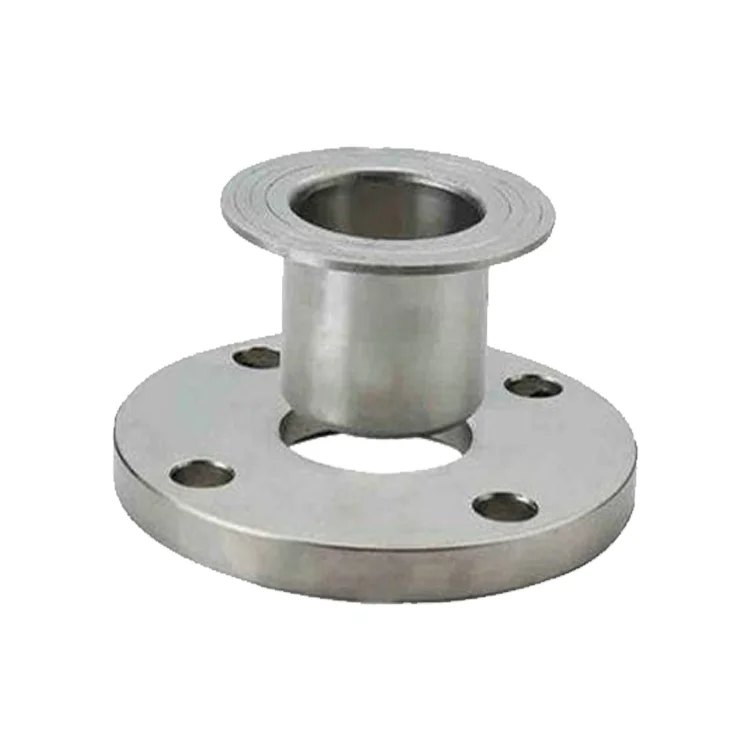

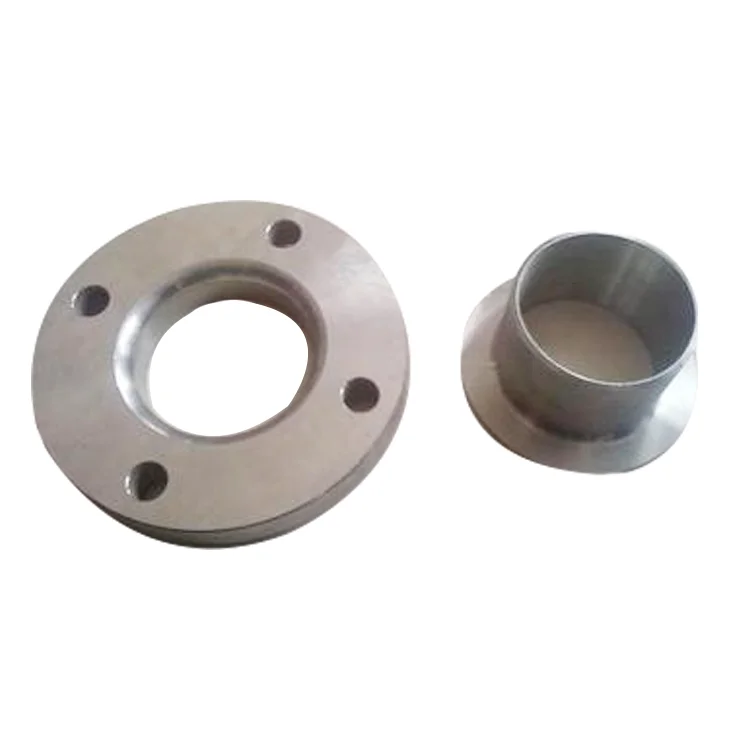

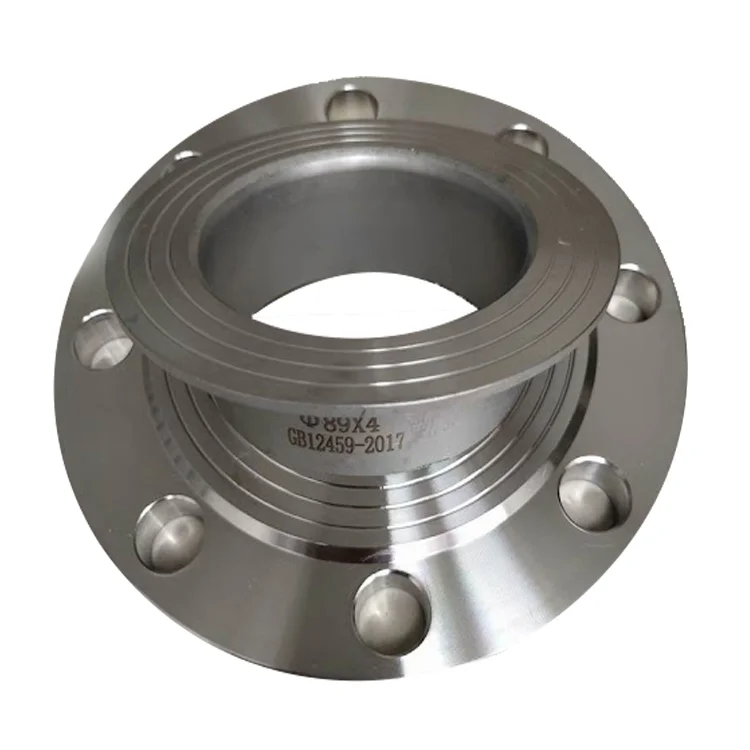

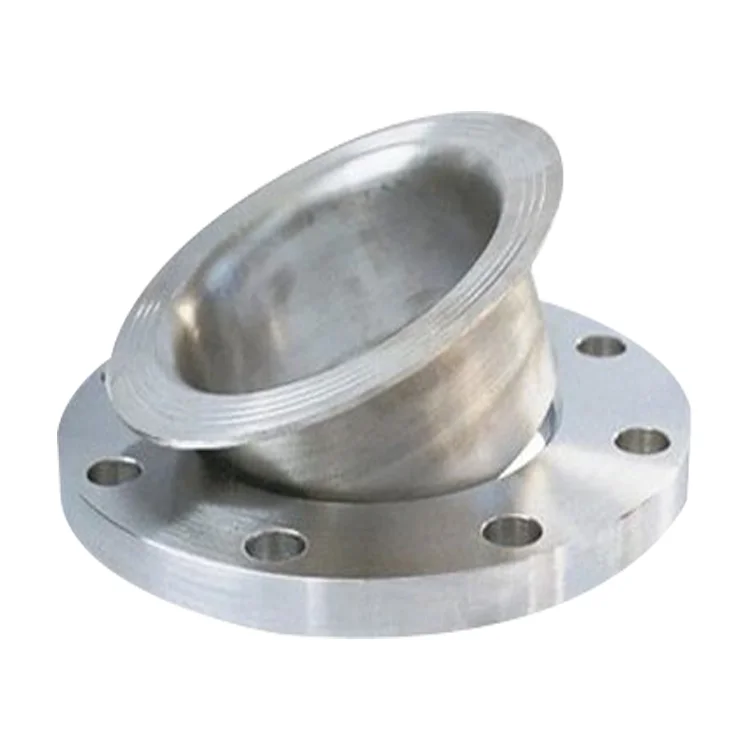

Соединение трубы DN100 GR7 фланцевый рукав из титанового сплава для стыковой
- Категория: >>>
- Поставщик: Baoji Qiyuexin Metal Material Co. Ltd.
Сохранить в закладки 1600503410655:
Описание и отзывы
Характеристики
NOMINAL PIPE SIZE | OUTSIDE DIA. | THICKNESS | DIA. OF RAISED FACE | DIA. OF HUB AT BASE |
1/2 | 3-1/2 | 7/16 | 1-3/8 | 1-3/16 |
3/4 | 3-7/8 | 1/2 | 1-11/16 | 1-1/2 |
1 | 4-1/4 | 9/16 | 2 | 1-15/16 |
1-1/4 | 4-5/8 | 5/8 | 2-1/2 | 2-5/16 |
1-1/2 | 5 | 11/16 | 2-7/8 | 2-9/16 |
2 | 6 | 3/4 | 3-5/8 | 3-1/16 |
2-1/2 | 7 | 7/8 | 4-1/8 | 3-9/16 |
3 | 7-1/2 | 15/16 | 5 | 4-1/4 |
3-1/2 | 8-1/2 | 15/16 | 5-1/2 | 4-13/16 |
4 | 9 | 15/16 | 6-3/16 | 5-5/16 |
5 | 10 | 15/16 | 7-5/16 | 6-7/16 |
6 | 11 | 1 | 8-1/2 | 7-9/16 |
8 | 13-1/2 | 1-1/8 | 10-5/8 | 9-11/16 |
10 | 16 | 1-3/16 | 12-3/4 | 12 |
12 | 19 | 1-1/4 | 15 | 14-3/8 |
14 | 21 | 1-3/8 | 16-1/4 | 15-3/4 |
16 | 23-1/2 | 1-7/16 | 18-1/2 | 18 |
18 | 25 | 1-9/16 | 21 | 19-7/8 |
20 | 27-1/2 | 1-11/16 | 23 | 22 |
24 | 32 | 1-7/8 | 27-1/4 | 26-1/8 |
LENGTH OF HUB | DIA. OF BORE | NUMBER OF HOLES | DIA. OF BOLTS+ | DIA. OF BOLT CIRCLE |
5/8 | .88 | 4 | 1/2 | 2-3/8 |
5/8 | 1.09 | 4 | 1/2 | 2-3/4 |
11/16 | 1.36 | 4 | 1/2 | 3-1/8 |
13/16 | 1.70 | 4 | 1/2 | 3-1/2 |
7/8 | 1.95 | 4 | 1/2 | 3-7/8 |
1 | 2.44 | 4 | 5/8 | 4-3/4 |
1-1/8 | 2.94 | 4 | 5/8 | 5-1/2 |
1-3/16 | 3.57 | 4 | 5/8 | 6 |
1-1/4 | 4.07 | 8 | 5/8 | 7 |
1-5/16 | 4.57 | 8 | 5/8 | 7-1/2 |
1-7/16 | 5.66 | 8 | 3/4 | 8-1/2 |
1-9/16 | 6.72 | 8 | 3/4 | 9-1/2 |
1-3/4 | 8.72 | 8 | 3/4 | 11-3/4 |
1-15/16 | 10.88 | 12 | 7/8 | 14-1/4 |
2-3/16 | 12.88 | 12 | 7/8 | 17 |
2-1/4 | 14.14 | 12 | 1 | 18-3/4 |
2-1/2 | 16.16 | 16 | 1 | 21-1/4 |
2-11/16 | 18.18 | 16 | 1-1/8 | 22-3/4 |
2-7/8 | 20.20 | 20 | 1-1/8 | 25 |
3-1/4 | 24.25 | 20 | 1-1/4 | 29-1/2 |
Grade | Mechanical Properties at Room Temperature | Mechanical Properties in High Temperature | ||||||||||
Tensile Strength Rm/Mpa | Extension Strength Rp0.2/Mpa | Section elongation A/% | Section Reduction Z/% | Test Temperature ℃ | Tensile Strength Rm/Mpa | Persistent Strength /Mpa | ||||||
Gr1 | 240 | 140 | 24 | 30 | --- | --- | --- | |||||
Gr2 | 400 | 275 | 20 | 30 | --- | --- | --- | |||||
Gr3 | 500 | 380 | 18 | 30 | --- | --- | --- | |||||
Gr5 | 685 | 585 | 15 | 40 | --- | --- | --- | |||||
Gr6 | 685 | 585 | 10 | 27 | 350 | 420 | 390 | |||||
Gr7 | 785 | 680 | 10 | 25 | 350 | 490 | 440 | |||||
Baoji qiyuexin metal materials Co., Ltd. is located in the east zone of Shaanxi Baoji high tech Industrial Development Zone,
whichis known as "China Titanium Valley". It was established in 2018 with a registered capital of 3 million yuan. It is an
enterpriselong engaged in the processing and manufacturing of titanium and other rare metals. It has profound inside informationand richexperience in the production of rare metals. The company has passed the ISO9001 quality management system certification.Over theyears, with strong technical strength, high-quality and mature products and perfect quality management system, the companyhasachieved rapid development. So far, its products are exported to home and abroad. Baoji qiyuexin metal materials Co., Ltd.focuseson the production of titanium pipe fittings, titanium, nickel, zirconium, molybdenum, flanges, pipe fittings andothernon-standard products. Its products include bar, plate, pipe, wire, foil, special-shaped drawing processing parts of variousmetalmaterials, various metal composite diamond bits, and pipe targets, round targets and plate targets used in vacuum sputtering coating industry; And can provide customers with national standard (GB / T) and American Standard (ASTM) and otherproductiontechnical standards of various metals and their alloy materials.
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2018,sell to Eastern Europe(35.00%),Southern Europe(30.00%),Western Europe(20.00%),Northern Europe(10.00%),North America(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
titanium vavle,titanium flange,titanium pipe fittings,titanium machined parts,titanium materials
4. why should you buy from us not from other suppliers?
The company is located in the "China Titanium Valley", engaged in the development and design of the metal industry for many years, and has a mature processing body and design system!
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Shaanxi, China, start from 2018,sell to Eastern Europe(35.00%),Southern Europe(30.00%),Western Europe(20.00%),Northern Europe(10.00%),North America(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
titanium vavle,titanium flange,titanium pipe fittings,titanium machined parts,titanium materials
4. why should you buy from us not from other suppliers?
The company is located in the "China Titanium Valley", engaged in the development and design of the metal industry for many years, and has a mature processing body and design system!
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
