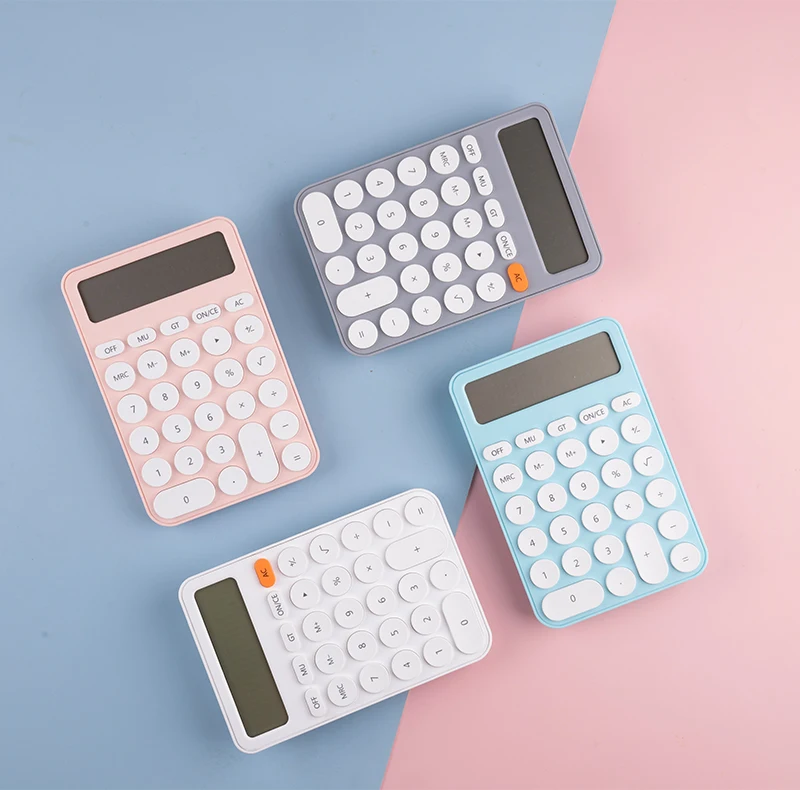

12-значный Круглый кнопочный электронный калькулятор для бизнеса с красочным ключом AAA батарея розовый калькулятор
1,70 $ - 1,86 $
Лидер продаж автоматическая склеивающая машина Rolam 800GS для картонных папок складной и склеивающий горячий продукт 2019 клей на водной основе
- Категория: >>>
- Поставщик: Zhejiang New Luolan Machinery Co. Ltd.
Сохранить в закладки 1600503977683:
Описание и отзывы
Характеристики
VR
Product Description
Automatic High Speed 4/6 Corner Crash Lock Bottom Folder Gluer(GK-GS)
Certifications

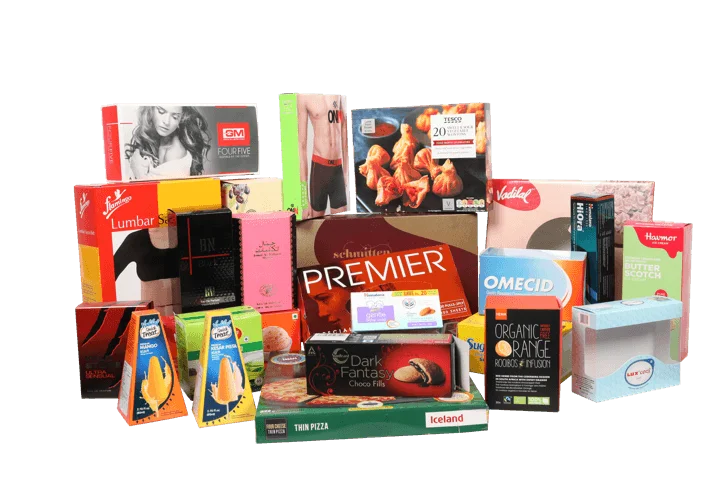

Samples Parameter
Specification
650 | 800 | 1100 | |||
Paper material | Cardboard 210-800gsm, A/B/E Flute | ||||
Max.Speed | 400m/min | ||||
Max.thickness of folded box | 12mm | 12mm | 12mm | ||
Way of folding | Fold 1 and fold 3 are 180°and 165° | ||||
Power supply | 3P 380V 50HZ | ||||
Blank width | 650mm | 800mm | 1100mm | ||
Length x Width x Height | 13x1.3x1.3m | 15x1.5x1.3m | 15x1.8x1.3m | ||
Net Weight | 5.5T | 6.5T | 7.5T | ||
Total power | 28.6kw | 31.18kw | 31.18kw | ||

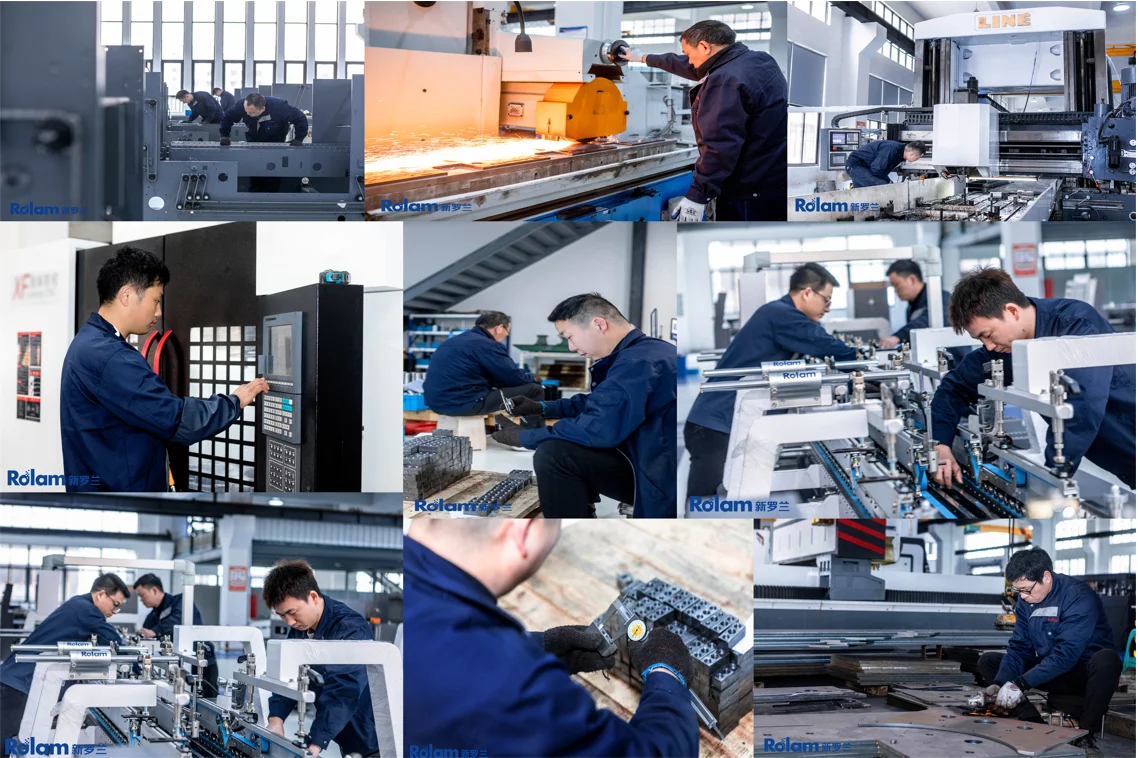

Company Profile
Details Images
Paper Feeding Section
Rail width can be horizontally adjusted and set by seven pieces 30mm thickened feeding belt and 10mm metal board.
Operators can operate feeder switch in any regional.
Aligner section
The paper board sent from feeder section will be corrected by aligner section
to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate different
paper board thickness.
to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate different
paper board thickness.
Pre-folding section
Special first folding line pre-fold 180°. third line 165° ,which perfectly meeting the requirements of automatic packaging industry.
Crash lock bottom section
Compiete set of crash lock bottom device makes the lock bottom part perfectly .Sectional-type upper belt board with special design.
4 and 6-corner device
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Lower gluing tank
lower gluing tank is large volume.
Easy to remove and clean
Electronic upper gluing system by guns.
Easy to remove and clean
Electronic upper gluing system by guns.
Folding and closing
The Second and fourth folding line 180°
Folding and closing section transmit from right and left side ,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
Folding and closing section transmit from right and left side ,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
Trombone section
Up and down belt can be adjusted separately.
Equipped with photo electronic counting device and kicking paper device, which can press the paper after accounting and make it easy to pack.
Also equipped with feeding paper inspection device.
Equipped with photo electronic counting device and kicking paper device, which can press the paper after accounting and make it easy to pack.
Also equipped with feeding paper inspection device.
Box Squaring Device
Full press section continuously and automatically box collection mechanism that ensures a neat transfer to the press section,
guaranteeing a well aligned flow.
guaranteeing a well aligned flow.
Transmission
Equipped with special additional sponge belt for the press of boxes valley part.
Upper section moves back and forward, allowing for different box length.
Upper section moves back and forward, allowing for different box length.
Spraying System
Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped box, gluing quickly and accurately sizing
Packing & Delivery
Normally, we use wooden pallets and cases, we use fumigation/ free fumigation wooden pallets and cases for some European countries, also some are according to the customer's requirement.
FAQ
1.Q:What is the machine warranty?
A:one year.
2.Q:Does your machine with CE certificate?
A:Yes.
3.Q:What is the production time while placing order?
A:About 30 days
4.Q:What is the delivery time?
A:Within 30 days after get the payment.
5.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Q:Does the packing strong?
A:Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed to export packing standard.
7.Q:How about after-sales service process?
8.Q:Are you manufacturer?
A:Yes, we are manufacturer with 10-year experience and profession.
9.Q:Do you have stock product to sell?
A:Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need custom one for you, and your order will be highly attention to manufacture.
10.Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .
11.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.We are a professional manufacturer since 2005. We believe our products will provide you with great business benefits and advantage.
Our faith:
1) Society's Avail First
2) Client's Avail First
3) Employee's Avail First
4) Enterprise's Avail Second
If you have any inquiry, please don't hesitate to contact us. We will reply to you at the first time as we can.
A:one year.
2.Q:Does your machine with CE certificate?
A:Yes.
3.Q:What is the production time while placing order?
A:About 30 days
4.Q:What is the delivery time?
A:Within 30 days after get the payment.
5.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Q:Does the packing strong?
A:Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed to export packing standard.
7.Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem soon as possible.
8.Q:Are you manufacturer?
A:Yes, we are manufacturer with 10-year experience and profession.
9.Q:Do you have stock product to sell?
A:Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need custom one for you, and your order will be highly attention to manufacture.
10.Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .
11.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.We are a professional manufacturer since 2005. We believe our products will provide you with great business benefits and advantage.
Our faith:
1) Society's Avail First
2) Client's Avail First
3) Employee's Avail First
4) Enterprise's Avail Second
If you have any inquiry, please don't hesitate to contact us. We will reply to you at the first time as we can.
Похожие товары

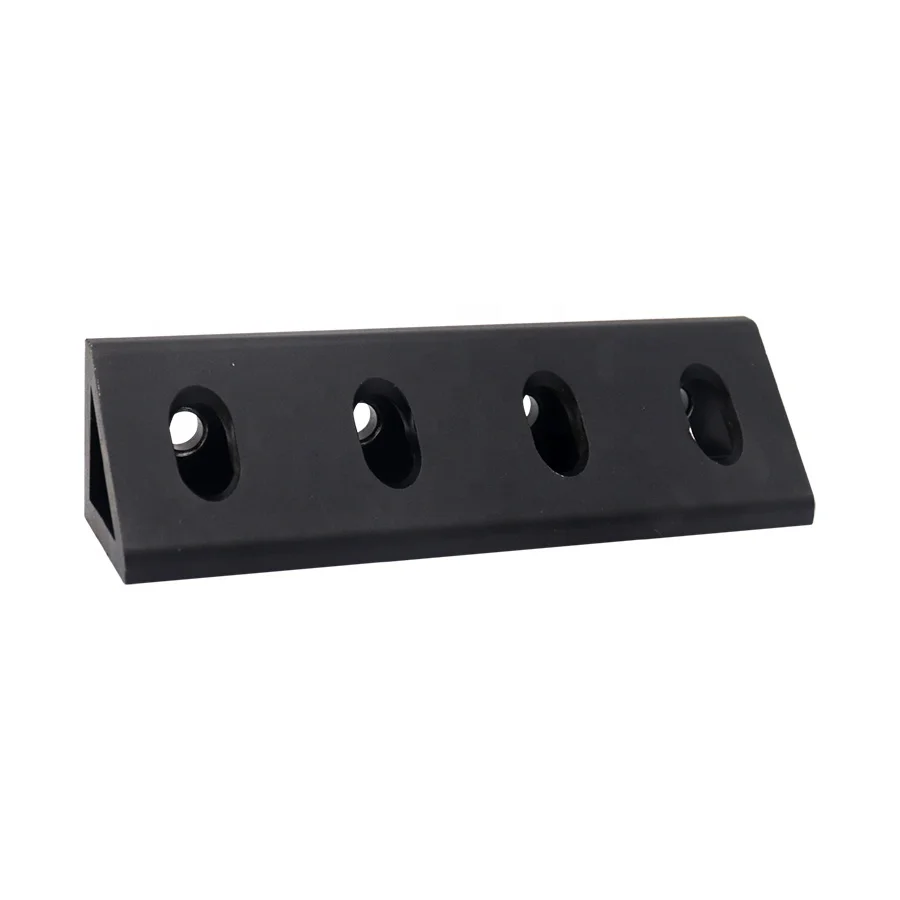

Горячая Распродажа 3 угловой кронштейн 40160 Треугольный Кронштейн угловой кронштейн для алюминиевого профиля
1,50 $ - 1,90 $

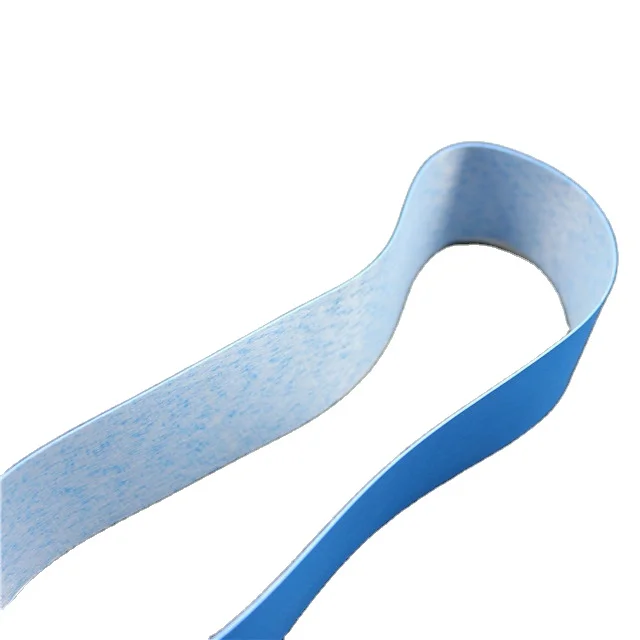

Хлопковый полиуретановый ремень на сигаретном станке для передачи промежуточного продукта
2,99 $

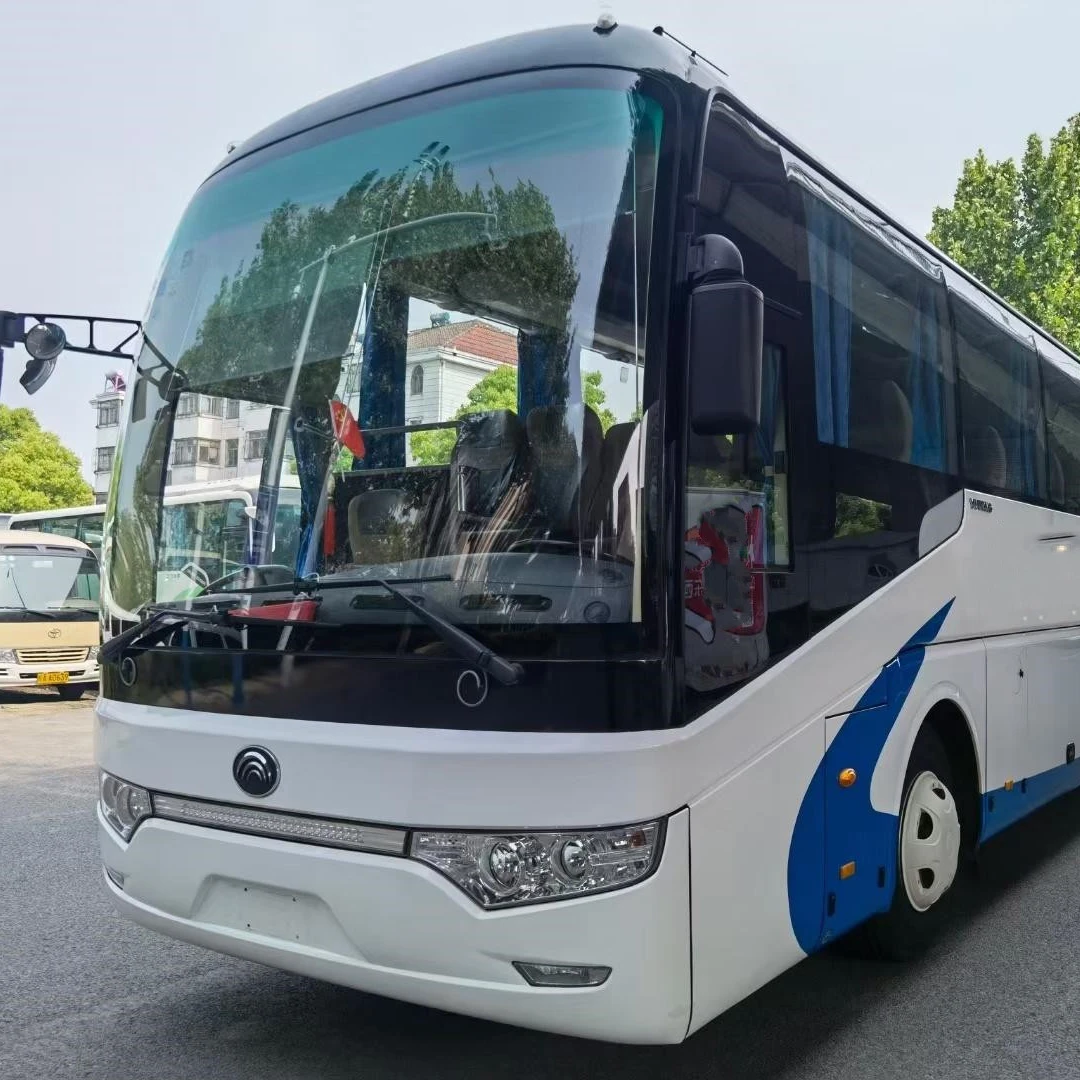

Б/у автобус Yutong на 53 места автобусы б/у городские дизельный двигатель Евро 3 для
12 000,00 $ - 13 000,00 $

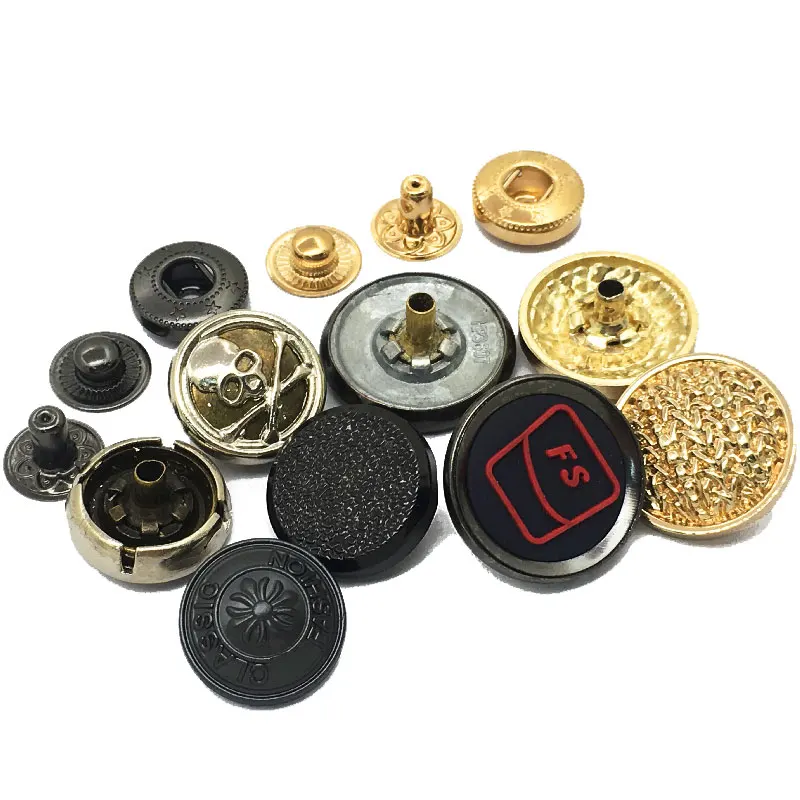

Одежда, декоративный тисненый логотип, металлический зажим, Крытый череп, крышка, защелкивающаяся кнопка, оптовая продажа для куртки

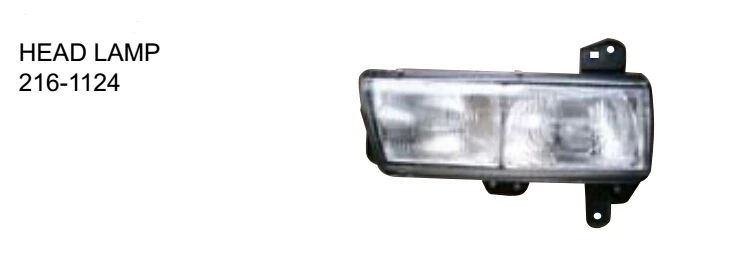

Запасные части для грузовых автомобилей mazda 216-1124 VICCSAUTO

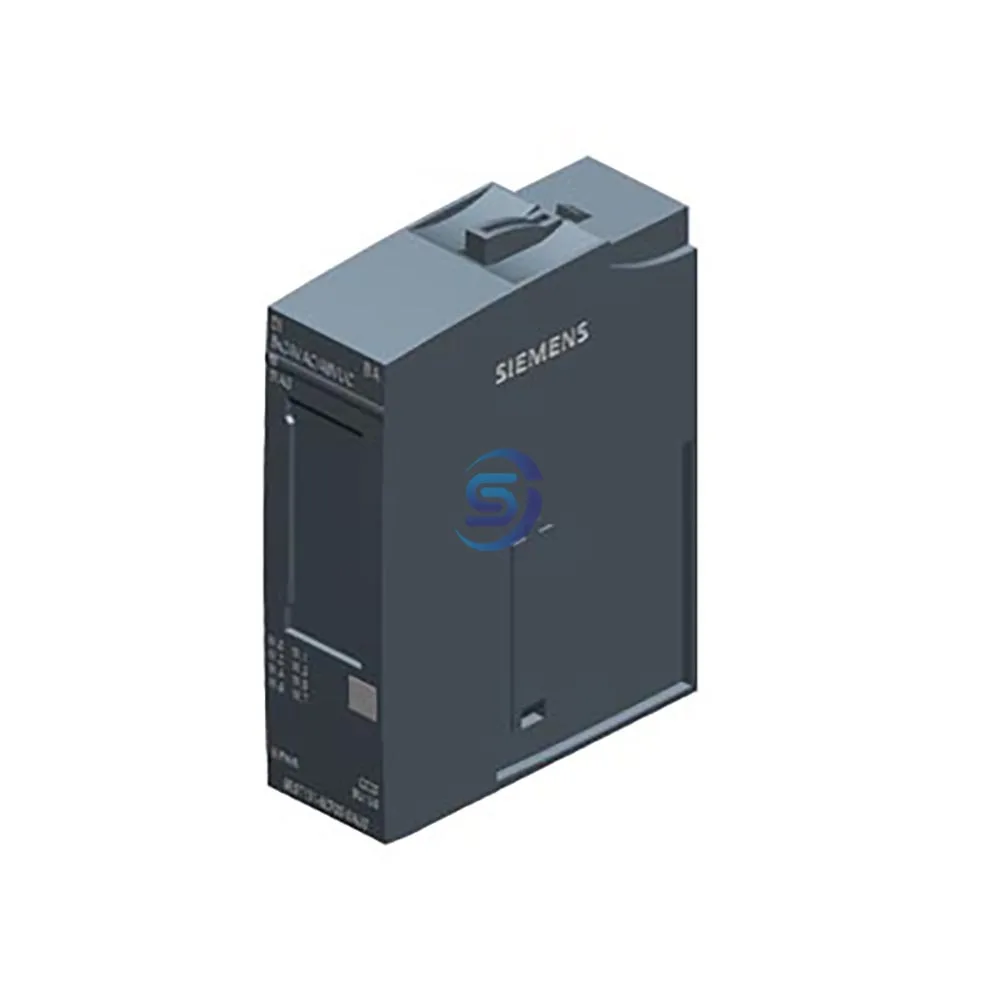

Оригинальный Plc 6ES7131-6CF00-0AU0 SIMATIC ET200SP 6ES71316CF000AU0 герметичный цифровой входной модуль 131-6BF00 DI 8x2 4VAC/48VUC BA
40,00 $ - 60,00 $

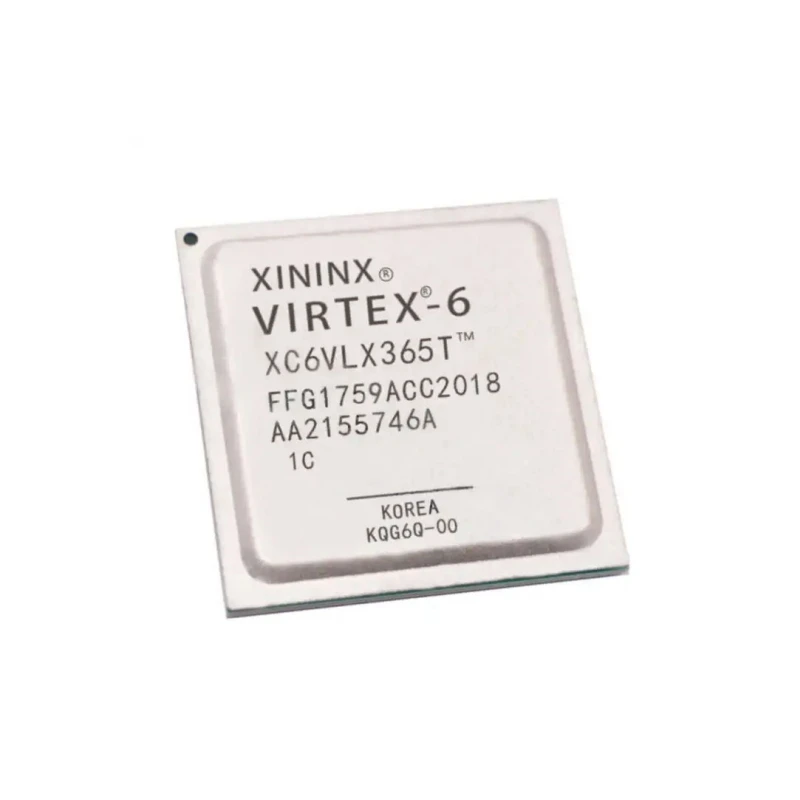

XC6VHX380T-1FFG1154I программатор IC XILINX FPGA Virtex BGA Original IC
