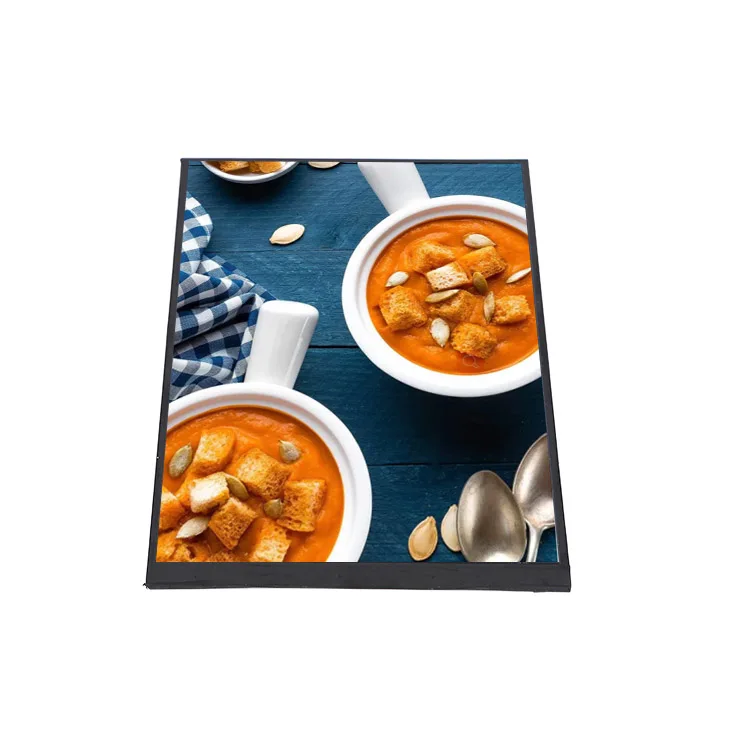

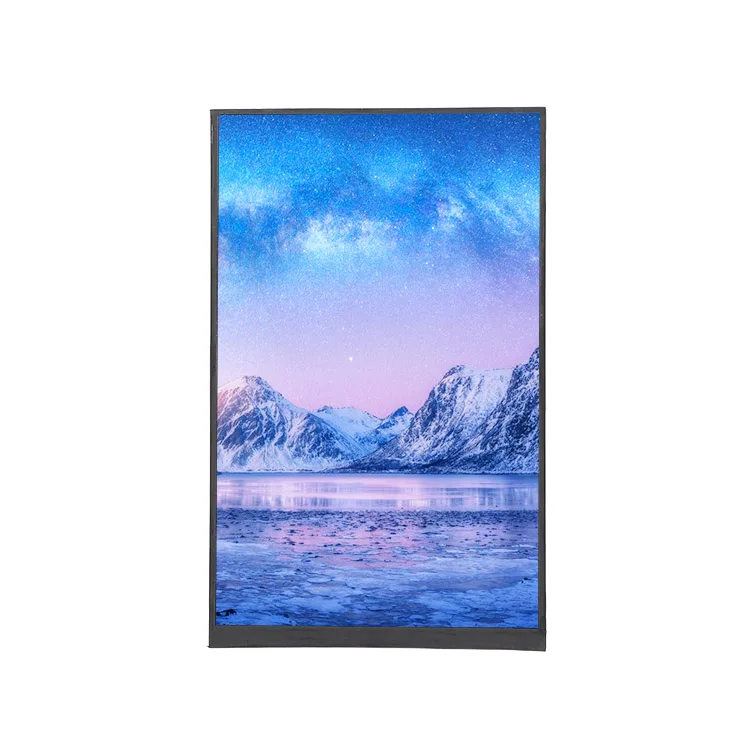

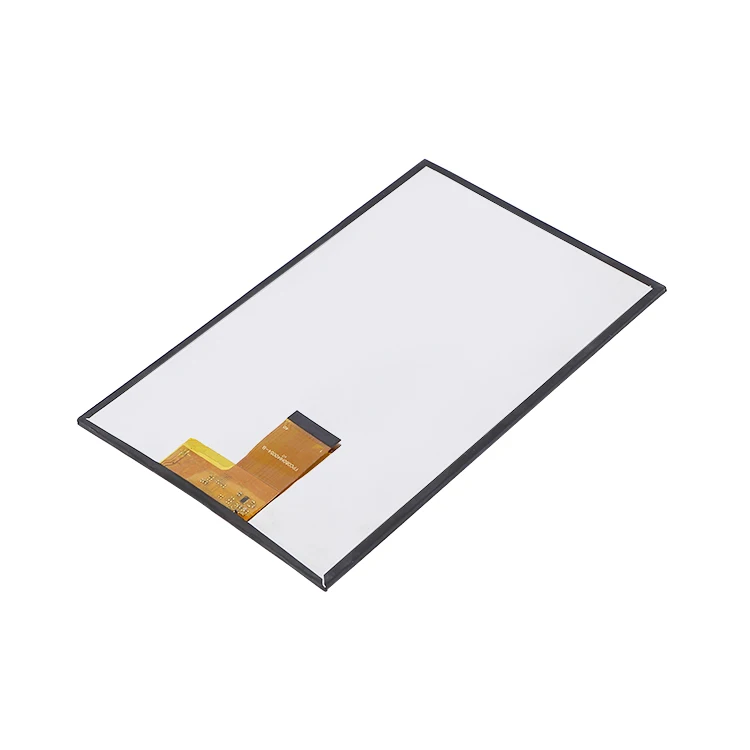

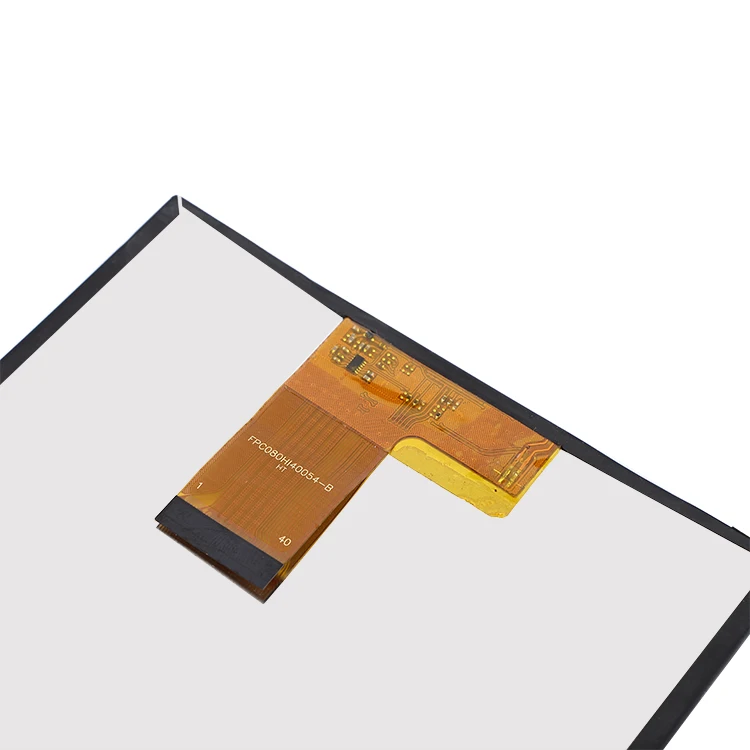

Новый стиль; Лидер продаж 7 дюймов ips емкостный сенсорный экран mipi 30 pin 800*1280 многофункциональный дисплей комплект
- Категория: >>>
- Поставщик: Shenzhen Huiyixin Technology Co. Ltd.
Сохранить в закладки 1600506878706:
Описание и отзывы
Характеристики
Products Description
More 7 inch LCD Display We Have- -7 inch RGB/50PIN TN TFT Display
ITEM | 7 inch TN TFT LCD Display | ||||||
Dot Arrangement | 800x480 | 800x480 | 800x480 | 1024x600 | |||
Color Filter Array | RGB vertical stripe | RGB vertical stripe | RGB vertical stripe | RGB vertical stripe | |||
Viewing Angle (U/D/L/R) | 50/60/70/70 | 50/70/70/70 | 50/70/70/70 | 60/70/80/80 | |||
(CR≥10) | |||||||
Module Size (mm) | 164.86x99.96x3.5 | 164.9x100x3.5 | 164.9x100x5.7 | 165x100x3.5 | |||
Active Area (mm) | 153.84x85.63 | 154.08x85.92 | 154.08x85.92 | 154.2144x85.92 | |||
Interface | RGB | RGB | RGB | RGB | |||
Backlight LED Number | 18 White LED | 18 White LED | 30 White LED | 18 White LED | |||
Brightness(Typ.) | 300cd/m2 | 250cd/m2 | 1000cd/m2 | 280cd/m2 | |||
Backlight Consumption(Typ.) | 9.0V/120mA | 9.6V/120mA | 9.6V/200mA | 9.6V/120mA | |||
Contrast Ratio | 500:01:00 | 500:01:00 | 500:01:00 | 700:01:00 | |||
LED Life Time(Typ.) | 50,000 Hr | 50,000 Hr | 50,000 Hr | 50,000 Hr | |||
Color Depth | 16.7M | 16.7M | 16.7M | 16.7M | |||
Operating Temperature | -20 ~ +70℃ | -20 ~ +70℃ | -20 ~ +70℃ | -20 ~ +70℃ | |||
Storage Temperature | -30 ~ +80℃ | -30 ~ +80℃ | -30 ~ +80℃ | -30 ~ +80℃ | |||
7 inch RGB/50PIN IPS TFT LCD
ITEM | 7 inch IPS LCD Screen | ||||
Dot Arrangement | 1024x600 | 1024x600 | 1024x600 | ||
Color Filter Array | RGB vertical stripe | RGB vertical stripe | RGB vertical stripe | ||
Viewing Angle (U/D/L/R)(CR≥10) | 85/85/85/85 | 85/85/85/85 | 85/85/85/85 | ||
Module Size (mm) | 164x97x2.6 | 165.00x100.00x3.50 | 165.00x100.00x3.50 | ||
Active Area (mm) | 154.2144x85.92 | 154.2144x85.92 | 154.2144x85.92 | ||
Interface | RGB | RGB | RGB | ||
Backlight LED Number | 21-LEDs (white) | 27-LEDs (white) | 33-LEDs (white) | ||
Brightness(Typ.) | 280cd/m2 | 600cd/m2 | 1000cd/m2 | ||
Contrast Ratio | 800:1 | 800:1 | 800:1 | ||
Backlight Consumption(Typ.) | 9.6V/140mA | 9.6V/180mA | 9.6V/220mA | ||
LED Life Time(Typ.) | 50,000 Hr | 50,000 Hr | 50,000 Hr | ||
Color Depth | 16.7M | 16.7M | 16.7M | ||
Operating Temperature | -10 ~ +50℃ | -20 ~ +70℃ | -20 ~ +70℃ | ||
Storage Temperature | -20 ~ +60℃ | -30 ~ +80℃ | -30 ~ +80℃ | ||
7 inch LVDS/40PIN TFT Screen
ITEM | 7 inch LVDS TFT LCD Display | ||||
Display Mode | TN | IPS | IPS | ||
Dot Arrangement | 1024x600 | 1024x600 | 1024x600 | ||
Driver IC | NT51008CH+NT52002H | HX8282 | HX8282-A+HX8696-A | ||
Color Filter Array | RGB vertical stripe | RGB vertical stripe | RGB vertical stripe | ||
Viewing Angle (U/D/L/R)(CR≥10) | 50/70/70/70 | 85/85/85/85 | 85/85/85/85 | ||
Module Size (mm) | 165.75x105.39(H)x2.8(T) | 165.00x100.00x3.50 | 165.00x100.00x3.50 | ||
Active Area (mm) | 154.2144x85.92 | 154.2144x85.92 | 154.2144x85.92 | ||
Interface | LVDS/40PIN | LVDS/40PIN | LVDS/40PIN | ||
Backlight LED Number | 27-LEDs (white) | 21-LEDs (white) | 33-LEDs(white) | ||
Brightness(Typ.) | 300cd/m2 | 500cd/m2 | 1000cd/m2 | ||
Contrast Ratio | 700:1 | 800:1 | 800:1 | ||
Backlight Consumption(Typ.) | 9.6V/180mA | 9.6V/180mA | 9.6V/220mA | ||
LED Life Time(Typ.) | 50,000 Hr | 50,000 Hr | 50,000 Hr | ||
Color Depth | 16.7M | 16.7M | 16.7M | ||
Operating Temperature | -20 ~ +70℃ | -20 ~ +70℃ | -20 ~ +70℃ | ||
Storage Temperature | -30 ~ +80℃ | -30 ~ +80℃ | -30 ~ +80℃ | ||
7 inch MIPI/30PIN LCD Display
ITEM | 7 inch MIPI LCD | ||||
Display Mode | TN | IPS | IPS | ||
Dot Arrangement | 1024x600 | 1024x600 | 1024x600 | ||
Driver IC | EK79007AD | EK79007AD | EK79007AD | ||
Color Filter Array | RGB vertical stripe | RGB vertical stripe | RGB vertical stripe | ||
Viewing Angle (U/D/L/R)(CR≥10) | 40/50/50/50 | 85/85/85/85 | 85/85/85/85 | ||
Module Size (mm) | 164x97x2.6 | 165x100x3.5 | 165x100x3.5 | ||
Active Area (mm) | 154.2144x85.92 | 154.2144x85.92 | 154.2144x85.92 | ||
Interface | MIPI/30PIN | MIPI/30PIN | MIPI/30PIN | ||
Backlight LED Number | 21 white leds | 27 white leds | 21 white leds | ||
Brightness(Typ.) | 220cd/m2 | 500cd/m2 | 250cd/m2 | ||
Contrast Ratio | 800:1 | 800:1 | 800:1 | ||
Backlight Consumption(Typ.) | 9.6V /140mA | 9.6V /180mA | 9.6V /180mA | ||
LED Life Time(Typ.) | 50,000 Hr | 50,000 Hr | 50,000 Hr | ||
Color Depth | 16.7M | 16.7M | 16.7M | ||
Operating Temperature | -10 ~ +50℃ | -10 ~ +50℃ | -10 ~ +50℃ | ||
Storage Temperature | -20 ~ +60℃ | -20 ~ +60℃ | -20 ~ +60℃ | ||
Customization
Recommend Products
Company Profile
Shenzhen HuiYiXin Technology Co.,Ltd
Shenzhen HuiYiXin is located in ShaJing,Bao'an,Shenzhen.With 12 years experience in LCD Module OEM&ODM orders, we win so many domestic and foreign customers, such as in Korea, India, Vietnam and so on over 7years. There is 6 Auto-production-lines, daily capacity reach 30Kpcs.Our factory has passed ISO9001, IATF 16949 certificate. We have our R&D department, welcome to any technical issues.
Certifications
Production Workshop
Exhibition
FAQ
Q1.What does HuiYiXin do?
A1: We are LCD Module manufacturer ,which has 11 years experience in OEM&ODM orders;
Q2: Can we customize product? What cost will be included?
A2: Yes, the product can be customized, but TFT LCD module has different tooling cost, which includes FPC, Touch Screen, Backlight, Bezel and so on.
A2: Yes, the product can be customized, but TFT LCD module has different tooling cost, which includes FPC, Touch Screen, Backlight, Bezel and so on.
Q3: Products are in stock? How long can you deliver?
A3: Our inventory is mainly raw materials,semi-finished and a small amount of finished products.
After payment, Samples available in stock will be sent within 7 days; Small batch delivery takes about 2 weeks; Large batchdelivery takes 5-6 weeks, please kindly confirm with our sales person;
A3: Our inventory is mainly raw materials,semi-finished and a small amount of finished products.
After payment, Samples available in stock will be sent within 7 days; Small batch delivery takes about 2 weeks; Large batchdelivery takes 5-6 weeks, please kindly confirm with our sales person;
Q4: What's the Payment Terms?
A4: Paypal, Credit Card, Trade assurance and TT all are acceptable. Paypal can be accepted for sample, but Credit Card and T/Tpaid in advance for mass production. For samples and small batch should be 100% full payment; if large amount( more than 1000pcs),we accept 30% deposit by TT in advance, 70% balance done before shipment.
A4: Paypal, Credit Card, Trade assurance and TT all are acceptable. Paypal can be accepted for sample, but Credit Card and T/Tpaid in advance for mass production. For samples and small batch should be 100% full payment; if large amount( more than 1000pcs),we accept 30% deposit by TT in advance, 70% balance done before shipment.
Q5:How to control the quality of products?
A5: Our company has a professional quality team-- 20 quality check people in our factory, and use the AIO Smart Inspector to scan the material before assembly, all product are 100% inspected before shipment.
A5: Our company has a professional quality team-- 20 quality check people in our factory, and use the AIO Smart Inspector to scan the material before assembly, all product are 100% inspected before shipment.
Q6: How long is the warranty and service of the product?
A6: Generally the warranty period is one year. It depends on different products.
We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
A6: Generally the warranty period is one year. It depends on different products.
We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
Q7: What is the minimum order quantity?
A7: Three method: if with standard in stock models, there is no MOQ requirements; if with simple customized models, the MOQ is 1000pcs; If with ODM order, please kindly reconfirm with our team.
A7: Three method: if with standard in stock models, there is no MOQ requirements; if with simple customized models, the MOQ is 1000pcs; If with ODM order, please kindly reconfirm with our team.
Q8: What is your delivery method?
A8: EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK forwarder.
A8: EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK forwarder.
Похожие товары

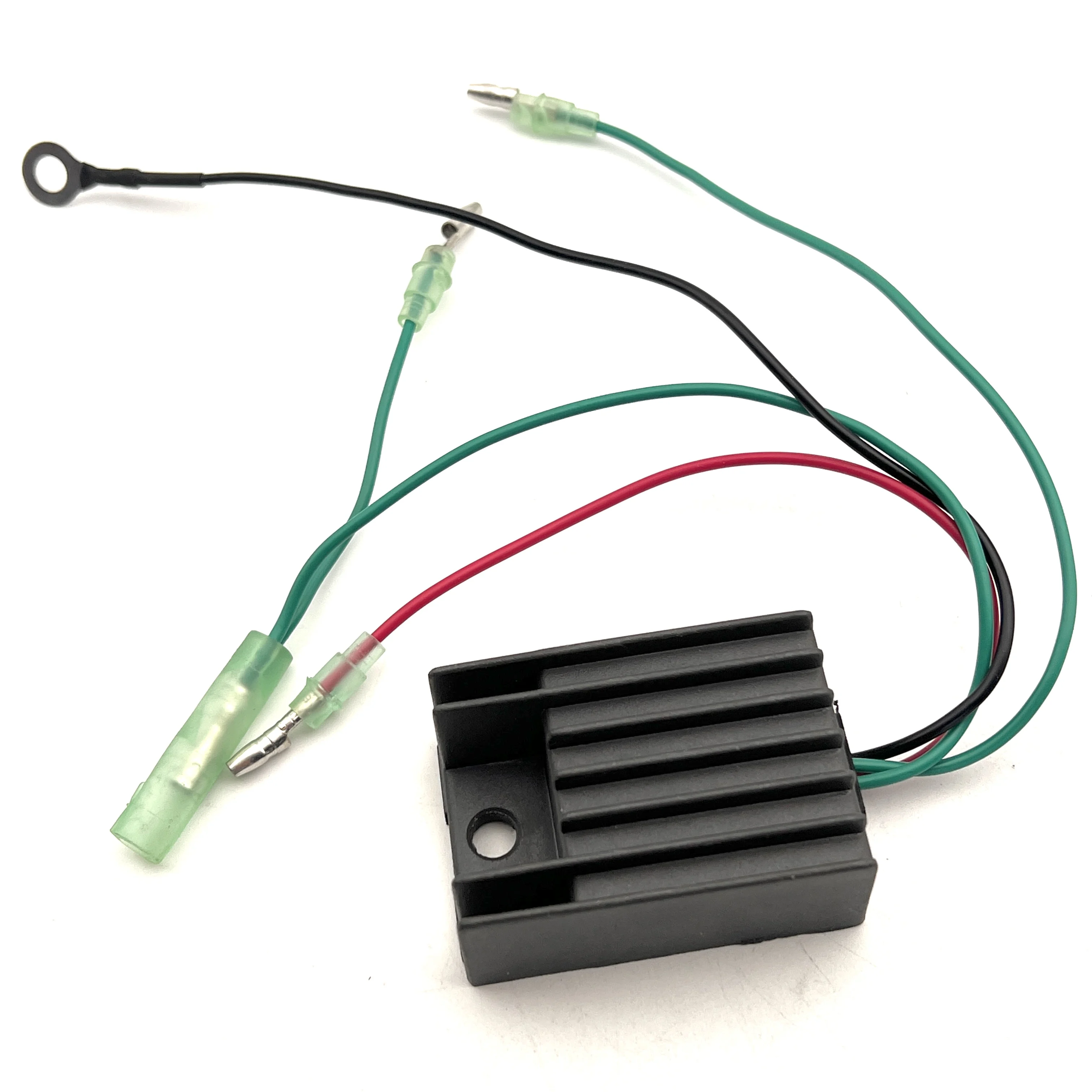

6H2-81960-00-00 SH643-13 Yamaha Запчасти для Гидроциклов, регулятор напряжения, выпрямитель для Yamaha GP1200 SUV1200 XL1200 EXS1200 LST1200 LST1200

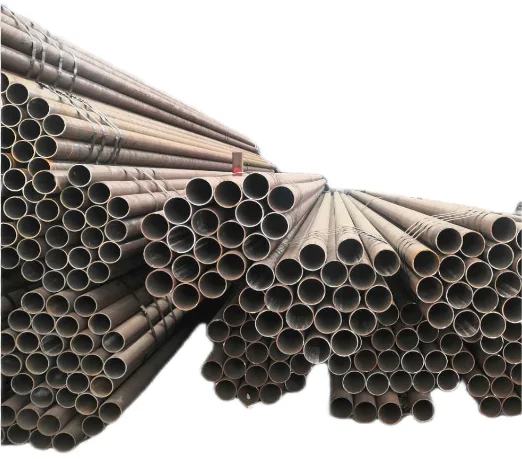

Бесшовная труба из углеродистой стали, низкая цена, горячекатаная бесшовная стальная труба, сделано в Китае
600,00 $ - 750,00 $

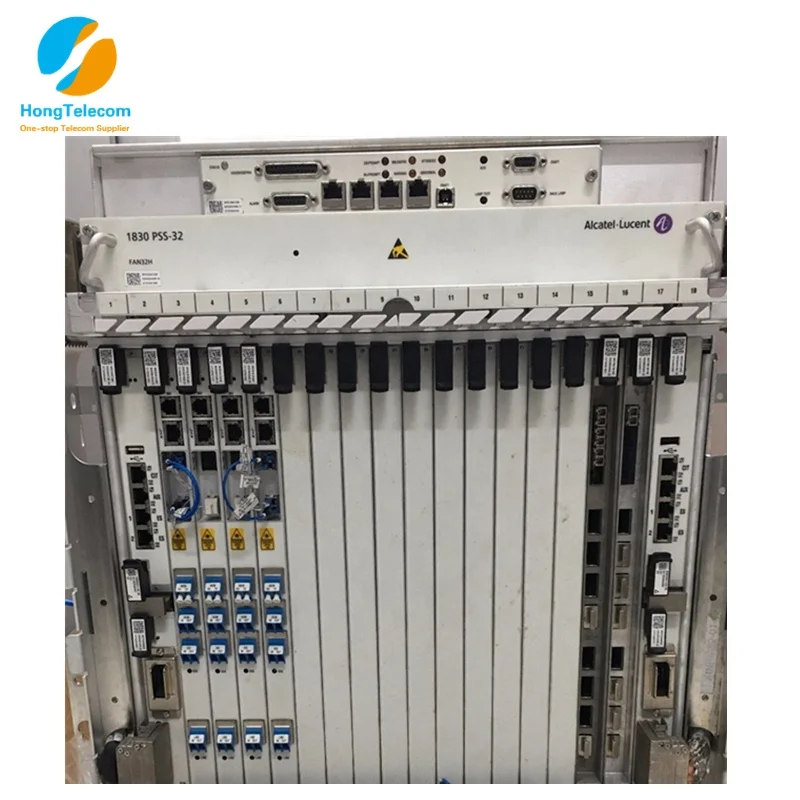

1830 PSS 130SCA1 100G A/D SDFEC высокоэффективный

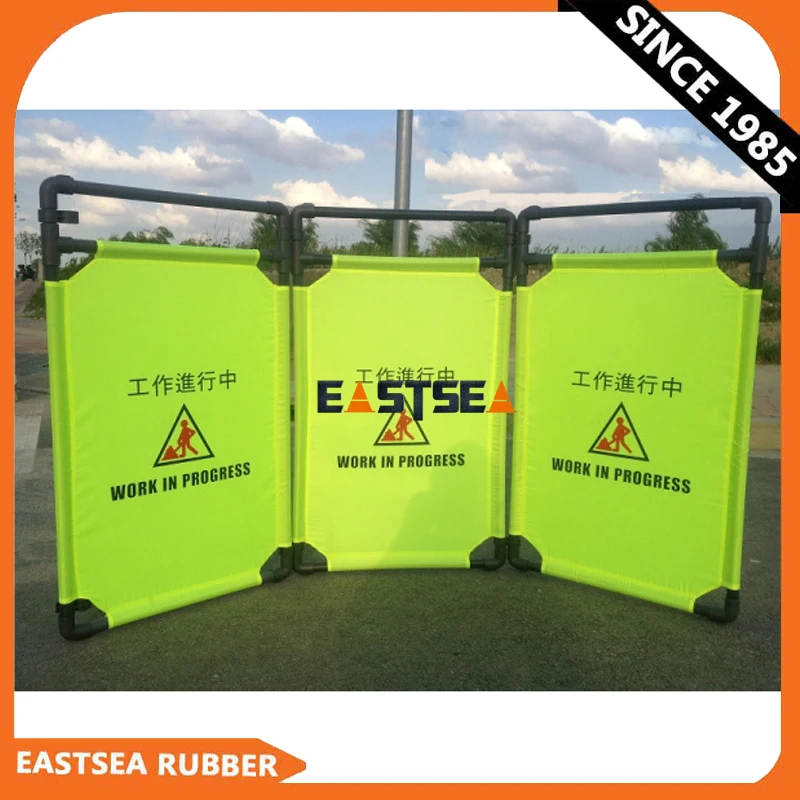

Портативные складные тканевые предупредительные временные баррикады
5,00 $ - 10,00 $

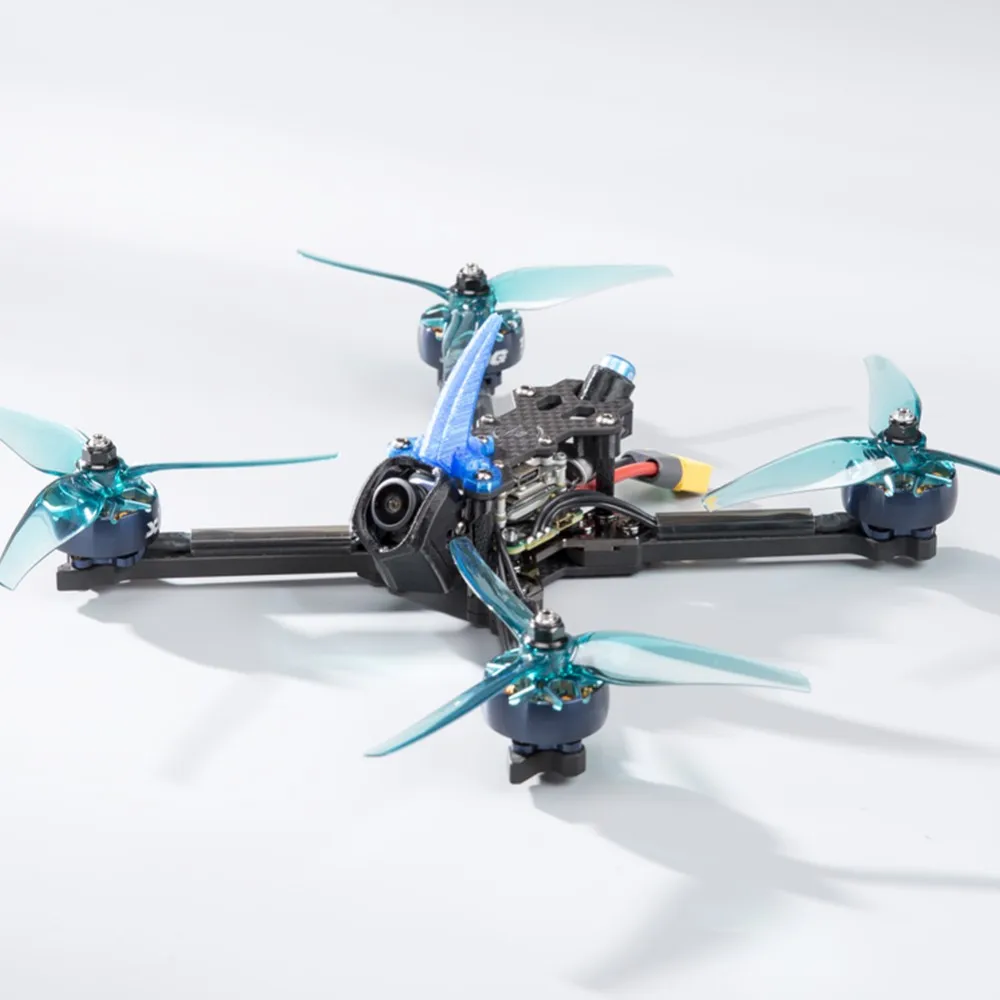

Гоночный Квадрокоптер полет Fpv складной под заказ IFlight R5 Дрон рамка Mach R5 HD 6S w/Caddx Polar Vista цифровая HD система BNF гонки
265,00 $ - 270,00 $
Свежее качество, желтый Мон дал-высококачественный Мон дал-Мон от экспортера

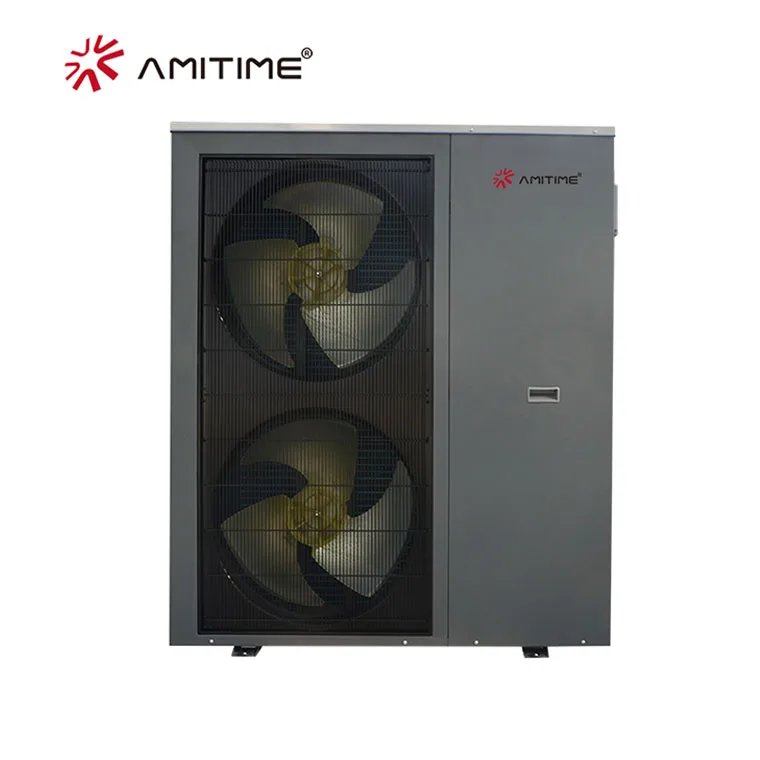

Бесшумный высокоскоростной Wi-Fi модуль 25 кВт коммерческий Инвертор постоянного тока тепловой насос от воздуха до воды
