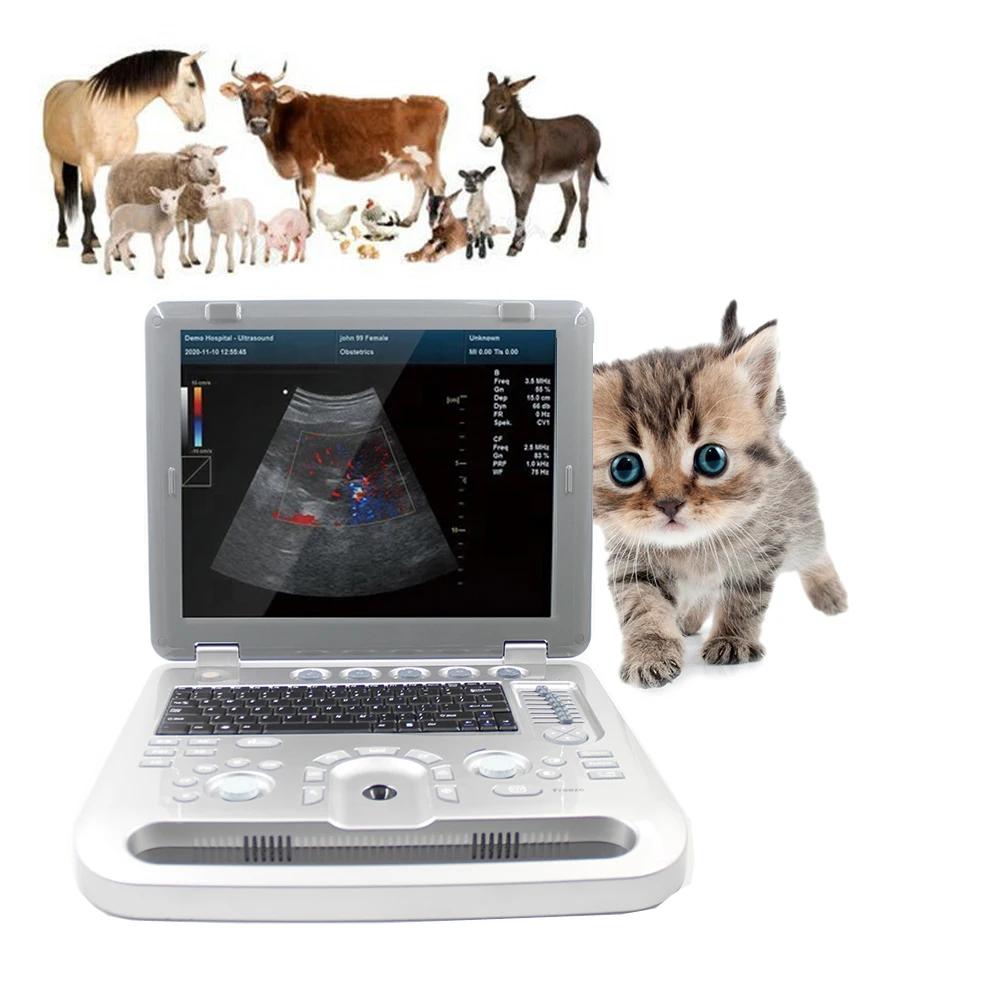

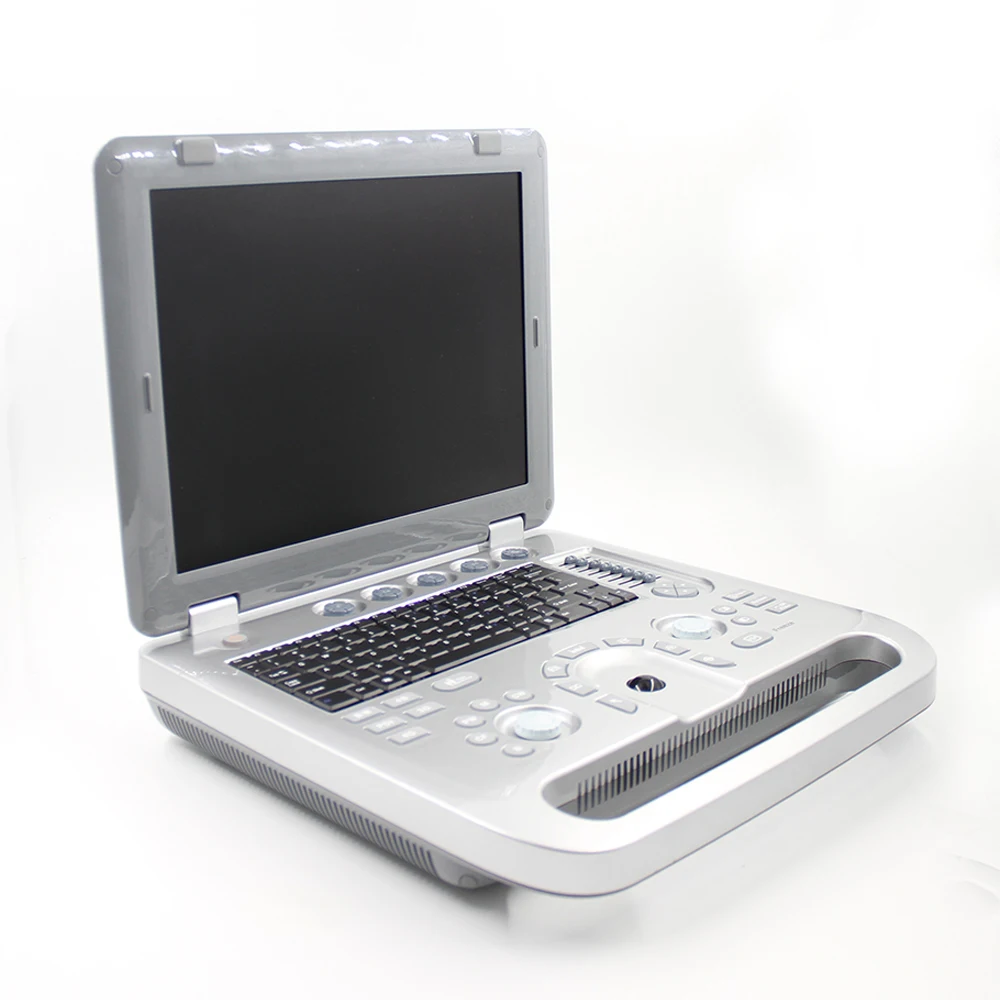

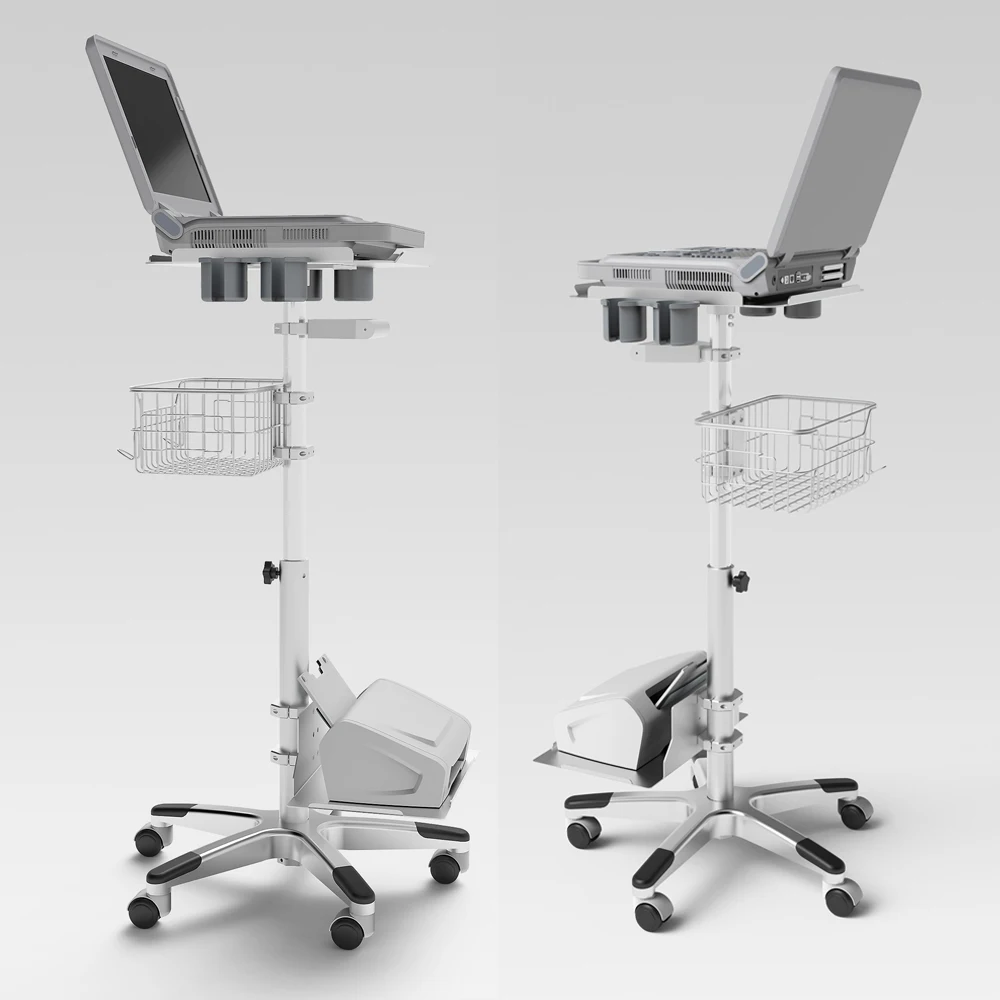

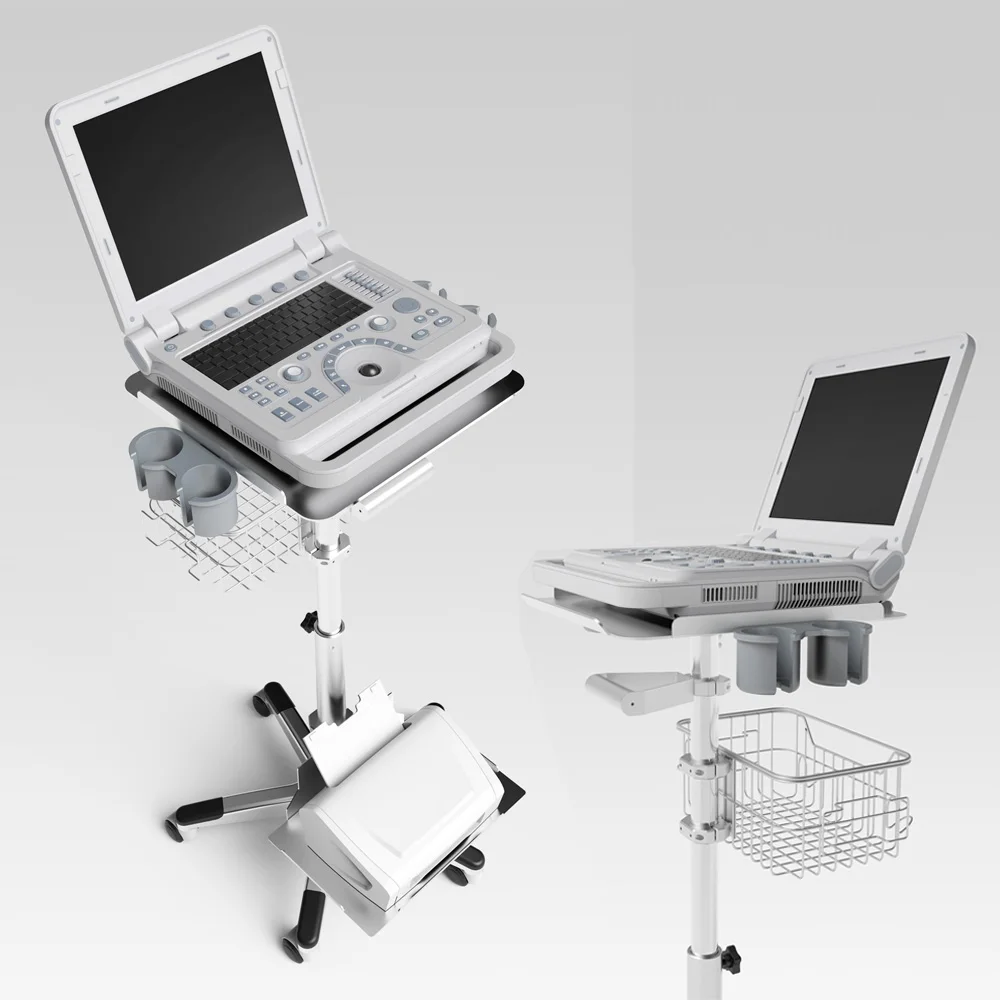

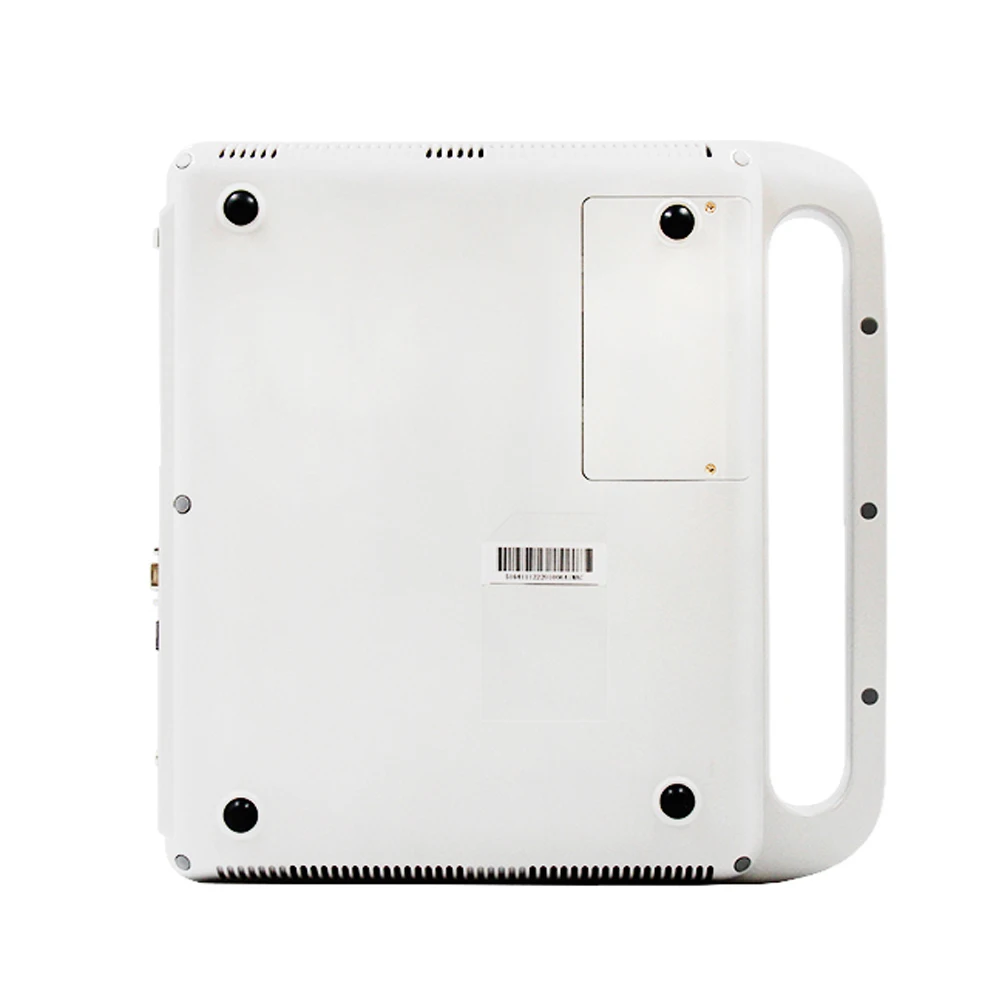

Портативный Цветной Допплер CONTEC для человека/ветеринарной больницы ecograph Лучшая цена 3D 4D ветеринарный ультразвук

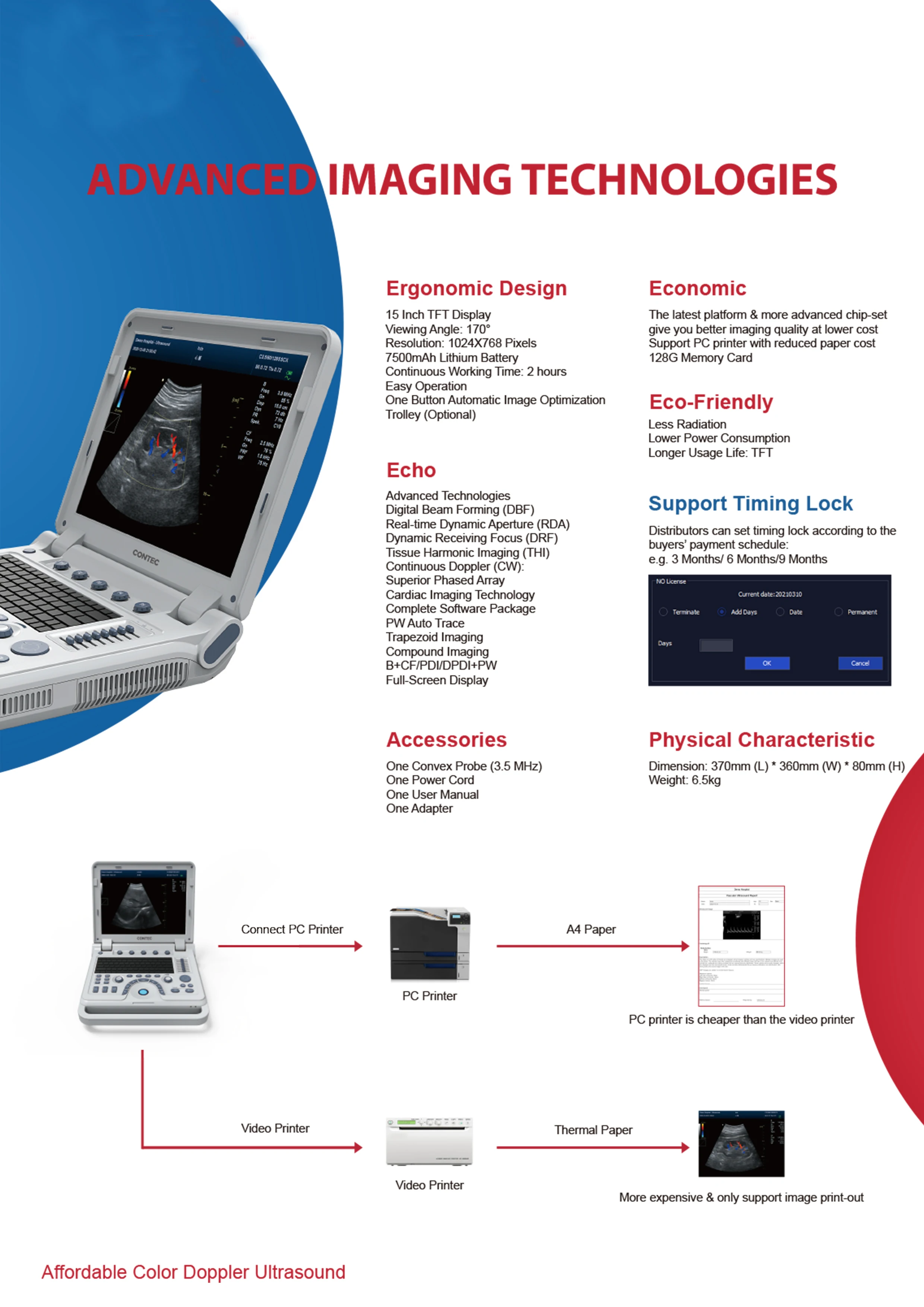

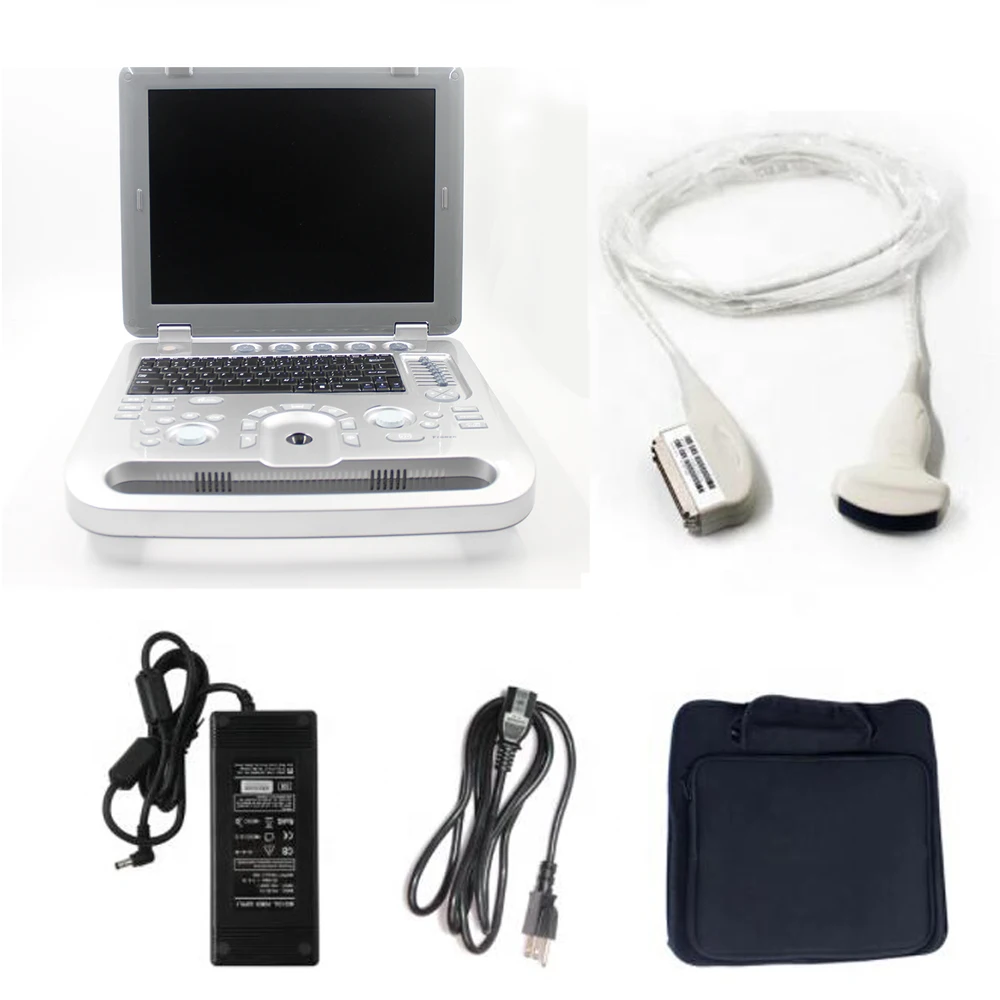

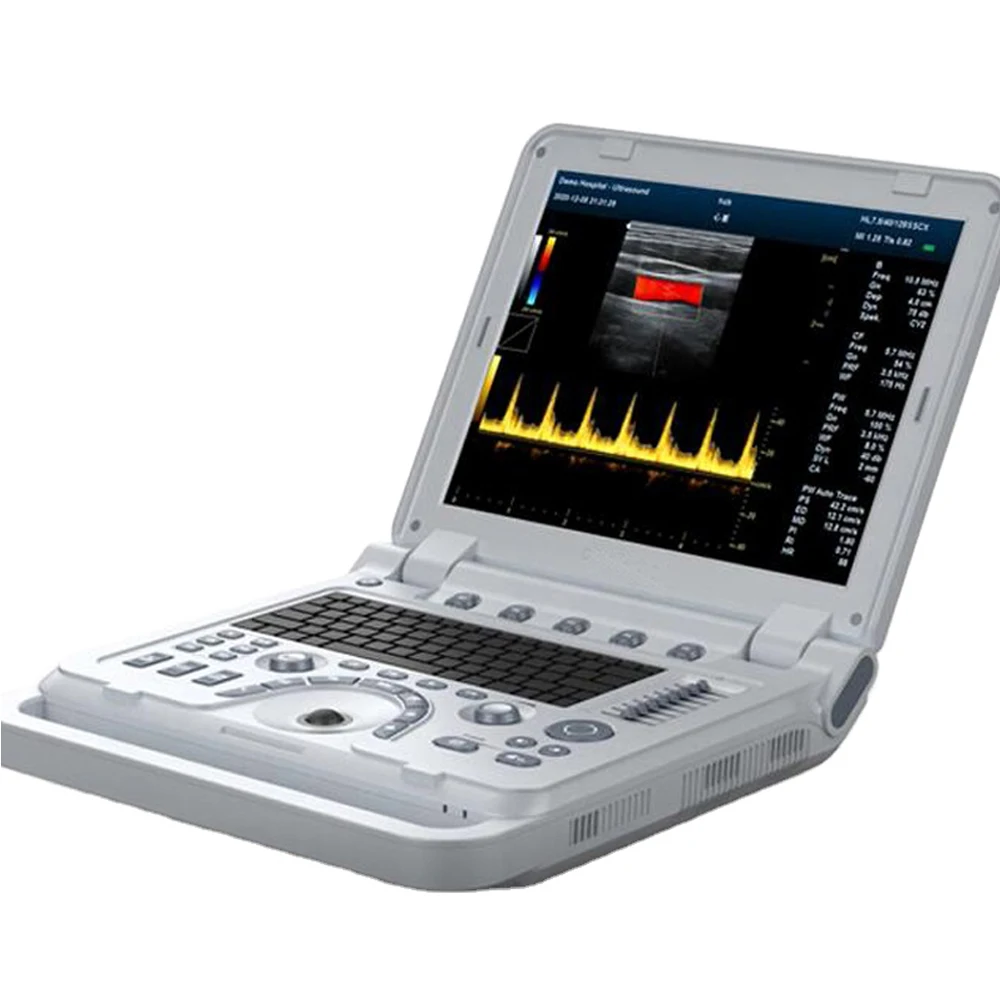

CMS1700B is a color Doppler ultrasonic diagnostic device with high resolution, which has a powerful computer processing platform. The system is mainly suitable for the diagnosis of abdomen, heart, peripheral vessels, breast, obstetrics and gynecology, small organs, urology, muscle, incretion and pediatrics, etc. It adopts Doppler ultrasound imaging technology, advanced image processing technology (such as digital beam-forming technology, tissue harmonic imaging (THI), image speckle suppression, etc.) and digital integrated graphic management system, and the internal professional measurement software package can fully meet the clinic diagnostic requirement.

Features
1)Color Doppler (CF), color power Doppler imaging (PDI).
2)Pulse spectrum Doppler (PW),
3)Continuous wave Doppler (CW) .
4)B+CF (Dual Images)
5)B+CF/PDI/DPDI+PW (Triplex)
6)3D, 4D imaging.(optional)

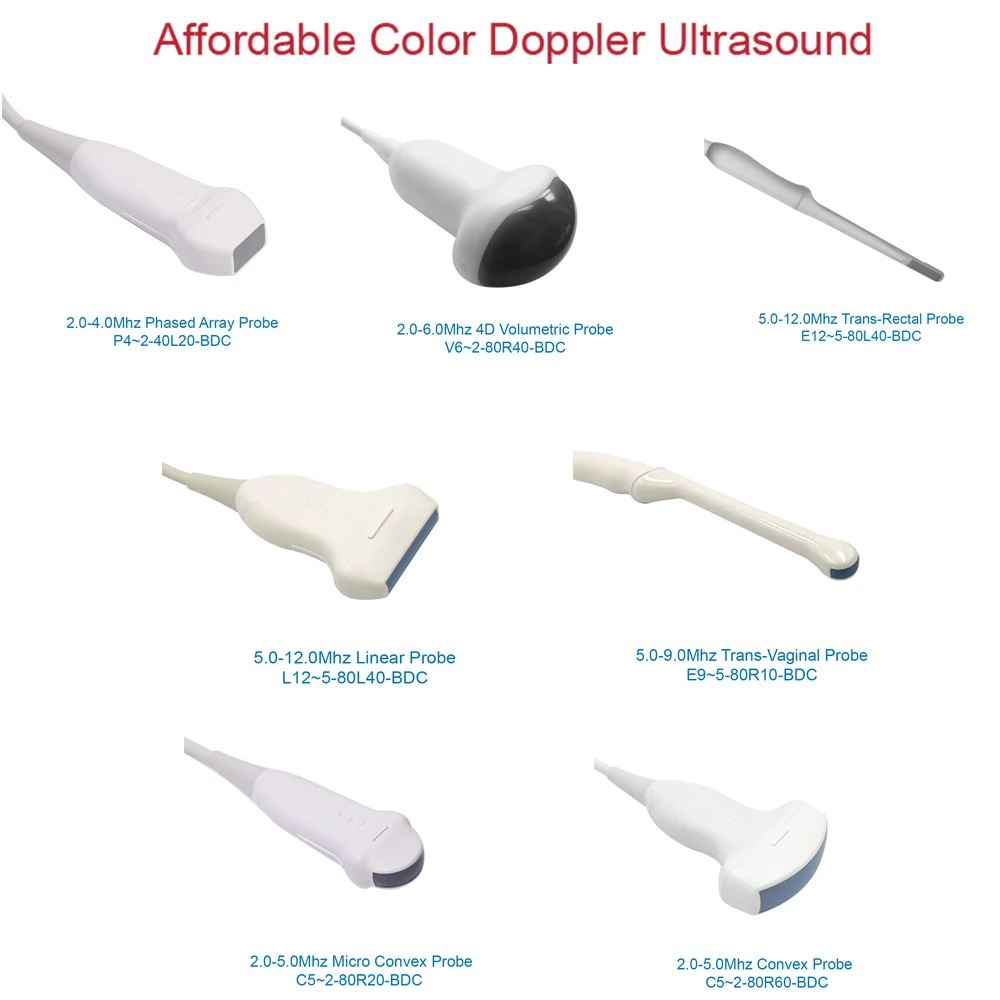

7)Superior in phased array cardiac imaging technology, complete in software package of cardiac measurement function.
8)Convex array extended imaging.
9)Linear array deflection/ trapezoid imaging.
10)Anatomic M-mode imaging.(optional)
11)space compounding imaging
12)Tissue harmonic imaging (THI).
13)Contrast agent imaging.(optional)
14)Wide scene imaging.(optional)
15)Puncture enhanced.(optional)

Performance
1)Display depth: ≥ 300 mm

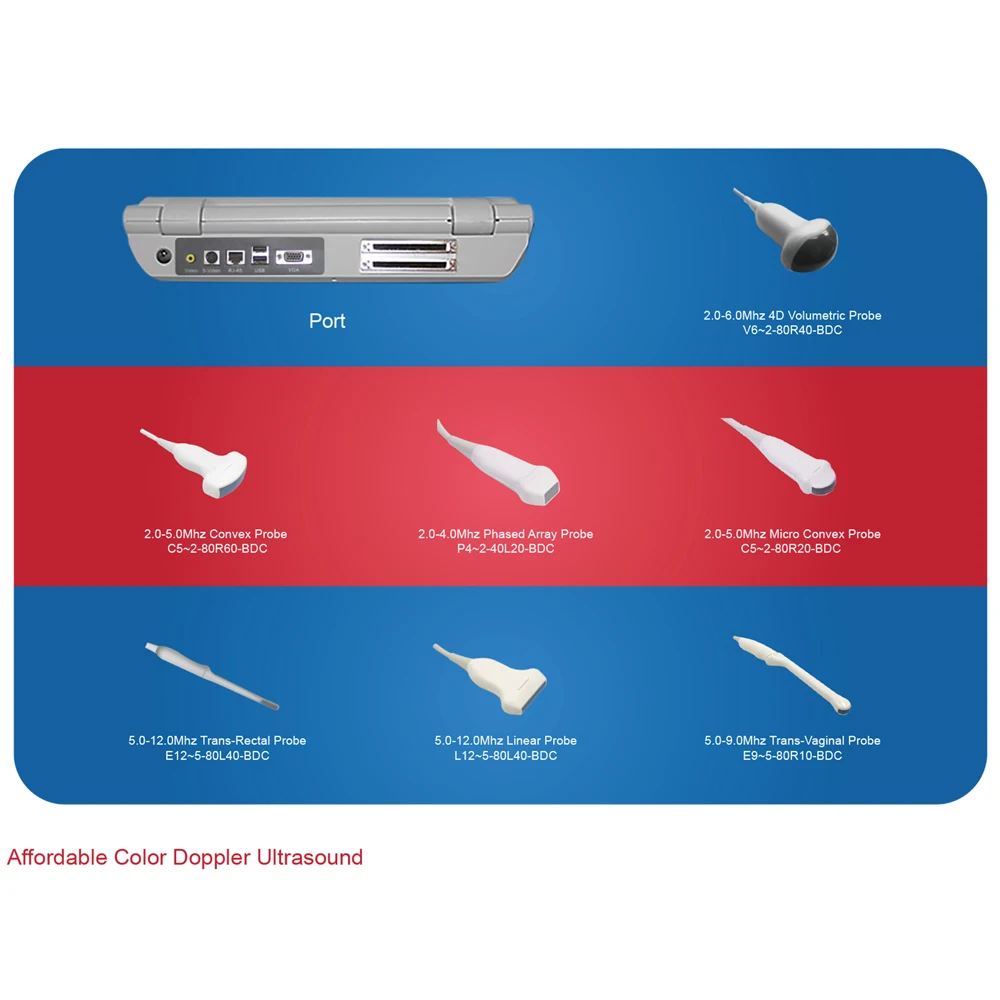

2)Extended interface: VIDEO interface, S-VIDEO interface, RJ-45 interface, USB interface, VGA interface.
Safety
Type of protection against electric shock: class Ⅰ equipment
Degree of protection against electric shock: type B applied part
Operating voltage: AC 100 V~240 V
Operating frequency: 50 Hz/60 Hz
Power consumption: ≤ 100 VA

Physical characteristic
Dimension: 370 mm (L) × 360 mm (W) × 80 mm (H)
Weight: 6.5 kg
