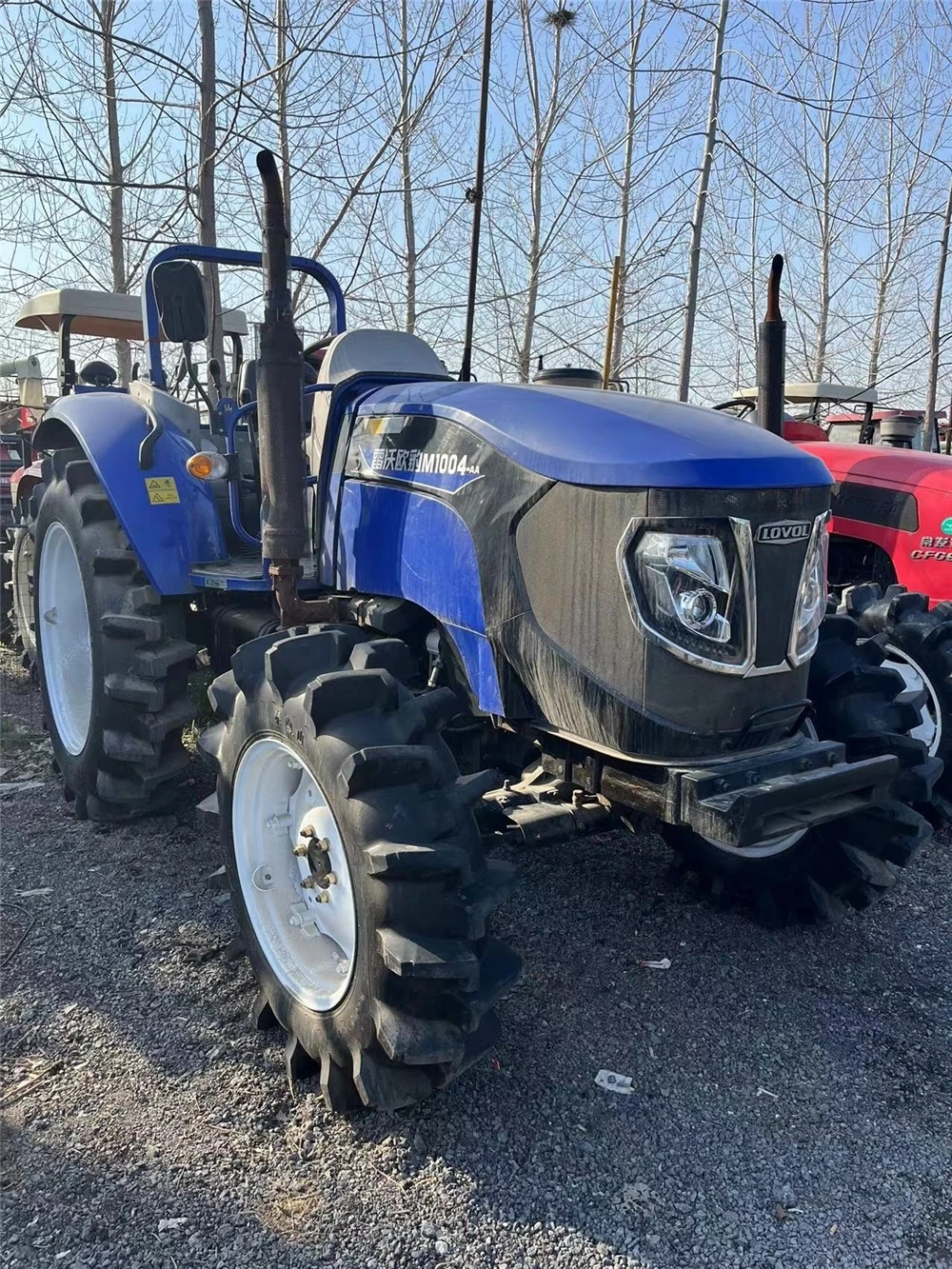

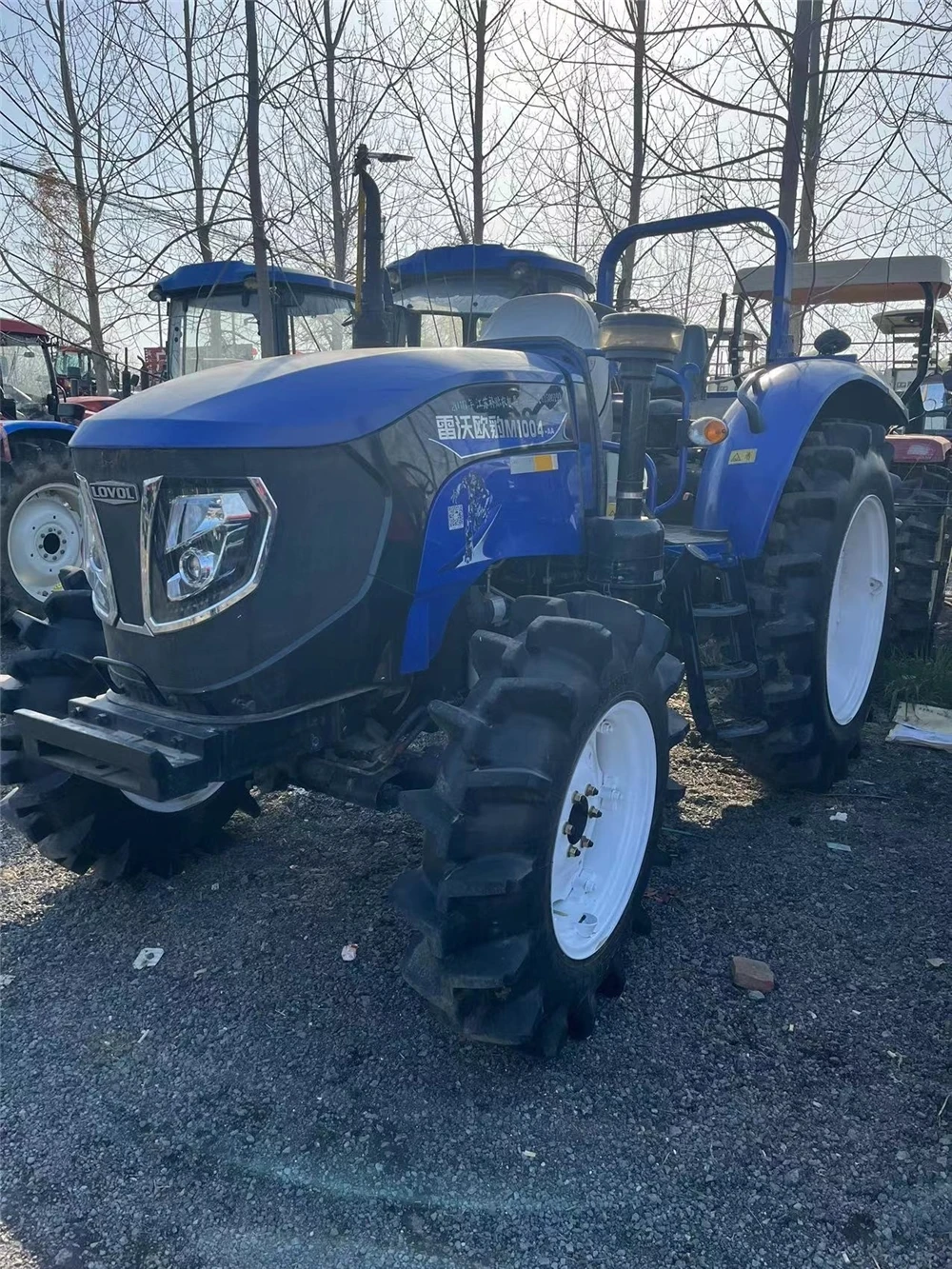

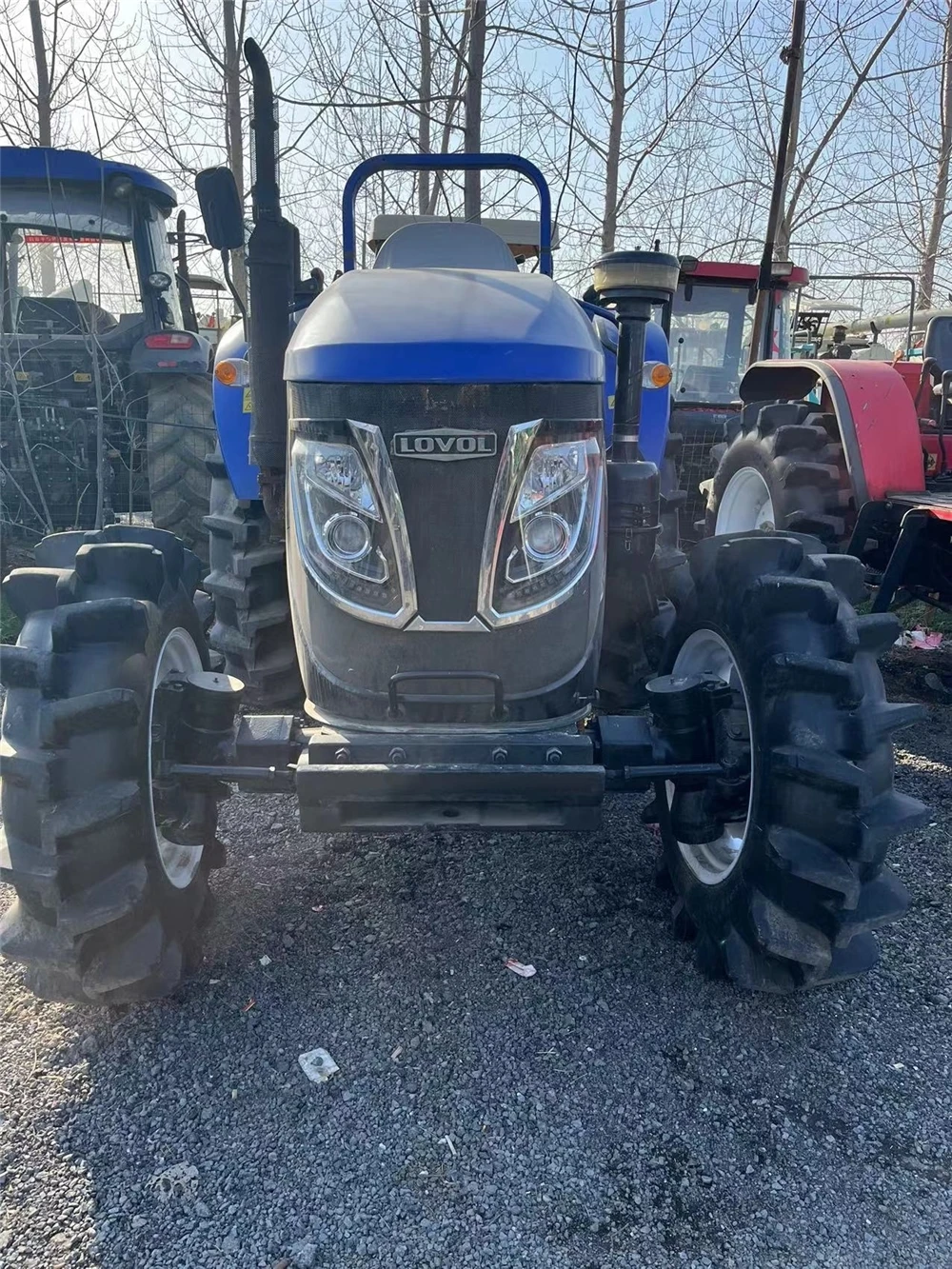

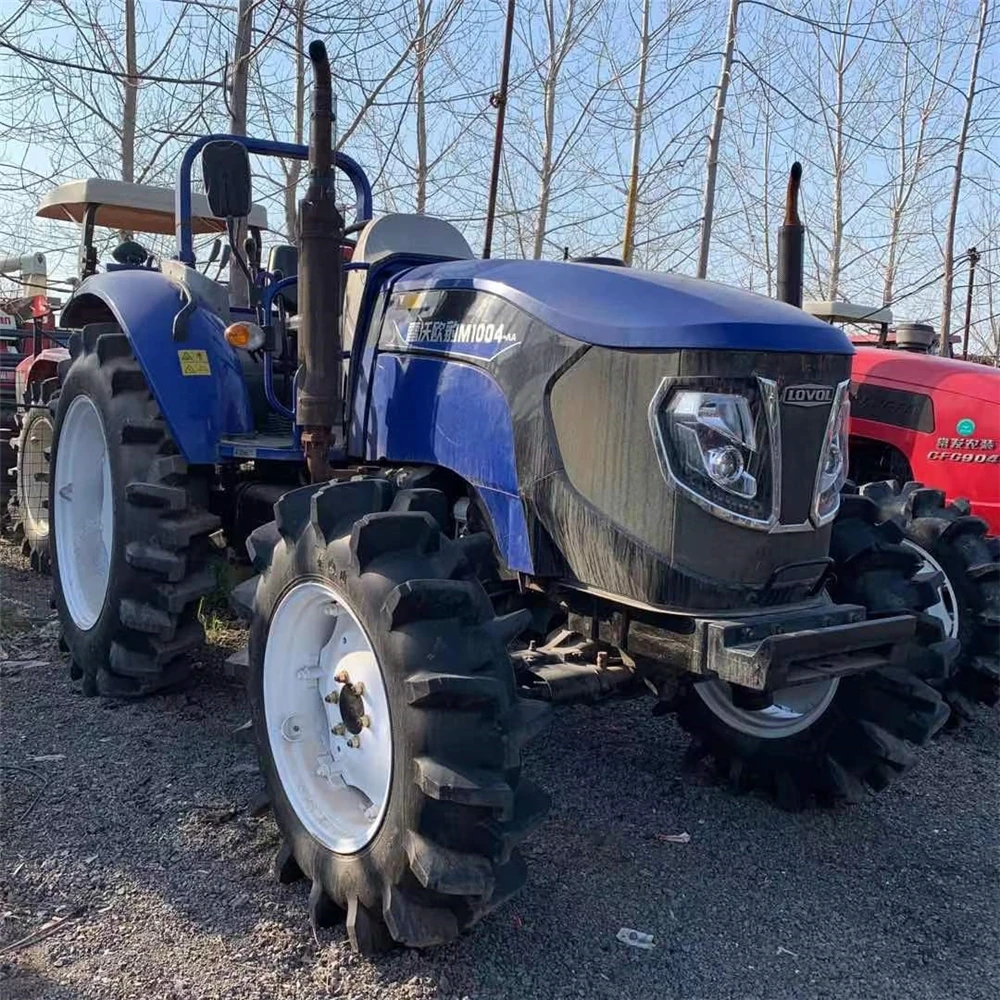

LOVOL 1004 Tractor
Motivation is superior
Supporting four-cylinder engine, upgraded emission standards, low fuel consumption, strong power, economic and efficient.
Work efficient
Transmission gear 10+10 shuttle shift, forward and backward through the steering wheel lower left operating handle to achieve
fast switching, gear speed matching, high efficiency;
Power output speed 540/760r/min, optional 540/1000r/min, to meet the speed requirements of a variety of machines;
Independent control of dual - acting clutch, shift and power output hanging more convenient.
Good adaptability
Zifen development front drive axle, reliable quality, good sealing, small turning radius;
Optional high pressure elevator, paddy field beating, rotary tillage, ploughing operation effect is good.
Driving comfort
Hydraulic steering, suspension pedal, flat floor, side displacement gear, driving comfort;
Optional fan, warm air cab, good sealing, dustproof, low noise, wide vision.
ITEM | UNIT | SPECIFICATION |
Model | / | M1004-A1 |
type | / | 4×4WD |
Dimentions | mm | 4580×2070×2800 |
axle base | mm | 2380 |
ground clearance | mm | 490 |
weight | kg | 4100 |
maximum additional weight | kg | 440/540 |
Number of gears | / | 16/4/0 |
start mode | / | electricity start |
PTO power | kW | 62.5 |
Maximum tractive force | kN | 26 |
engine type | / | In line, water cooled, four stroke |
engine model | / | YC4A110-T300 |
engine brand | / | Yuchai |
Engine intake mode | / | turbocharging |
Engine cylinder number | / | 4 |
Engine cylinder diameter x stroke | mm | 108×132 |
engine power | kW | 73.5 |
Engine speed | r/min | 2200 |
diesel tank capacity | L | 165 |
Clutch type | / | Dry type, double action |
tyres size | / | 13.6-24/16.9-34 |

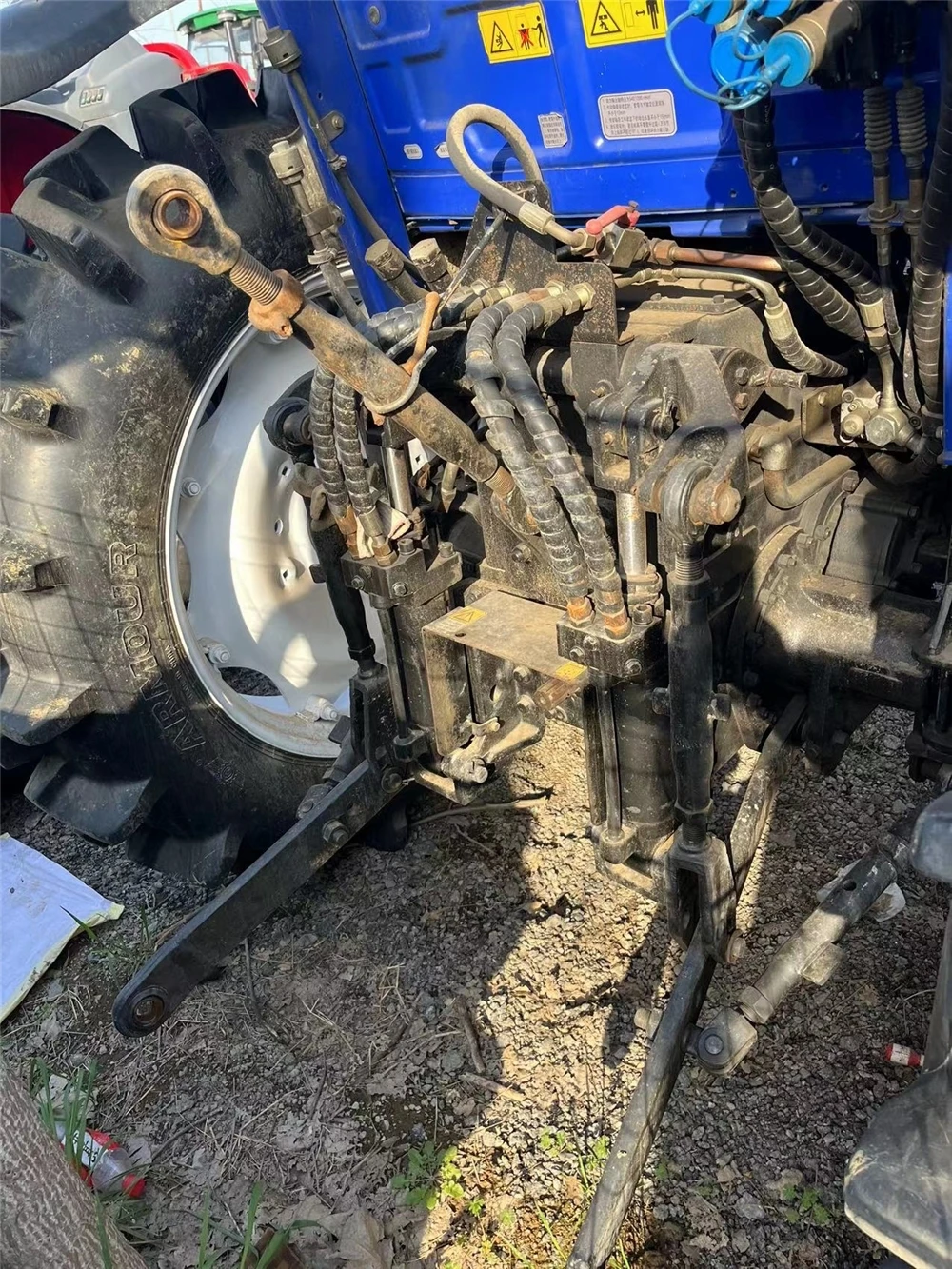

Suspension type | / | Rear three-point suspension |
PTO Speed | r/min | 540/760 |
maximum lift force | kN | ≥21.2 |
Q1. What are your terms of packing?
A: Generally, we pack our goods in the wood frame into 2 levels to maximize space
Q2. How do you ensure your quality?
We have 2 QC managers whom work on this field more than 15 years, they can test the tractors parts by parts, our working attitude is carefully, strictly and seriously ;
Q3. What are your terms of payment?
A: T/T 100% as the deposit for 1-2 unit and 50/50 for the wholesale. We'll show you the photos of the products and packages before you pay the balance.
Q4. What are your terms of delivery?
A: FOB, CIF, CNF
Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6: How do you make our business long-term and a good relationship?
1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with each other.
