Лидер продаж комбайн из хлопка world

Сохранить в закладки 1600510187365:


Цена:8 500,00 $ - 9 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

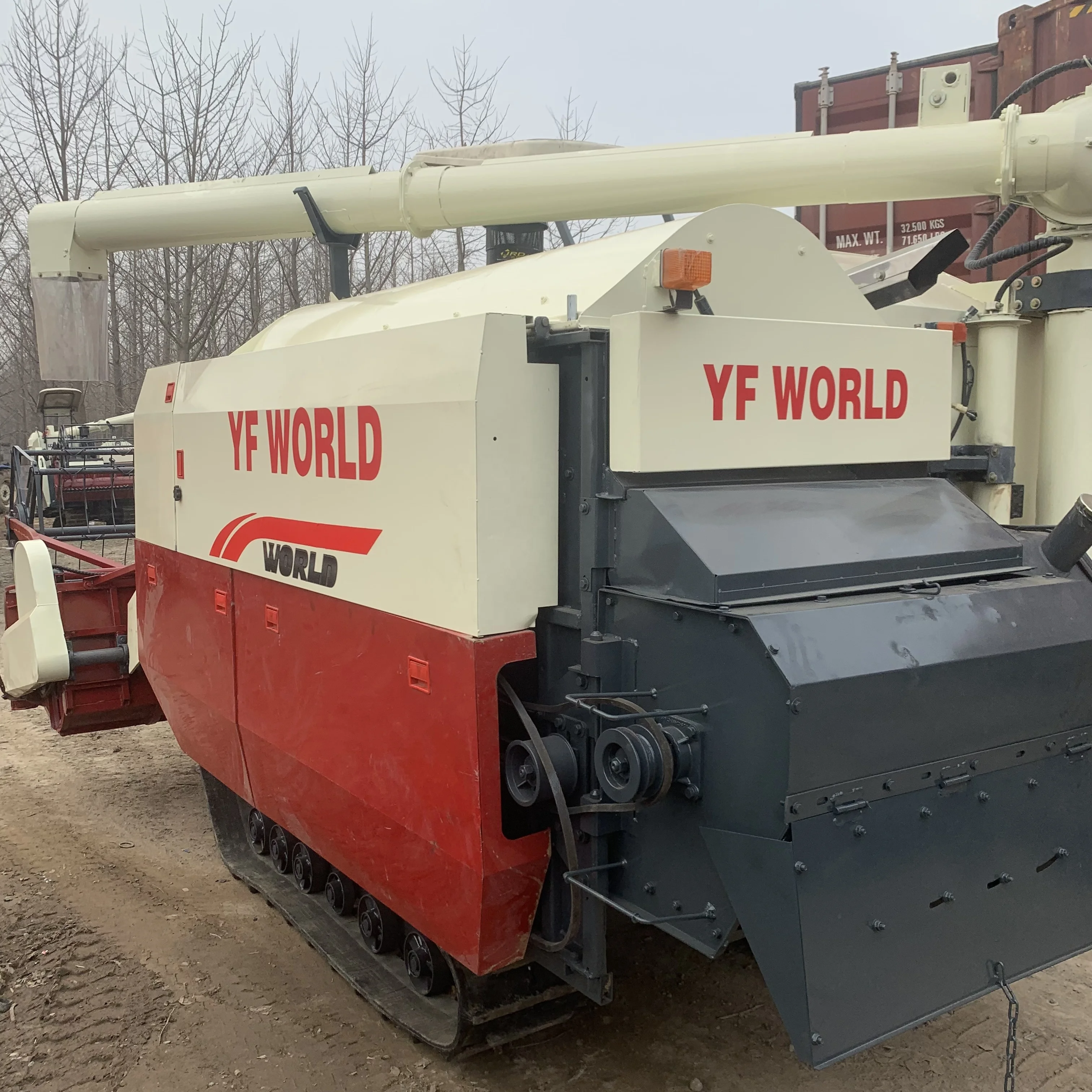

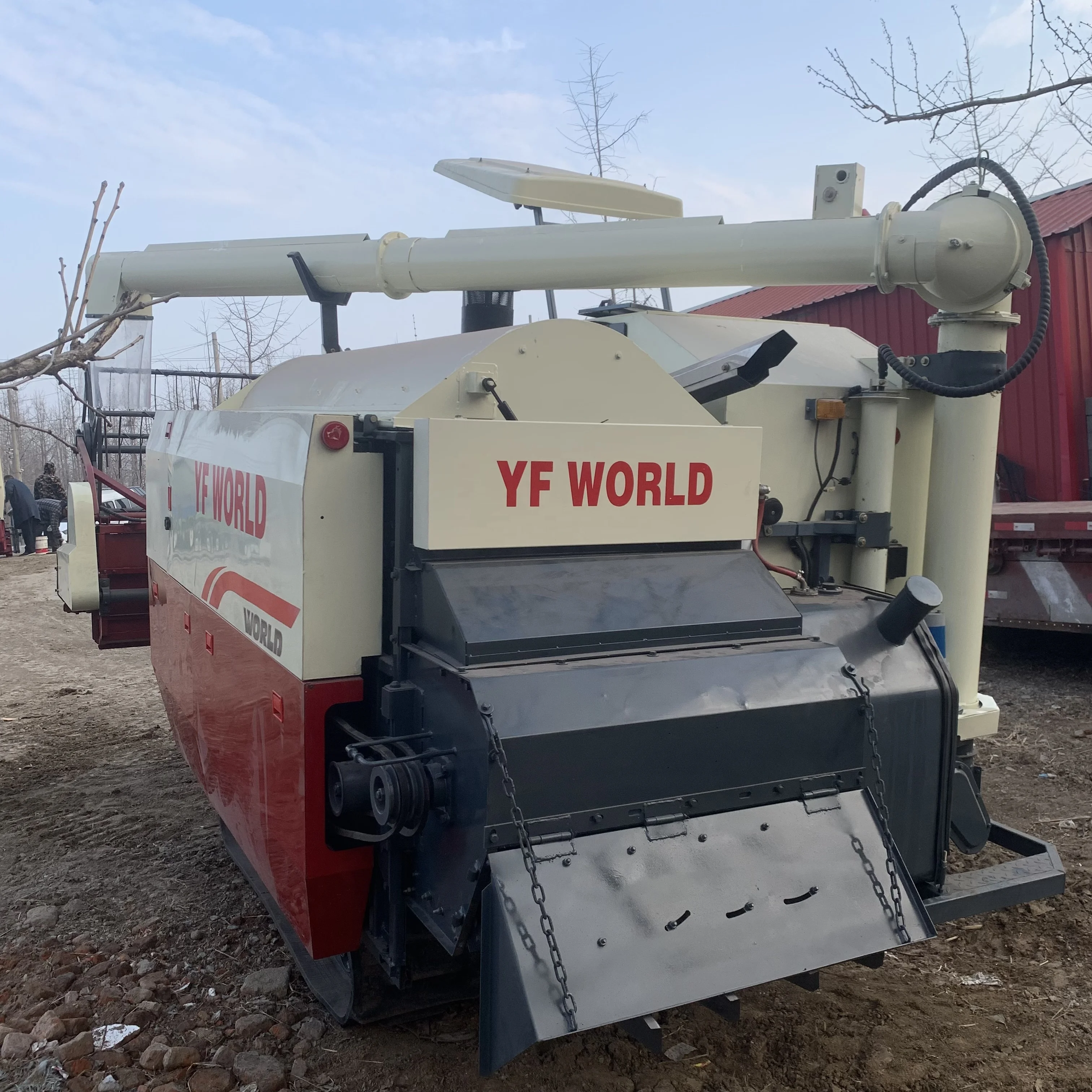

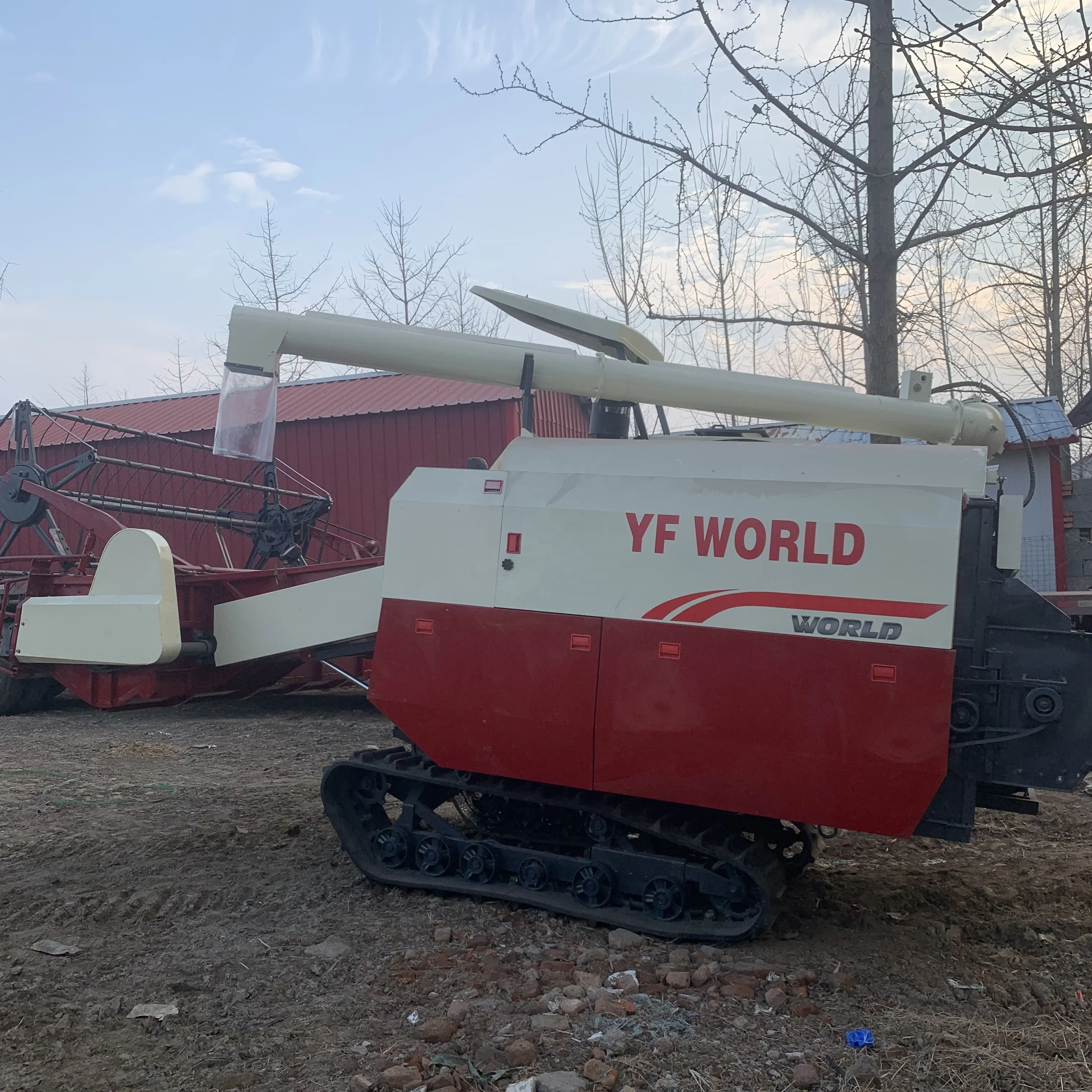

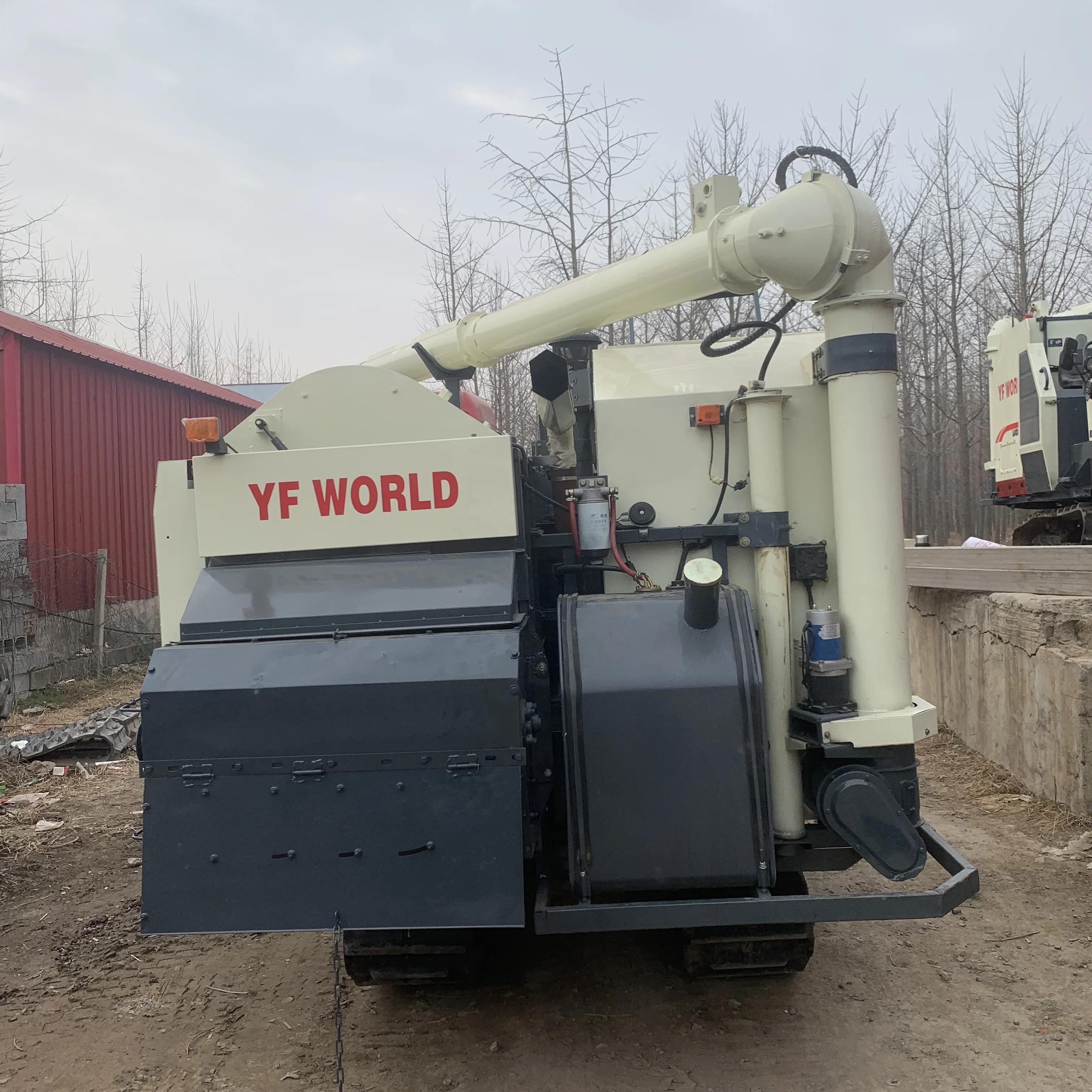

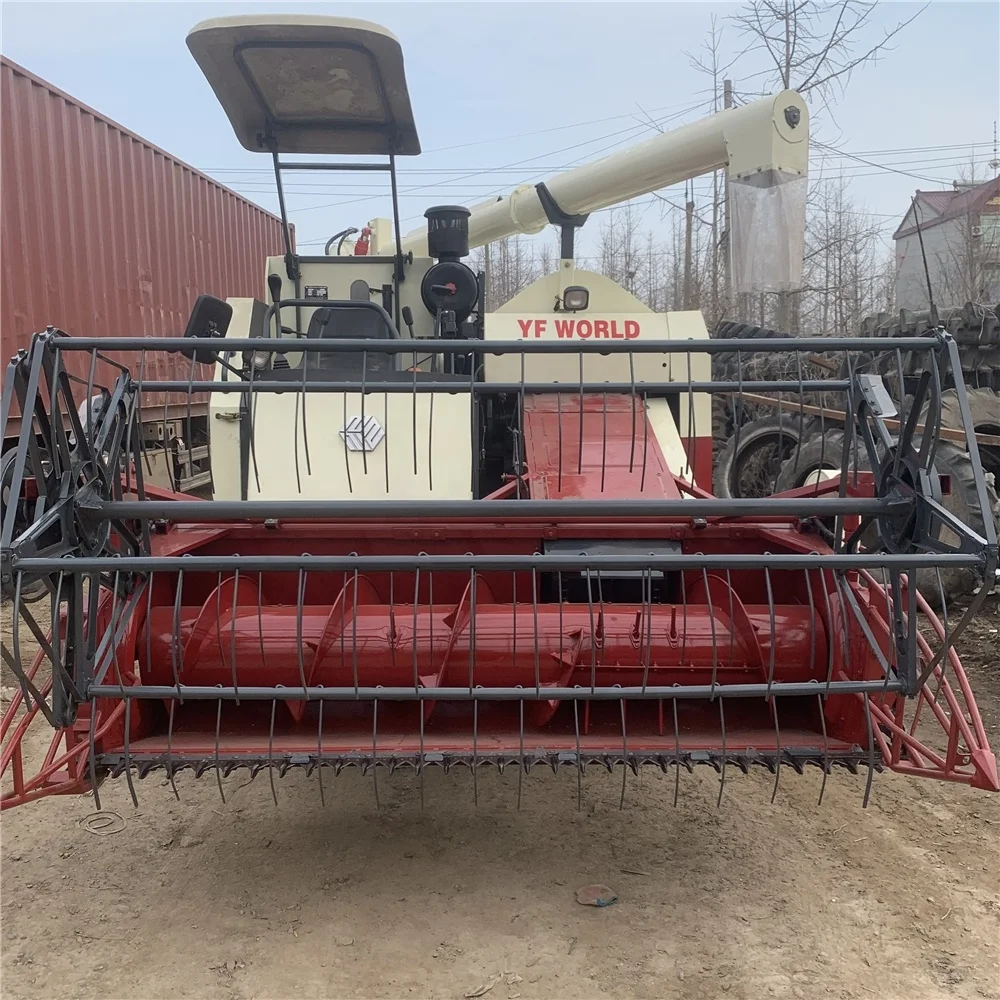

 4LZ 6EAQ rice wheat corn combine harvester


Advantages of high chassis


Chassis clearance up to 630mm, to solve the upper and lower frame in the mud field operation with mud; The minimum ground clearance of the chassis is up to 435mm, and the ground clearance of the gearbox bottom is up to 320mm, with strong passability in bad fields.


Advantages of patent chassis


Chassis center of gravity is more stable, high tooth track, rotten field adaptability and better passability, 450/500mm wide, stronger collapse-resistant ability; The mechanical structure is better than the suspension type, the mechanical deformation is small, more firm, and the service life is long


Homemade reinforced gearbox


65 reinforced special gearbox is adopted, and the key parts of the gearbox are imported original NSK bearings from Japan


Continuously variable transmission


Adopt 40CC large displacement variable speed, fast speed, flexible steering, good control.


The engine


Powerful and reliable; 102 horsepower engine, national three high pressure common rail power, low fuel consumption, fuel saving, low noise


It is better to harvest lying crops


1. Lengthen the spring teeth of the coarse cutting table;


2. When the cutter is 12 cm from the ground, the sliding teeth can be moved to the fallen crops to reduce the phenomenon of eating soil on the cutting table.


The strength of the new type of divider is improved to harvest high-stem (above 1.2m), high-yield, hybrid rice crops, and prevent the clamping of grass between the divider and the threshing wheel.


The crawler does not press the ridge


The right cutting table divider widens the harvesting range, which solves the phenomenon of ridge of pressure field in the harvesting process.


Conveying chute feeding fast


The conveying groove is shorter, the optimal design of the feeding inlet improves the transmission passability, and the nozzle of the conveying groove is optimized to prevent the phenomenon of winding grass. Feeding inlet adopts floating wheel, feeding more smoothly






















































































































Model4LZ-6.0EA(Q)
structural styleCrawler self - feeding type
Machine size             (working condition)length(mm)5840/5840
width(mm)2520/2520
height(mm)3010/2950
The whole machine quality(kg)3680/3480
engineModel4G33TC-101G31G1
typeVertical, in-line, water-cooled, four-stroke
Power(kW)77.2
rate speed(r/min)2600
diesel(L)200
gear boxworld's homemade 85 gearbox
walking partSpecifications of track (pitch * number * width)90mm×53pcs×450mm
track gauge(mm)1250
minimum ground clearance (mm)320
Part of the harvestcutting width(m)2.1
harvest quantity(kg/s)6
Cutting platform lifting modehydraumatic
Threshing partThreshing wayLongitudinal axial flow drum type
Size of threshing barrel(mm)620×2200
Manipulation of the part45cchydraulic stepless speed change(HST)Ensure the same gear is faster than similar products
Cleaning sectionShaking screen + centrifugal fan
Granary sectionUnloading grain way360°Extended rotary grain unloading
The granary volume(m³)1.4
working performance2.85-15Mu/hour
Suitable for cropsRice, wheat, rape




IMG_E2098.JPGIMG_E2101.JPGIMG_E2102.JPGIMG_E2104.JPGIMG_E2105.JPGIMG_E2109.JPGIMG_E2139.JPGIMG_E2157.JPGIMG_E2158.JPGIMG_E2160.JPGIMG_E2168.JPGIMG_E2152_.jpgIMG_E2153_.jpg





Packaging & Shipping







Our Services


 Yunfan advantage Elena_01.jpgYunfan advantage Elena_02.jpgYunfan advantage Elena_03.jpgYunfan advantage Elena_04.jpgYunfan advantage Elena_05.jpgYunfan advantage Elena_06.jpg





FAQ





Q1. What are your terms of packing?
A: Generally, we pack our goods in the wood frame into 2 levels to maximize space



Q2. How do you ensure your quality?


We have 2 QC managers whom work on this field more than 15 years, they can test the tractors parts by parts, our working attitude is carefully, strictly and seriously  ;

Q3. What are your terms of payment?
A: T/T 100% as the deposit for 1-2 unit and 50/50 for the wholesale. We'll show you the photos of the products and packages before you pay the balance.

Q4. What are your terms of delivery?
A: FOB, CIF, CNF

Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6: How do you make our business long-term and a good relationship?
1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with each other.
