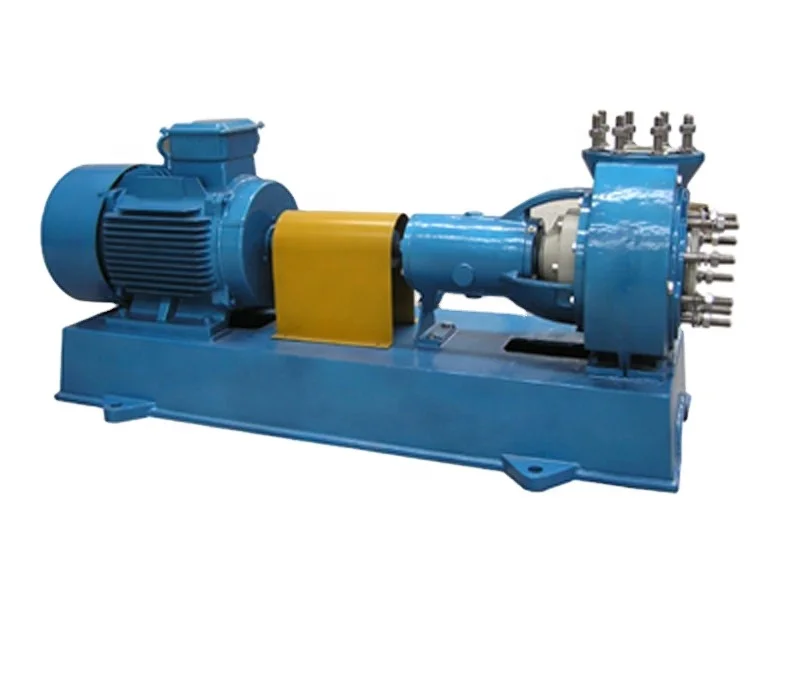

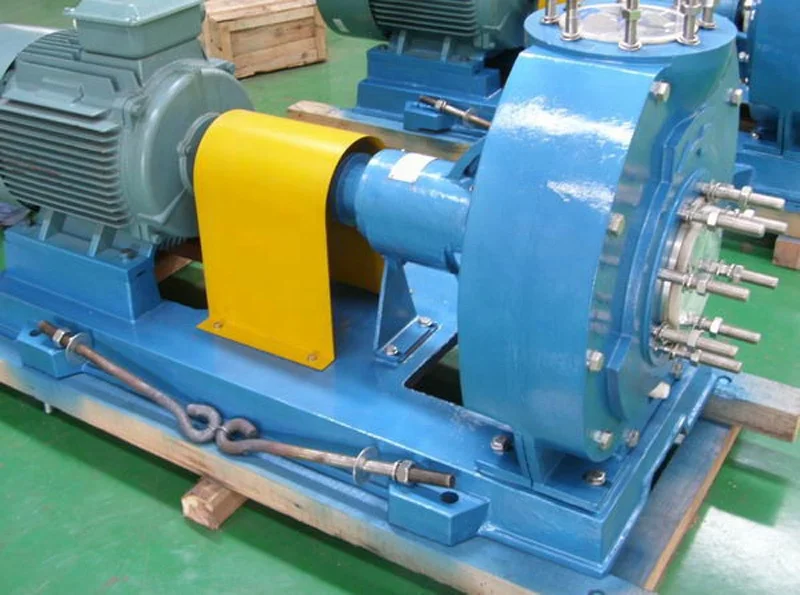

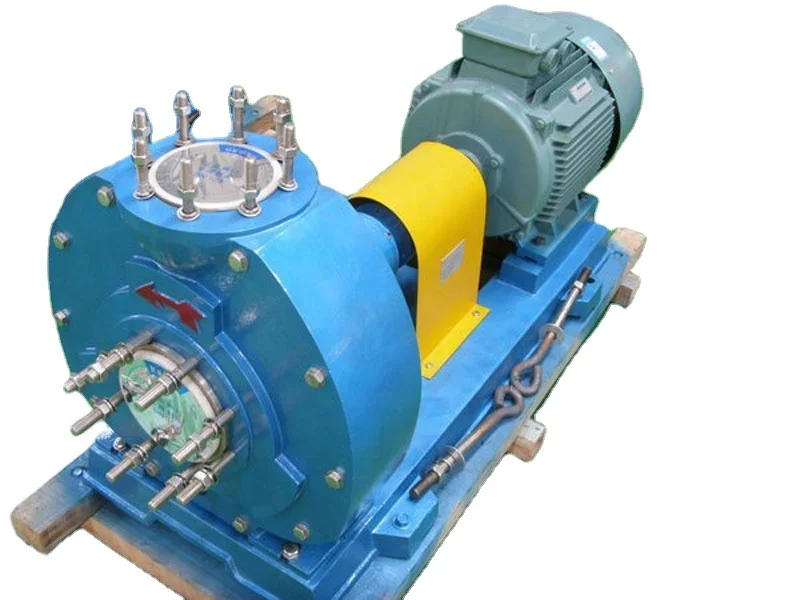

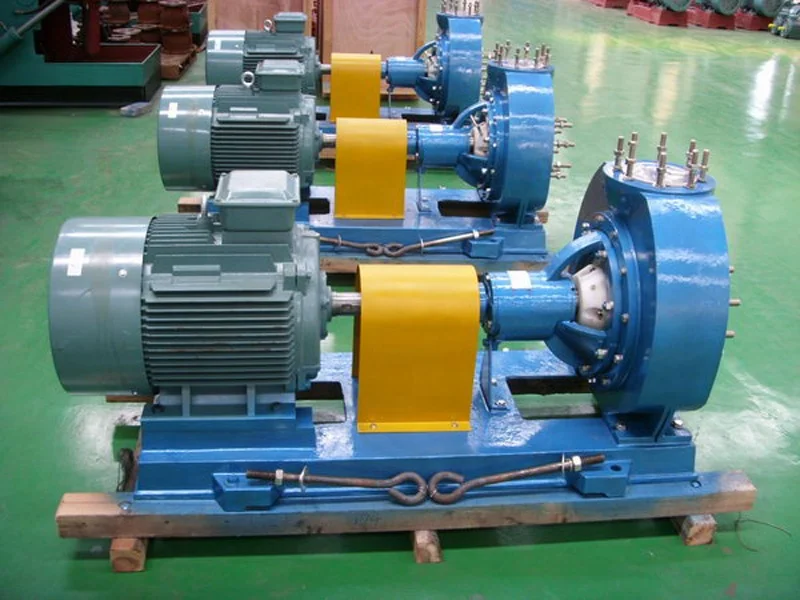

Оптовая продажа CPD125 80 200 серии SIC/SICA/ITON механическое уплотнение одноступенчатый горизонтальный центробежный водяной насос
- Категория: >>>
- Поставщик: Luoyang Pioneer Anticorrosion Equipment Co. Ltd.
Сохранить в закладки 1600510279845:
Описание и отзывы
Характеристики
Product Description
Overview
CPD type is the single-stage horizontal centrifugal pump with SIC/SICA/ITON mechanical seal system.Connected to the driving part by means of a spacer coupling(back-pull-out version)and installed on a common baseplate,the design is fully compliant with standard DIN22858/ISO2858.The metal armouring applied to components made from thermoplastic resins,such as PP,PPH,PVDF,FEP,PEHD,ensures dimensional stability and mechanical strength.MMCP type pump can mount types of single or double mechanical seal of top domestic and international brands.which can work with corrosive liquids containing suspended solids or crystals.Generously-sized shaft,bearings and closed impeller make this series of Hi-Tech Pumps ideally suited for the most demanding process services.▲Applications
Because of its remarkable features,plastic pumps are used in many different industrial sectors.with a wide range of
applications, i.e. the following ones:
Chemical Industry: HCI, NaOCI, H2SO4, NaOH, HNO3, HF...
Water treatment: FeCL3,AI2(SO4)3,aluminium polychloride,demineralized water,osmosis sater,membrane cleaning...
Surface treatment: acid degrease, pickling, galvanizing, anodizing ...
Fertilizer industry : H3PO4, H2SO4, H2SiF6, NH4NO3, liquid fertilizer...
Thermal and Nuclear power plants : chlorination of cooling water, neutralization ponds...
Fine chemicals : intermediate products, synthesis reactions, water treatment, cleaning...
Mining: gold, copper, platinum, aluminium, leach liquids...
Sea water: aquariums, fish farms, zoos...
▲ Performance data for 50/60 Hz operation
Pump capacity [Q] up to 1400m3/h
Total differential head [H] up to 100m
Motor rating [P] up to 200KW
▲Shaft Seal
Single or double mechanical seal
▲ Flange connection
Standard design to DIN2501,PN16
Alternatively:- to ANSI B16.5,Class 150,
-toGB/T9116 PN16
▲ Drive
Three-phase a.c. motor, frame type B3 to IEC, BS or NEMA; type of protection, flameproof enclosure and motor voltage to customer specifications.
▲ Painting
Corrosion protection of metallic components by multiple coatings of epoxy resin paint
▲ Design
Chemical Norm Pumps
▲ Materials
Parts of the pump in contact with the liquid are manufactured from the following standard plastics: Polypropylene PP
Temperature range from 0 Deg.C to+100 Deg.C
High Molecular Polyethylene PE
Temperature range from -50 Deg.C to+80 Deg.C
Polyvinylidene Fluoride PVDF
Temperature range from -20 Deg.C to+130 Deg.C
These materials have been selected as a result of many years of experience in the use of chemical engineering materials,to satisfy the special demands made in pump construction.
Specification
item | value |
Warranty | 1 year |
Customized support | OEM, ODM, OBM |
Brand Name | PIONEER |
Model Number | CPD125-80-200 |
Place of Origin | Jiangsu,China |
Application | Developing World Water Solutions, Drinking water treatment, Food and Beverage Industry, Mining industry, Raw Water Intake, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions |
Horsepower | 90hp |
Power Source | Electric |
Pressure | 50bar |
Structure | Single-stage Pump |
Outlet Size | 80mm |
Voltage | 380v/440v |
Power | 37/45/75KW |
motor | IP55 |
Product name | CPD125-80-200 |
Theory | Centrifugal Pump |
Material | PPH |
Impeller | C45 steel |
Shaft | Closed/semi open |
Bearing | NSK/SKF |
Cable Length | 3 meters |
