Products Description

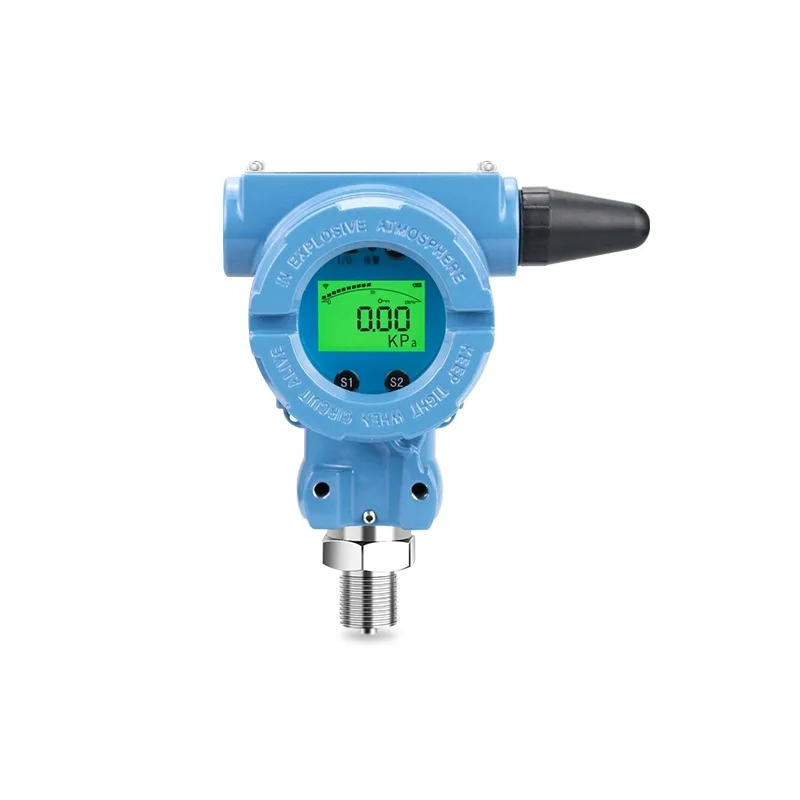

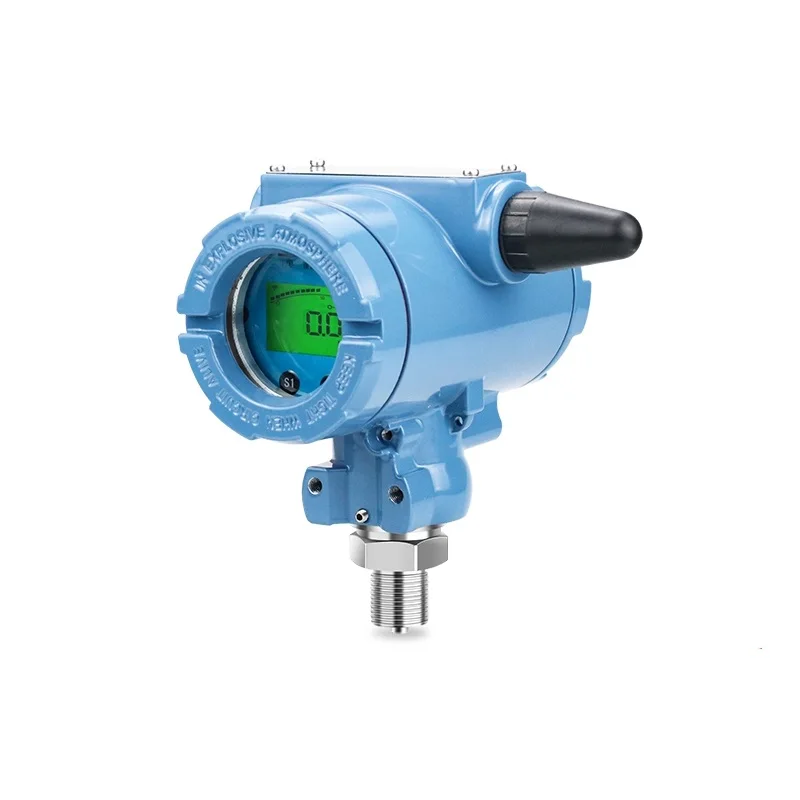

explosion-proof Wireless pressure transmitter
battery powered with digital display anti-vibration 4-20mA
Technical Parameters | ||
Medium | Liquid, Gas, Oil | |
Medium Temperature | -40~85°C | |
Measuring Range | -0.1~100MPa (as required) | |
Measuring Accuracy | 0.2%, 0.5% | |
Power Supply | battery | |
Signal transmission distance | 3000m | |
Shell Material | Aluminum alloy / Stainless steel | |
Output | 4-20Ma, HART | |
Connection | Thread M20*1.5 | |
Overview
JEP-400 Wireless Pressure Transmitter is a lithium battery-powered digital pressure gauge with wireless data transmission. The built-in high-precision pressure sensor can accurately display the pressure in real time. It has high stability and long-term stability.

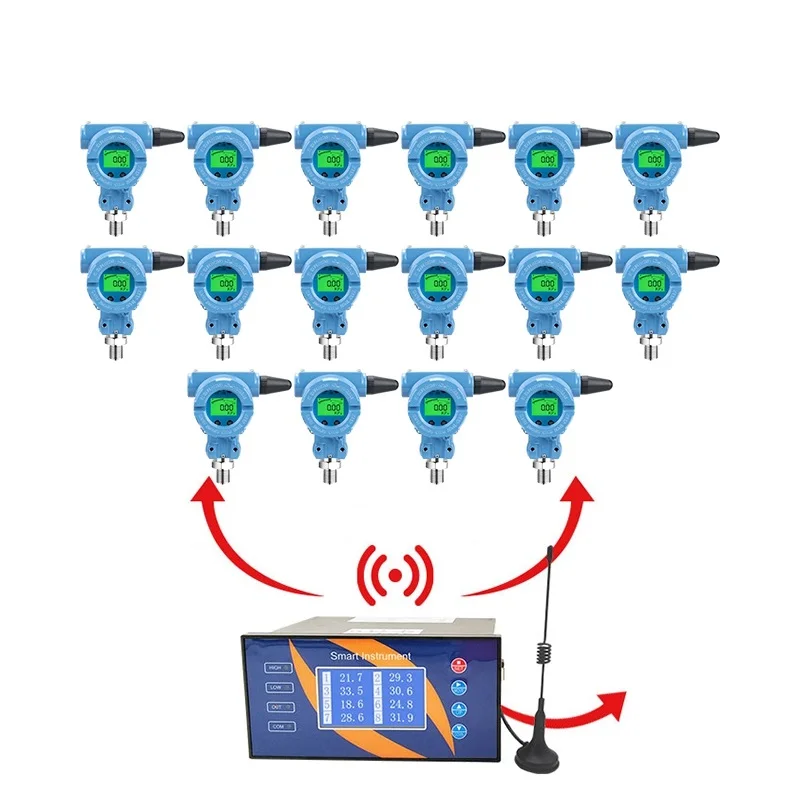

This digital pressure gauge is equipped with a large-size high-definition LCD liquid crystal display and a built-in MCU. With the mature GPRS / LTE / NB-IoT network, the pipeline pressure on the spot is uploaded to the data center.
The product adopts a cast aluminum shell with good shock resistance. The built-in SUS630 stainless steel diaphragm has good media compatibility. It can measure gases, liquids, oils and other non-corrosive media to stainless steel.
The product function is practical, the reporting frequency can be set. The pressure collection frequency can be set. It has a real-time pressure alarm function. Once the pressure is abnormal, the alarm data can be sent in time. The alarm pressure value can be set. Two consecutive detections exceed the set value and the detection frequency is automatically increased At the same time, the amount of change will be detected. After the amount of change exceeds 10% of the total range (default, can be set), the data will be reported immediately.
In addition, it also has a variety of pressure unit switching, error clearing, and one-key wake-up functions. It is especially suitable for unmanned, inconvenient power supply, such as fire pipelines, fire terminals, fire pump rooms, and urban water supply, which require remote monitoring.
Features
• Five-digit LCD display, visual key operation
• Remote parameter setting, panel parameter setting
• Ultra-low power consumption design, powered by 7.2V lithium battery.
• Using GPRS / LTE / NB-IoT network, stable signal
• One key to wake up
• High precision, full range coverage
• Format can be customized (default Modbus_RTU protocol)
JEP-400 Wireless Pressure Transmitter is a lithium battery-powered digital pressure gauge with wireless data transmission. The built-in high-precision pressure sensor can accurately display the pressure in real time. It has high stability and long-term stability.
This digital pressure gauge is equipped with a large-size high-definition LCD liquid crystal display and a built-in MCU. With the mature GPRS / LTE / NB-IoT network, the pipeline pressure on the spot is uploaded to the data center.
The product adopts a cast aluminum shell with good shock resistance. The built-in SUS630 stainless steel diaphragm has good media compatibility. It can measure gases, liquids, oils and other non-corrosive media to stainless steel.
The product function is practical, the reporting frequency can be set. The pressure collection frequency can be set. It has a real-time pressure alarm function. Once the pressure is abnormal, the alarm data can be sent in time. The alarm pressure value can be set. Two consecutive detections exceed the set value and the detection frequency is automatically increased At the same time, the amount of change will be detected. After the amount of change exceeds 10% of the total range (default, can be set), the data will be reported immediately.
In addition, it also has a variety of pressure unit switching, error clearing, and one-key wake-up functions. It is especially suitable for unmanned, inconvenient power supply, such as fire pipelines, fire terminals, fire pump rooms, and urban water supply, which require remote monitoring.
Features
• Five-digit LCD display, visual key operation
• Remote parameter setting, panel parameter setting
• Ultra-low power consumption design, powered by 7.2V lithium battery.
• Using GPRS / LTE / NB-IoT network, stable signal
• One key to wake up
• High precision, full range coverage
• Format can be customized (default Modbus_RTU protocol)
Work Flow
Recommend Products
Company Profile
In an industrial world where measurement becomes more and more important, Jeoro is proud to be able to offer a large range of solutions responding to measuring needs. Each instrument has its specific application and definitely solves all required tasks. Our products combine high precision, innovation, advanced design and ease of use.
Since 2010, Jeoro has managed to position itself as the leader in its fields of activity and guarantees a “better quality,better measurement”. Jeoro is focused on 5 segments in the measuring field: Demensional metrology, Temperature sensor, Pressure transmitter, Flow sensor, Level sensor.
Since 2010, Jeoro has managed to position itself as the leader in its fields of activity and guarantees a “better quality,better measurement”. Jeoro is focused on 5 segments in the measuring field: Demensional metrology, Temperature sensor, Pressure transmitter, Flow sensor, Level sensor.
We offer turnkey solutions based on the following modular items:
Instruments, Large range of accessories, Hardware, Software and driver programs.
If quality is your objective, Jeoro is your partner.
Instruments, Large range of accessories, Hardware, Software and driver programs.
If quality is your objective, Jeoro is your partner.
