Products Description
China new industrial WFJ ultra-fine grinder meat and bone meal dust removal superfine grinding machine

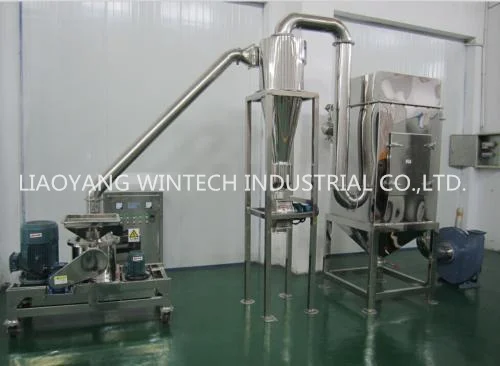

WFJ series superfine grinder is composed of main machine, auxiliary machine and electric control. It has compact design,
reasonable structure, air selection type, no screen and no net. The machine is equipped with grading mechanism, which can make crushing and grading complete at one time. The negative pressure transport makes the heat generated in the chamber discharged continuously during the crushing operation, so it is also suitable for the crushing of heat-sensitive materials.
Features
Stable running
Simple structure, low failure rate, safe operation
Beautiful shape
Consists of main engine, auxiliary engine and electric control
Wide range of applications
Oily, brittle and fibrous materials in food, pharmaceutical and chemical industry
Movable knife head
Fixed ring
Grading impeller
1. The design is compact, the structure is reasonable, and the machine is equipped with an internal grading mechanism, so that the crushing and grading can be completed at one time, so as to reduce the loss of energy consumption.
2. The system is equipped with an induced draft fan, which can continuously discharge the heat generated in the machine during the crushing operation, so it is suitable for the crushing of heat-sensitive materials.3. Adjust the rotating speed of the classifier or adjust the air volume without stopping the machine to obtain products with the required particle size and uniform distribution.
4. Strong adaptability, narrow particle size distribution, and uniform product particle size.5. The upper cover of the main unit is opened with a gas spring, and the fuselage adopts a hafur structure, so that the fuselage can be opened to both sides, so there is no obstacle to cleaning and maintaining the internal parts.
6. The main crushing parts are made of alloy tool steel, which can greatly prolong the service life of the wearing parts and prolong the replacement cycle.
7. The shaft drive system adopts imported high-speed precision shafts, and the rotor is moved as a whole. The whole machine runs smoothly, with little vibration and low voice.
8. The pipe connection adopts a quick-release structure, which can be disassembled and cleaned quickly and easily.
9. Equipped with cyclone separator and dust collector, no dust flying in the production process: the dust collection bag can effectively trap the fine powder in the air flow, so that the exhaust gas discharge meets the requirements of clean and environmental protection.
10. The fine powder retained by the dust collection bag can be effectively recovered, reducing the loss rate of materials.
11. There is no dust pollution during processing to ensure the clean and dry environment.
12. Low temperature crushing can prevent the change of medicinal properties of industrial drugs.
13. It can achieve the effect of cell wall breaking and completely release the medicinal properties of the drug.
14. It can produce medicines of different fineness and increase the practical scope of medicines.
15. Using bag-type dust removal, the collection rate is over 99%, which effectively reduces the loss of raw materials.
Working Principle

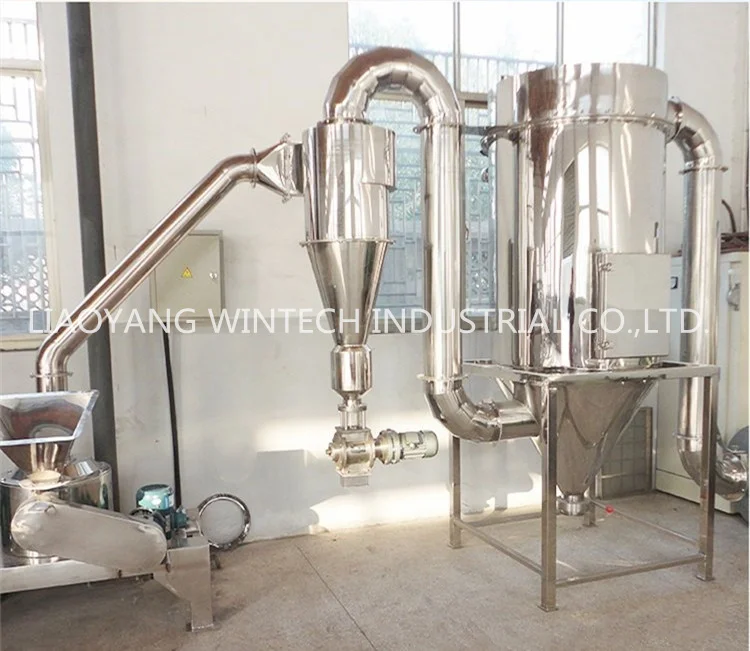

The material enters the crushing chamber from the material gate through the screw conveyor, and is sheared and crushed by the high-speed rotating blade. The material is transported into the cyclone separator by means of negative pressure air transportation. Filtration and recycling, no dust flying in the production process, and can improve the utilization rate of materials and reduce enterprise costs.
Technical parameter
Specification and model | WT-WFJ15 | WT-WFJ18 | WT-WFJ36 |
Capacity（kg/h) | 10-200 | 20-450 | 60-1000 |
Raw material size (mm) | <10 | <12 | <15 |
Final product size（mesh） | 80-320 | 80-450 | 80-450 |
Total power (Kw） | 13.5 | 17.5 | 38 |
Main rotary speed（rpm） | 4500 | 4480 | 4000 |
Overall dimensions（mm） | 4200*1200*2800 | 4700*1250*2900 | 9000*1500*3800 |
Scope of application
1, Food industry : spices, seasonings: benefit, sugar, star anise, cinnamon, pepper, red pepper, ginger, turmeric, garlic, sichuan pepper, mustard, beans, camellia, shrimp powder, bone meal, beef powder, chicken powder, squid powder, steak powder.
2, Nutrition industry: soybeans, mung beans, red beans, corn, no beans male black bitter, red dates, peanuts, sesame, walnuts, coffee beans, cocoa beans, chocolate beans, sweet potatoes, yams, oats, kernel.
3, Fruit and vegetable powder: mountain planting powder, coconut powder, apple powder, pomegranate powder, old fruit powder, banana powder, tomato powder, spinach powder, red powder, mountain herb powder, pumpkin powder, potato powder, purple black powder, onion powder, tea powder, strawberry powder, lemon powder, agaric powder, mushroom powder.
4, Pharmaceutical industry: rhubarb powder, moringa leaf, root powder, reed powder, chicken blood film, wood bone. Polyoxyethylene, polydiethyl alcohol, Herbal medicine, Licorice, Notoginseng, Maca, ginseng, Ganoderma lucidum, Polygonum multiflorum.
5, Chemical industry: cosmetics powder, paint coating powder, chemical additives, anti-corrosion river, color agent, leavening agent, oxidizer, polymer crystal, oxidation tank: pine powder. Water absorbent resin, light burning agent, cleaning agent, polyalumina.
6, Can be used in the production and development of Marine materials, cage feed, animal feed and so on.This machine for crushing fineness requirements in 80 mesh and above the material can be crushed, ultrafine powder production has various, material special materials can be special treatment, increase different configurations.

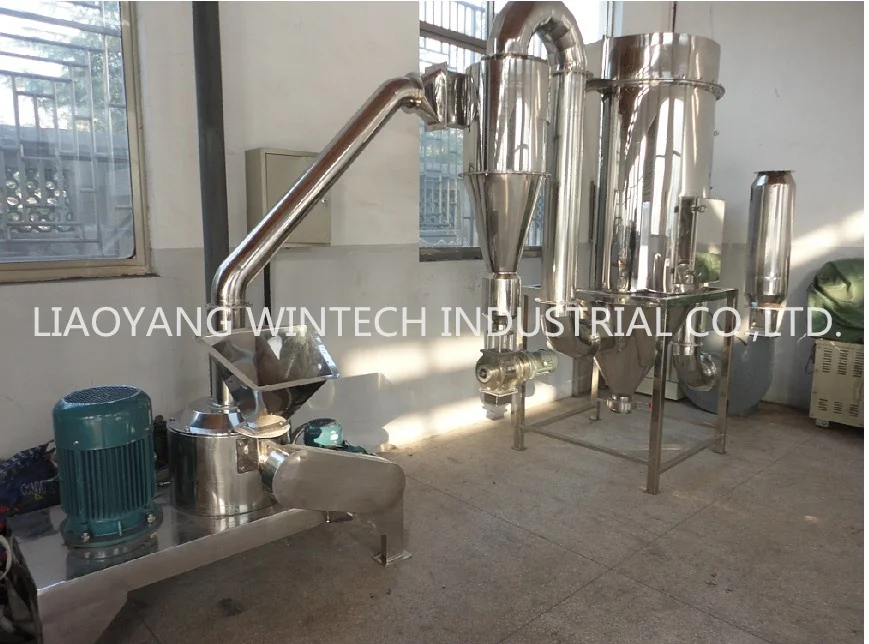

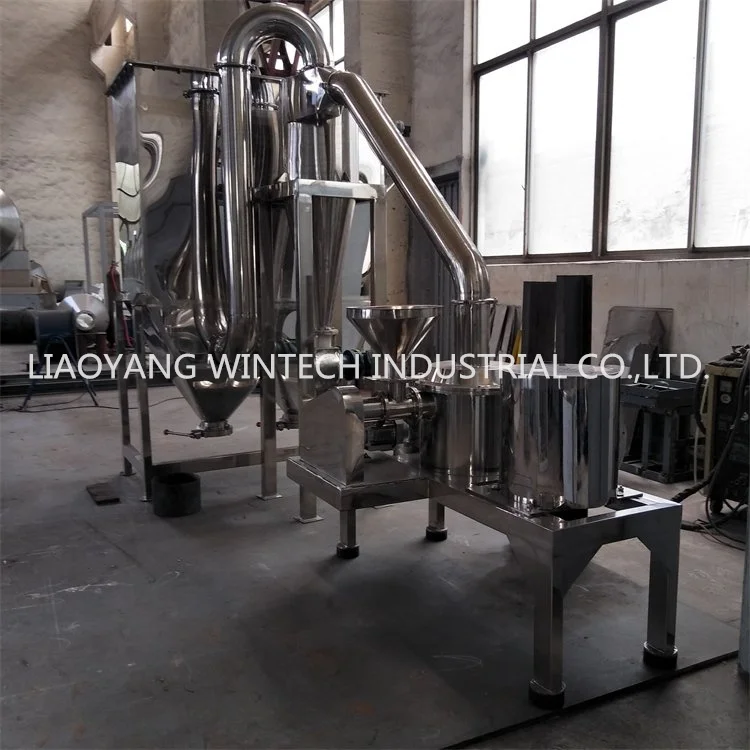

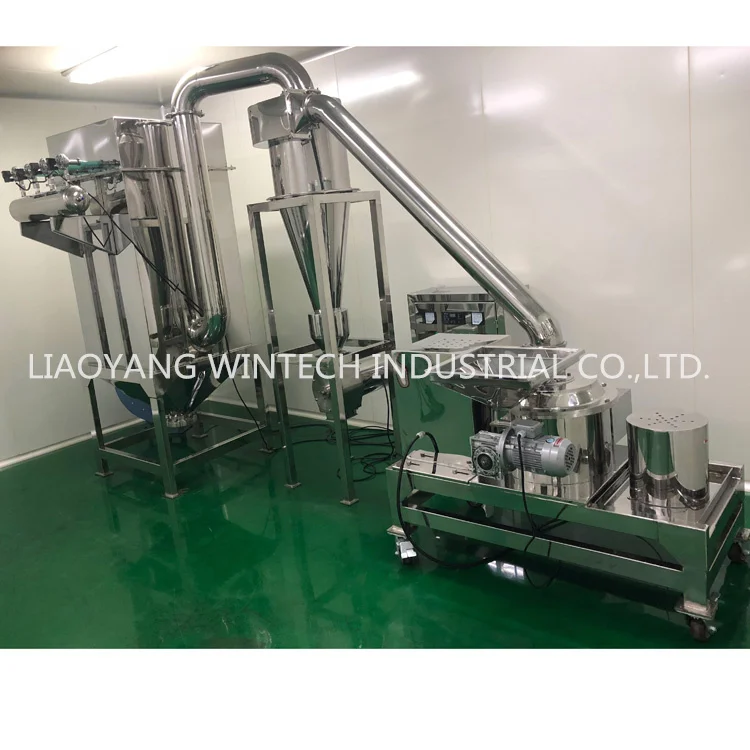

Product More Pictures
Company Profile
LIAOYANG WINTECH INDUSTRIAL CO.,LTD, takes Centrifuge Separator Equipment, Drying Equipment, Mixing and Grinding Machinery manufacturing as the main industry, main products are Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, Spray Dryer, Fluid Bed Dryer, Drying Oven, Drum Dryer and corresponding supporting equipment such as superfine grinder, mixer, eg. for food line, pharmaceutical line, chemical line. At the same time, to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition. At the same time, facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future.
Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process.Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery.
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present :
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
lifetime maintenance service is provided and at buyer’s cost.
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired,lifetime maintenance service is provided and at buyer’s cost.
