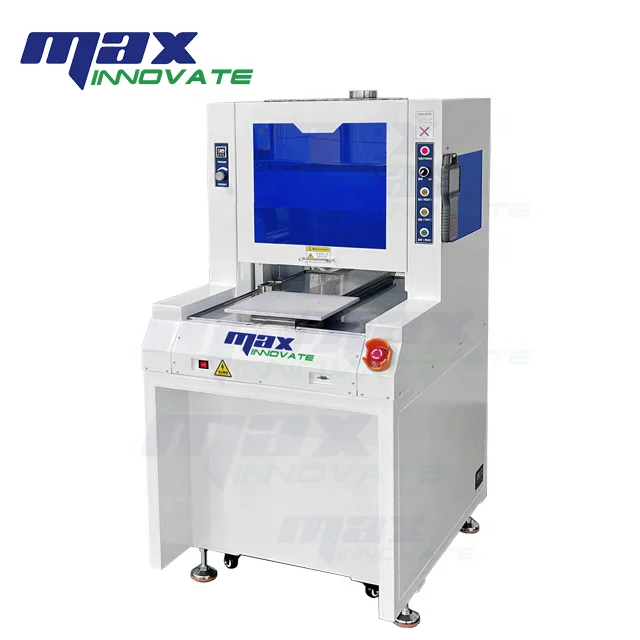

SMT машина для селективного конформенного покрытия печатной платы с CE из Шэньчжэня
- Категория: Electronics Production Machinery >>>
- Поставщик: Max Innovate Technology (Shenzhen) Ltd.
Сохранить в закладки 1600511103438:
Описание и отзывы
Характеристики
Products Description
Feature
1. The hand-held teaching programmer supports both Chinese and English interfaces, which is simple and easy to learn. It is equipped with special personnel to guide and use. It can be basically mastered in about 30 minutes.
2. The system can store hundreds of processing files, and each file can support 8000 instructions. It can be called out when in use. It supports DXF and PLT file import and automatic path optimization.
3. High end brand configuration, RCON stepping motor, Taiwan Shangyin guide rail, Japan Omron photoelectric switch, Italy elatai belt, research control driver, Taiwan Mingwei power supply, red wave switch.
4. According to different requirements, the coating speed / glue amount / coating track (space point, line, arc, etc.) can be set separately.

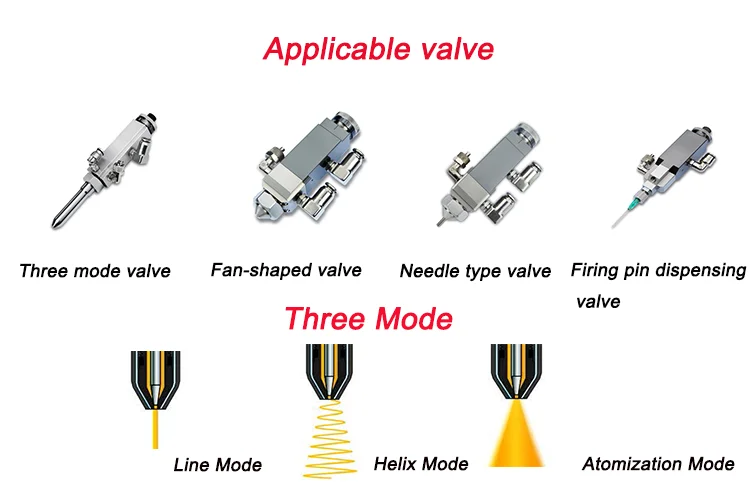

5. Customized small atomization valve as standard. The stable air pressure system maintains the consistency of glue output and can more accurately and effectively control the edge definition.
6.The whole plate plus heavy platform bottom plate ensures the perpendicularity of XYZ axis. The machine plus sheet metal structure is solid, beautiful, high precision and guaranteed quality.
7. Glue supply device: composed of glue storage barrel and stainless steel cleaning barrel The pressure barrel is composed of air conditioner, safety valve, vent valve, discharge port and inner barrel (pneumatic stirring type can be selected. The pneumatic motor of the pressure barrel can stir by itself to keep the paint in the barrel uniform. In the spraying operation, there will be no color difference due to paint precipitation).
8. Air extraction device: an air outlet is reserved at the top.
2. The system can store hundreds of processing files, and each file can support 8000 instructions. It can be called out when in use. It supports DXF and PLT file import and automatic path optimization.
3. High end brand configuration, RCON stepping motor, Taiwan Shangyin guide rail, Japan Omron photoelectric switch, Italy elatai belt, research control driver, Taiwan Mingwei power supply, red wave switch.
4. According to different requirements, the coating speed / glue amount / coating track (space point, line, arc, etc.) can be set separately.
5. Customized small atomization valve as standard. The stable air pressure system maintains the consistency of glue output and can more accurately and effectively control the edge definition.
6.The whole plate plus heavy platform bottom plate ensures the perpendicularity of XYZ axis. The machine plus sheet metal structure is solid, beautiful, high precision and guaranteed quality.
7. Glue supply device: composed of glue storage barrel and stainless steel cleaning barrel The pressure barrel is composed of air conditioner, safety valve, vent valve, discharge port and inner barrel (pneumatic stirring type can be selected. The pneumatic motor of the pressure barrel can stir by itself to keep the paint in the barrel uniform. In the spraying operation, there will be no color difference due to paint precipitation).
8. Air extraction device: an air outlet is reserved at the top.
Specifications
Model | SGC331 | |
Dimensions | 770*880*900mm | |
Weight | 60kg | |
Working range | 300/200/100 | |
Moving parts | XYZ axis synchronous belt is standard configuration, and Z axis is optional for screw rod | |
Valve quantity | 1 | |
Valve type | Atomization valve | |
Coating accuracy | Min. coating width: 5-15mm | |
Exhaust fan | AC220V 50/60Hz | |
Power | AC220V 50/60Hz | |
Air source | 5-7kg/cm² | |
Total power | 2KW | |
Related Products
Packing&Shipping
Company Profile
Max Innovate Technology(Shenzhen) Ltd is the leading PCB factory solution provider inChina,offering professional machine and assembly line accessories as the DIP welding equipment series, SMT welding equipment series and SMT&DIP whole line series over 20 years.We sincerely hope to work together with every client, to build the long-term business and friendship.
Ours products are exported to more than 40 countries and regions in the world
Feedback
Our Advantages
FAQ
Contact Us
Похожие товары
Оборудование для монтажа на поверхность Smt Full Зерноуборочные комбайны обрабатывающие автоматически 2 головка высокоскоростная машина захвата и установки smd LED станок с кварцевой
2 872,00 $ - 2 899,00 $

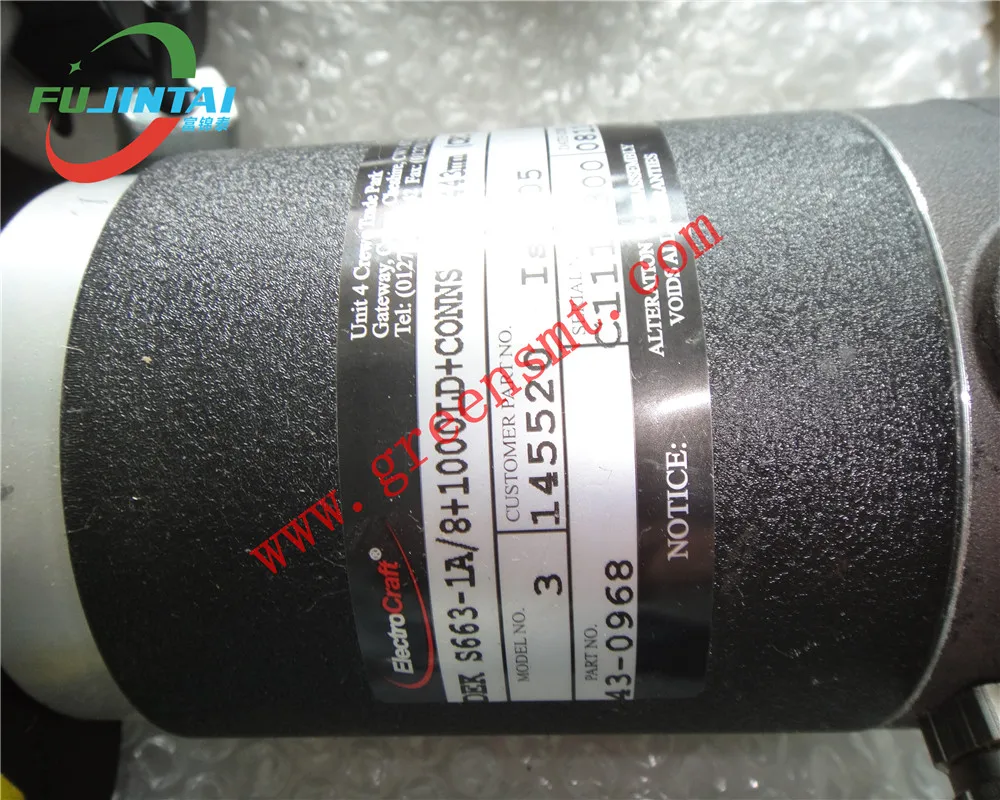

DEK 145520 VISION Y AXIS MOTOR S663-1A 8 + 1000LD CONNS 323 443 мм

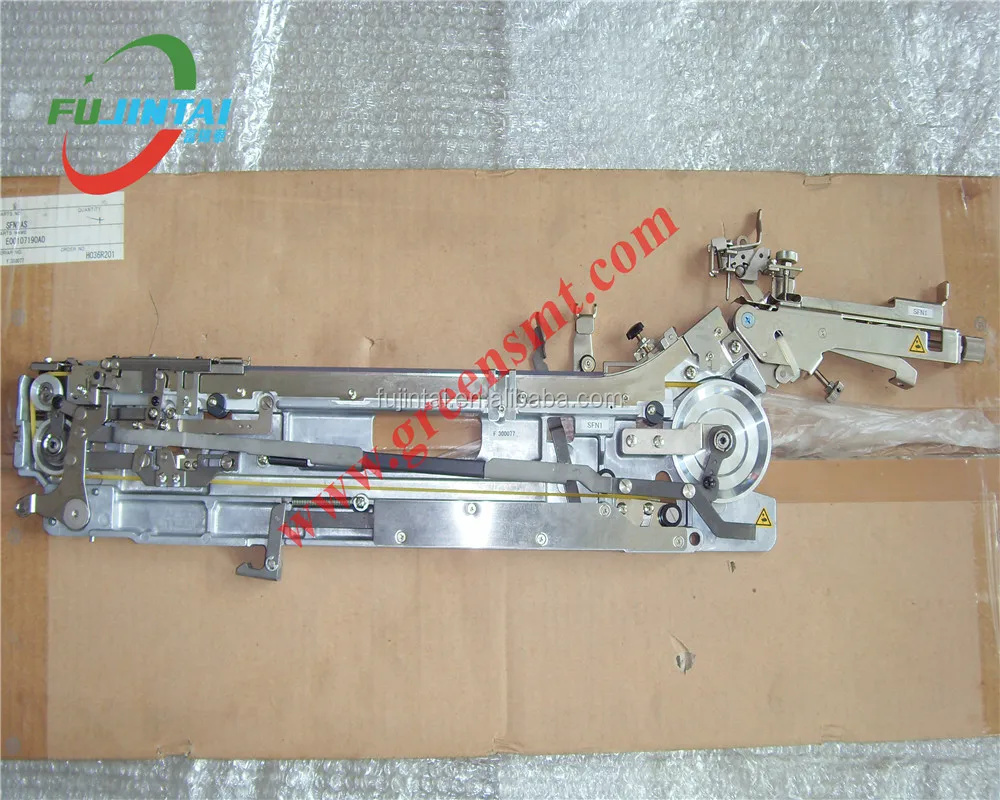

JUKI- KE-2050 2060 2070 2080 3010 3020 FX-3 палка Фидер SFN1AS

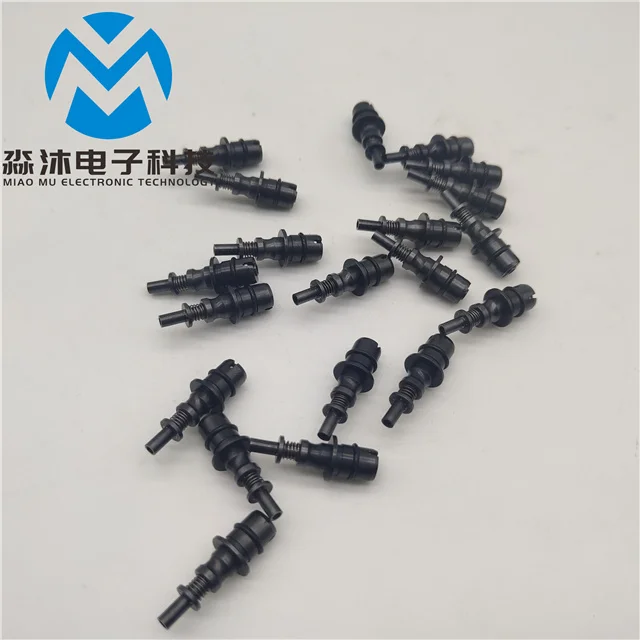

Сопло MIRAE MX200 MX400 сопло A B C D E smt для палочки и
