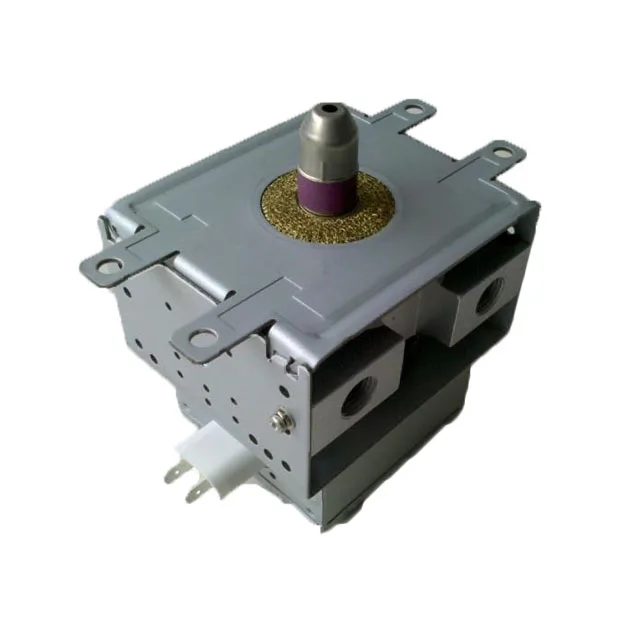

Магнетрон для микроволнового отопления спекания размораживания 1 кВт 2465 МГц
- Категория: >>>
- Поставщик: Zhuhai Pindom Technology Co. Ltd.
Сохранить в закладки 1600511111373:
Описание и отзывы
Характеристики
Specification
Item | 1kW 2465MHz Magnetron For Microwave Heating Sintering Thawing |
Model | OM75P(31) |
Frequency | 2465MHZ |
Cooling | Air cooling |
Voltage | 4.5kv |
Efficiency | 71.0% |
Storage Temperature | -35℃ to +60℃ |
R.F Coupler | WR430 system |
Cooling Water Flow | 1.40L/min |
Microwave frequency | 2465HMz |
Output Power | 1000W |
Any questions welcome to consult, we have professional engineers with you docking.
Product Description

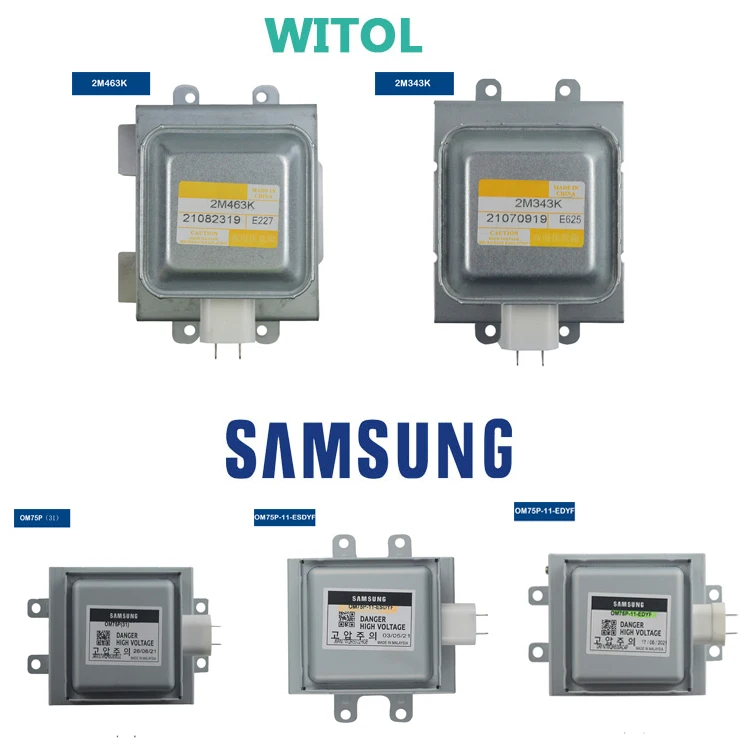

OM75P（31） is a continuous wave magnetron with fixed frequency of 2465MHz and high efficiency.
For power supply an L.C single phase half wave doubler should be used.
- The filament voltage should be measured at tube terminals.
- The combination of transformer and capacitor should be chosen such that for normal line
- The filament voltage should be measured at tube terminals.
- The combination of transformer and capacitor should be chosen such that for normal line
voltage, Ia mean
=330mA±1% and la peak 1020 to 1050mA.
- It is recommended to use a 10-12KV avalanche diode as protection for capacitor and transformer.
- For wave guide configuration and power supply, see page 5 and 6.
- A water load of which the V.S.W.R≤1.1 over the frequency band 2425MHz up to 2475MHz should be used.
- Unless otherwise stated, limits apply for a tube within 15 seconds after application of voltage and at 25℃.
- Before testing, the tube should be "at room temperature" for at least four hours.
- During test, the magnetron should be cooled with 1.40L/min in of forced water.
=330mA±1% and la peak 1020 to 1050mA.
- It is recommended to use a 10-12KV avalanche diode as protection for capacitor and transformer.
- For wave guide configuration and power supply, see page 5 and 6.
- A water load of which the V.S.W.R≤1.1 over the frequency band 2425MHz up to 2475MHz should be used.
- Unless otherwise stated, limits apply for a tube within 15 seconds after application of voltage and at 25℃.
- Before testing, the tube should be "at room temperature" for at least four hours.
- During test, the magnetron should be cooled with 1.40L/min in of forced water.
The efficiency of the magnetron is generally about 72%-75%, and a lot of heat will be generated during the working process, which requires supporting air cooling or water cooling to maintain stable work. Industrial microwave products generally use high-quality magnetron.
Recommend Products
Packing & Delivery
Company Profile
FAQ
1. why should you buy from us not from other suppliers?
We are a vibrant team.Ability of independent R&D and production,Quality Service First,Abide by the spirit of Commerce and contract
2.how can we guarantee quality?
Always final Inspection before shipment
3.Payment
1.Payment Terms: T/T, Western Union and Credit Card. If you want other payments please let us know.
2.Small goods need to pay in full;Large volume of goods can be used to pay the order in advance, goods good after the way to make up balance payment. Please consult customer service for details.
3.Please fill in complete information, contact person, address, zip code and telephone number when placing your order to
ensure smooth delivery of your goods.
4.Shipping
1.After the payment is confirmed, we will deliver the goods within 2~5 working days.
2.Due to the different transportation company and route, the goods will arrive at your designated place in about 8~45 days.If the gods are urgent, please contact customer service to choose a fast transportation route.
5.Quotation
1.Normal quotations are completed within 1~2 working days.
2.For complicated customized products or products that need to open molds, we may need 3-7 working days to check the cost and then give you a quotation.
3.Efficient time: 15 days.
4.Normally, we quote the FOB Shenzhen terms, if you want others please kindly let us know.
6.Return and Warranty
1.All the goods are inspected before shipment, men made defects are not guaranteed.
2.The products warranty 1 year, the warranty period from the customer to confirm the receipt of the calculation.
3.All the goods are inspected before shipment.
4.Any of the quality problems you can send your complaints directly to the sales.
5.For defective products, we usually choose to replace them in the next order. If there is an urgent need for replenishment
or special requirements, please contact our customer service staff.
7.Feedback
1.Since your feedback is very important to our business development, we sincerely invite you to let us know.
2.We will address your feedback in a timely manner, and you can also keep in touch with our customer service to know the
progress.
We are a vibrant team.Ability of independent R&D and production,Quality Service First,Abide by the spirit of Commerce and contract
2.how can we guarantee quality?
Always final Inspection before shipment
3.Payment
1.Payment Terms: T/T, Western Union and Credit Card. If you want other payments please let us know.
2.Small goods need to pay in full;Large volume of goods can be used to pay the order in advance, goods good after the way to make up balance payment. Please consult customer service for details.
3.Please fill in complete information, contact person, address, zip code and telephone number when placing your order to
ensure smooth delivery of your goods.
4.Shipping
1.After the payment is confirmed, we will deliver the goods within 2~5 working days.
2.Due to the different transportation company and route, the goods will arrive at your designated place in about 8~45 days.If the gods are urgent, please contact customer service to choose a fast transportation route.
5.Quotation
1.Normal quotations are completed within 1~2 working days.
2.For complicated customized products or products that need to open molds, we may need 3-7 working days to check the cost and then give you a quotation.
3.Efficient time: 15 days.
4.Normally, we quote the FOB Shenzhen terms, if you want others please kindly let us know.
6.Return and Warranty
1.All the goods are inspected before shipment, men made defects are not guaranteed.
2.The products warranty 1 year, the warranty period from the customer to confirm the receipt of the calculation.
3.All the goods are inspected before shipment.
4.Any of the quality problems you can send your complaints directly to the sales.
5.For defective products, we usually choose to replace them in the next order. If there is an urgent need for replenishment
or special requirements, please contact our customer service staff.
7.Feedback
1.Since your feedback is very important to our business development, we sincerely invite you to let us know.
2.We will address your feedback in a timely manner, and you can also keep in touch with our customer service to know the
progress.
Похожие товары

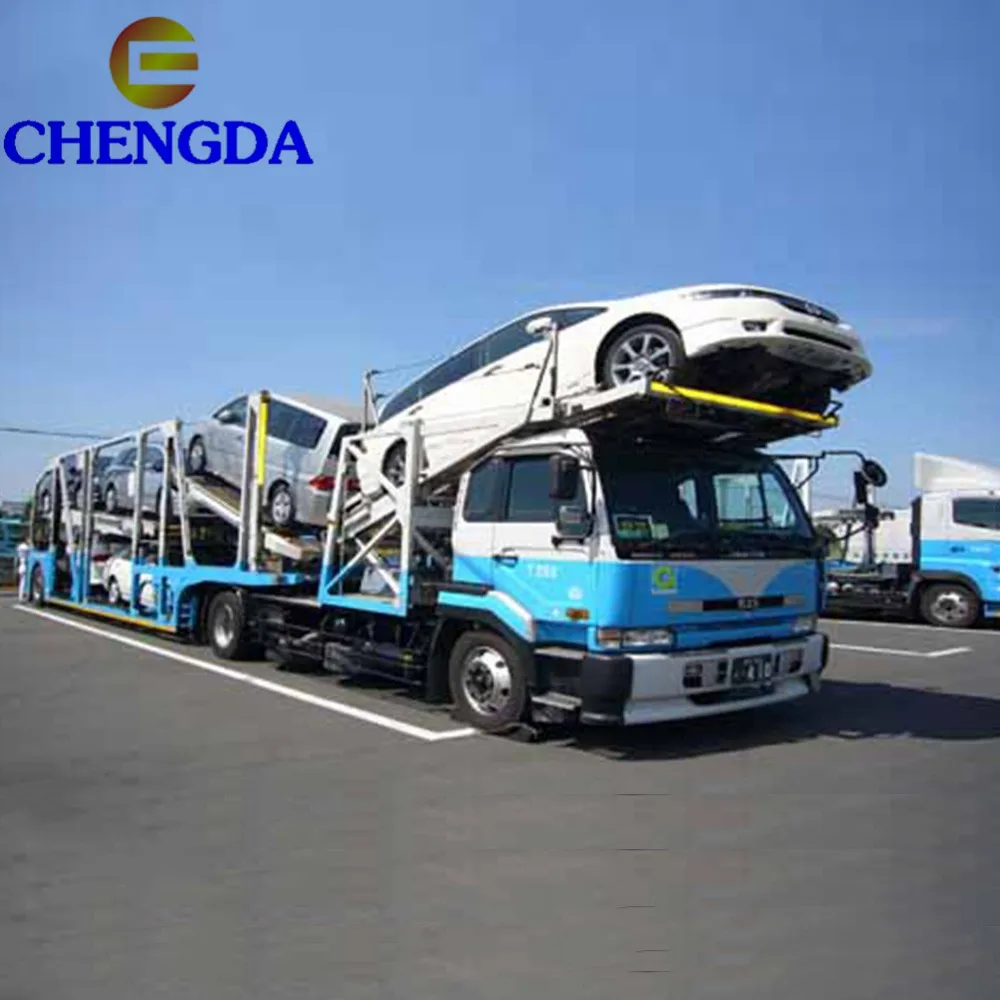

3 оси, транспортное средство, полуприцеп, Автомобильный перевозчик, грузовик, прицеп
6 500,00 $ - 8 000,00 $

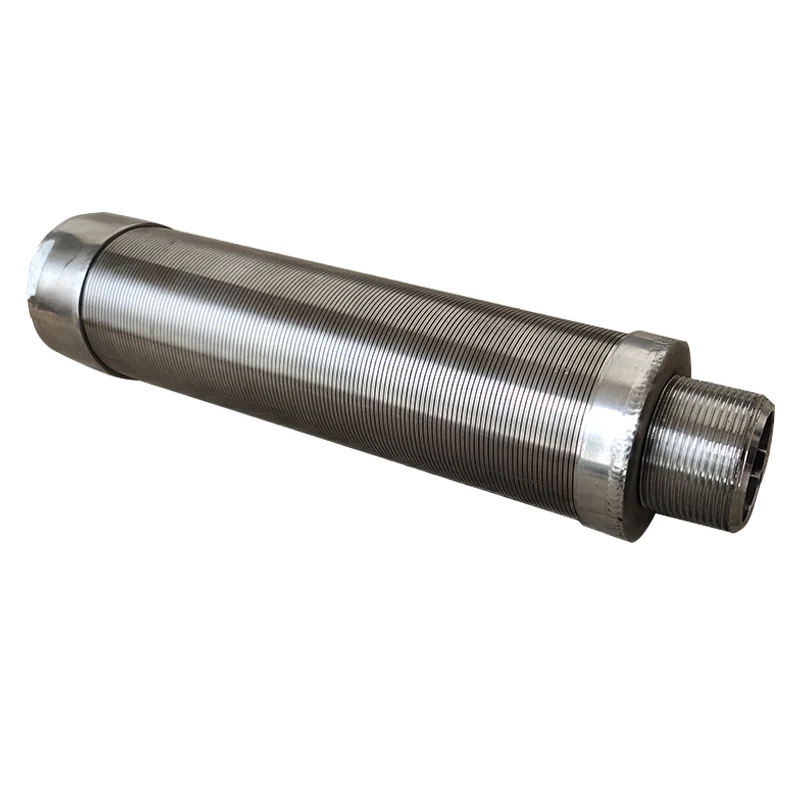

100 микрон из нержавеющей стали проволочной сетки цилиндрический фильтр/сито Johnson, горячая распродажа
42,00 $ - 48,00 $
Минеральная лаборатория, используемая для руды/камня, небольшая герметичная круглая дисковая дробилка/дисковый измельчитель
2 950,00 $
Высокое качество отличная цена для SDLG MT86 самосвал Weichai двигатель масляный насос 612600070021
48,00 $ - 53,00 $

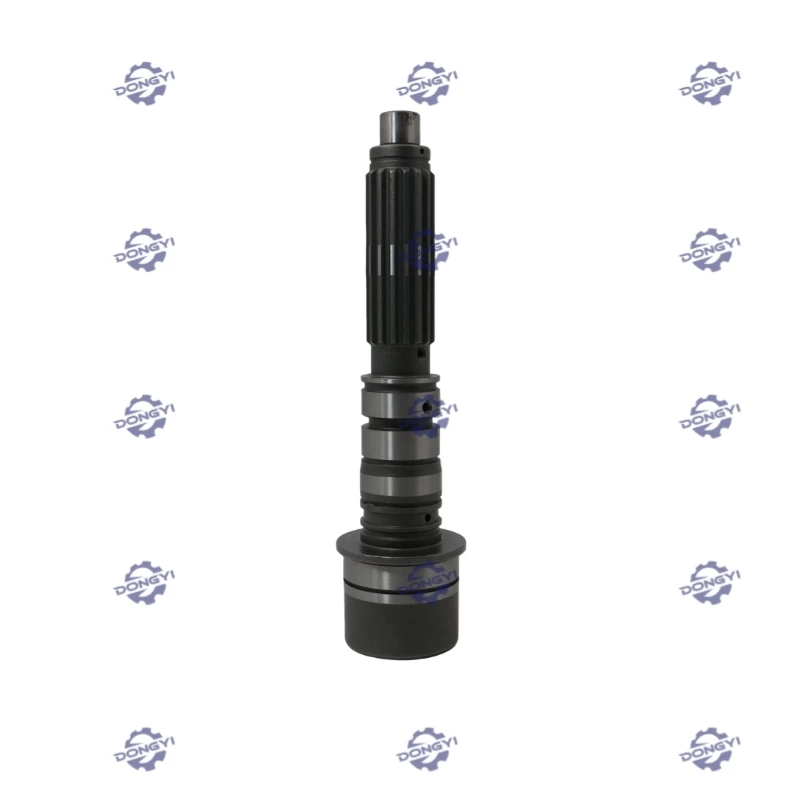

Трансмиссия ZF2HL 100 Входной вал 4143-302-013 DY426
110,00 $ - 120,00 $
Внутренние прозрачный окрашенный путём напыления стеклянная бутылка синего цвета с качели Крышка для водки и воды, произведенный на одной винокурне
0,33 $

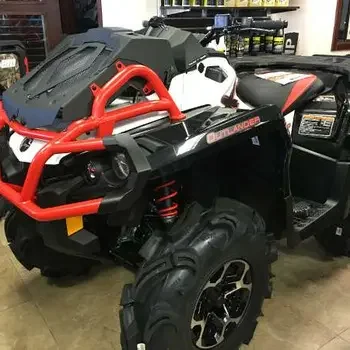

Заказывайте новый быстрый 2022 Can-Am Outlander 1000 XMR - ATV Can Am Mud bike - X MR BRP Quad 4x4 / OUTLANDER MAX XT 570 T
