Хорошая цена, гидроциклонный песочный сепаратор
9 759,24 ₽ - 10 843,59 ₽
Заводская поставка гидроциклонный фильтр для воды сепаратор fx 300
- Категория: >>>
- Поставщик: Hebei Dizhuo Rubber And Plastic Products Co. Ltd.
Сохранить в закладки 1600511199266:
Описание и отзывы
Характеристики
Products Description
Hot selling cyclone dust separator sn50t6 professional cyclone

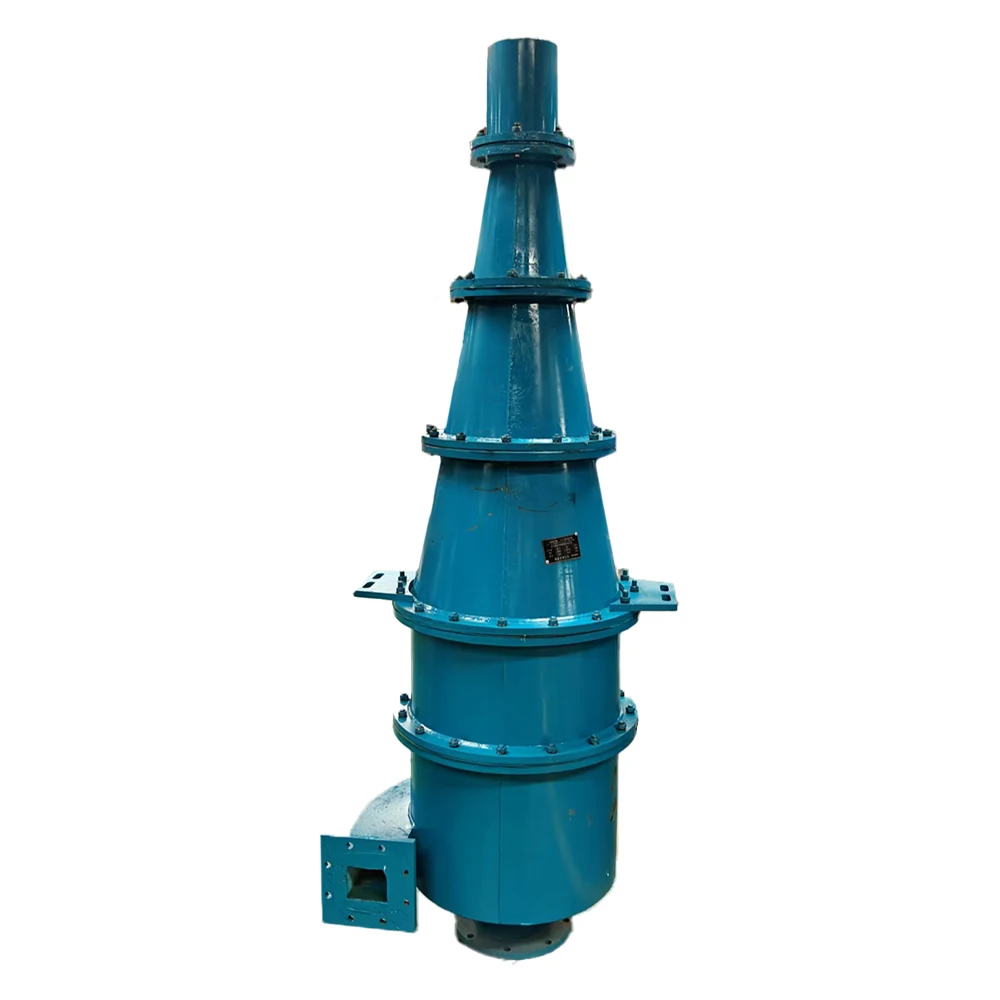

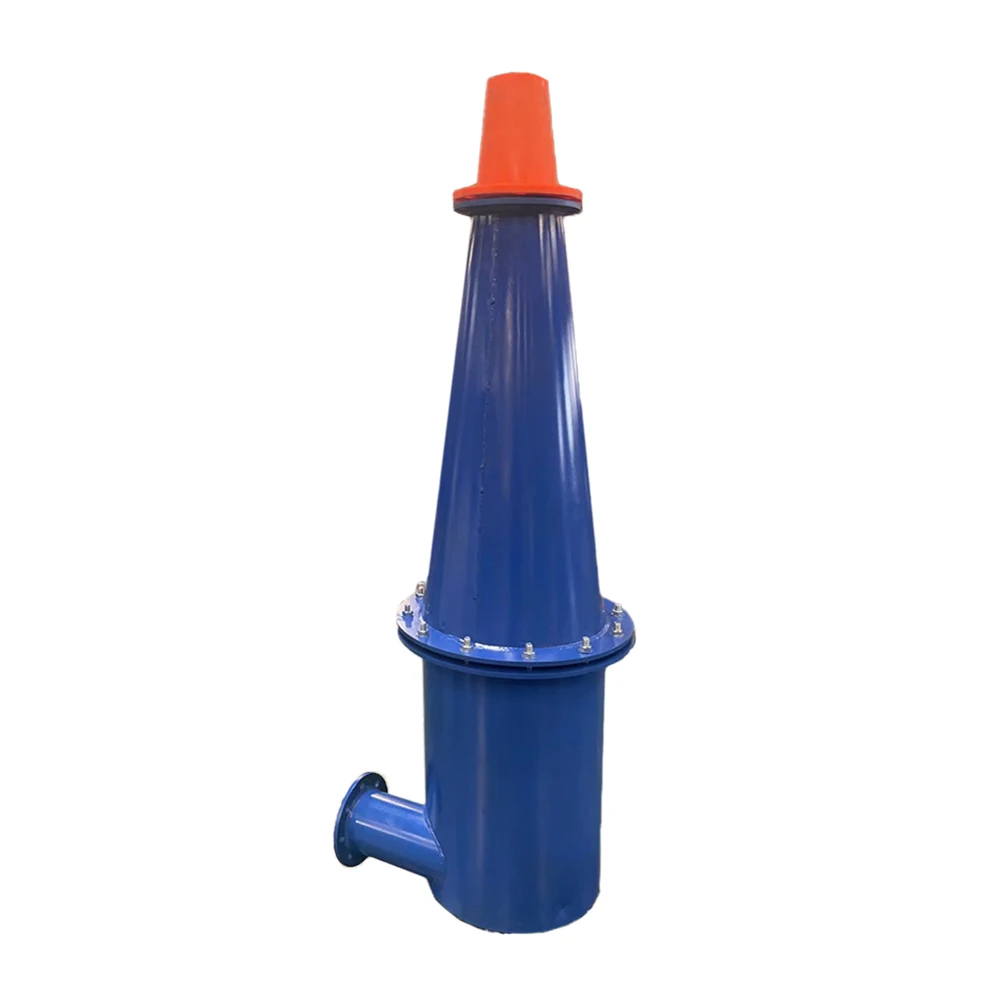

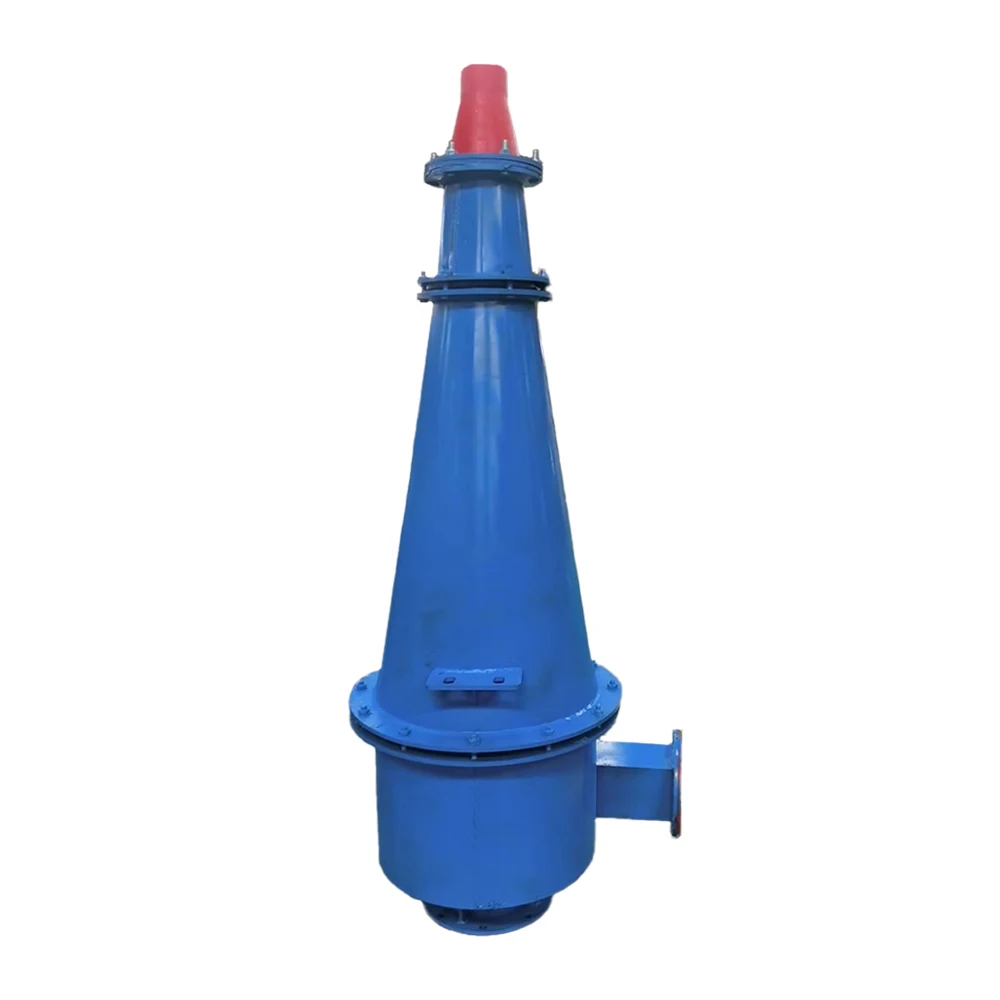

Hydrocyclone Hydrocyclone is a device for separating and removing heavy coarse particles, mud and sand from sewage. Sometimes it is also used for mud dehydration. When hydrocyclone is used as classification equipment, it is mainly used to form grinding and classification system with mill; When used as desliming equipment, it can be used for desliming in gravity concentration plant; When used as concentration and dehydration equipment, it can be used to concentrate ore dressing tailings and send them to fill underground mining tunnels.

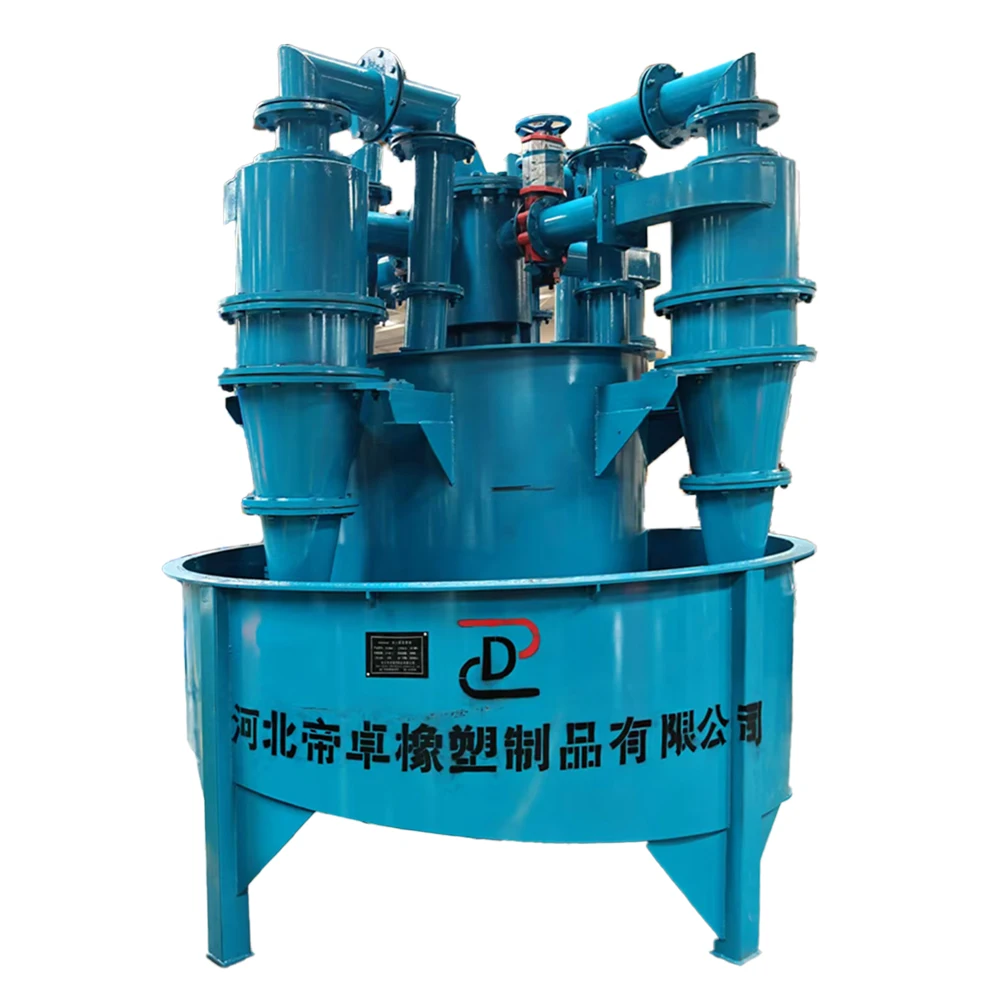

Hydrocyclone group
A cyclone group is a combination of two or more cyclones connected in series or in parallel. When a single cyclone can't meet the processing capacity or classification fineness required by the process, it can be considered to adopt cyclone sets, which are mostly used in the classification, dehydration, desliming, concentration of mines, tailings damming and wet desulfurization process of power plants.
In addition to several single cyclones, the cyclone group generally shares a grit chamber and overflow
box, and its material can adopt different linings according to different media. The lining materials are divided into high wear-resistant polyurethane and ceramics, etc.
box, and its material can adopt different linings according to different media. The lining materials are divided into high wear-resistant polyurethane and ceramics, etc.
Product Parameters
Model | Structural parameters | Maximum allowable feed particle size(mm) | Feeding pressure(PMa) | handling aillity(m/h) | Separation granularity(um) | ||||||||
Inner diameter(mm) | Diameter of feeding port pipe(mm) | Overflow diameter(mm) | Sand discharge caliber(mm) | Cone angle | |||||||||
FX-50 | 50 | 9 | 12 | 2/3/6 | 8 | 0.3 | 0.1-0.4 | 1 | 10-74 | ||||
FX-75 | 75 | 10 | 17 | 8/10/15 | 13 | 0.6 | 0.1-0.4 | 2.5 | 20-74 | ||||
FX-100 | 100 | 25 | 18/22/28/38 | 8/10/15/20 | 20 | 1 | 0.05-0.4 | 6.5 | 10-100 | ||||
FX-150 | 150 | 40 | 20/25/30/35/40 | 10/15/20/25/30 | 10/15/20 | 1.5 | 0.05-0.4 | 15 | 20-100 | ||||
FX-200 | 200 | 47 | 50/60/70/75 | 20/22/24/30 | 20 | 2 | 0.05-0.4 | 30 | 40-100 | ||||
FX-250 | 250 | 50 | 65/75/85 | 20/25 | 20 | 3 | 0.05-0.3 | 50 | 40-100 | ||||
FX-300 | 300 | 60 | 90/100 | 20/25 | 20 | 4.5 | 0.03-0.3 | 60 | 50-200 | ||||
FX-350 | 350 | 55 | 95/105/115 | 25/30/40 | 20 | 6 | 0.03-0.3 | 85 | 50-150 | ||||
FX-400 | 400 | 80 | 120/140 | 30/40/50 | 20 | 15 | 0.03-0.3 | 150 | 74-150 | ||||
FX-500 | 500 | 90 | 130/160 | 40/50/60 | 20 | 15 | 0.03-0.3 | 220 | 74-150 | ||||
FX-660 | 660 | 160 | 180/210 | 50/60 | 20 | 16 | 0.03-0.2 | 350 | 74-220 | ||||
FX-750 | 750 | 160 | 240/260 | 100/120/130 | 20 | 16 | 0.03-0.2 | 600 | 74-250 | ||||
Hydrocyclone applications
Hydrocyclone are commonly used as classification equipment in industrial enterprises with mineral processing links. Hydrocyclone are mostly used for classification, sorting, thickening and desliming of ore slurry in these enterprises. When hydrocyclone isused as classification equipment, it is mainly used with desilter, desander, mud cleaner. When used as classification equipment, cyclones are mainly used with mills to form a grinding and classification system. In addition, hydrocyclones are mostly used for desilter in re-election plants and dewatering in tailings treatment.
Hydrocyclone are commonly used as classification equipment in industrial enterprises with mineral processing links. Hydrocyclone are mostly used for classification, sorting, thickening and desliming of ore slurry in these enterprises. When hydrocyclone isused as classification equipment, it is mainly used with desilter, desander, mud cleaner. When used as classification equipment, cyclones are mainly used with mills to form a grinding and classification system. In addition, hydrocyclones are mostly used for desilter in re-election plants and dewatering in tailings treatment.
Hydrocyclone advantages
The advantage of the hydrocyclone is that it has no internal moving parts, so the structure is simple and easy to use. Compared with Compared with other classifying and separating equipment, the classification efficiency is higher, which can reach more than 80%, and the hydrocyclone classifies. The particle size of cyclone classification is fine, which can meet the requirements of industrial production. In addition, the low cost and low material consumption of cyclone more economic value.
The advantage of the hydrocyclone is that it has no internal moving parts, so the structure is simple and easy to use. Compared with Compared with other classifying and separating equipment, the classification efficiency is higher, which can reach more than 80%, and the hydrocyclone classifies. The particle size of cyclone classification is fine, which can meet the requirements of industrial production. In addition, the low cost and low material consumption of cyclone more economic value.
Our service
1.Pre-sale services:
(1) Select equipment model;(2) Design and manufacture products according to clients' special requirement;
(3) Train technical personnel for clients.
2. Services during the sale:
(1)Pre-check and accept products ahead of delivery;
(2)help clients to draft solving plans.
3. After-sale services:
(1) Assist clients to prepare for the first construction scheme;
(2) Install and debug the equipment;
(3) Train the first-line operators on site;
If you need the further details about this product, welcome to contact us.

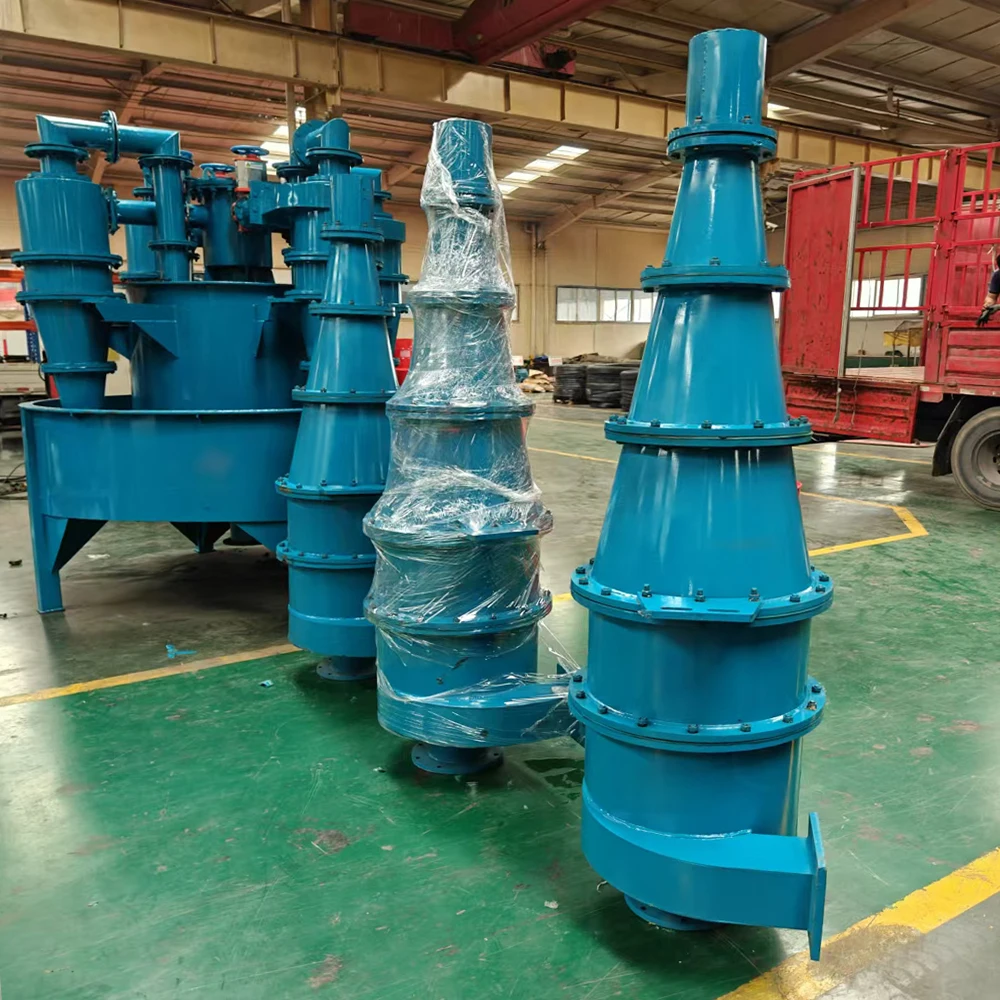

Products Show
Related products
Our factory accept OEM, can produce the hydrocyclones as the customers' drawing or requirement, please contact us for the details.
Company Profile
Hebei Dizhuo Rubber & Plastic Products Co.,Ltd founded in 2018, is one of the largest manufacturers of polyurethane elastomer products in China, covers 15000 square meters and has more than 100 employees, located in Anling Town, Wuqiao County, Cangzhou City, Hebei Province, China, near Tianjin port. Our company was certified the Quality System Certification of GB/T 19001:2008--ISO 9001:2008 Standard.
Our products mainly include hydrocyclones, conveyor belt cleaner, PU scraper blade, PU sieve screen mesh, polyurethane sheet, Belt buffer bed, wear-resistant PU plate, impact-resistant plate, buffer sheet, lining plate, rubber-coated rollers and wheels, PU rods, seals, PU auto parts, mining impeller, polyurethane pipeline lining, rubber liner of ball mill and various polyurethane machine parts.
We have rich experience in supplying polyurethane elastomer products, all ways provide high-quality and inexpensive products. Many famous enterprises at home and abroad have established long-term friendly business relationship with us. Welcome domestic and foreign customers to visit us, we will supply best service to every customer.
Our products mainly include hydrocyclones, conveyor belt cleaner, PU scraper blade, PU sieve screen mesh, polyurethane sheet, Belt buffer bed, wear-resistant PU plate, impact-resistant plate, buffer sheet, lining plate, rubber-coated rollers and wheels, PU rods, seals, PU auto parts, mining impeller, polyurethane pipeline lining, rubber liner of ball mill and various polyurethane machine parts.
We have rich experience in supplying polyurethane elastomer products, all ways provide high-quality and inexpensive products. Many famous enterprises at home and abroad have established long-term friendly business relationship with us. Welcome domestic and foreign customers to visit us, we will supply best service to every customer.
FAQ
1.Q: How much is the freight cost?
A: It depends on the quantity,weight, carton size and your area.
2.Q:What is your shipping way?
A: By sea, By air, By express.
3.Q:What is your mass products delivery time?
A: 10-15 days. Exact time accord to the style, QTY.
4.Q:Can we order the color we want?
A:Yes, we can make any color you want.
5.Q: how can we guarantee quality?
A:Always a pre-production sample before mass production and always final Inspection before shipment;
6. Q: Are you a trading company or manufacturer?
A: We’re a manufacturer, welcome to visit our factory&office.
A: It depends on the quantity,weight, carton size and your area.
2.Q:What is your shipping way?
A: By sea, By air, By express.
3.Q:What is your mass products delivery time?
A: 10-15 days. Exact time accord to the style, QTY.
4.Q:Can we order the color we want?
A:Yes, we can make any color you want.
5.Q: how can we guarantee quality?
A:Always a pre-production sample before mass production and always final Inspection before shipment;
6. Q: Are you a trading company or manufacturer?
A: We’re a manufacturer, welcome to visit our factory&office.
Похожие товары

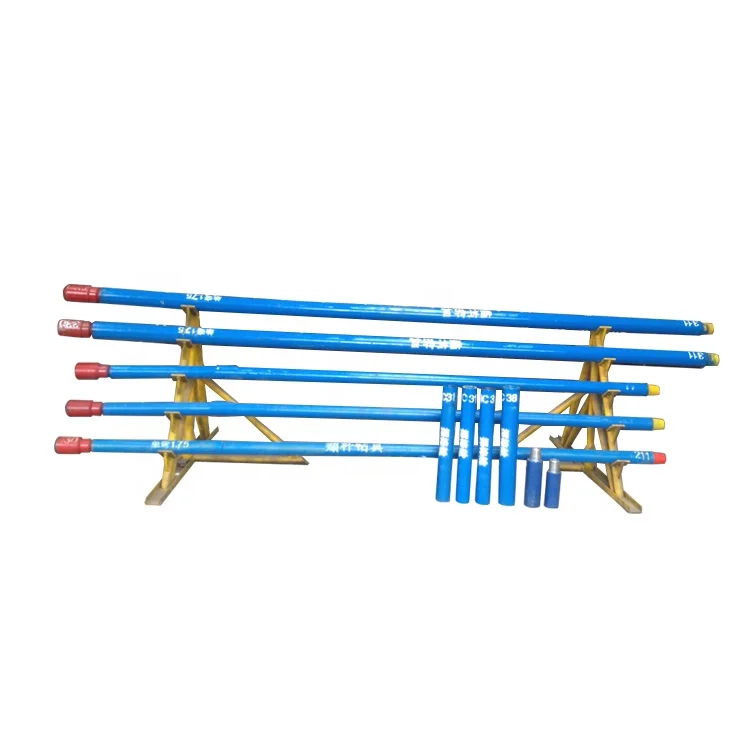

API буровой двигатель для бурения нефтяных месторождений для направленного бурения HDD
43 374,36 ₽ - 48 796,16 ₽
Гидравлический скальный сплиттер с супер клином для экскаватора с большим разрушением камней
444 587,19 ₽

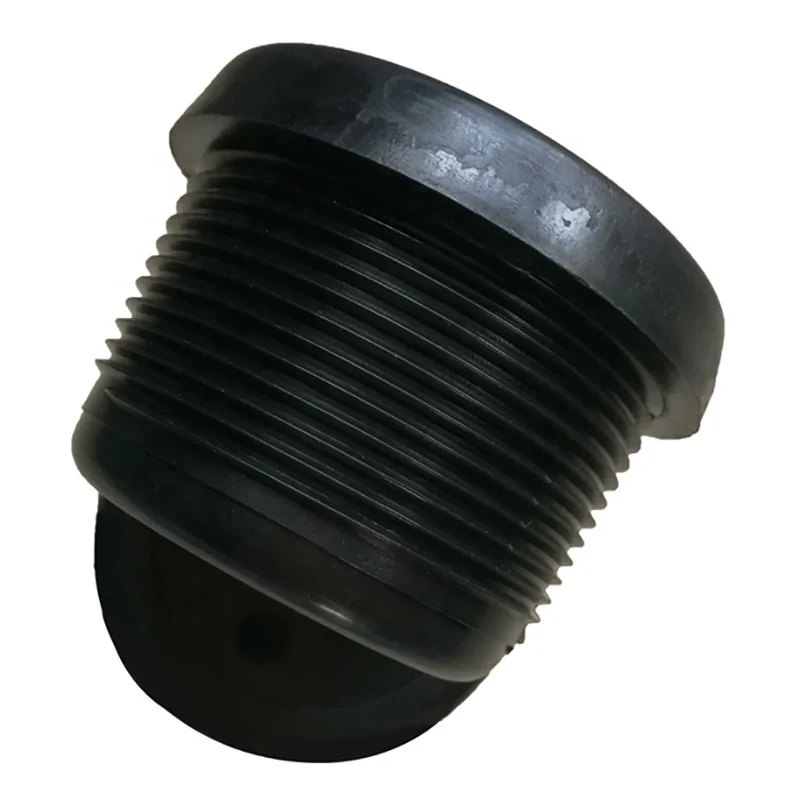

Сверхмощный протектор для нефтепромысловой трубы
350,25 ₽

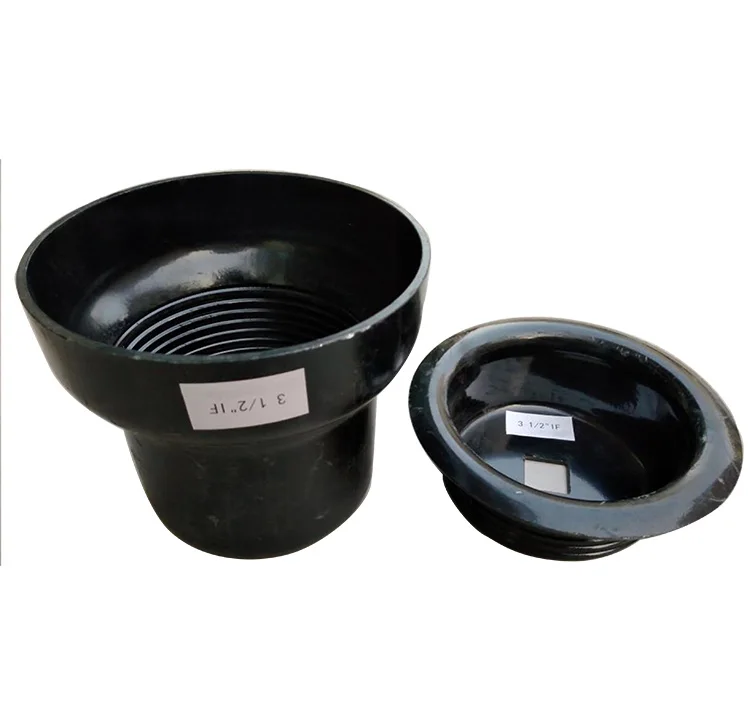

Хит продаж, протектор для бурильной трубы для нефтепромысла, протектор для высокопрочной пластиковой стали
350,25 ₽

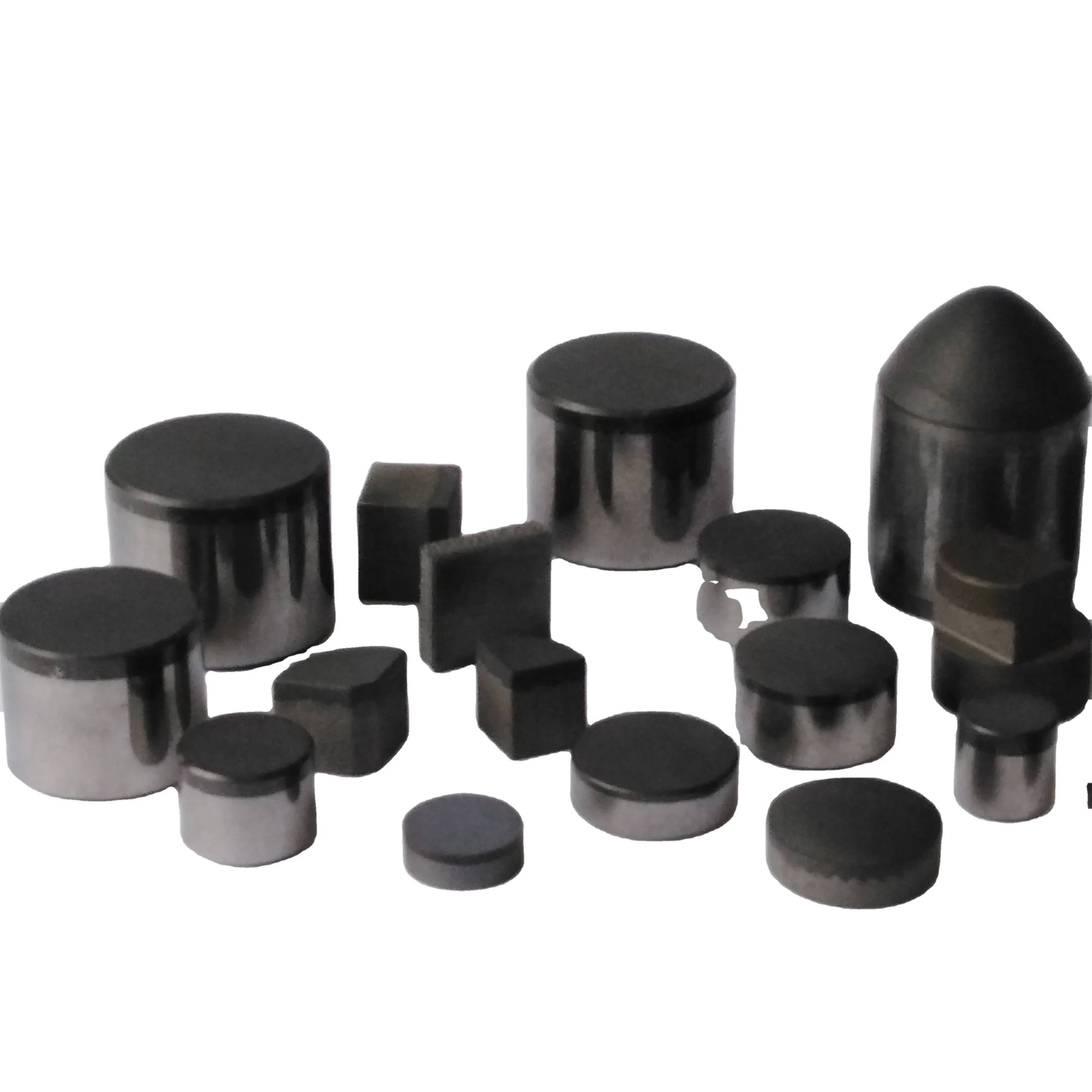

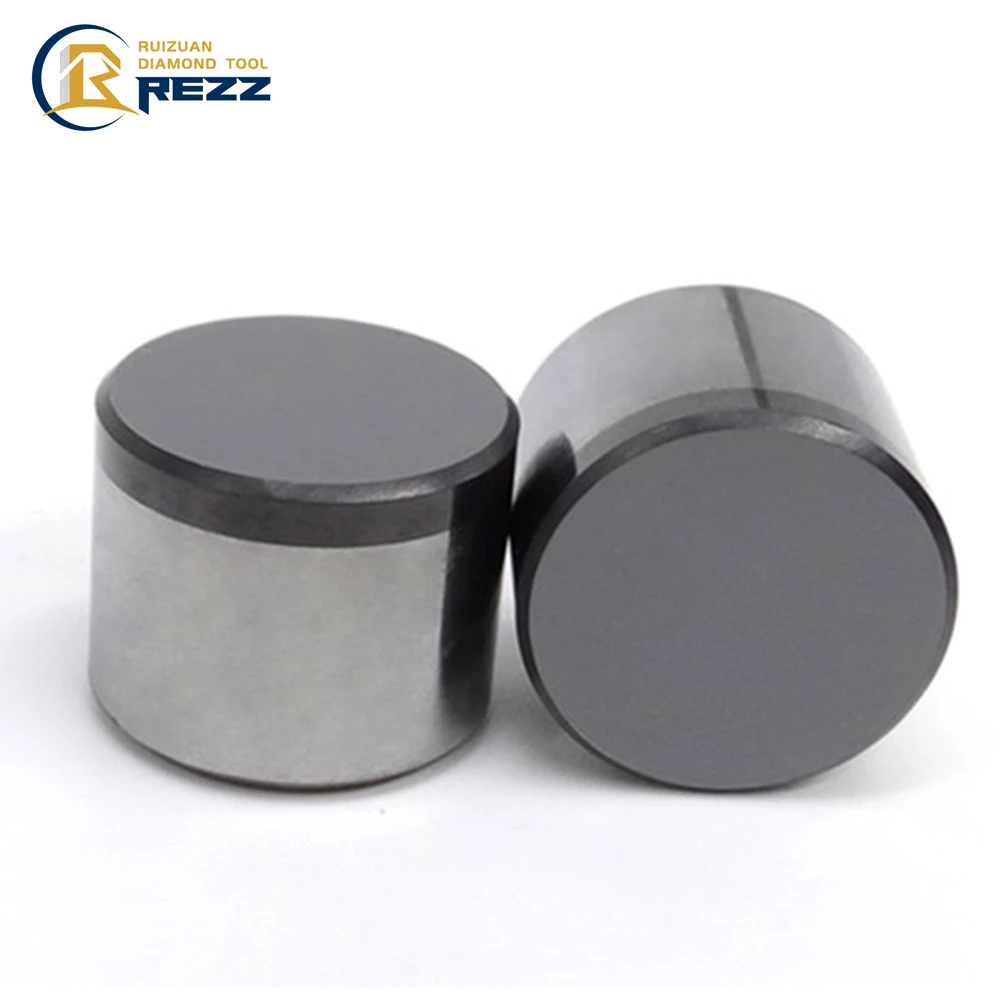

PDC режущий 1304 1308 бурового долота вставки для нефтяных скважин, добычи угля, алмазный материал, новый использованный режущий инструмент PDC, вставка
