Product name:
Product details:
DTB Electric bicycle battery Datasheet | |
Model | IR-7 |
Chemistry | Li-ion |
Nominal Voltage | 48V |
Nominal Capacity | 15Ah |
Weight | Approx 4.0KG |
Outer case | IR-7 intube |

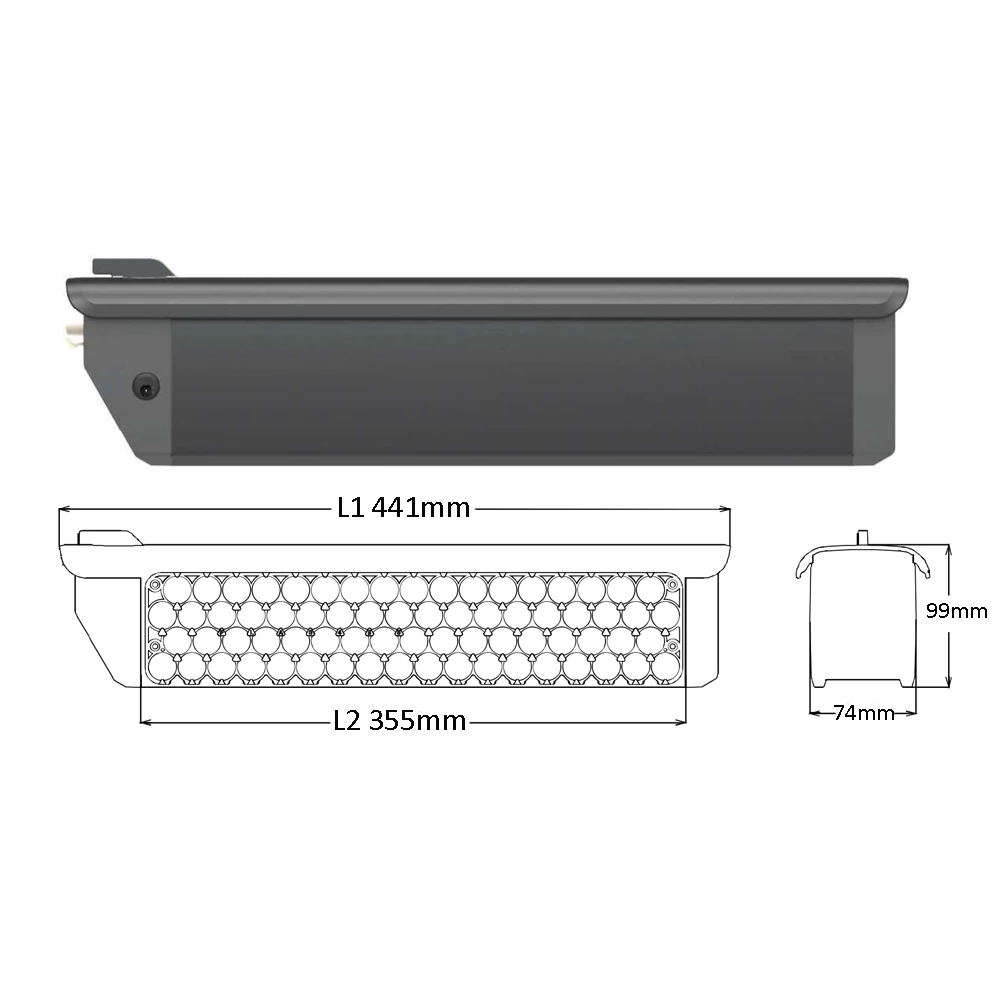

Dimension | 99*74*441mm |
Standard Charge | Constant Current 0.2C, Constant Voltage 54.6v 100mA Cut-off |
Fast Charge | Constant Current 0.5C, Constant Voltage 54.6v 100mA Cut-off |
Standard Discharge | Constant Current 0.2C/End Voltage -approx.39V |
Discharge Current | 30A depending on motor power |
BMS function | Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Balanc5 |

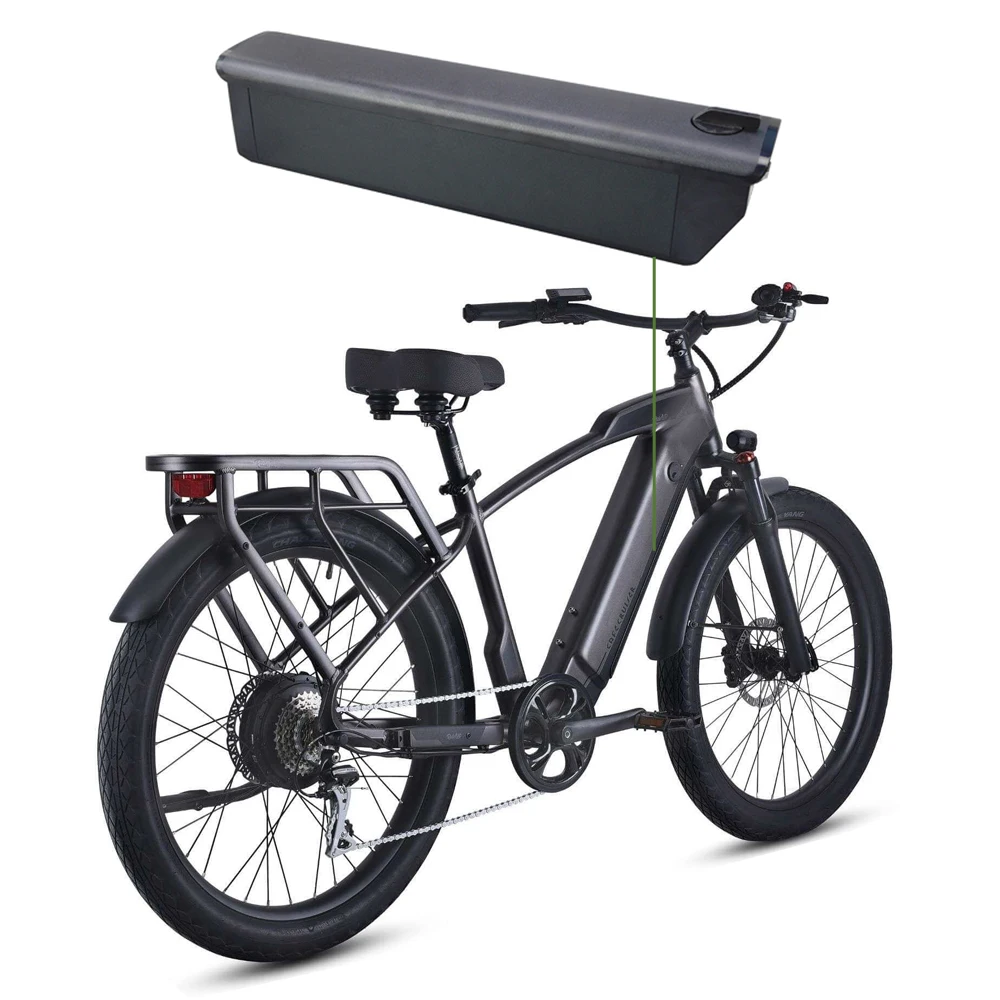

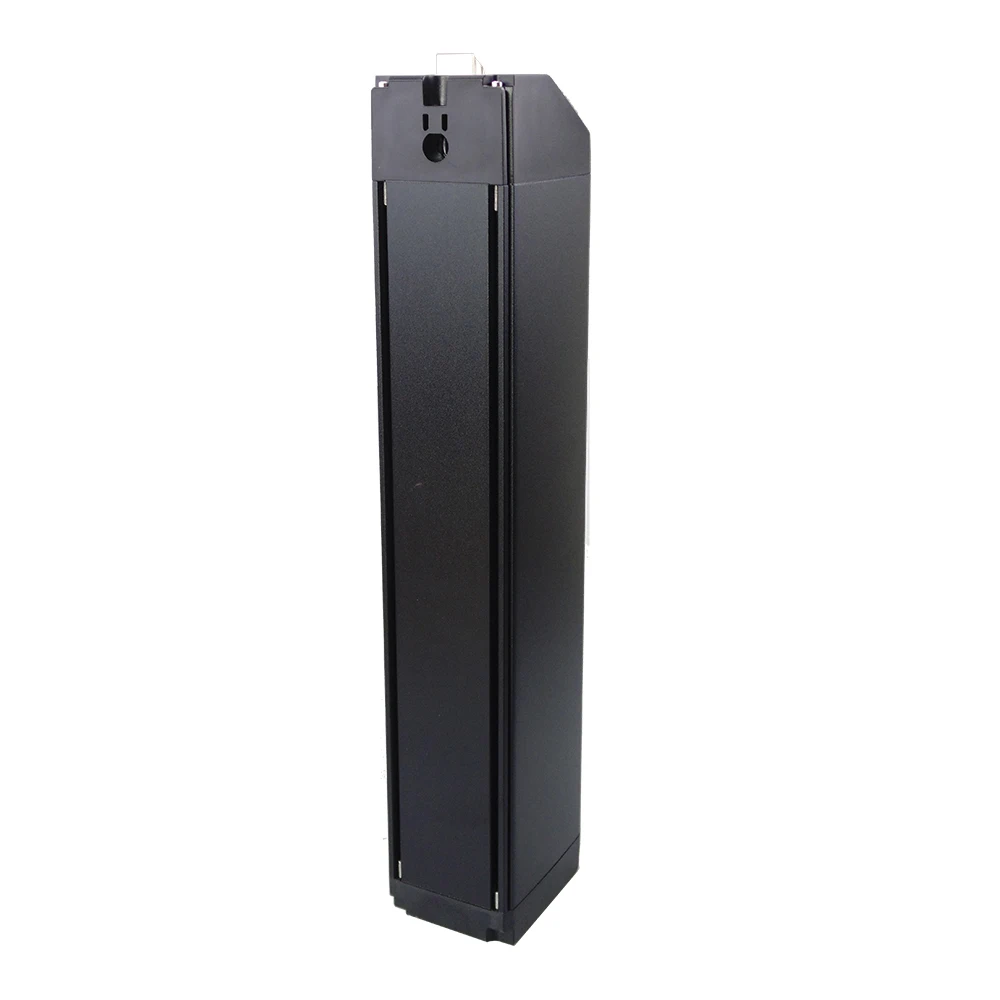

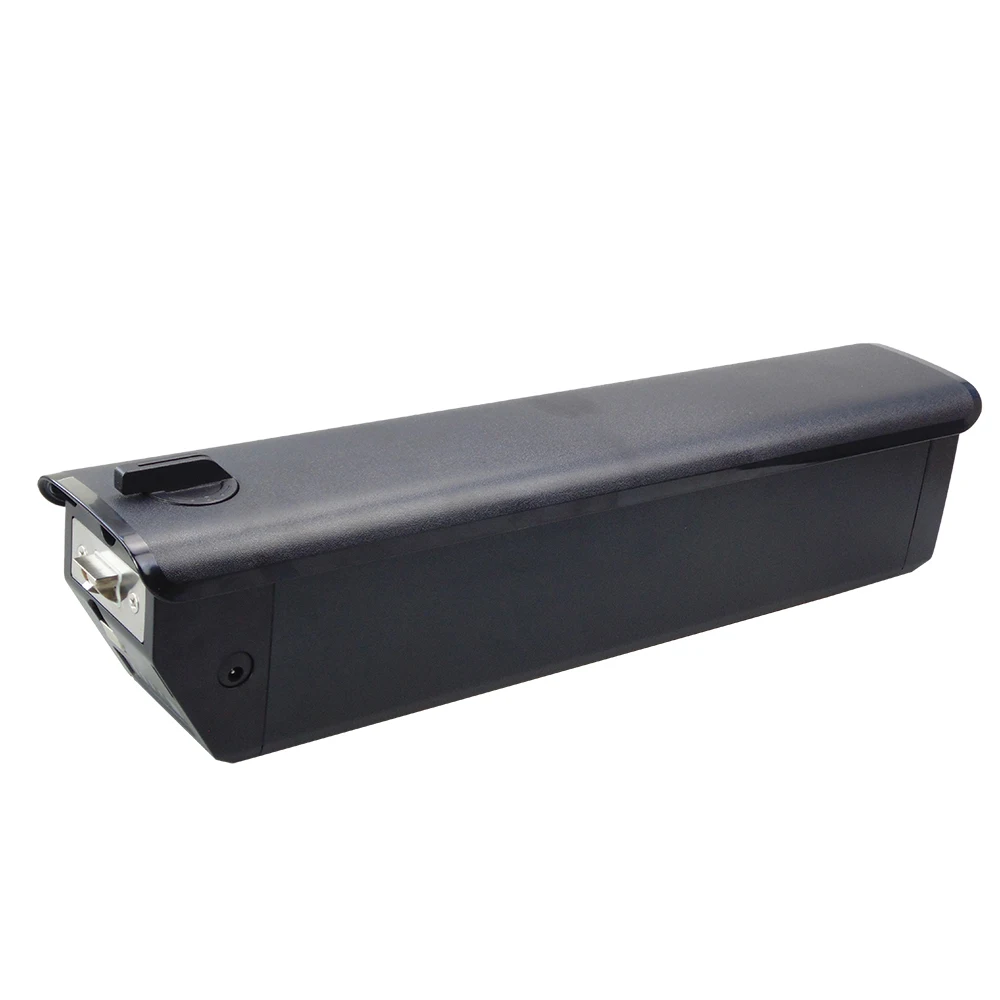

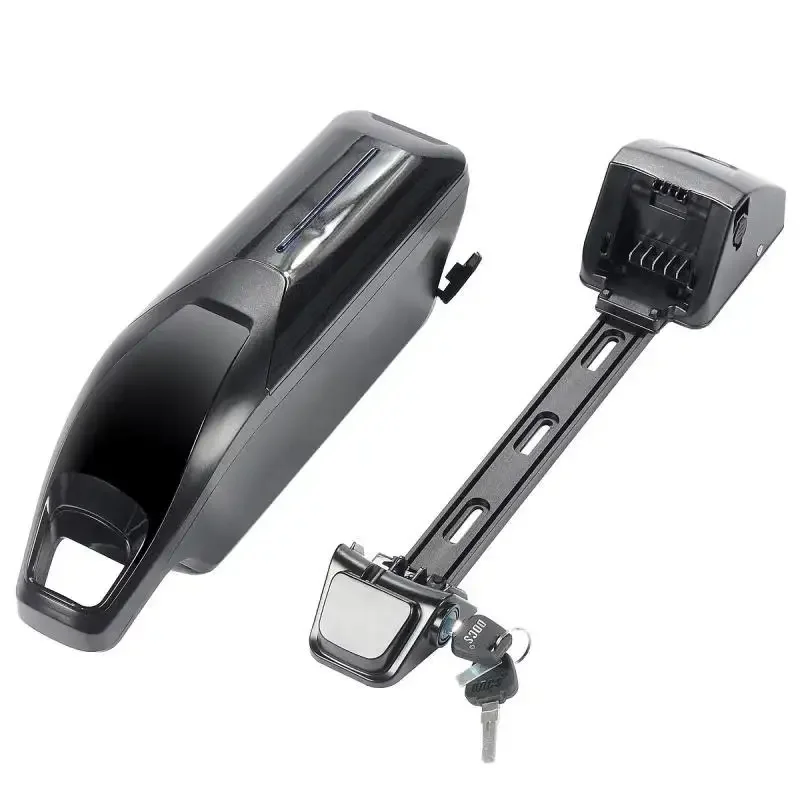

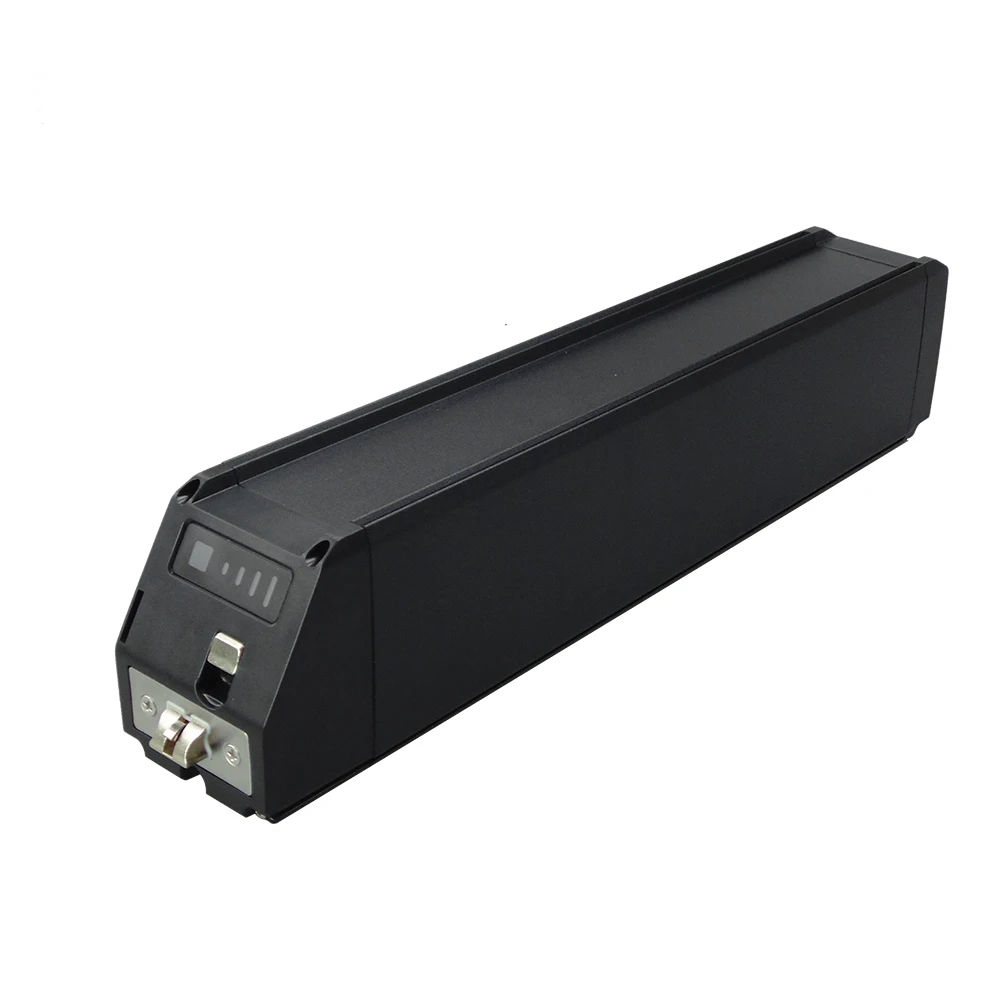

Battery Photos:
Battery Manuel:
1. Charge:Connecting the battery pack to the charge controller, connect the charger to recharge.
2. Discharge:Connecting the battery pack to the load ,connect the load to discharge.
3. When you combine the battery with series or parallels, if there are oxidation layer on the surface, you
should brush surface to the metal glow with thin steel brush to lower the connective resistance to the minimal resistance.
4. When combining with many batteries, if the voltage between the two electrodes is over 24V, the safe
voltage for human beings, to guarantee the safety, you should not touch the two electrodes with your body.
5. If shelve a long time suggested that the battery keep 80% capacity, need for regular recharging (even if
not use), must charge and discharge for three months one time;
6. Do not expose the battery to extreme heat or flame.
7. Do not short circuit, over-charge or over-discharge the battery pack;
8. Do not disassemble or modify the battery pack.
9. Do not handle or store with metallic like necklaces, coins or hairpins, etc.
10. Do not reverse the polarity of the battery pack for any reason.
11. Do not immerse the battery pack in water or sea water, or get it wet.
12. Use a constant current, constant voltage (CC/CV) lithium-ion (Li+) battery charge controller.
TIPS:
