Промышленная материнская плата 11 серии Tiger lake U 3 5 дюйма процессор SOC I7 1165G7 8 Гб DDR4 Поддержка CAN TPM2.0
- Категория: >>>
- Поставщик: Shenzhen Piesia Electronic Technology Co. Ltd.
Сохранить в закладки 1600512080410:
Описание и отзывы
Характеристики
Product Description

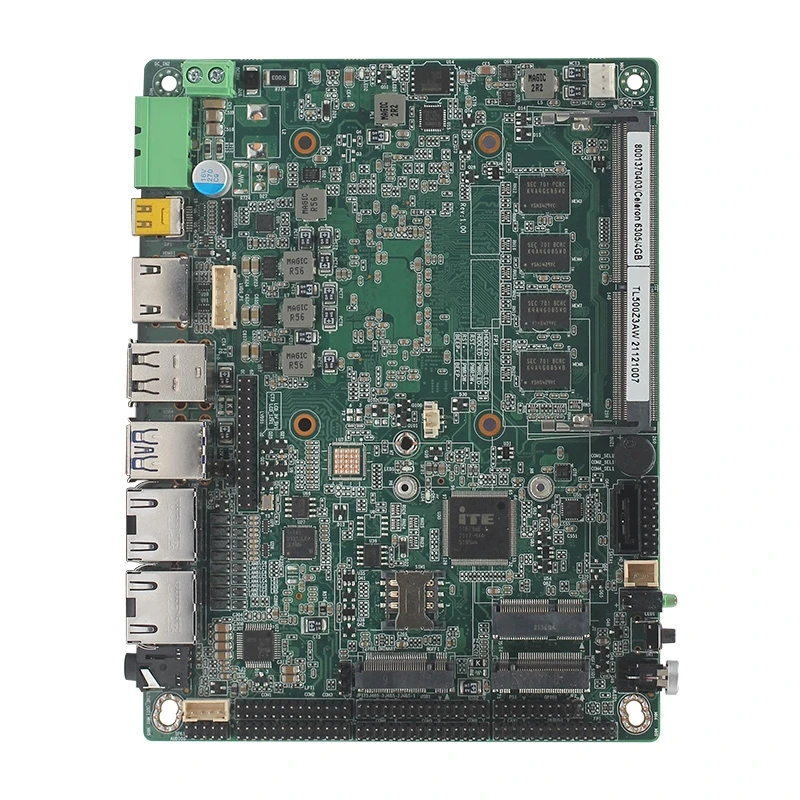

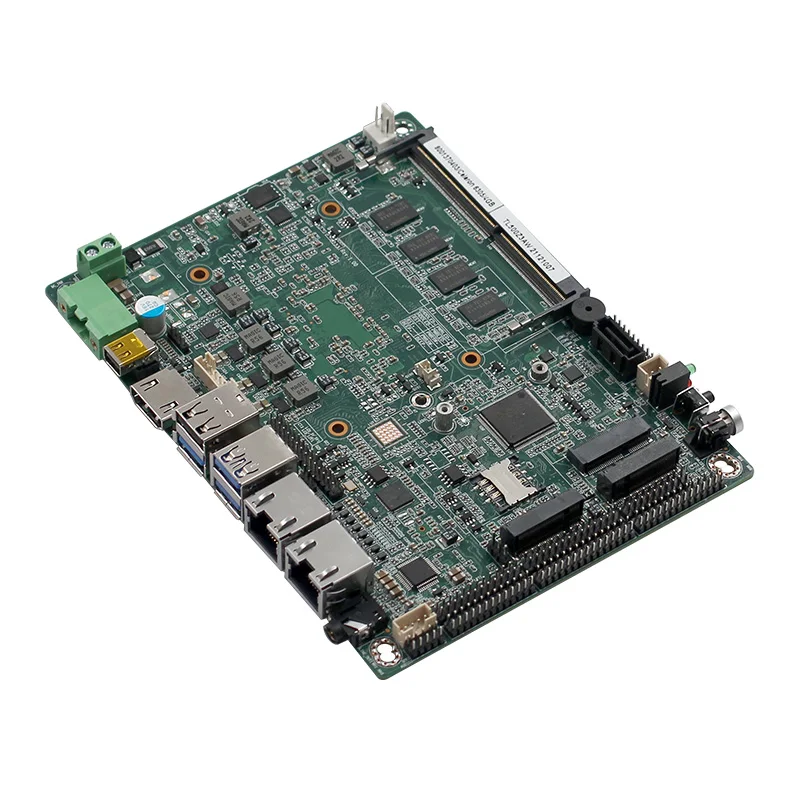

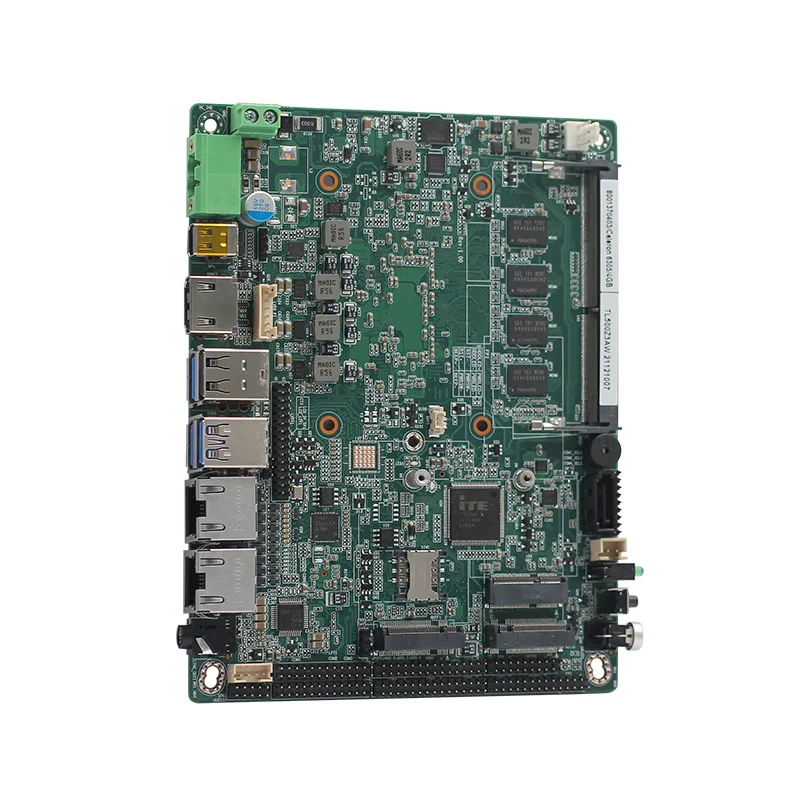

3.5 "industrial motherboard 11th Tiger lake-U series SOC I7 -1165G7 processor Onboard 8GB DDR4 RAM DC 9-36V support CAN TPM2.0
Specification
CPU | Intel 11th Tiger lake-U series SOC embedded |
EFI BIOS | |
Memory | Onboard 4GB/8GB/16GB DDR4，MAX 16GB |
1* DDR4 SO-DIMM，MAX 32GB | |
Display | 1* HDMI2.0；1* LVDS（EDP option）；1* MiniDP（DP++） |
Storage | 1* M.2 KEY-M 2242（PCIE_X2 NVME，SATA3.0 option） |
1* 7Pin SATA3.0，SATA PWR 5V 2Pin | |

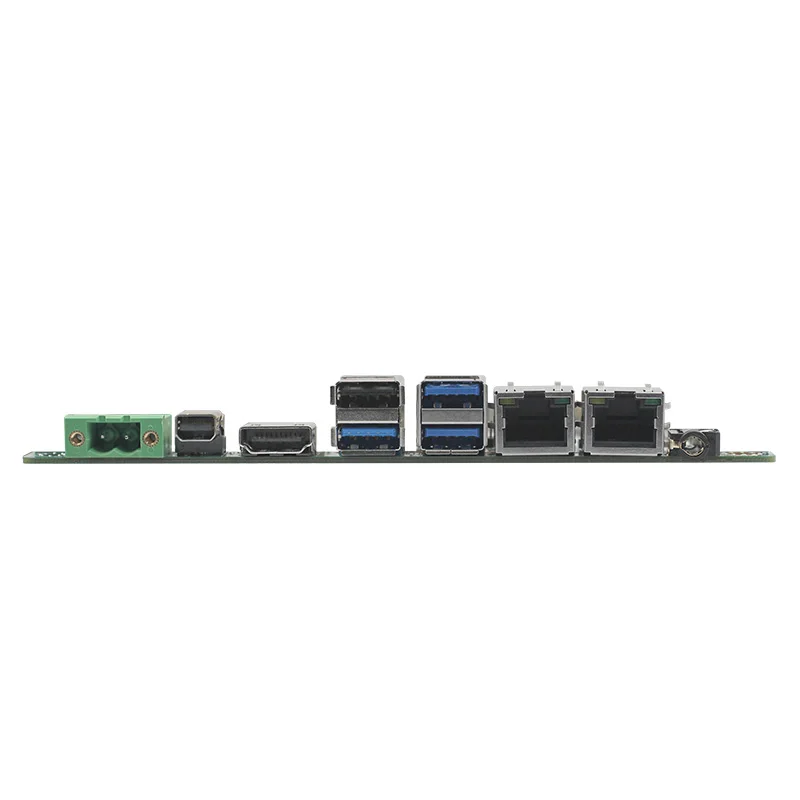

I/O ports | Back:1* DC JACK（5.08 Phoenix terminal option），1* MiniDP（DP++），1* HDMI2.0，3* USB3.1 GEN2，1*USB2.0，2* RJ45（1* I225V-B3；1* I219，AMT）， 1*Audio |
Front:PWRBTN，RST，POWER LED，HDD LED | |
Expansion | 1* TPM2.0（option） |
1* CAN，2x4Pin，PH=2.0 | |
1* M.2 KEY-B（PCIE+USB3.0，3G/4G/5G module），1* SIM slot | |
1* M.2 KEY-E（PCIE_X1，WIFI module） | |
6* COM（2x5Pin，PH=2.0，1* RS422/RS485/RS232，3* RS485/RS232，2* RS232） | |
1* AUDIO，2x5Pin，PH=2.0；6W8Ω dual channel | |
4* USB3.0，2x5Pin，PH=2.0 | |
1* CPU Smart FAN，3Pin，PH=2.0 | |
1* LPT，2x13Pin，PH=2.0 | |
1* 8bit GPIO，2x5Pin，PH=2.0； Watchdog | |
1* PS/2，2x4Pin，PH=2.0； 1* SPDIF，3Pin，PH=2.54 | |
Power supply | DC9-36V(DC12V option,TL500Z3A)，90W，copper fan |
Environment | work temperature: -20℃ ~ +60℃;work humidity: 5% ~ 90% |
storage temperature: -40℃ ~ +85℃;storage humidity: 5% ~ 90% | |
OS | Windows10,windows11,Linux |
Dimension | 155x117x23mm |
Weight | 150g(Heat sink not included) |
Details Images
Packing & Delivery
>packing details:carton box
>delivery details:Within 3 days (sample order ) 7-25 days in a bulk
>Delivery ways:For the small order,we will suggest you choose the DHL,FEDEX,TNT,UPS etc.
For the large order,we will suggest you choose by sea
>delivery details:Within 3 days (sample order ) 7-25 days in a bulk
>Delivery ways:For the small order,we will suggest you choose the DHL,FEDEX,TNT,UPS etc.
For the large order,we will suggest you choose by sea
Company Profile
Certifications
our service
1.the quality problem: we check every product carefully before the delivery, and provide 2 years warranty time, if you find
problems please contact us in time.
2.the design problem:we could do design as customer requirement.
3.the packages problem:the carton with your own logo are available.
4.other problems: about the product performance and safety knowledge, you also can consult our engineer
problems please contact us in time.
2.the design problem:we could do design as customer requirement.
3.the packages problem:the carton with your own logo are available.
4.other problems: about the product performance and safety knowledge, you also can consult our engineer
FAQ
Q1: What is the Warranty for your pc?
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
A1: For the pc, we have 2 years warranty.
Q2: How to do if any quality problems on your side in the warranty time?
A2: First, take pictures or videos as proof and send to us. We will replace new ones for free or Returned to our factory for free maintenance.
Q3: Are you a manufacturer?
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visit our factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster
Express: DHL TNT UPS by air for samples and middle order
Reasonable Express: delivery by sea for large order
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
A3: Yes, we are ODM and OEM and we have our own factory and professional engineers to meet your any requirements. Welcome to visit our factory.
Q4: What kind of payment do you support?
A4: T/T West union paypal
Q5: Can we get support if we have our own market position?
A5: Please inform us your detailed market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q6: Is there any cheap shipping cost to import to our country?
A6:Cheaper Express: Postal parcel for small samples Faster
Express: DHL TNT UPS by air for samples and middle order
Reasonable Express: delivery by sea for large order
Q7: How many days will samples be finished? And how about the mass production?
A7: Generally 3-5Working days after payment for samples. The leading time of mass production will depend on the quantity.
Похожие товары
Материнская плата B85 графическая карта 8 GPU PCI-E 16X LGA1150 16 ГБ DDR3 для настольного компьютера
70,00 $ - 76,00 $
Оригинал для DELL XPS 9000 435T 0X501H X501H 1366 X58 Материнская плата полностью
75,00 $ - 79,00 $
Оригинальная тестовая материнская плата для MacBook Pro 13
Hsgm материнская плата D1581-R3 Низкопрофильная Материнская Процессор 64 Гб памяти настольный компьютер
50,06 $ - 77,28 $

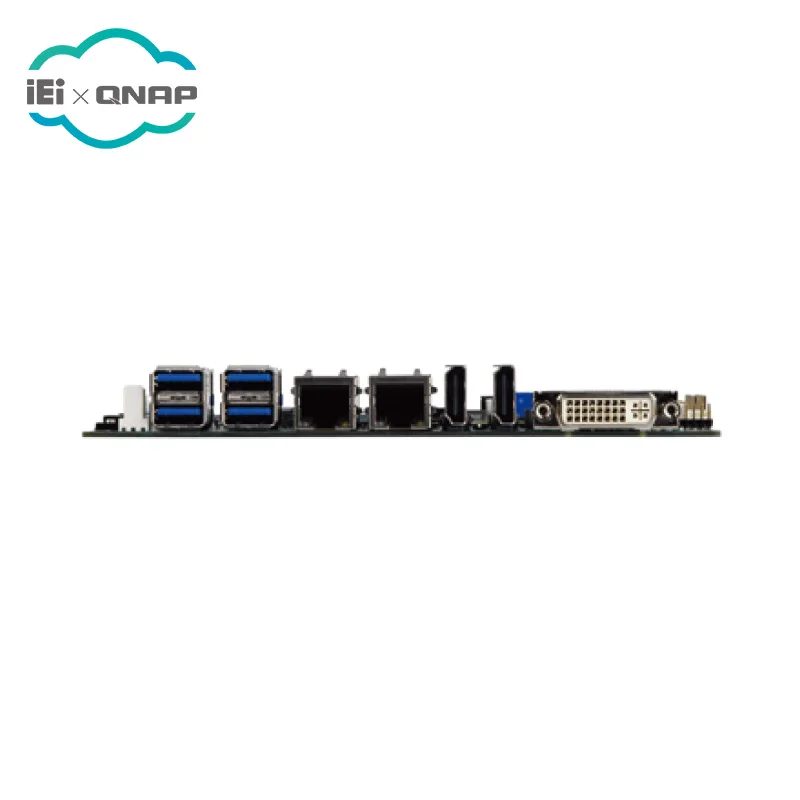

IEI NANO-QM770 EPIC SBC поддерживает 3rd поколения Intel Core i7/i5/i3 мобильный процессор

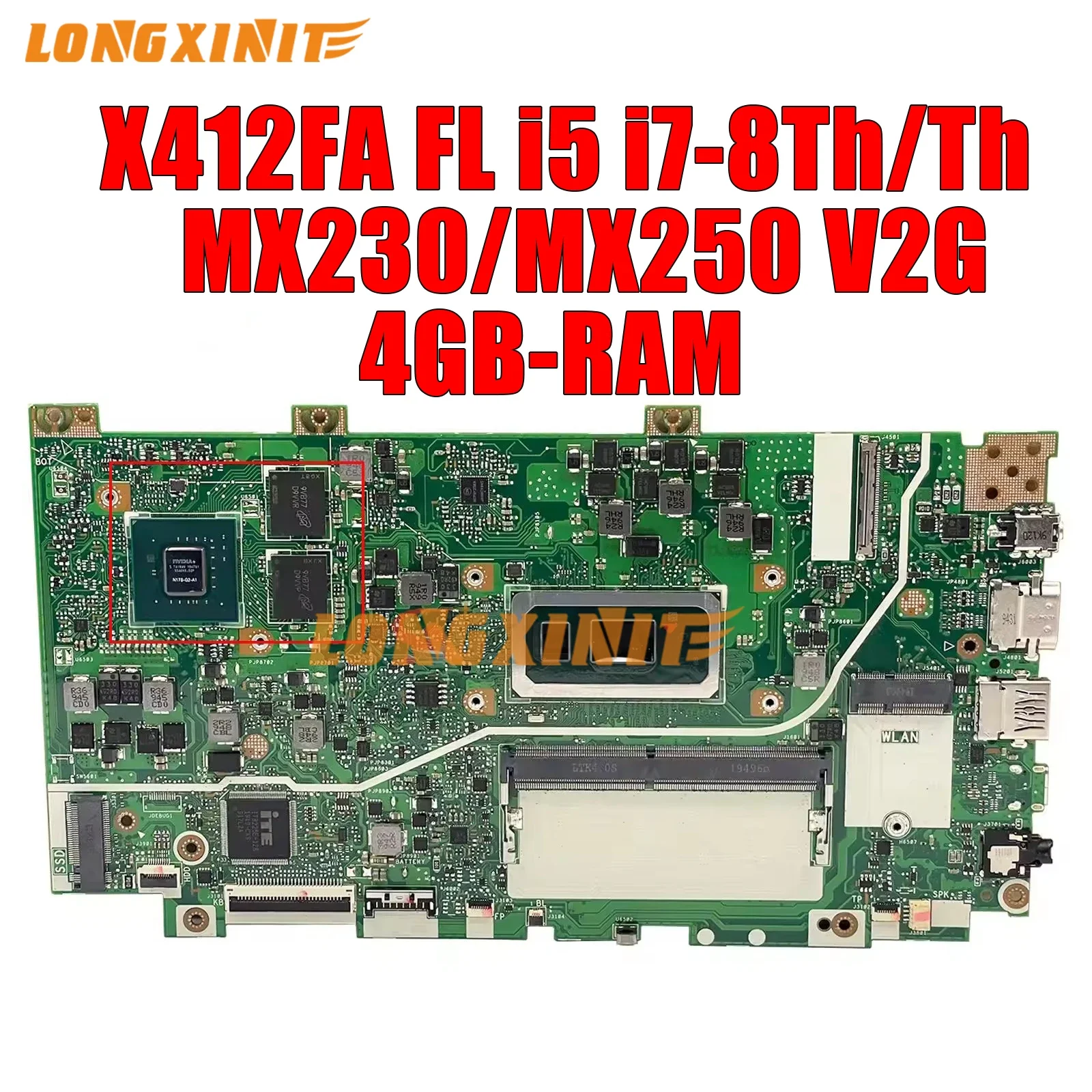

Материнская плата для ноутбука ASUS X412FJC X412FJ X412F A412F F412F S412F V412F R424F X412FA FL. i3 i5 i7 8th/10th,4GB-RAM.V2G

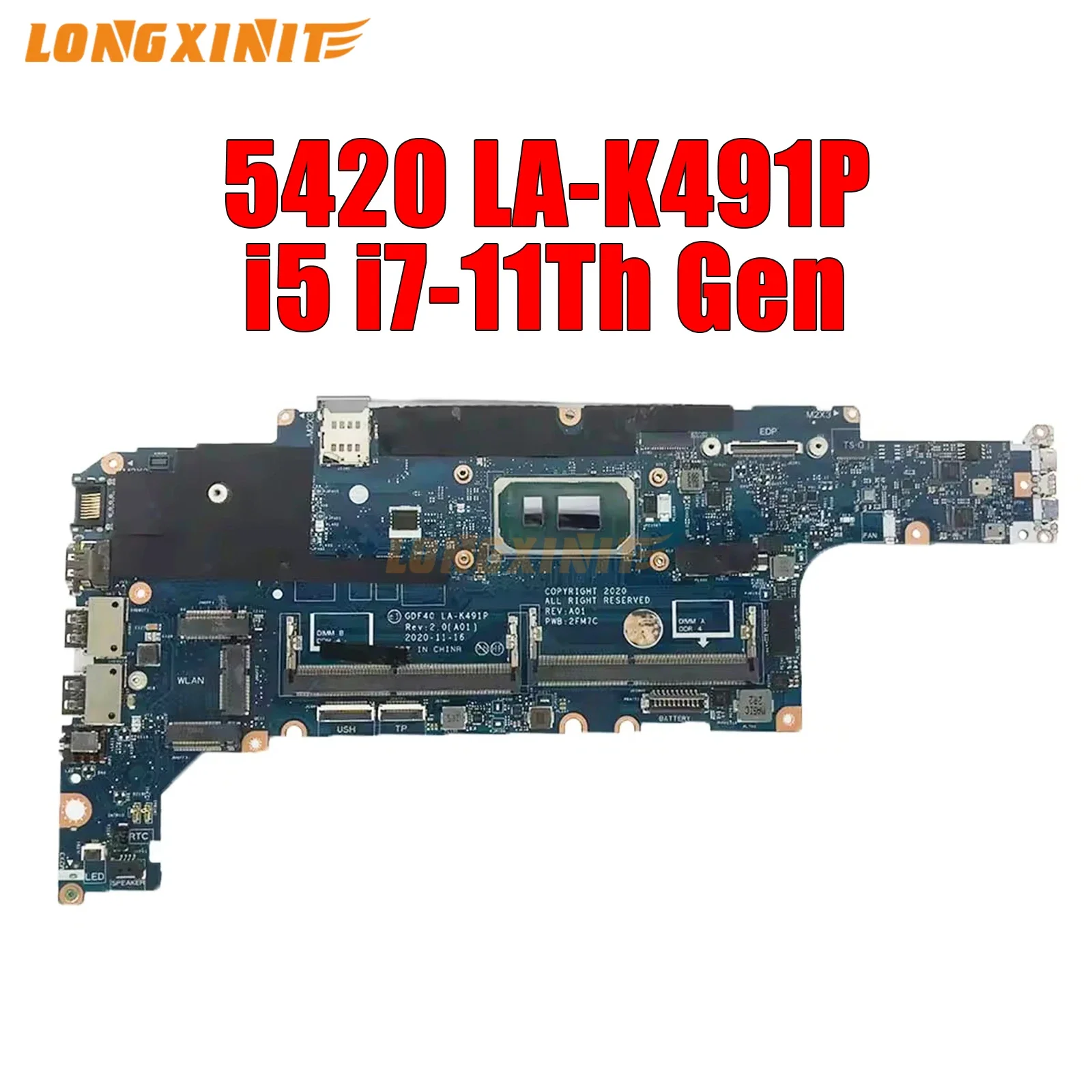

Для Dell Latitude 5420 LA-K491P материнской платы ноутбука CPU: I5 I7-11th.CN-0M51J7, 054CCV, 01m3m4.
