Насос погружной из нержавеющей стали 7 кВт 7, 5 л.с., 4 дюйма, для глубокой скважины, распродажа
23 825,89 ₽ - 24 777,61 ₽

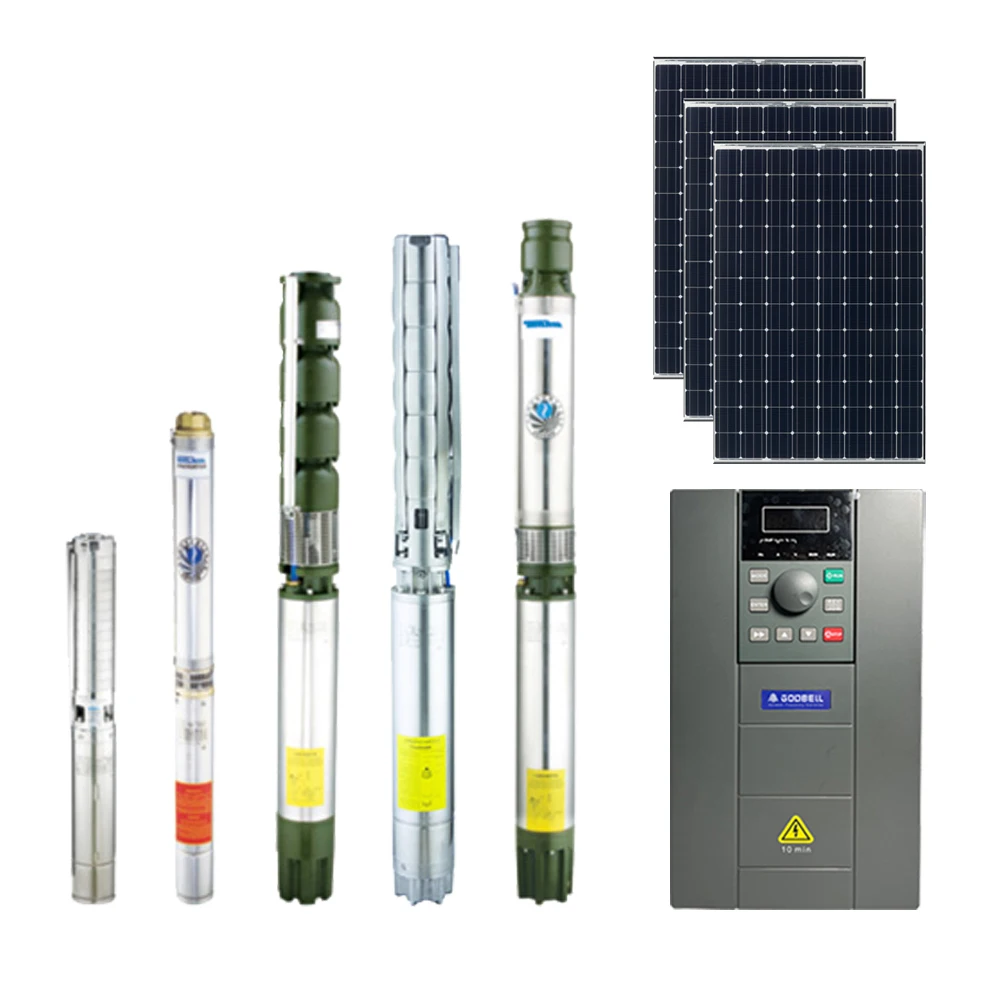

Погружной водяной насос высокого давления на солнечной батарее DC 150 л. С. для глубоких скважин
- Категория: >>>
- Поставщик: Goldbell Electric (shenzhen) Co. Ltd.
Сохранить в закладки 1600512242671:
Описание и отзывы
Характеристики
Product Description
Solar Pump Irrigation System

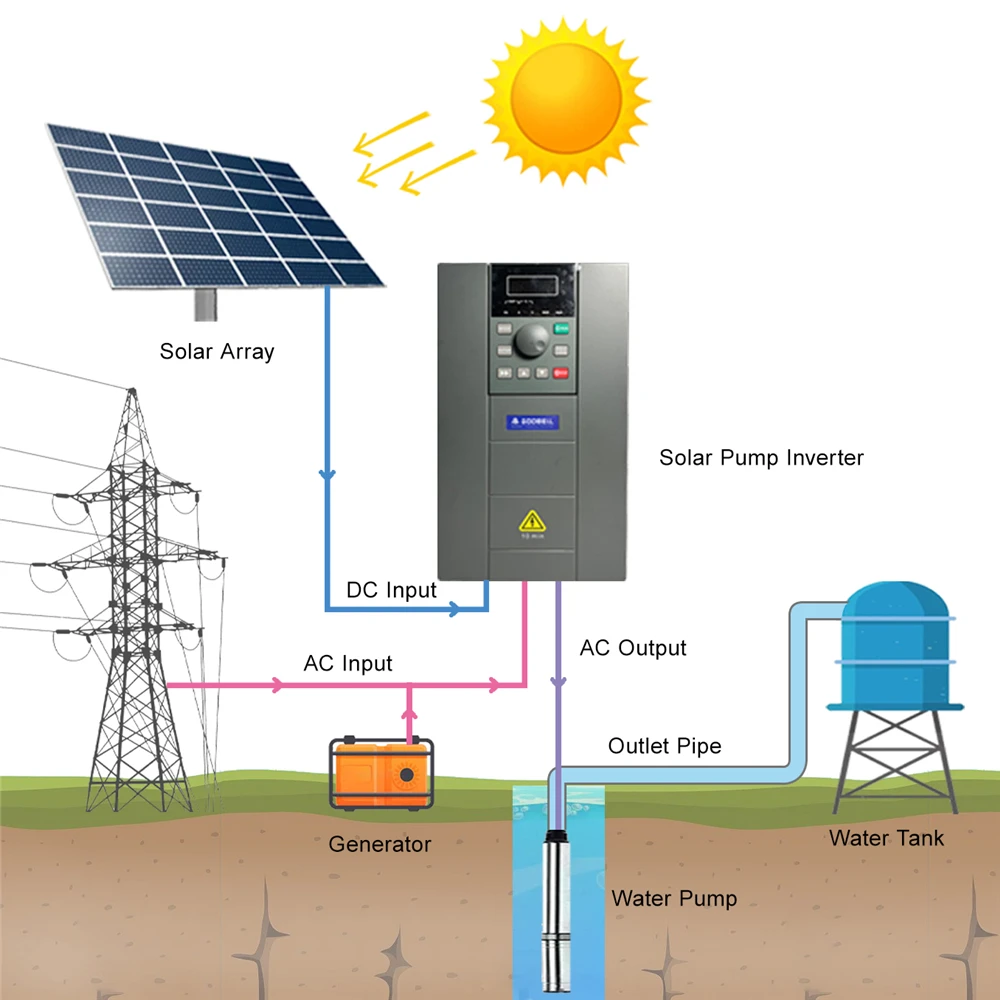

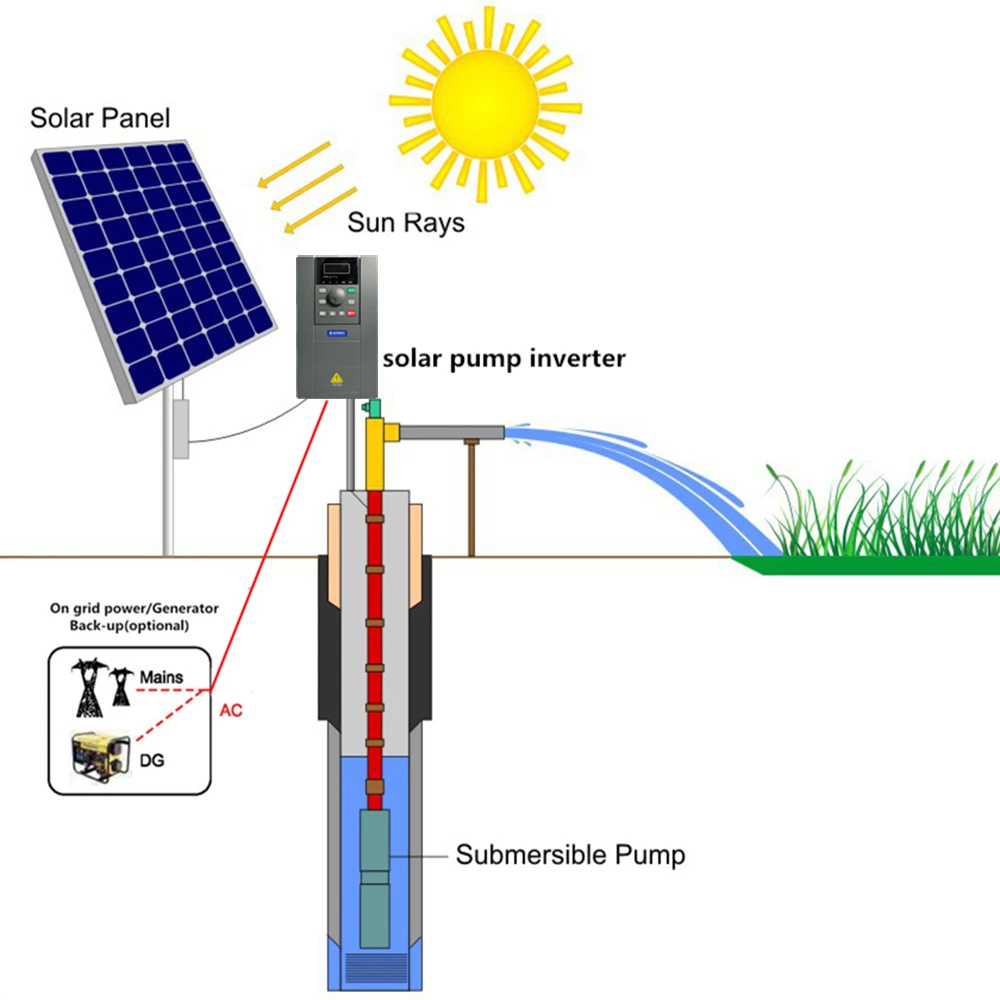

System composition: The solar water pump system is mainly composed of solar panels, solar water pump inverters, water pumps, photovoltaic combiner boxes, mounting brackets, cables, water level sensors and other necessary accessories.
Working principle: The solar water pump inverter converts solar DC current into AC power to drive the water pump to work without batteries, with low cost and low maintenance cost.
Working principle: The solar water pump inverter converts solar DC current into AC power to drive the water pump to work without batteries, with low cost and low maintenance cost.
Extensive support: AC/DC, 50HZ-60HZ, 0.75KW-110KW, 3 inches to 10 inches, lift range: 10-680m, flow range: 1 m³/h-200 m³/h, meet all customer needs for solar pumps.
Multiple protection functions: dry running protection, reverse protection, overload protection, overcurrent protection, overvoltage protection, phase loss protection.
Multiple protection functions: dry running protection, reverse protection, overload protection, overcurrent protection, overvoltage protection, phase loss protection.

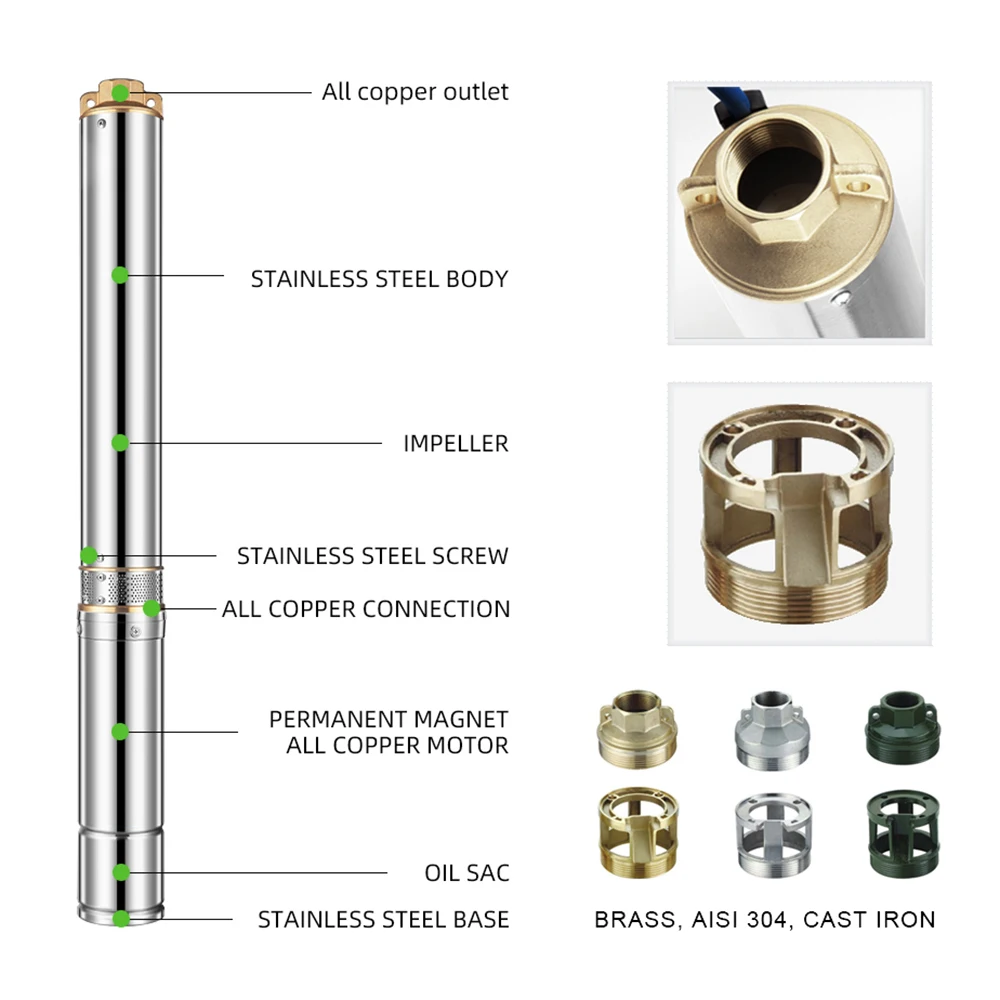

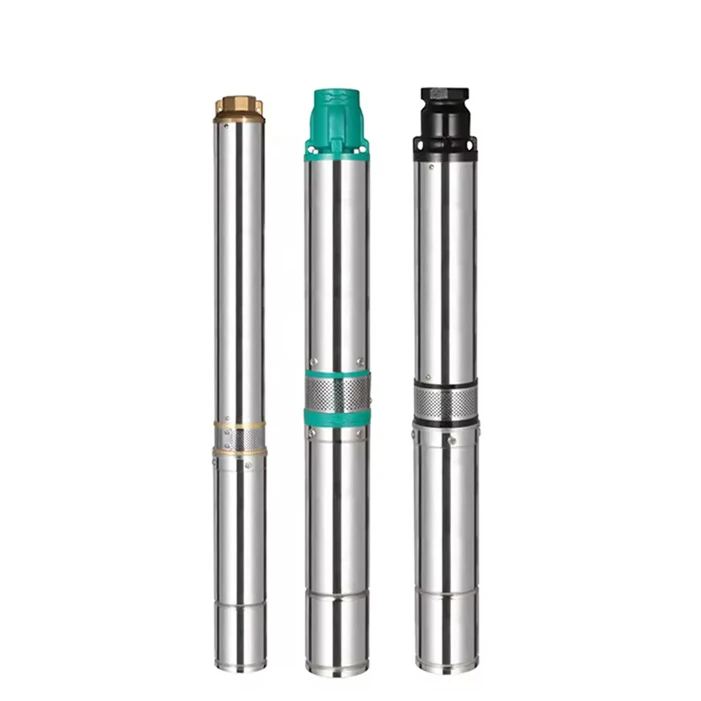

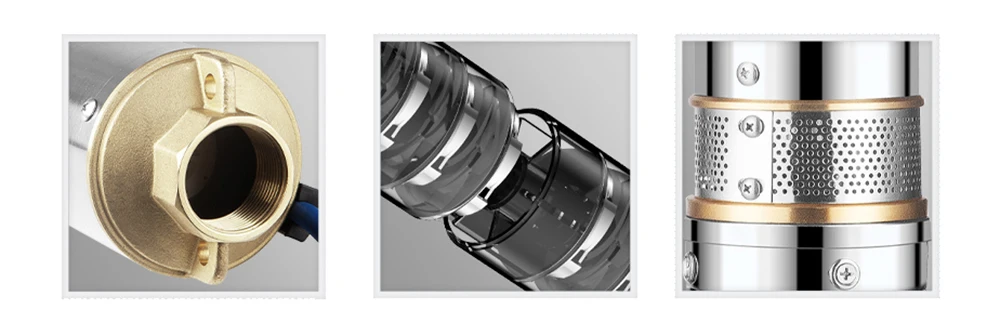

Water Pump Details
Water-cooled motor or oil-cooled motor, safe and reliable, stable and durable. 304 S/S pump shaft, high-quality bearing, alloy mechanical seal, durable and corrosion resistant.
Optional material for pump head and motor head: 304 stainless steel, brass, cast iron, durable quality and corrosion resistance.
Optional material for pump head and motor head: 304 stainless steel, brass, cast iron, durable quality and corrosion resistance.
Specification
Product | AC DC Solar Submersible Deep Well Water Pump for Agriculture Irrigation |
Head Range | 10 m - 600 m |
Flow Range | 1 m³/h - 200 m³/h |
Frequency | 50Hz / 60Hz |
Voltage | 220V - 240V / 380V - 480V |
Power | 0.75KW-110KW (1HP-150HP) |
Pump Material | AISI 304 |
Motor Head | Brass / AISI 304 / Cast Iron |
Delivery Door | Brass / AISI 304 / Cast Iron |
Pump Impeller | Plastic / Stainless steel |
Pump Size | 3'', 3.5'', 4'', 5'', 6'', 8'', 10'' |
Pump Outlet Size | 1'', 1.25'', 1.5'', 2'', 2.5'', 3'', 4'', 5'', 6'' |

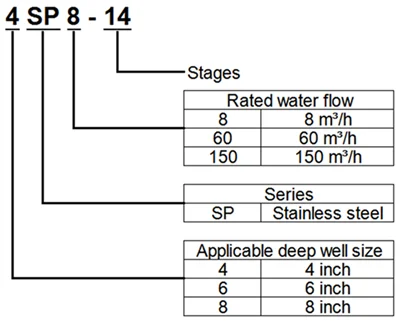

Name Rule
Model Selection

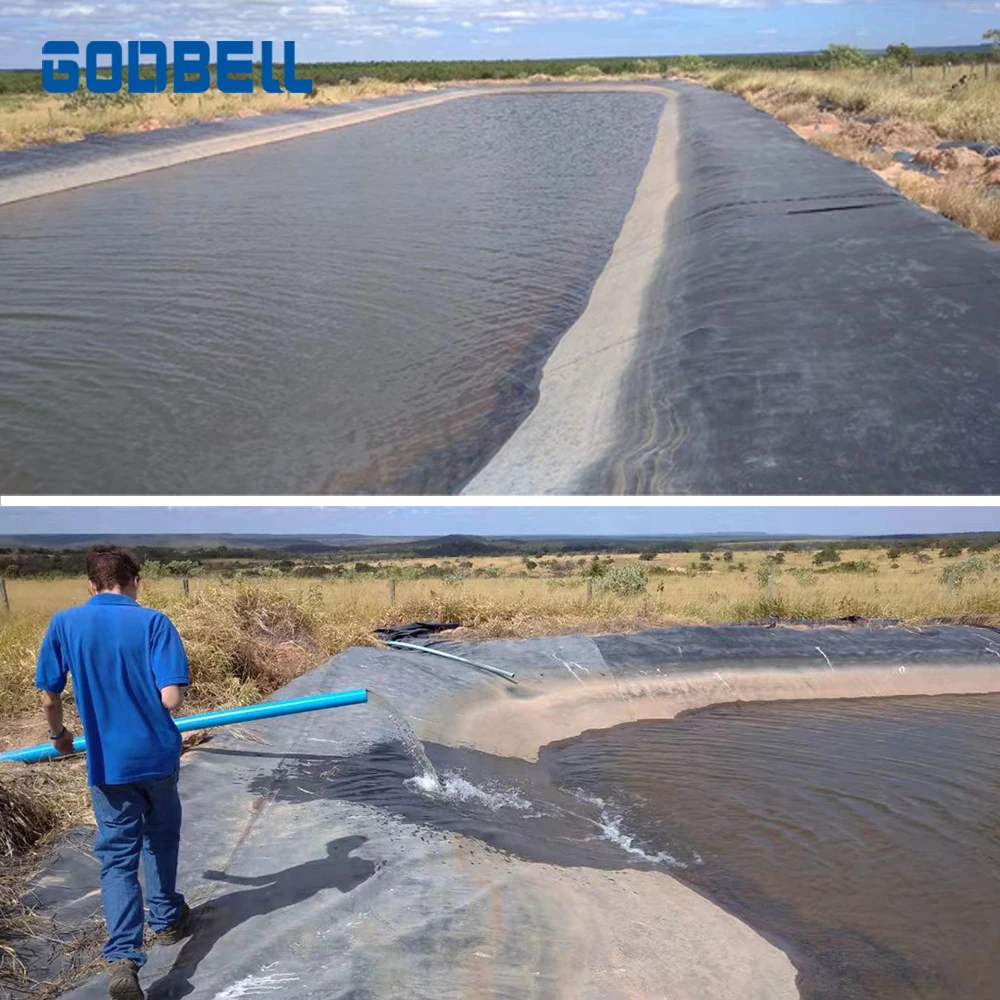

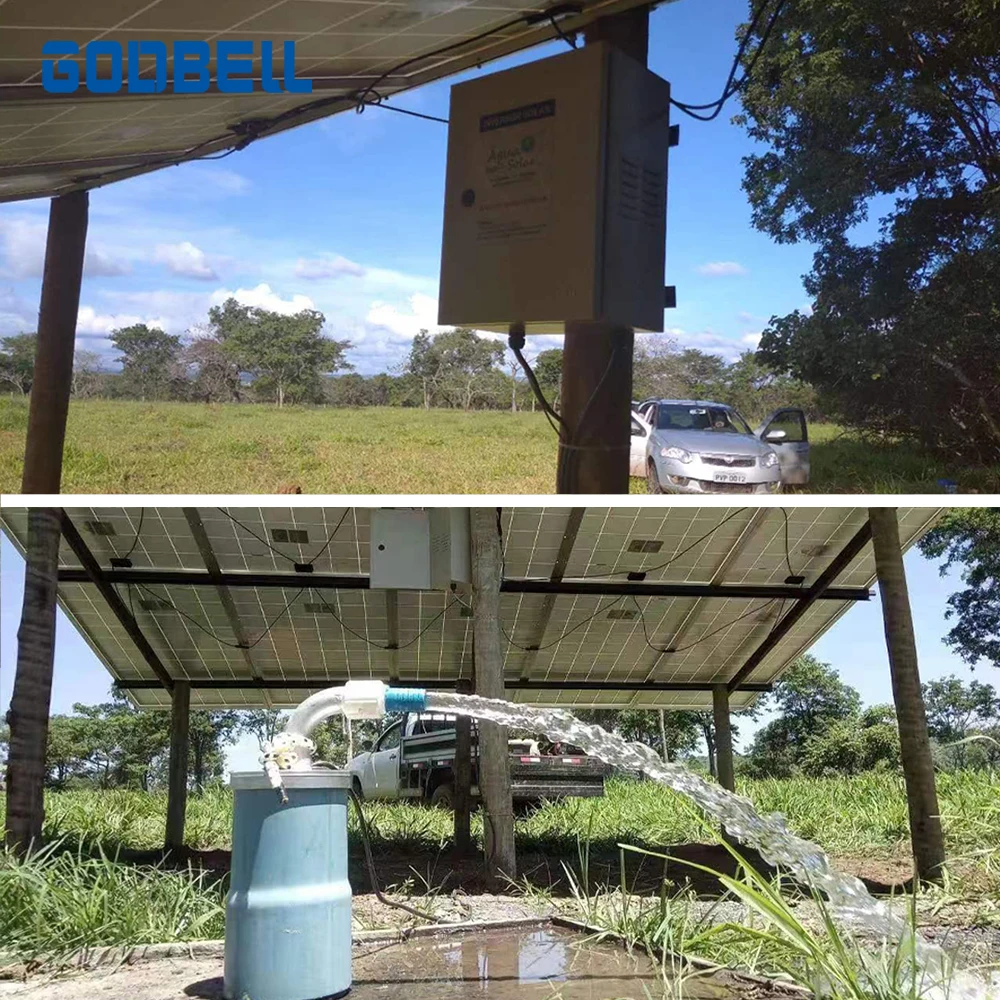

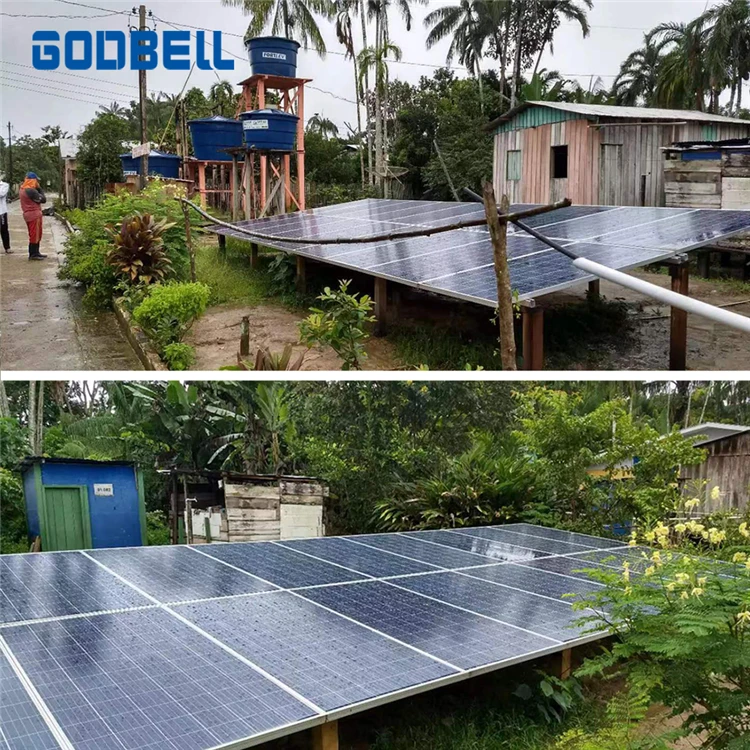

Cooperation Case
Project country | Belo Horizonte,Brazil | ||
Installtion place | Farmland | ||
Solar pump system one-stop solution design | Water pump | 4SP5-17,1.5KW (2HP) 3PH 220V 50HZ,full AISI304 pump material Rate 6 m3/h water flow, rate 52 m lift head Pump life time: more than 5 years | |
Solar pump inverter | GS500-2.2G-2SB, 2.2KW 10A 3PH 380V MPPT solar inverter for water pump Lift time: more than 3 years | ||
Solar panel | Customer purchase on local | ||
Mounting structure | Customer purchase on local | ||
Accessories | Customer purchase on local | ||
Benifits | As brazil is a rainforest country, and with amazon river flow through whole country,so brazil with abundant water resources.But because there are so many jungles and rivers, power supply is not very convenient. For most jungle residents, compared with diesel generators, they are more willing to use solar-powered pumps to pump water, which not only saves costs, but also better protects water resources and a green environment. | ||

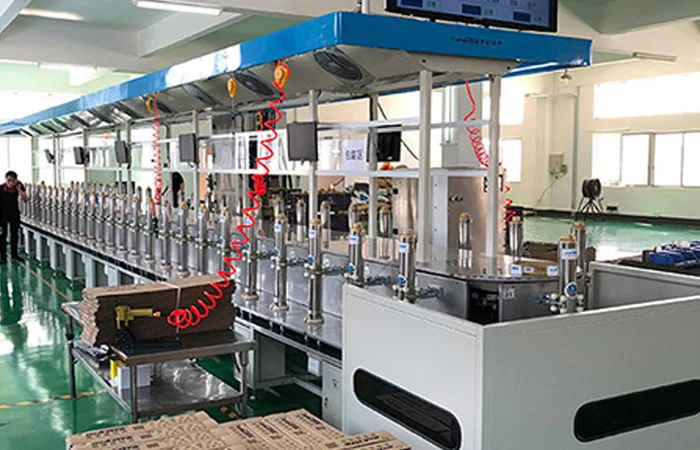

Company Profile
GOLDBELL ELECTRIC (SHENZHEN) CO., LTD. is located in Shenzhen City, Guangdong Province. It is a national high-tech enterprise focusing on industrial automation control and new energy fields. Its products include frequency inverter, solar pump inverter, solar water pump, solar pump system, etc. After 10 years of industry technology precipitation, it has excellent software and hardware design, development, production and sales capabilities, and can provide customers with one-stop overall solutions.
Over the years, we have obtained ISO9001:2015 quality system certification, CE certification. And won a number of honorary titles and patented technology certificates such as Shenzhen and national high-tech enterprises.
Through our unremitting efforts, the products have been sold to more than 30 countries and regions in the Middle East, Africa, Southeast Asia, North America, and South America. . In the future, distributors from all over the world are welcome to join hands with GOLDBELL!
Over the years, we have obtained ISO9001:2015 quality system certification, CE certification. And won a number of honorary titles and patented technology certificates such as Shenzhen and national high-tech enterprises.
Through our unremitting efforts, the products have been sold to more than 30 countries and regions in the Middle East, Africa, Southeast Asia, North America, and South America. . In the future, distributors from all over the world are welcome to join hands with GOLDBELL!

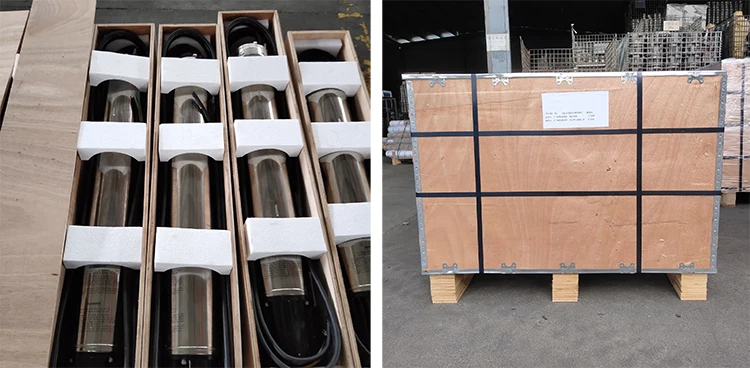

Packing & Delivery
Outer Packaging: high-quality strong export wooden box.
Inner Packaging: bubble bag to protect the controller and water pump from damage during transportation.
Inner Packaging: bubble bag to protect the controller and water pump from damage during transportation.
FAQ
How to choose a suitable solar pump based on actual demands?

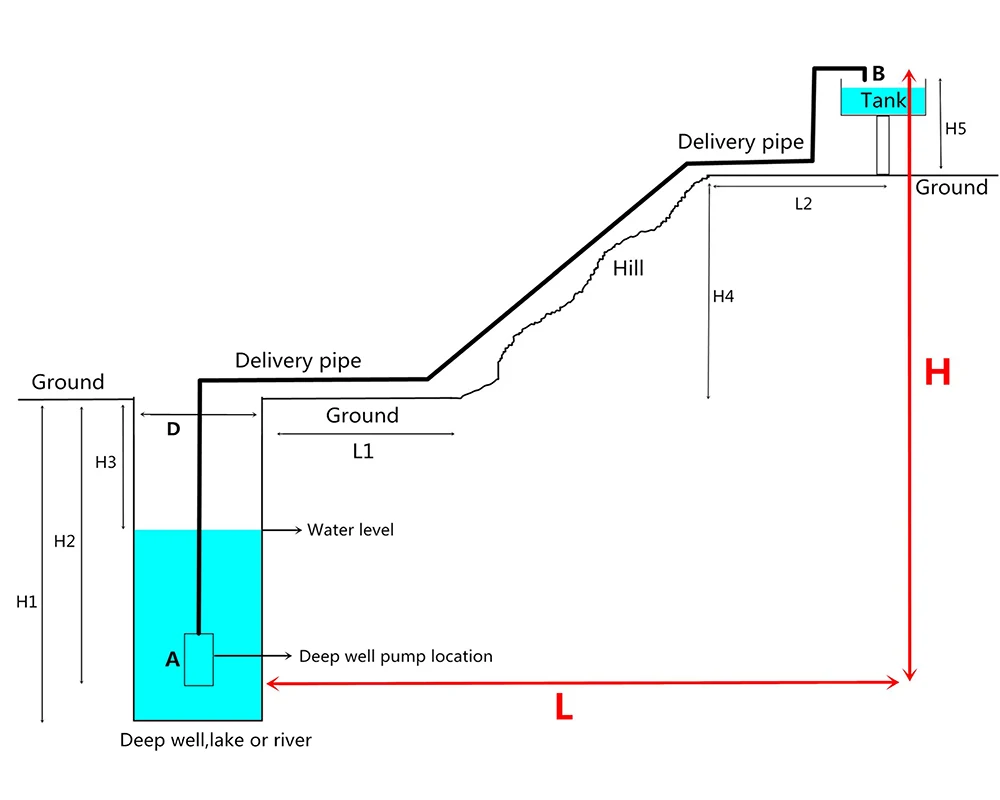

1) Firstly to calculate the lift head, like below diagram to draw a draft.
H1: Deep well depth
H2: Vertical height from deep well pump location to ground
H3: Vertical Height from water level in deep well to ground D: Diameter of deep well
L1: Horizonal distance from deep well to hill
H4: Vertical height of hill
L2: Horizonal distance from hill to tank (or irrigation siteif no tank)
H5: Vertical height from tank to ground (if have tank)
Pump required lift head = (H2+H4+H5) + (L1+L2) * 3% ~ 5%
In summary, the lift head is from pump location "A" to pipe water outlet "B": vertical height "H" and horizonal distance "L". Lift
head = H + L*5% (L*5% means delivery pipe loss)
Note:
In summary, the lift head is from pump location "A" to pipe water outlet "B": vertical height "H" and horizonal distance "L". Lift
head = H + L*5% (L*5% means delivery pipe loss)
Note:
* Height From Pump location to bottom of well is better more than 5metersIn case of sandy or sludge into pump.
* Height fromwater level to pump local is better less than 50 metersin case of high pressure to damage pump.
* Pump body diameter must be less than well diameter,otherwise pump can not be put into wellif pump is 8inchbut the well diameter is 6inch,pump can not be put intowell.
* If no hill or no tank just calculate the lift head H+L*5%
2) To comfirm required water flow To check how many cubic meter(m’)or litres(L) water are required per hour or per day?
2) To comfirm required water flow To check how many cubic meter(m’)or litres(L) water are required per hour or per day?
if required 100 m’/day water, and there are 8-10 hours sunlights in the siteso the water flow is about 100/8=12.5 m’/h.

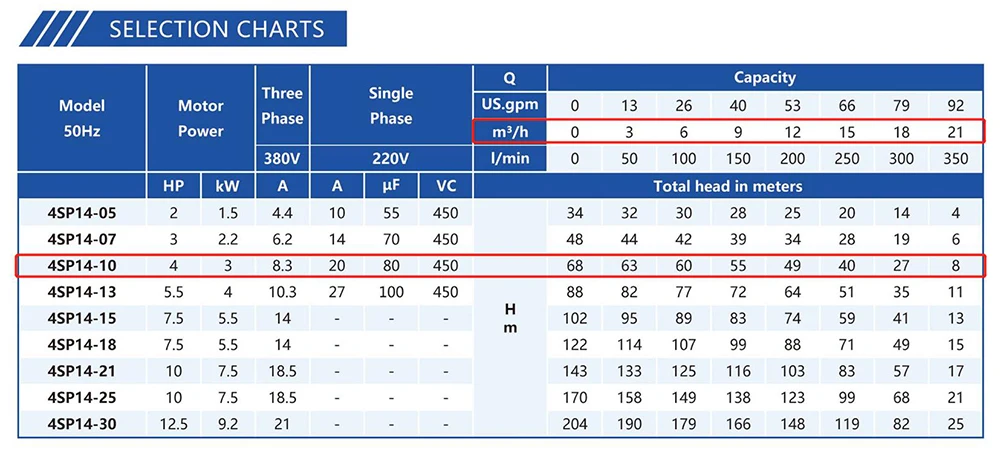

3) After known the required flow and lift head like 12.5m3/h and 45m lift headthen to check the Head & Flow performance curve of pump like below pictures.
So the model: 4SP14-10, 3kW motor and 4inch AlSI 304 pump bodythis can meet required flow and lift headso it is correct pump model. So no matter which fatory pump or any kind of pump to check the each model Flow & Head performance curve is the first important step. Only after known the pump powerinput current, input voltage, then can only decide the solar pump inevrter, solar panel and other required parts.
