Высокое качество горячего погружения оцинкованной гальванизируя цинка Чайник гальванизировать
- Категория: Metal & Metallurgy Machinery >>>
- Поставщик: Wuxi Wondery Trading Co. Ltd.
Сохранить в закладки 1600512278840:
Описание и отзывы
Характеристики

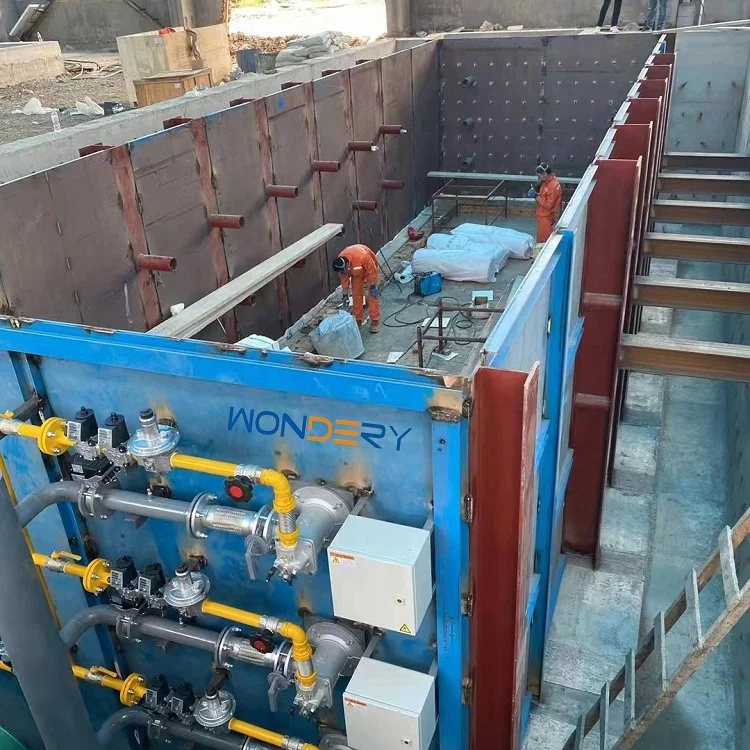

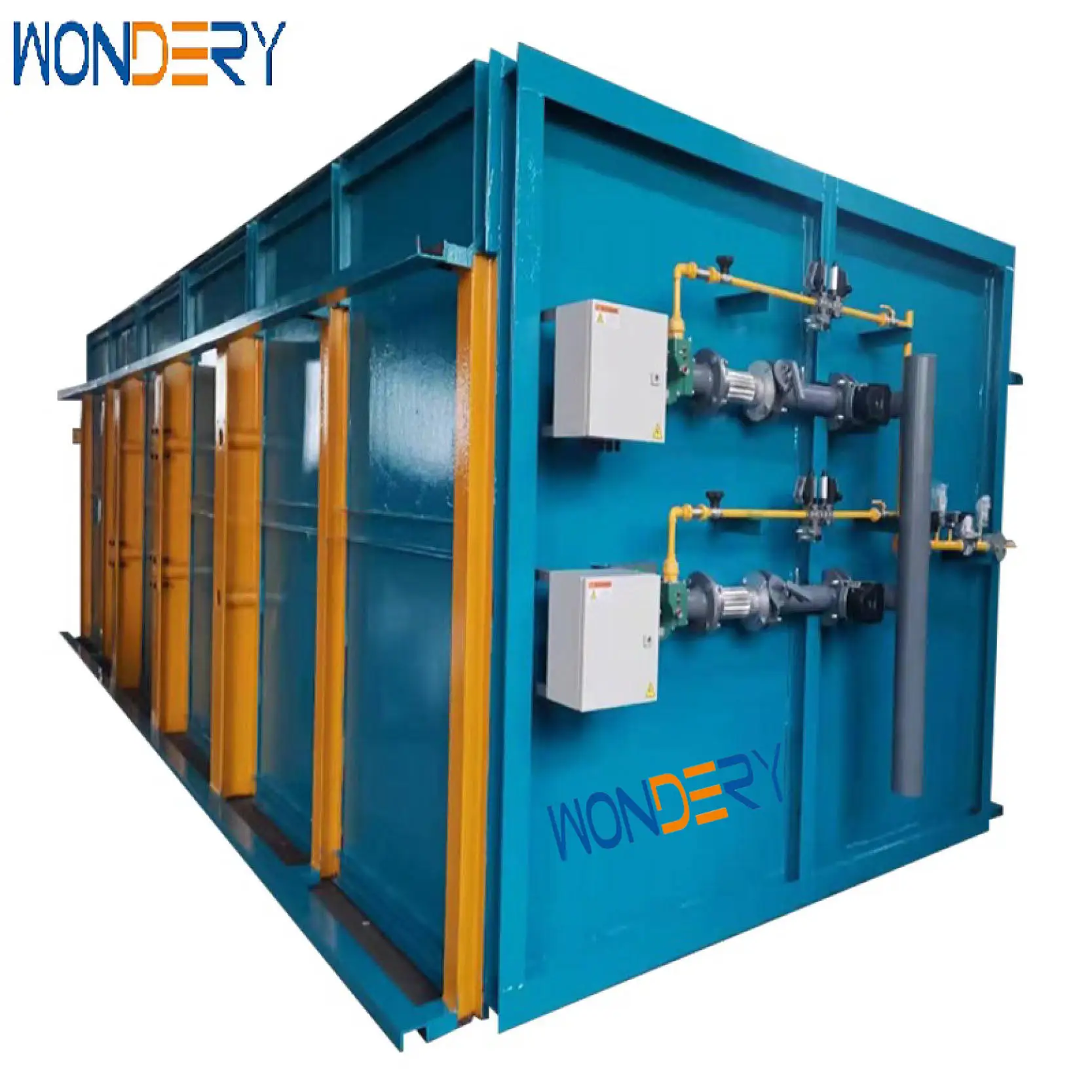

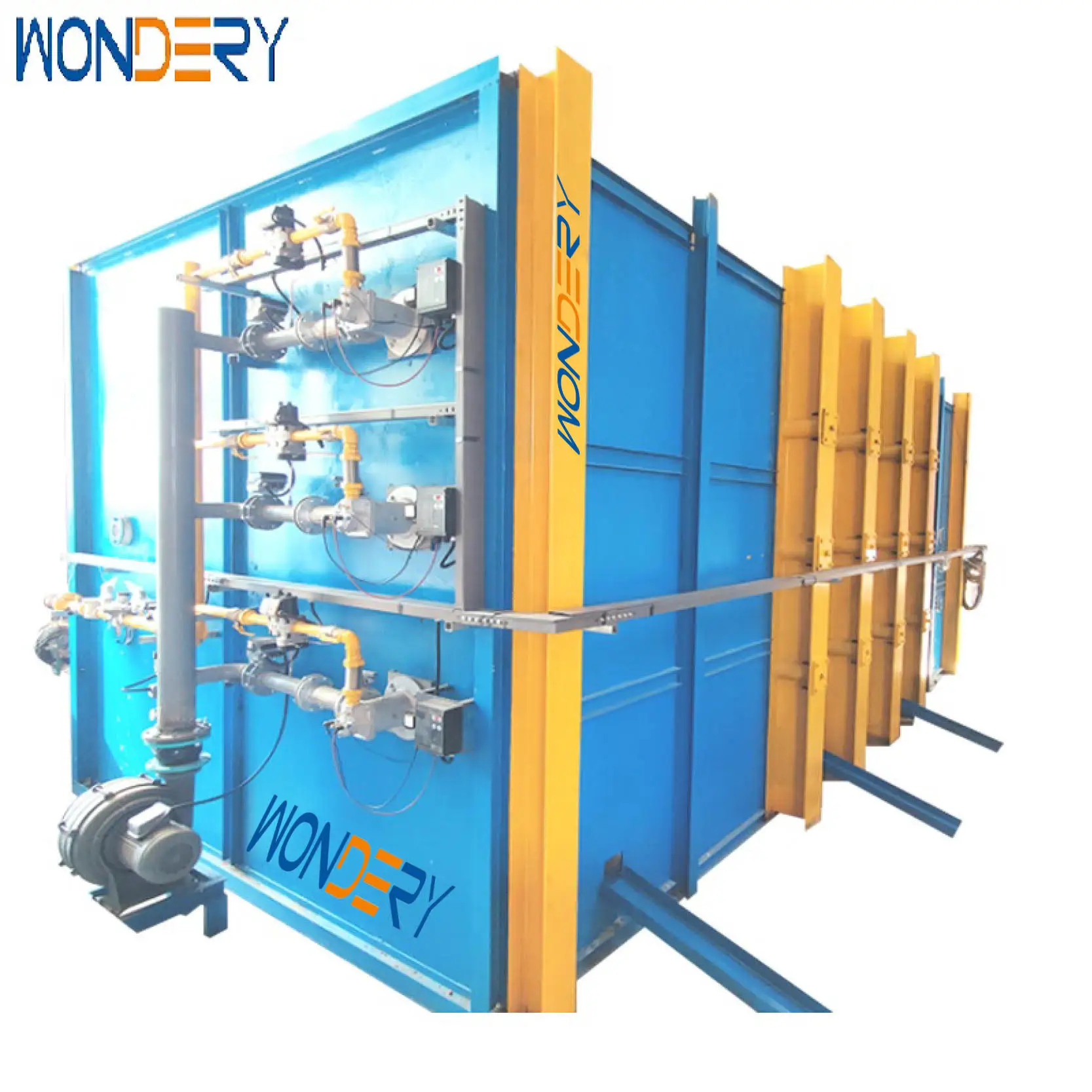

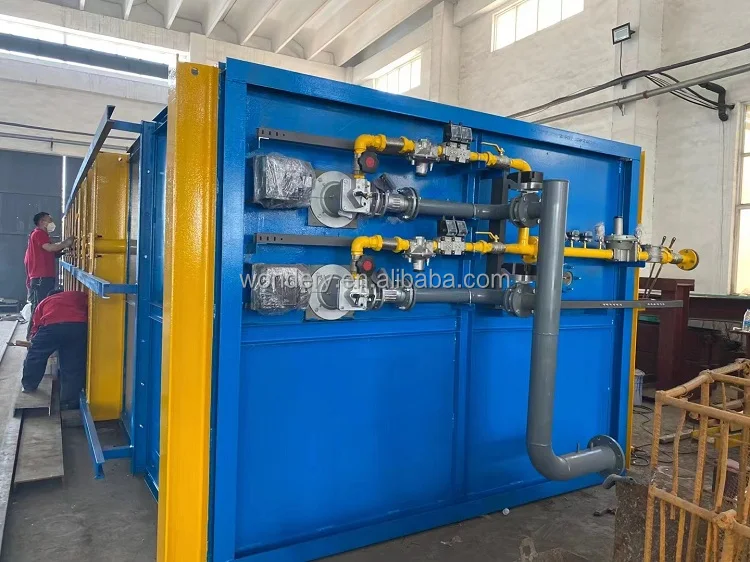

High Quality Hot Dip Zinc Galvanizing Furnace
Product Application
The gas Hot Dip Zinc Galvanizing Furnace is mainly used in hot galvanizing industry. The Hot Dip Zinc Galvanizing Furnace shell is made of H-beams and steel plates. The Hot Dip Zinc Galvanizing Furnace lining adopts energy-saving ceramic fiber blankets and modules, which has the advantages of fast temperature rise, good thermal insulation, uniform temperature and power saving.hot dp galvanizing furnace hot dip galvanizing furnace hot dip galvanizing furnace hot dip galvanizing furnace
Hot Dip Zinc Galvanizing Furnace | ||||||||
1 | Pickling | Enclosed pickling workshop | Collect fume | |||||
Acid fume treatment equipment | Environment friendly | |||||||
Pickling electric hoist/monorail crane | Transfer | |||||||
2 | Rinsing | Waste water treatment equipment | Environment friendly | |||||
3 | Degreasing | Waste heat recycling system | Save energy | |||||
4 | Rinsing | Waste water treatment equipment | Environment friendly | |||||
5 | Fluxing | Waste heat recycling system | Save energy | |||||
Iron removal equipment | Recycling | |||||||
6 | Galvanizing | Galvanizing furnace body | For heating | |||||
Zinc kettle | Place zinc | |||||||
White fume treatment equipment | Environment friendly | |||||||
Monorail crane/bridge crane& hoist | Transfer | |||||||
7 | Cooling | Cooling tower | Recycling | |||||
8 | Passivation | Chromium-free passivator | Good effect | |||||
9 | Auxiliary | Bridge crane/Flat trolley/ Material rack/Transfer pit | Transfer | |||||
Tank’s anti- corrosion protection | Safety | |||||||
Zinc ingot/Chemicals/Alloy | Necessity | |||||||
Specifications For Natual Gas Hot Dip Zinc Galvanizing Furnace | ||||||||
1 | Fuel | Natural Gas | ||||||
2 | Refractory cover plate | 50mm* 3 layers | ||||||
3 | Support rod | 310S stainless steel, Dia: 100mm | ||||||
4 | Insulation layer | ceramic fiber blankets | ||||||
5 | Furnace lining | ceramic fiber blankets and modules | ||||||
6 | U-shaped steel shell | H-beams and steel plates | ||||||
7 | Furnace lining | aluminum silicate fiber cotton, refractory bricks | ||||||
8 | Kettle size | L4.0M*W1.2M*D2.7M | ||||||
9 | kettle material | XG-08 | ||||||
10 | Loading capacity | 87 ton | ||||||
11 | Furnace temperature | 650℃ | ||||||
12 | Working temperature | 435-450℃ | ||||||
13 | Power of burner | 430KW*4 pcs | ||||||

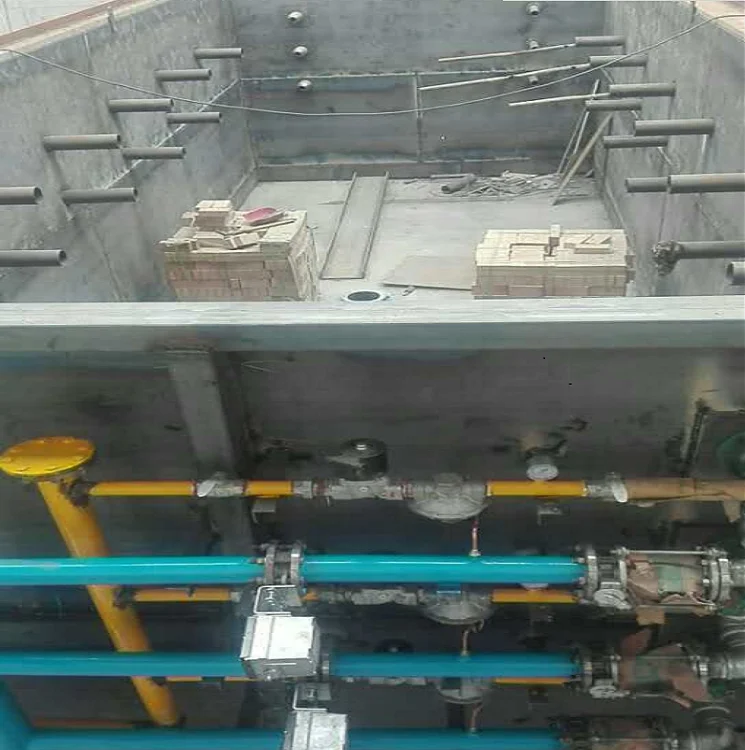

High speed pulse combustion system
The High speed pulse combustion system is placed in the diagonal position of the furnace, and the heat continuously surrounds the zinc kettle from these two sides. The output power of the combustion engine can reach 170M/sec. or more
Digital Temperature Control System
The thermocouples are installed in the gas pass and zinc kettle. The data will be used as scientific control parameters for the control system. The combustion engine utomatically turns on or off, all of which does not require the manual operation, thereby reducing human errors.
Remote Monitoring System
With advanced network transmission technology, we provide customers remote monitoring services. Customers can experience the remote control service by installing YunPLC client on the phone.
White Fume Treatment System
Waste Heat Recycling System
Waste Water Treatment System
Fluxing Agent Iron Ion Removal
WUXI WONDERY TRADING CO., LTD. is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
1. What is the power supply of the industrial furnace?
The power supply of industrial furnace is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.
Похожие товары
2-6 мм автоматическая пружинная формовочная машина cnc camless с проволочной прокладкой вешалка для
50 560,00 $ - 54 200,00 $
Недорогой гидравлический пресс для кабеля питания 3Q 16 тонн 0
299,00 $ - 520,00 $

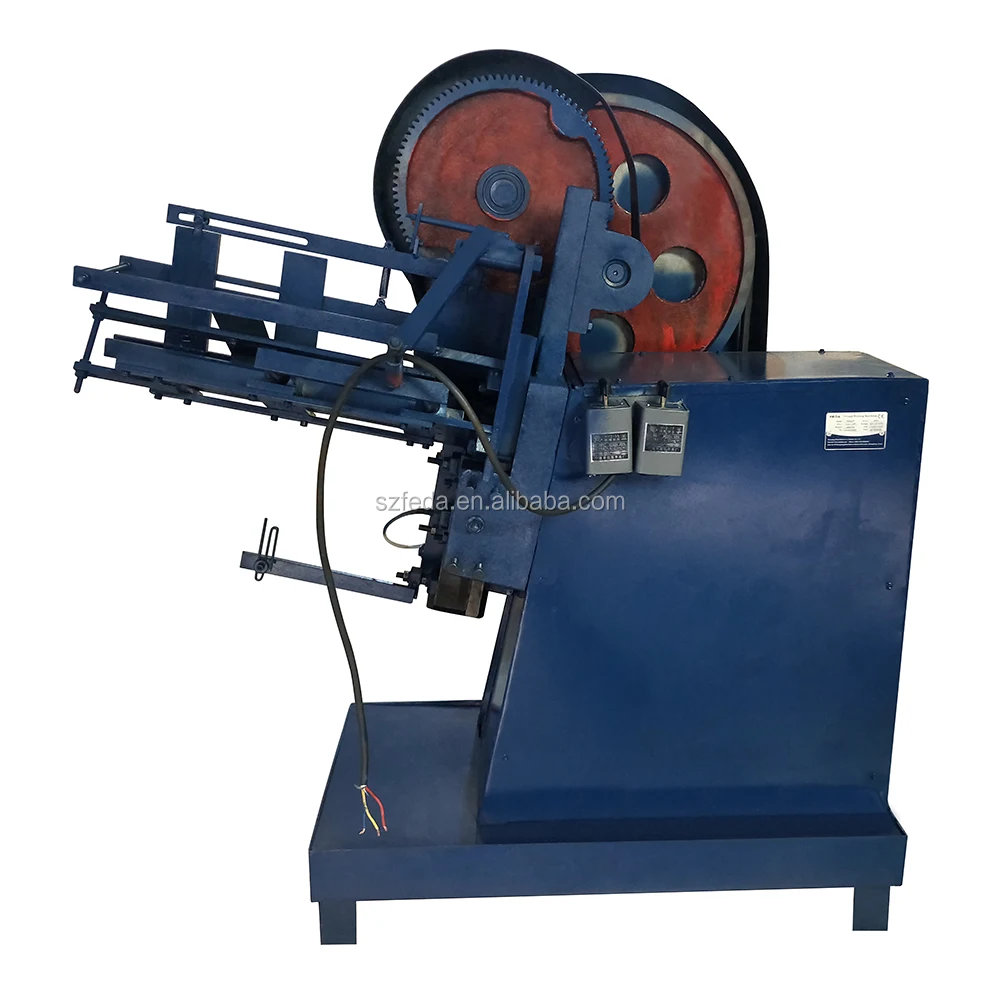

Машина для производства резьбовых стержней FEDA машина Тайваньская
3 580,00 $ - 3 680,00 $
MT-FML005 LSZH ПВХ 50 внутренний и наружный FTTH кабель для экструзии оборудование оптоволоконного

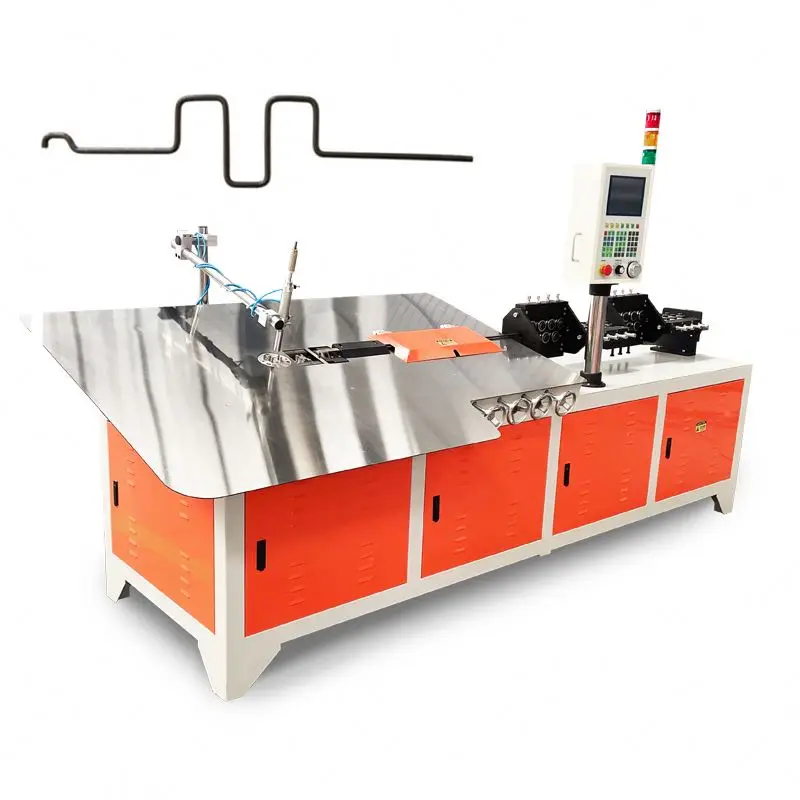

Полностью автоматическая гибочная машина для проволоки используемая фруктовых корзин
8 900,00 $

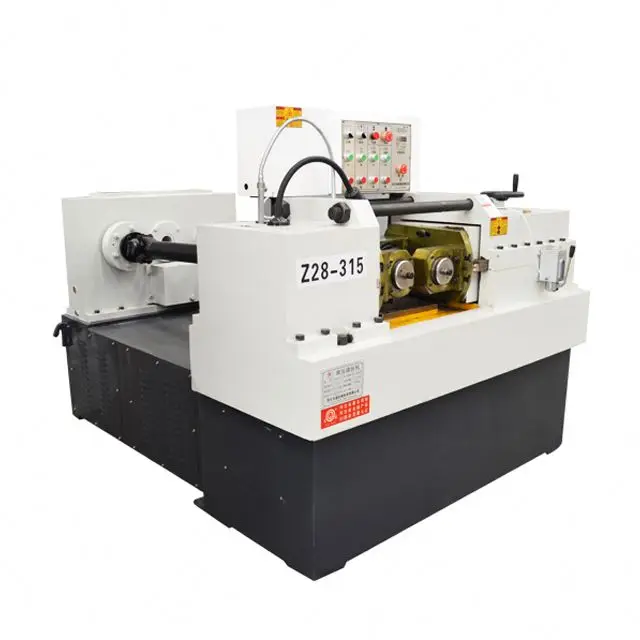

Винтовая резьбонарезная машина гидравлическая
11 700,88 $ - 12 000,88 $

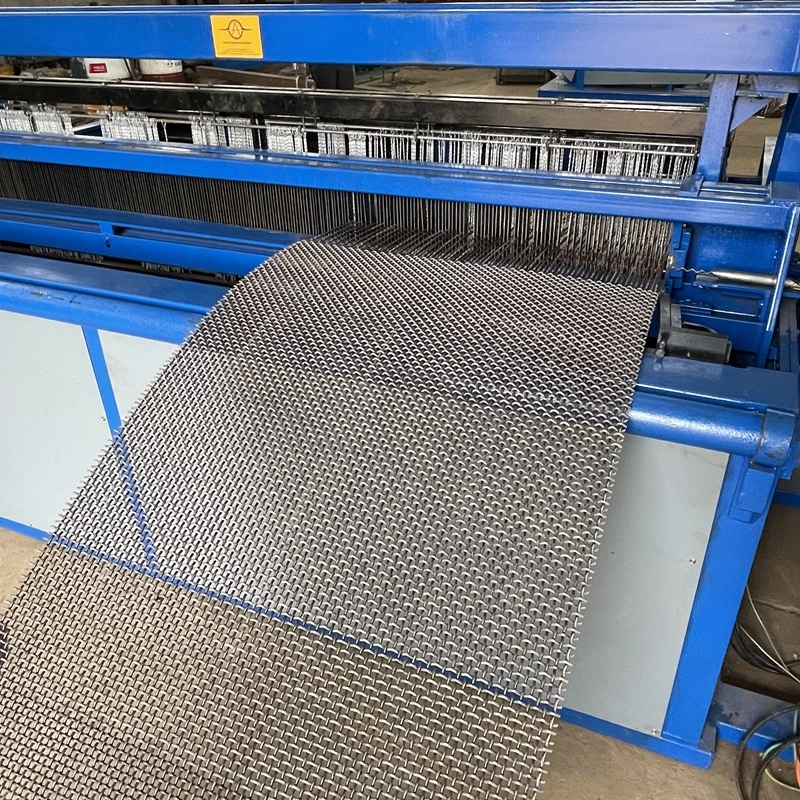

Аппарат для изготовления проволочной сетки с автоматическим обжимом Апачи 0 5-2 5 1 ~ 2-6 6-12
