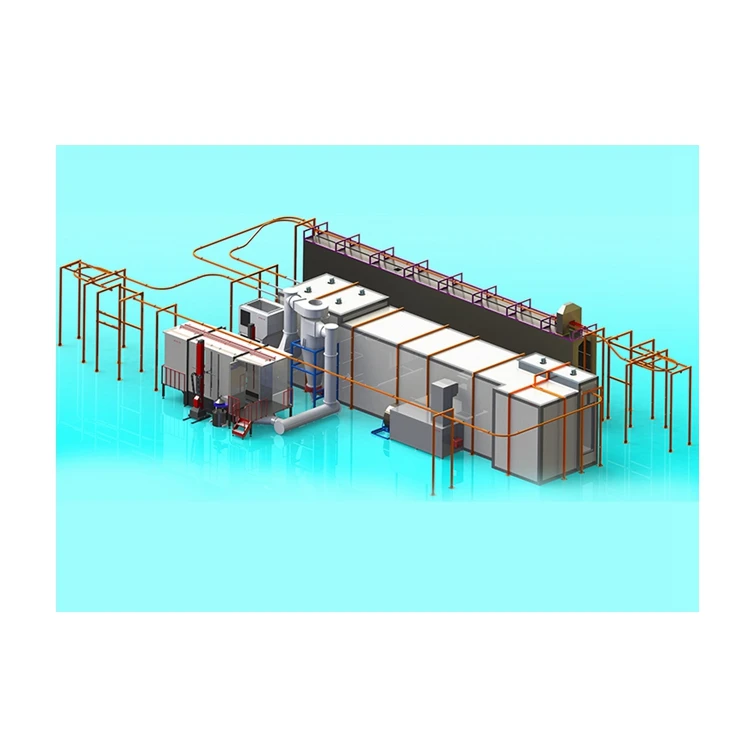

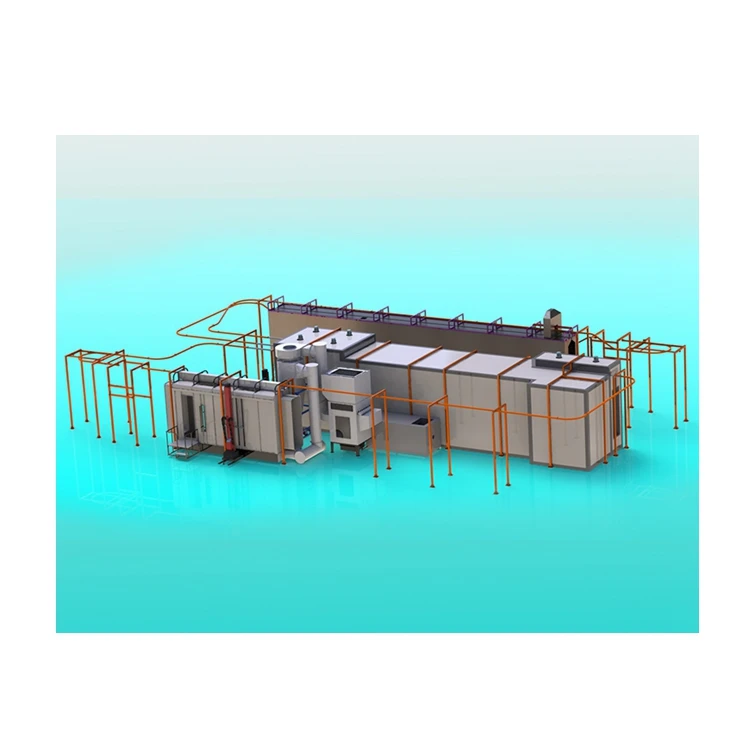

Автоматическая машина для нанесения порошкового покрытия производственная линия

Electric Parameters

1

Supply Voltage

220-240V,customized

2

Frequency

50-60hz

3

Power

50W

4

Security Grade

IP54

5

Working Temperature

0-40C

Air Supply Parameters

1

Compressed air of main interface diameters

8meters

2

Input air pressure

4-8Bar

3

Maximum Water Content

1.3g/m3

4

Maximum Oil Content

0.1mg/m3

NO.

ITEM

DESCRIPTION

1

Main Body Material

Made by Single PVC Material, 10mm thickness. Good Insulation and Surface Harden and Smoothly, Not Easy to Get Powder Accretion, Easy Clean.

2

Working Door

On the Stand ,Which Can Save the Air Flow ,Reduce the Cost

3

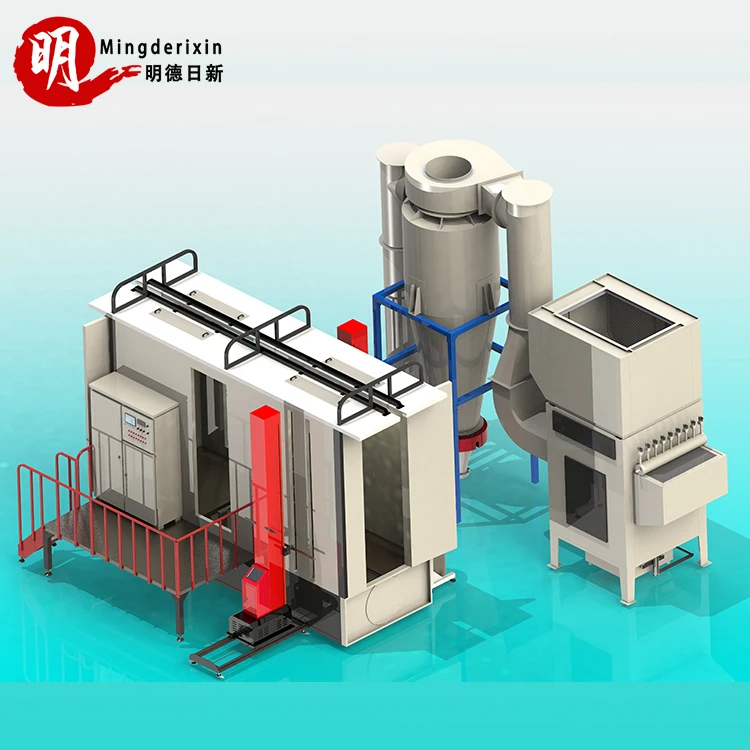

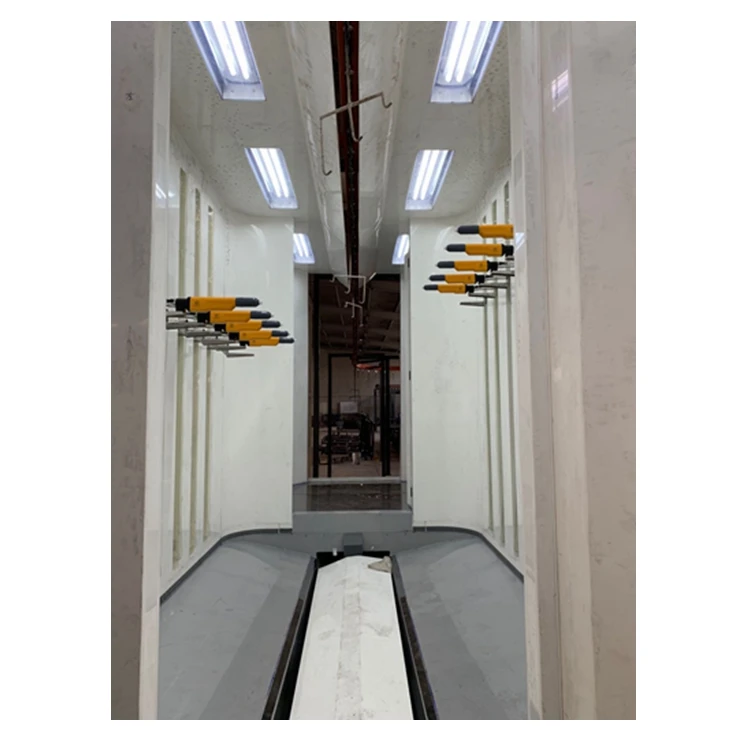

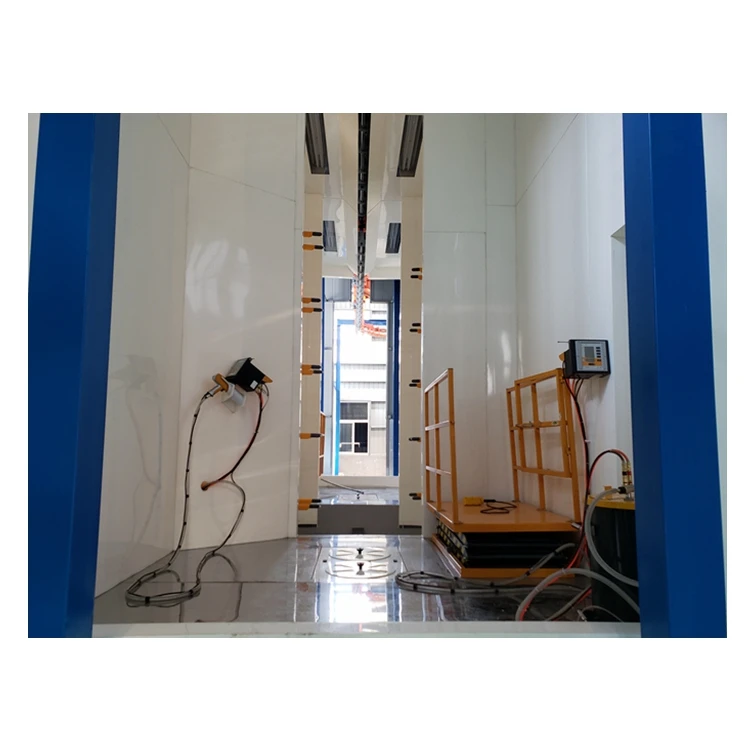

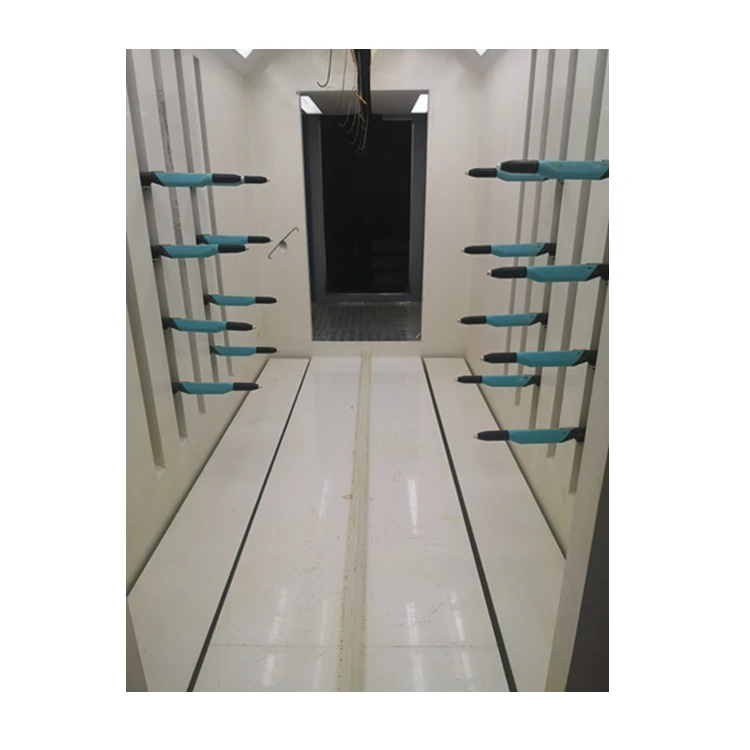

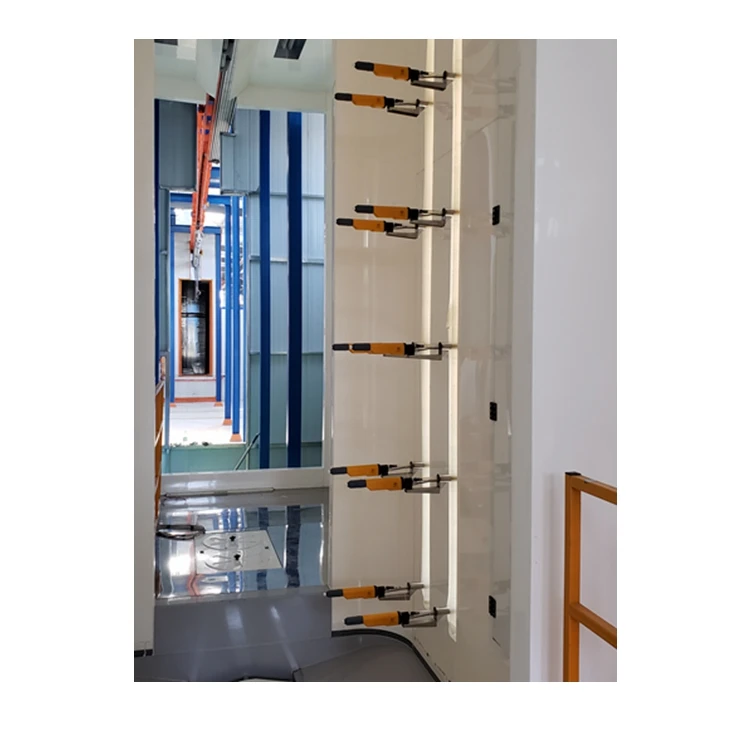

Basement of Spray Booth

[1] Stainless steel horizontal bottom plate, the user can enter the spray booth to step on;

[2] U-shaped automatic flap air duct is set in the middle of the bottom plate, which can be opened during color change cleaning;

[3] Air knives are arranged on both sides of the spray booth base, and the floor powder is automatically blown toward the central air duct and taken away by the air flow;

4

Stainless Material Big Cyclone

[1] Large cyclone powder gas separation system made of stainless steel;

[2] The available recycled powder is automatically returned to the powder supply box, and the ultra-fine powder that cannot be used is automatically separated into the waste toner box;

[3] fan power 22kW;

[4] The muffler chamber is installed outside the fan to absorb the fan noise;

[6] The noise of the working area is lower than 85dB;

5

Anechoic Chamber With Blower

Secondary Recovery System Have Anechoic Chamber, Can Reduce Blower Noise, The Blower Can Exhaust Wind to Workshop Interior

6

Rotor Wing Back Blow System With Less Noise

Secondary Recovery System Use Small Noise Automatic Rotary Filters, So that Clean Effection Perfect and Less Decibel and Let the Filter Use Lie be More Long

7

Filter Ventilate Monitor

Recovery System Install Differential Pressure Gauge Can Check the Filter Condition Easy Maintenance

8

Powder Recback system

Big Cyclone Bottom have Powder Reback System, Good Powder Will Back to Powder-Supply Tank in Timely. The System Will Use Hydraulic Powder Pump.

Item

Specification

Size

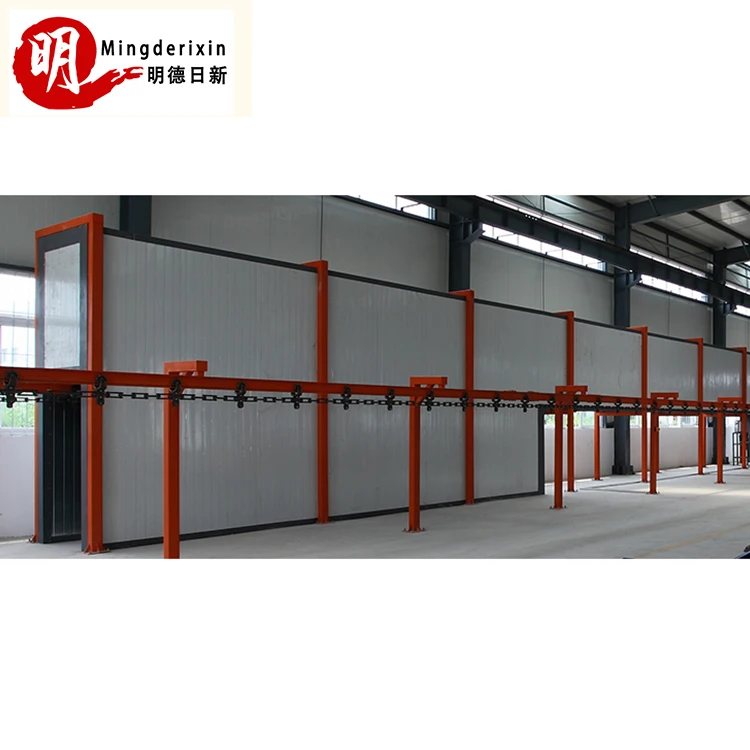

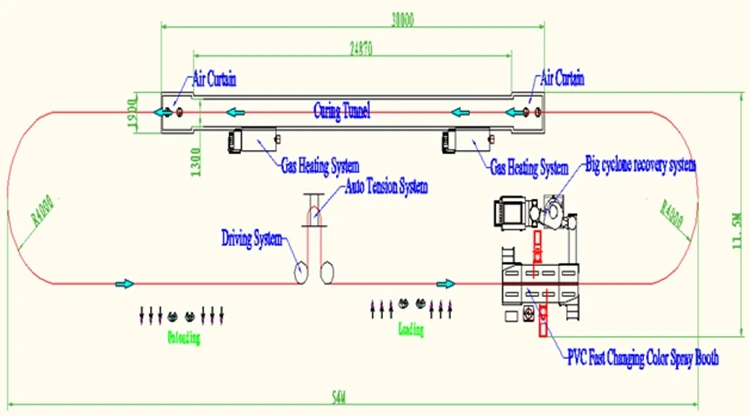

External size :30000mm*1900mm*4500mm(L*W*H)

Internal size:  24870mm*1300mm*3600mm(L*W*H)

Heating type: Natural Gas

Max temperature: 200℃

Structure feature:

1) Assembled insulation box, the wall is 0.426mm galvanized sheet, the outer wall of 0.426mm spray plate, the middle of 150mm thickness of high quality rock wool sandwich panels.

2) Connecting parts made of galvanized steel, rust-proof, beautiful.

3) Tunnel with assembled structure, easy transportation, assembly process is simple.

4) Workpiece import and export insulation measures: the use of air curtain insulation structure.

5) Hot air circulation, so that the furnace temperature uniformity.

6) With a RIELLO two Stage Fire Burner

Wall Board

Assembled insulation box, the inside wall is 0.426mm galvanized sheet, the outer wall of 0.426mm spray plate with Gray Color, the middle of 150mm thickness of high quality rock wool sandwich panels.

Easy to transport and Assemble

Air duct

There is circulated air duct inside the oven ,which can make the hot uniform

The holes can be adjusted

Max temperature

190 C, it will take 25mins to reach

Fan

Power :11kw

Customized Circulated Fan ,resistant to the high temperature,there is insulation outside the fan shell .

Air flow: 29000M3/hour

Hot Air Circulated frequency: 3 times/min

The soft wind can not only heat up quickly, but also ensure that the uncured powder is not blown away;

Buner

Italy RIELLO RS50  GAS BURNER, Two Stage fire burner

Cabinet (100mm rock wool insulation) for the burner & heat chamber* 1unit

One set of 304 stainless steel heat exchanger.

The heat exchanger output: 500,000Kcal

Air curtain system

To prevent the inculcation of hot air at the entrance and exit of the curing tunnel, to ensure that the temperature inside the tunnel meet the requirements and reduce the heating energy consumption
