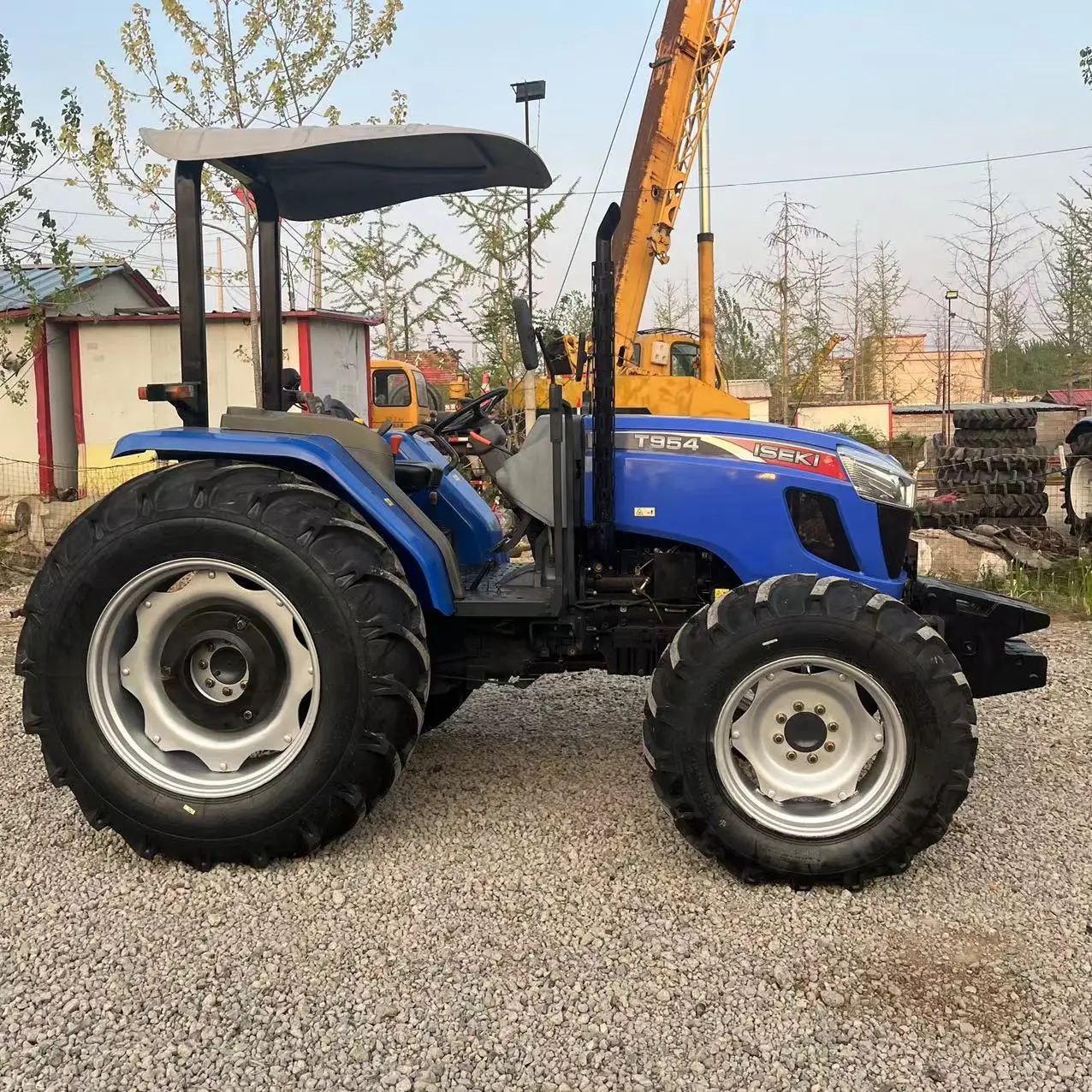

Высококачественный седельный трактор 4wd с передней осью

Сохранить в закладки 1600513280621:


Цена:3 000,00 $ - 9 000,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Product Description



1.  Famous brand 6-cylinder direct injection diesel engines with sound fuel efficiency and high torque output;
2. Center console with simple structure, high cost efficiency and easy maintenance, side console for driving and riding comfort;
3. Double-stage clutches for different needs and operation;



1. It is equipped with famous and excellent engines, with large torque reserve, strong power and low fuel consumption.

2. 2.Full hydraulic steering system, flexible and light to operate.

3. 3.Middle shift gear, easy to operate.

4. 4.12+12 gear shift, reasonable speed matching, high working efficiency and strong adaptability.

5. 5.The new miniature LCD instrument is developed according to the harsh working conditions of construction machinery and has high reliability.

Full vision cabin

Quanchai engine powerful



Max front ballasts 144kg  Max rear ballasts 180kg/480kg

GADT front axle

2 transmission system: collar shift or synchronizer

New interiors with ergonomic operation system and comfortable seat

non-enforced lift ( Draft /Position/Mix) or Enforced lift ( Position / Float )

Powerful hydraulics system, up to 3 sets of hydraulic output , outputs with flow rate 31.8 l/min

Wide range of tires availability up to 14.9-30" (rear tires)



Yuchai water cooled turbo engine, CNII emission

16F+8R, 16F+8R(with creeper).

Dry air filter, vertical side external exhaust system.

Single disc double action- Dry clutch-12 inches (LUK).

Fuel tank 140L



Main parameters
Type FL804FL904FL1004FL1104FL1204-1
Drive type4WD4WD4WD4WD4WD
Engine
Engine Type YC4B90Z-T20YC4B105Z-T20YC4A110Z-T20YC4A130L-T20YC4A140L-T23
Max. Torque (Nm @ engine rpm)340-375@
1440-1640
380-420@
1440-1640
410-450@
1440-1640
440~470@
1540-1740
470~500@
1540-1740
Displacement (L) 4.5784.8344.837
Fuel tank capacity (L)140L
Rating power of engine59/230066.2/230073.5/230081/230088.2/2300
kW/rpm
Fuel consumption @ nominal power≤235
(g/kw.h)
Air Intake Type  TC
N / Displacement 4/4.5784/4.8344/4.837
Air filter Wet/Dry Dry
Torque reserve 38%41%34%31%28%
Transmission system
ClutchSingle disc - Dry clutch –12"   - 12"
No. of gears 16F+8R:4X(2+1)X2
Shift method Sliding sleeve
Max. speed 32.22km/h
Gear position Command aside
Hydraulic system
Hydraulic output flow rate46
(L / MIN)
Hydraulic output valve2 slices 4 ways

Type FL804FL904FL1004FL1104FL1204-1
Working device
Three-point-linkage 2 type
PTO Speed   PTO540/1000
Lifting Capacity (610mm)kN22
Tillage depth adjustmentPosition, Float
Parameter
The whole machine size (dimensions) mm
Min. operation mass4105(W/ cabin)/3805(W/O cabin)4105(W/ cabin)/3805(W/O cabin)4105(W/ cabin)/3805(W/O cabin)4105(W/ cabin)/3805(W/O cabin)4105(W/ cabin)/3805(W/O cabin)
Mini turning Radius (m)   4.94.94.94.94.9
Rated traction force(KN) 17.320.822.723.524.5
Deck   Flat Deck
Wheelbase(mm) 2270
Minimum ground clearance (mm)375
Cabin Basic:ROPS, Opt., canopy or Heating Cabin, or HVAC cabin
Front/rear wheel track stepwise adjustment

Front:1610/1710/1750/1810/1850/1970(common1610)
Rear:
1620/1720/1820/1920/2020
(common1620)
Rear stepless adjustment

1620-2020
(common 1620)
stepwise adjustment

Front:1610/1710/1750/1810/1850/1970(common1610)
Rear:
1620/1720/1820/1920/2020
(common 1620)
Rear stepless adjustment

1620-2020
(common 1620)
stepwise adjustment

Front:1610/1710/1750/1810/1850/1970(common1610)
Rear:
1620/1720/1820/1920/2020
(common 1620)
Rear stepless adjustment

1620-2020
(common 1620)
stepwise adjustment

Front:1610/1710/1750/1810/1850/1970(common1610)
Rear:
1620/1720/1820/1920/2020
(common 1620)
Rear stepless adjustment

1620-2020
(common 1620)
stepwise adjustment

Front:1610/1710/1750/1810/1850/1970(common 1610)
Rear :
1620/1720/1820/1920/2020
(common 1620)
Rear stepless adjustment

1620-2020
(common 1620)
Tyre size Normal tyre:
11.2-24/16.9-34
Normal tyre:
11.2-24/16.9-34
Normal tyre:
11.2-24/16.9-34
Normal tyre:
11.2-24/16.9-34
Normal tyre:
11.2-24/16.9-34
Braking and steering
Braking system Wet type,disc brake
Steering type Hydraulic steering
Steering Angle43.843.843.843.843.8


IMG_E2851.jpgIMG_E2880.jpg_20220309114103.jpg_20220309114124.jpg_20220418094856.jpg_20220418094911.jpgIMG_6301.JPGIMG_6301_gezshou.JPGIMG_E2997.jpgIMG_E3004.jpg_20220412101833.jpg_20220412101836.jpg_20220418093627.jpg_20220418093630.jpg_20220507165104.jpg_20220507165131.jpgIMG_2995.JPGIMG_3018.JPG







Packaging & Shipping




Our Services

 Yunfan advantage Elena_01.jpgYunfan advantage Elena_02.jpgYunfan advantage Elena_03.jpgYunfan advantage Elena_04.jpgYunfan advantage Elena_05.jpgYunfan advantage Elena_06.jpg

FAQ



Q1. What are your terms of packing?
A: Generally, we pack our goods in the wood frame into 2 levels to maximize space


Q2. How do you ensure your quality?

We have 2 QC managers whom work on this field more than 15 years, they can test the tractors parts by parts, our working attitude is carefully, strictly and seriously  ;

Q3. What are your terms of payment?
A: T/T 100% as the deposit for 1-2 unit and 50/50 for the wholesale. We'll show you the photos of the products and packages before you pay the balance.

Q4. What are your terms of delivery?
A: FOB, CIF, CNF

Q5. How about your delivery time?
A: Generally, it will take 7-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6: How do you make our business long-term and a good relationship?
1. We keep good quality and competitive price to ensure our customers benefit
2. We respect every customer as our friend and we sincerely do business and make friends with each other.
