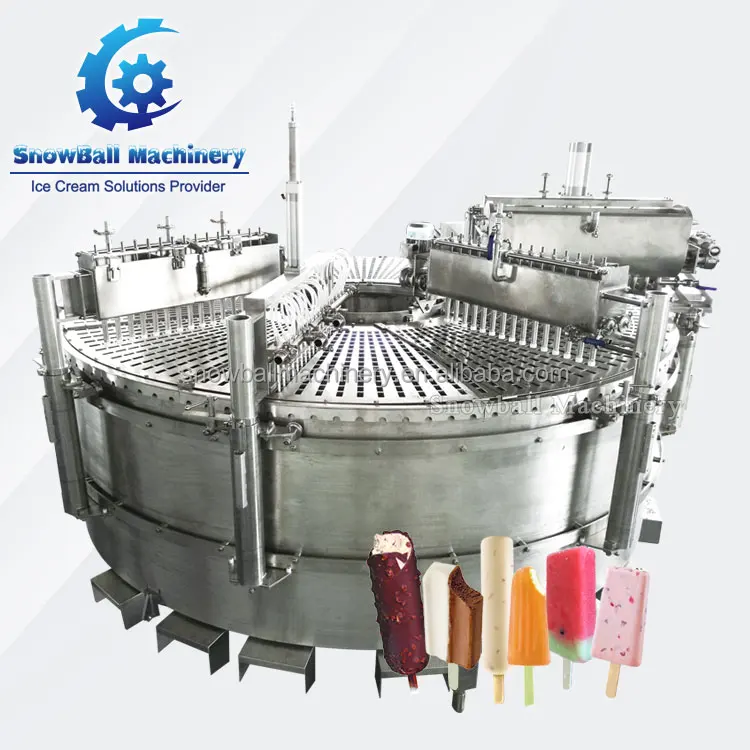

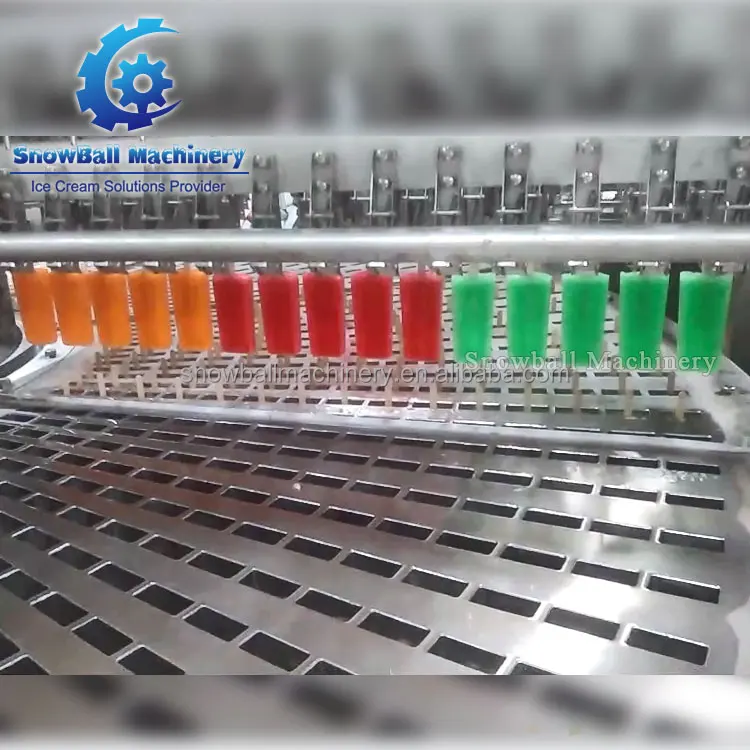

Rotary lines are supplied for different capacities and with different degrees of automation. The rotary design of stick novelty freezers is space-saving to avoids the inversion of molds, minimize product, brine loss. The brine system is completely enclosed so that brine is unable to enter the molds,contaminate the products.
Rotary line is designed to meet the requirements of a flexible, reliable molding machine. It performs at optimal speed with high capacities, ensuring steady, reliable production. By combining with the wrapping machine, you achieve very high efficiency.

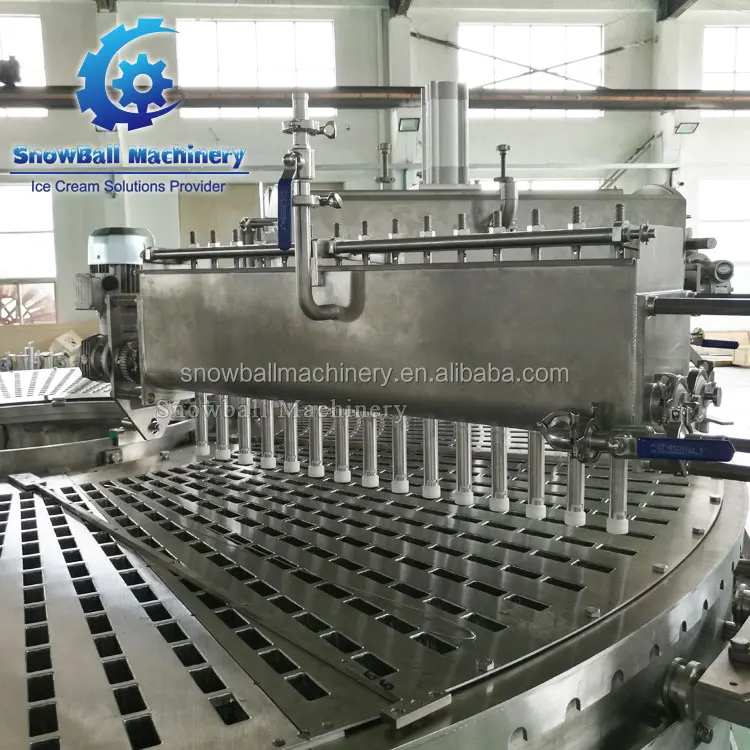

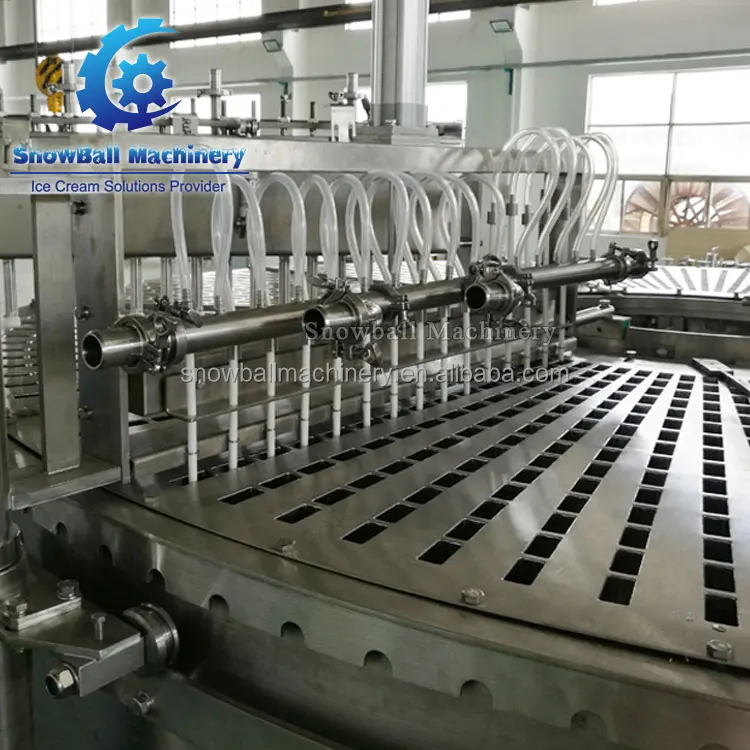

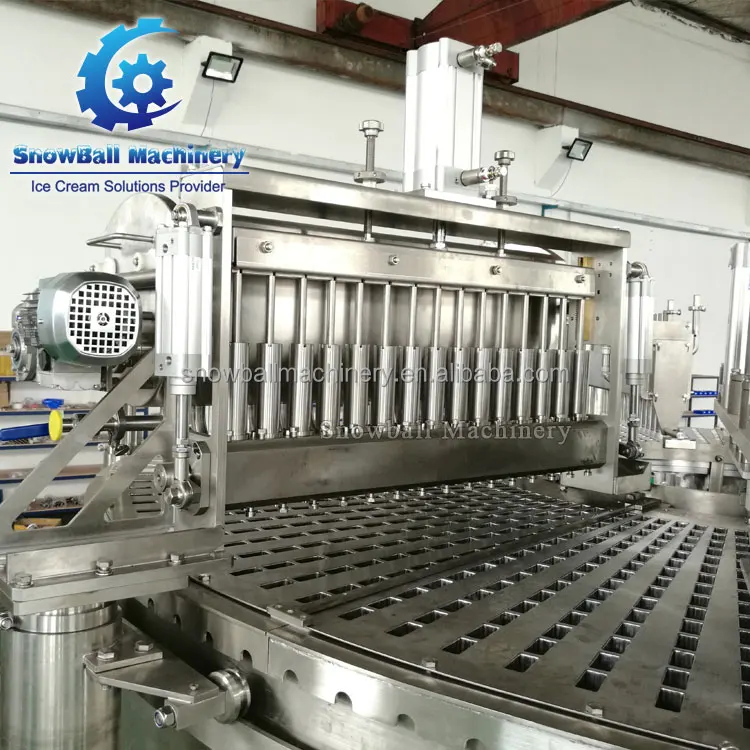

We supply a wide range of filling equipment for the production of a variety of stick novelty products. Easily accommodates bulky inclusions such as pieces of fruit, nuts, chocolate, wine gums, providing endless opportunities to raise the attraction value of new products. If required the bars can be coated with chocolate, dry ingredients after extraction from the molds.
Capacity from 8000 - 10000pcs/hour, 10000 - 20000pcs/hour, 21000 - 36000pcs/hour all can be choice.
Advantage:
1. The brine system is completely enclosed so that brine is unable to enter the molds and contaminate the products.
2. Steady, reliable, and high efficiency.
3. Customizable. We would provide professional solutions.
Rotary stick ice cream production line for popsicle factory Technical Parameters (Roary 16) | ||
Motor | ||
Main drive | 2.2 KW | |
Cold Brine pump | 11 KW | |
Thermohaline Brine pump | 1.1 KW | |
Chocolate plate | 0.8 KW | |
Coated with dried fruit | 1.1KW | |
Vacuum pump motor | 2.2 KW | |
Heating device Warm salt water heating can choose to use electric heating or steam-heated, and must be confirmed when ordering. | ||
Install the maximum effect | ||
Electrical standard connector | 3 x 380V, 50HzAC | |
Rated load | 180Amps | |
The main circuit breaker | 250Amps | |
- When using a steam-heated mold release | 20KW | |
- When using electric heating mold release | 101KW | |
Low pressure steam | 100KG / H | |
The maximum effect of consumption in the production of | 55-75% | |
150 liters of chocolate container | 3KW | |
The main power cable according to local regulations | ||
Brine amount | 2,500 liters | |
Mould | 5 Row, 375cavity | |
Capacity | 2250 to 6000 pcs/ h | |
Compressed air consumption | 0.9 cubic meters / minute, standard machines | |
Minimum working pressure | 7bar | |
Atmospheric pressure corresponding to the maximum dew point of +5 ° C | ||
We use famous international brand for the key components of the machine:
Packing & Delivery | ||
Packing | Machines are packed in see worthy plywood cases meets requirement of international transportation. | |
Delivery | Sea shipment, air transportation, Sea-land combined transportation available for different customer's locations. | |
1. International Standard, European Quality
2. Our machinery design and manufacturing engineers get over 30 years’ experiences in ice cream machinery industry.
Our installation and training engineers get over 10 years’ experiences in ice cream production industry.
3. Our site production engineers get over 10 years’ experiences of site-quality-monitoring in international well-known ice cream factories.
4. The electric and pneumatic components are all brought from international famous brand to make sure your local replacement is achievable.
5. For the key part purchasing of the machinery, we use the same procurement channel with the international first class companies. We choose the highest standard materials for our product.
6. We get over 10 years’ experiences of Design, manufacturing, exporting delivery, installation, commissioning, personnel training and site attendant production. We never stop new product innovation and developing.
7. We always consider long term benefits for our customers.
We know it is very important to produce the machine which can trim the cost, reduce the production loss with low failure rate. Meanwhile we also try our best to help you extending the market share.
Snowball Machinery strive to be the best ice cream solutions provider
Our customers from the world wide
Our customers oversea market more than 60 countries
Our machines have CE certificate, international standard, european quality
