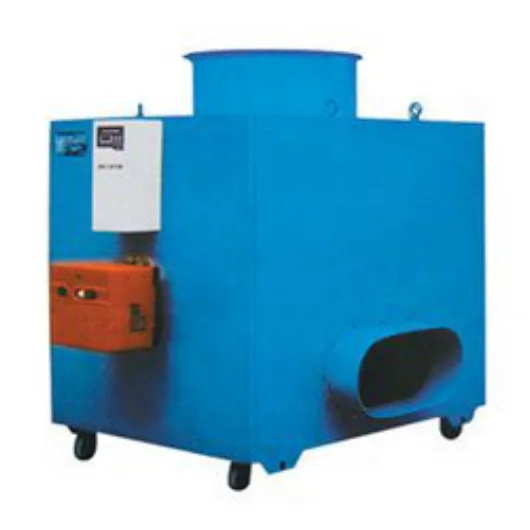

Система отопления газовый обогреватель для птицеводства оборудование подогрева куриных ферм

Сохранить в закладки 1600513999900:


Цена:110 927,50 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

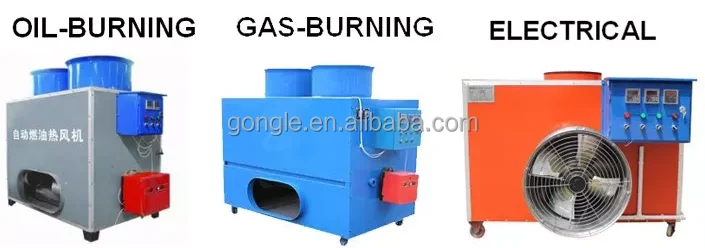

Product Description









1. Energy saving: The product adopts multi-pass high-density finned tube for heat dissipation. When the outlet temperature is higher than 100 degrees, the exhaust temperature can be controlled below 50 degrees, and the thermal efficiency is as high as 108%;

2. Efficient: The temperature of the wind can reach 120 degrees after turning on for 3 minutes, which can quickly increase the indoor temperature;

3. Low noise: the use of low-speed central air-conditioning centrifugal fan has the characteristics of large air volume, low noise and low energy consumption;

4. Auxiliary humidification: According to production needs, models with auxiliary humidification can be customized;

5. Stable operation and long lifespan: The standard high-efficiency Italian Black and Decker imported burner, the control system, centrifugal blower, various electrical appliances, sensors, etc. are all selected well-known brands; the furnace body's high-quality heat insulation and anti-corrosion treatment technology can be Long-term use at 1500 degrees high temperature;

6. Single reference heating area: 1000-6000m2.


Specification


Model
GL-10
GL-20
GL-30
GL-40
GL-50
GL-60
Rated power
(KW/H)
160
205
280
450
600
800
Weight(Kg)
1500
1600
1700
2000
2500
2700
Air volume
(m3/h)
8000-11000
11000-14000
14000-17000
18000-26000
24000-34000
40000-50000
Outlet temperature (℃)

80-150

80-150

80-150

80-150

80-150

80-150
Outlet size (mm)
350
350
500
550
620
750
Natural gas (Nm³/h)
8-15
10-21
12-26
20-42
25-60
30-80
Liquefied gas
(Kg/h)
4-8
8-16
12-24
16-32
20-40
24-48
Light oil (Kg/h)
4-8
4-8
12-24
16-32
20-40
24-48
Motor power
(Kw/h)
5
5.8
7.4
9.4
20
28
Voltage (v)
AC220/380V 50Hz
Exhaust temperature(℃)
20-50
20-50
20-50
20-50
20-50
20-50
Thermal efficiency (%)
109.5
109.5
108
108
108
108
Size (L*W*H) (mm)
2000*1120*
1650
2200*1250*
1750
2350*1250*
1900
2550*1270*
1950
3050*1570*
1950
3550*1870*
2450


1.Burner

We adopt Baltur and Riello burner imported from Italy


2.Centrifugal Blower

Large air volume,low noise and low energy consumption


3.High-density Finned Tube

Thermal efficiency more than 108% ,energy saving 40%-50%

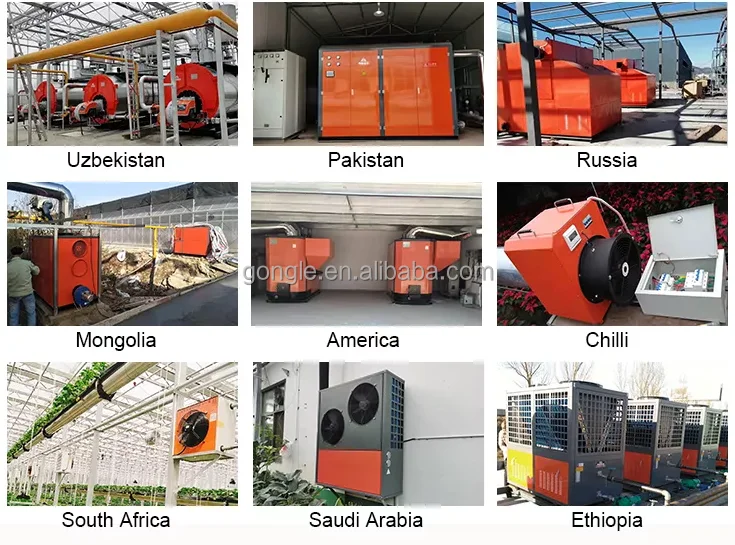

Application




Packing & Delivery




1.Package by LCL or FCL

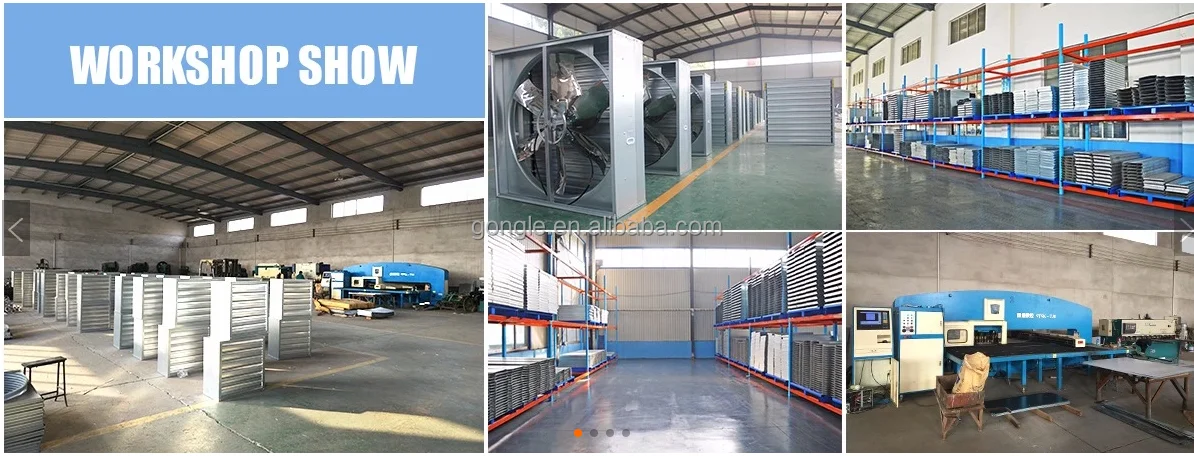

Company Profile






★ Qingzhou Gongle Electric Fan Co., Ltd. founded in 1978, is a private enterprise from primary Qingzhou City Electric Fan Company in No.1388 Industrial Road, Qingzhou City, Shandong Province, China.
★Our company is a professional manufacturer that specializes in making ventilation fans, axial exhaust fans, industrial wall fans,standing fans,industrial air coolers, industrial ceiling fans and so on.
★They are widely used in many fields such as enterprise workshops, textile mills, garment production workshops, animal husbandry, closed poultry houses, and greenhouses, etc
★The company possesses the strong technical power and the perfect test method. The quality of product always comes out top in previous assessments.


Relevant products


















FAQ


Why you choose us?
1.Good quality, Competitive price, Fast delivery.
2. We have a team who have average 44 years experience in designing and producing fans, we can OEM different kinds of products
according to your requirement, in order to produce the products more suitable to your market !
3. We have a lot of customers from overseas. A lot of our customers has established long term business relationship with us.
4.All the products have 1 year warranty. All products are conducted strict QC and inspection before shipping.
5.If you have any problems or suggestions about our products or service, you can contact me or our sales manager whenever you
want. We will give you a satisfying reply.
