Редуктор червячного редуктора 24 В 30 Вт 200 об/мин 80 кг см редуктор постоянного тока для конвейера
- Категория: >>>
- Поставщик: Guangzhou Wewin Motor Co. Ltd.
Сохранить в закладки 1600514106223:
Описание и отзывы
Характеристики

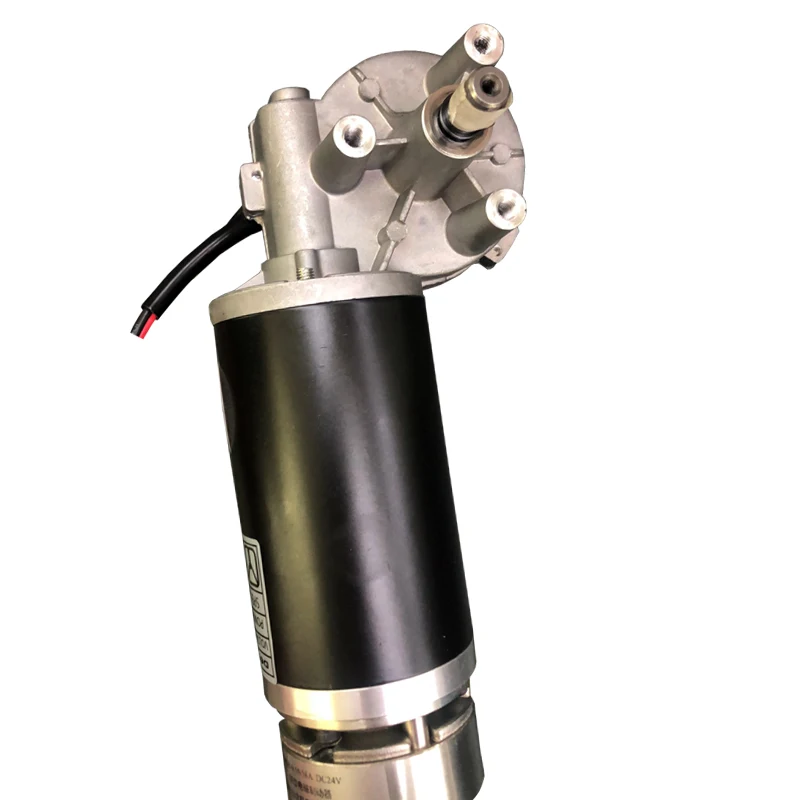

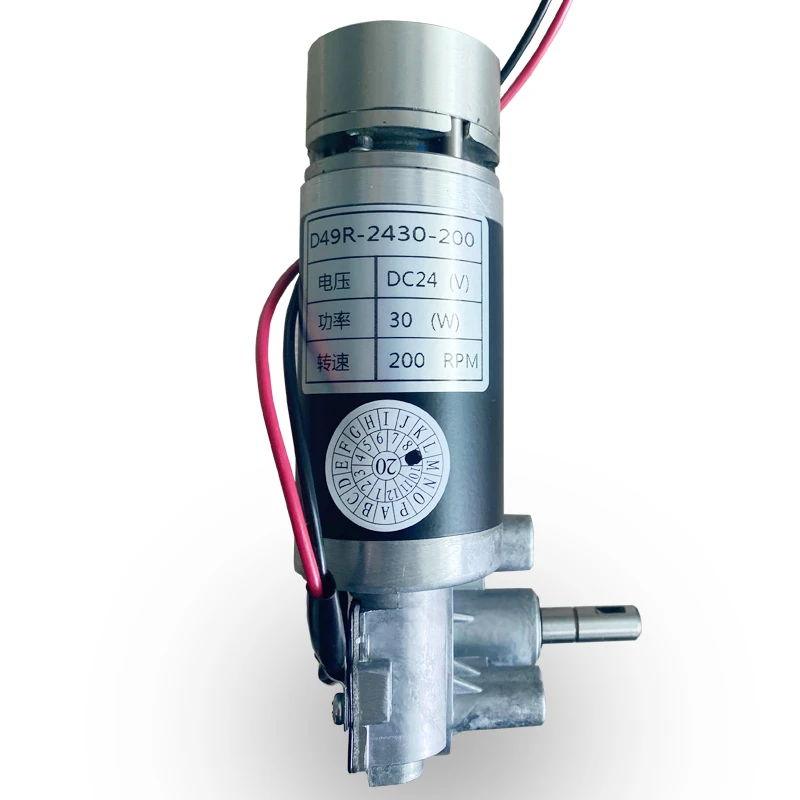

24V Right Angle Worm Gear Reducer 30W 200Rpm 80Kg.Cm Dc Gear Motor for Conveyor
NOTE:
1.Please inform the application of your brushed dc gear motors.
2.Please provide the load speed and load torque.
3.Please choose the mounting distance 50.80mm or 72mm.
2.Please provide the load speed and load torque.
3.Please choose the mounting distance 50.80mm or 72mm.
Product Overview
Worm Gear Motor Specifications
Motor Dimension | 45mm 49mm 59mm 63mm 76mm 88mm 110mm |
Motor Power | DC 12V 24V 36V 48V 72V 110V |
Material of Gear | Plastic gear / copper gear |
Motor type | gear motor for conveyor |
Motor Gearbox | Right Angle Gearbox Motor , Left Anlge Gear boxes |
Diameter of Output Shaft | 6mm 8mm 10mm 12mm 14mm(Optional) |
Speed Sensor | Hall Sensor,Dc Motor with Encoder,Opto sensor,Brake motors |
Factory Address | Huadu,Guangzhou |
Our Dc Motors Advantage | 1.Low noise < 60db 2.Long life span > 4000hr(continuously working) 3.Self Locking Motor, Forward & Reverse 4.Competitive factory price 5.Sample order are welcome |
These are standard shafts of our company above. The diameter of the output shaft can be 6mm, 8mm, 10mm, 12mm, 14mm and so on.We and design and manufacture the shafts according to your demand.
Recommend Products
D63 Series
Motor Power:
30W,45W 80W,100W,120W(Max)
No-load Speed:
35 RPM,65 RPM,130 RPM,150 RPM,180 RPM,
210 RPM,270 RPM,300 RPM(Max)
High Torque Geared Dc Motor:
10N.m - 15N.m
Steel Sheel Length:
74-80mm
Gear Modulus:
75:1 60:1 60:2 60:4
Gear Ratio:
75:1 M=0.8
60:1 60:2 60:4 M=1
30W,45W 80W,100W,120W(Max)
No-load Speed:
35 RPM,65 RPM,130 RPM,150 RPM,180 RPM,
210 RPM,270 RPM,300 RPM(Max)
High Torque Geared Dc Motor:
10N.m - 15N.m
Steel Sheel Length:
74-80mm
Gear Modulus:
75:1 60:1 60:2 60:4
Gear Ratio:
75:1 M=0.8
60:1 60:2 60:4 M=1
D49R/L Series
Motor Power:
10W,15W,20W,25W,30W,40W,50W (Max)
No-load Speed:
15 RPM,35 RPM,70 RPM,100 RPM,150 RPM,180 RPM,200 RPM,300 RPM(Max)
Torque:5N.m - 8N.m
Steel Sheel Length:56-71mm
Gear Ratio:
70:1 56:1 56:2
Gear Madulus:
70:1 M=0.8
56:1 56:2 M=1
10W,15W,20W,25W,30W,40W,50W (Max)
No-load Speed:
15 RPM,35 RPM,70 RPM,100 RPM,150 RPM,180 RPM,200 RPM,300 RPM(Max)
Torque:5N.m - 8N.m
Steel Sheel Length:56-71mm
Gear Ratio:
70:1 56:1 56:2
Gear Madulus:
70:1 M=0.8
56:1 56:2 M=1
D59R/L Series
Motor Power:
20W,30W,40W,50W,60W,80W(Max)
No-load Speed:
15 RPM,30 RPM,60 RPM,80 RPM,130 RPM,150 RPM,180 RPM,210 RPM,250 RPM(Max)
Torque:6N.m - 10N.m
Steel Sheel Length:74-80mm
Gear Ratio:
70:1 56:1 56:2
Gear Modulus:
70:1 M=0.8
56:1 56:2 M=1
20W,30W,40W,50W,60W,80W(Max)
No-load Speed:
15 RPM,30 RPM,60 RPM,80 RPM,130 RPM,150 RPM,180 RPM,210 RPM,250 RPM(Max)
Torque:6N.m - 10N.m
Steel Sheel Length:74-80mm
Gear Ratio:
70:1 56:1 56:2
Gear Modulus:
70:1 M=0.8
56:1 56:2 M=1
D76R/L Series
Motor Power:
45W,65W,80W,100W,140W,150W,180W,200W(Max)
No-load Speed:
25 RPM,40 RPM,60 RPM,90 RPM,120 RPM,150 RPM,180 RPM,220 RPM,300 RPM(Max)
Torque:12N.m-18N.m
Steel Sheel Length:
77-97mm
Gear Modulus:
75:1 60:1 60:2 60:4
Gear Ratio:
75:1 M=0.8
60:1 60:2 60:4 M=1
45W,65W,80W,100W,140W,150W,180W,200W(Max)
No-load Speed:
25 RPM,40 RPM,60 RPM,90 RPM,120 RPM,150 RPM,180 RPM,220 RPM,300 RPM(Max)
Torque:12N.m-18N.m
Steel Sheel Length:
77-97mm
Gear Modulus:
75:1 60:1 60:2 60:4
Gear Ratio:
75:1 M=0.8
60:1 60:2 60:4 M=1
D88R(72) Series
Motor Power:
100W,120W,150W,200W,300W,500W,600W(Max)
No-load Speed:
20 RPM,100 RPM,180 RPM,200 RPM,220 RPM(Max)
Torque:23N.m - 30N.m
Steel Sheel Length:100mm
Gear Modulus:
82:1 64:1 53:1
Gear Ratio:
82:1 M=1
64:1 M=1.25
53:1 M=1.5
100W,120W,150W,200W,300W,500W,600W(Max)
No-load Speed:
20 RPM,100 RPM,180 RPM,200 RPM,220 RPM(Max)
Torque:23N.m - 30N.m
Steel Sheel Length:100mm
Gear Modulus:
82:1 64:1 53:1
Gear Ratio:
82:1 M=1
64:1 M=1.25
53:1 M=1.5
D88-D110 NMRV040 Gear Motor
Torque:50-100Nm
Motor Usage
Dc Gear Motor Applications:
Motor garage door,smart automated laundry rack motor,dc motor range hood,adjustable desk motor, tennis ball machine motor,tv lift cabinet motor,food waste disposers motor,Welding Machine Motor,Sewing Machine Dc Motor,Vending Motor,Smart Home Intelligent Equipment,Office Intelligent equipment,Lifting Cabinet Motor,Electric Hospital Lift Bed Motor,Hydraulic Pump Motor ,Electric Forklift Motor,Motorized TV Rack Motor.
Details Images
1.Motor Plastic Gear
The plastic gear with low noise,low cost,long life within the torque range.
2.Copper Gear
The copper gear with high torque and high temperature resistance,and the life can belonger if the lubrication effect can be guranteed,So the cost higher thanplastic gear .
3.Electronic Rotor
Pure copper coil configuration,reducing resistance and high conductivity to ensure motor efficienty,stable and safe operation.
4.Magnet
Thickened magnets,strengthen the magnetic filed,high torque and strong anti-interference.

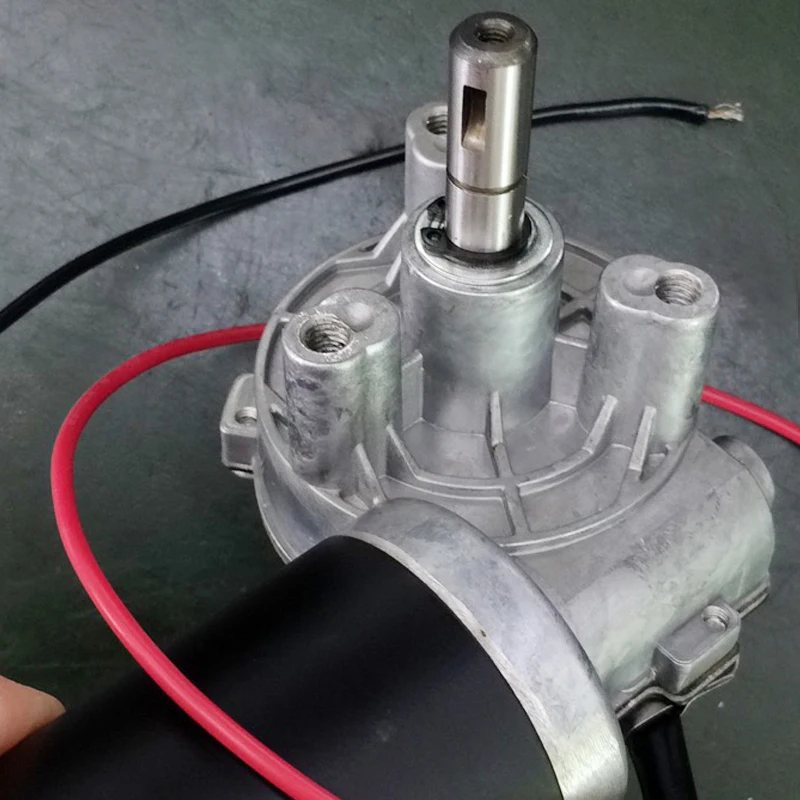

5.Worm Gearbox
All made of high qualiy metal,it has good impact resistance, durablity and reducing noise.Thus prolong the life of the motor gearbox. Right angle & Left angle gearbox optional
6.High Quality Carbon Brush
The wear resistance of the carbon brush directly determines how long the motor can last.
7.Hall Sensor
The sensor could record the speed if gear motor dc has encoder.

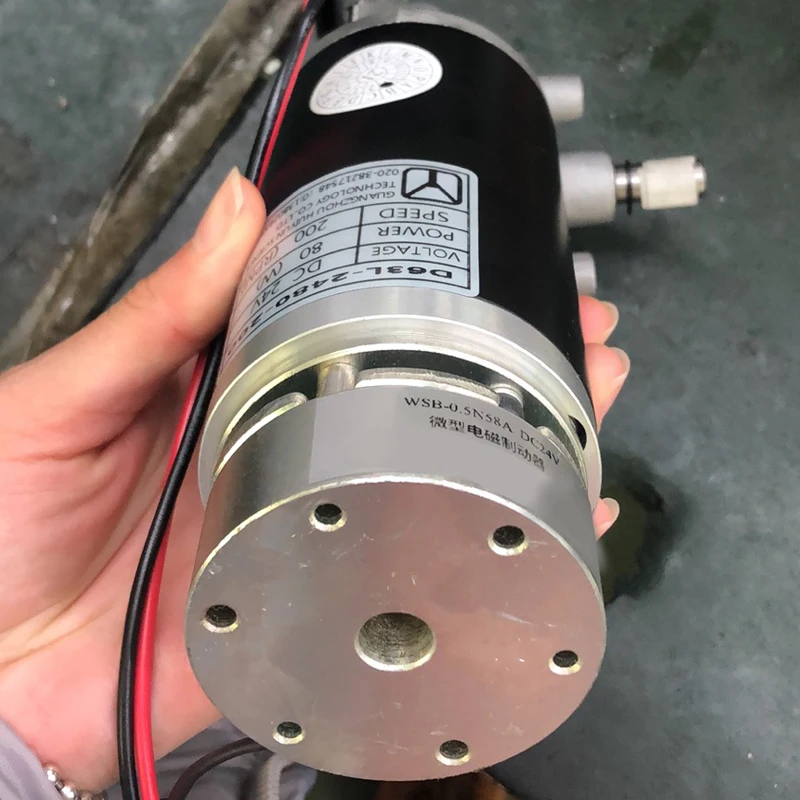

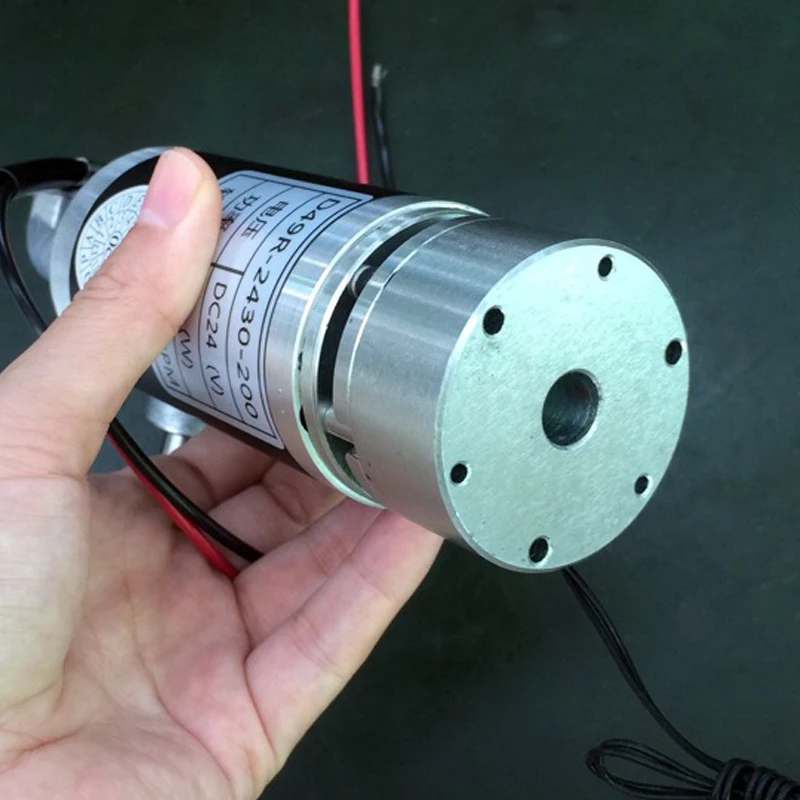

8.Brake
If the gear dc motor has brake,it could still rotate when the brake stops.
Manufacturing Technique
Material Preparation
CNC Machining
Lathe
Milling
Scan the QR code and get the factory panorama
Hobbing
Hydraulic Press
Winding
Spot Welding
Gearbox
Die Casting Manal
Assembly QC
Life Tester
Torque Tester
Temp & Humi Chamber
Company Profile
Company Advantages:
1.Professional motor OEM & ODM manufacturer
2.20 years motor design experience 3.Experienced engineering designers
4.Fast delivery time,about 15-20 days if use our conventional output shaft
5.We have strict quality control system,each batch of goods will be tested for torque and noise before leaving the factory
4.Fast delivery time,about 15-20 days if use our conventional output shaft
5.We have strict quality control system,each batch of goods will be tested for torque and noise before leaving the factory
Our main market:
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State, India,Korea and so on.
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State, India,Korea and so on.
Guangzhou Wewin Motor Co.,Ltd. is a professional company specialized in design and customization of small dc worm gear motor. The motor models mainly include D49 D59 D63 D76 D88 series, and all the motors can be installed with hall sensor, encoder, opto sensor and brake,so we accept OEM and ODM orders ,and manufacture the motor according to your required like voltage, power, speed,
torque, dimension and motor direction.
Our boss is a doctor of dc gear motor with over 20 years experience in motor customization and production,we also has professional R & D team and testing centers to test gears and motors, and could guaranteed high quality products for customers,welcome to contact our customer service center.
torque, dimension and motor direction.
Our boss is a doctor of dc gear motor with over 20 years experience in motor customization and production,we also has professional R & D team and testing centers to test gears and motors, and could guaranteed high quality products for customers,welcome to contact our customer service center.
Certifications
FAQ
Q1：Are you trading company or manufacturer ?
A1：We are manufacture Integration of industry and trade, with over 20 years experience in dc worm gear motor. Our company have accumulated skilled production line, complete management and powerful research support, which could match all of the customers' requirements and make them satisfied.
Q2：What is your main product?
A2：DC Motor: dc motor 24v and high speed motor without gearbox
Welding equipment: Wire feeder for Mig Mag Welding Machine
Welding equipment: Wire feeder for Mig Mag Welding Machine
Q3：What if I don't know which DC motor I need?
A3：Don't worry, Send your specification,and our team will help you find the right model you are looking for.
Q4：What is your payment term?
A4：Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T deposit in advance ,balance before shipment.
Q5：How to delivery?
Others - Actually,samples send by DHL,UPS, TNT and Fedex etc. We arrange to delivery goods to some place from China appointed by buyers.
A5： By sea - Ship out by buyer's appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Ship out by buyer's express account, or our sales team find suitable express for buyers. (Mostly for sample)
By air - Ship out by buyer's express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - Actually,samples send by DHL,UPS, TNT and Fedex etc. We arrange to delivery goods to some place from China appointed by buyers.
Q6：How long is your delivery time?
A6：Usually it takes about 35 days if buyer accept our standard output shaft.If the output shaft is customized,the production time depends on what the customization shaft it is.
Похожие товары
FTTH mini волоконно-оптическая распределительная коробка с 4 портами ODF
1,50 $ - 2,00 $
XZ OEM ODM пластиковый навес для навеса от солнца для скутера с тремя двигателями
M60 (0,65 мм) 50 м/рулон meisi сверхтонкая Вощеная льняная нить для рукоделия и машинного шитья, вощеная нить
10,99 $ - 13,99 $

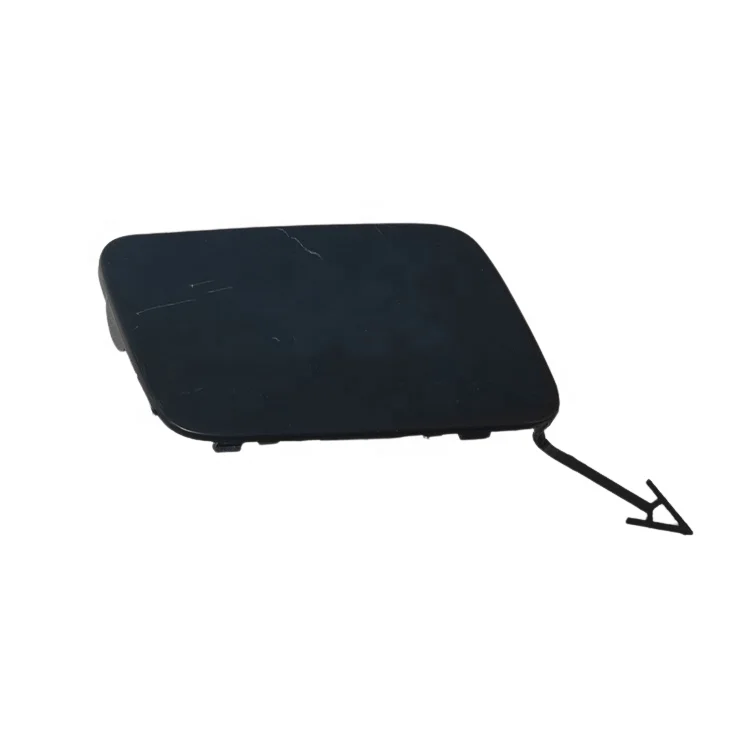

Высококачественные автозапчасти, крышка переднего буксировочного крюка для Audi A8 D4 2011 OEM 4H0 807 441B
