Промышленный автоматический стерилизатор высокого давления
- Категория: >>>
- Поставщик: Zhucheng City Fengsheng Machinery Factory
Сохранить в закладки 1600514227060:
Описание и отзывы
Характеристики
Product Description

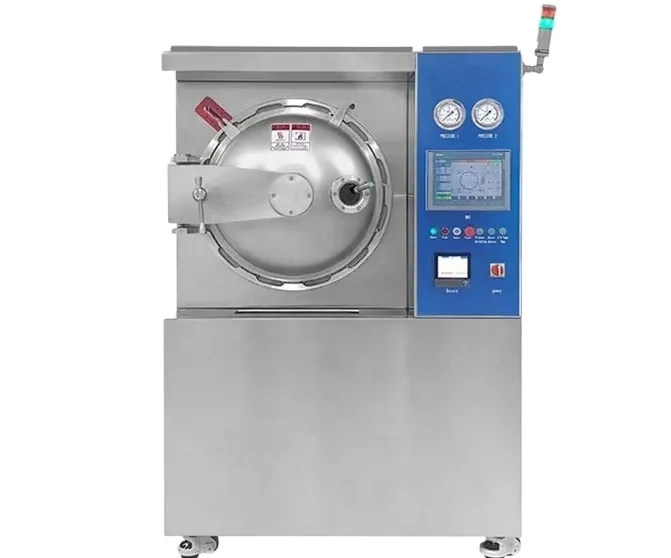

Industrial mini small food horizontal retort autoclave sterilizer

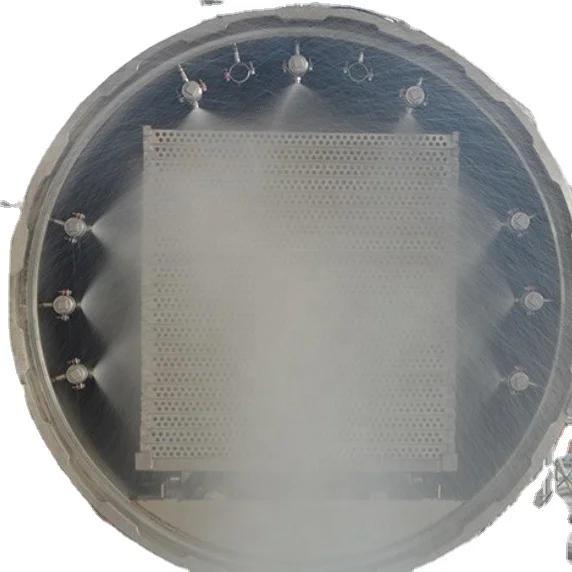

The pilot retort is a multifunctional test sterilization retort, which can realize sterilization methods such as spray (water spray, cascade, side spray), water immersion, steam, rotation, etc. It can also have any combination of multiple sterilization methods to be suitable for food manufacturers' new product development laboratories, formulating sterilization processes for new products, measuring FO value, and simulating the sterilization environment in actual production.
Working principle
Put the product into the sterilization retort and close the door. The retort door is secured by triple safety interlocking.
Throughout the whole process, the door is mechanically locked. Use the knob or operation screen to select the sterilization
method, and download the recipe to the PLC. After checking, start the sterilization program, and the whole process will
automatically follow the sterilization recipe.
Equip the spiral-tube heat exchanger for the sterilization retort and at the heating and cooling stages, process water in the
retort passes through the shell side, while steam and cooling water pass through the tube side, so that the sterilized product
will not directly contact the steam and cooling water to realize aseptic heating and cooling.
Throughout the whole process, the pressure inside the retort is controlled by the program by feeding or discharging compressed air
through the automatic valve to the retort.
When the sterilization process is finished, an alarm signal will be issued. At this time, the door can be opened and unloaded. The
triple safety interlock ensures that the retort door will not be opened when there is pressure in the retort, thus ensuring safe
operation.
The uniformity of temperature distribution in the retort is +/-0.5℃, and the pressure is controlled at 0.05Bar.

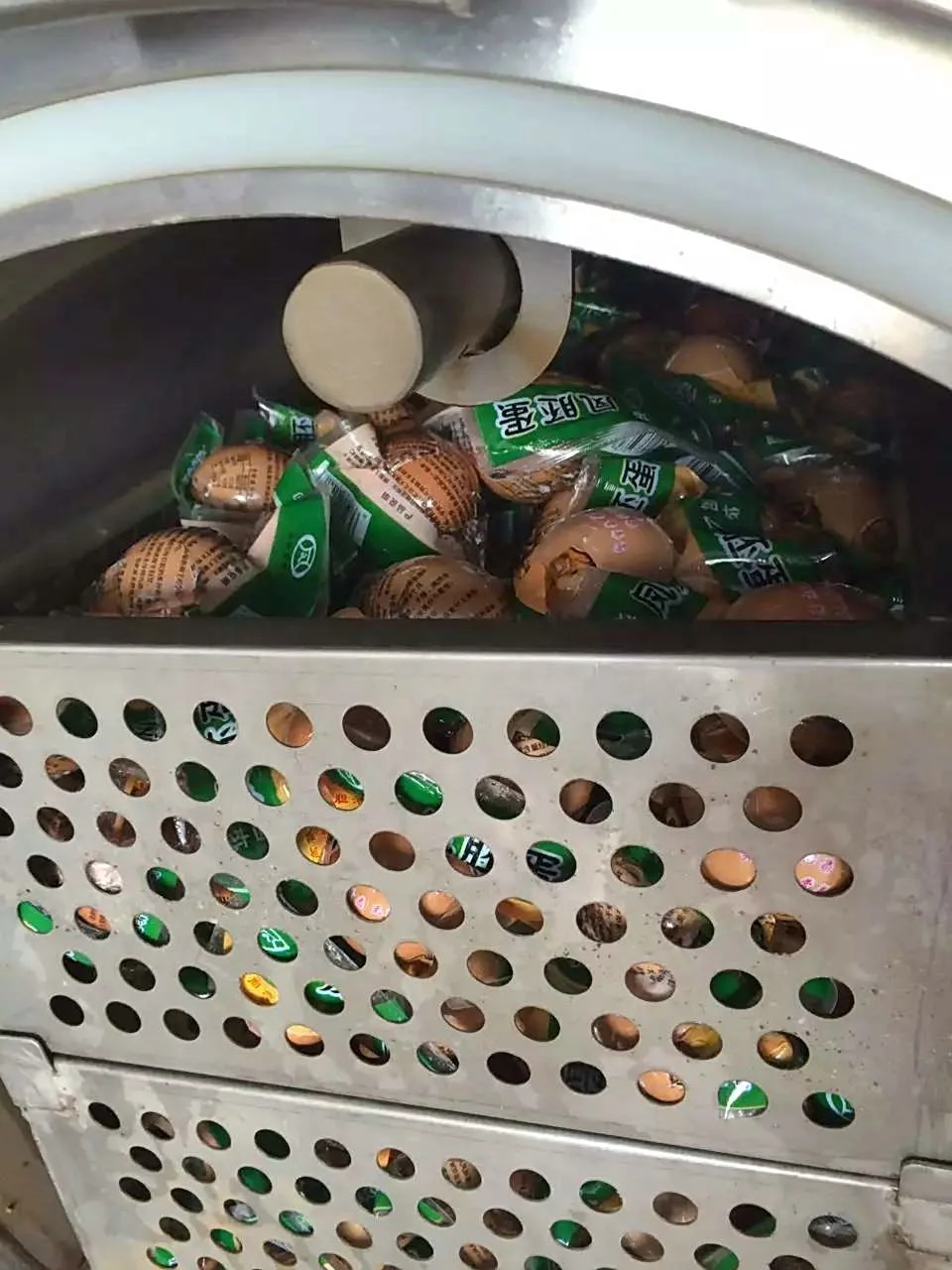

Detailed Images
Advantage of the pilot retort
●Accurate temperature control, excellent heat distribution
The temperature control module developed by FS has up to 12 stages of temperature control, and the step or linearity can be selected according to different product and process recipe heating modes, so that the repeatability and stability
The temperature control module developed by FS has up to 12 stages of temperature control, and the step or linearity can be selected according to different product and process recipe heating modes, so that the repeatability and stability
between batches of products are maximized well, the temperature can be controlled within ±0.5℃.
The pressure control module developed by FS continuously adjusts the pressure throughout the whole process to adapt the internal pressure changes of the product packaging, so that the degree of deformation of the product packaging is
minimized, regardless of the rigid container of tin cans, aluminum cans or plastic bottles, plastic boxes or flexible containers
can be easily satisfied, and the pressure can be controlled within ±0.05Bar.
●Highly clean product packaging
The heat exchanger is used for indirect heating and cooling for the water spray type, so that the steam and cooling water are not
in contact with the process water. The impurities in the steam and cooling water will not be brought to the sterilization retort,
which avoids the secondary pollution of the product and does not require water treatment chemicals (No need to add chlorine), and the service life of the heat exchanger is also greatly extended.
●Energy saving and environmental protection
The self-made high-quality spiral wound heat exchanger has high heat exchange efficiency and saves energy.
A small amount of process water is quickly circulated to quickly reach the predetermined sterilization temperature.
Low noise, create a quiet and comfortable working environment.
The pressure control module developed by FS continuously adjusts the pressure throughout the whole process to adapt the internal pressure changes of the product packaging, so that the degree of deformation of the product packaging is
minimized, regardless of the rigid container of tin cans, aluminum cans or plastic bottles, plastic boxes or flexible containers
can be easily satisfied, and the pressure can be controlled within ±0.05Bar.
●Highly clean product packaging
The heat exchanger is used for indirect heating and cooling for the water spray type, so that the steam and cooling water are not
in contact with the process water. The impurities in the steam and cooling water will not be brought to the sterilization retort,
which avoids the secondary pollution of the product and does not require water treatment chemicals (No need to add chlorine), and the service life of the heat exchanger is also greatly extended.
●Energy saving and environmental protection
The self-made high-quality spiral wound heat exchanger has high heat exchange efficiency and saves energy.
A small amount of process water is quickly circulated to quickly reach the predetermined sterilization temperature.
Low noise, create a quiet and comfortable working environment.
Production Process
Product Application
For high temperature sterilization of fruits,
vegetables, meat, fish, convenience foods, etc.
Packaging Container: PP bottles, HDPE bottles
Glass Container: glass jar, glass can
Metal Containers: tin cans
Aluminum cans plastic containers
Glass Container: glass jar, glass can
Metal Containers: tin cans
Aluminum cans plastic containers
Soft bag packaging: aluminum foil bag, transparent bag, vacuum bag, cooking bag
Our Company
Related Products
Похожие товары
100L Сферический стеклянный реактор с химическим оборудованием для водяной бани
748 207,71 ₽ - 759 051,30 ₽

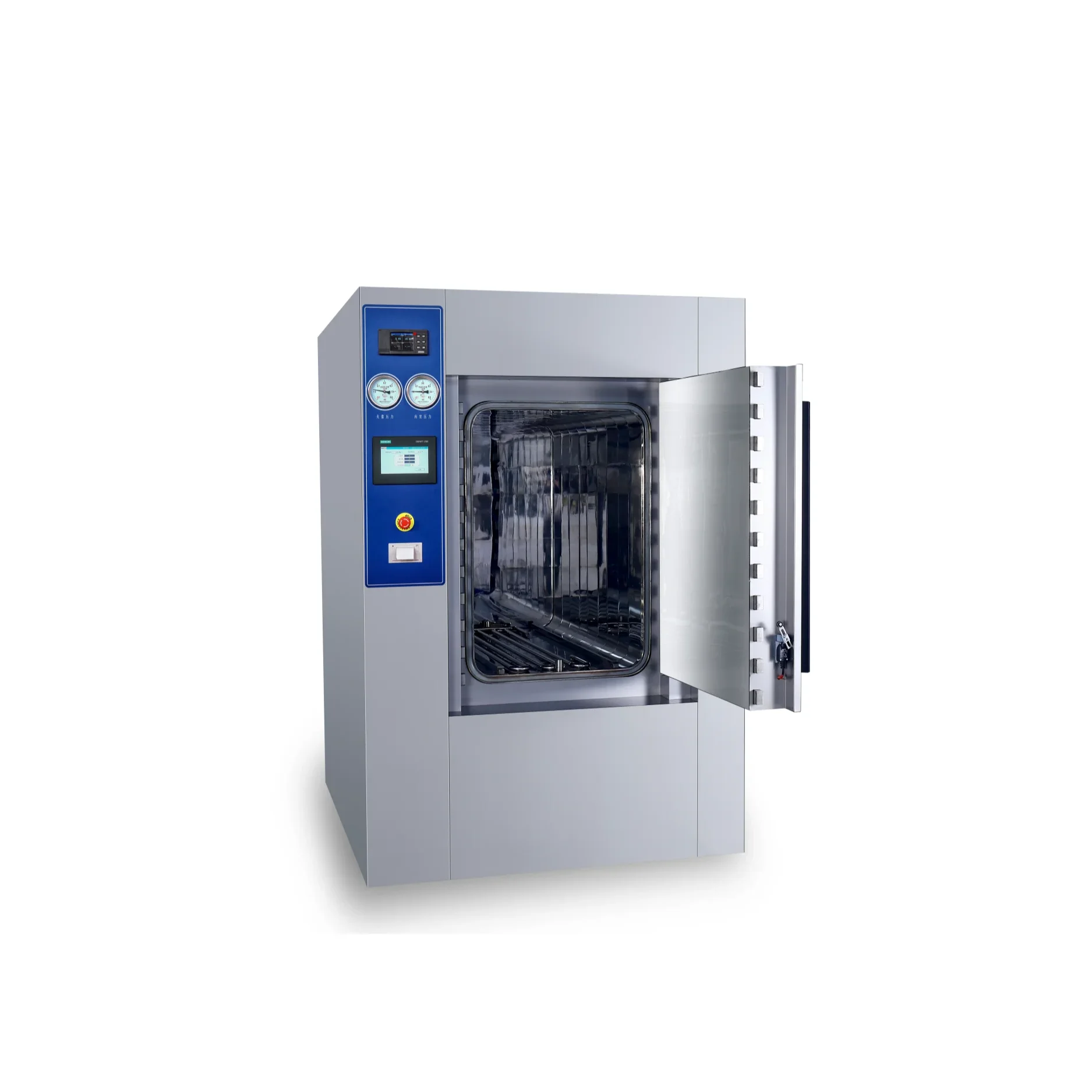

AST-1.2 большой паровой автоклав 1200 литров для лаборатории и госпитля CSSD стерилизатор оборудование для хирургической дезинфекции
2 277 153,90 ₽ - 2 494 025,70 ₽
AST-1.2 автоклавное оборудование, система экономии воды и снижения уровня шума для использования в больницах
2 277 153,90 ₽ - 2 494 025,70 ₽

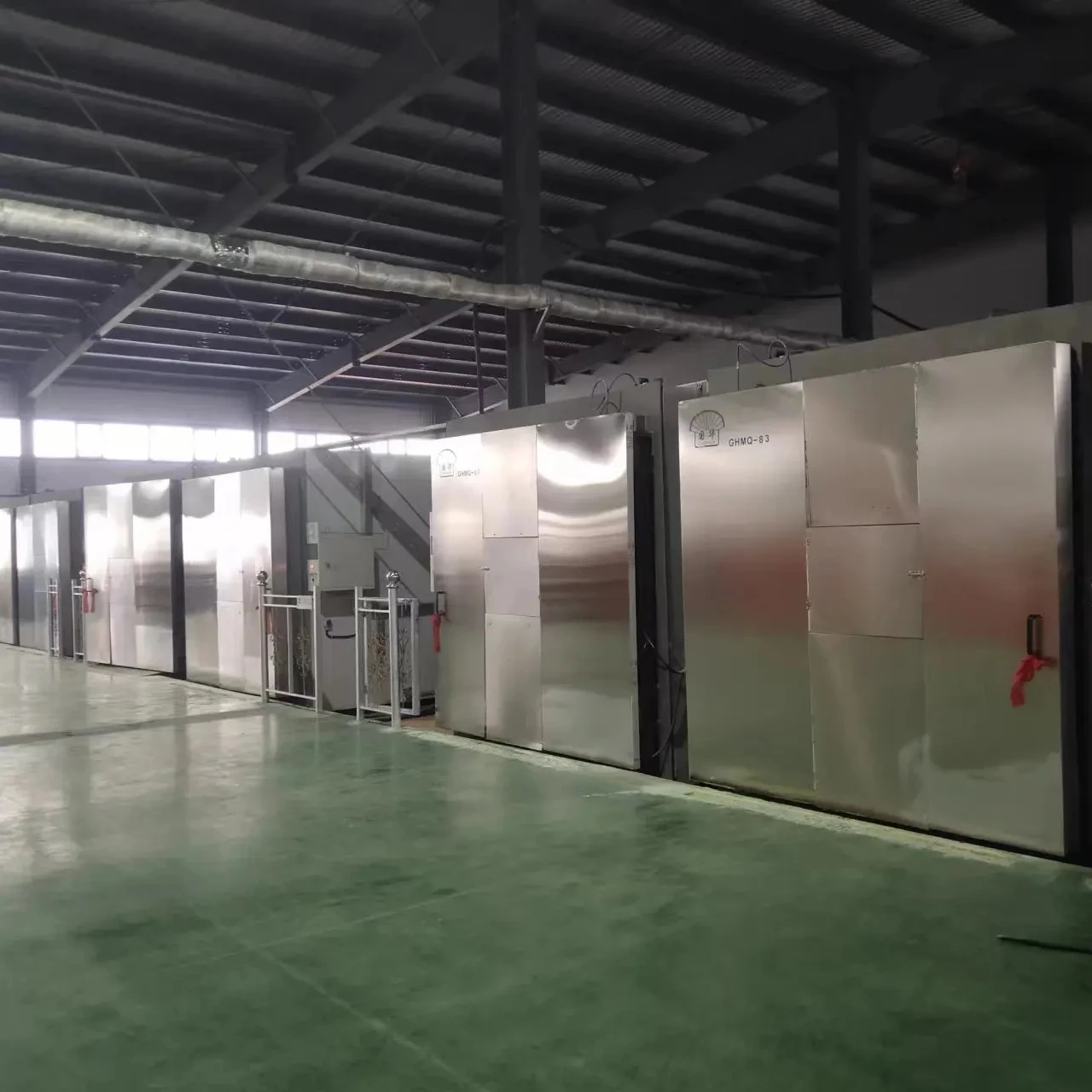

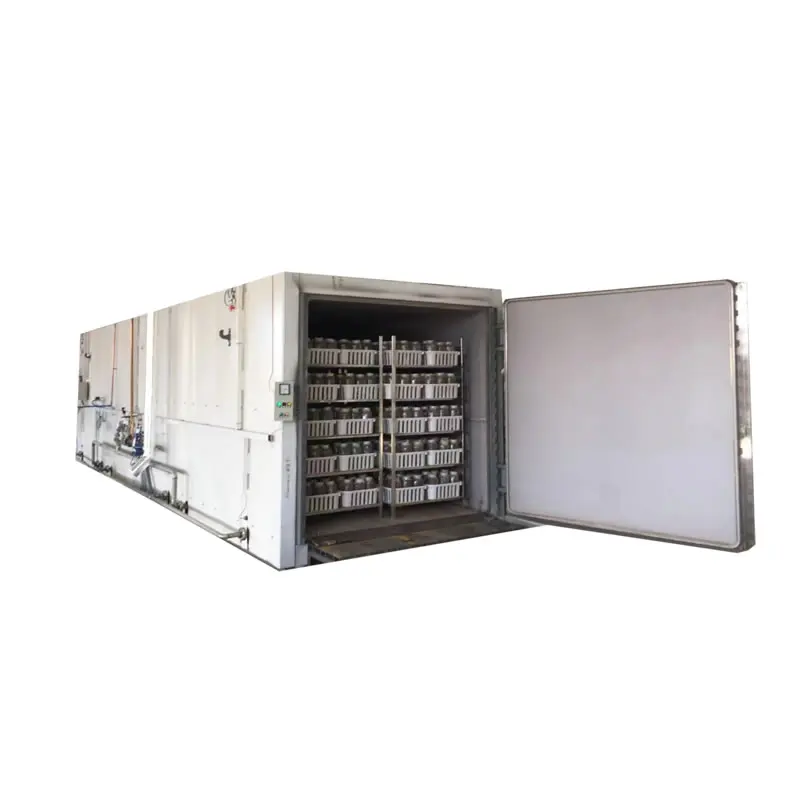

Оборудование для выращивания грибов, квадратный двухдверный Автоклавный стерилизатор, стерилизатор субстрата для производства
433 743,60 ₽
Машина для стерилизации грибов с двойной дверью для производства
650 615,40 ₽

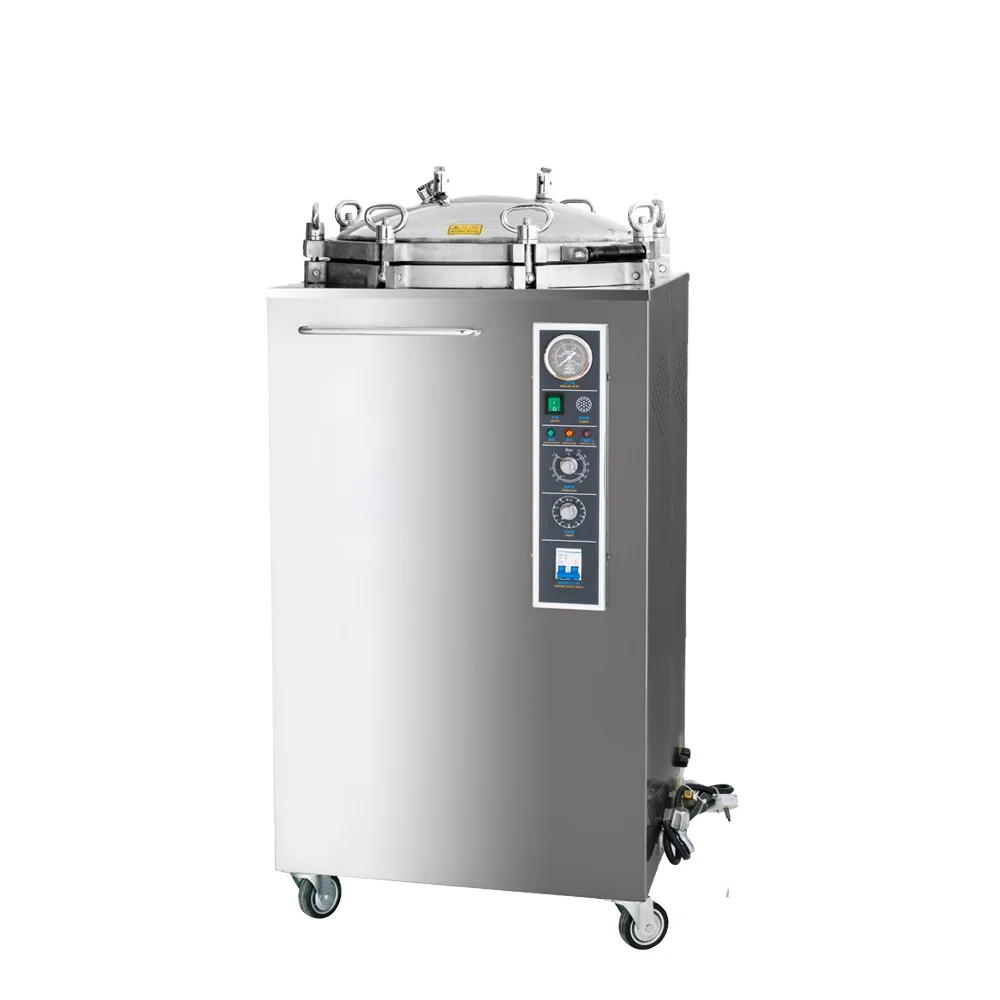

Стерилизационная машина 35L 50L 75L 100L автоматический паровой автоклав вертикального давления
