Steel Making Electric Arc Furnace

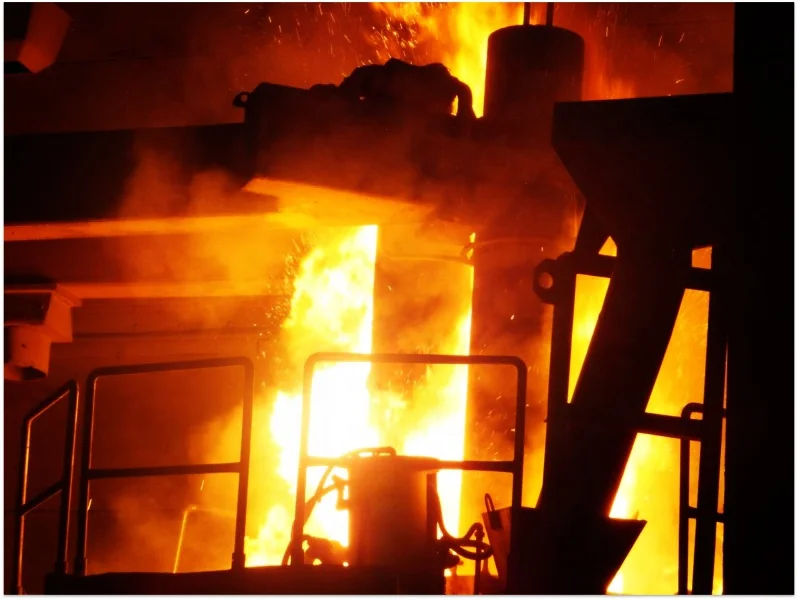

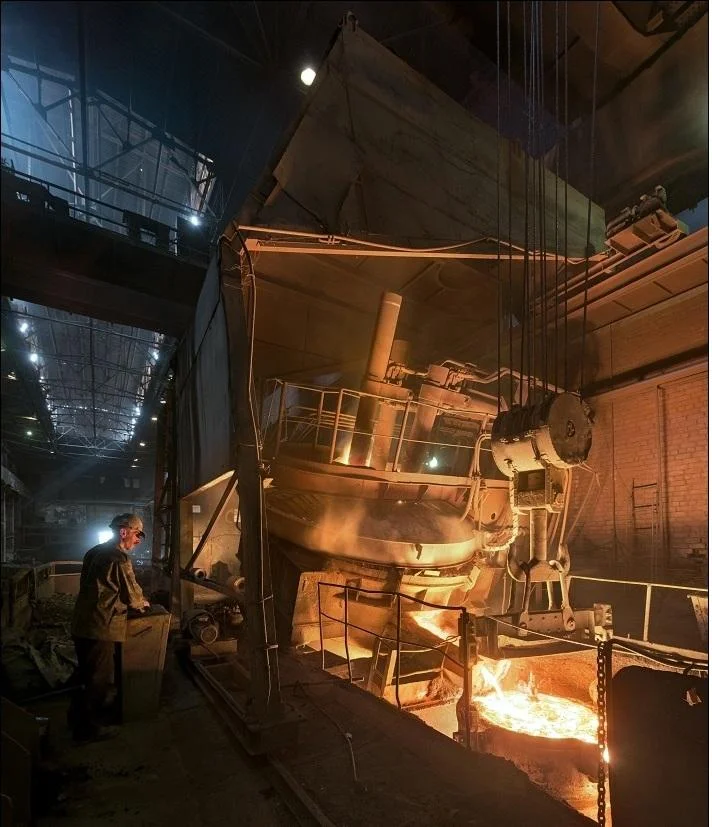

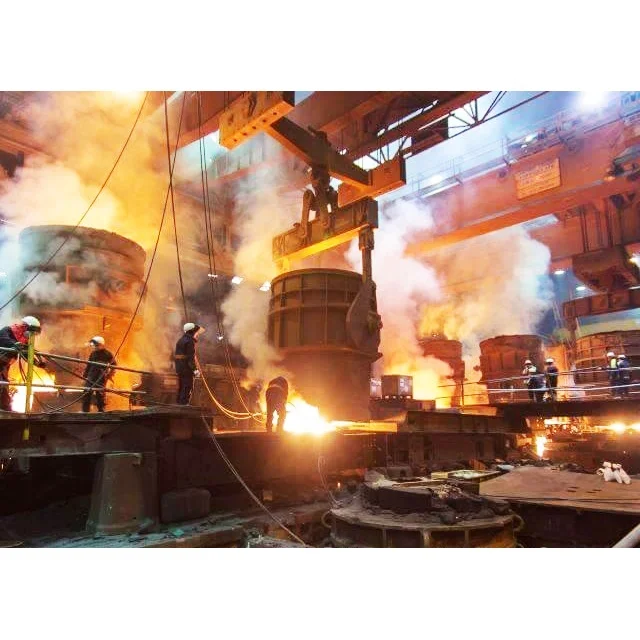

Electric arc furnace (EAF) is an electric furnace that uses the high temperature generated by electrode arc to smelt ores and metals. When the gas discharge forms the arc, the energy is very concentrated, and the arc temperature is above 3000 ℃. For smelting metal, EAF is more flexible than other steelmaking furnaces, which can effectively remove impurities such as sulfur and phosphorus, easy to control furnace temperature and small equipment area, which is suitable for smelting high-quality alloy steel.
The furnace body of EAF is composed of furnace cover, furnace door, tapping trough and furnace body. The furnace bottom and furnace wall are built with basic refractory or acid refractory. According to the transformer capacity per ton of furnace capacity, EAF is divided into ordinary power EAF, high power EAF and UHP EAF. Electric arc furnace steelmaking is to input electric energy into EAF through graphite electrode, and the electric arc between electrode end and furnace charge is used as heat source for steelmaking. Electric energy is the heat source of EAF, and the atmosphere in EAF can be adjusted, which is very beneficial to smelting steel with more oxidizable elements.
Electric Arc Furnace New Technology
1. Optimization design
2. Tubular water cooled furnace wall and furnace lid3. Eccentric bottom tapping (EBT)
4. Copper-steel combined electrode arm
5. Cluster type large sectional area water cooled cables
6. Optimize large current system structure (energy-saving type)
7. Proportional valves hydraulic system
8. Basic level (PLC) + procedure level ( industrial control computer) control system
9. Frequency control technique
10. Network technique
10. Network technique
Our Company Profile
INSTRUCTION OF OUR FACTORY
Hani is Hot Rolling Mill manufacturing company working mainly in the area of the bar and wire rod mills, high-speed wire rod mills, high-speed rebar rolling mills, TMT rolling mills, flying shear, cold strip rolling mill, reheating furnace, induction furnace, intermediate frequency furnace, electric arc furnace, Ladle refining furnace, blast furnace, continuous casting machine.
Hani is the one-stop supplier able to design, manufacture, install and commission your hot rolling mill plant from A to Z.
SERVICE
We can provide foundation layout and arrangement diagram
Trustworthy after-sales service, we will send engineers to your factory to install and debug the machines.
Competitive price & excellent quality.
Our machines are easy operation and maintenance.
Lower investment, Steady performance.
Products are customized for different needs.
Production capability can be adjusted according to customers' request.
Detailed Images

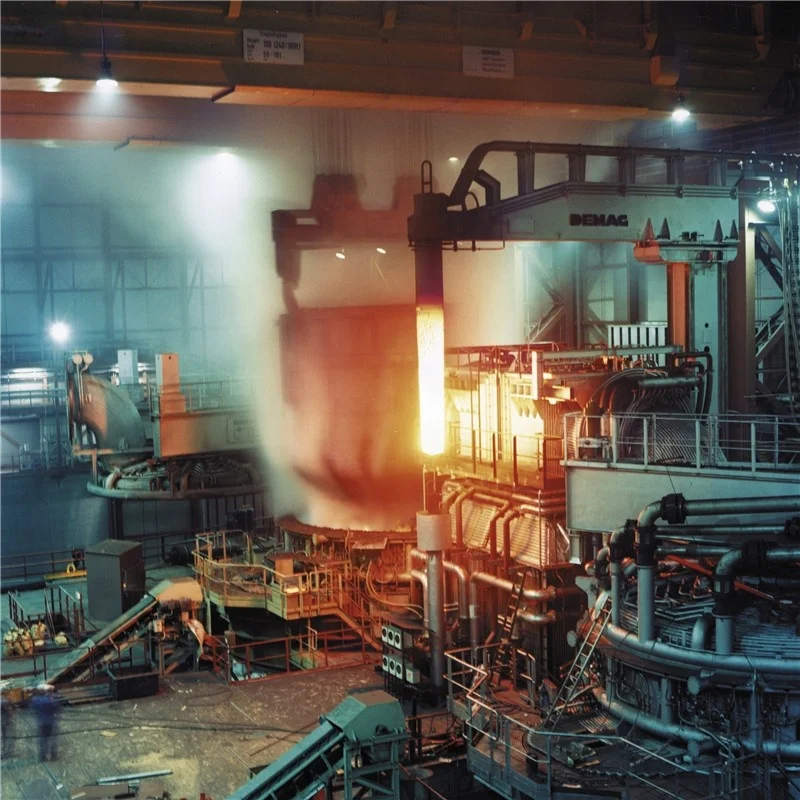

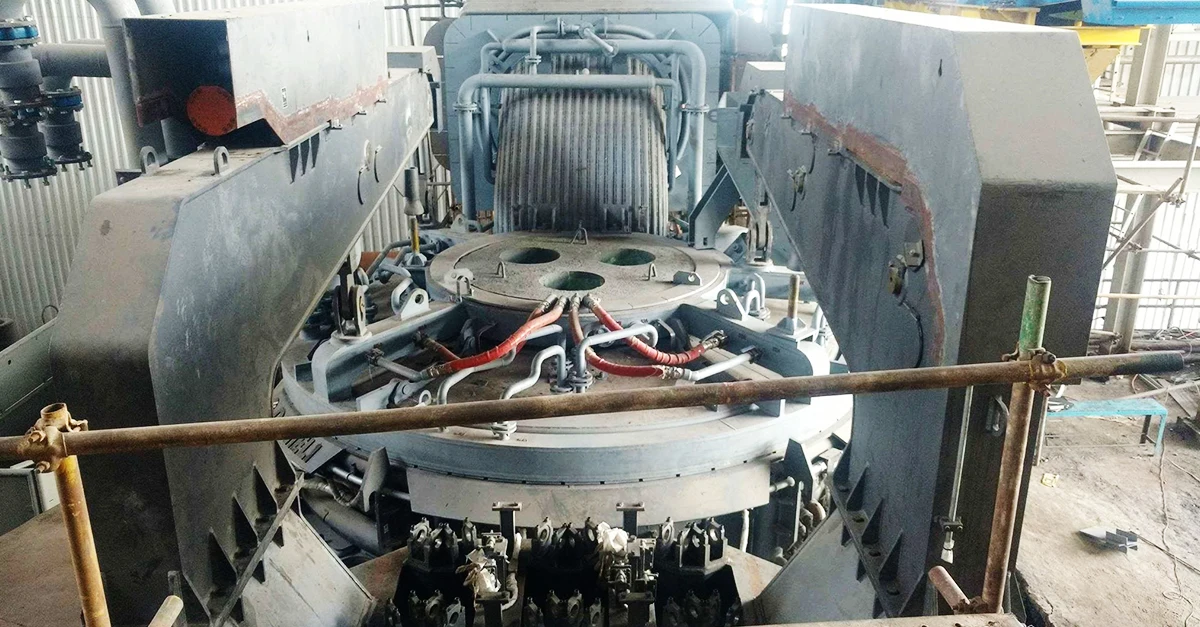

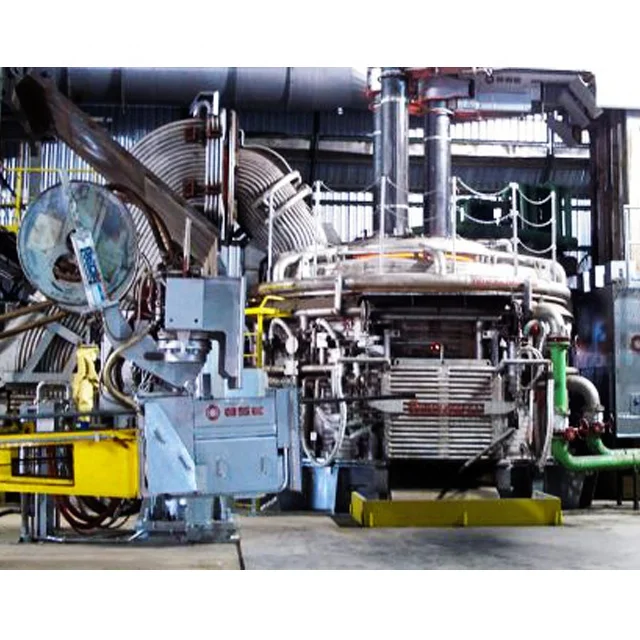

Electric Arc Furnace Composition

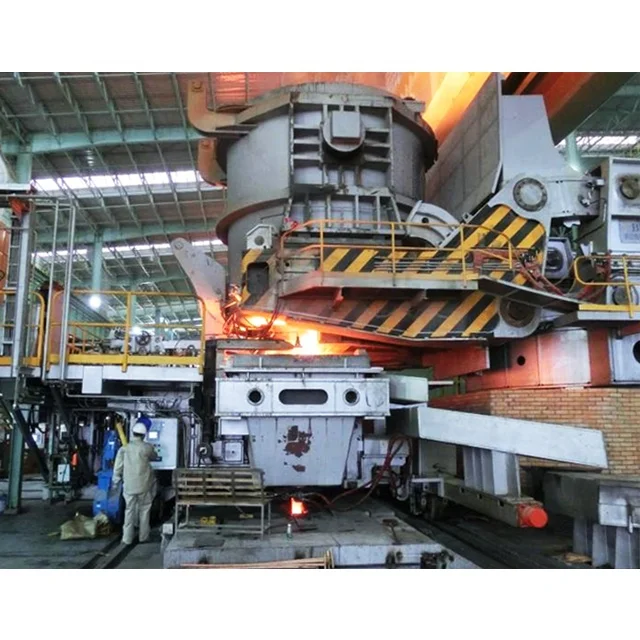

The main parts of electric arc furnace are the roof, hearth (lower part of a furnace, from where molten metal is collected), electrodes, and side walls. The roof consists of three holes through which the electrodes are inserted. The roof is made up of alumina and magnesite-chromite bricks. The hearth includes metal and slag. The tilting mechanism is used to pour the metal that is molten to the cradle by shifting the furnace. For the electrode removal and furnace charging (topping up scrap metals), roof retraction mechanism is incorporated. The provision for fume extraction is also given around the furnace considering the health of operators. In AC electric furnace, electrodes are three in number. These are round in section. Graphite is used as electrodes because of high electric conductivity. Carbon electrodes are also used. The electrodes positioning system helps to raise and lower the electrodes automatically. The electrodes get highly oxidized when the current density is high.
Electric Arc Furnace Technical Parameter
Type# | Rate Capacity (T) | Max capacity ( T) | Furnace Shell inner diameter ( MM) | Electrode diameter (MM) | Transformer capacity(KVA) |
EAF-5T | 5 | 10 | 3200 | 300 | 2500-4300 |
EAF-10T | 10 | 18 | 3600 | 350 | 5500-8000 |
EAF-15T | 15 | 24 | 3800 | 350 | 8000-12500 |
EAF-20T | 20 | 30 | 4000 | 400 | 9000-12500 |
EAF-25T | 25 | 35 | 4200 | 400 | 12500 |
EAF-30T | 30 | 45 | 4400 | 400 | 12500-25000 |
EAF-40T | 40 | 55 | 4600 | 450 | 16000-30000 |
EAF-45T | 45 | 65 | 4800 | 450 | 16000-40000 |
EAF-60T | 60 | 85 | 5400 | 500 | 25000-60000 |
EAF-80T | 80 | 100 | 6100 | 500 | 30000-80000 |
EAF-100 | 100 | 120 | 6400 | 550 | 40000-80000 |
The Parts of Electric Arc Furnace We Supply:
1. Furnace
Furnace shell
Furnace door mechanism
Tapping spout mechanism

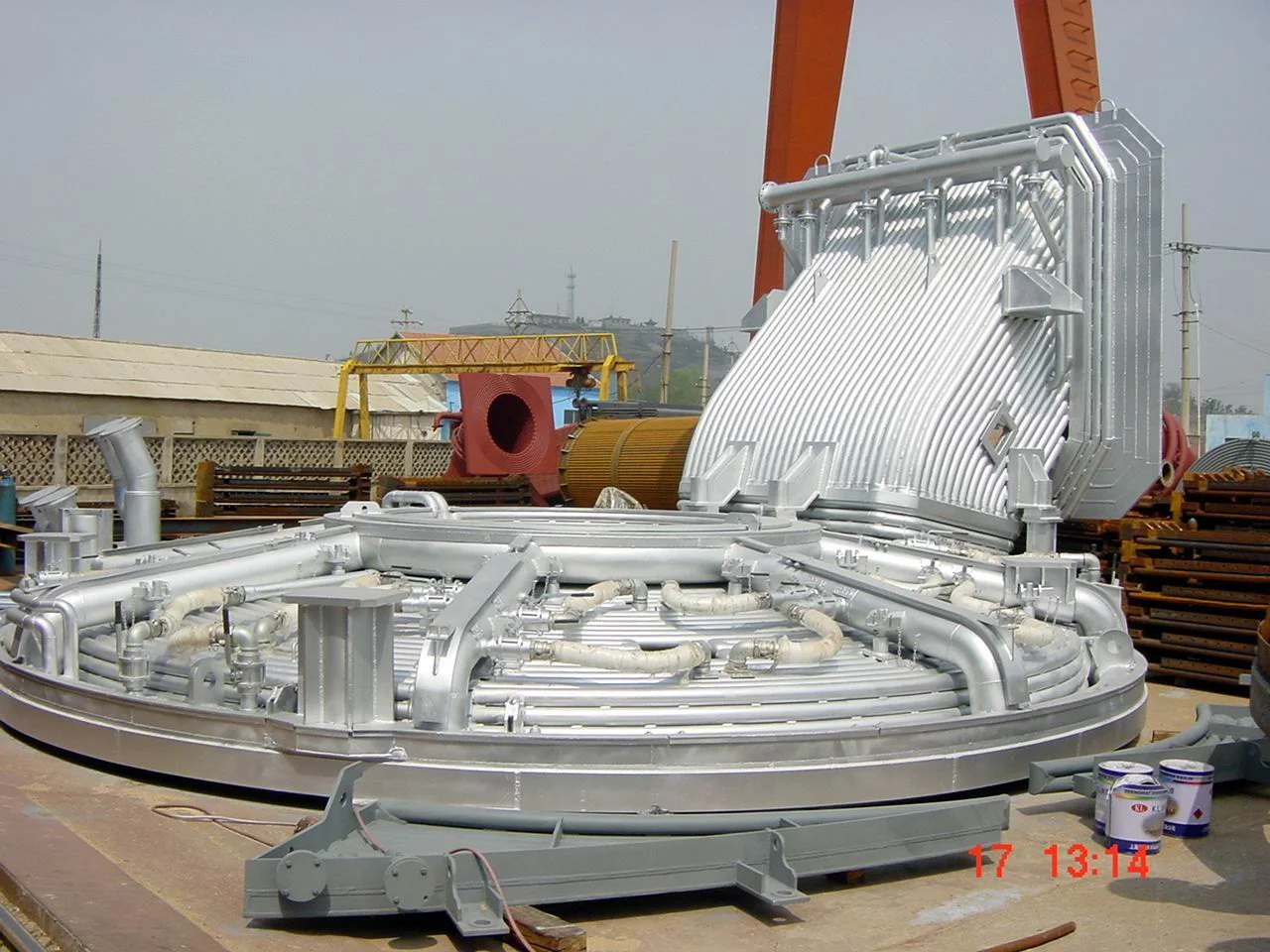

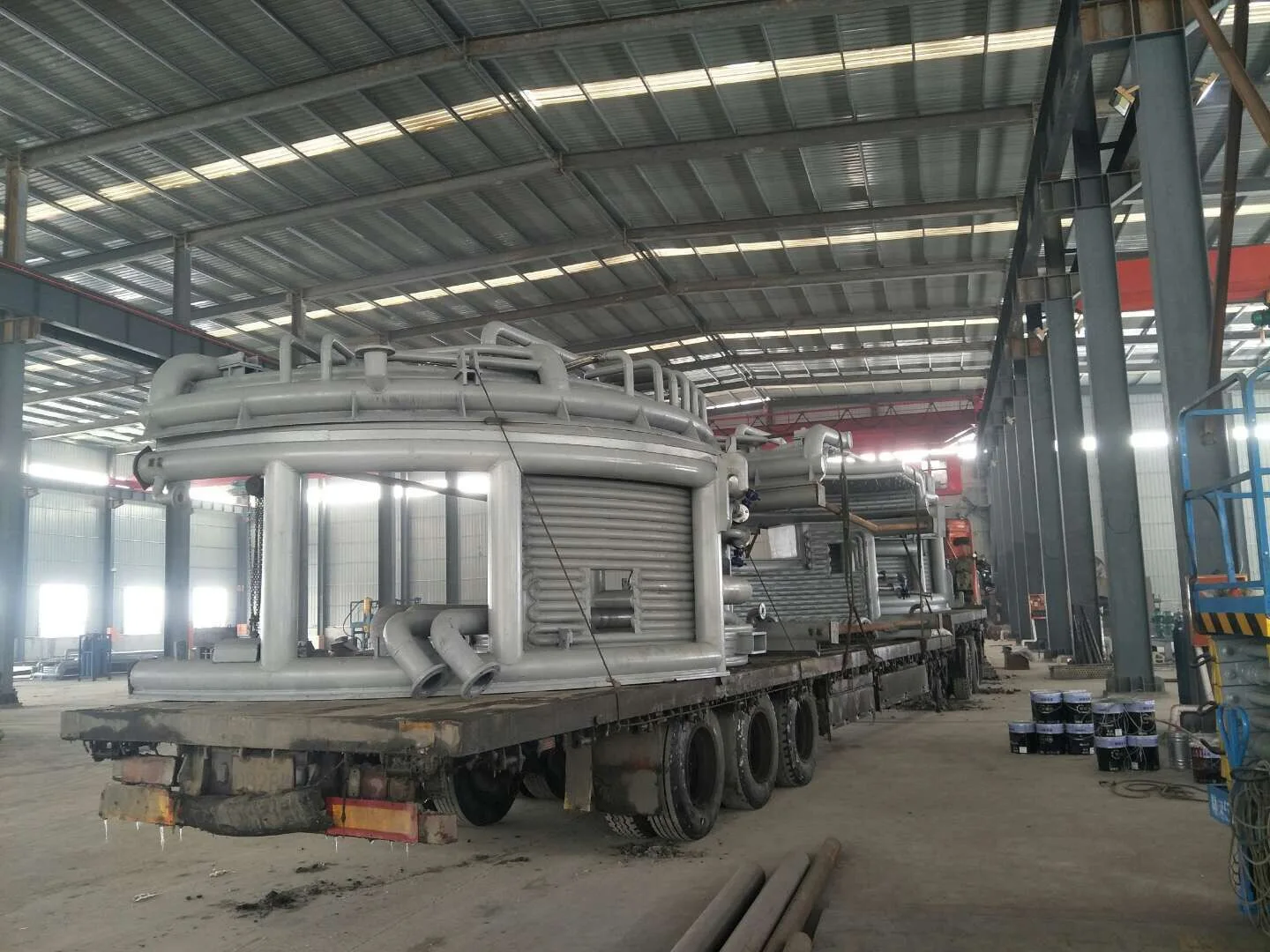

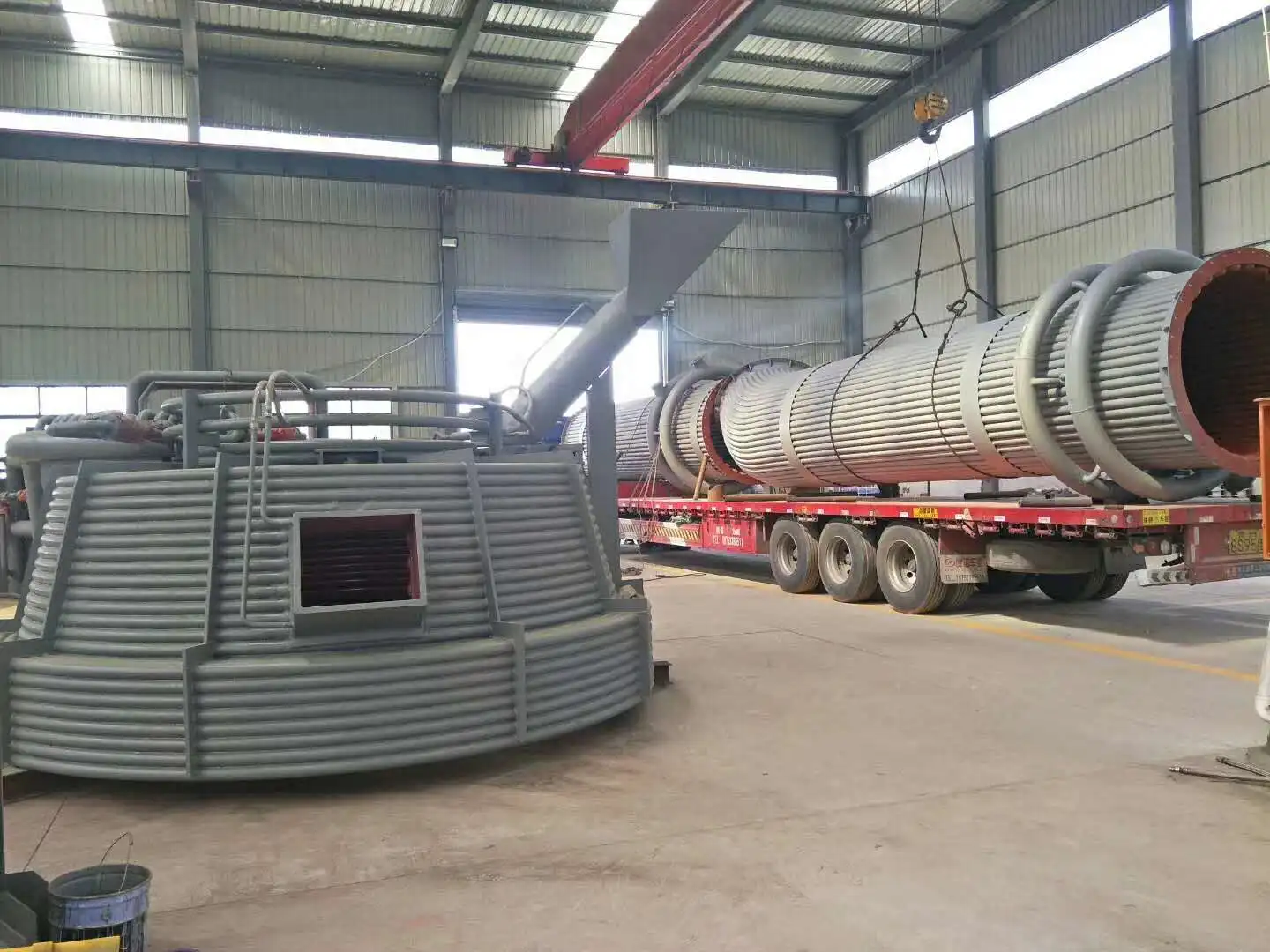

2. Water-cooling furnace roof
Tube type Water cooling roof
Refractory center roof （To be made by buyer based on seller’s drawings）
3. Lifting furnace roof & Swivelling mechanism
Lifting furnace roof mechanism（hydraulic cylinder，transmission chain，chain wheel，etc.）
Γ Gantry
Swivelling Mechanism
Swivelling locking mechanism
4. Tilting mechanism Arc-shaped support frame
Foundation bed
Hydraulic cylinder of tilting mechanism

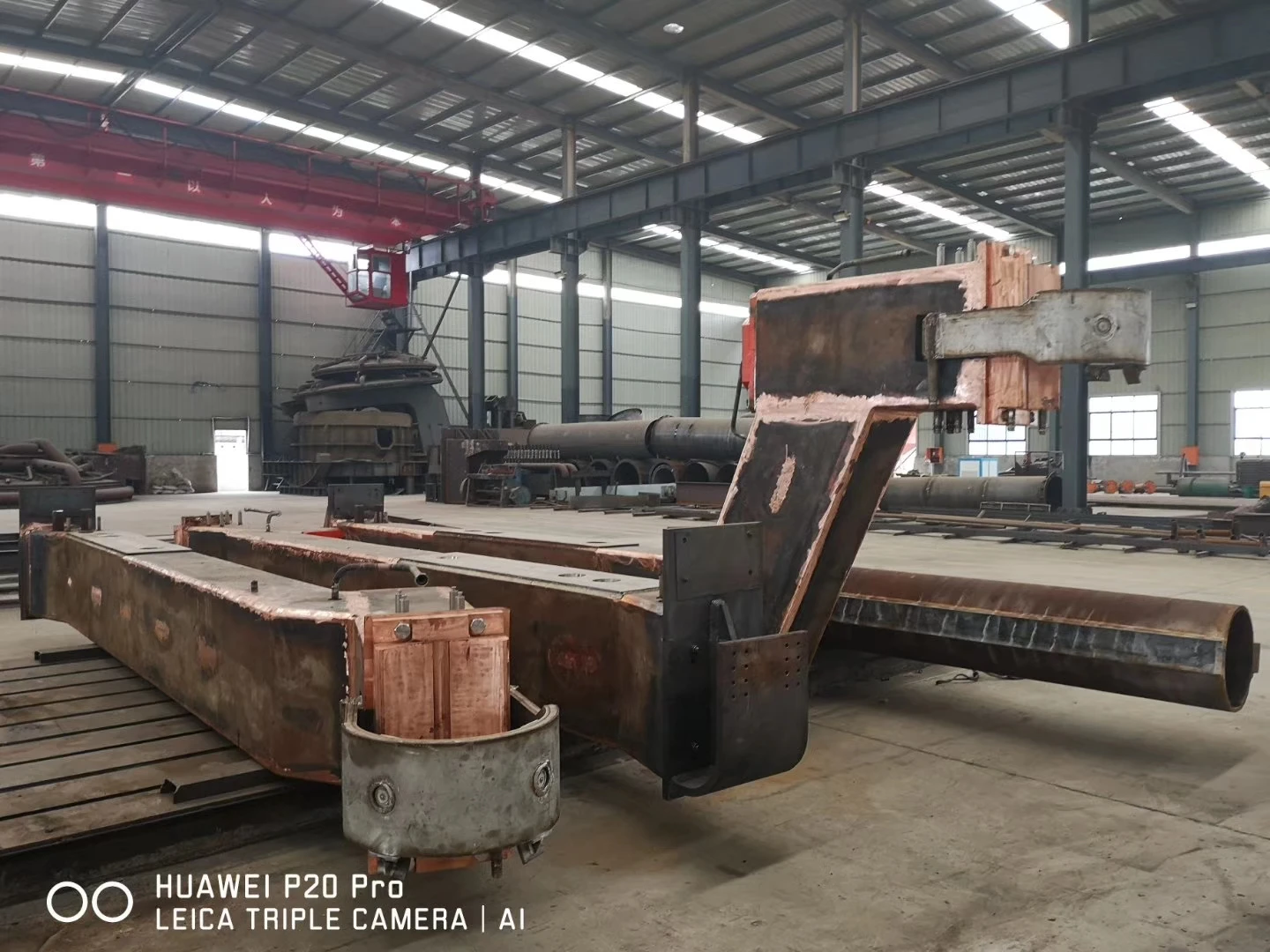

5. Electrode arm &lifting mechanism
Electrode bracket Electrode clamping device
Lifting mechanism
6. Large current system
Compensator, Water-cooled cables, Stainless steel support, Water- cooled conductive copper tube
7. Water-cooled system Compensator, Water-cooled cables, Stainless steel support, Water- cooled conductive copper tube
Distributor of inlet
Water The tank of water back
Pressure gauge, thermometer, valve
8. Hydraulic system
Motor, pump, Oil filter, Oil tank, Control valve, Accumulator
Motor, pump, Oil filter, Oil tank, Control valve, Accumulator
9. HV. Power supply system
Disconnector, Voltage transformer, Vacuum breaker, Current transformer, Zinc-oxide arrester, etc.
10. Electric furnace transformer
11. LV. electric system
LV. power distribution cabinet, PLC cabinet, operation desk, Operation desk in front of furnace, Hydraulic operation box, Detect instrument and transducer, limited switch, etc.
12. Automation control system
PLC of SIEMENTS
Electric Arc Furnace Characteristic
1. Smelting temperature is flexible to be controlled, meet different steel grade production needs.
2. High heat efficiency, the atmosphere inside furnace can be controlled.
3. Can remove the phosphorus, sulfur, oxygen and other impurities and improve steel quality.
4. Easy to control the chemical composition of steel, stable and high recovery rate of alloys.
5. Equipment is simple and shorter technological process.
15 Ton Electric Arc Furnace
15 Ton Electric Arc Furnace Equipment Performance
No. | Item | Unit | Parameters | Remark | |
1 | EAF type | AC | EBT | ||
2 | Rated capacity | t | 15 | ||
Average capacity | t | 18 | |||
Max tapping volume | t | 22 | |||
3 | Transformer rated power | KVA | 9000 | ||
4 | Tap to tap time | min | 90 | ||
5 | Power on hours | min | 75 | ||
6 | Power consumption | KVA | ≤600 | ||
Furnace Shell, Electrode System&Roof Swivelling
Furnace Shell:
Inner Diameter: Φ3800 mm
Electrode System:
Electrode Diameter: Φ350 mm Graphite Electrode
Electrode Distribution Circle: Φ960 mm
Lifting Speed: Up/Down: 6:4 m/min
Electrode Lifting Height: Φ2800 mm
Lifting Drive Mode: Hydraulic Control
Roof Swivelling:
Lifting Height: 400 mm\t
Roof Swivelling Angle: 72°\t
Roof Swivelling Time: 1~2°/s
Lifting Height: 400 mm\t
Roof Swivelling Angle: 72°\t
Roof Swivelling Time: 1~2°/s
Water Cooling Roof & Electric Arm
Automation Control System
Electric Furnace Transformer
Electrode Clamp
Electrode Arm
Water Cooling Cable
Flexible Connecting
Certifications
Packing & Delivery
Packaging Details: The equipment shall be packed in containers as per the international packaging standard or customers' requirements to ensure long distance sea-transportation and well protect against change of climate, moisture and shock.
Delivery details: within 3 months after the payment.
