Станок с ЧПУ CTCNC40C токарный станок для обработки металла китайского завода
- Категория: >>>
- Поставщик: Anhui Citie Technology Co. Ltd.
Сохранить в закладки 1600515604156:
Описание и отзывы
Характеристики

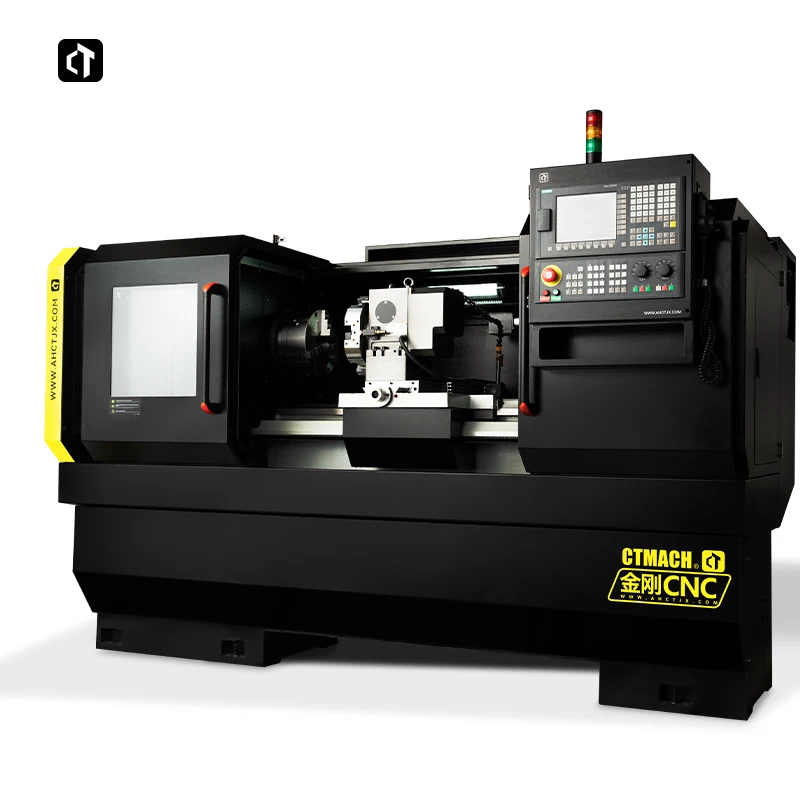

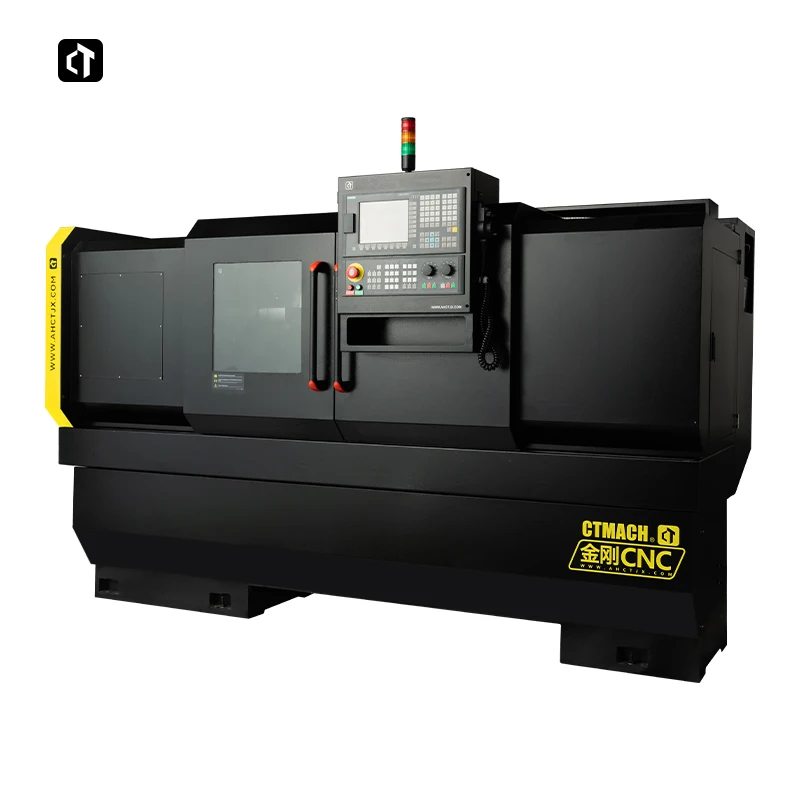

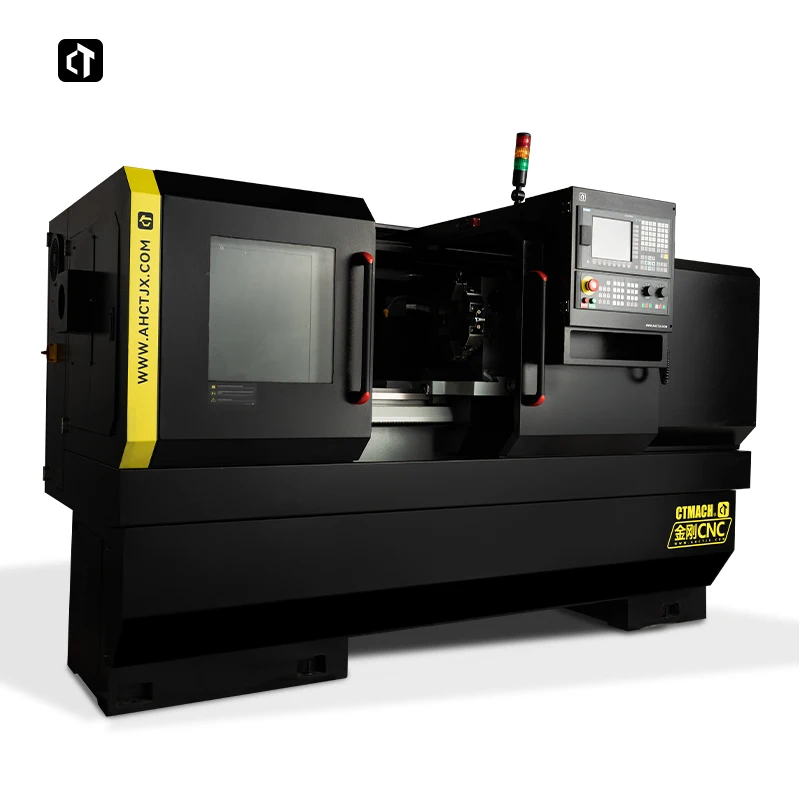

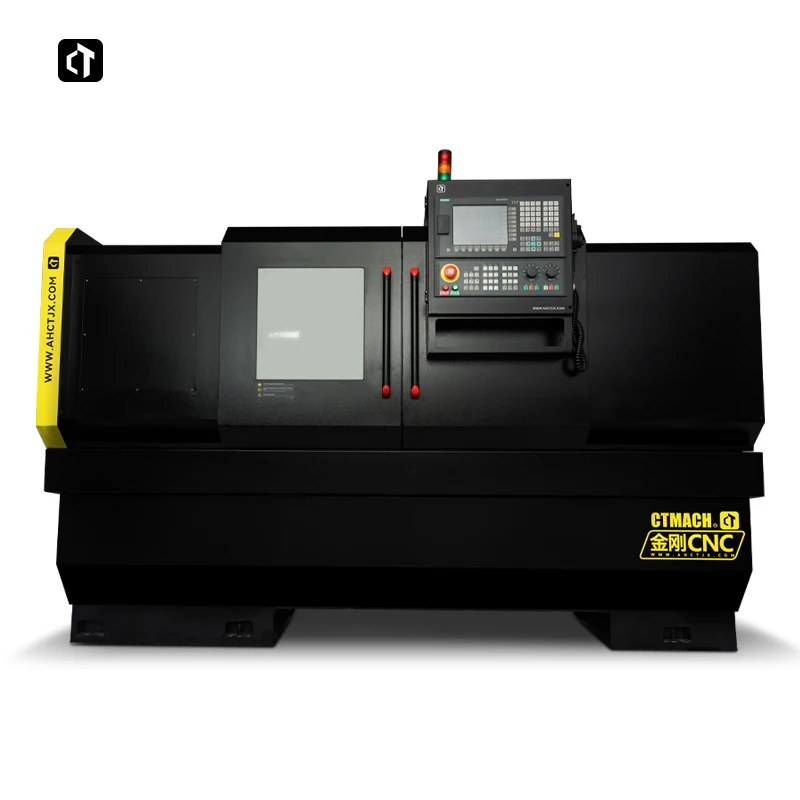

CTCNC40C Industrial CNC Lathe
1-High rigidity flat bed hard rail CNC lathe.
2-The surface of the bed guide is precision ground and hardened, HRC50.
3-The spindle adopts high-precision bearings to ensure the rigidity and precision of the machine.
4-High-precision grinding ball screw, positioning and machining accuracy is more stable.
5-Siemens 808D system.
6-Integral casting bed feet are optional to improve the overall rigidity of the machine.
2-The surface of the bed guide is precision ground and hardened, HRC50.
3-The spindle adopts high-precision bearings to ensure the rigidity and precision of the machine.
4-High-precision grinding ball screw, positioning and machining accuracy is more stable.
5-Siemens 808D system.
6-Integral casting bed feet are optional to improve the overall rigidity of the machine.
Introduction to Parameters CTCNC40C | CTCNC40C | |
Rotation diameter of bed | 400 mm | |
Swivel diameter on the middle carriage | 210 mm | |
Maximum workpiece length | 1000 mm | |
Spindle speed range | 200-2000 rpm | |
Spindle diameter | 82mm | |
Spindle hole taper | MT6 | |
Number of stations | 6 | |
Tool holder specifications | 20 mm | |
Tailstock sleeve taper | MT4 | |
Tailstock sleeve stroke | 120 mm | |
Main motor power | 7.5 kw | |
Pump motor power | 180 w | |
(ZX) Feed motor torque | 6 NM | |
Z axis rapid traverse speed | 10 m/min | |
X-axis rapid movement speed | 8 m/min | |
Z-axis repeatability | ≤ 0.01mm | |
Repeated positioning accuracy of X axis | ≤ 0.008mm | |
XZ axis positioning accuracy | ≤ 0.015mm | |
Machine size | ≈2640x1500x1766 mm | |
Net weight | ≈1800 kg | |
Machine Size
Machine size\t≈2640x1500x1766 mm
Net weight\t≈1800 kg
Reminder: The product size is measured manually, there is a small error, which is normal, and the actual product shall prevail.
Net weight\t≈1800 kg
Reminder: The product size is measured manually, there is a small error, which is normal, and the actual product shall prevail.
Show Deails
Siemens 808D system

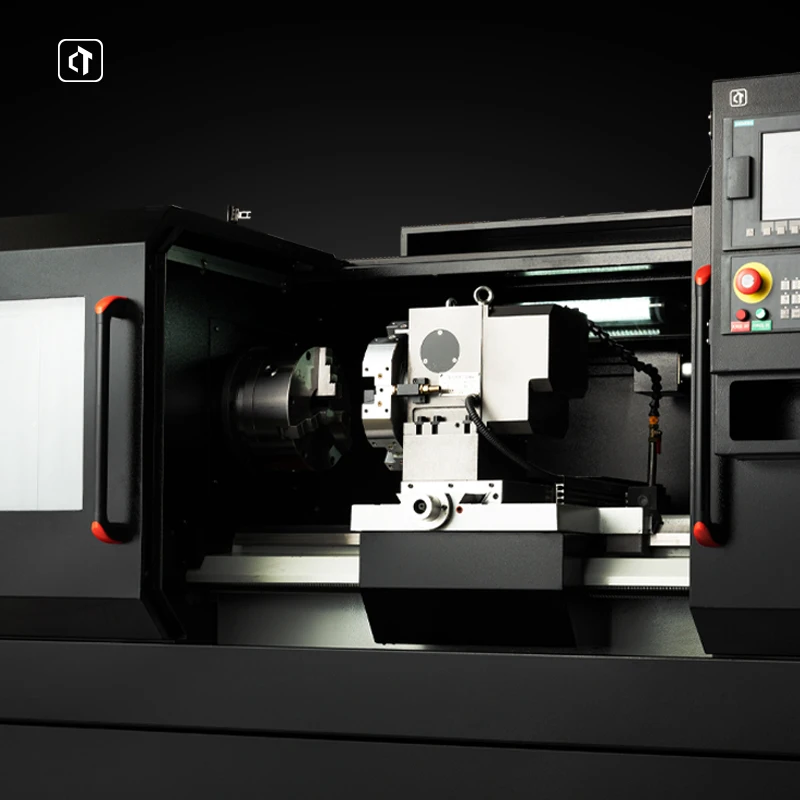

6-station electric tool holder
Shank size: 20x20mm
Shank size: 20x20mm
All-Inclusive Sheet Metal
Double sliding door power off
Double sliding door power off
Induction hardening
Hard rail
High strength, strong bearing capacity
Hard rail
High strength, strong bearing capacity
Continuously variable speed
200-2000rpm
Independent Spindle A2-8
200-2000rpm
Independent Spindle A2-8
Frequency conversion main motor 7.5KW
Spindle through hole 82mm
Spindle through hole 82mm
Handheld Electronic Handwheel
Automatic Lubrication Pump
Standard Accessories
Company Profile
CTMACH is one of the largest manufacturers of bench lathes in China. We have 12 years of production and R&D experience. In 2019, we established foreign trade export sales department. We specialize in independent research and development, production, sales and after-sales service of small household machine tools, lathes, drilling and milling machines, small multi-function drilling and milling machines, small CNC machine tools, and cutting machines. Our products are exported to more than 30 countries such as Europe and the United States, and these machines are used in many industries and fields. We always insist on technological innovation and standard process production. We have engineers and after-sales service technicians who have been engaged in mechanical design for many years; with excellent technology and equipment support, our product quality has won the trust and appreciation of many foreign users.
Products are exported to more than 30
countries and regions in the world
CE IS9001
Packing & Shipping
FAQ
Q.What are your normal lead times?
A.Usually, we have stock of the machine, for stock machine we can send it out within 5days after got the payment. And for customized machine need 20-30days after got the payment.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification.
Q: How is the Quality warranty?
A: Warranty time is 13 months after BL date. And every machine before send it out, we have quality controller to test the machine.
Q. Do you have technical support?
A. Yes, we have professional techinal department, they will help solve your problem at anytime.
Q.What kind of package do you offer?
A.Normally in polywood case, to make sure all machines in good condition when shipping.
A.Usually, we have stock of the machine, for stock machine we can send it out within 5days after got the payment. And for customized machine need 20-30days after got the payment.
Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
Q.Do you have CE certification？
A.Yes, we have CE certification.
Q: How is the Quality warranty?
A: Warranty time is 13 months after BL date. And every machine before send it out, we have quality controller to test the machine.
Q. Do you have technical support?
A. Yes, we have professional techinal department, they will help solve your problem at anytime.
Q.What kind of package do you offer?
A.Normally in polywood case, to make sure all machines in good condition when shipping.
Похожие товары
Оригинальный STC8F2K64S2-28I-LQFP32 8051 Микроконтроллер MCU расширенная, размеры для возраста от 1
2023 оптовая продажа облицовочный строительный материал водонепроницаемый Wpc стеновые панели стены интерьер декоративные
0,70 $ - 1,00 $

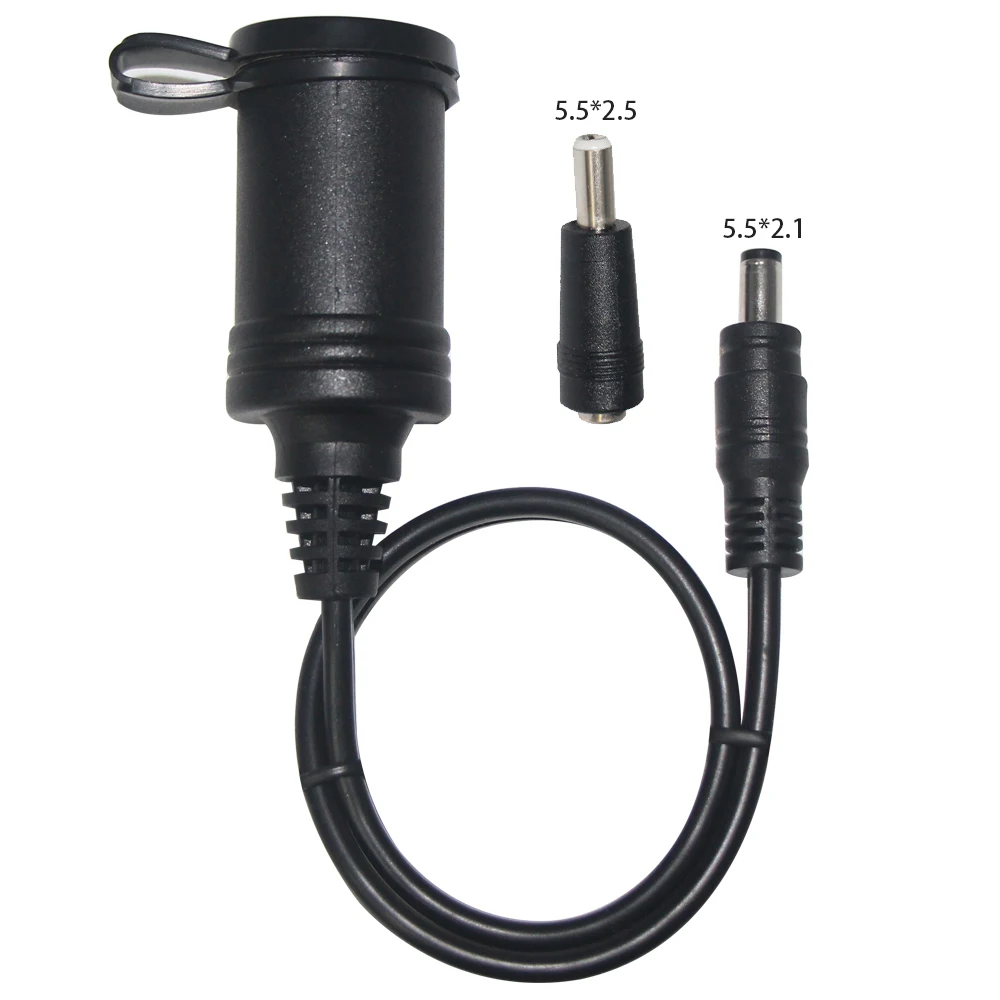

Автомобильный 12 В/24 В автомобильный прикуриватель гнездовой разъем к DC 5521 штепсельному кабелю преобразователя автомобиля
0,79 $ - 0,85 $
Сделано в Корее, Премиум усилитель мощности, омоложение кожи, косметическая сыворотка с PCL, поликапролактон, комплекс для лица
Российский рынок сопротивление разрыву прочная надувная буксируемая Снежная трубка с
27,50 $ - 30,00 $

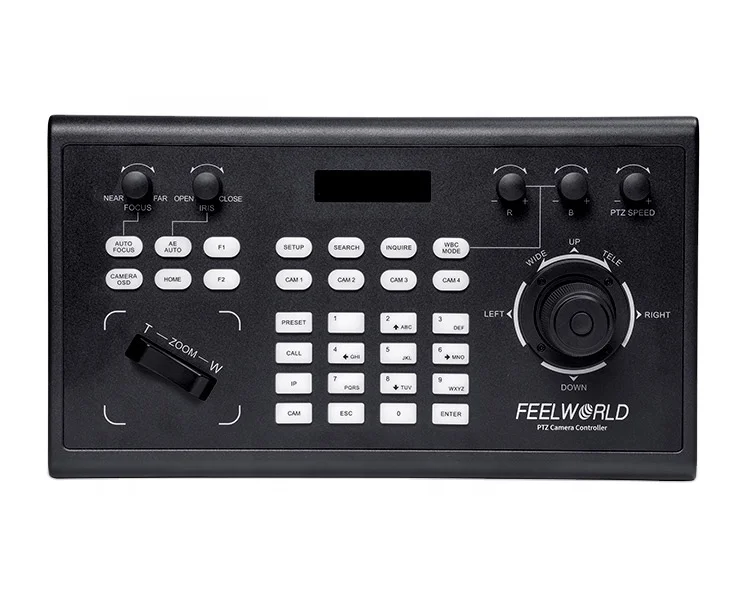

Контроллер камеры FEELWORLD KBC10 PTZ с джойстиком и управлением клавиатурой, поддержка PoE
447,99 $ - 559,99 $

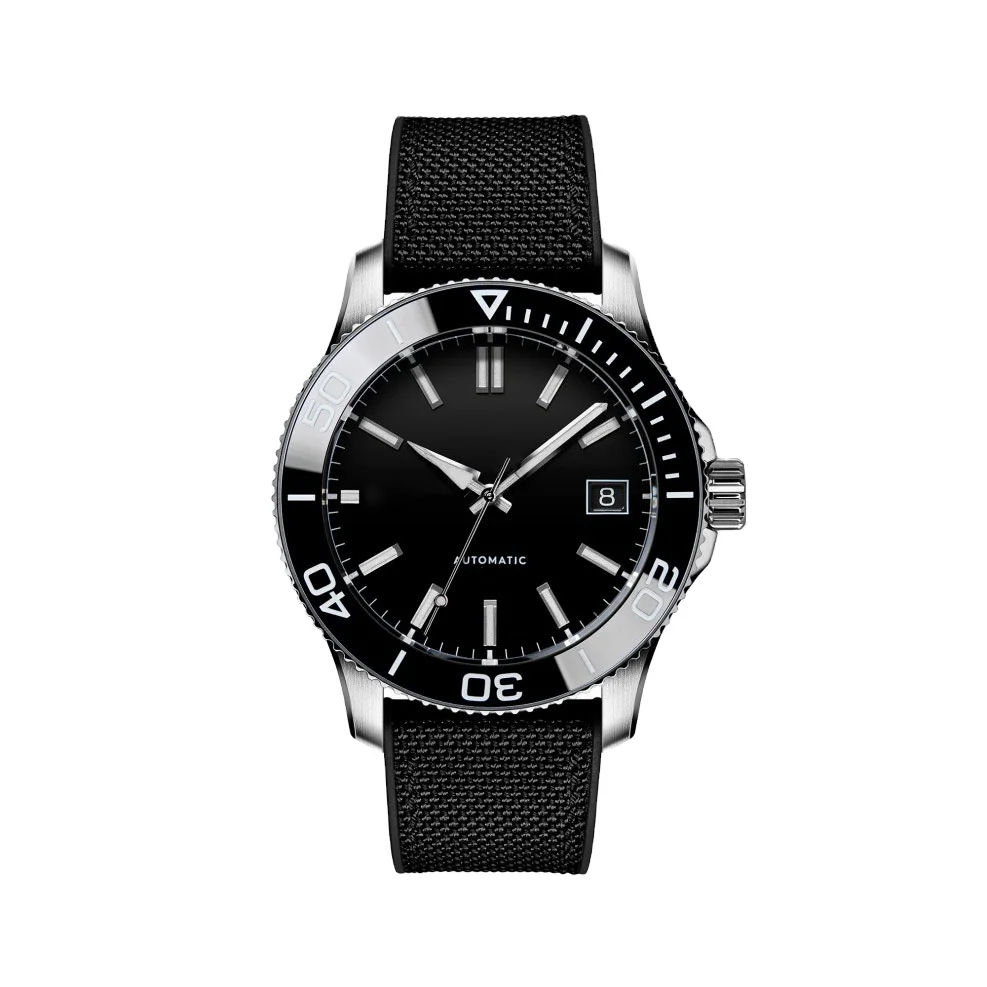

Водонепроницаемые автоматические механические мужские/мужские наручные часы с календарем тунца с логотипом на заказ, 10 АТМ
