Машина для производства древесного угля с опилками кокосовым углём барбекю углем деревянная печь подъема карбонизирующая Цена 0-10 часов
500,00 $
Экологичная Горизонтальная Печь для карбонизации печь кокосовой оболочки
- Категория: Woodworking Machinery >>>
- Поставщик: Henan Kunteng Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1600516441506:
Описание и отзывы
Характеристики
Product Photograph
Product field

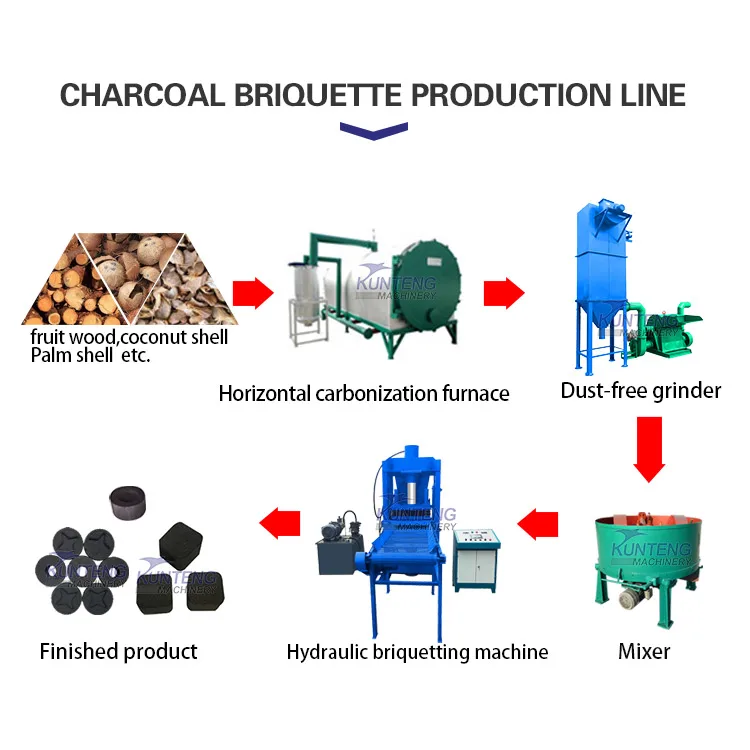

If you have a lot of coconut shell,palm shell, carbonize them into charcoal by horizontal carbonization furnace, crush them into carbon powder below 3mm by dust-free crusher, add our free binder recipe for you, and enter the automatic feeder. In the end, After forming by briquette machine, it can be made into the shape you want, sphere, cylinder, cubic, honeycomb shape and etc. The price of charcoal on the market is five times the price of wood or other biomass.
Product details

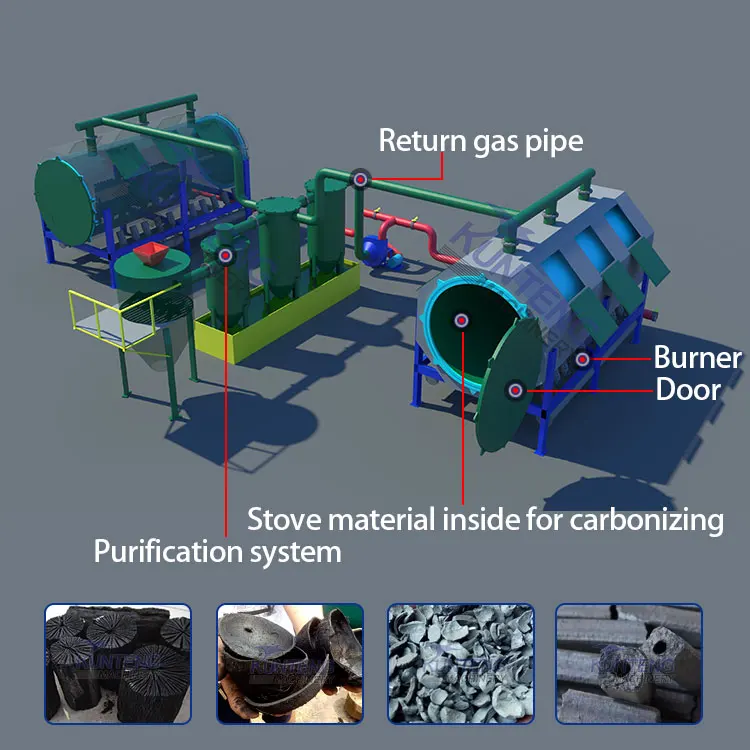

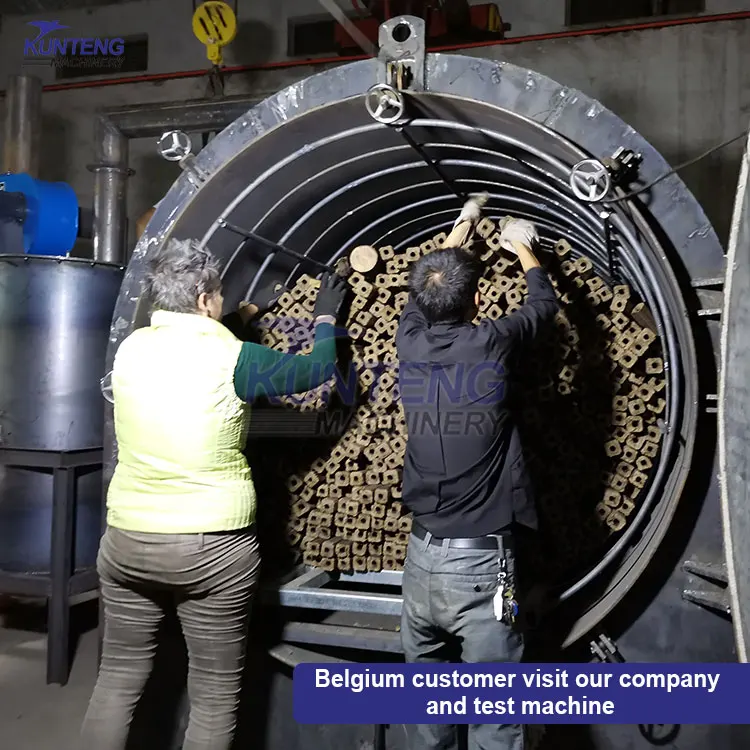

HORIZONTAL CARBONIZATION FURNACE
Horizontal carbonization furnace is an externally heated charcoal furnace. When making the carbonization furnace, there are three layers of high-temperature insulation cotton shop in it. A flue gas purification system is installed behind the furnace, which is smoke-free and environmentally friendly. Complies with current environmental requirements.

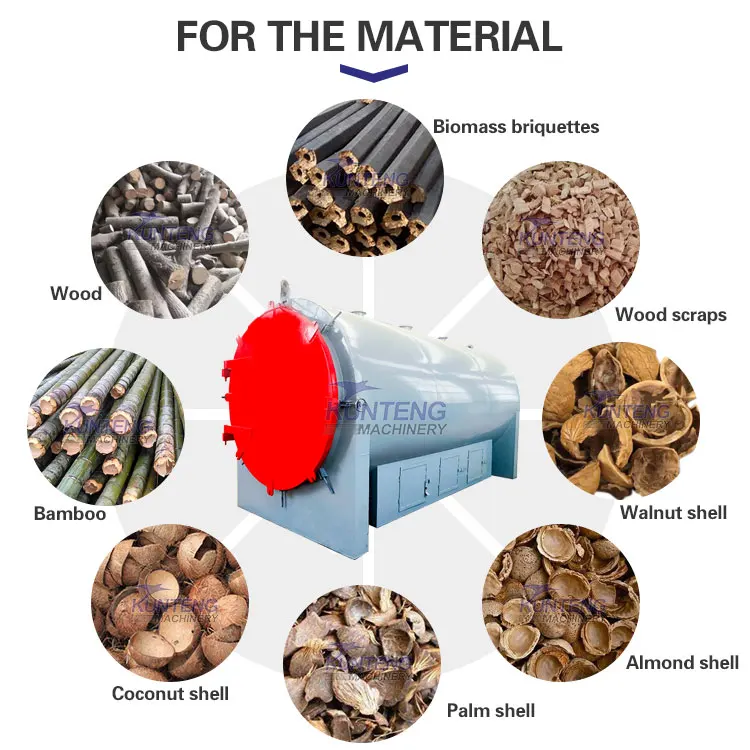

Product material
Raw materials can be coconut shell,palm shell, some crops, bamboo, waste wood, branches, trunks, logs, bark,stumps, roots, miscellaneous wood, wood, wood board, site formwork, wooden pallet, sawdust,shavings, wood chips, bamboo charcoal fiber, etc. Fruit wood,poplar, bamboo, bamboo wood, bamboo plywood, bamboo target, rice husk, corncob, peanut shell, furfural residue, coconut shell,palm shell, semi-coke and etc.After they are made into charcoal, the price is three to five times that of the raw material.
Before and after molding
We could customize reasonable and efficient production line according to customers' site, raw materials,output and other
requirements.
First,coconut shell palm shell such are crushed through a dust-removing pulverizer, and then put into a drying equipment for drying. After the moisture of the material is evaporated, it is added to a mechanism charcoal machine and pressed into the shape of biomass wood sticks. Finally, it is put into a horizontal carbonization furnace, and the carbon yield is as high as 80%.
Product parameters
Type | Size | Capacity | Gross Weight | Thickness of steel |
1500-1000 | 1.5m*p1.0m | 600kg | 400kg | 6mm |
1500-1200 | 1.5m*1.2m | 750kg | 500kg | 6mm |
1500-1400 | 1.5m*1.4m | 900kg | 700kg | 6mm |
1500-1700 | 1.5m*1.7m | 1500kg | 1000kg | 8mm |
2000-1700 | 2m*01.7m | 2100kg | 1300kg | 8mm |
3000-1500 | 3m*01.5m | 3000kg | 2500kg | 12mm |
3000-1700 | 3m*01.7m | 3900kg | 2700kg | 12mm |
4500-1700 | 4.5m*01.7m | 6000kg | 3200kg | 12mm |
4500-2000 | 4.5m*2.0m | 9000kg | 3700kg | 12mm |
CONTINUOUS CARBONIZATION FURNACE
The continuous carbonization furnace adopts a horizontal structure,which saves hoisting equipment and simplifies the carbonization process compared with the hoisting carbonization furnace;thecarbonization furnace adopts advanced hot air carbonization technology,which greatly improves the carbonization rate,is easy to operate,and has good safety.It can save a lot of energy,from the original carbonization rate of about 80% to 90%.

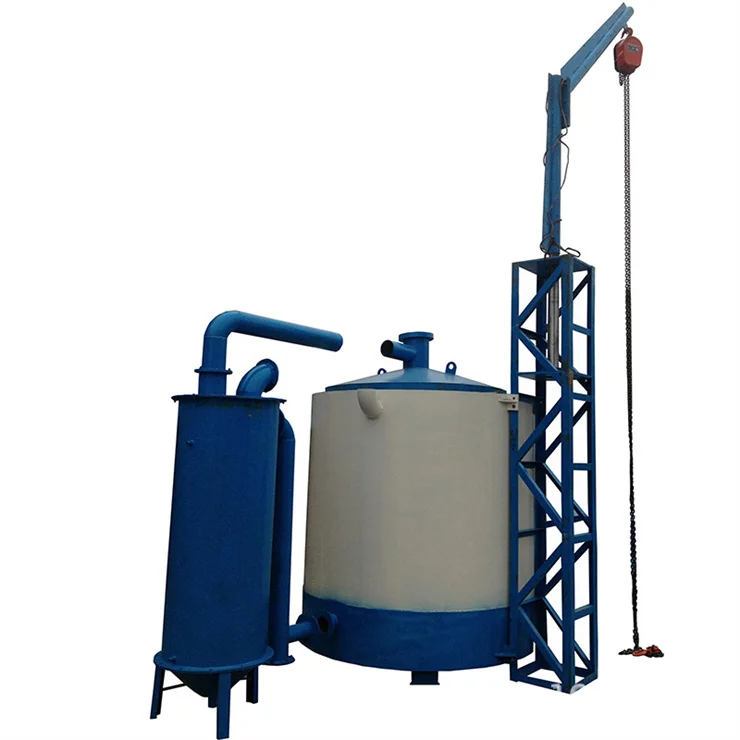

HOISTING CARBONIZATION FURNACE
The carbonization furnace and other energy-saving and environmentally friendly carbonization equipment have the same carbonization principle, but the structure of the carbonization host is different, and the type and output of finished products are different.
All the coconut shell carbonization oven,palm shell carbonization oven,horizontal carbonization furnace will be wrapped up with plastic film first (including the motor). The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements) The small carbonization machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
KUNTENG Machinery Co., Ltd. serves the charcoal carbonization machine industry and has mature experience in research &development, design,manufacturing and installation. Machinery has cooperated with many manufacturers in China and other countries to provide hydraulic machinery equipment for the production lines of many manufacturers.Machinery pays attention to customer applicability and product research and development, and the level of production skills is perfect.To undertake the design and manufacture of various charcoal carbonization machines, such as horizontal carbonization furnace, coconut shell carbonization oven,palm shell carbonization oven, etc.
FAQ
Q1: Who are we?
A1: we are professional charcoal briquette machine manufacturer with more than 20 years’ experience. Until 2022, our machine is sell to all over the world, Africa(30.00%), Eastern Europe(20.00%), Southeast Asia(20.00%),Mid East(20.00%), Eastern Asia(5.00%),South Asia(5.00%). There are total about 500 people in our company.
Q2: Why should you buy from us not from other suppliers?
A2: We have more than twenty years experience of making charcoal briquette machine, we always focus on improving the quality, use the best materials and high technology for making our products. We also have the most perfect after-sales service. All customers who have purchased our products will become our returned customers.
Q3 : How can we guarantee quality?
A3 : Always a pre-production sample before mass production. Always final Inspection before shipment.
Q4: May I visit your company?
A4: Warmly welcome you to visit our company, consultation, sample testing, please contact us before making an
appointment.
Q5: How much is the shipment charge?
A5: It depends on your import port and the number of machines, different sizes, different quantities, different port shipping
costs.
Q6: How to install and operate the machine?
A6: We will provide the installation and operation manual, you can follow the manual for installation and operation, can also provide you with video or online support.
Похожие товары

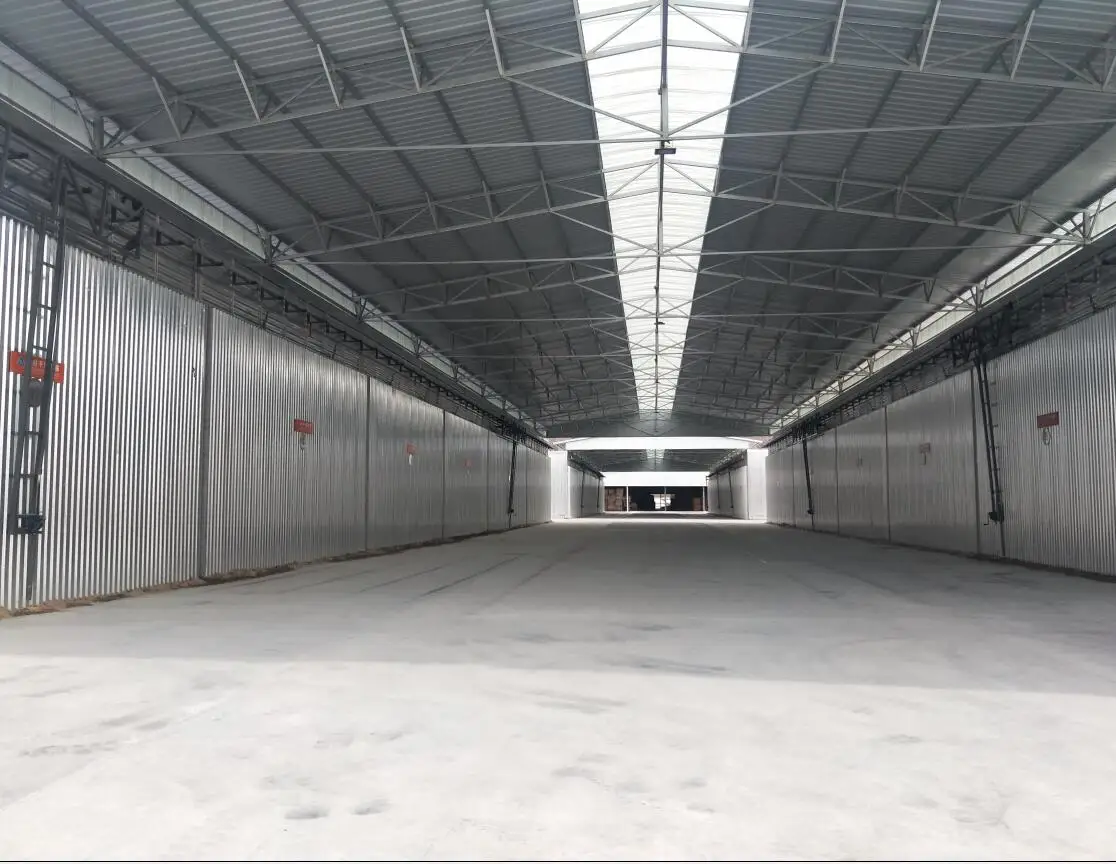

Сушильная печь для дерева сушильная контейнерного типа сушилка
19 000,00 $ - 20 000,00 $

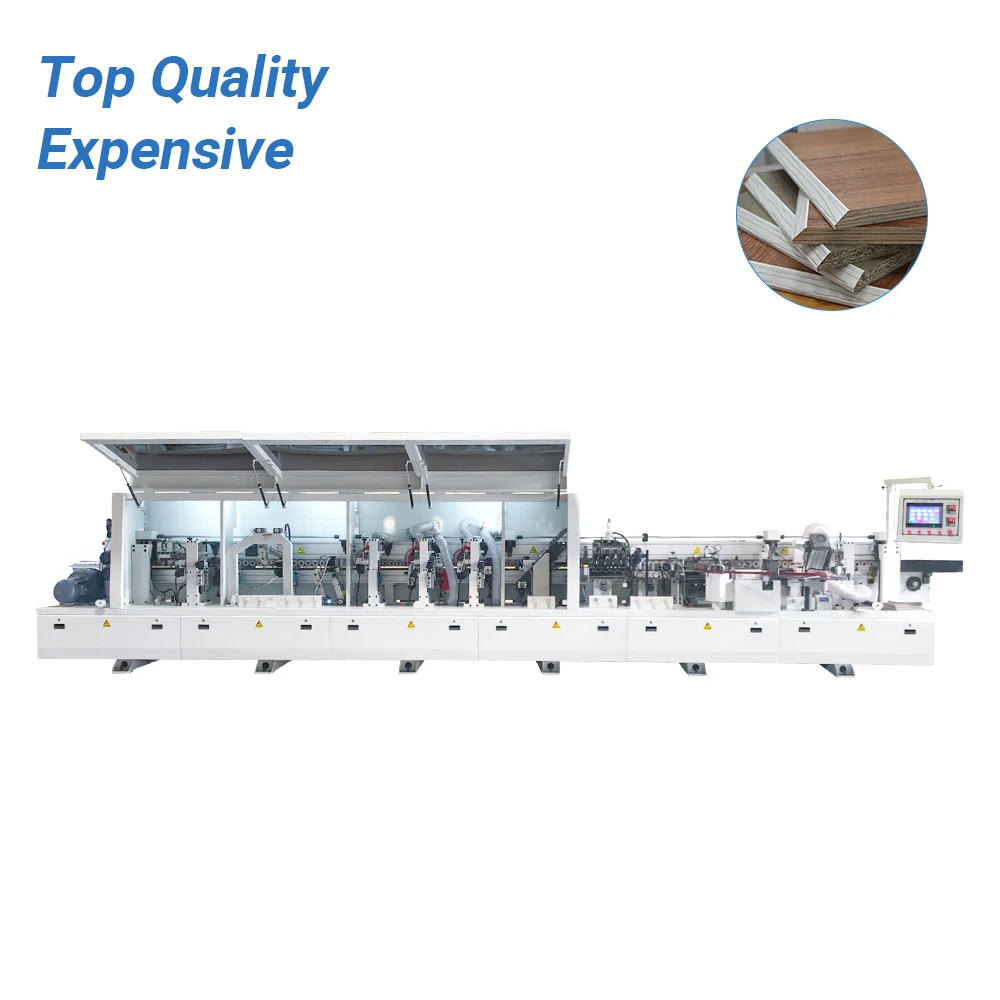

Деревообрабатывающее оборудование Edgebander Kdt ПВХ Многофункциональный конический 45 градусов угловой Кромкооблицовочный станок большой
17 500,00 $ - 21 700,00 $

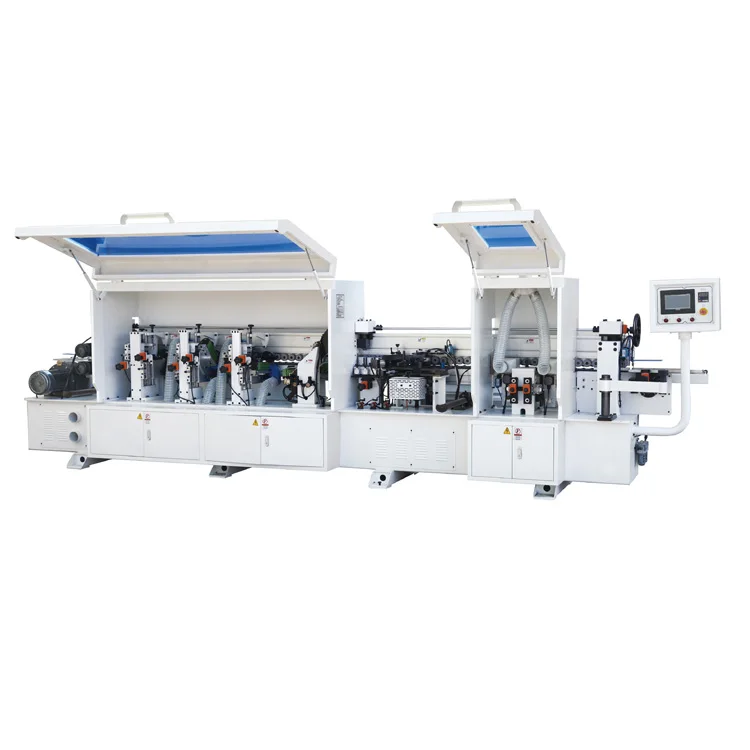

360J деревообрабатывающий автоматический кромкооблицовочный станок для
9 800,00 $ - 10 000,00 $
Высокоскоростная машина для производства деревянных дюбелей/Круглое деревянное оборудование изготовления дюбелей/Деревянные дюбели по цене
Машина для очистки
97 000,00 $
Автоматический 3d 1325 Дерево ЧПУ машины с резьба по дереву фрезерный станок 4 оси цена для нержавеющая сталь кухонный кабинет
6 269,00 $ - 8 857,00 $

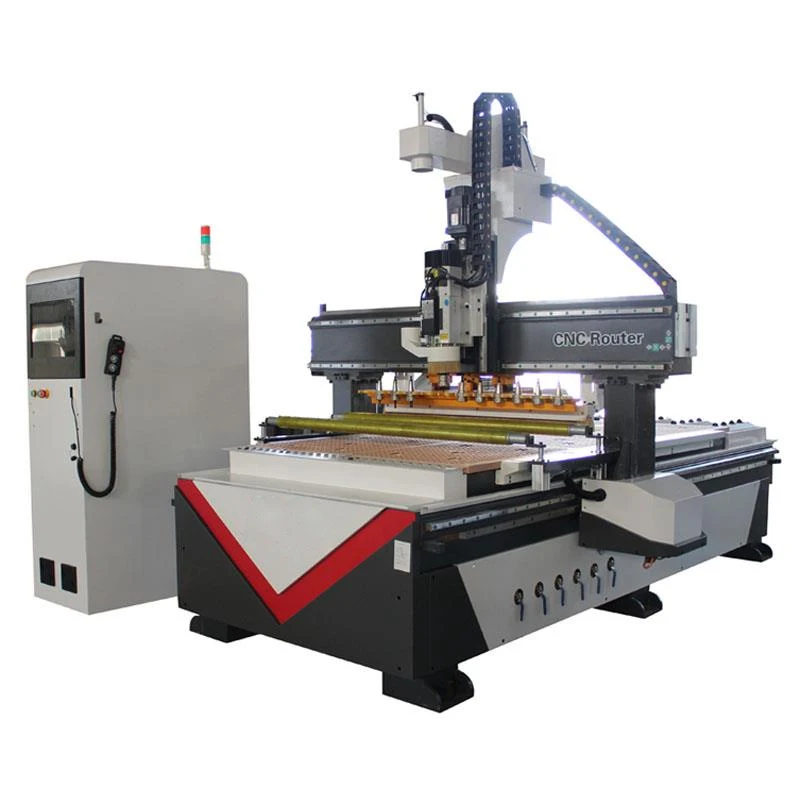

1325 Atc CNC деревообрабатывающий фрезерный станок 8X4 автоматический инструмент сменный режущий
