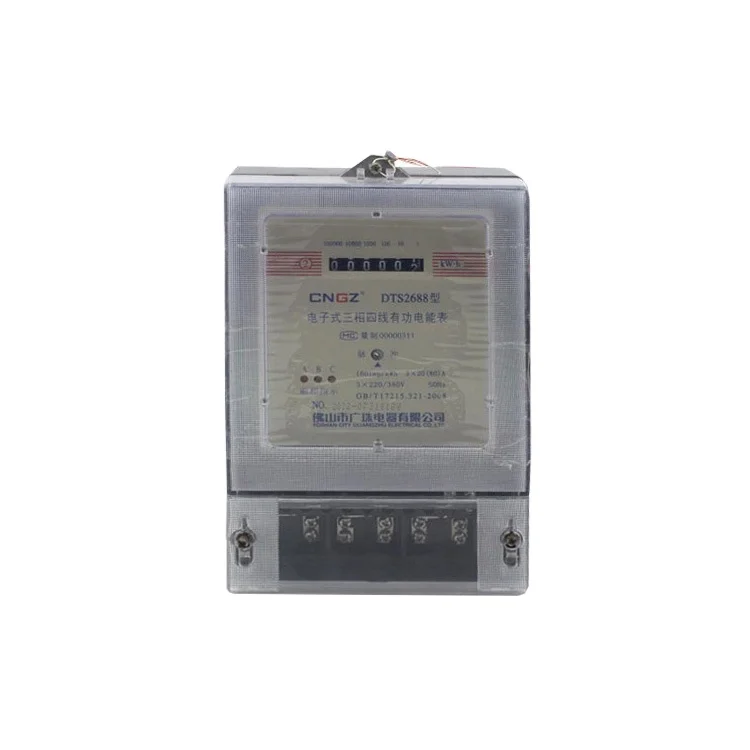

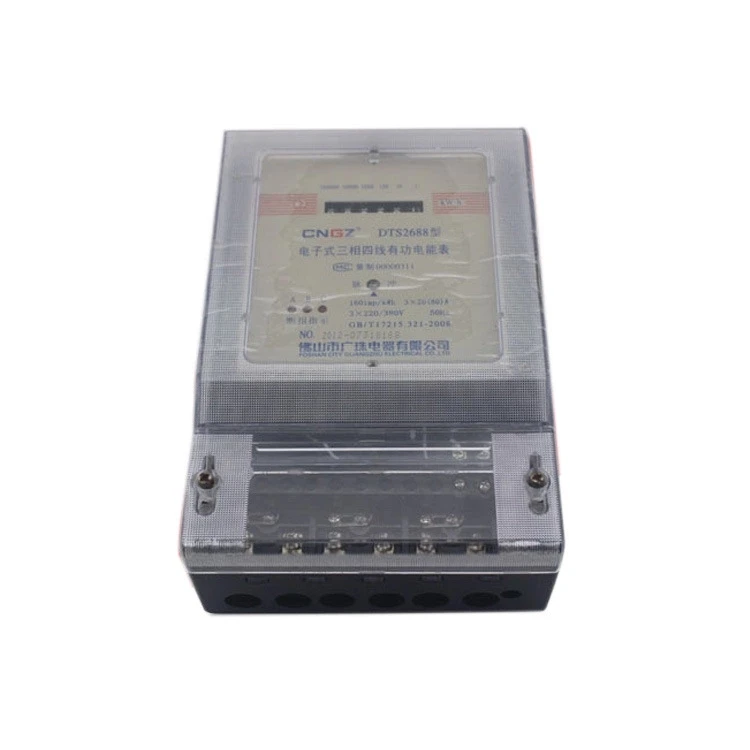

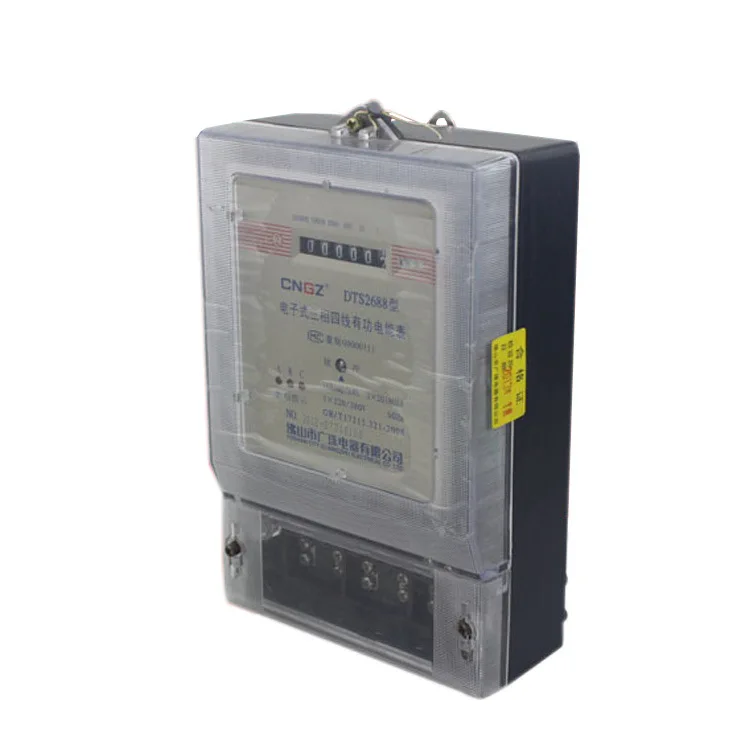

Заводская поставка DTS2688 трехфазный ваттный счетчик часов кВтч Электрический измеритель мощности энергии
- Категория: >>>
- Поставщик: Foshan Guangzhu Electrical Co. Ltd.
Сохранить в закладки 1600516568766:
Описание и отзывы
Характеристики
◊◊ Factory supply DTS2688 Three phase watt hour meter kwh electric power meter Electrical Energy Meter ◊◊
Product Description
1. Electrical Meter Description
DTS2688 Three phase electro mechanical energy meter is a induction meter,which is applicable to measure the rated frequency 50Hz and power loss of active and reactive energy meter. The series active energy meters are completely conformed to National Standard GB/T17218.311 -2008ClassO5,1 and 1 AC Active Watt-hour Meter and International Standard lEC5yea21. All technical targets of reactive meter are completely conformed to National Standard GB/T 15282-1994 Reactive Watt hour Meter and International Standard IEC60521.
2. Electrical Meter Technical Data
1.Model:DTS2688
2.Standard: IEC521-1988
3.Function:measurement the active electric energy
4.Rated current:1.5(6)A,2.5(10)A,5(20)A,3(12)A,10(40)A,15(60)A,20(80)A,30(100)A
5.Rated voltage:400V
6.Accuracy:0.5,1,2
7.Rated frequency:50Hz
8.Bearing:Dual jewel,magnetic thrust,magnetic floating
9.Case:Aluminum,plastic,glass,bakelite,PC,ABS plastic
10.Register:5+1 or 6
11.Certificate:ISO9001:2000, ISO14001:1996,CE
energy meter Name | energy meter Model | energy meter Reference voltage (V) | energy meter Accuracy | energy meter Basic current)( Max rated current )(A) |
3 phase 4 wire
Active
energy meter | DT862 | 3X220/380 | 2
| 3X1.5(6)3(6)5(20)10(40)15(60)20(80)30(100) |
DT864 | 3X220/380 | 1 | 1.5(6)3(6) | |
3 phase 3 wire
Active
energy meter | DS862 | 3x380 | 2 | 3X1.5(6)3(6)5(20)10(40)15(60)20(80)30(100) |
3x100 | 3X1.5(6)3(6) | |||
DS864 | 3x380 | 1 | 3X1.5(6)3(6) | |
3x100 | ||||
3 phase 4 wire
Reactive
energy meter | DX862 | 3x380 | 3 |
3X1.5(6)3(6) |
DX864 | 3x380 3x100 | 2 |
3X1.5(6)3(6) | |
3 phase 3 wire
Reactive
energy meter | DX865 |
3x380 3x100 | 3 | 3X1.5(6)3(6) |
DX863 | 3x380 3x100 | 2 | 3X1.5(6)3(6) |
Product Brief Introduction:
Model DT862 three phase electromechanical meter ,It can accurately and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net,it is use for setting indoor or outdoor meter box.The meter has novel design,rational structure,and it can display total energy consumption by drum wheel mechanical counter.It has following features:High overload,power loss,long-life,specious appearance,etc.
Function and features:
1.The meter frame adopt aluminum molding with excellent mechanical strength,stable structure and anti-impact.
2.Voltage components and current components is used of double insulation structure,has good electrical characteristics.
3.Standard configuration the meter adopt dual gem bearing,oriented bearing is made of lubrication graphite bush and stainless steel needle.It has following features:Long-life and minimal friction,etc.May select magnetic thrust bearing.
4.All kinds of error adjustment mechanism adopt no step shifting mechanism.The meter starting and creeping needn't to be adjusted which is finished by anti-creeping hole of discand convenient for adjusting.
5.Standard configuration 6 digits display by drum wheel mechanical counter,may select 7 digits display by drum wheel mechanical counter.
6.Standard configuration without the device which can prevent retrograde,may select add the function of prevent retrograde.
7.Two components measurement three phase three wire active energy consumption.
8.Standard confiuration for direct connect operation,type A wiring,we can also choose another type of wiring,and use CT,type B wiring.
9.Standard configuration short terminals cover,may select extension terminals cover,it is for protecting use electricity safety.

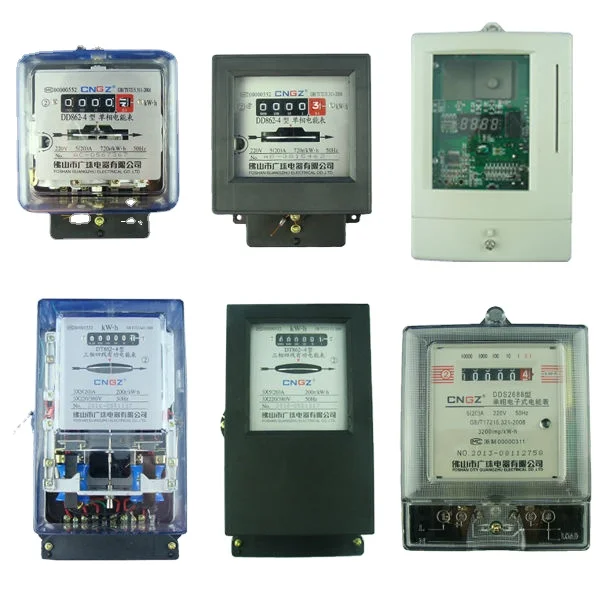

3. Electrical Meter Pictures
Different electrical meter types for selection
From left to right
1.DD862-4 transparent single phase electrical meter
2.DD862-2 black single phase electrical meter
3.White Pre-paid meters
4.DT862 transparent three phase electrical meter
5.DT862 black three phase electrical meter
6.DDS2688 single phase electronic watt-hour meter
Company Information
Company View
Our Services
Our Services
1. Reply your enquiry in 24 working hours.
2. Experienced staffs answer all your questions in professional and fluent English.
3. Customized design is available. OEM & ODM are welcome.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5. Special discount and protection of sales area provided to your distributor.
FAQ
FAQ
Q 1. what's the delivery time?
A. usually it will take about 15 days for production.
Q 2. tell me the standard of package?
A. Standard export carton packing with good quality carton box.
Q 3. what kind of material of circuit breaker?
A. we have two types, one copper coil with silver point and the other is brass coil with copper point. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the electrical life. Copper and silver is better and also higer price.
Q 4.Can you accept to use our logo?
A.If you have good quantity,it absolute no problem to do OEM or ODM.
Q 5.We want to know monthly capacity.
A. 100000pcs/month
Q 6. what kind of certificate do you have?
A. Our company already achieve ISO, and for products, we have CE & CB certificates.
