4 крыльчатка Paddlewheel 1.5Kw 380 В нержавеющая сталь 304 колеса затвора для рыбной фермы пруд аэратор
- Категория: Aquaculture Equipment >>>
- Поставщик: Zhejiang Zhentai Electromechanical Co. Ltd.
Сохранить в закладки 1600516752693:
Описание и отзывы
Характеристики
Product Paramenters
Product Description

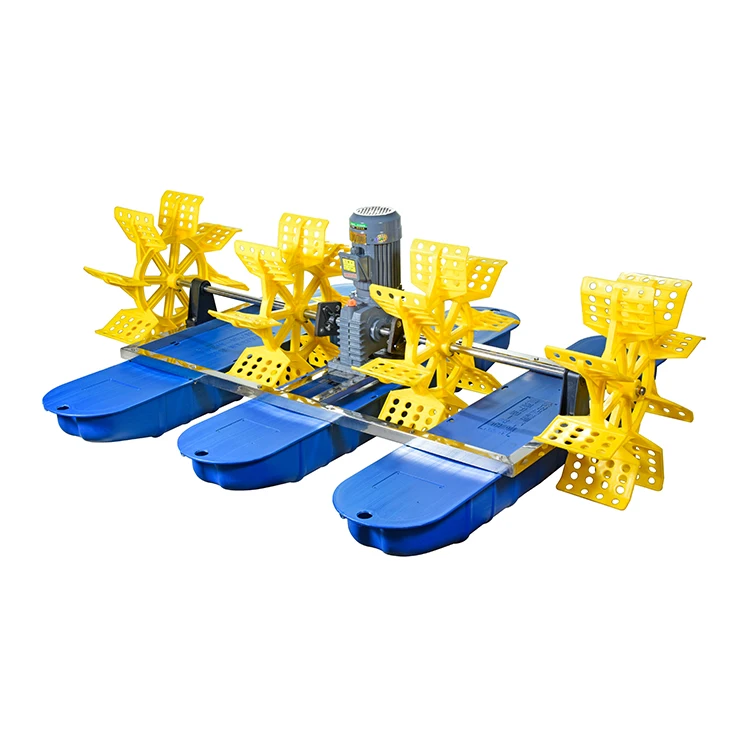

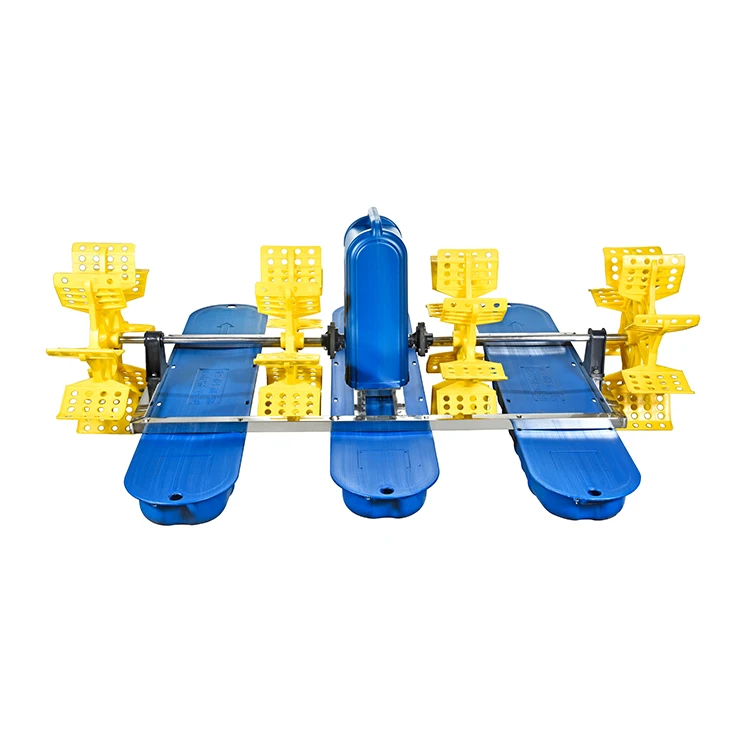

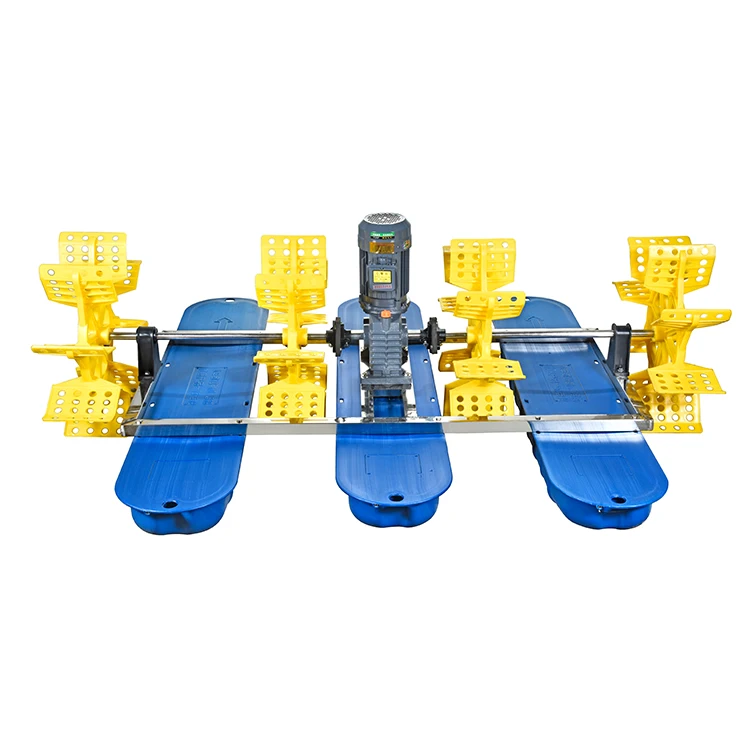

The waterwheel type aerator is developed by our company based on the latest international popular models and has made major breakthrough improvements in the transmission mechanism.
● Adopt arc-shaped bevel gears, instead of turbine worm, energy saving and high efficiency, more than 20% power saving than traditional models.
● The curved bevel gear is made of chrome-manganese-titanium alloy steel, the surface is carbonitrided, with high hardness and long service life.
● Adopt mechanical seal to ensure no oil leakage pollution.
● Protective photos are installed inside the motor to avoid accidental burnout of the motor.
● The whole machine is made of plastic pontoon, nylon impeller, stainless steel shaft and bracket.
● Adopt arc-shaped bevel gears, instead of turbine worm, energy saving and high efficiency, more than 20% power saving than traditional models.
● The curved bevel gear is made of chrome-manganese-titanium alloy steel, the surface is carbonitrided, with high hardness and long service life.
● Adopt mechanical seal to ensure no oil leakage pollution.
● Protective photos are installed inside the motor to avoid accidental burnout of the motor.
● The whole machine is made of plastic pontoon, nylon impeller, stainless steel shaft and bracket.
Technical Parameter
Model | Voltage (V) | Power (kW) | Oxygen transfer rate (kgo²/h) | Power efficiency (kgo²/h) | No load noise dB(A) | Weight (kg) | 20 container (set) |
SC-0.75 | 380 | 0.75 | ≥ 1.10 | ≥ 1.25 | ≤ 78 | 80 | 85 |
SC-1.1 | 380 | 1.1 | ≥ 1.25 | ≥ 1.25 | ≤ 80 | 80 | 85 |
SCD-1.5 | 220 | 1.5 | ≥ 1.90 | ≥ 1.25 | ≤ 80 | 100 | 70 |
SC-1.5 | 380 | 1.5 | ≥ 1.90 | ≥ 1.25 | ≤ 80 | 100 | 70 |
● Gears are made of chrome-manganese-titanium alloy steel, the surface is carbonitrided, with reasonable hardness matching and longer service life.
● The impeller is assembled without welding, with high concentricity, stable operation and convenient transportation.
● Advanced motor performance design, high-quality copper enameled wire, high-grade insulation, and advanced production technology have improved the safety, reliability, energy-saving and high-efficiency of motor operation.
● Install a protector according to customer requirements to avoid accidental burnout of the motor.

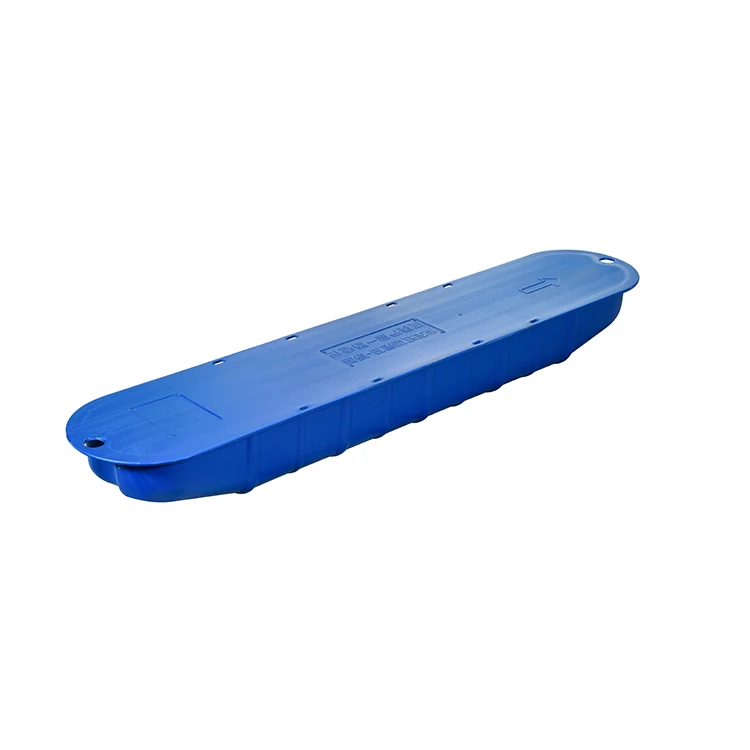

● Integral plastic (PE) float.
● The impeller can be equipped with plastic, stainless steel, high-quality steel hot-dip galvanizing, etc. according to different use environments and special requirements of customers, so as to ensure extended service time in seawater or strong corrosive water, and there is no need to replace the impeller or paint frequently.
● The impeller is assembled without welding, with high concentricity, stable operation and convenient transportation.
● Advanced motor performance design, high-quality copper enameled wire, high-grade insulation, and advanced production technology have improved the safety, reliability, energy-saving and high-efficiency of motor operation.
● Install a protector according to customer requirements to avoid accidental burnout of the motor.
● Integral plastic (PE) float.
● The impeller can be equipped with plastic, stainless steel, high-quality steel hot-dip galvanizing, etc. according to different use environments and special requirements of customers, so as to ensure extended service time in seawater or strong corrosive water, and there is no need to replace the impeller or paint frequently.
Technical Parameter
Model | Voltage (V) | Power (kW) | Speed (r/min) | Oxygen transfer rate (kgo²/h) | Dynamic efficiency (kgo².kwh) | Load | Weight (kg) | 20 container (set) |
SW-1.1 | 380 | 1.1 | 110 | ≥ 1.6 | ≥ 1.4 | 3-4 | 70 | 85 |
SW-1.5 | 380 | 1.5 | 110 | ≥ 2.3 | ≥ 1.5 | 4-8 | 80 | 80 |
SWD-1.5 | 220 | 1.5 | 110 | ≥ 2.3 | ≥ 1.5 | 4-8 | 80 | 80 |
SW-3 | 380 | 3.0 | 110 | ≥ 4.5 | ≥ 1.5 | 6-10 | 100 | 80 |
Aeration surge aerator is the latest product in aquaculture oxygenation equipment. The biggest advantage of its design is power saving. The oxygenation principle is different from the impeller type and the waterwheel type. The unique flower-shaped spiral impeller cooperates with the annular The buoy can make the output water erupt upward, causing the water body in a certain area to be boiling, thus improving the contact between the water body and the air during the eruption process, thereby increasing the dissolved oxygen in the water body. At the same time, the water directly passes through the motor and the reducer when it erupts upwards, so that the motor and the reducer can work for a long time without heating under the cooling of the water, which eliminates the common problems of the motor's heating, current increase and burnout caused by long-term operation.
Technical Parameter
Model | Voltage (V) | Power (kW) | Current (A) | Speed (r/min) | Oxygen transfer rate (kgo²/h) | Dynamic efficiency (kgo².kwh) | Load |
SWYB-1.5 | 380 | 1.5 | 3.8 | 430 | 2.8 | 1.5 | 5-8 |
SWYBD-1.5 | 220 | 1.5 | 12 | 430 | 2.8 | 1.5 | 5-8 |
Floating pumps have spread all over the country and exported to more than ten countries and regions. The floating pump can float on the water surface and rise and fall with the water level.
It has completely changed the drawbacks of submersible pumps that affect the life of submersible pumps due to sediment and silt. It is a new generation of portable irrigation and drainage machinery.
It has completely changed the drawbacks of submersible pumps that affect the life of submersible pumps due to sediment and silt. It is a new generation of portable irrigation and drainage machinery.
Product Features
● Easy to use: As long as the pump is put into the water and connected to the power supply, it can start to pump water, no need for a port, not afraid of rain, not restricted by dust collection, light weight, and extremely convenient to move.
● Energy saving and electricity saving: Change the suction lift to the pressurised water lift, no matter which specification and model, the water inlet is always at 25-50cm below the water surface, and is always in the best suction position, which not only shortens the pipeline but also does not need to install a bottom valve, so it can save energy. Electricity.
● Long service life: The shaft seal of the floating pump is not affected by sedimentation at the bottom of the water, there is no deep water pressure, and it is impossible to sink into the mud, so the shaft life is long.
● Increase crop growth: Since the water on the surface of the river sucked by the floating pump is higher than the water temperature at the bottom of the river, it is beneficial to the growth of crops such as rice. Taking rice as an example, the yield per mu of early rice can generally be improved compared with the control group.
● Energy saving and electricity saving: Change the suction lift to the pressurised water lift, no matter which specification and model, the water inlet is always at 25-50cm below the water surface, and is always in the best suction position, which not only shortens the pipeline but also does not need to install a bottom valve, so it can save energy. Electricity.
● Long service life: The shaft seal of the floating pump is not affected by sedimentation at the bottom of the water, there is no deep water pressure, and it is impossible to sink into the mud, so the shaft life is long.
● Increase crop growth: Since the water on the surface of the river sucked by the floating pump is higher than the water temperature at the bottom of the river, it is beneficial to the growth of crops such as rice. Taking rice as an example, the yield per mu of early rice can generally be improved compared with the control group.
Technical Parameter
Model | Power (W) | Voltage (V) | Head (m) | Flow (m³/h) | Caliber mm(inch) |
SWY2800-6-100 | 2800 | 380 (three phase) | 6 | 100 | 150 (6) |
SWYD2800-6-100 | 2800 | 220 (single phase) | 6 | 100 | 150 (6) |
SWY2200-6-55 | 2200 | 380 (three phase) | 6 | 55 | 100 (4) |
SWYD2200-6-55 | 2200 | 220 (single phase) | 6 | 55 | 100 (4) |
SWYD1500-6-40 | 1500 | 220 (single phase) | 6 | 40 | 80 (3) |
SWY1500-6-40 | 1500 | 380 (three phase) | 6 | 40 | 80 (3) |
SWY1100-7-30 | 1100 | 380 (three phase) | 7 | 30 | 80 (3) |
SWYD1100-7-30 | 1100 | 220 (single phase) | 7 | 30 | 80 (3) |
SWY750-7-25 | 750 | 380 (three phase) | 7 | 25 | 80 (3) |
SWYD750-7-25 | 750 | 220 (single phase) | 7 | 25 | 80 (3) |
Exclusive Service
Product Categories
Company Profile
Shipping&Payment
FAQ
Q1. What's your company's main products?
A: Our company is specialized in many kinds of fish pond aerators，including Waterwheel aerator, Floating aerator,
Surge aerator, Wave aerator, Double speed aerator, Paddle aerator and Agricultural water pump.
Q2. What's the MOQ for your production?
A: The MOQ depends on your products requirements.
Q3. Can your product be customized?
A: YES, the waterwheel aerator can be customized with material, pattern, logo, size, color and motor model, etc.
Q4. Where is your loading port?
A: Ningbo, or else port in China as your requirements.
Q5. Are you a manufactuer or trading company?
A: We are a manufactuer. located in Taizhou city, Zhejiang province,china.
A: Our company is specialized in many kinds of fish pond aerators，including Waterwheel aerator, Floating aerator,
Surge aerator, Wave aerator, Double speed aerator, Paddle aerator and Agricultural water pump.
Q2. What's the MOQ for your production?
A: The MOQ depends on your products requirements.
Q3. Can your product be customized?
A: YES, the waterwheel aerator can be customized with material, pattern, logo, size, color and motor model, etc.
Q4. Where is your loading port?
A: Ningbo, or else port in China as your requirements.
Q5. Are you a manufactuer or trading company?
A: We are a manufactuer. located in Taizhou city, Zhejiang province,china.
Похожие товары

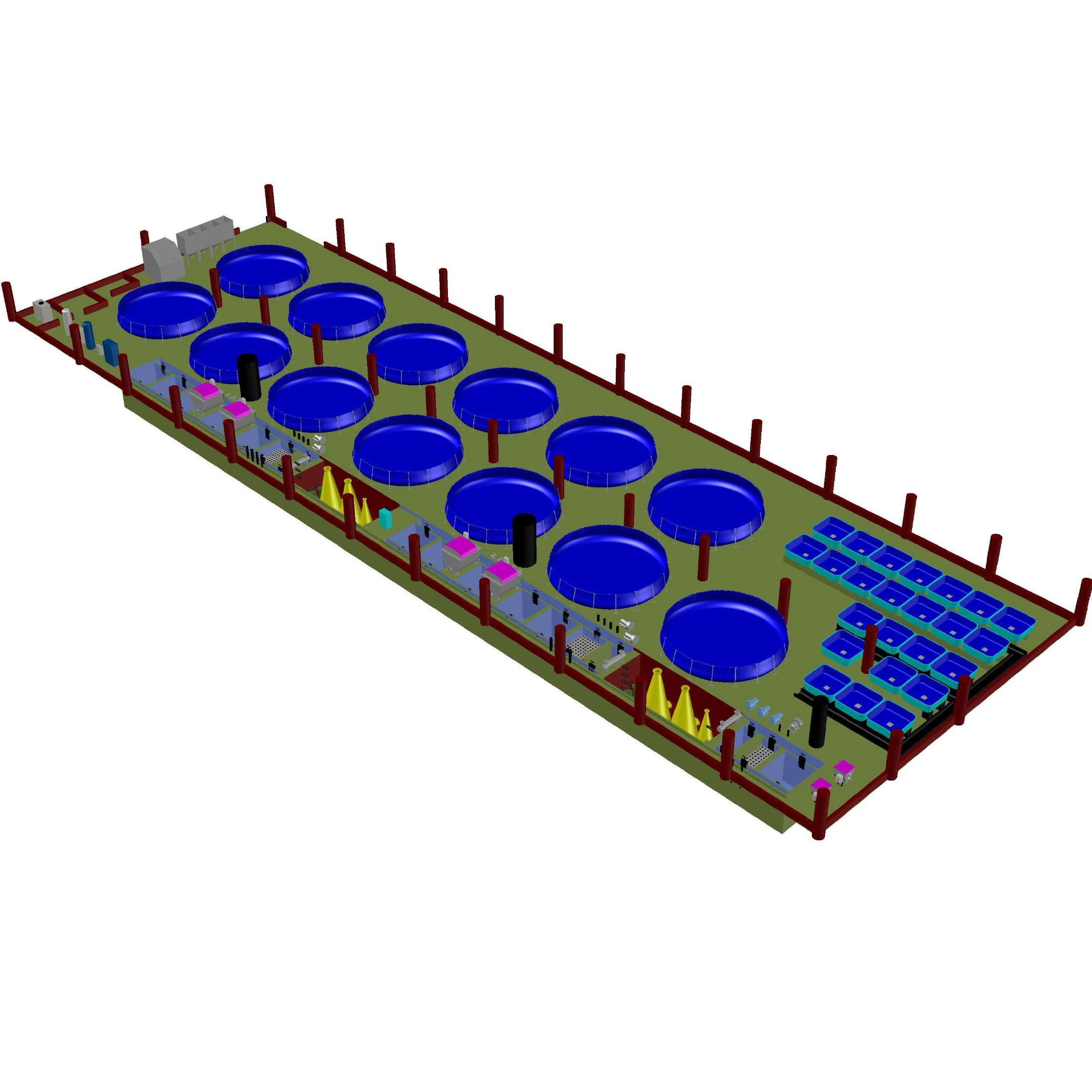

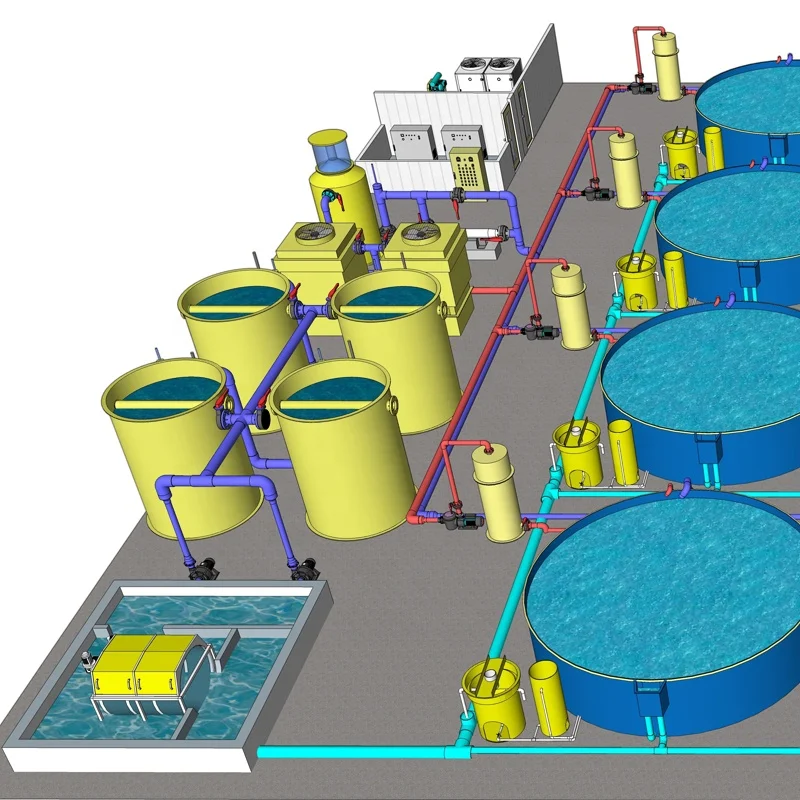

Оборудование для рыбоводства крытое системы рециркуляции креветок и
1 500,00 $ - 1 550,00 $

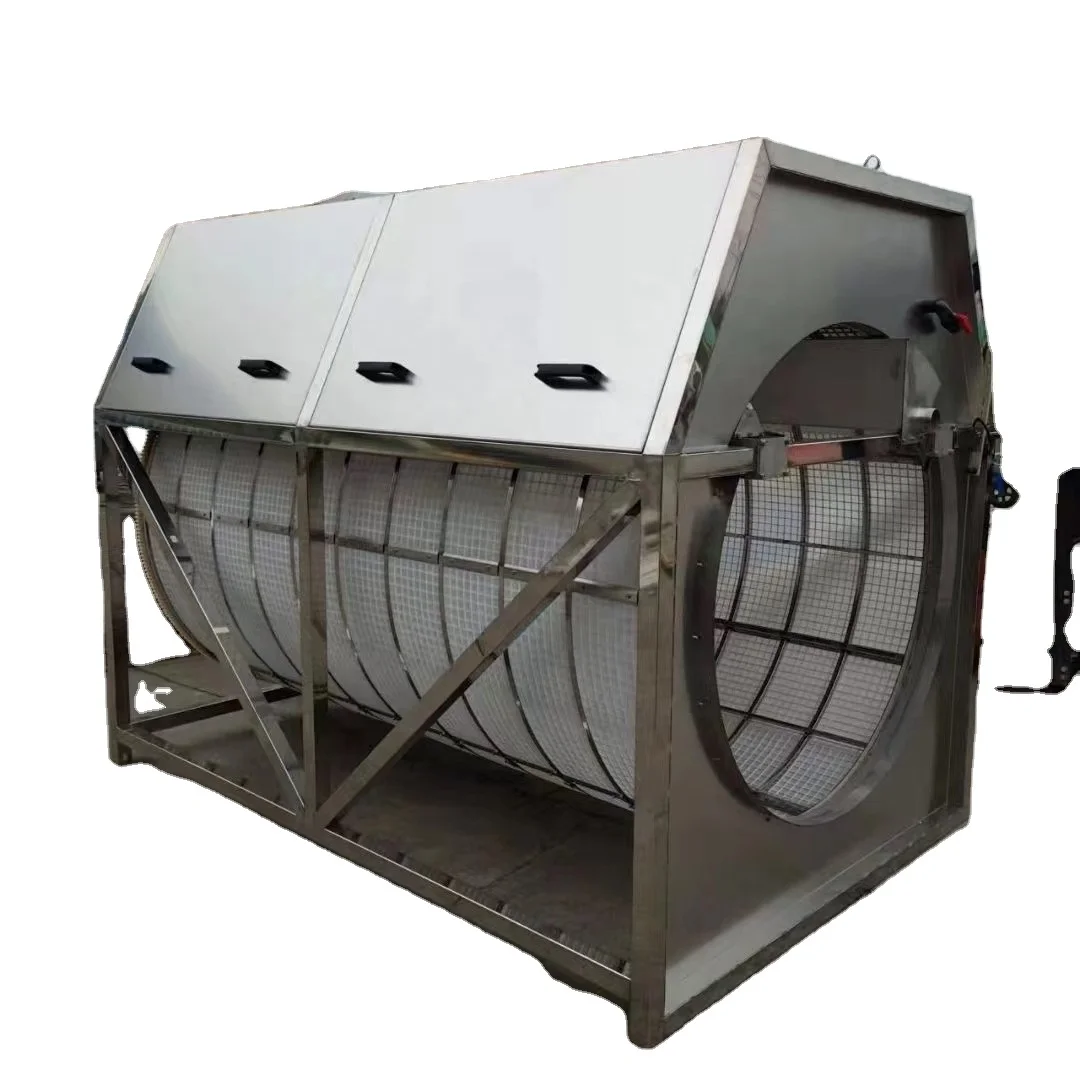

Система RAS пресноводные креветки сельскохозяйственное оборудование барабанный фильтр из нержавеющей
1 500,00 $
Рыболовная система Ras и интенсивные рыбоводные системы для
Оборудование для аквакультуры 1 5 кВт 2 л.с. волновой аэратор FUTI воздушный стабилизатор напряжения пруда рыбной
225,00 $

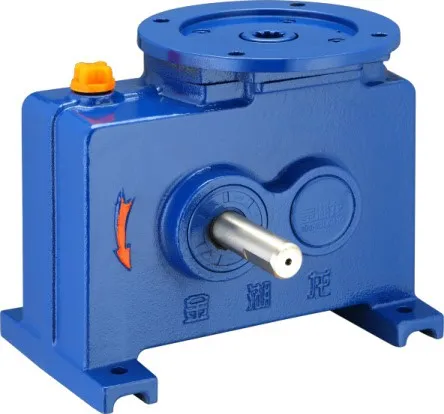

Высококачественная профессиональная коробка передач для аэратора с
100,00 $ - 150,00 $

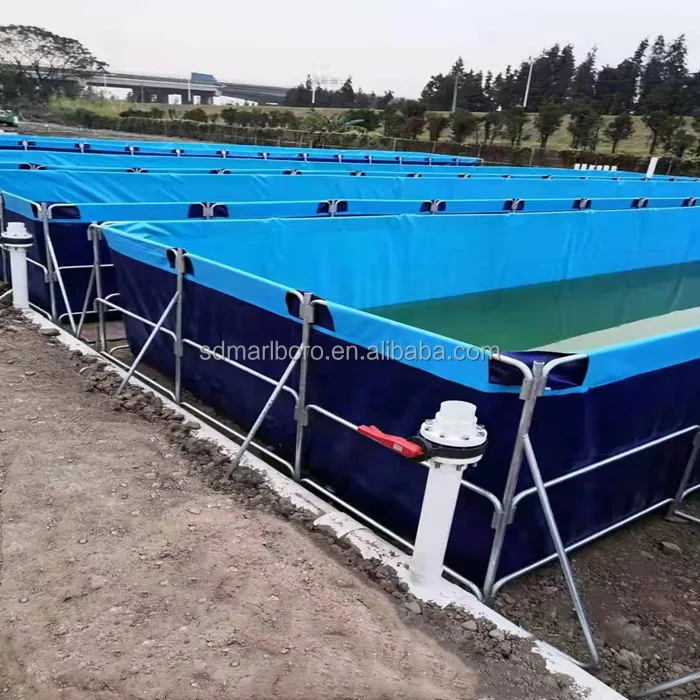

Профессиональный резервуар SDM для рыбного хозяйства, система рециркуляции аквакультуры
160,00 $ - 240,00 $

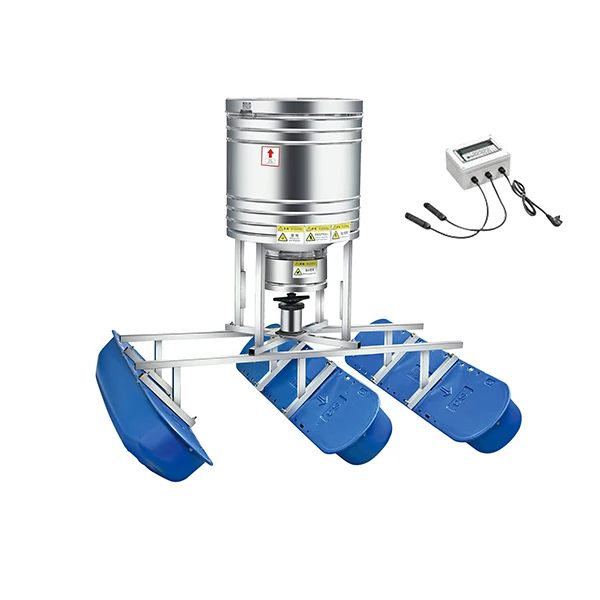

Автоматическая кормушка на 360 градусов для креветочного
