Product Description

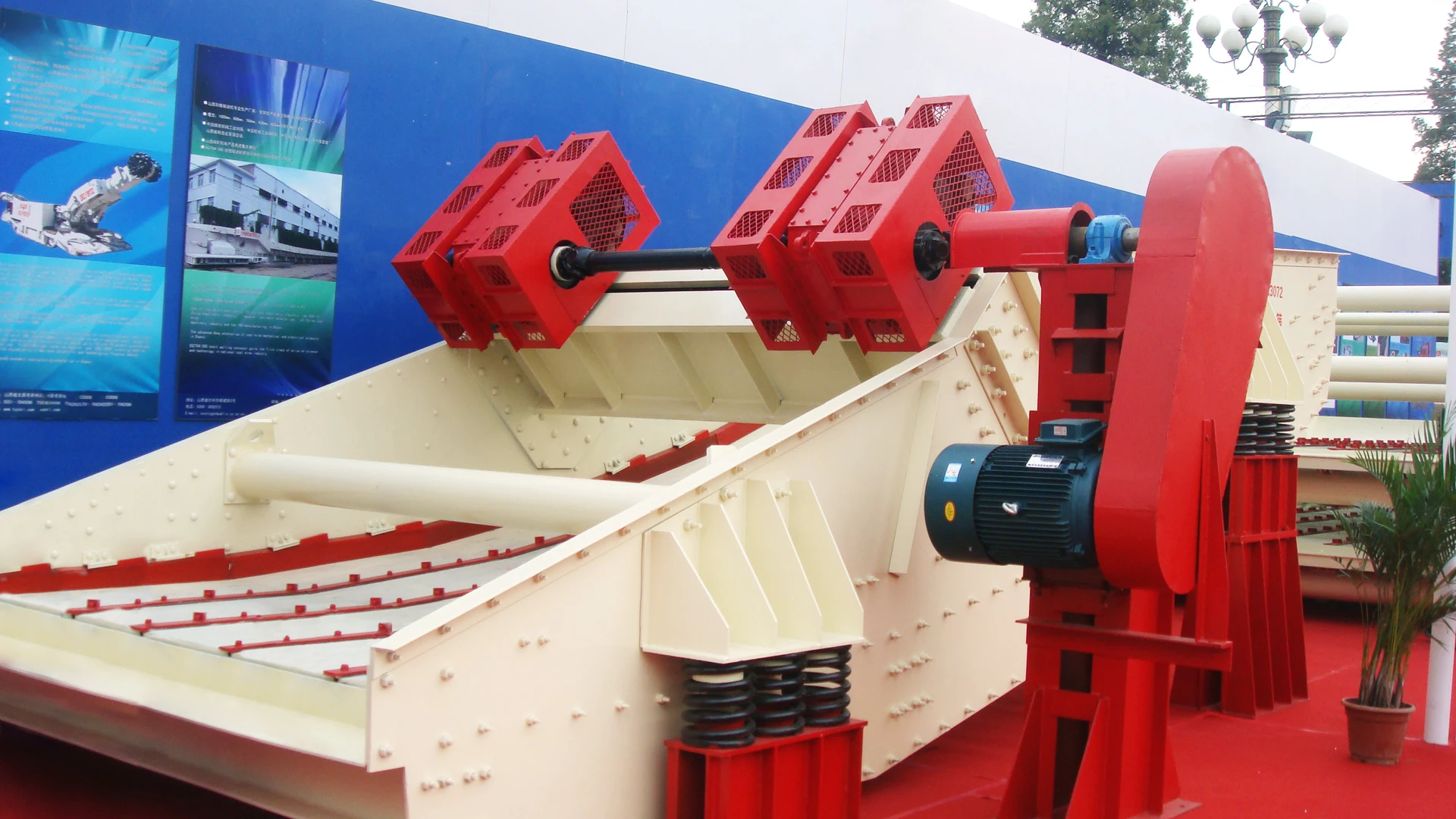

2YA 1848 Fine circular vibrating screen,
double deck screen
Brief introduction
JR banana screen is suitable for screening, dehydration, medium, desliming and other operations of coal, gravel aggregate, minerals and other materials. This series adopts different screening area, screen seam size, number of screen surface segments and leaning angle of screen according to the different uses and processing capacity of the screen. It is divided into single-layer and double-layer products. The working area is 5.7㎡~30.2㎡. There are 20 main specifications and models, which can basically meet the production needs of various types of mines and coal preparation plants.
Tech Specifications | ||||||||||||||||
Model | Sieve layer | Sieve area (m²) | Mesh size (mm) | Max feeding size (mm) | Capacity (t/h) | Vibrating speed (r/min) | Motor power (kw) | Overall dimensions (L*W*H)(mm) | ||||||||
2YA1237 | 2 | 4.44 | 3-50 | 200 | 7.5-80 | 800-970 | 15 | 4642*2250*2659 | ||||||||
2YA1548 | 2 | 7.2 | 5-50 | 400 | 50-208 | 970 | 15 | 5802*2585*3053 | ||||||||
3YA1548 | 3 | 7.2 | 5-50 | 400 | 50-250 | 970 | 15 | 6046*2585*3537 | ||||||||
2YA1848 | 2 | 8.64 | 5-80 | 400 | 50-260 | 970 | 18.5 | 5802*2947*3053 | ||||||||
3YA1860 | 3 | 10.8 | 5-80 | 400 | 50-350 | 970 | 22 | 7243*2987*3955 | ||||||||
4YA1860 | 4 | 10.8 | 5-80 | 400 | 50-350 | 970 | 22 | 7498*2987*4439 | ||||||||
2YA2160 | 2 | 12.6 | 5-100 | 400 | 100-500 | 730 | 30 | 7076*3402*3666 | ||||||||
3YA2160 | 3 | 12.6 | 5-100 | 400 | 100-500 | 730 | 30 | 7284*3467*4092 | ||||||||
4YA2160 | 4 | 12.6 | 5-100 | 400 | 100-500 | 730 | 30 | 7551*3467*4582 | ||||||||
2YA2460 | 2 | 14.4 | 5-150 | 400 | 150-700 | 730 | 37 | 7046*3770*3603 | ||||||||
◆Special spec, we can design according to different demand.
Working Principle
The vibrating screen uses the motor to drive the eccentric shaft to make the screen body periodically along with the direction of vibration force. The materials make circular movement on the screen to realize sieving.
Application
Vibrating screen YA is of several decks whose moving track is round. The moving track of material is very long; the size of material can be separated into several specifications. It adopts cylinder style inspiring vibrator device and eccentric shaft to adjust. With the features of reliable structure, strong vibrating generation, high screening efficient, low noise, easy maintenance, safe performance, etc. It is widely used in separating gravel and is also suitable for mining, construction material, transportation, energy, chemical industry and so on.
Structure and Technical Characteristics
1. It is equipped with a feeding box with sufficient strength, rigidity and length to prevent the impact of large materials or the improper design of the feeding chute, which may cause the large materials to directly fall into the screen surface, causing premature damage to the screen surface.
2. The key components are connected by torsion shear type high-strength bolts, which are reliable in connection and easy to maintain.
3. The main components are made of Q245R, a special steel for pressure vessels, with good impact toughness, cold bendability and weldability.
2. The key components are connected by torsion shear type high-strength bolts, which are reliable in connection and easy to maintain.
3. The main components are made of Q245R, a special steel for pressure vessels, with good impact toughness, cold bendability and weldability.

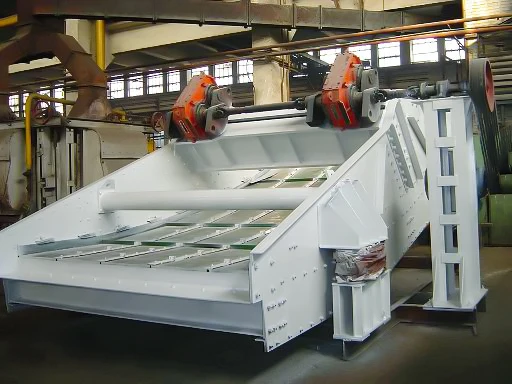

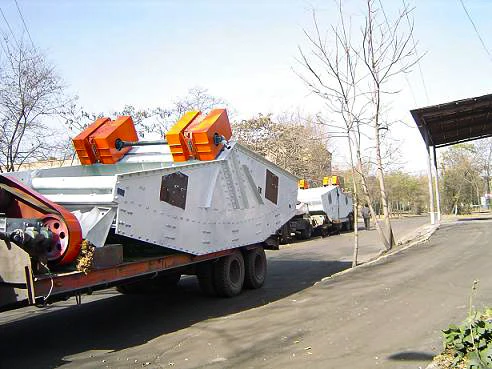

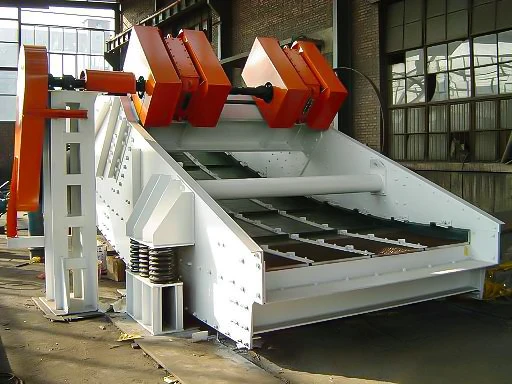

Detailed Images
Product Display
Our Company
LuoYang Longzhong Heavy Machinery Co., Ltd is a high technology enterprise in LuoYang, which is a professionally corporate enterprise that engaged in mine crushing machinery and, industrial grinding mill reasearching,development and manufacturing. The company is located in beautiful LuoYang, in the middle of China, which covers more than 50000 square maters with modern and professional technical team, equipped with advanced CAD computer aided design system and computer simulation test system. All of these good facilities keep our products in high quality.
Our main products are Crusher, Sand making machine (Vertical Shaft Impact Crusher), Vibrating Screen, Vibrating Feeder, Sand Washing Machine, Sand Recycling Machine, Belt conveyor, industrial mills etc. What's more, the sand recycling machine has been awarded the reputation of Luoyang high-tech achievements transformation project. We have become the main production and export base of sand making and grinding mill machine.
In stock
Related Products
Certifications
Contact Information
Office add:Zhongqiao Building, Nanchang Road, Jianxi District, Luoyang
Mob:13598484277
Web: www.sandmakingmachinelz.com
Alibaba: //www.lylongzhong.en.alibaba.com
Tel: (86-0379)65160016 Fax:(86-0379)65160018
WhatsApp: 8618317896749
Похожие товары
Профессиональная Заводская небольшая портативная дизельная гидравлическая буровая машина для скважин 180 м хорошая цена
15 800,00 $ - 18 000,00 $
Оптовая продажа от производителя, аксессуары для буровой установки, запчасти для грязевого насоса, сиденье клапана
10,00 $
Буровая установка автоматическая Поверхностная портативная буровая dth для
13 500,00 $ - 15 700,00 $

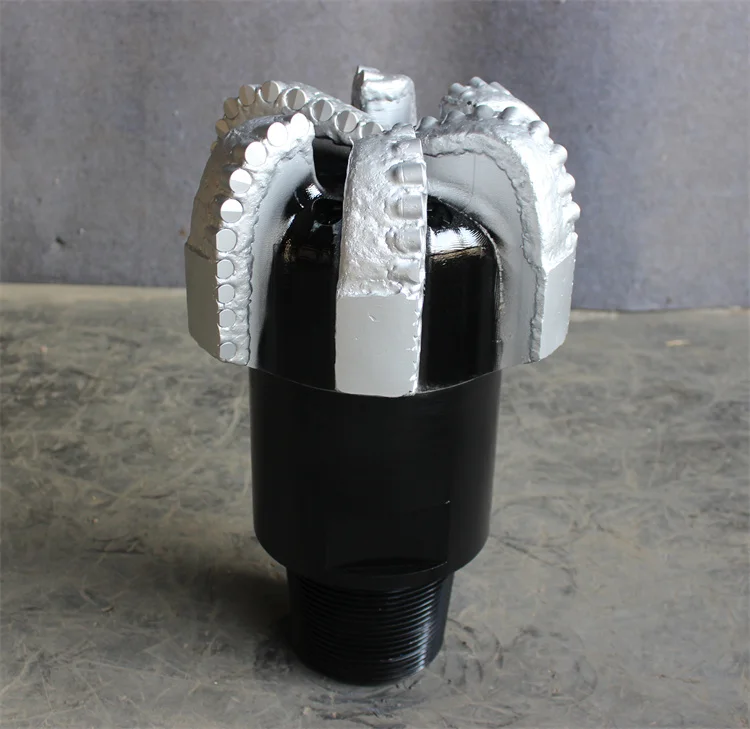

Буровое долото для бурения нефтяных скважин 11 дюймов 5/8 дюйма (295 мм)
1 099,00 $

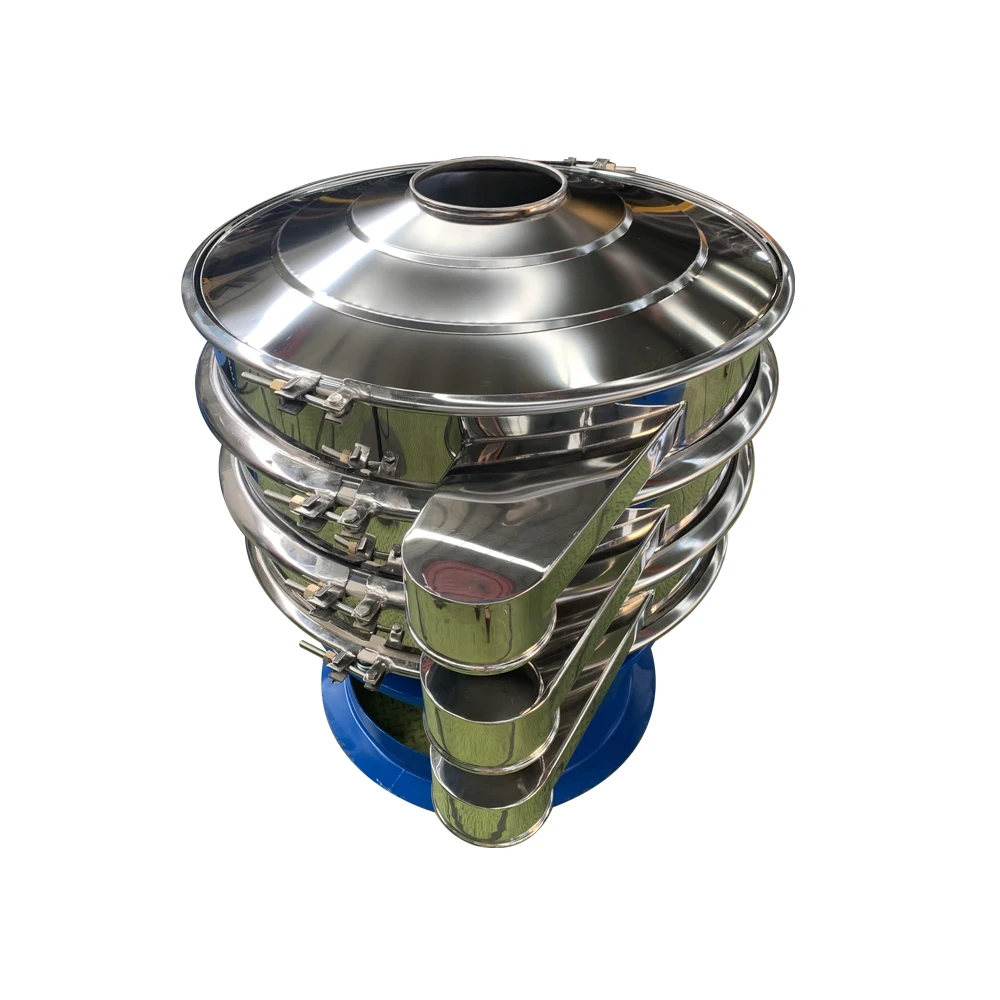

Вибрационный сито
