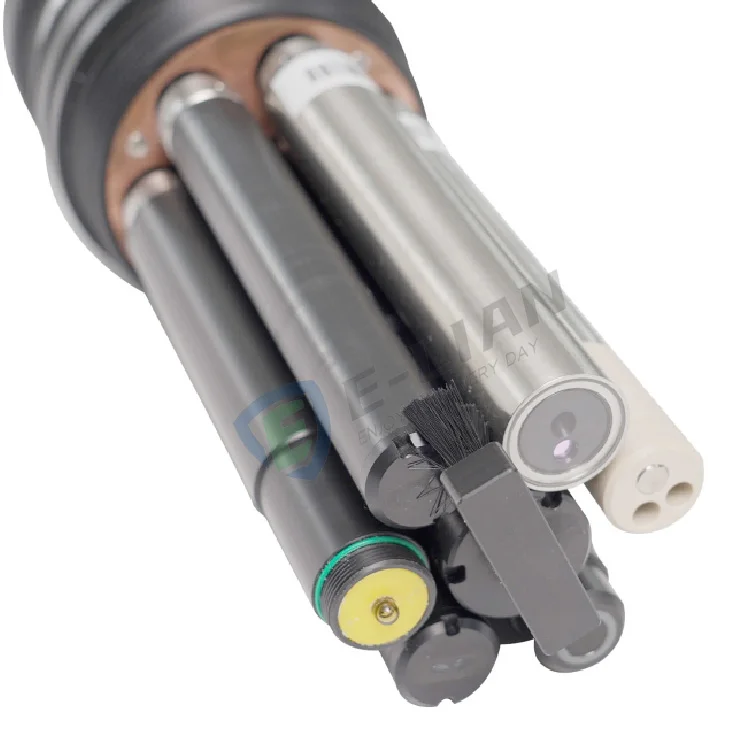

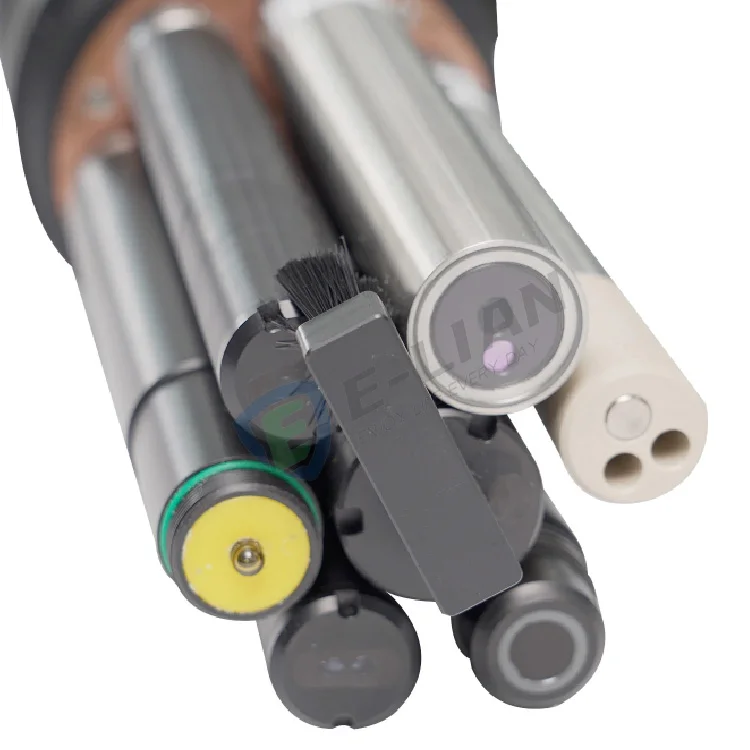

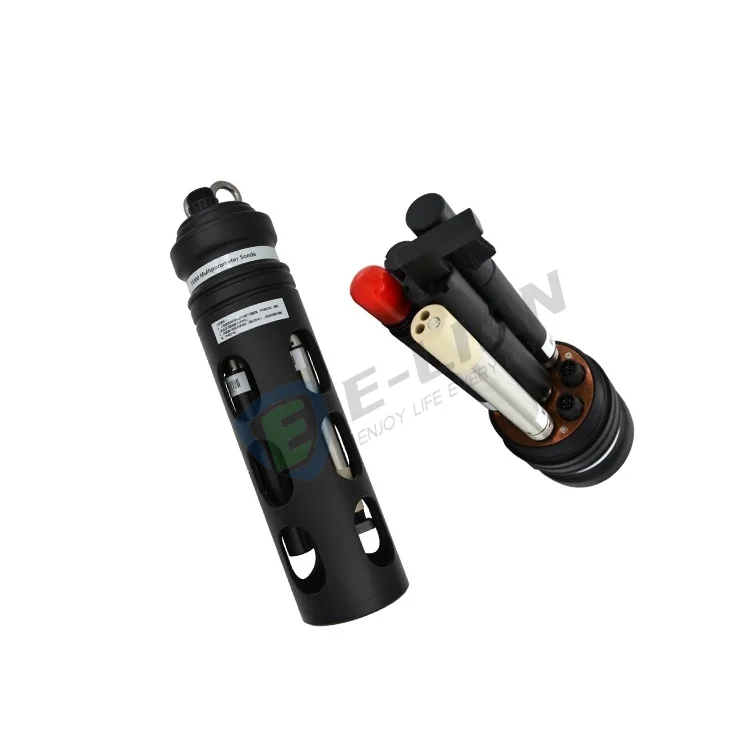

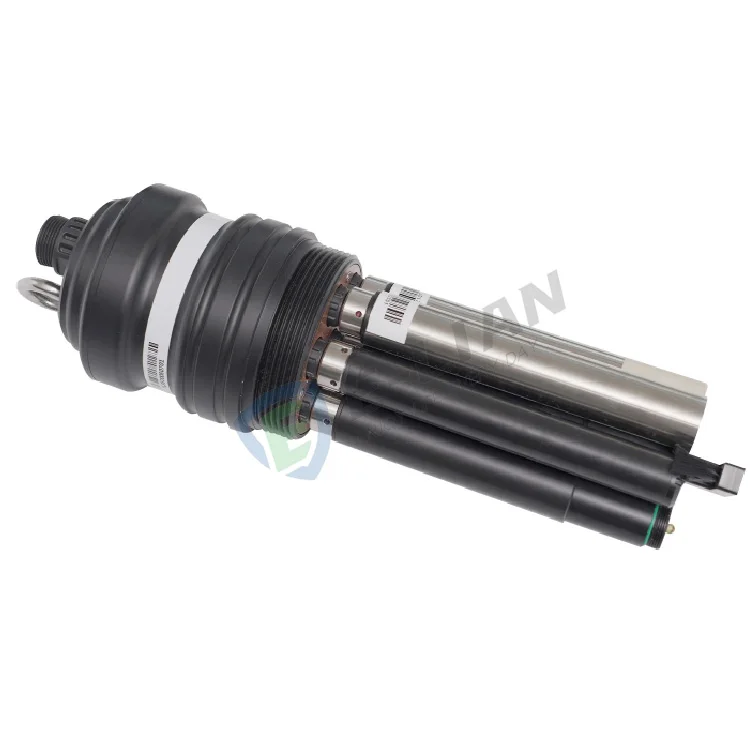

ELian's second-generation EL4 series multi-parameter water quality sensor (seven parameters) adopts an all-in-one structure design, each sensor has a waterproof connector, and the calibration data is stored in the sensor, which can be calibrated and replaced on site. Up to 6 digital sensors can be connected at the same time, optional fluorescent dissolved oxygen, four-electrode conductivity, fiber-optic turbidity, digital pH, digital ORP, chlorophyll, blue-green algae and oil-in-water sensors. Equipped with an automatic cleaning device, it can eliminate air bubbles and prevent the growth of microorganisms, and can easily respond to various water environment monitoring needs such as rivers, lakes, oceans and groundwater. Reliable, it can operate in an unattended environment for months without maintenance.
Digital sensor, RS485 output, support MODBUS;
All calibration parameters are stored in the sensor, and each probe has a waterproof connector, which can be easily plugged and replaced;

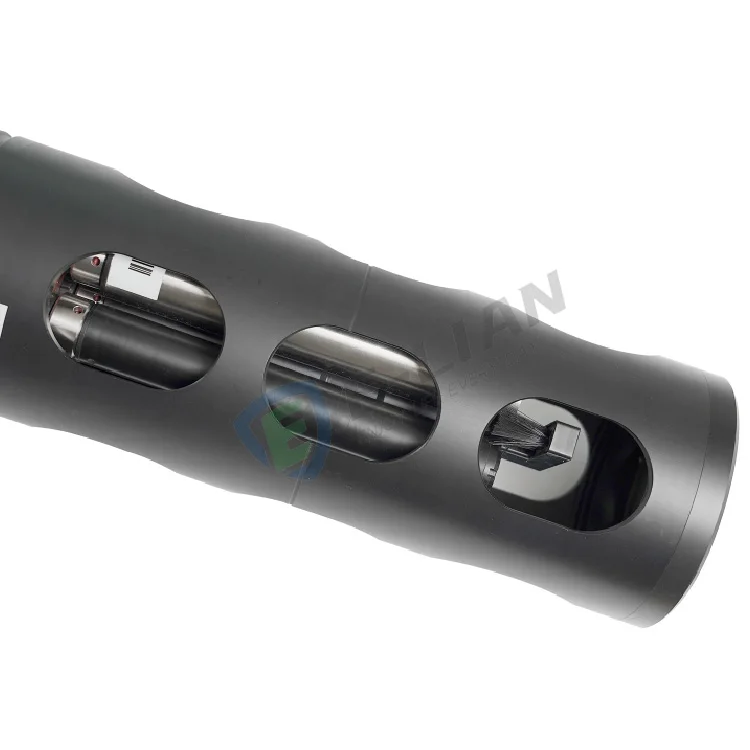

Equipped with an automatic cleaning device, which can effectively remove the contamination on the sensor surface, prevent the growth of microorganisms, more accurate and lower maintenance;
Optional fluorescence dissolved oxygen, four-electrode conductivity, fiber-optic turbidity, digital pH, digital ORP, chlorophyll, blue-green algae and oil-in-water sensors, suitable for long-term online monitoring;
All-in-one structure design, can connect six probes at the same time to measure seven parameters.
Specifications | ||
Optical DO | Range | 0-20mg/L or 0-200% SAT |
Accuracy | ±0.1mg/L | |
Resolution | 0.01mg/L | |
Turbidity | Range | 0-1000 NTU |
Accuracy | <5% or 0.3NTU | |
Resolution | 0.1NTU | |
Conductivity | Range | 1µS/cm-100mS/cm |
Accuracy | 1% FS | |
Resolution | 0.1uS/cm | |
Chlorophyll | Range | 0~400 µg/L or 0~100 RFU |
MDL | 0.1 µg/L | |
Resolution | 0.1 µg/L 0.1 RFU | |
Blue Green Algae(Fresh water) | Range | 0-300,000 cells/mL |
MDL | 300 cells/mL | |
Resolution | 1 cells/mL | |
pH | Range | 0-14pH |
Accuracy | ±0.1pH | |
Accuracy | 0.01 | |
ORP | Range | -999~999mV |
Accuracy | ±20mV | |
Resolution | 1mV | |
Oil-in-Water (Crude) | Range | 0-500ppb or 0-5000ppb |
Accuracy | 5% | |
Resolution | 0.1ppb | |
Others | Operating Temperature | 0~50ºC |
Output | Modbus RS485 | |
Wiper | Yes/optional | |
Power Supply Voltage | 12V ±5% | |
Supply Current | 100 mA | |
IP Rating | IP68 | |
Cable length | 10m(default),Custom length available |
Q: Is your company a manufacturer??
A: Yes,we are a professional manufacturer of online water quality monitoring products: oil in water sensor/ DO sensor/ NH4-N
sensor / ORP / COD sensor / Blue-green algae sensor /Conductivity sensor /TDS / TSS /MLSS,ect.
Q: What parameters do you need for product selection?
A: Application, Range, Power supply and Output signal.
Q: Can you offer OEM services?
A: Yes,we support OEM and ODM products according to your requirements.
Q: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 3-7 days after
received payment.
Q: How about warranty?
A: 12 months warranty
