LZZG Circular Vibrating Screen Is the Best Product In China !
Welcome To Our Company !
Products Description
Circular Vibrating Screen
LZZG circular vibrating screen adopts cylindrical eccentric shaft vibration exciter and partial block to adjust amplitude, material sieve line length, screening specifications, reliable structure, strong excitation force, high screening efficiency, low vibration noise, and durability. , convenient maintenance, safe use and so on. The vibrating screen is widely used in product grading in mining, building materials, transportation, energy, chemical and other industries. Long Ding circular vibrating screen can be used for screening coal, limestone, gravel, gravel, metal or non-metallic ore and other materials.

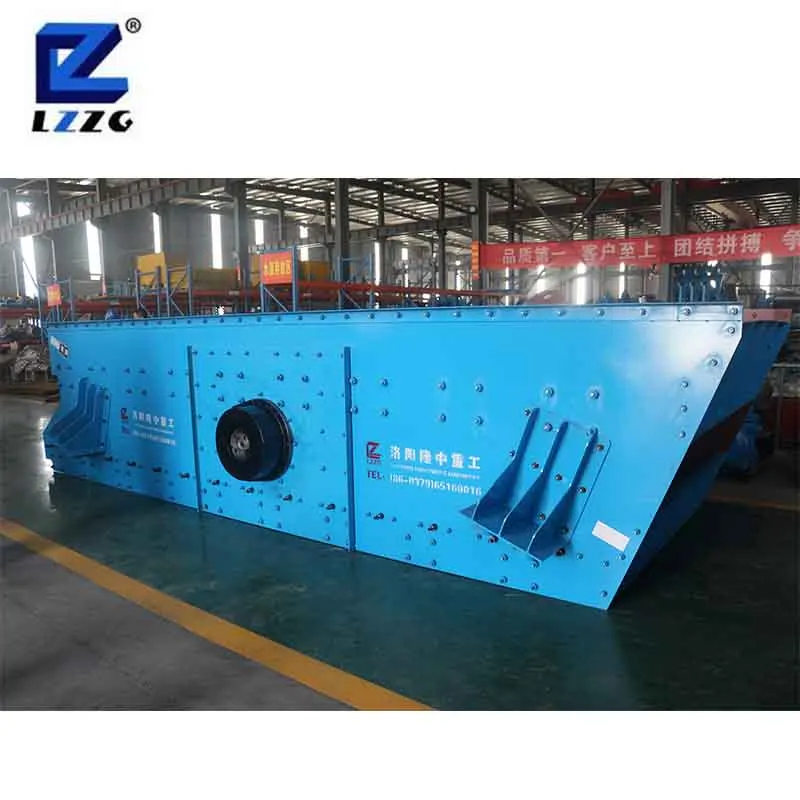

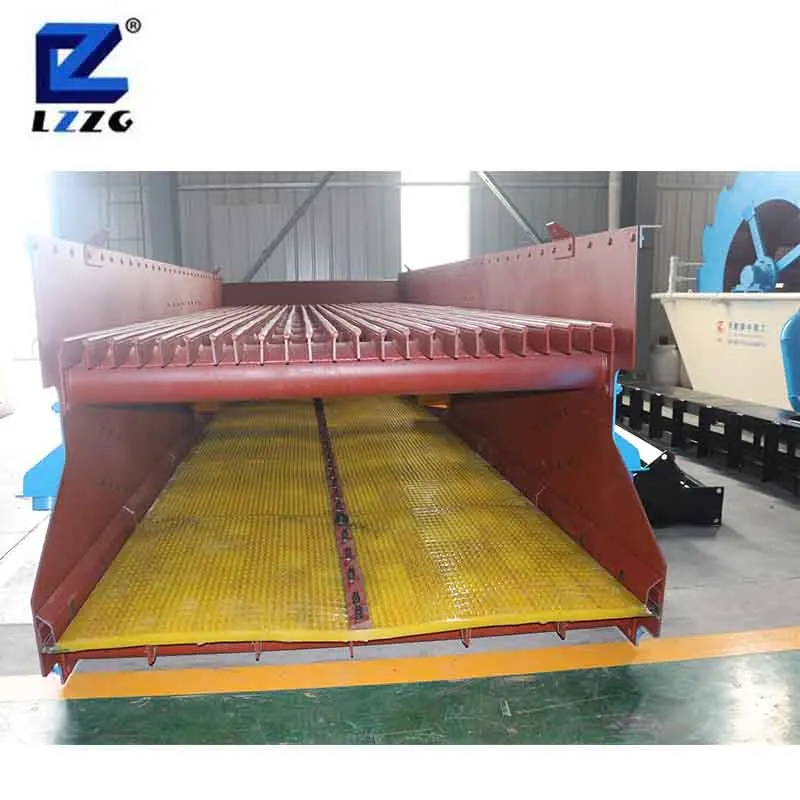

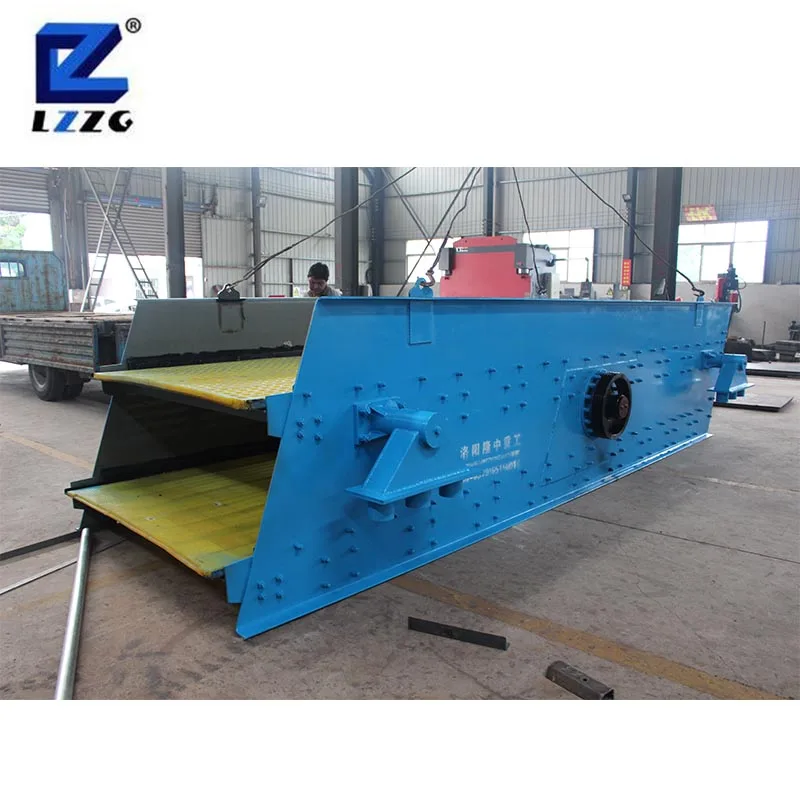

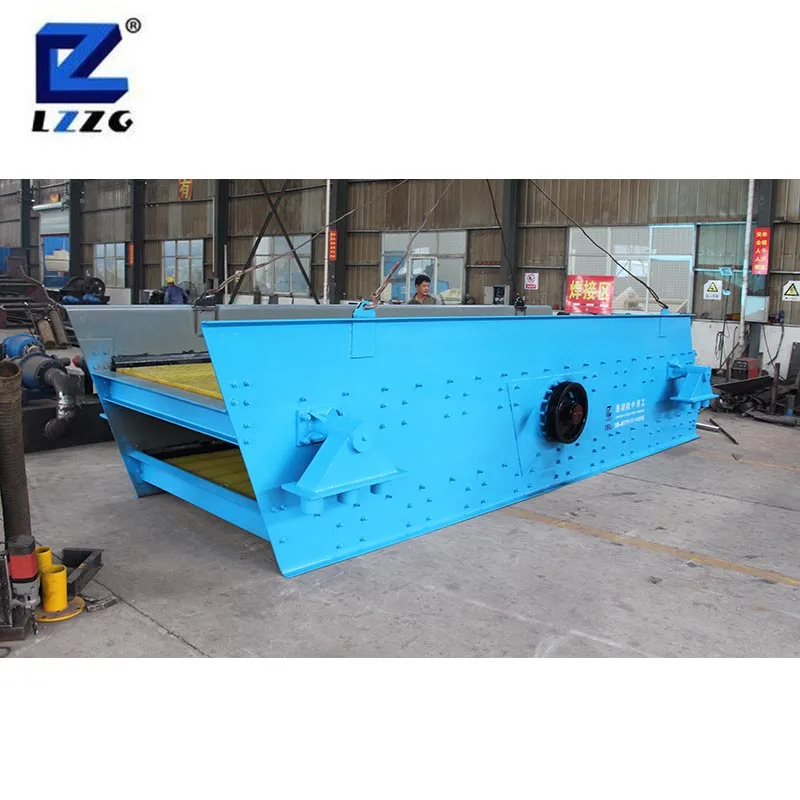

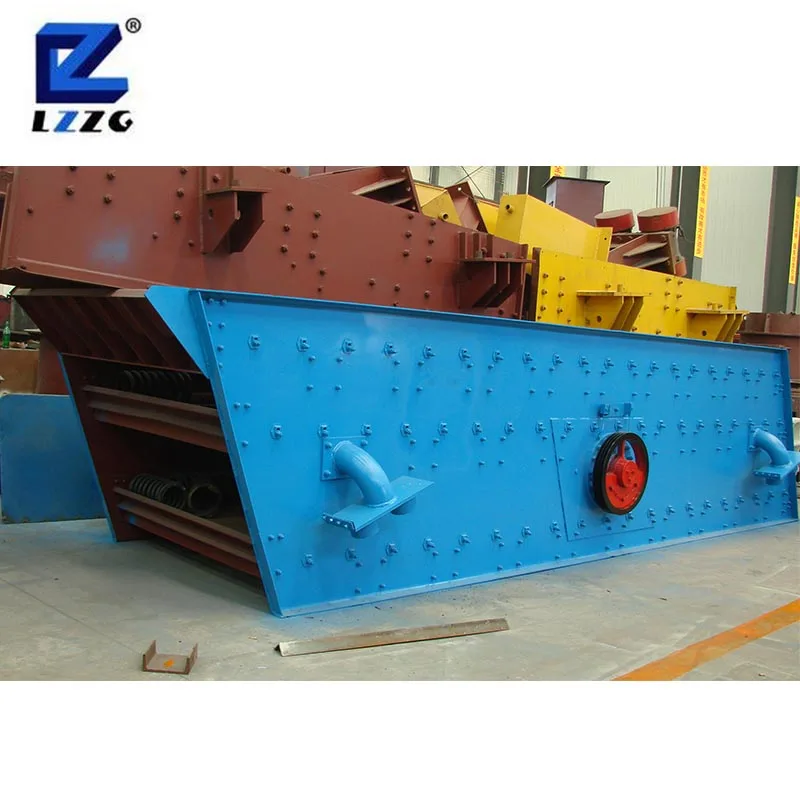

Detailed Images
The circular vibrating screen or called round vibrating screen is mounted in a seat. The adjustment of the screen inclination can be achieved by changing the height of the spring support. The motor can be installed on the left side of the screen frame, and can be installed on the right side of the screen frame. If there is no special requirement, the manufacturer installs the product according to the right side of the material movement direction. Y series circular vibrating screen is imported from foreign technology and has the characteristics of high screening efficiency, scientific and reasonable structure, high strength and rigidity of the whole machine, stable operation, sturdy and durable, low noise and convenient maintenance. According to the different needs of users, the series of vibrating sieve screens can be equipped with various types of screen surfaces such as wire mesh, rod, casting, welding and punching to meet the needs of different industries.
Working Site
Tech specification
Model | Feed Size (mm) | Capacity (t/h) | Screen Panel (mm) | Screen Area (m²) | Power (kw) | Weight (kg) | Overall Size (mm) |
2YA1548 | 0-200 | 0-160 | 1500*4800 | 7.2 | 11 | 3900 | 5000*2900*2900 |
3YA1548 | 0-200 | 0-160 | 1500*4800 | 7.2 | 15 | 4900 | 5000*2900*3400 |
2YA1860 | 0-200 | 0-200 | 1800*6000 | 10.8 | 15 | 5000 | 6200*3400*3500 |
3YA1860 | 0-300 | 0-200 | 1800*6000 | 10.8 | 22 | 6200 | 6200*3400*4100 |
2YA2460 | 0-200 | 0-300 | 2400*6000 | 14.4 | 22*2 | 10000 | 6200*4100*3800 |
3YA2460 | 0-300 | 0-300 | 2400*6000 | 14.4 | 30*2 | 12000 | 6200*4100*4400 |
3YA3072 | 0-300 | 0-300 | 3000*7200 | 21.6 | 30*2 | 18000 | 7400*4700*4700 |
3YA3672 | 0-300 | 0-350 | 3600*7200 | 25.92 | 37*2 | 23000 | 7400*5400*4700 |
Features & Benefits
1. The circular vibrating screen has novel structure, advanced technical parameters, large processing capacity and high screening efficiency.
2. The vibration motor is used as the excitation source, which is easy to use and maintain.
3. The vibrator is lubricated with bearings and oiled, and the external block is eccentric. The excitation force is large, the
bearing load is small, the temperature is low, and the noise is small.
4. It adopts spring steel braided mesh or punched sieve plate, which has long service life and is not easy to block holes.
5. The whole disassembly and assembly of the vibrator is convenient for maintenance and replacement, which greatly shortens the maintenance period.
6. The circular vibrating screen adopts rubber vibration isolation spring, which has long service life, low noise and stable
over-resonance area.
2. The vibration motor is used as the excitation source, which is easy to use and maintain.
3. The vibrator is lubricated with bearings and oiled, and the external block is eccentric. The excitation force is large, the
bearing load is small, the temperature is low, and the noise is small.
4. It adopts spring steel braided mesh or punched sieve plate, which has long service life and is not easy to block holes.
5. The whole disassembly and assembly of the vibrator is convenient for maintenance and replacement, which greatly shortens the maintenance period.
6. The circular vibrating screen adopts rubber vibration isolation spring, which has long service life, low noise and stable
over-resonance area.
Packing & Delivery
Company Profile
LZZG has a proud history of serving the sandstone and aggregates equipment industries since 2010. We provide a wide range of rugged and reliable washing, screening, dewatering, recycling & waste management equipment along with all kinds of mobile, fixed, and compact sand plants. We aims to improve our equipment quality, designs and solutions with the latest technologies. We strive to utilize our experience help our customers be more efficient and profitable.
Our Team
Certifications
Exhibition
Our Service
Pre-sale:Passionate
We offer you the early planing of the project,the best process flow design,choose the best appropriate equipment model to design products according to your special needs.
Sale: Integrity
We offer you the early planing of the project,the best process flow design,choose the best appropriate equipment model to design products according to your special needs.
Sale: Integrity
All productds are strictly inspected with the drawings and process flow according to the contract before they delivery from storage.We assigned the technicians to the producing spot to provide installation guide, testing and training.
After-sale:Considerate
To establish good business relationship,we always periodical visit to the users.We could give you the definite reply during 24 hours when the users meet some problems in the producing process.
After-sale:Considerate
To establish good business relationship,we always periodical visit to the users.We could give you the definite reply during 24 hours when the users meet some problems in the producing process.
FAQ
1.Does your product in stock?
Yes,once you place the order,the delivery will be done within one week.
2.Can the machine parts be replaced?
Yes,You can get them directly from us in a low price, and we make sure the easy maintainence and replacement .
3.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivery.Please check our working site. If our quality is not good, i don't think we can sell so well.
4.Guaranteed?
Yes. If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
5.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
Yes,once you place the order,the delivery will be done within one week.
2.Can the machine parts be replaced?
Yes,You can get them directly from us in a low price, and we make sure the easy maintainence and replacement .
3.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivery.Please check our working site. If our quality is not good, i don't think we can sell so well.
4.Guaranteed?
Yes. If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
5.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
