Плазменный мини станок для плазменной резки с ЧПУ в стиле портальной дополнительный рабочий стол конкурентоспособная цена 3000*5000 автоматический CAD предусмотрен 300

Плазменный мини станок для плазменной резки с ЧПУ в стиле портальной дополнительный рабочий стол конкурентоспособная цена 3000*5000 автоматический CAD предусмотрен 300

Категория: Machine Tool Equipment >>>
Поставщик: Wuhan Lansun Technology Co. Ltd.

Цена:2 200,00 $ - 2 450,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Cutting method Guide：

1、Flame cutting： Proper for cutting carbon steel more thicker than 10mm；

2、Plasma cutting: Plasma is common for thin metal sheet below 50mm (according to the plasma source power );

Plasma cutting cost is 1/3~1/2 of flame cutting
3、Stainless steel, aluminum or cooper ,non-ferrous materials suitable for plasma cutting。

Mechanical Components	Description
Horizontal rail Width	3m
Effective cutting width	2.5m
Longitudinal rail Length	5m (can be lengthed according to your demands )
Effective cutting length	4m
CNC Cutting torch	flame,plasma,flame & plasma
CNC Oxy-fuel cutting torch	Wuhan lansun
Auto-ignitiondevice	Wuhan lansun
Torch height controller	Automatci height controller
Plasma source	China brand LGK100A LGK120A or USA brand .
CNC plasma cutting torch	According to plasma power source
Plasma cutting speed	50-6500mm/min
Oxy-fuel cutting thickness	5—120mm
Oxy-fuel cutting speed	50-3500mm/min
Cutting torch lifting distance	120mm
Drive Mode	dual drive
Interface	7 inch True color Display with Spanish language
CNC control system	Beijing Start control system
Programming and nestling software	Fastcam
Driving motor	Stepper Motor

Main Features

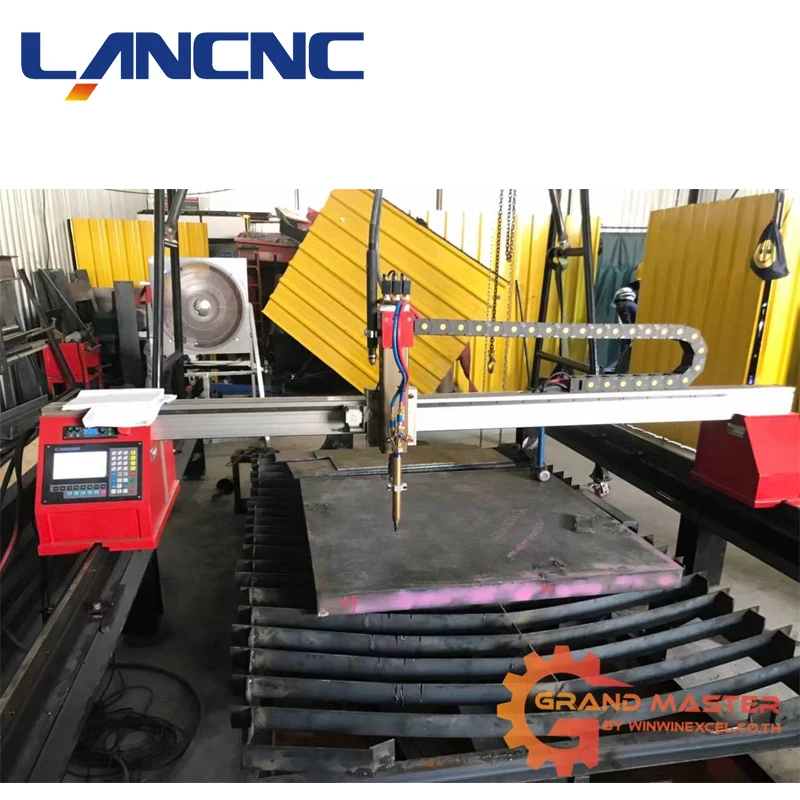

1. Gantry structure, large cutting width: the horizontal width is 3M, the effective cutting width is 2.5m, the longitudinal track is 5 m, effective cutting length is 4m.

2. The cross beam with oblique braces and distal support, good stiffness, high precision.Installation is direct insertion, it’s portable and convenient to move.

3.It can be configured as flame cutting, plasma cutting or flame and plasma dual function.

4. flame cutting is automatic ignition, plasma cutting adjust height automatically by arc pressure.

5. After disassembling, the whole machine is only two packages,Easy to transportation and storage.

6. Providing detailed videos of installation, operation and maintenance of machines.

PRODUCT OVERVIEW

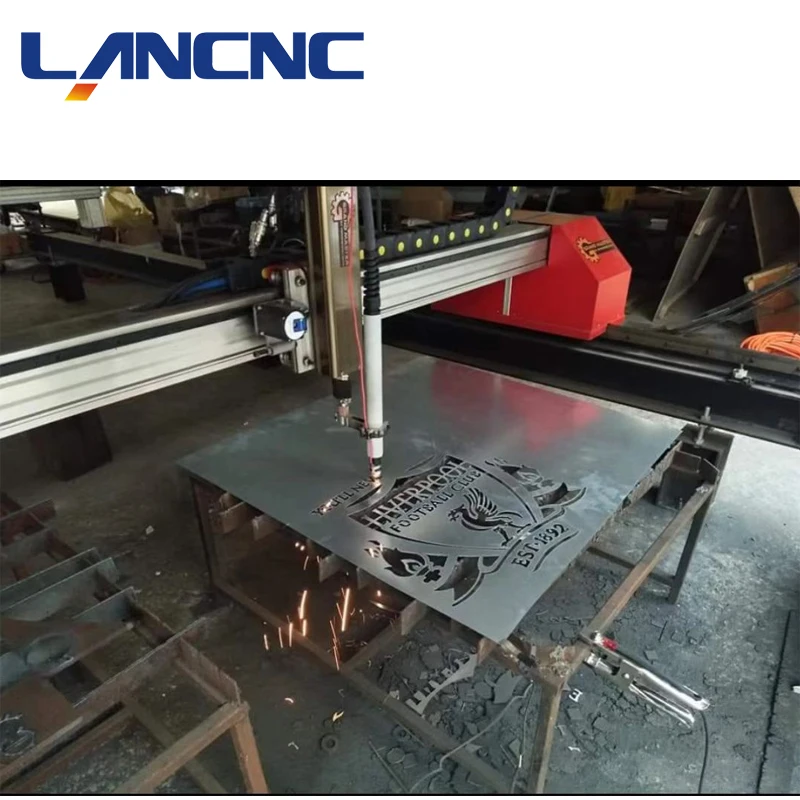

Detailed Images

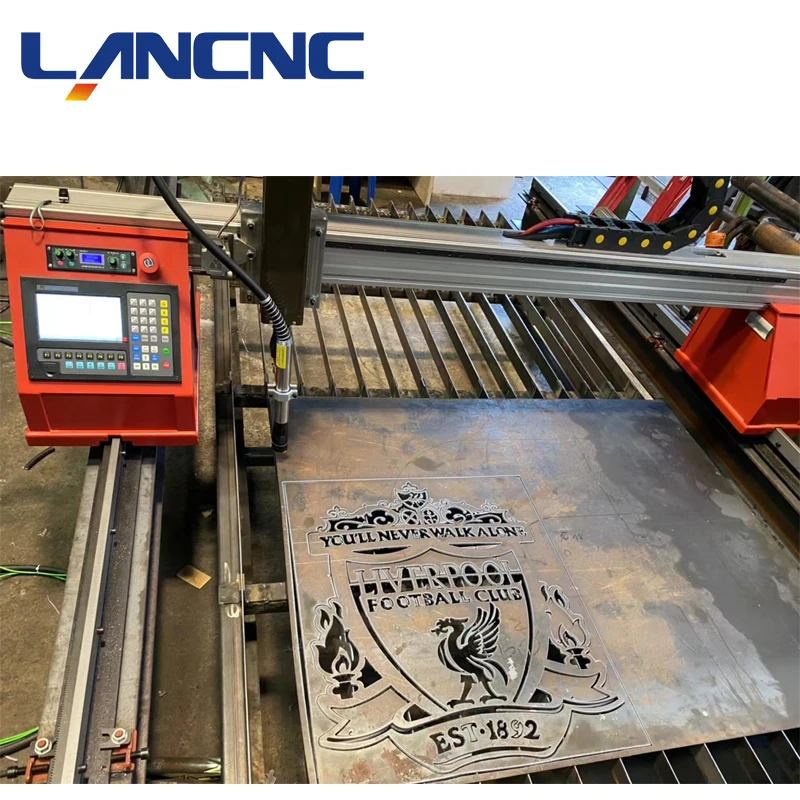

CNC System

>High-reliability, Prevents system from strong plasma disturbs and lightning strike etc;

>Chinese and English , Russian , Spanish , more than 10 languages can switch easily;
>Adopt USB disk to Read/Write program to upgrade software.

Main Features

cutting mode : plasma and flame

Flame cutting thickness : 6-120mm

Plasma cutting thickness : according to the plasma generator .

Machine Parts : Guide rail

Steel guide rail , dual drive ,more stable for machine running .

Plasma holder and height controller

Plasma with automatic arc voltage height controller .

Our Company

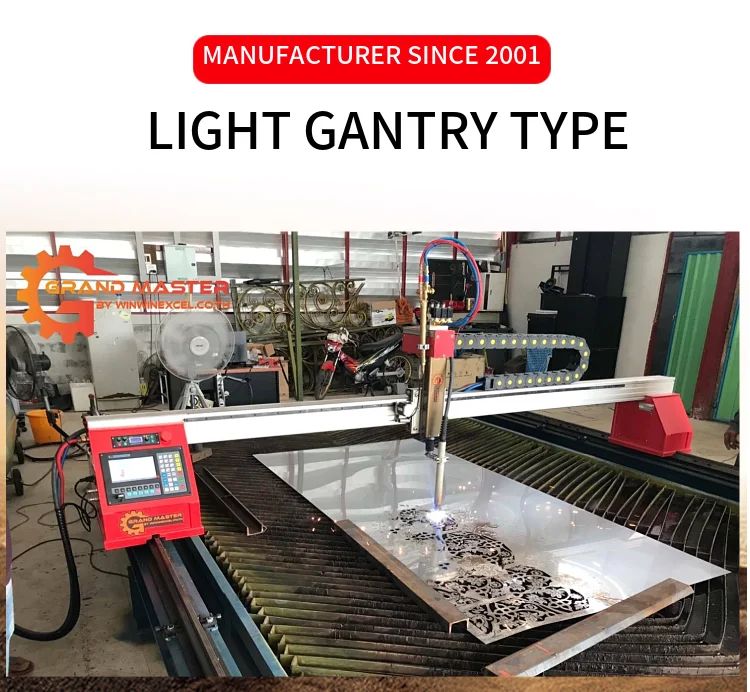

The appearance of portable gantry cutting machine is exquisite，Very easy to install and operate. The low price of CNC gantry cutting machine is the upgrade product of small portable machine.

20 years CNC cutting machine manufacturing;

9 years Alibaba supplier; 5000 + customers Choice;
> Our own R & D team, customized according to your needs;
> China's famous brand, fast delivery,cheap price;
> Total quality management system.

Wuhan Lansun CNC cutting machine, To Be your reliable business partner!

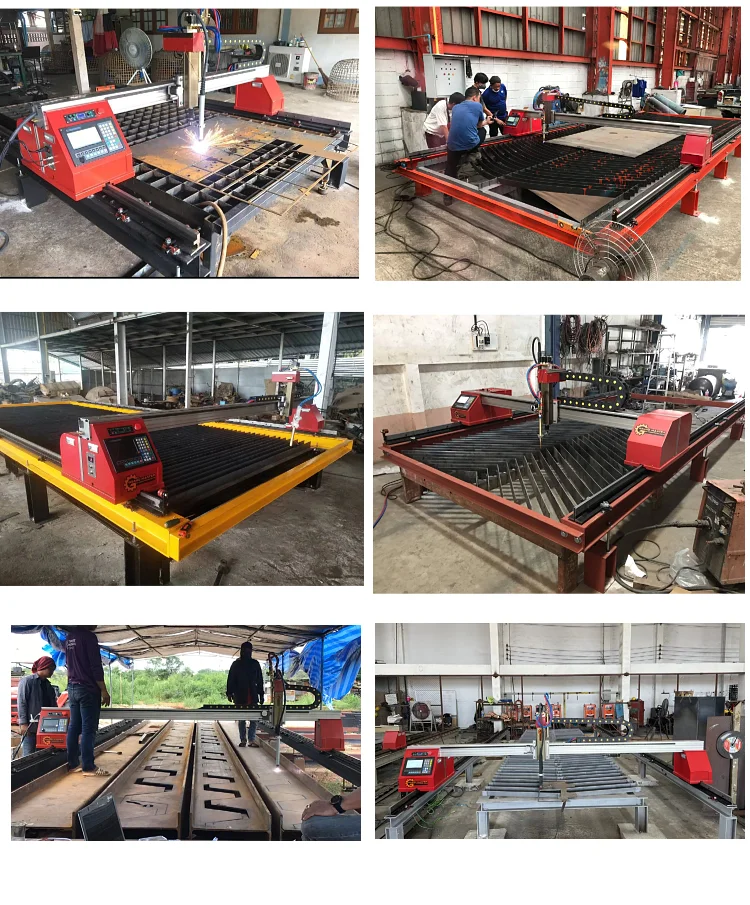

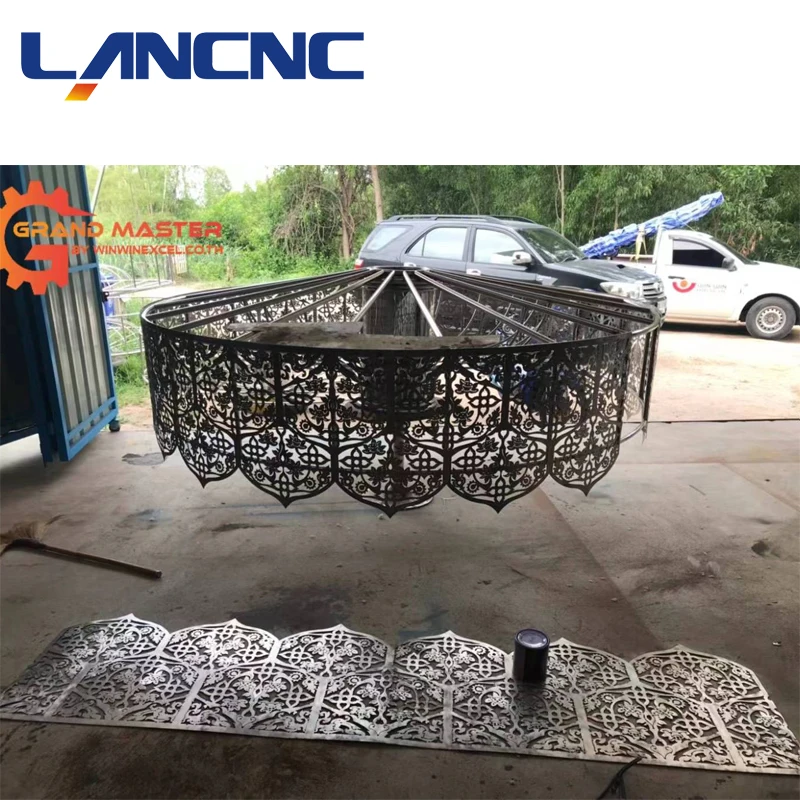

Customer Photos

Packing & Delivery

Packaging
Size	227 (L) * 46(W) * 26 (D) 49 (L) * 54(W) * 58 (D)
Weight	160KG - 260KG
Packaging Details	The normal package is wooden box(Size: LWH). The wooden box will be fumigated.

FAQ

1. Are you factory or foreign trade company?
We are over 10 years old manufacturers, large-scale production of CNC cutting machine.

2. Where is your factory located? How can I visit there?

Our factory is located in Wuhan, Hubei. We will meet you at airport or train station. Warmly welcome to visit us!

3. What's the quality of your products?
We are very focused on the quality of the products, All spare parts of this machine come with best brand and best quality, after completing the installation we will test the machine for 48 hours.Our factory has gained CE, ISO9001 authentication.

4. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day.

5. What other things also need after we bought your machines?
(1) With flame cutting: oxygen and fuel gas.

(2) With plasma cutting: air compressor. Plasma power is purchased by us, so that we can debug online, and we all need very good plasma power to ensure quality.

6. What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement.

7. What to do if the machine has a problem?

12 hours timely response of mail and phone calls.In 12 months, if parts fail, we offer free replacement (except customer reasons).
