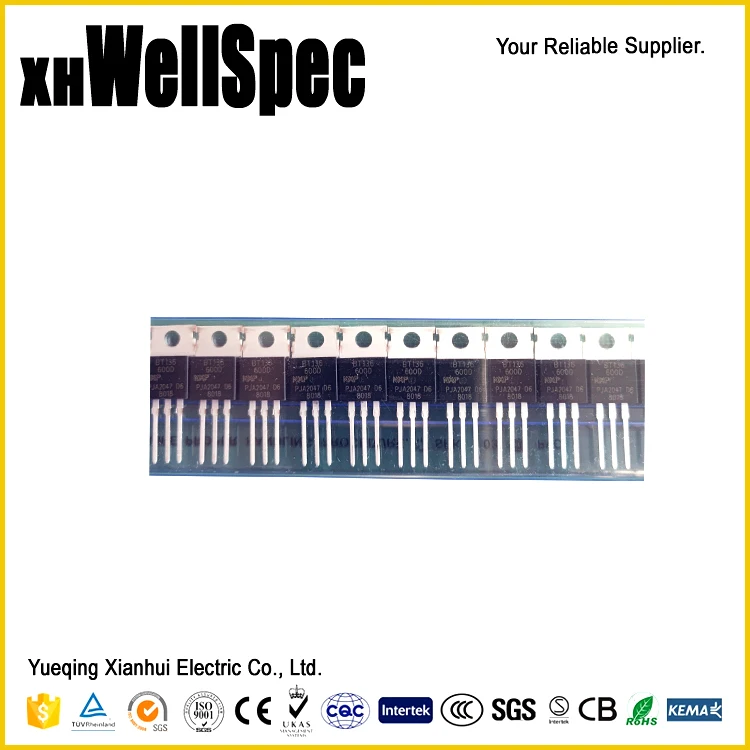

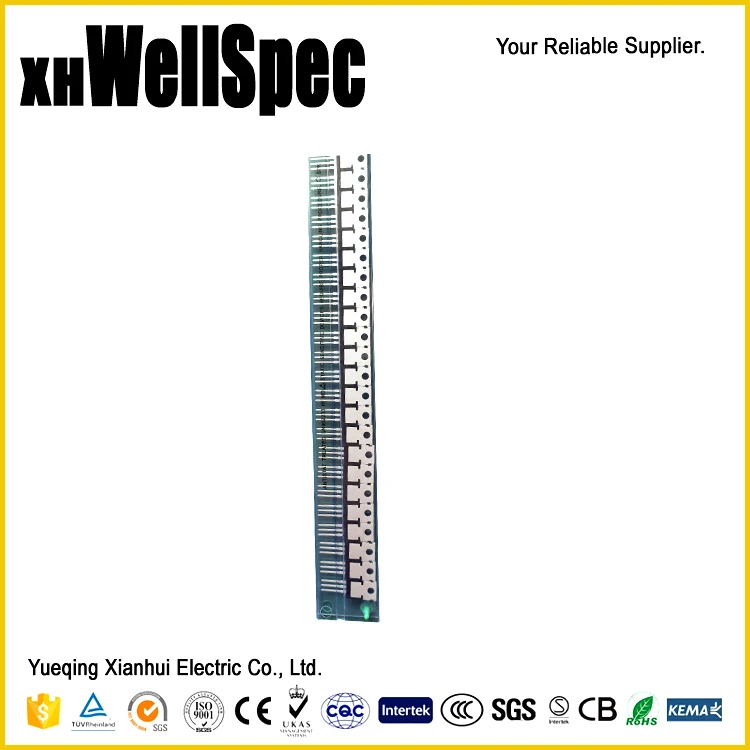

ТРАНЗИСТОР triac 220v ac % диммер BT136 600D TO 220

1. Application

Available either in through-hole and surface-mount packages, these devices are suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits or for phase control operation in light dimmers and motor speed controllers, etc.
The Snubberless versions (BTA, BTB08_xxxxW and T8 series) are specially recommended for use on inductive loads, thanks to their high commutation performance.
Logic level versions are designed to interface directly with low power drivers such as Microcontrollers.
By using an internal ceramic pad, the BTA series provide voltage insulated tab (rated at 2500 VRMS) in compliance with UL standards (file ref.: E81734).

2. Features:

2-1. On-state rms current, IT(RMS) 4A
2-2. Repetitive peak off-state voltage, VDRM / VRRM 600 V to 800 V
2-3. Triggering gate current, IGT (Q1) 5 to 50 mA

3. Technical Data:

3. Package information:
In order to meet environmental requirements, ST offers these devices in different grades of
ECOPACK® packages, depending on their level of environmental compliance. ECOPACK®
specifications, grade definitions and product status are available at: www.st.com.
ECOPACK® is an ST trademark.
3-1. Epoxy meets UL94, V0
3-2. Lead-free package
3-3. Recommended torque: 0.4 to 0.6 N·m

1. Working Conditions:

A. Ambient air temperature: -40^oC~+125C, the highest monthly mean temperature should not exceed +35^oC;

B. Altitude for installing place should not exceed 2000m;

C. Atmospheric relative humidity: + 40 ℃ not more than 50%, the highest humidity is 90%, air relative humidity of 85% or less;

D. Pollution level: level 2;

2. Quality Assurance of Our Snubberless Triac:

A. The main materials used in our chips are high quality and made in Taiwan, high quaity silicon and copper.

B. The die structures are special design, all action positions are high accuracy.

C. A Variety of pins specifications and sockets are available for choosing for various wiring opitions types.

D. High sensitivity, long lifetime, good reliability and stability.

E. 100% Inspection before shipment.

3. Why choose us:

A. We are reliable Alibaba Gold Supplier.

B. We are leading manufacturer in micro switches for more than 10 years’ experience.

C. Rich experience in Global market, export to more than 50 countries.

D. 100% QC inspection before shipment.

E. Keep research and development the latest technology.

F. Reply within 24 hours.

G. After sale service: Professional technical support.

H. Customized design: We can produce according to your request.
