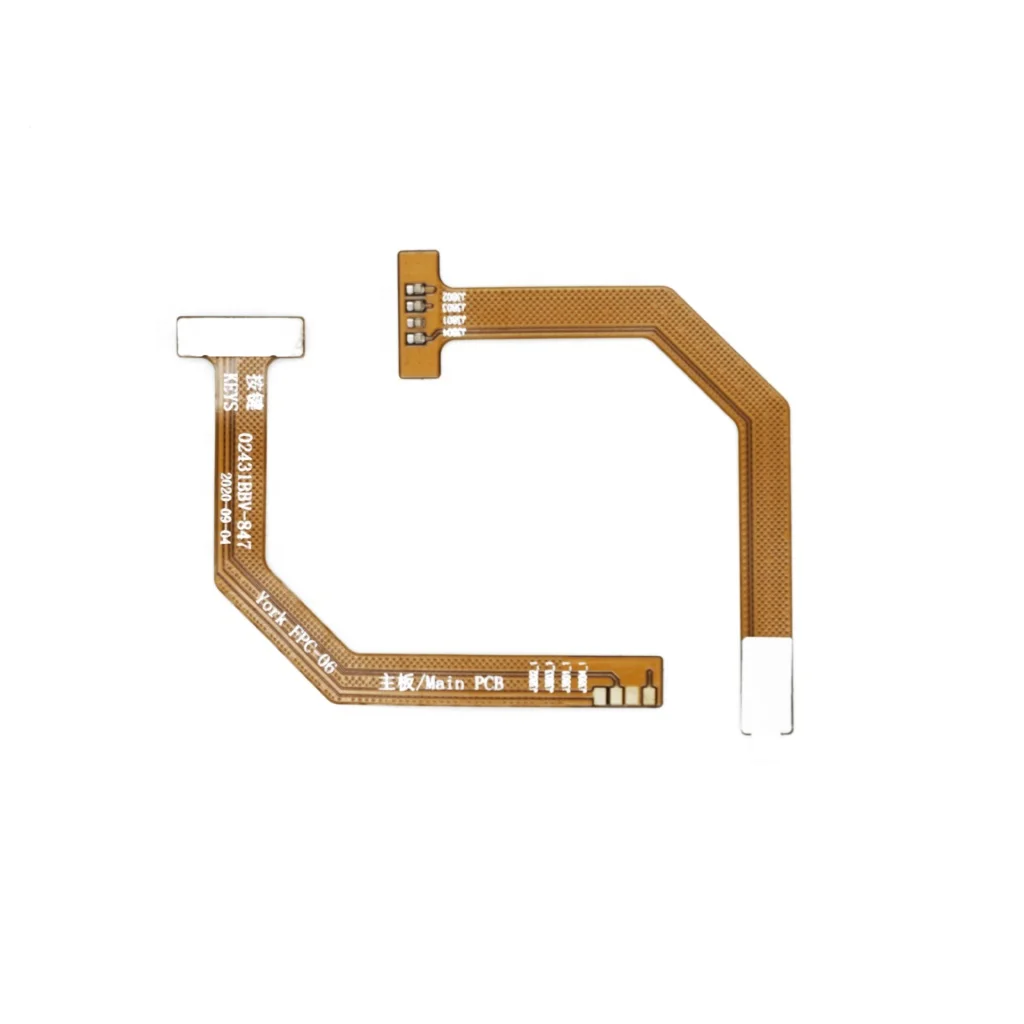

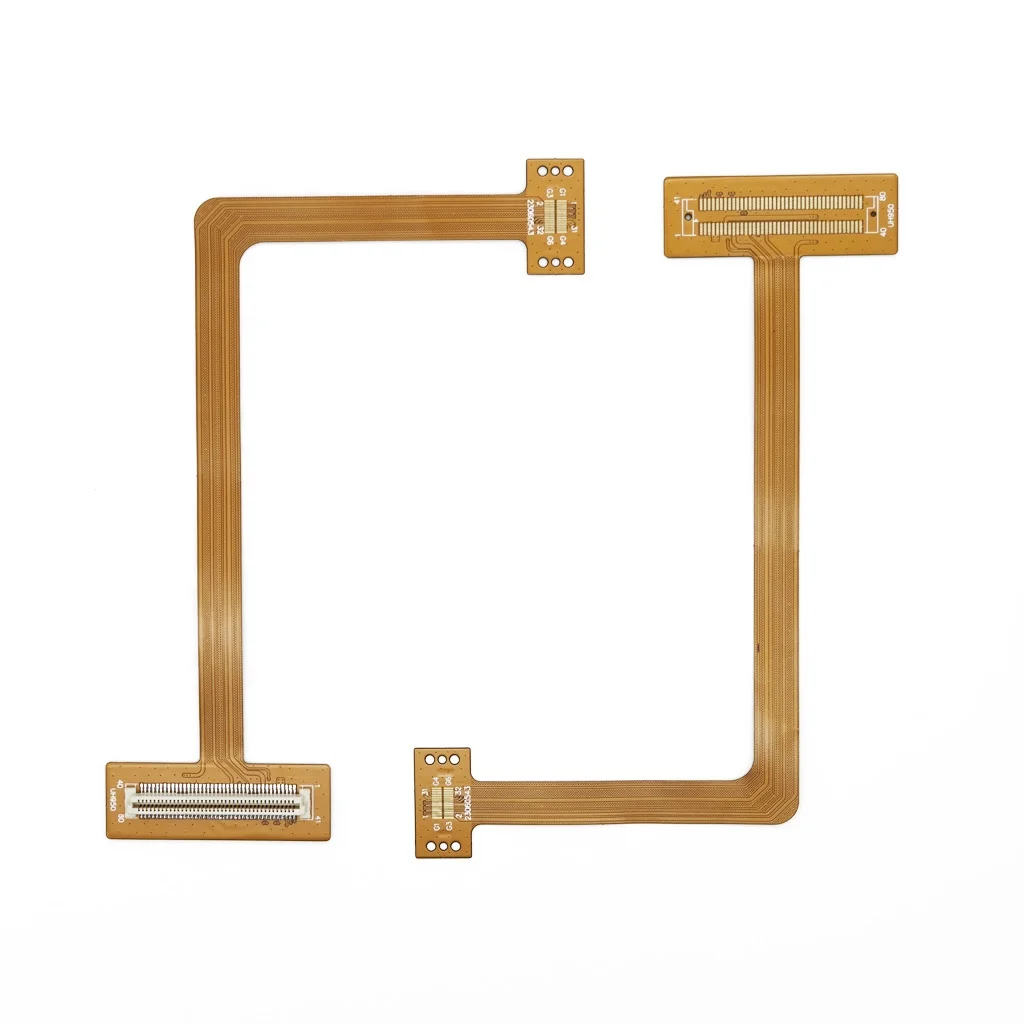

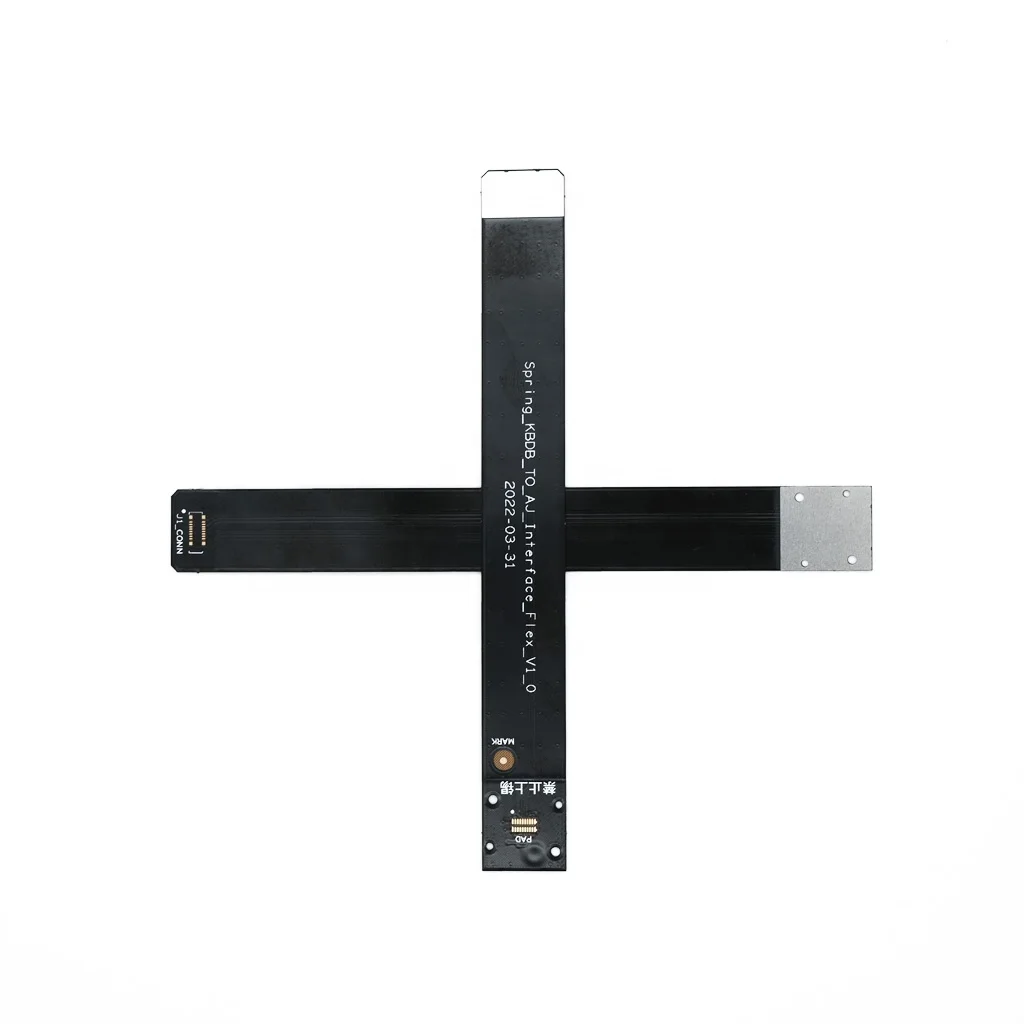

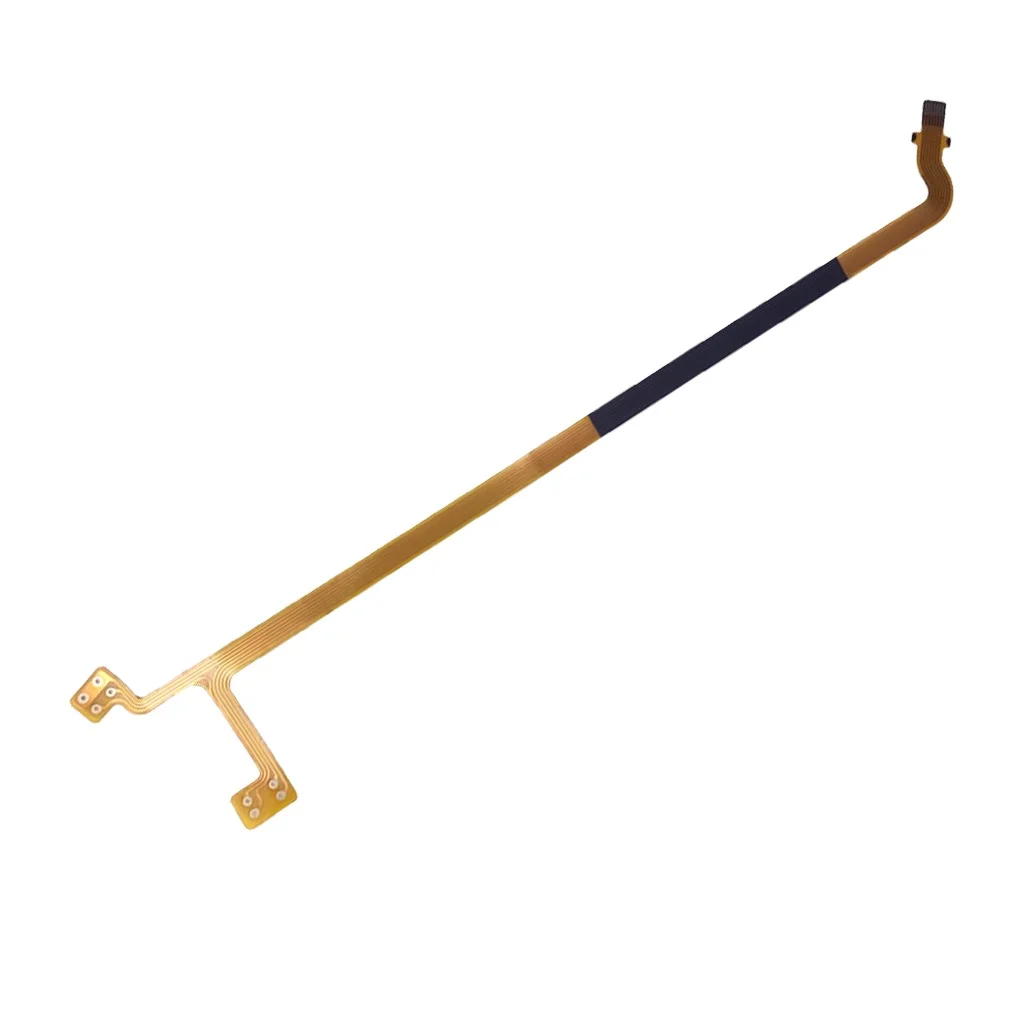

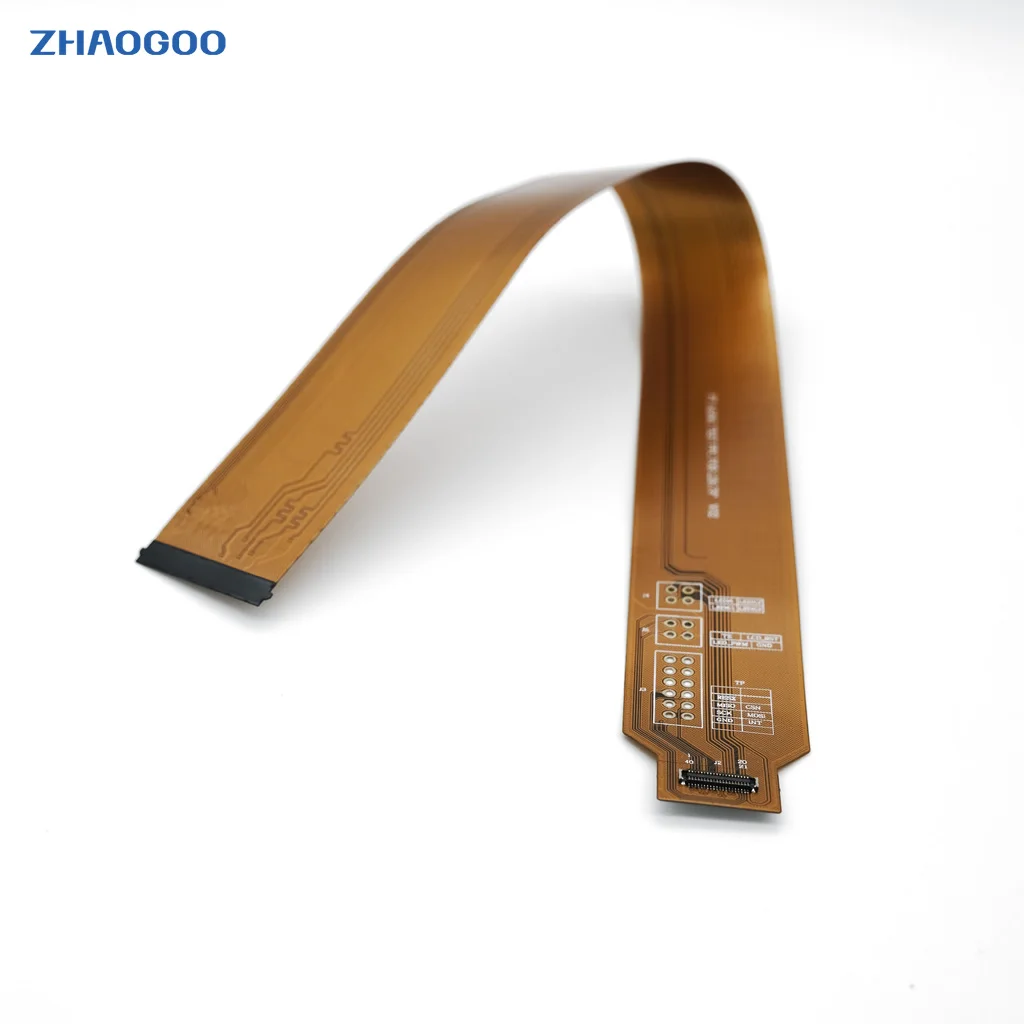

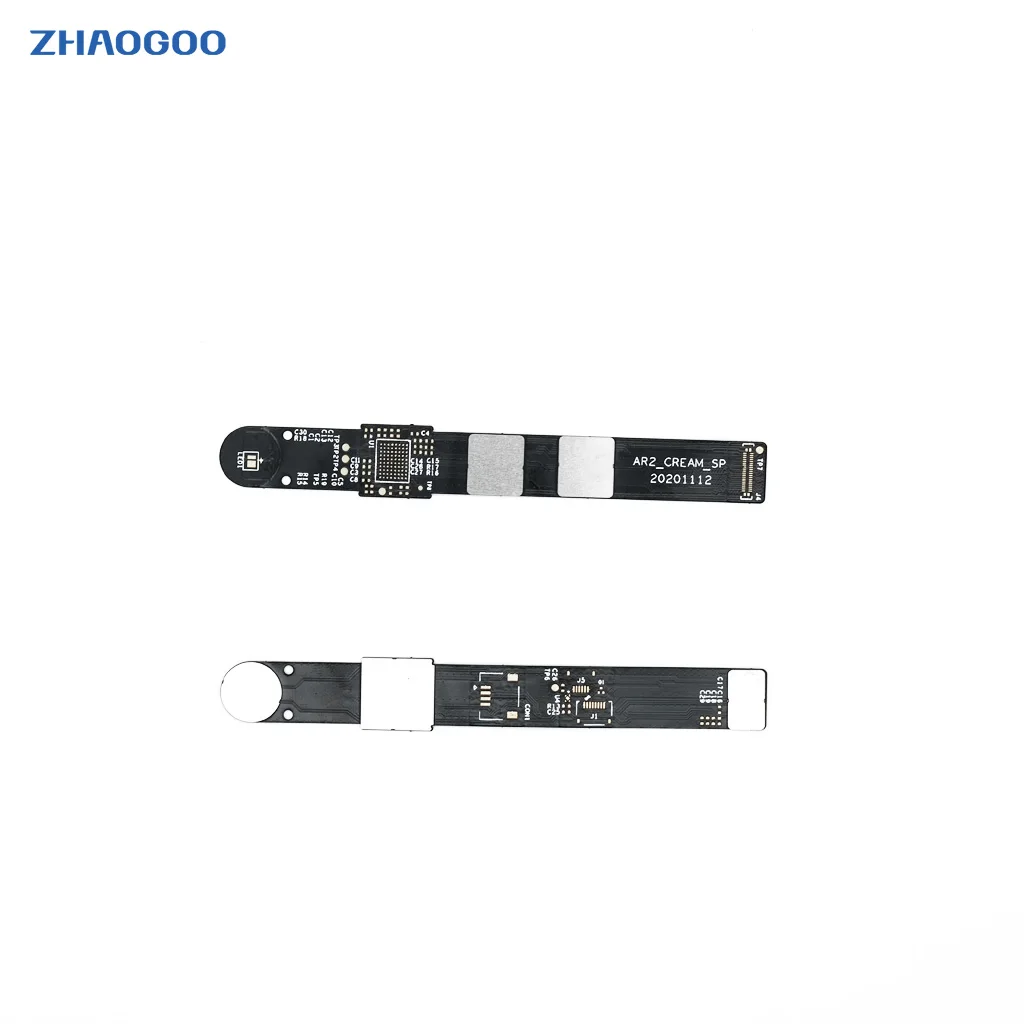

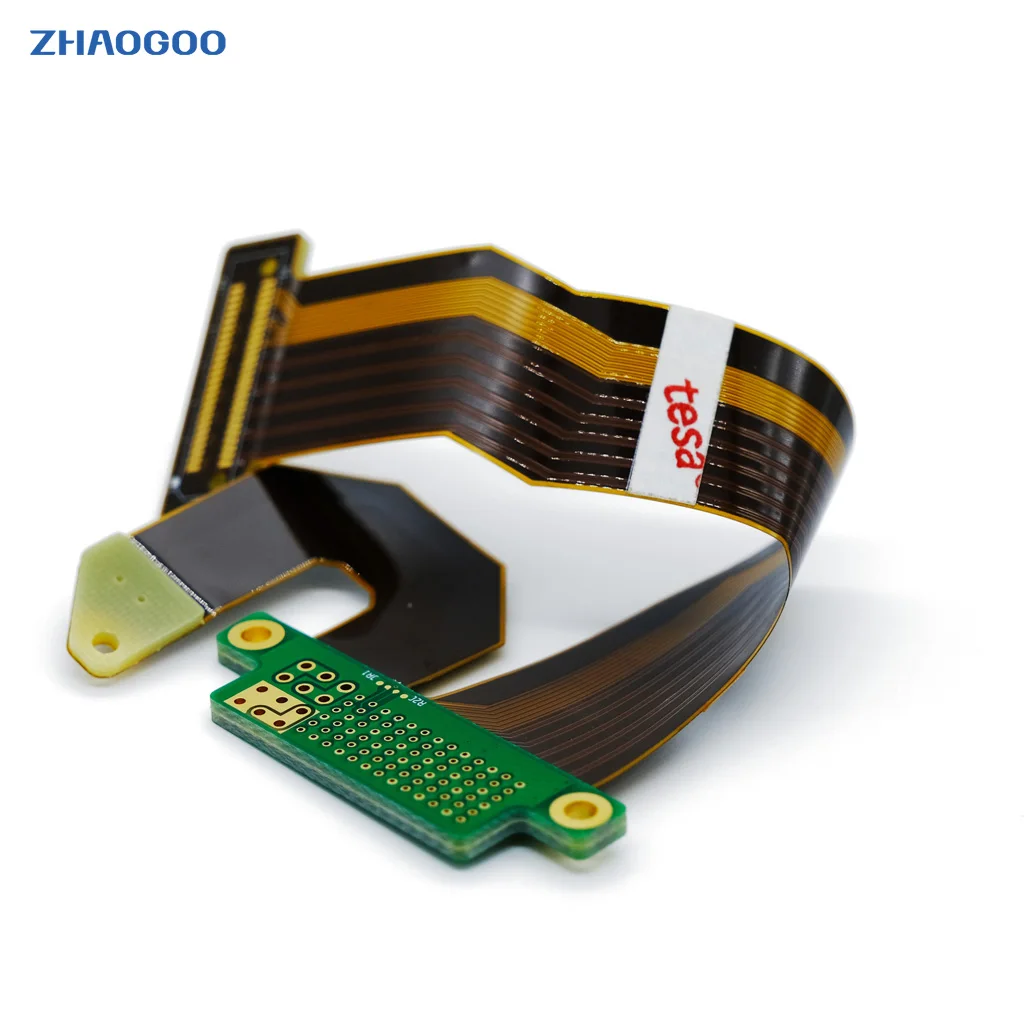

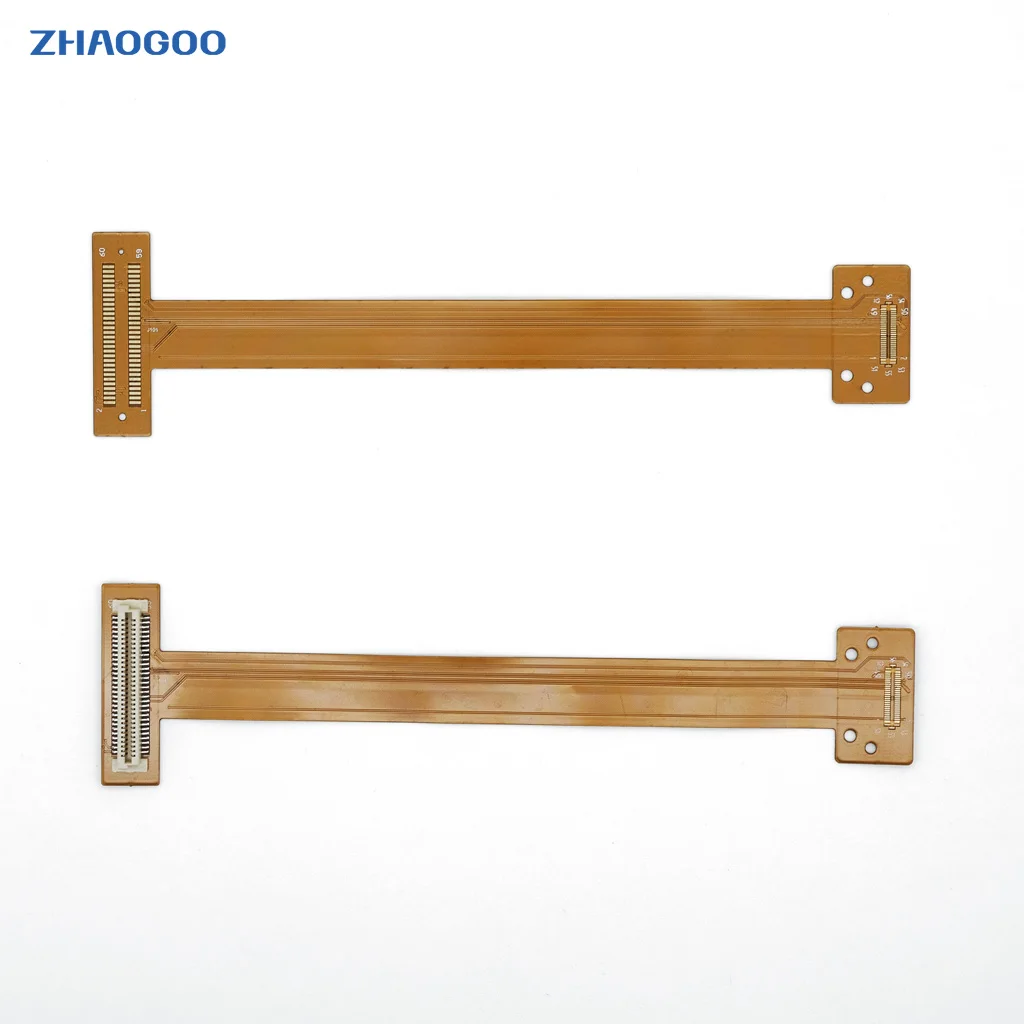

Одна остановка OEM низкая цена быстрый производитель FPC гибкий Pcba FPCB сборка серебряный пользовательский медный ключ HDI товар поверхностный луч Rohs
- Категория: >>>
- Поставщик: Shenzhen Zhaogoo Industrial Co. Ltd.
Сохранить в закладки 1600520347949:
Описание и отзывы
Характеристики
Specification
item | value |
Model Number | ZGCP2S10053A0 |
Type | FPC |
Place of Origin | China |
Guangdong | |
Brand Name | ZHAOGU |
Base Material | FR-4/CEM-1/CEM-3/Polyimild/PTFE/Rogers |
Copper Thickness | 0.4-2mil(10-50um) |
Board Thickness | 0.2-6mm |
Min. Hole Size | 0.1mm(4mil)for HDI / 0.15mm(6mil) |
Min. Line Width | 0.075mm/0.075mm(3mil/3mil) |
Min. Line Spacing | 0.003'' |
Surface Finishing | HASL/OSP/Ag/ENIG/ENEPIG/Immersion silver/Tin |
Board Size | Custom |
Description & Delivery
The above are only part of our product display. All pictures are taken by our company. Without authorization, reproduction and use are prohibited.
Product Description

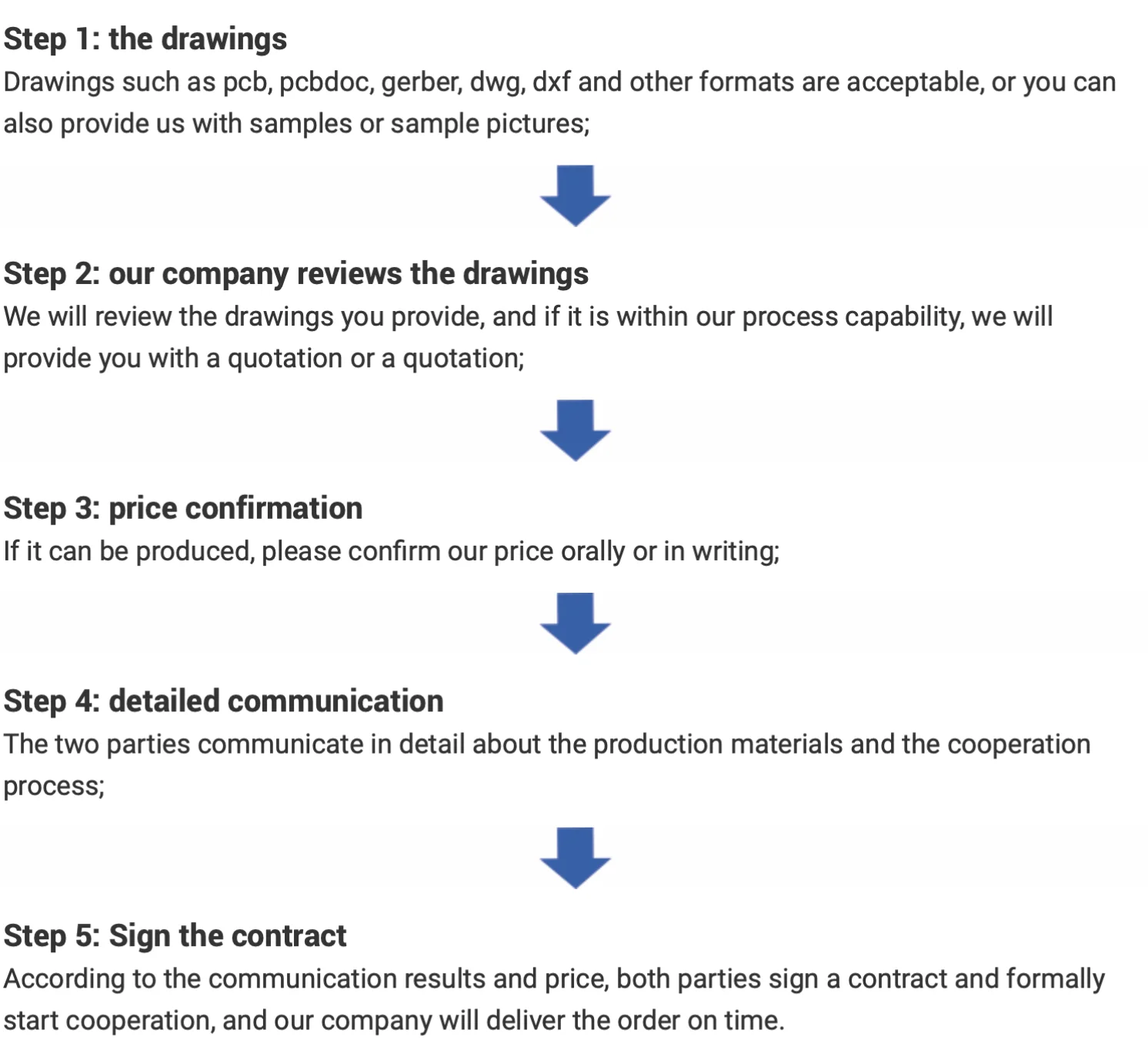

Order Process
Company Profile
ABOUT ZHAOGOO
Shenzhen Zhaogoo Industrial Co., Ltd. is an electronic manufacturing enterprise with FPC and Rigid-flex PCB production and sales as its core business. It is located in Shenzhen, Guangdong, China, and also has an office in Hong Kong. We were established in July 2012, with ten years of manufacturing experience, 118 employees (as of March 31, 2022), and a plant area of 2,689 square meters.
We have a full set of production equipment, such as automatic cutting machine, CNC drilling machine, high-precision exposure machine, automatic etching production line, high-precision laser cutting machine, flying probe testing machine, etc., with a daily production capacity of 600 square meters and sufficient production capacity. The substrates of famous companies such as DuPont and 3M are selected to ensure excellent product quality. The company has passed ISO9001, ISO14001 and ISO45001 management system certification, and its products have passed ROHS certification.
After ten years of accumulation, our main customers include HUAWEI, OPPO, APPLE, DELL, etc. (APPLE and DELL do not directly supply), etc.
We have a full set of production equipment, such as automatic cutting machine, CNC drilling machine, high-precision exposure machine, automatic etching production line, high-precision laser cutting machine, flying probe testing machine, etc., with a daily production capacity of 600 square meters and sufficient production capacity. The substrates of famous companies such as DuPont and 3M are selected to ensure excellent product quality. The company has passed ISO9001, ISO14001 and ISO45001 management system certification, and its products have passed ROHS certification.
After ten years of accumulation, our main customers include HUAWEI, OPPO, APPLE, DELL, etc. (APPLE and DELL do not directly supply), etc.
Flying Probe Tester
It is used to quickly test the electrical performance of the FPC, determine whether there are open circuits, short circuits and other undesirable phenomena, and remove them.
Electrical testing machine
If the number of products is large, this test method is used to determine whether the products have defects such as open circuit and short circuit, and then remove them.
Automatic laminating machine
The equipment is used for automatic lamination of steel sheets, and its precision and speed are higher than those of manual work, and it is suitable for mass production.
Laser cutting machine
It is mainly used for cutting the shape of the product, its precision is as high as 0.03mm, and the cutting speed is fast. It is suitable for sample production and customers who have high requirements on the shape and size.
Automatic feeding machine
The equipment is used for precise slitting of materials, the cutting surface is neat, and the utilization rate of materials is increased. At the same time, the operation speed is fast and safe.
Press machine
This equipment has high temperature and high pressure during operation. It is used for lamination of different layers of FPC and Rigid-flex PCB. After lamination, the product has high peel strength and high reliability.
Quadratic element measure
It is used to measure the dimensions of products and molds, such as position, concentricity, straightness, contour, roundness and dimensions related to datums, etc. It is mainly used for two-dimensional plane inspection of thinner products and smaller products or other 2D projection inspection of workpieces.
Electronic stripping tester
The peeling tester is an electromechanical integration system mainly used for peeling and breaking test of adhesives and film materials, and completes the functions of peeling and stretching of the test piece.
Supplementary Instructions
The above equipment is only part of our production equipment, if you need to know more, you can visit our official website www.zhaogoo.com.
Production Process
Slitting material
CNC drilling
Copper plated
Dry film
Exposure
Etching
Stick protective film
Lamination
Testtest
Product packaging
Above the packaging
Side of package
Front of package
Foam filling
Dedicated product labels
Anti-static packaging
Package instructionpackage instruction
We have a special shipping box designed and purchased by ourselves. The internal FPC products are all packaged with anti-static,and the excess space is filled with red foam to ensure the integrity and safety of the transported products. If you have your own packaging requirements, you can let us know and we will customize the shipping packaging materials for you.
Waybill Display
FAQ
1. who are we?
We are based in Guangdong, China, start from 2019,sell to Eastern Europe(26.00%),Eastern Asia(14.00%),North America(12.00%),Southern Europe(11.00%),Southeast Asia(10.00%),Western Europe(8.00%),South America(6.00%),Africa(6.00%),South Asia(4.00%),Northern Europe(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
FPC,Rigid-flex PCB,PCB,PCBA,FPC cable
4. why should you buy from us not from other suppliers?
1. The company's corporate culture has been formed;
2. The product has passed IS09001, RoHS, UL certification;
3. The raw materials use famous brands of DuPont, SK and Nippon Steel;
4. Complete production equipment and fast delivery;
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Guangdong, China, start from 2019,sell to Eastern Europe(26.00%),Eastern Asia(14.00%),North America(12.00%),Southern Europe(11.00%),Southeast Asia(10.00%),Western Europe(8.00%),South America(6.00%),Africa(6.00%),South Asia(4.00%),Northern Europe(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
FPC,Rigid-flex PCB,PCB,PCBA,FPC cable
4. why should you buy from us not from other suppliers?
1. The company's corporate culture has been formed;
2. The product has passed IS09001, RoHS, UL certification;
3. The raw materials use famous brands of DuPont, SK and Nippon Steel;
4. Complete production equipment and fast delivery;
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Похожие товары
Мотор стеклоочистителя лобового стекла 61617194029 61617114460 61617176377 для BMW
34,00 $ - 45,00 $
1.0 ton электр погрузчик / малый аккумулятор погрузчиков / электрический штабелер погрузчик
Высококачественный черный белый браслет клевера из нержавеющей стали
Гидравлический листогибочный станок с ЧПУ, Турция
62 600,00 $ - 85 600,00 $
Ручной принтер T10 Pro, 25 мм, портативный струйный принтер TIJ, Струйные принтеры, дата истечения, номер штрих-кода, печатная машина
320,00 $ - 350,00 $

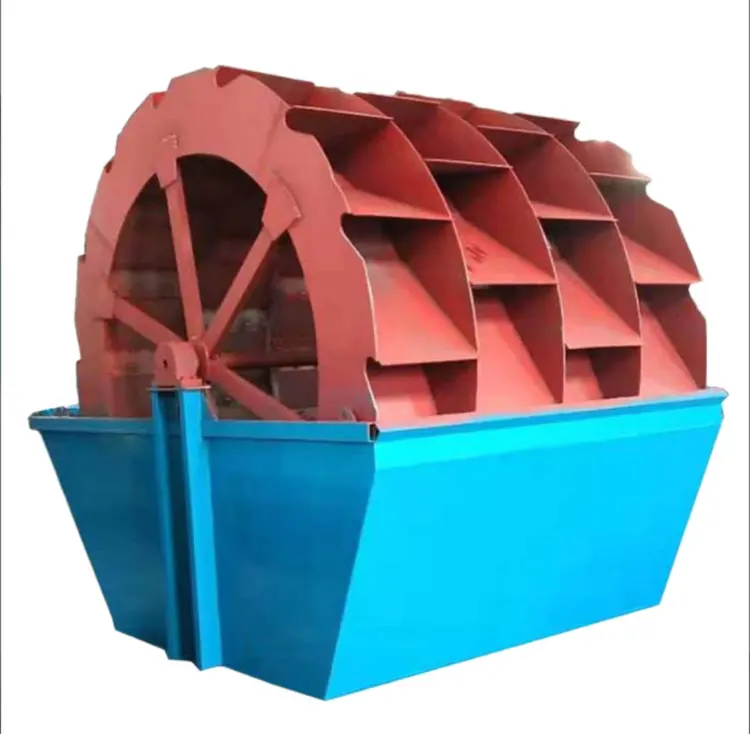

Машина для очистки песка на колесиках с большой емкостью, машина для обработки камня, заводская цена и высокое качество
