Высокочастотный UPS 3 кВА online ups home LCD дисплей батареи 3kva с разъемом DIN
142,00-168,00 $

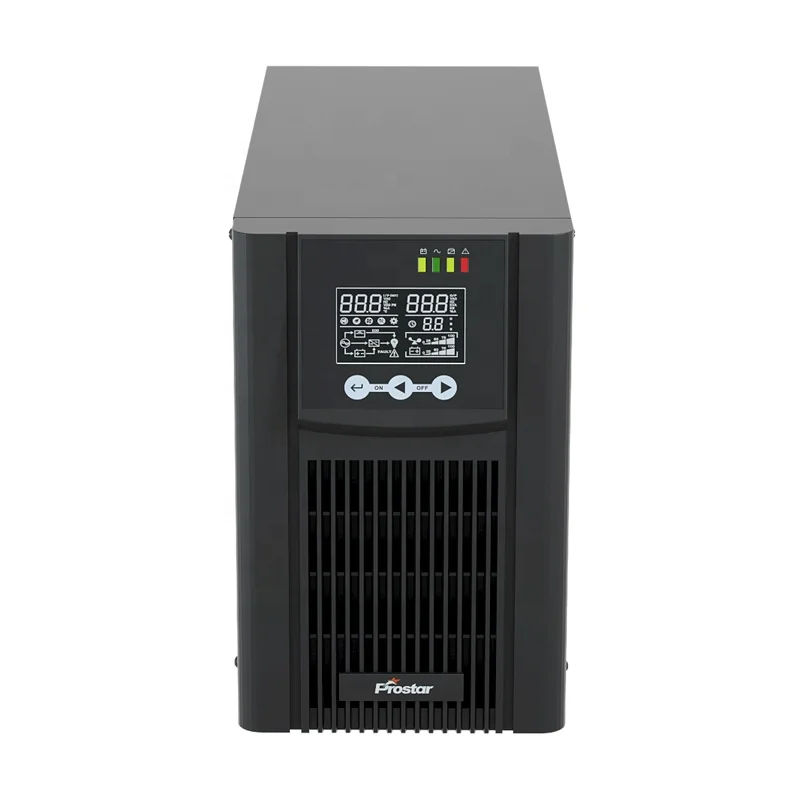

Высокочастотный Интернет источник бесперебойного питания Prostar 96 в 3 кВА/3 кВт PF1.0
- Категория: >>>
- Поставщик: Guangdong Prostar New Energy Technology Co. Ltd.Guangdong Ltd.
Сохранить в закладки 1600520492405:
Описание и отзывы
Характеристики

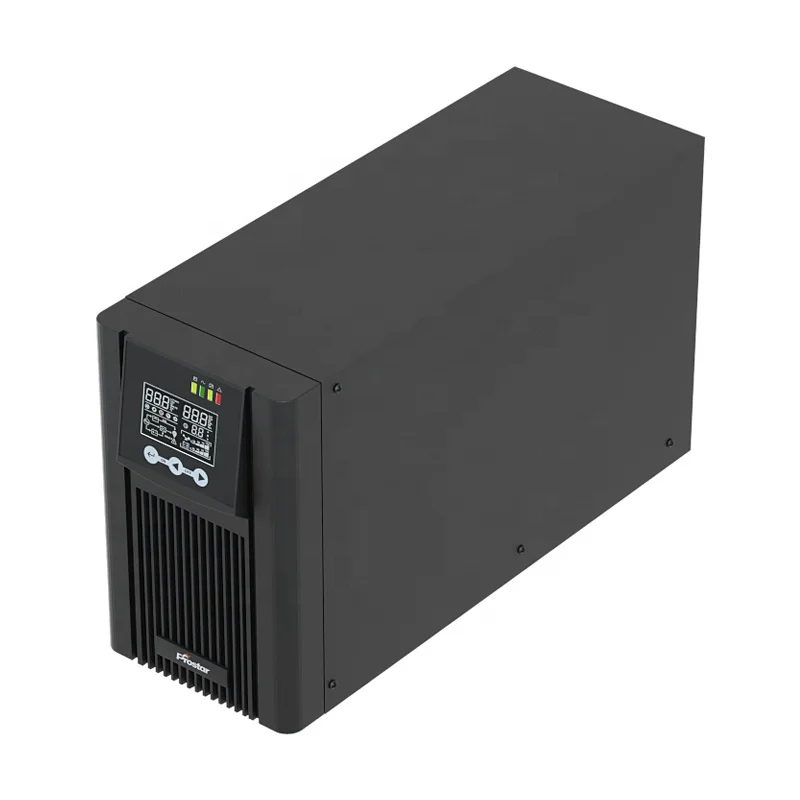

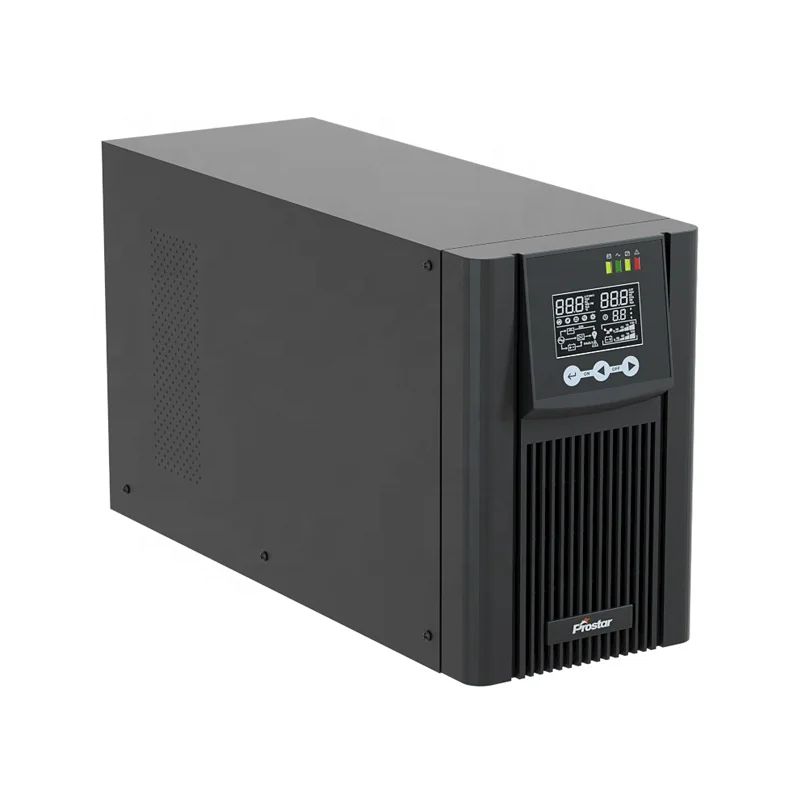

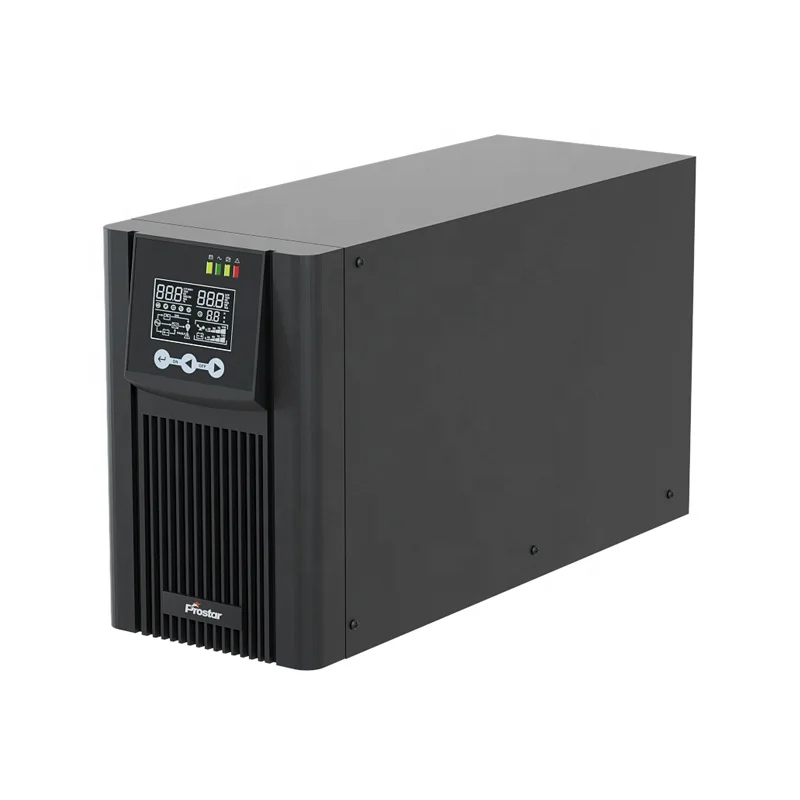

3KVA/3KW High Frequency Online UPS
The ECO and frequency inverter operation modes highlight the requirements for a modern versatile UPS. It is widely suitable for safe supply of application-critical loads in the IT environment such as workstations, servers, storage systems and sensitive switching and control systems.
Advanced Technology With Power Factor 1.0
Excellent pertormance UPS full load efficiency up to 95.5% in the leading industry, stronger load ability, cost-effective, low investment cost
Charging Current Up To 12A
The end users can adjust battery charging current from 1A to 12A via LCD, also can choose battery charging stage in 2-stage or 3-stage, so that it can shortenbattery charging time. Built-in intelligent battery manage system toreduce battery maintenance cost
Adjustable Battery Numbers
The ed users can freely choose UPS backup timeby adjusting UPS battery number
Emergency Power Off - EPO
In case of emergency, all the devices connected to the mains can be cut off immediately to ensure safely
Multiple Protection Function
It can work safely and conveniently with over-voltage, umder-voltage, short-circuit, phase absence and automatic bypass protection function. It can be continuous and reliable operation under barsh public grid and complex load
Over-Voltage Protection
Effectively prevent the battery from over-voltage charge or discharge
Reversed Polarity Protection
When reverse polarity connection occurred, it will automatically protect the load device
Failure Operation Protection
When circuit failure or wrong operation, it will protect the device
Short Circuit Protection
Automatic protection when the load isshort-circuited
Leakage Protection
Effectively protect the battery over-voltage charge and over-voltage discharge
Over Charge Protection
Prevent battery from over charge for long time
Excellent pertormance UPS full load efficiency up to 95.5% in the leading industry, stronger load ability, cost-effective, low investment cost
Charging Current Up To 12A
The end users can adjust battery charging current from 1A to 12A via LCD, also can choose battery charging stage in 2-stage or 3-stage, so that it can shortenbattery charging time. Built-in intelligent battery manage system toreduce battery maintenance cost
Adjustable Battery Numbers
The ed users can freely choose UPS backup timeby adjusting UPS battery number
Emergency Power Off - EPO
In case of emergency, all the devices connected to the mains can be cut off immediately to ensure safely
Multiple Protection Function
It can work safely and conveniently with over-voltage, umder-voltage, short-circuit, phase absence and automatic bypass protection function. It can be continuous and reliable operation under barsh public grid and complex load
Over-Voltage Protection
Effectively prevent the battery from over-voltage charge or discharge
Reversed Polarity Protection
When reverse polarity connection occurred, it will automatically protect the load device
Failure Operation Protection
When circuit failure or wrong operation, it will protect the device
Short Circuit Protection
Automatic protection when the load isshort-circuited
Leakage Protection
Effectively protect the battery over-voltage charge and over-voltage discharge
Over Charge Protection
Prevent battery from over charge for long time
Features Introduction
● True double conversion
● Microprocessor control optimizes reliability
● DSP technology guarantees high performance
● Sinus shaped power feed(high-frequency pulse width modulation with IGBTs)
● Input power factor correction
● Output power factor 1.0
● Extremely wide input voltage window of 110VAC to 300VAC
● High efficiency up to 95.5%
● 50Hz/60Hz frequency converter mode
● ECO and frequency operating voltage possibilities
● Emergency power off (EPO) function
● Graphic LCD display with interactive multilingual user interface
● Adjustable battery numbers
● Adjustable charging current via LCD panel
● Adjustable charging mode with two stages or three stages
● Charger capacity expansion to 12A for long-run models
● Programmable output voltage
● Cold start by battery without grid Input
● Advanced battery charging technology for maximum durability of the battery
● Generator compatible

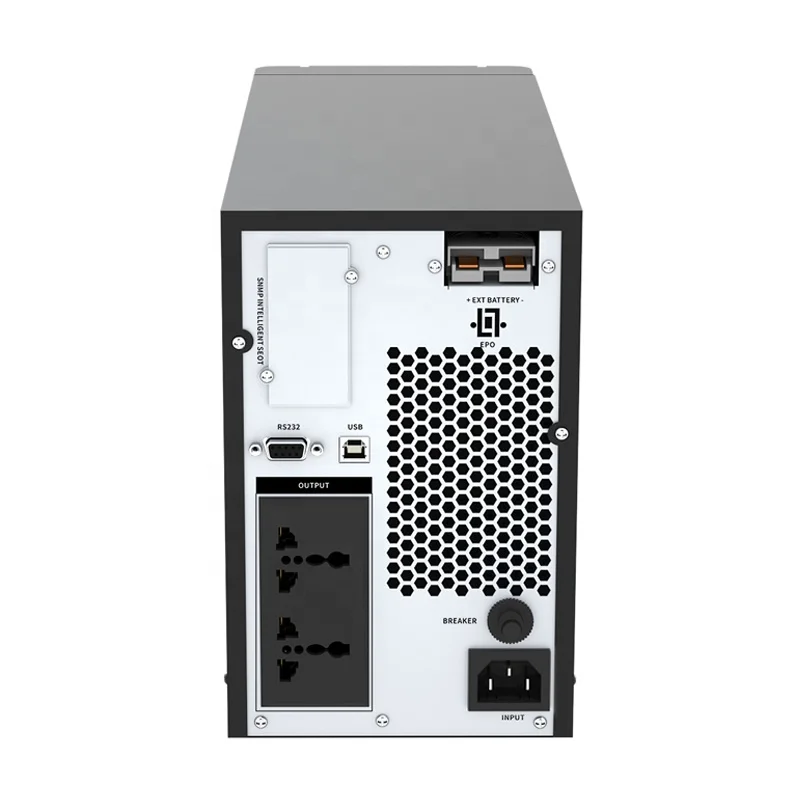

● Extension slot for SNMP, potential-free contacts, remote panel
● Microprocessor control optimizes reliability
● DSP technology guarantees high performance
● Sinus shaped power feed(high-frequency pulse width modulation with IGBTs)
● Input power factor correction
● Output power factor 1.0
● Extremely wide input voltage window of 110VAC to 300VAC
● High efficiency up to 95.5%
● 50Hz/60Hz frequency converter mode
● ECO and frequency operating voltage possibilities
● Emergency power off (EPO) function
● Graphic LCD display with interactive multilingual user interface
● Adjustable battery numbers
● Adjustable charging current via LCD panel
● Adjustable charging mode with two stages or three stages
● Charger capacity expansion to 12A for long-run models
● Programmable output voltage
● Cold start by battery without grid Input
● Advanced battery charging technology for maximum durability of the battery
● Generator compatible
● Extension slot for SNMP, potential-free contacts, remote panel
Specification
PRODUCT NAME | 3KVA High Frequency Online UPS | |
Model | PET1103 | |
Power Capacity | 3KVA/3KW | |
Battery Voltage | 96VDC | |
Power Factor | 1.0 | |
Dimension(DxWxH mm) | 395x143x222mm | |
Weight(Kgs) | 6 | |
INPUT | ||
Input Format | L+N+PE | |
Rated Voltage | 208VAC/220VAC/230VAC/240VAC | |
Voltage Range | 110V-300VAC | |
Frequency Range | 50/60±6Hz(Default), ±10Hz(Settable) | |
Power Factor | ≥0.99 | |
Harmonic Distortion (THDi) | ≤3% THD(LinearLoad); ≤5%THD(Non-linearLoad) | |
OUTPUT | ||
Output Format | L+N+PE | |
Rated Voltage | 208VAC/220VAC/230VAC/240VAC | |
AC Voltage Regulation | ± 1% | |
Frequency Range | AC Mode:same as AC, Battery Mode:50/60Hz±1% | |
Harmonic Distortion (THDi) | ≤1% THD(LinearLoad); ≤3%THD(Non-linearLoad) | |
Power Factor | 1.0 | |
Overload Capacity | AC Mode: 30min@102%~110%load, 10min@110%~130% load, 30s@130%~150%load, 200ms@>150% load Battery Mode: 1min@102%~110%load, 10s@110%~130%load, 3s@130%~150%load, 200ms@>150% load | |
WaveForm | Pure Sine Wave | |
TRANSFER TIME | ||
AC Mode to Battery Mode | 0ms | |
Inverter to Bypass | 4ms | |
EFFICIENCY | ||
AC Mode | 95.5%@220VAC | |
Battery Mode | 91.5% | |
BATTERY | ||
Battery Type | Depending on applications | |
Battery Numbers | 8 | |
Charging Current | 5A(Default), 1-12A(Adjustable) | |
Charging Mode | Two-stage/Three-stage charging | |
DISPLAY | ||
LCD Display | Working mode/load/input/output | |
ENVIRONMENT | ||
Operation Temperature | 0~40℃ | |
Storage Temperature | -15~60℃ ( Battery: 0~40℃ ) | |
Relative Humidity | 20%~95% (No condensation) | |
Altitude | ≤1000m | |
Noise | < 45dB@1 Meter | |
MANAGEMENT | ||
RS232/USB | Windwos2000/2003/XP/Vista/2008/7/8/10,Linux and MAC | |
Optional SNMP | Power management from SNMP manager and web browser | |
Products Description
Company Profile
Guangdong Prostar New Energy Technology Co., Ltd. was set up in 1998, specializes in the design and production high quality OEM and Prostar own brand of industrial Uninterruptible Power Supply (UPS), Power Inverter, Solar panels, Solar Power System and Wind Power generation system,and Emergency Power Supply (EPS) as well as maintenance-free storage batteries.
Prostar has a very experienced and professional Design and Research Department who work closely with customers for their product development as well as designing the ever expanding Prostar brand range. Other divisions include Quality Control Centre, Purchasing & Production Centre, and Sales and Customer Service Centre.
Prostar is wholly responsible for the business promotion and service in the Mainland China. Through a decade of great efforts, Prostar has made the poster branded series of power supplies and batteries widely used in the fields of finance, telecom, electric power, petrol chemistry, finance and taxation of China, and been honorably commented by clients. Taking and making world-class products with professionally earnest attitude as its responsibility, Prostar insists on constant study and innovation to strive to ascend the new summit of the career. We proudly stick to the spirit of "Sincerity, Cooperation, Competitiveness and Creativity ".
Guangdong Prostar New Energy Technology Co.,Ltd. possesses numerous experienced technical personnel, and all of our employees have been subject to professional technical training and examination. Prostar passed the authentication of ISO9001,ISO14001, CE, RoHS and IQNet (worldwide member countries more than 30). The strict and careful quality management gives clients great confidence. For years, the Prostar branded products are widely distributed throughout Europe as well as Affrica, Oceania, Southeast Asia, South America and the Middle East.
Prostar has a very experienced and professional Design and Research Department who work closely with customers for their product development as well as designing the ever expanding Prostar brand range. Other divisions include Quality Control Centre, Purchasing & Production Centre, and Sales and Customer Service Centre.
Prostar is wholly responsible for the business promotion and service in the Mainland China. Through a decade of great efforts, Prostar has made the poster branded series of power supplies and batteries widely used in the fields of finance, telecom, electric power, petrol chemistry, finance and taxation of China, and been honorably commented by clients. Taking and making world-class products with professionally earnest attitude as its responsibility, Prostar insists on constant study and innovation to strive to ascend the new summit of the career. We proudly stick to the spirit of "Sincerity, Cooperation, Competitiveness and Creativity ".
Guangdong Prostar New Energy Technology Co.,Ltd. possesses numerous experienced technical personnel, and all of our employees have been subject to professional technical training and examination. Prostar passed the authentication of ISO9001,ISO14001, CE, RoHS and IQNet (worldwide member countries more than 30). The strict and careful quality management gives clients great confidence. For years, the Prostar branded products are widely distributed throughout Europe as well as Affrica, Oceania, Southeast Asia, South America and the Middle East.
VR
Contact Us
Похожие товары

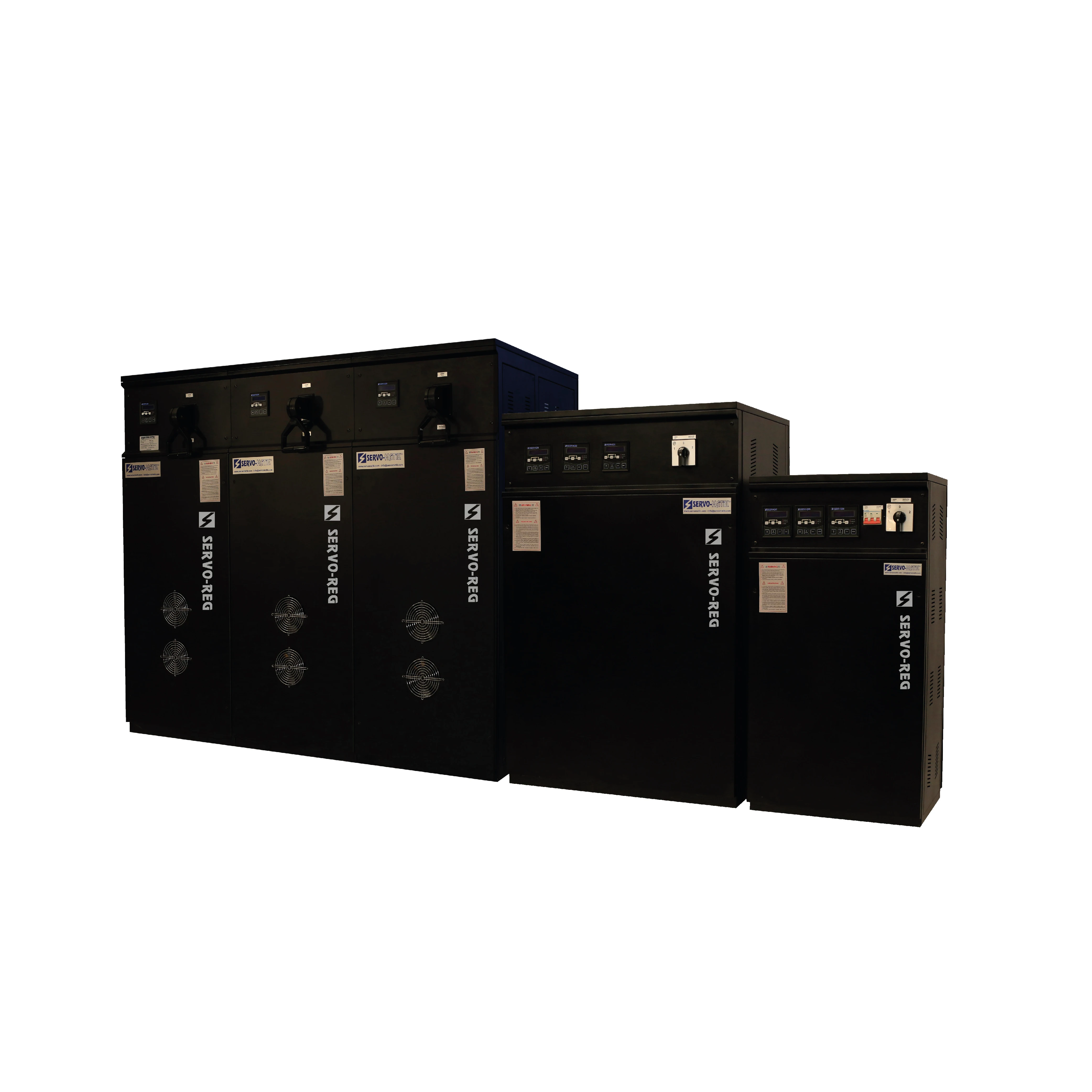

SERVO-MATIK SERVO стабилизатор напряжения однофазный вход-однофазный выход 1 кВА-50 ква SERVO-REG серии
0,10 $

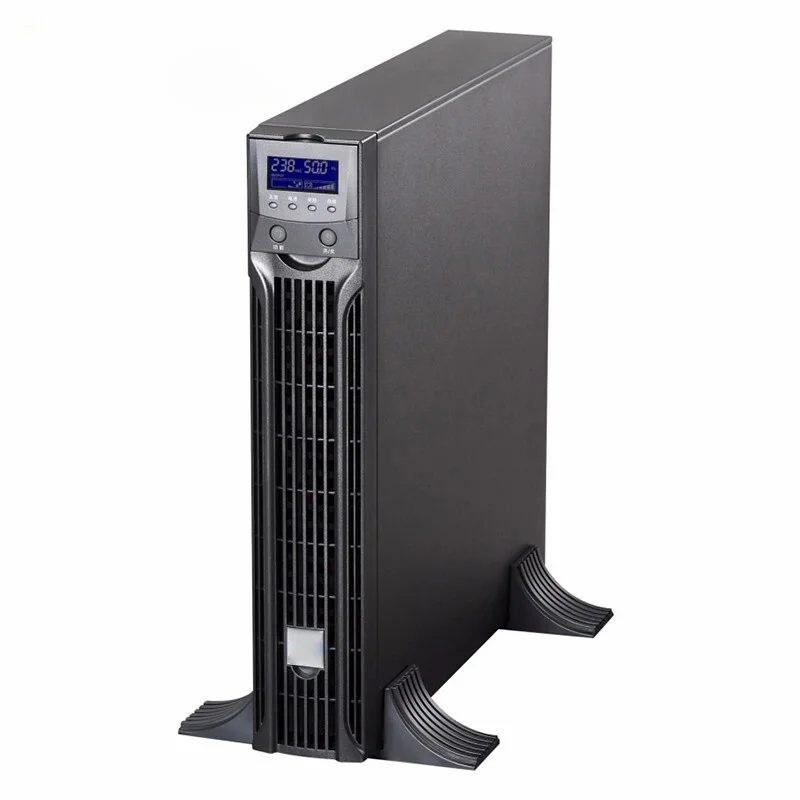

DXRT1K UPS источник бесперебойного питания 900 Вт онлайн-крепление для стойки 10 кВА
399,00 $

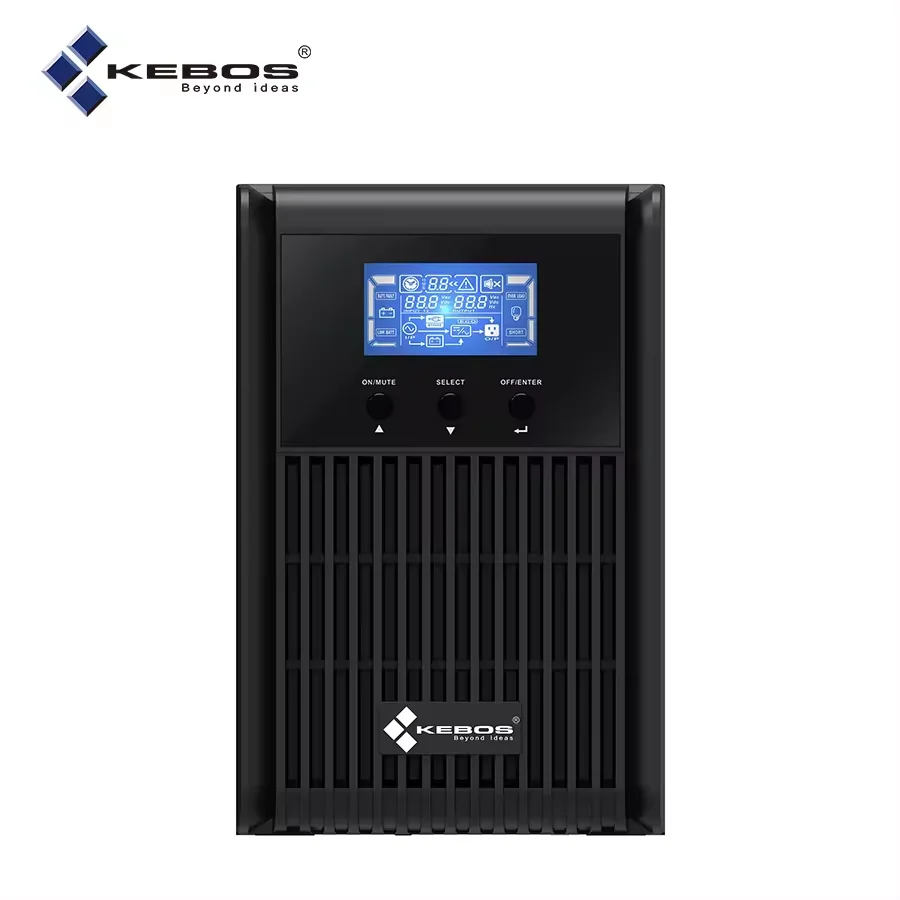

Кебос KH11-6K(L) центр обработки данных с двойным преобразованием защита от перенапряжения однофазный 6 кВА 5400 Вт сетями SNMP RS232
3/1 фазы чистая синусоида онлайн ибп низкой частоты 30 ква
Аккумулятор для резервного копирования 150 Вт 800 с ЖК-дисплеем
44,80-46,50 $

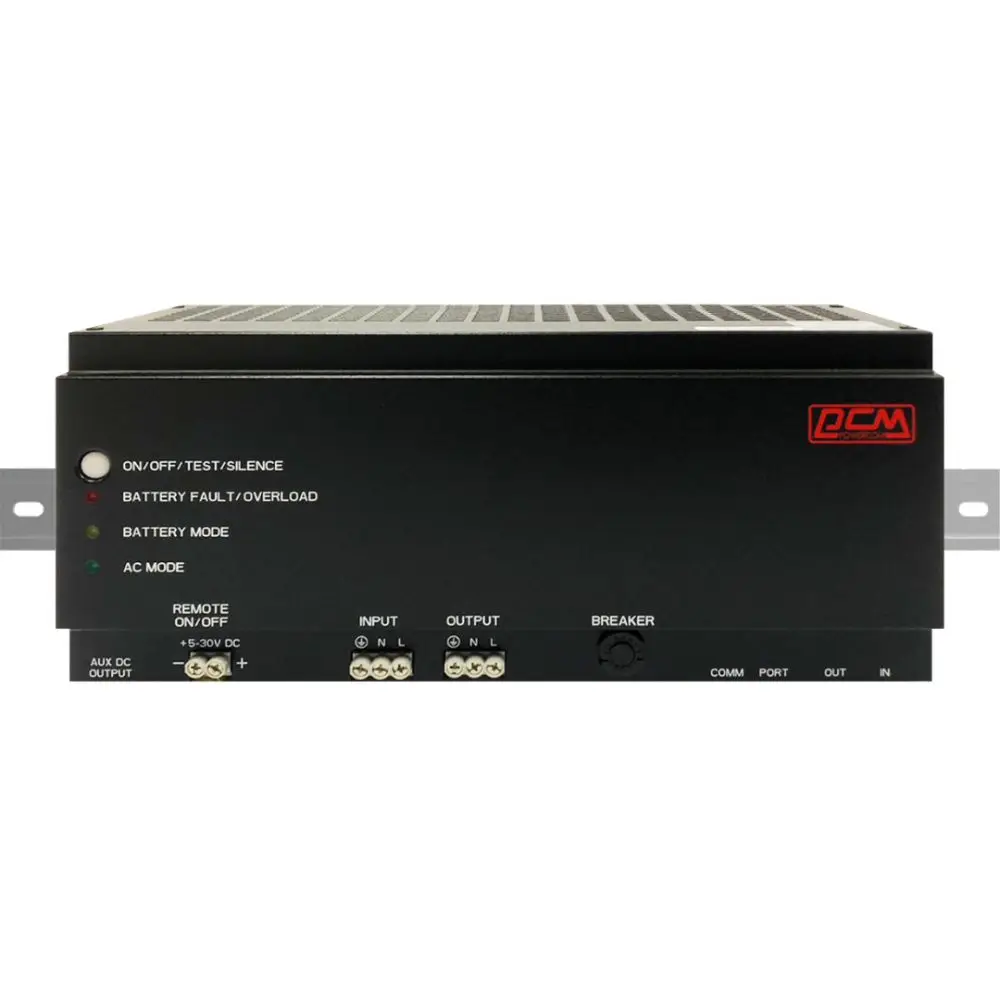

Промышленный DC UPS с однофазным светодиодным дисплеем свинцово-кислотная батарея синусоидальный выходной ток 220 В переменного тока

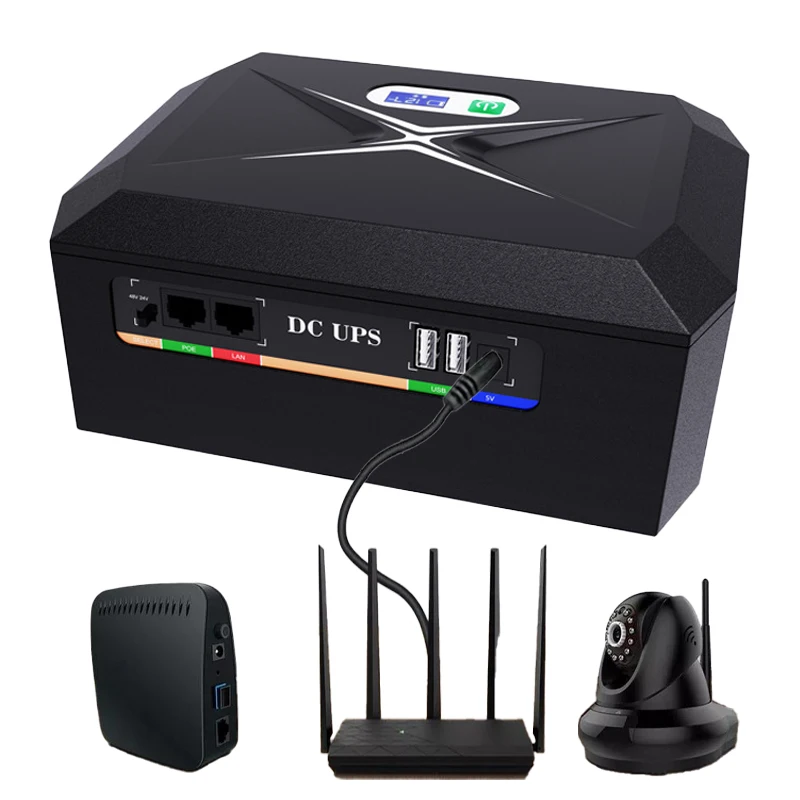

Резервное копирование аккумулятора cwups 60W 100W 120W мини-UPS для Wi-Fi маршрутизатора ноутбука 5V 9V 12V 24V 48V DC UPS 20000mAh 48000mah
