Product Description






Roll to roll CCD alignment screen printing machine

Roll to roll CCD alignment screen printing machine consists of three main parts: automatic feeding machine, CCD precision printing machine and automatic oven.



The whole production line can be controlled by one person, no pause in the printing process, high precision.



The alignment error shall not exceed 0.02mm.






This machine is widely used in FPC,PET, PVC, varies of label,transfer paper (film), floor heating film, geothermal film, electro thermal film, color paper, film, name plate, flexible circuit board, mobile phone keys, Membrane switch, trademark printing, scratch CARDS, self-adhesive stickers, paper, ribbon, aluminum foil and copper foil this roll material silk screen printing.

High precision CCD vision alignment with 0.02mm error. Suitable for all flexible roll material printing.

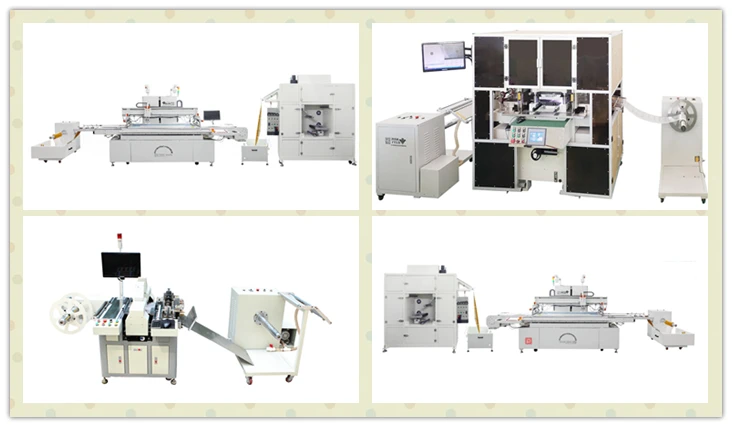

screen printing machine with high quality


Sample picture after printing









Related Products






screen printing machine with high quality

screen printing machine with high quality

screen printing machine with high quality

screen printing machine with high quality

roll to roll CCD alignment screen  printing machine

sheet to sheet CCD screen  printing machine

              CCD Target hole                punching machine


               CCD Target hole                 drilling machine

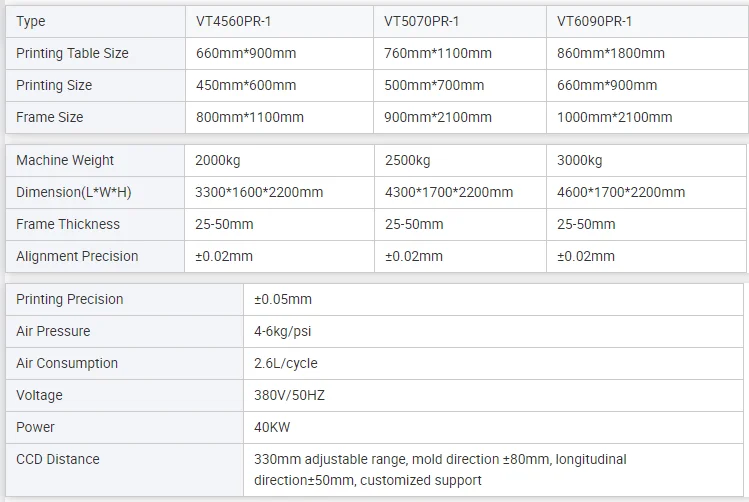

Specification



screen printing machine with high quality

screen printing machine with high quality





































































NameRoll to roll CCD screen printing machine
CustomYes
Usageflexible roll material printing
AdvantageHigh Efficiency
Control systemPLC
Printing precision0.02mm
PackingWooden Package
Power40KW
Volatge380V/50Hz
Registration methodCCD visual alignment
Product Keywordsroll to roll pvc film silk screen printing machine,flat bed screen printing machine













The above parameters are for our standard Roll to roll CCD alignment screen printing machine. If this specification meets your production requirements you can place your order directly and we will ship it to you immediately.

If you need to customise some of these parameters, we will improve them for you to ensure that the product meets your requirements exactly. As soon as the machine has been commissioned, we will deliver it to you.







Product Overviews




screen printing machine with high quality





The Feeder features:





(1) photoelectric control feeding, avoid the surface damage of the material.

(2) feeding speed, time, can adjust at will.

(3) the feeding starting speed, can adjust at will, start frequency starting from 0 up to run slowly, avoid the start too fast, cause the material surface scratches.

(4) equipped with an automatic protective device.

screen printing machine with high quality


Main machine feature---screen printing machine





(1) Multicolor printing, automatic photocell eye counterpoint, computer control, automatic detection color code, if have any abnormal , it will stop automatic.
(2)Using numerical control motor, printing speed, return to the ink speed can be set in a random block.

(3) Using numericalcontrol motor, printing distance, return to the ink distance can be set in a random data.

(4)Automatic computing printing, andcalculate the qty, and printing can be set automatically stop.

(5)photoelectric control feeding and discharging to avoid thesurface damage of substrates, can improve the printing quality.

(6)Setting of printing speed and cycle run can be controlled via touch panel.




New Technology (CCD automatic XYθ rotary alignment printing)



1.CCD automatic XYθ rotation alignment adjustment .

2.Quick screen changer, high production efficiency .

3.CCD high precision alignment ±0.02mm .

4.No pause at halfway, electric eye cursor .

5.No requirements for the accuracy of pulling materials .

6.Provincialworkers, one person can take care of 3 machines.






screen printing machine with high quality




Main machine feature-The dryer features:



(1) Circulating hot air drying, temperature adjustable, automatic winding.

(2) The oven cover an small area, 32-60 meters length, which can realize low temperature drying, ensure printed material no shrinkage deformation, multicolor printing.
