High quality carbon steel cyclone dust filter industrial dust collector for factories

Product Description

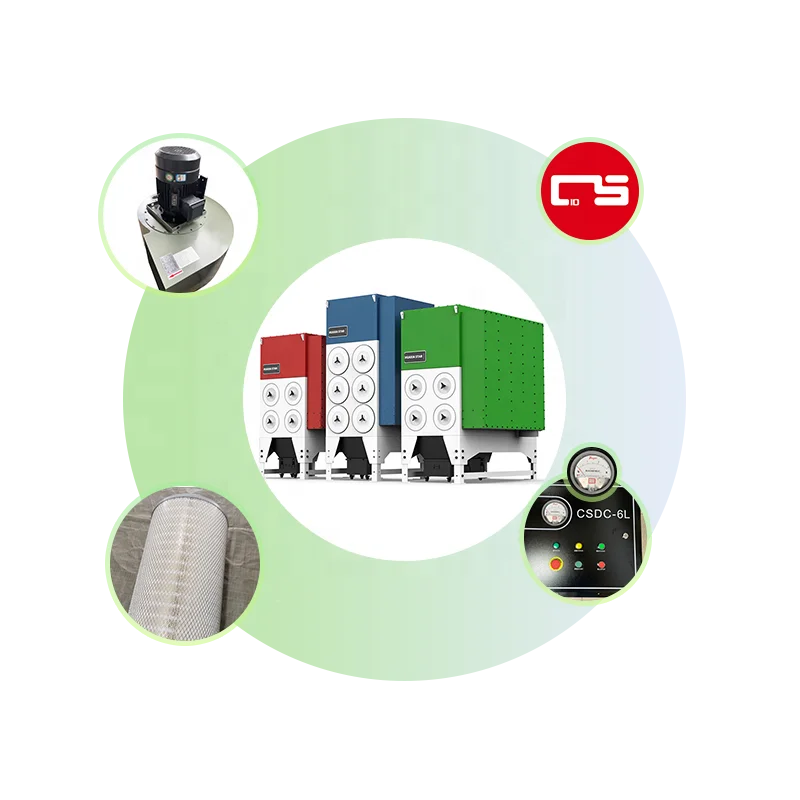

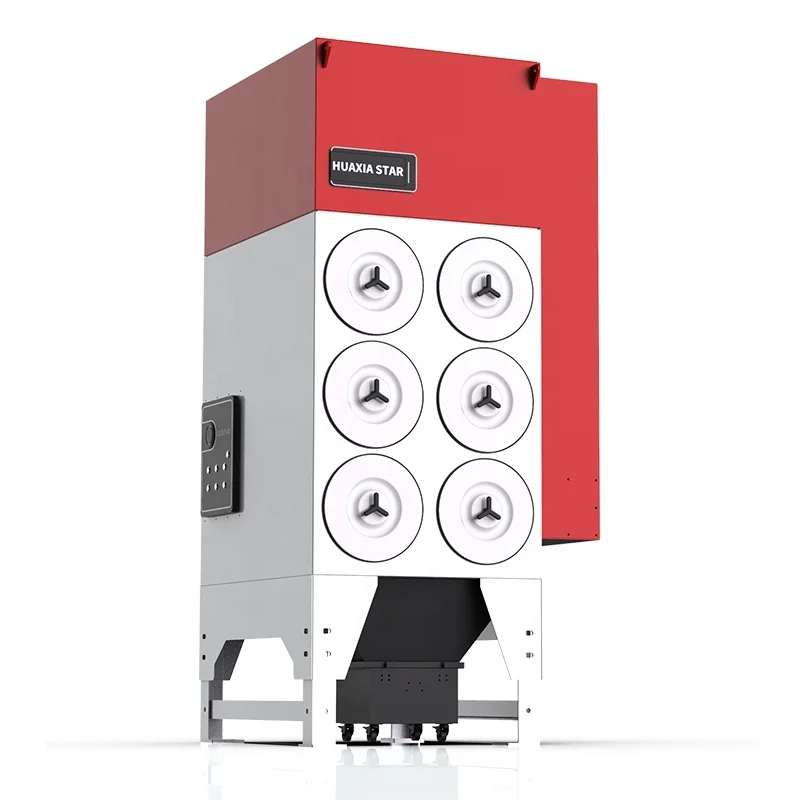

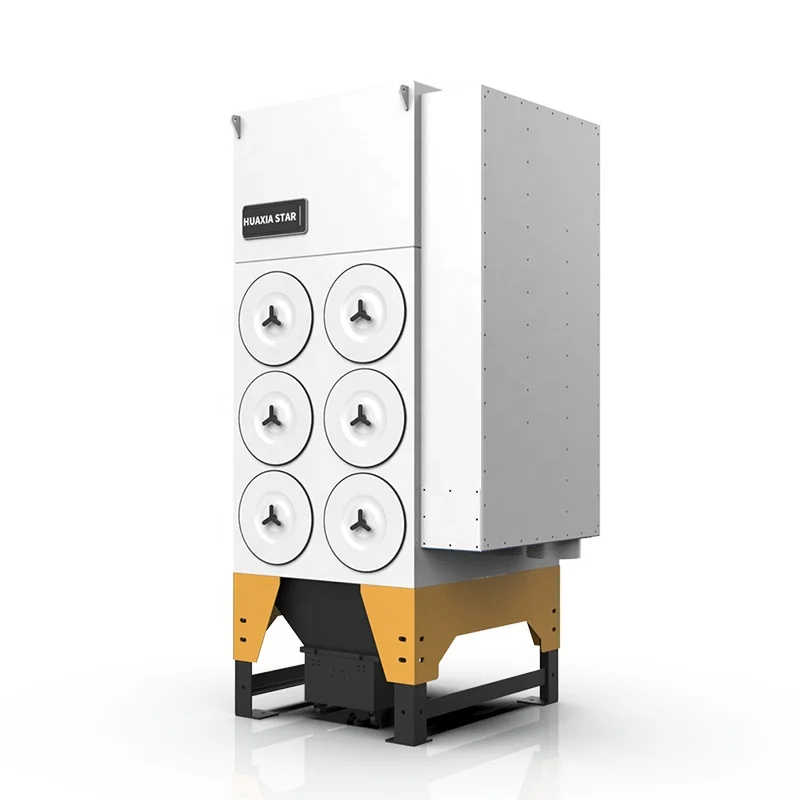

Huaxia-Star CSDC series laser industrial dust collector is an industrial dust collector focusing on the laser cutting industry. It has the characteristics of large air volume, automatic pulse cleaning, using nano flame-retardant filter materials, stable and reliable design.

Model	CSDC-4	CSDC-6	CSDC-8
Power	5.5KW	7.5KW	11KW
Airflow	4000m³/h	7500m³/h	8000m³/h
Voltage	380V/50HZ	380V/50HZ	380V/50HZ
Dia. air inlet	250mm	250mm	300mm
Filter	4	6	8
Filter area	92m2	138m2	184m2
Max air pressure	0.5-0.6MPa	0.5-0.6MPa	0.5-0.6MPa
Filter cleaning method	Pulse jet	Pulse jet	Pulse jet
Dimension [LWH]	1300X1320X2400	1300X1320X2800	2200x1320x2400
noise	≤80dB	≤80dB	≤80dB
Filter efficiency	99%	99%	99%

Applications

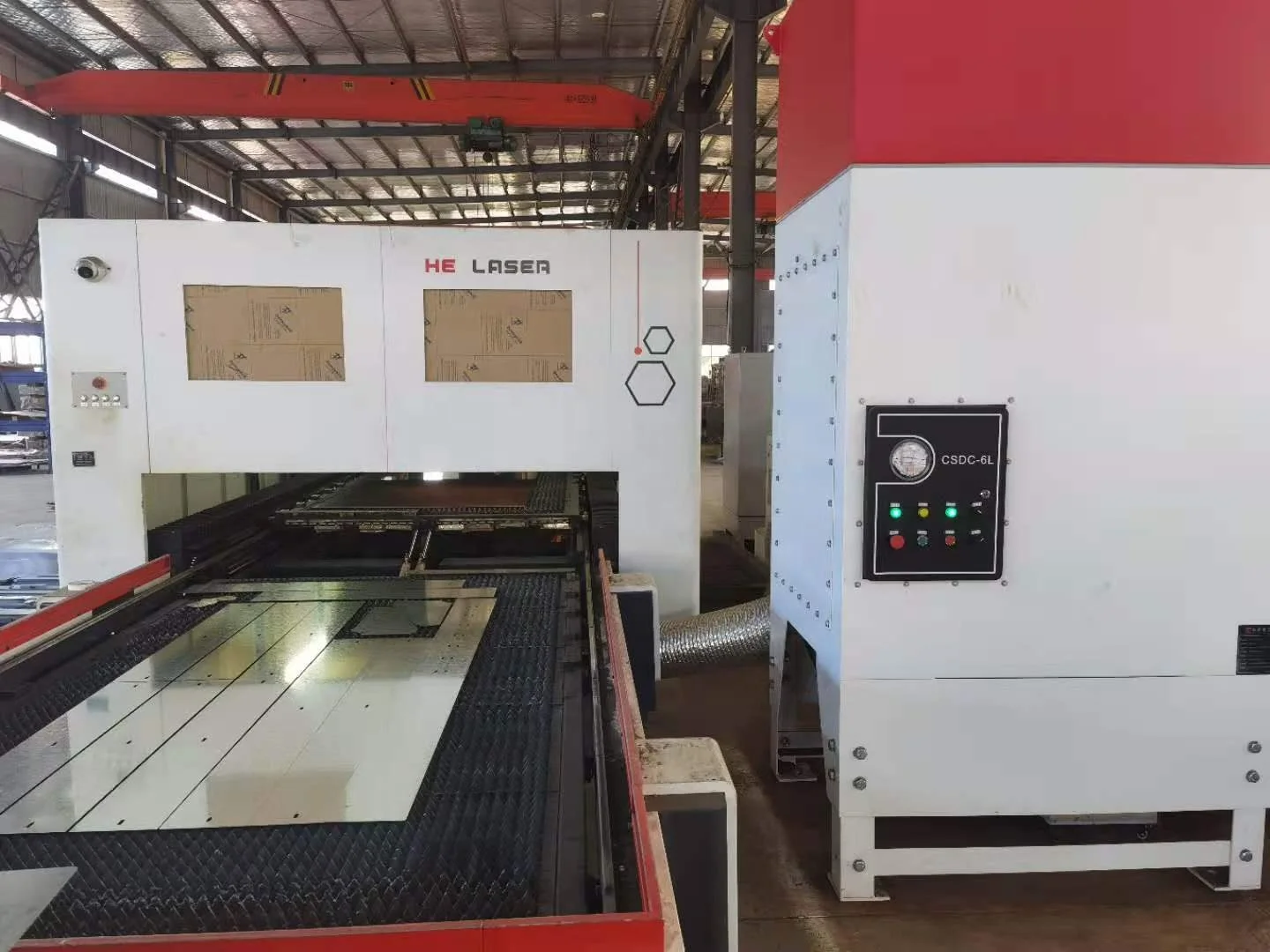

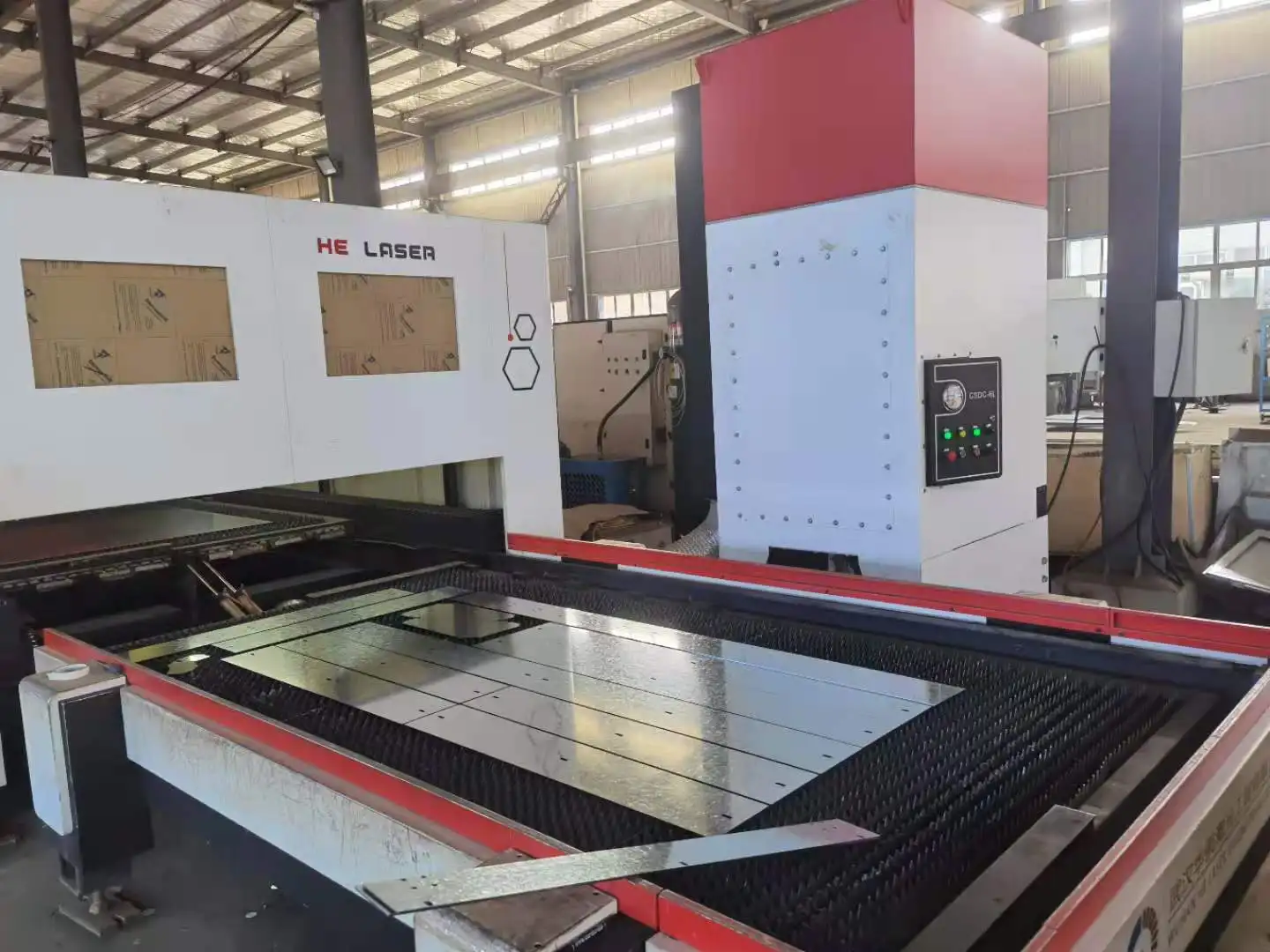

Laser cutting, plasma cutting, grinding machine and other industries; composite material processing dust removal, and powder recovery and many other occasions; heavy-duty occasions such as automated assembly lines.

Features

1. The fan complies with the AMCA standard, the impeller is directly connected to the motor, with high efficiency and maintenance-free. Noise as low as 80 decibels.
2. The filter cartridge is made of nano flame-retardant material, the surface wind speed is 0.8~1.2m/min, which can filter 99.9% dust at 0.3 microns.
3.Automatic pulse dust removal ,which are sprayed once every 15 minutes to avoid clogging of the filter cartridge and prolong the service life of the filter cartridge.
4. It has an integrated spark catcher to ensure the safe and reliable operation of the machine and prevent fire hazards. It is equipped with a movable large-capacity dust collecting bucket, which is safe, fast and easy to move.
