YBF2-160L-2 эксгаустер вентилятор вентиляция для подземного рудника взрывозащищенный осевой охлаждения
23 114,80-115 574,00 ₽

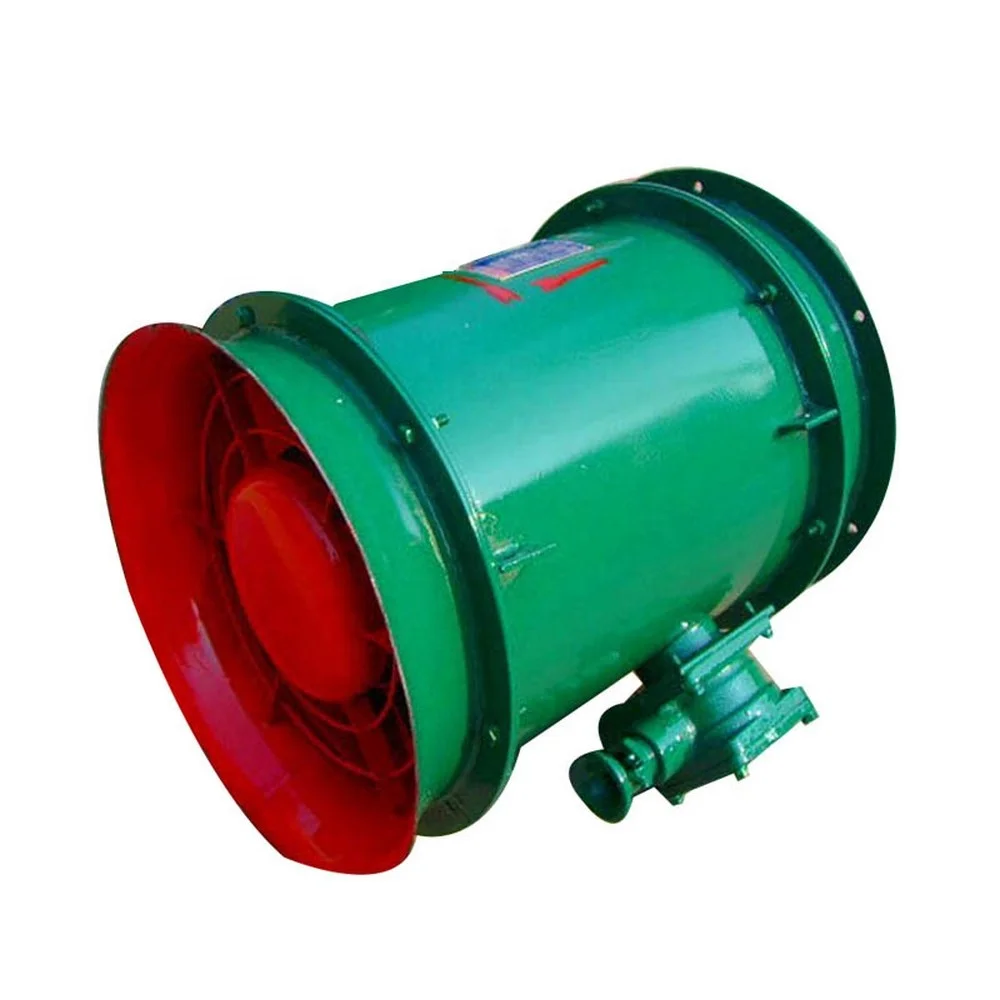

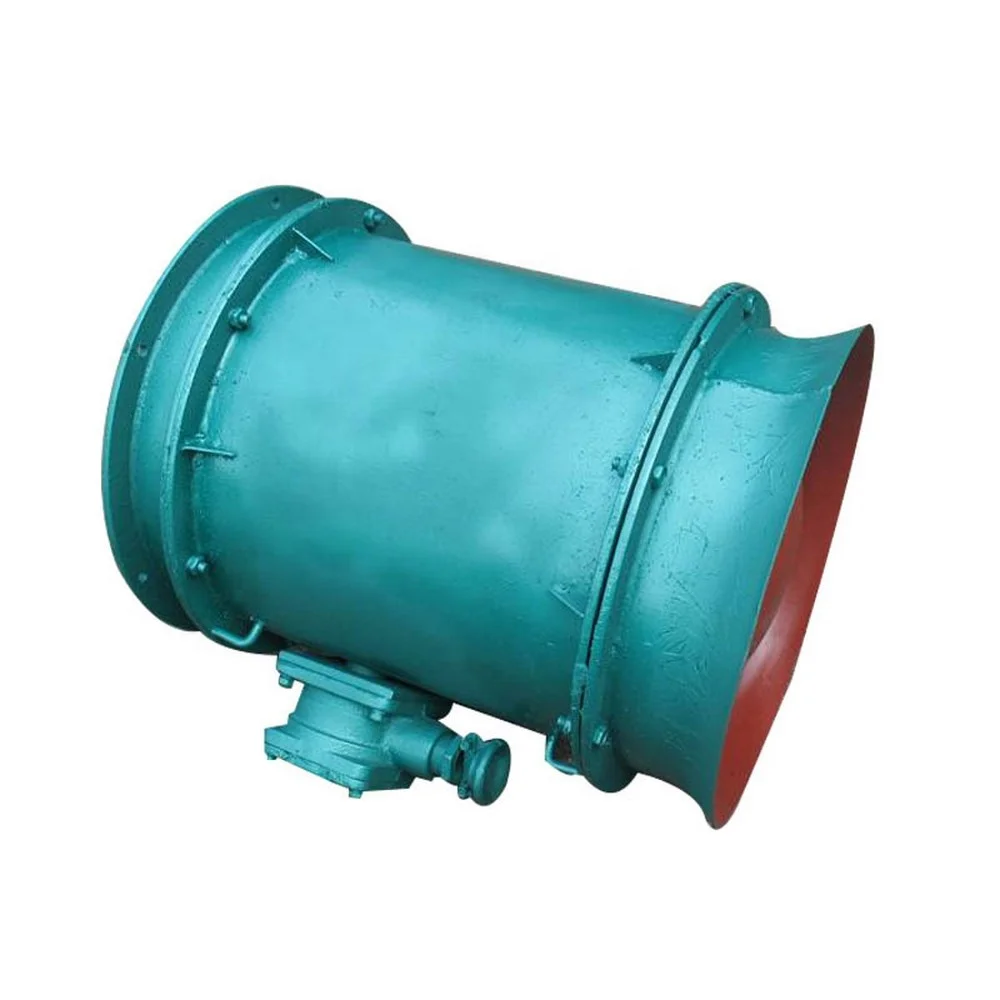

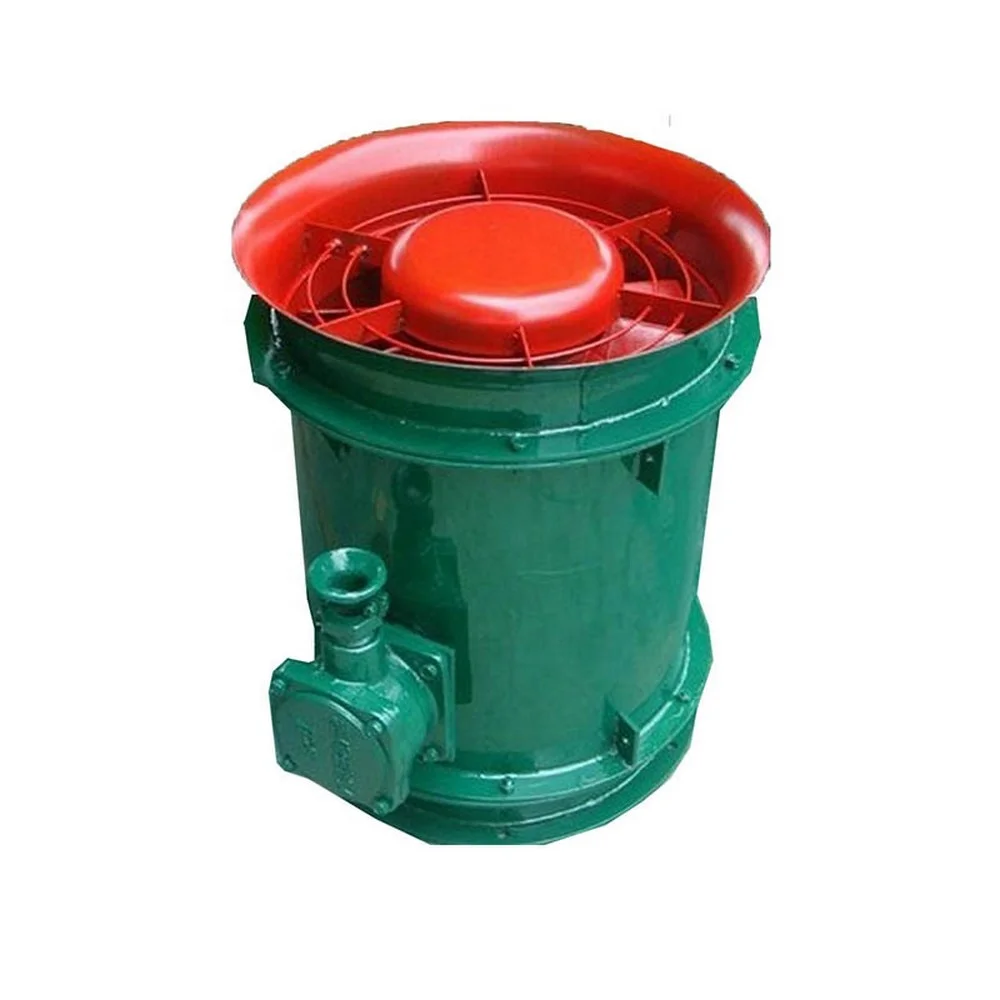

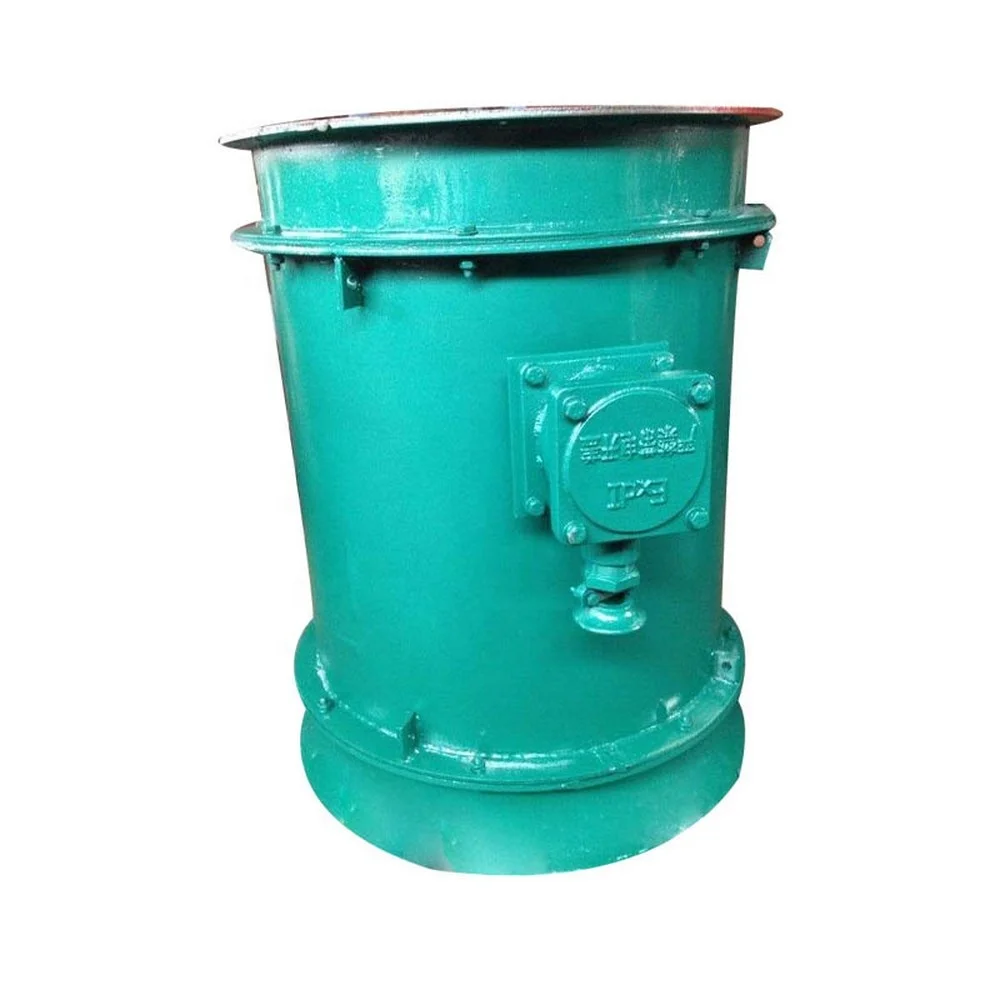

YBF2 280S 2 осевой вентилятор вентиляция ведения горных работ для добычи угля взрывозащищенные вентиляторы
- Категория: >>>
- Поставщик: Shandong China Coal Industrial & Mining Supplies Group Co. Ltd.Shandong Ltd.
Сохранить в закладки 1600522299518:
Описание и отзывы
Характеристики
Company Profile
Details Images
Photos of YBF2-280S-2 Axial Fan Ventilation Fan For Underground Mining Coal Explosion-proof Ventilation Fans
Products Description
Introduction of YBF2-280S-2 Axial Fan Ventilation Fan For Underground Mining Coal Explosion-proof Ventilation Fans
FBD Coal Mine Explosion-Proof Counter-Rotating Fan should be used in coal mine underground for press-in local ventilator, suitable for local ventilation of mining face and various diverticulum. At the same time, it is also suitable for local ventilation plant of other mines and various tunnel ventilation.This product has the characteristics of reasonable structure, complete specifications, high efficiency, obvious energy saving effect, low noise and long air supply distance. According to different ventilation resistance requirements, it can be used both in the whole machine and in grades, thus reducing ventilation power consumption and saving energy. If the length of the roadway is less than 2000 meters, the fan can be supplied normally without moving the fan, which reduces the labor intensity of the workers and saves ventilation time. It is an ideal equipment for local ventilation in coal mines.zmwm02
The working environment and working conditions of this product:
This product can be used flat on the floor of the roadway or suspended on the wall of the roadway. The gas temperature of the environment is -20~40°C. The dust content of the gas passing through the product should not exceed 200mg/m3. It should be installed in In the inflow of coal with a gas concentration below 1%, when the gas concentration exceeds 1%, the power should be cut off immediately.It should be used in coal mine underground for press-in local ventilator, suitable for local ventilation of mining face and various diverticulum. At the same time, it is also suitable for local ventilation plant of other mines and various tunnel ventilation.
This product has the characteristics of reasonable structure, complete specifications, high efficiency, obvious energy saving effect, low noise and long air supply distance. According to different ventilation resistance requirements, it can be used both in the whole machine and in grades, thus reducing ventilation power consumption and saving energy. If the length of the roadway is less than 2000 meters, the fan can be supplied normally without moving the fan, which reduces the labor intensity of the workers and saves ventilation time. It is an ideal equipment for local ventilation in coal mines.
The working environment and working conditions of this product:
This product can be used flat on the floor of the roadway or suspended on the wall of the roadway. The gas temperature of the environment is -20~40°C. The dust content of the gas passing through the product should not exceed 200mg/m3. It should be installed in In the inflow of coal with a gas concentration below 1%, when the gas concentration exceeds 1%, the power should be cut off immediately.
The working environment and working conditions of this product:
This product can be used flat on the floor of the roadway or suspended on the wall of the roadway. The gas temperature of the environment is -20~40°C. The dust content of the gas passing through the product should not exceed 200mg/m3. It should be installed in In the inflow of coal with a gas concentration below 1%, when the gas concentration exceeds 1%, the power should be cut off immediately.It should be used in coal mine underground for press-in local ventilator, suitable for local ventilation of mining face and various diverticulum. At the same time, it is also suitable for local ventilation plant of other mines and various tunnel ventilation.
This product has the characteristics of reasonable structure, complete specifications, high efficiency, obvious energy saving effect, low noise and long air supply distance. According to different ventilation resistance requirements, it can be used both in the whole machine and in grades, thus reducing ventilation power consumption and saving energy. If the length of the roadway is less than 2000 meters, the fan can be supplied normally without moving the fan, which reduces the labor intensity of the workers and saves ventilation time. It is an ideal equipment for local ventilation in coal mines.
The working environment and working conditions of this product:
This product can be used flat on the floor of the roadway or suspended on the wall of the roadway. The gas temperature of the environment is -20~40°C. The dust content of the gas passing through the product should not exceed 200mg/m3. It should be installed in In the inflow of coal with a gas concentration below 1%, when the gas concentration exceeds 1%, the power should be cut off immediately.
Product Paramenters
Parameters of YBF2-280S-2 Axial Fan Ventilation Fan For Underground Mining Coal Explosion-proof Ventilation Fans
Rotate /min | Motor model | Power kW | Pressure( V) | DC current (A) | Air capacity m3/min | Pressure (Pa) | Highest efficiency (%) | sound Level (dB) |
2900 | YBF2-90L-2 | 22.2 | 380/660 | 4.85/2.79 | 136~89 | 256~2050 | ≥75 | ≤30 |
YBF2-100L-2 | 23 | 380/660 | 6.4/3.7 | 150~100 | 325~2500 | ≥75 | ≤30 | |
YBF2-112M-2 | 24 | 380/660 | 8.1/4.7 | 165~109 | 375~3040 | ≥75 | ≤30 | |
2900 | YBF2-112M-2 | 24 | 380/660 | 8.1/4.7 | 217~145 | 275~2060 | ≥75 | ≤30 |
YBF2-132S1-2 | 25.5 | 380/660/1140 | 11.1/6.4/3.7 | 240~161 | 325~2540 | ≥75 | ≤30 | |
YBF2-132S2-2 | 27.5 | 380/660/1140 | 14.8/8.66/4.97 | 266~178 | 400~3155 | ≥75 | ≤30 | |
2900 | YBF2-132S2-2 | 27.5 | 380/660/1140 | 14.8/8.66/4.97 | 286~188 | 275~2850 | ≥80 | ≤25 |
YBF2-160M1-2 | 211 | 380/660/1140 | 21.6/12.6/7.2 | 324~215 | 375~3690 | ≥80 | ≤25 | |
YBF2-160M2-2 | 215 | 380/660/1140 | 28.8/17.0/9.6 | 400~236 | 1107~4500 | ≥80 | ≤25 | |
2900 | YBF2-160M2-2 | 215 | 380/660/1140 | 28.8/17.0/9.6 | 410~237 | 400~4775 | ≥80 | ≤25 |
YBF2-160L-2 | 218.5 | 380/660/1140 | 35.5/20.5/11.8 | 442~256 | 460~5475 | ≥80 | ≤25 | |
YBF2-180M-2 | 222 | 380/660/1140 | 41.0/24.4/13.67 | 468~274 | 525~6125 | ≥80 | ≤25 | |
YBF2-200L1-2 | 230 | 380/660/1140 | 56.9/32.9/18.5 | 518~318 | 640~7310 | ≥80 | ≤25 | |
2900 | YBF2-200L1-2 | 230 | 380/660/1140 | 56.9/32.9/18.5 | 608~352 | 523~6228 | ≥80 | ≤25 |
YBF2-200L2-2 | 237 | 380/660/1140 | 67.9/40.3/22.6 | 650~350 | 608~7100 | ≥80 | ≤25 | |
YBF2-225M-2 | 245 | 380/660/1140 | 82.1/48.4/27.4 | 696~402 | 686~8161 | ≥80 | ≤25 | |
2900 | YBF2-225M-2 | 245 | 380/660/1140 | 82.1/48.4/27.4 | 817~473 | 605~7200 | ≥80 | ≤25 |
YBF2-250M-2 | 255 | 380/660/1140 | 102.6/59.3/34.3 | 874~506 | 692~8230 | ≥80 | ≤25 | |
2900 | YBF2-280S-2 | 275 | 380/660/1140 | 56.8/77/44.5 | 960~540 | 750~8600 | ≥80 |
Our Advantages
Why Choose Us
Похожие товары
Yn27c камнедробилка внутреннего сгорания для горных работ карьерные работы ручной бензиновый камнедробильный станок
34 672,20-46 229,60 ₽
YBF2-250M-2 туннель вентилятор осевой вытяжной для угольной шахты вентиляции воздуха центробежный воздухонагнетатель широкого спектра применения с мА
23 283,68-116 418,40 ₽
Поставка качественных промышленных выхлопных газов шахтерный охлаждающий вентилятор для шахты использование Осевого Потока вентилятора
23 283,68-116 418,40 ₽
Точечный туннельный подземный шахтный осевой вентилятор взрывозащищенный для майнинга
23 283,68-116 418,40 ₽
YBF2-132S2-2 осевой вентилятор вытяжной шахтный вентиляционный охлаждения для добычи Рог цена
23 283,68-116 418,40 ₽

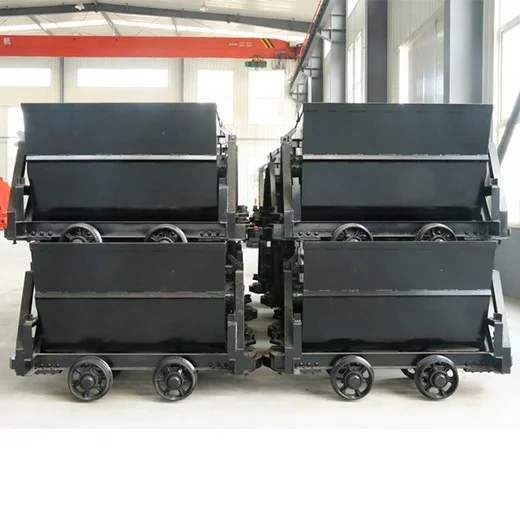

Подземный Железнодорожный Железный вагон
128 060,24-291 046,00 ₽

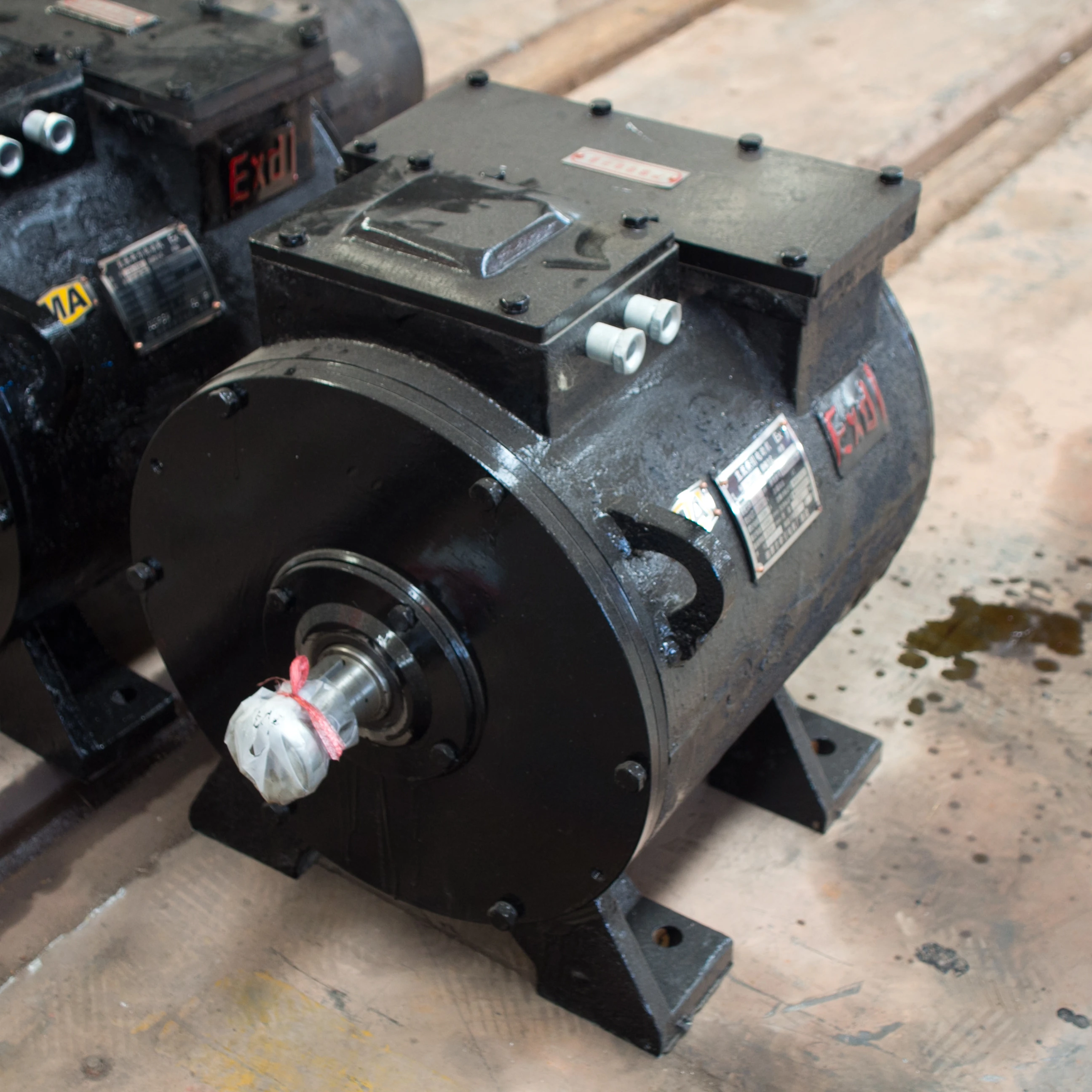

Электровоз мотор
