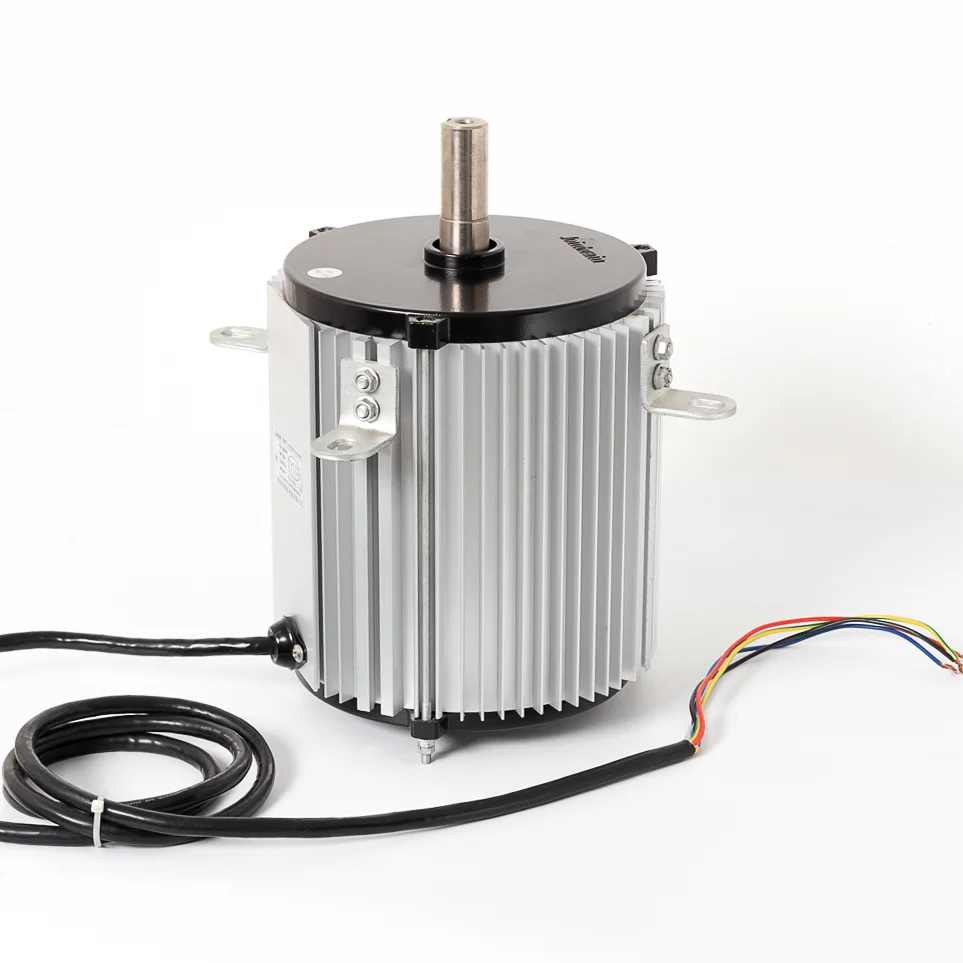

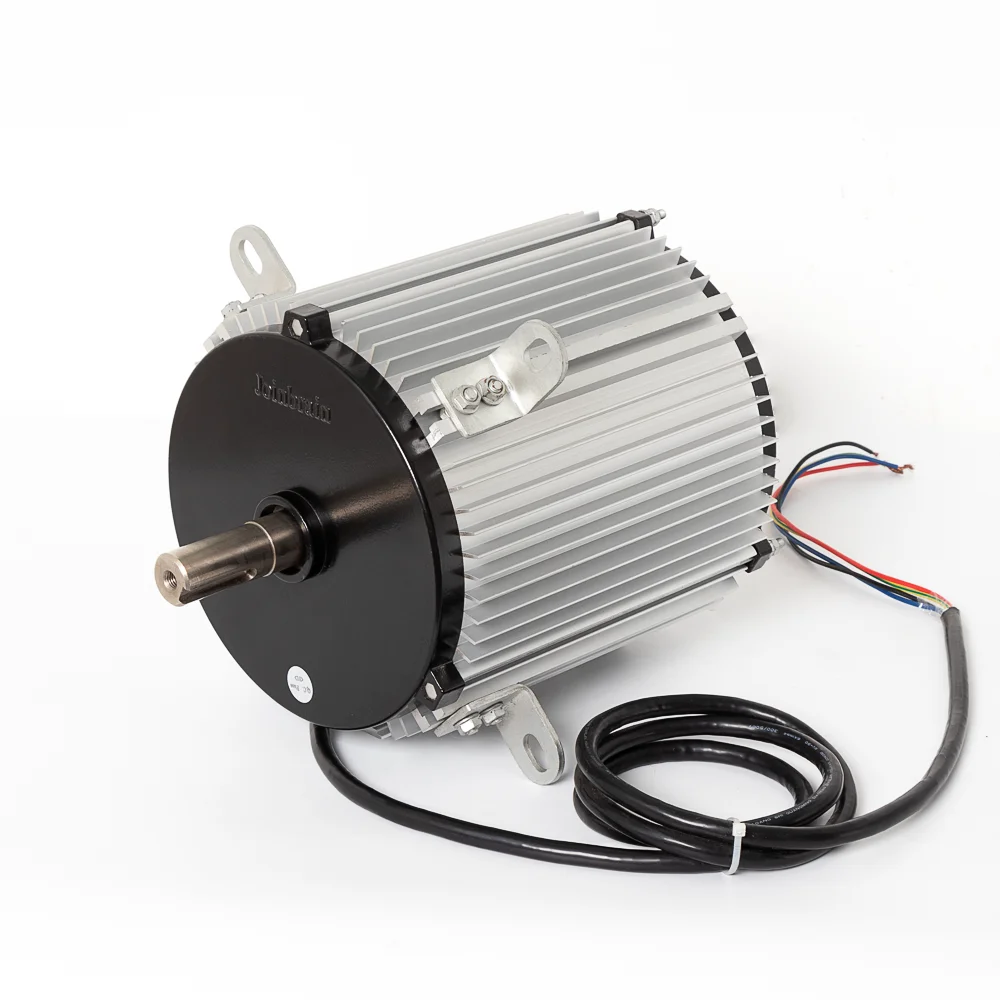

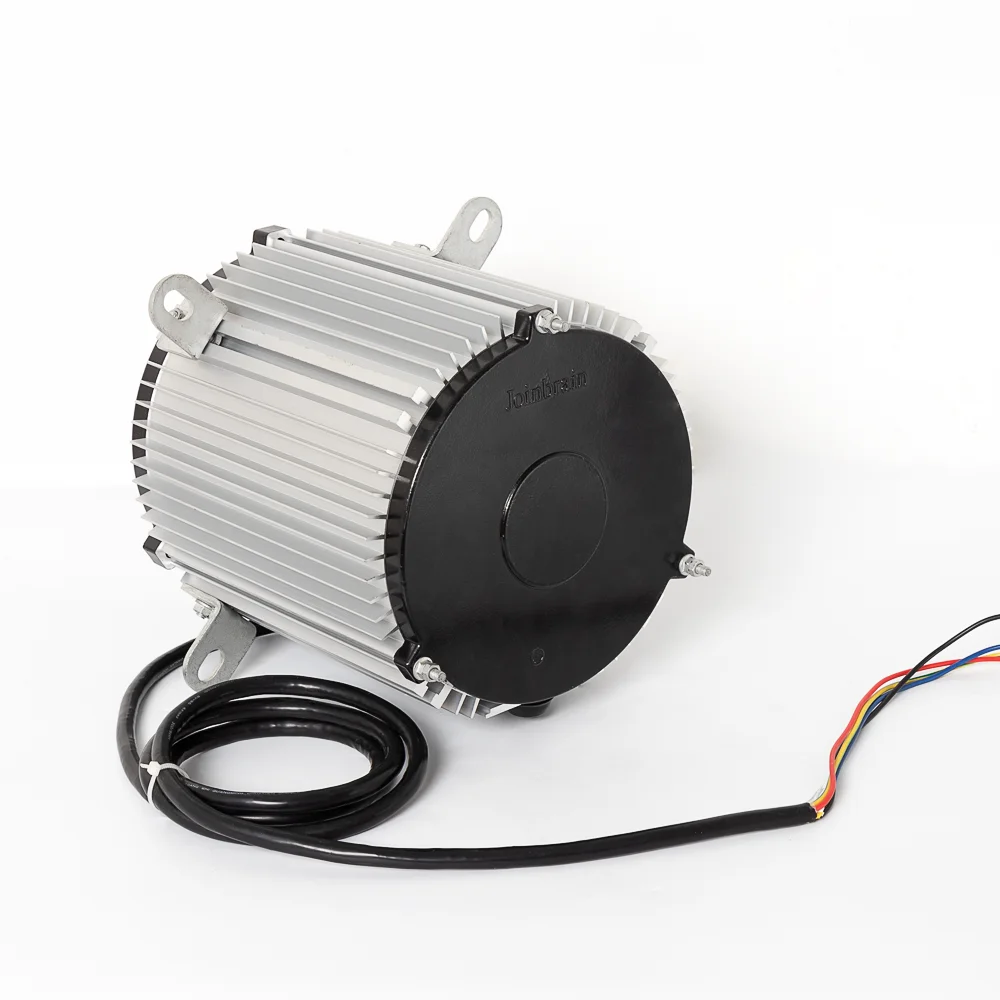

YLS130 750 Вт 1400 об/мин 4P трехфазный 380 В асинхронный двигатель

YLS130 750 Вт 1400 об/мин 4P трехфазный 380 В асинхронный двигатель

Категория: >>>
Поставщик: Changzhou Modar Intelligent Technology Co. Ltd.

Цена:87,00 $ - 91,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Product Specifications

Model	Electrical Rating	RATED LOAD
		speed	Current	Power
Model	V/Hz	rpm	A	W
YLS-250W-8P	380V/50Hz	720	0.8	≤360
YLS-370W-8P	380V/50Hz	720	1.4	≤500
YLS-550W-6P	380V/50Hz	930	1.8	≤770
YLS-550W-8P	380V/50Hz	720	2.3	≤790
YLS-600W-6P	380V/50Hz	930	2.3	≤830
YLS-750W-4P	380V/50Hz	1400	1.6	≤950
YLS-750W-6P	380V/50Hz	930	2.3	≤980
YLS-750W-8P	380V/50Hz	720	2.7	≤1020
YLS-900W-6P	380V/50Hz	930	3	≤1200
YLS-1100W-4P	380V/50Hz	1400	3.5	≤1400
YLS-1100W-6P	380V/50Hz	940	3.5	≤1450
Usage: This series of motors is suitable for air source heat pumps, compression condensing units, industrial cooling equipment and closed cooling towers, axial fans and similar usages. Notes: The above mentioned specification is representative specification. The specification can also be designed and manufactured according to customers requirements. The products of 220V，400-440V，50/60Hz can also be supplied as requested.

item	value
Warranty	1year
Place of Origin	China
	Jiangsu
Brand Name	Modar Motor
Model Number	YLS-250W/370W/550W/750W-8P YLS-550W/600W/750W/900W/1100W-6P YLS-750W/1100W-4P
Usage	air source heat pumps, compression condensing units, industrial cooling equipment and closed cooling towers, axial fans
Type	AC Motor
Construction	Permanent Magnet
Speed(RPM)	720/930/1400RPM
Continuous Current(A)	0.8--3.5A
Efficiency	IE 3
