Products Description
Introduction of K40-8-NO19 Brand New Industrial Impeller Flange Machine Blade 500Mm 220V Ac Cooling Axial Flow Fan
K40 Series mine energy-saving fan is specially designed according to the needs of various non-coal mines such as metallurgy, nonferrous metals, gold, chemicals, building materials and nuclear industry. It can be used as the main fan and auxiliary fan, which can be installed on the surface or in the underground. It is suitable for combined operation of multiple fans. It is an ideal machine station fan for all levels of multi-stage multi-stage machine station ventilation system. It is also suitable for ventilation in large workshops, tunnels, civil air defense projects and other occasions.zmwm02
Main features of the fan:
1. The twisted airfoil blade is used, the aerodynamic efficiency is high, and the energy saving effect is extremely remarkable.
2, various performance, complete specifications, can be well matched with a variety of resistance and airflow type ventilation network, can maintain long-term efficient operation.
3. With steady flow ring device, there is no hump in the characteristic curve, no risk of surge, safe and stable operation under any resistance state, and suitable for combined operation of multiple fans.
4. The structure of the motor and the impeller is directly connected, the overall stability is good, the installation is convenient, the maintenance is easy, and the device has low resistance.
5, compact structure, good moisture resistance. The main body of the fan is made of steel plate and section steel. The blade is made of steel plate material. It is hollow, and the blade and the whole machine have high strength. It has strong ability to resist downhole blasting shock wave. It can be installed on the surface and is suitable for installation in underground. It is especially suitable as a multi-stage machine. The station fan of the station ventilation system.
6, can reverse the wind, the wind rate is greater than 60%, no need to build a counter-wind.
7. The blade installation angle is adjustable, and the fan condition can be adjusted at any time according to the changes in mine production.
8. The amount of civil works is small, which can save a lot of investment.
9. The noise is low.
Main features of the fan:
1. The twisted airfoil blade is used, the aerodynamic efficiency is high, and the energy saving effect is extremely remarkable.
2, various performance, complete specifications, can be well matched with a variety of resistance and airflow type ventilation network, can maintain long-term efficient operation.
3. With steady flow ring device, there is no hump in the characteristic curve, no risk of surge, safe and stable operation under any resistance state, and suitable for combined operation of multiple fans.
4. The structure of the motor and the impeller is directly connected, the overall stability is good, the installation is convenient, the maintenance is easy, and the device has low resistance.
5, compact structure, good moisture resistance. The main body of the fan is made of steel plate and section steel. The blade is made of steel plate material. It is hollow, and the blade and the whole machine have high strength. It has strong ability to resist downhole blasting shock wave. It can be installed on the surface and is suitable for installation in underground. It is especially suitable as a multi-stage machine. The station fan of the station ventilation system.
6, can reverse the wind, the wind rate is greater than 60%, no need to build a counter-wind.
7. The blade installation angle is adjustable, and the fan condition can be adjusted at any time according to the changes in mine production.
8. The amount of civil works is small, which can save a lot of investment.
9. The noise is low.
Hot Sale Model
Product Paramenters
Parameters of K40-8-NO19 Brand New Industrial Impeller Flange Machine Blade 500Mm 220V Ac Cooling Axial Flow Fan
Fan model | Machine number | Speed r/min | Power (kW) | Air volume m3/s | Full pressure Pa |
K40-4-NO8#Fan | 8 | 1450 | 5.5 | 4.4-9.5 | 108-497 |
K40-4-NO9#Fan | 9 | 1450 | 11 | 6.2-13.5 | 136-629 |
K40-4-NO10#Fan | 10 | 1450 | 15 | 8.5-18.6 | 168-776 |
K40-4-NO11#Fan | 11 | 1450 | 30 | 11.3-24.7 | 203-9390 |
K40-4-NO12#Fan | 12 | 1450 | 37 | 14.7-32.1 | 242-1118 |
K40-4-NO13#Fan | 13 | 1450 | 55 | 18.7-40.8 | 284-1312 |
K40-4-NO14#Fan | 14 | 1450 | 90 | 23.4-50.9 | 329-1521 |
K40-4-NO15#Fan | 15 | 1450 | 110 | 28.7-62.6 | 378-1746 |
K40-6-NO7#Fan | 7 | 980 | 1.1 | 2.0-4.3 | 38-174 |
K40-6-NO8#Fan | 8 | 980 | 2.2 | 3.0-6.4 | 49-227 |
Details Images

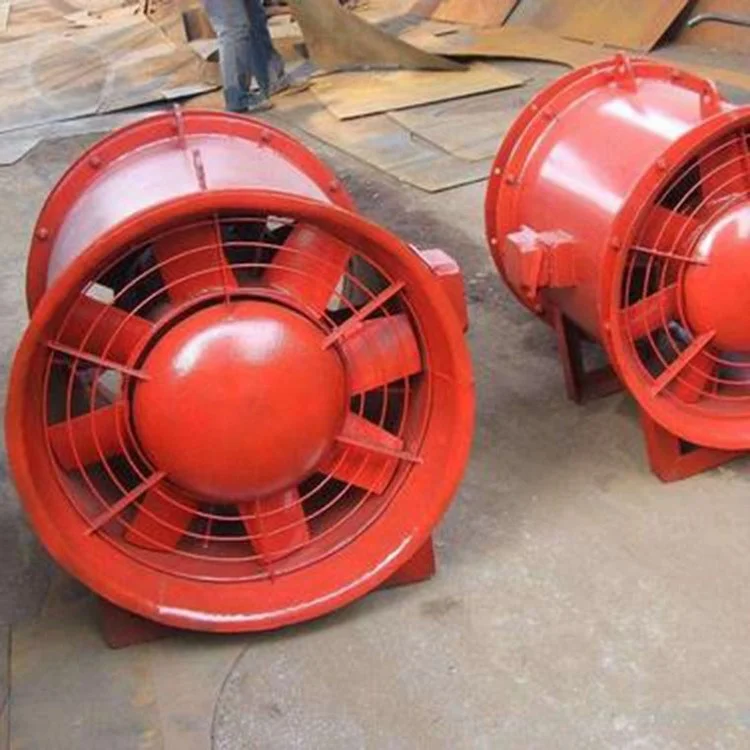

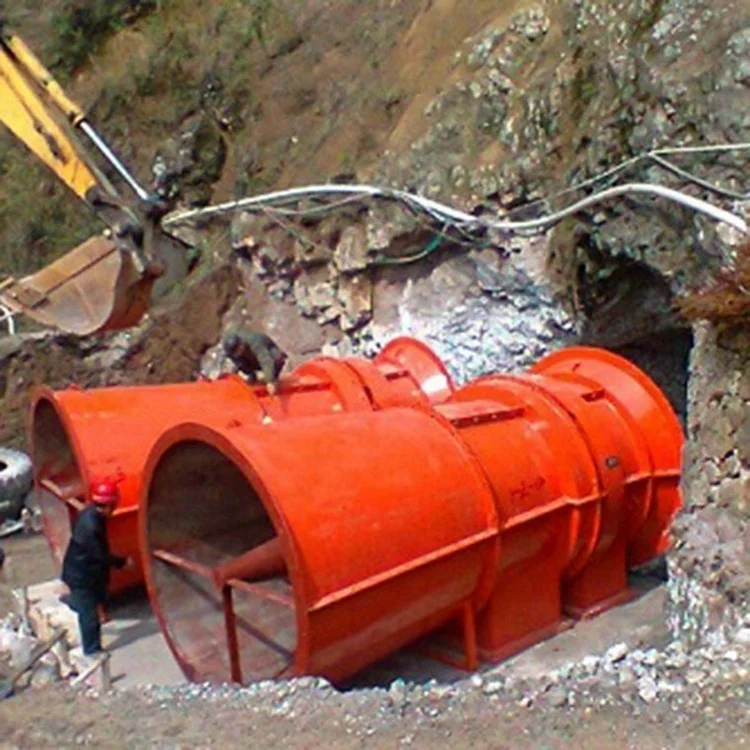

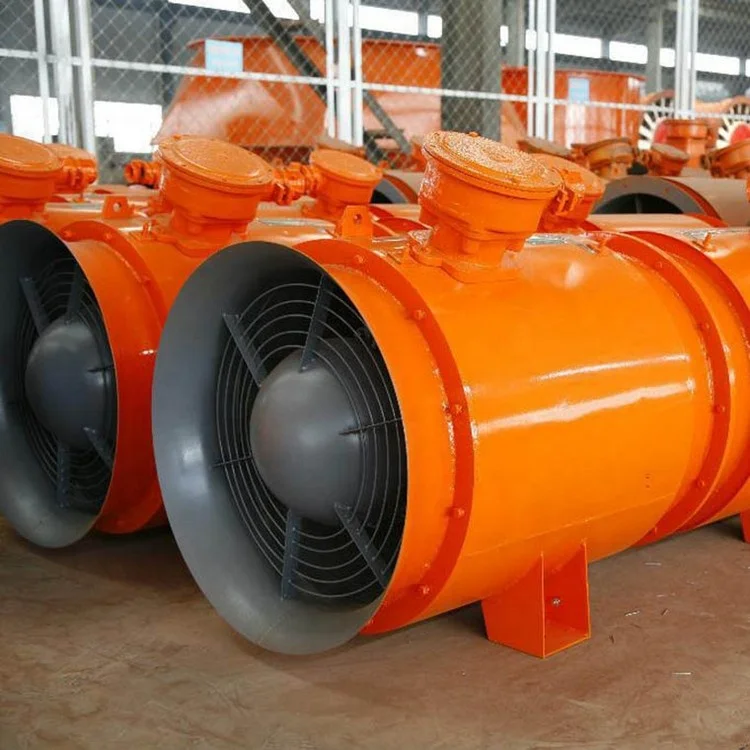

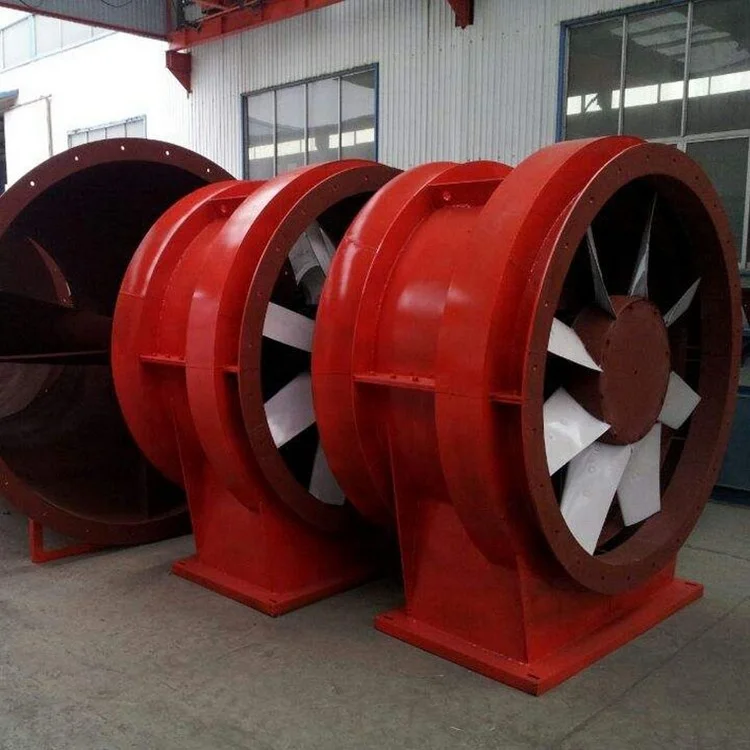

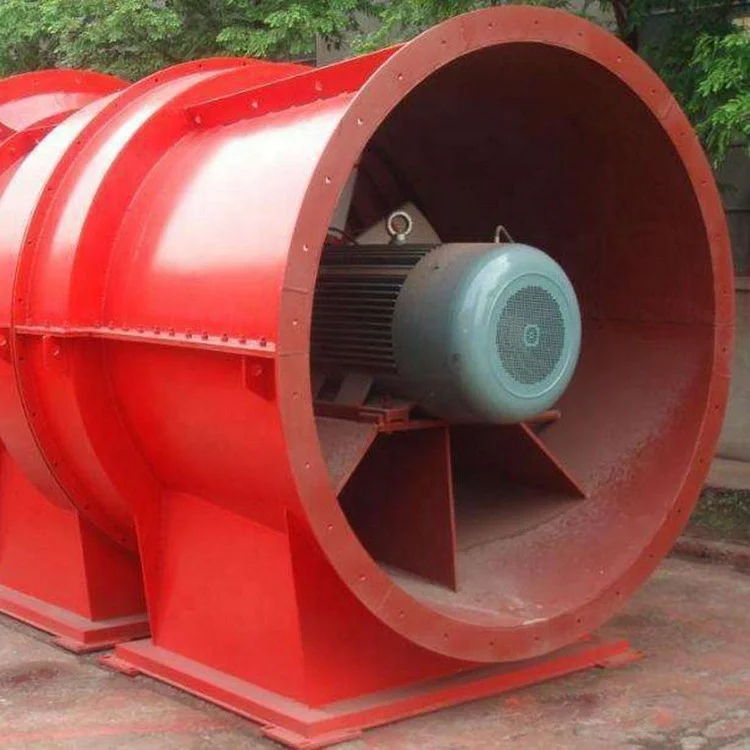

Photos of K40-8-NO19 Brand New Industrial Impeller Flange Machine Blade 500Mm 220V Ac Cooling Axial Flow Fan
Certifications
Customer Photos
Exhibition
Company Profile
