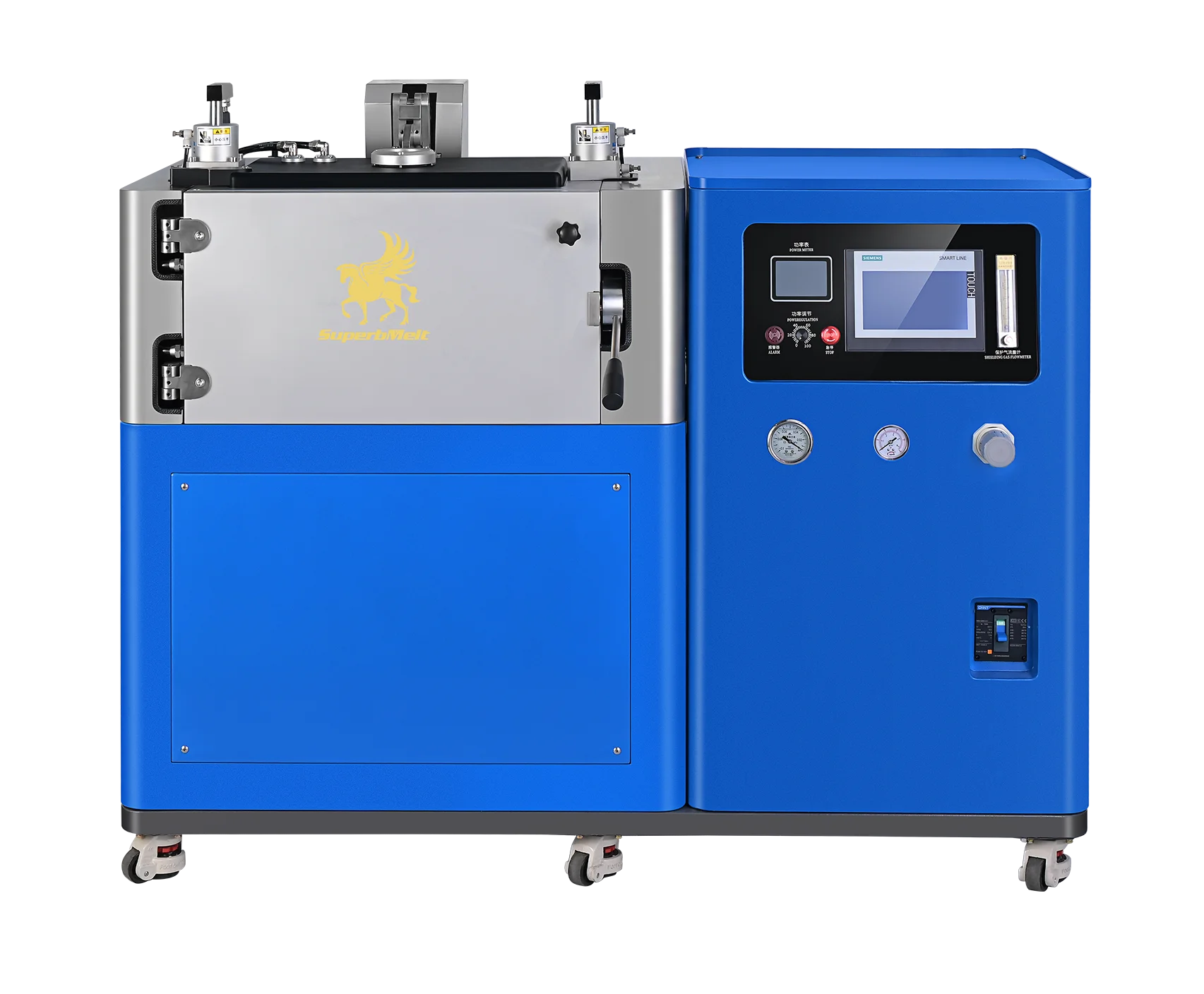

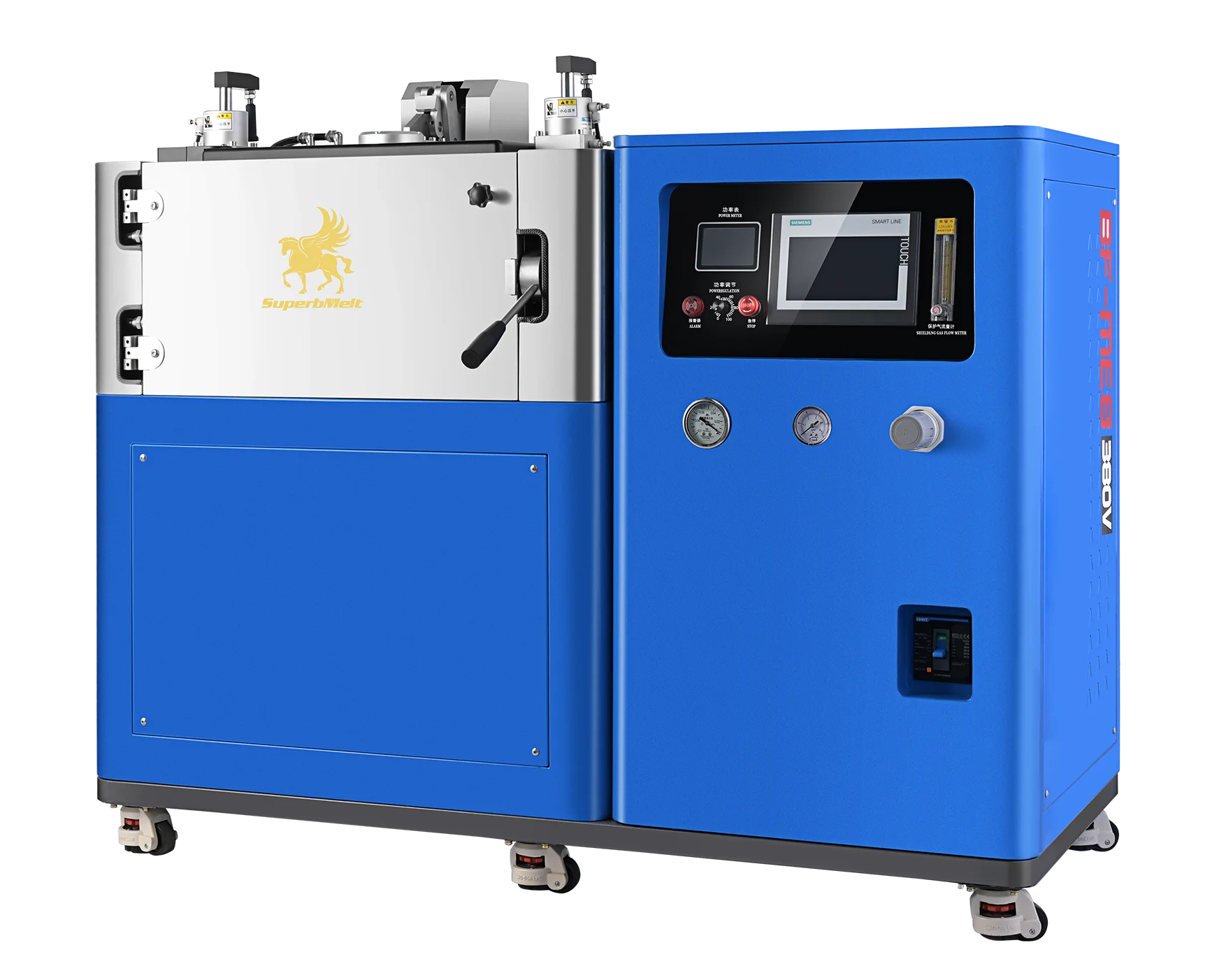

Вакуумная металлическая Серебряная литейная машина для изготовления ювелирных изделий

Вакуумная металлическая Серебряная литейная машина для изготовления ювелирных изделий

Категория: >>>
Поставщик: Longgang Superb Electromachinery Co. Ltd.

Цена:24 800,00 $ - 25 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Model number	SPB-JD4	SPB-JD10
Power source	Three phase 380V, 50/60Hz	Three phase 380V, 50/60Hz
Power	45 kw	75 kw
Control system	PLC	PLC
Applicable metal	Gold and silver	Gold and silver
Casting time	About 15 mins	About 12 mins for kliobar or 25mins for 400oz gold bar
The Max capacity	4 pcs of 1kg bar or 15kg bar	4 pcs of 1kg bar or 15kg bar
Dimension	14506201080 mm	15107501250 mm
Weight	285 kg	360 kg
Protective gas	Nitrogen or argon	Nitrogen or argon
Vacuum pump	63 m³/hour	63 m³/hour
Heating technology	Induction heating	Induction heating
Casting mode	Auto and manual mode switch	Auto and manual mode switch

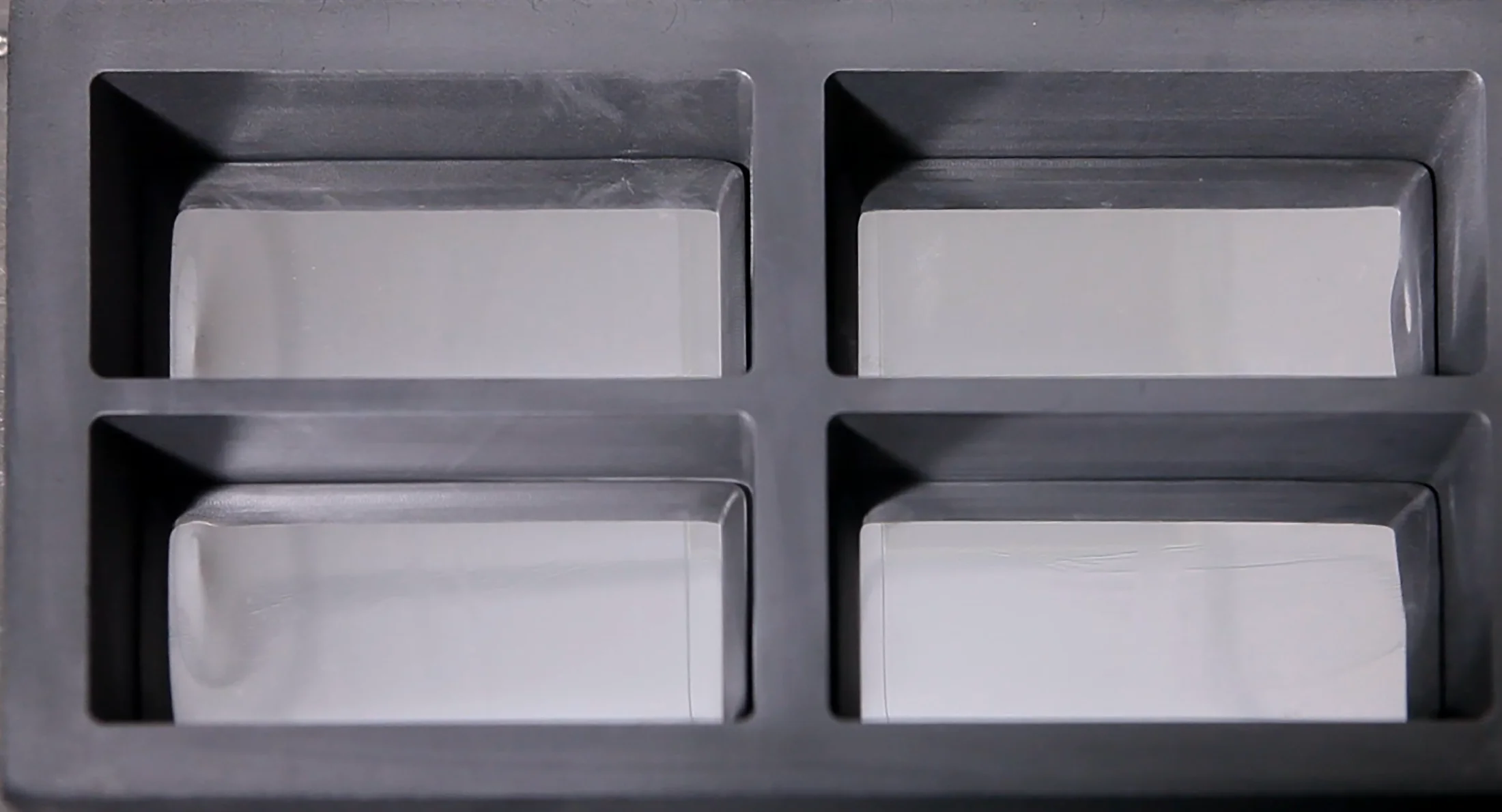

Vacuum bullion casting machine

The fine gold bar looks perfect. The surface is bright and smooth (easy to identify fake gold). And it fully avoids bullion’s oxidation, loss, shrinkage, and porosity. If there are impurities, it floats on the surface and can be polished to ensure the purity of the gold nuggets.

Traditional method

The gold bar is not smooth and uneven, with ripples,oxidized impurities, and porosity. That is not attractive for sale of investors. The graphite mold is easy to oxidize at high temperature, and it is easy to drop graphite powder and pollute the gold bars.

Vacuum bullion casting machine

Under the condition of vacuum and shielding gas, the gold bars are not oxidized and the loss is reduced to less than 0.01%. If we cast 100 kg of gold per day, we could save about US$400,000 per year.

Traditional method

It is exposed to air, which is highly prone
to oxidation, resulting in a loss of about 0.03~0.05% gold
(base on k gold).

Vacuum bullion casting machine

Make the gold into granules first, then weigh it, and directly cast it on the mold, almost zero loss, no error, so the weight of the bullion is very precise.

Traditional method

The gold needs to be melt in the crucible,
and the oxidation and residual gold on the crucible cause the weight to be inaccurate. The manual pouring also can not control the accurate weight.

Vacuum bullion casting machine

Machine equips with PLC touch screening control system, one-click automatic casting. Just one worker could operate 1 to 2 sets of machines (Over 100kg daily production).

Traditional method

It requires a lot of manual operation, increasing operation costs.

Vacuum bullion casting machine

The whole process of melting, casting and cooling is in sealed in the vacuum machine with the cooling system. It fully avoids flame, high temperature, and fumes. It is totally safe for the worker.

Traditional method

Melting is exposed to air with flame and high temperature. When we pour molten metal into the mold, it will bring harmful risk to the body by splashed metal liquid. The whole melting and casting process is unsafe.

Vacuum bullion casting machine

The entire smelting and casting process is fully sealed, smokeless, and environmentally friendly

Traditional method

There are many fumes generated during the smelting and casting process, which causes environmental pollution and affects workers' health.

Performance Features

* The PLC control system of this gold ingot making machine takes charge of all your casting process

operations. You’ll only need a few hands for your casting operations. The controller automatically takes

care of almost all the operations that you might be needing workers for.

* With the SuperbMelt gold bar making machine, you’ll never have to worry about the quality of your bars

as the machine is already approved for LMBA deals.

* With the vacuum gold bullion making machine, you are guaranteed of a high reduction in your power

consumption.

* An overall increase in your process efficiency is guaranteed
* This machine powerful induction generator that can in no time heat up your precious metal to any

desired melting temperature.

* Safety was considered as a key factor during the design of the SuperbMelt gold bar casting equipment.
* There are numerous alarm systems positioned at strategic places within this machine. They can detect

any slight of deviation from your process working condition.

* This machine can also easily detect when there is a system overvoltage or shortage of water supply.
* SuperbMelt vacuum gold bar casting machine (SPB-JD) when compared with the traditional methods of

gold casting. They can be operated smokeless without having to pollute the environment. The machine

is equipped with the latest green technology in the gold bar industry. This technology ensures that all

pollutants are trapped from making contact with the atmosphere. Thereby preventing the environment

from getting polluted.

Applications

1.SuperbMelt gold bar making machine (SPB-JD) is designed basically for casting quality gold bars, ingot and bullion bar of all sizes. This machine has the capacity to accommodate up to 4 pieces of 1kg gold or silver bar at once (It can also accommodate up 15kg of a single gold bar).
2.SuperbMelt vacuum gold bar making machine (SPB-JD) be operated under vacuum conditions. It can also be operated with no flame.

Our Advantages

About SuperbMelt

1.Superb is a top-notch professional manufacturer and exporter of precious metal melting, casting and forming machines which are used in fields like precious metal, Rapid Prototyping, Jewelry and Artistic Sculpture.

2.Our mission is to build the most innovative melting and casting equipment for jewelry and
precious metal manufacturing, providing you with the highest reliability in your daily operations that guarantees the best quality.

3. As a leading precious metal melting and casting solutions provider, the provision of timely technical support for our manufacturers is an essential part of our services. With a strong technical support team that comprises of qualified and well trained (in China) local technicians, we are committed to solving any problems that you may have.

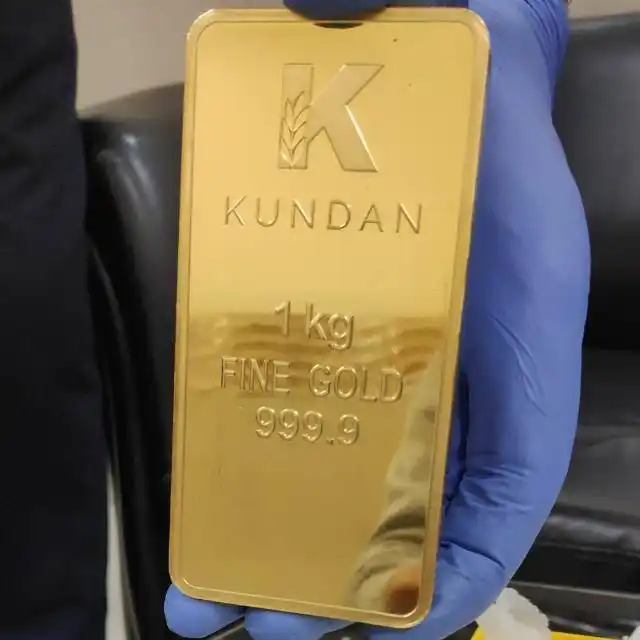

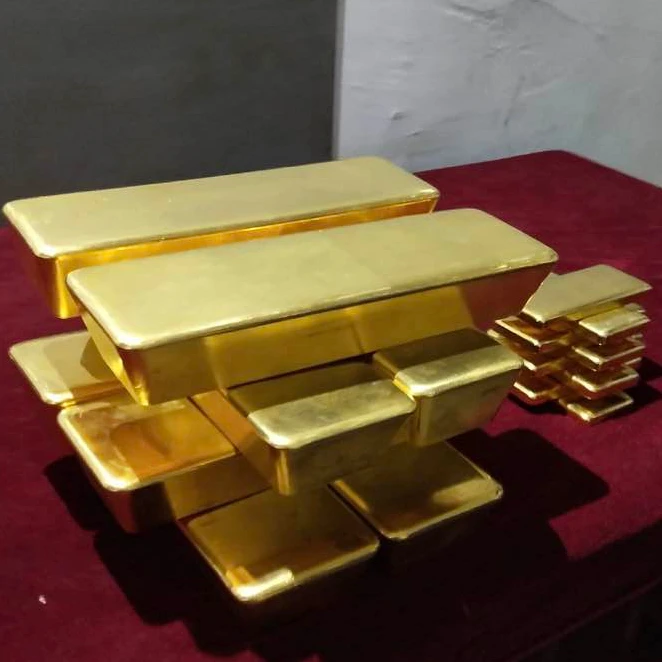

Customer Photos

Advancing an industry caught up in the sleaze of the ordinary meant collaboration, dedication, and a workforce built on communal values. Fast track to this day, we pride ourselves as a major distributor of melting, casting, and forming machines in over 30countries.

Exhibition

FAQ

1.Q: Are you the factory? Can you make the equipment according to our requirements?
A:Yes, We are leading manufacturer specialized in Gold and Jewelry machinery field over 20 years in China.Our company already passed ISO9001 quality management system.
Our machines are designed and produced due to European directives (Machinery directive / Low voltage directive / EMC directive).
At delivery we add the corresponding declaration of conformity (CE). You are warmly welcome to visit our factory for deep
cooperation with you.
To further ensure our quality for customers, we will provide machine’s running testing video for your confirmation before
delivery. We will make sure that the machine which is delivered out from factory is 100% no problem.

2.Q: when can I get quotation?
A: we usually quote within 24 hours after receiving your inquiry. If you are eager to get the price, please call us or let us know in your email so that we can give priority to your inquiry.

3.Q: what is the delivery time?
A: Mostly, one machine lead time is 5~20 days and air courier to arrive within 7 working days worldwidely.

4.Q: if I place an order on you, how should I pay?
A: Generally, PayPal, T / T, visa ,West Union and other payment methods are acceptable.

5.Q: What kind of delivery methods can we use?
A: By sea,by air or express are all acceptable.It depends on your will.And we will recommend the best way to you.

6.Q: how about the shipping costs and tax?
A: the cost of delivery depends on the mode, destination and weight. The tax depends on your local customs.

7.Q:About setup and training: Is the technician needed here? What dose it costs?
A:English manual and detailed video are provided for your guide. We are 100% sure that you could install and operate machine under the guide as our former customers’ experience. If you are interested, please contact us for video sharing.

8.Q: How is your after-sale servise?
A:We have an professional engineer team to do it.All problem will be responded within 12 hours.We provide life-long service.Any problem ,we will arrange engineer to check for you remotely.

9.Q:How about package? If machine damaged, what should I do ?
A:Usually machine is packed with plywood case and standard export carton.
Damage haven't happened before as our previous experience. If happen, we will provide free replacement for you first. Then we will negotiate with our agent to solve the compensation issue. You will not afford any loss about this part.
