Product Description

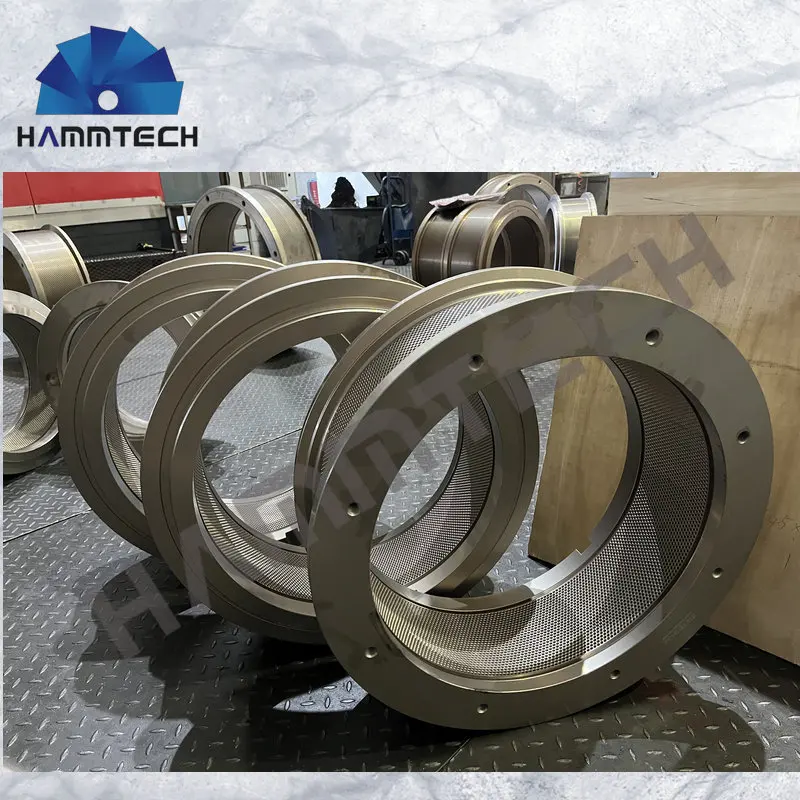

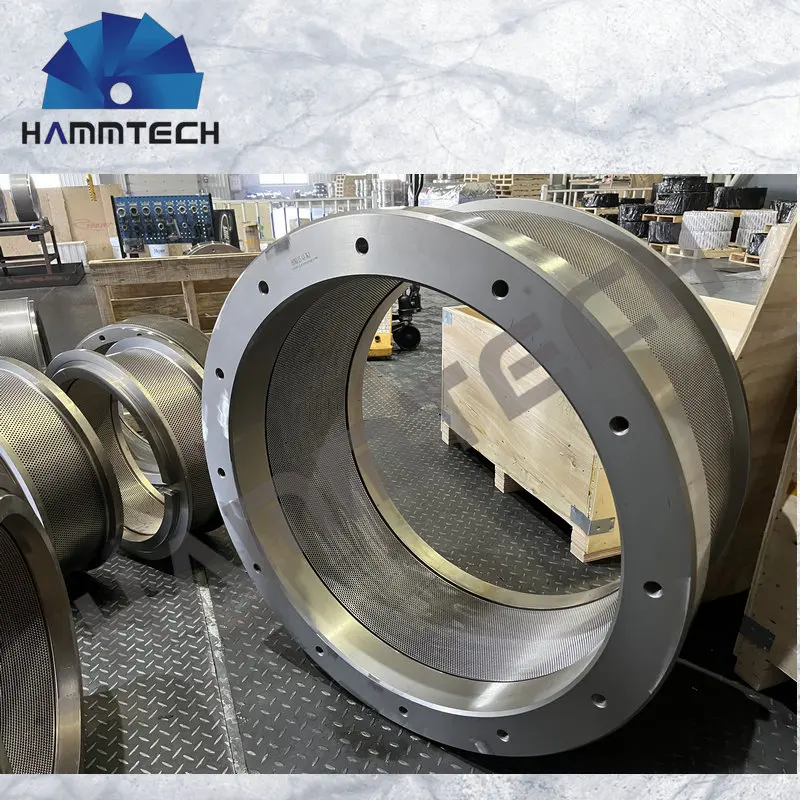

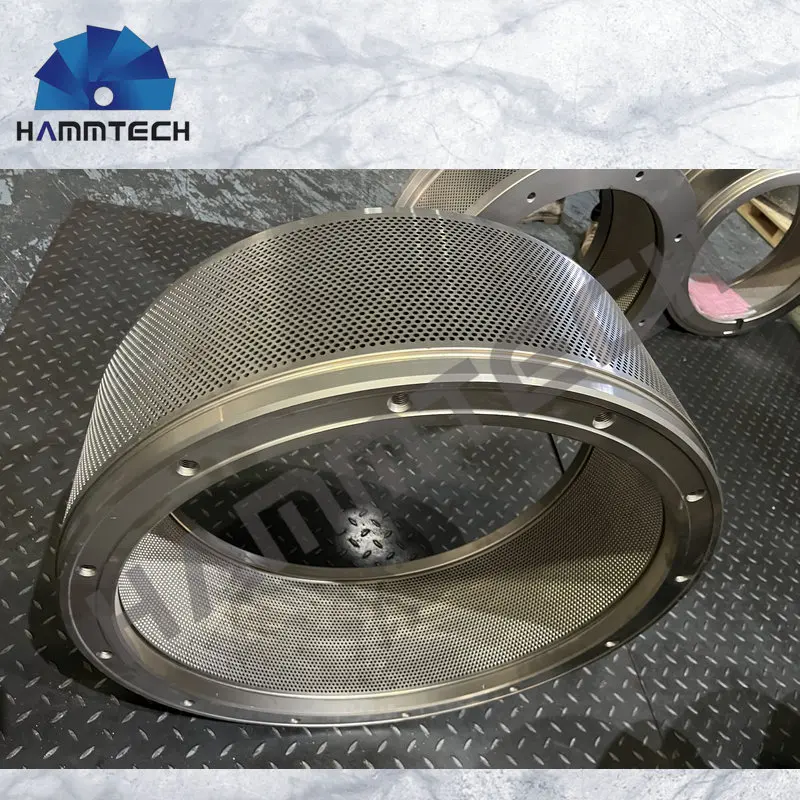

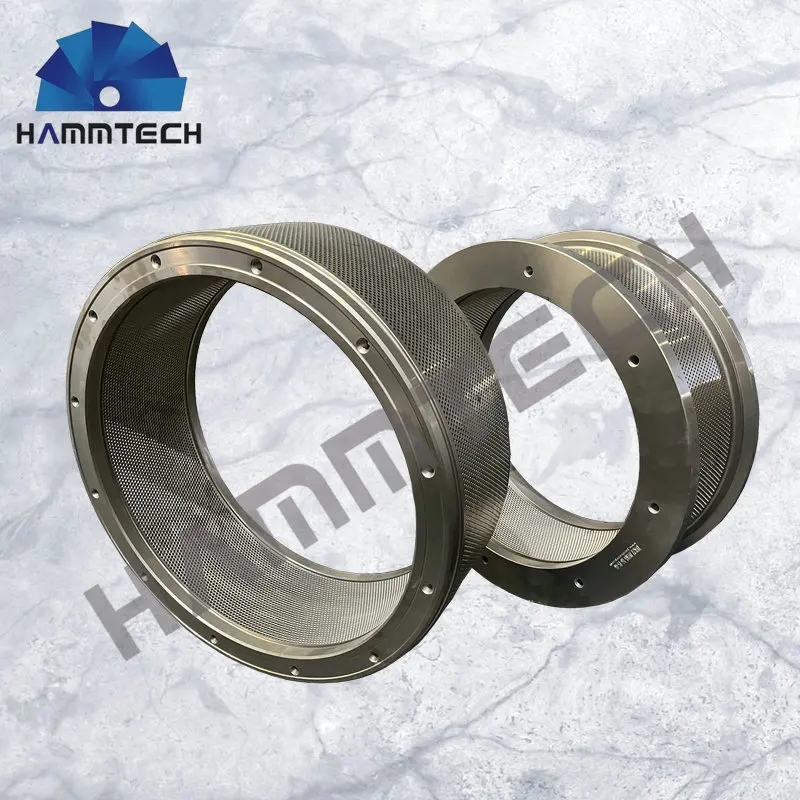

Introduction of pellet machine ring die/FLAT DIE:
1. Material: X46Cr13 /4Cr13(stainless steel),
20MnCr5/20CrMnTi (alloy steel)
customized
2. Hardness: HRC54-60.
3. Diameter: 1.0mm up to 28mm
4. Pellet die type: Ring Die or Flat Die
5. Outer diameter: Outer diameter up to 1800mm
6. Pellet Die model we can customize:CPM, Buhler, CPP, OGM, Zhengchang(SZLH/MZLH), Amandus Kahl, Muyang(MUZL), Yulong(XGJ),
AWILA,PTN, Andritz Sprout, Matador, Paladin, Sogem, Van Arssen, Yemmak, Promill; etc. We can customize for you according to your
drawing.
For CPM pellet mill: CPM2016, CPM3016, CPM3020, CPM3022, CPM7726, CPM7932, etc.
For Yulong pellet mill:XGJ560, XGJ720,XGJ850,XGJ920,XGJ1050,XGJ1250
For Zhengchang pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc
For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010;
MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
For Awalia pellet mill: Awalia 420, Awalia350, etc
For Buhler pellet mill: Buhler304, Buhler420, Buhler520, Buhler660, Buhler900, etc.
For Kahl pellet mill(Flat die): 38-780, 37-850, 45-1250, etc
Process for making pellet mill ring die:
raw material Forging
Rough turning
Half finished turning
Drilling the hole
Grinding inner bore
Treaded hole
Keyway milling
Heat treatment
Finish turning
Package.
Compression ratio of ring die:
The higher the compression ratio will get the denser the finished pellets. But it does not mean that the higher the compression
ratio, the better the pellet quality.
Compression ratio should be calculated based on raw material for making pellets and type of feed.
With many years pellet die manufacturing and research experience of our manufacturer, we provide some general data of ring die's ,
PLS SEE THE PICS ;
compression ratio for your reference:
Buyers can customize dies with different hole diameter and compression ratio, according to different situation and requirement.
The most common structure of die hole are straight hole; release stepped hole; external conical hole and internal conical hole,
etc. Different die holes structure are suitable for different raw material and feed formula for making pellets.
Ring die hole type: SEE THE PIC
REMIND :
How to maintain and inspect the ring die:
A. The rollers should be correctly adjusted, make sure the hole inlets are not damaged by contact with the rollers or as a
result of tramp metal.
B. Material should be evenly distributed across the whole working area
C. Make sure that all holes work uniformly, opening the clogged holes if necessary.
D. When changing dies, carefully inspect the condition of the die seating surfaces and fixing systems including collar, clamp or
wear ring.
