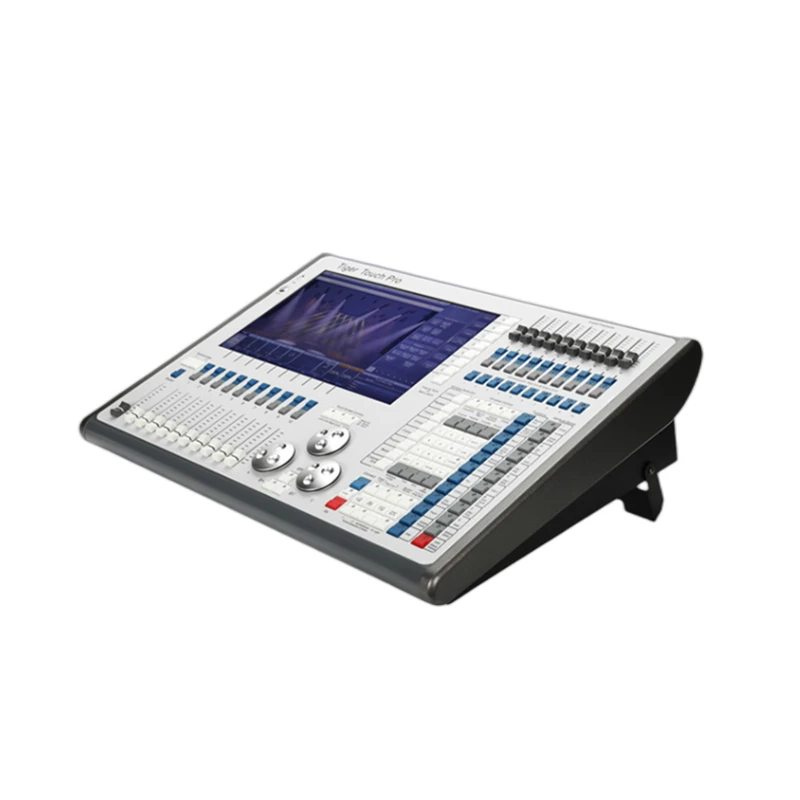

Высокое качество, оптовая продажа от производителя, Touch Pro ddisco DMX 512 световая консоль/DJ консоль/DMX контроллер света
106 799,63 ₽ - 118 788,36 ₽
Высокоточный вертикальный фрезерный станок с ЧПУ XK7136 экономичный bt40 обрабатывающий центр мини для стального железа
- Категория: >>>
- Поставщик: Shandong Mainland Cnc Equipment Co. Ltd
Сохранить в закладки 1600523514786:
Описание и отзывы
Характеристики
Products Performance
1. Machine structure
· this series adopted wide guide rail, make machine have good wear-resistant capacity.
· Made of resin sand that dealt with electric furnace smelting ,which bestows the machine with a high rigidity.
· The adoption of ball screws with bearing at both end has ensured the machine a stable accuracy.
2. Machine process
· Suitable for drilling ,hole-expansion ,reaming ,bevel edge ,and tapping, for surface milling, step plane ,slope ,and milling groove , for cuttingand milling curve ,curve surface and cam.
· Have the function of stepless speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.
The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
· this series adopted wide guide rail, make machine have good wear-resistant capacity.
· Made of resin sand that dealt with electric furnace smelting ,which bestows the machine with a high rigidity.
· The adoption of ball screws with bearing at both end has ensured the machine a stable accuracy.
2. Machine process
· Suitable for drilling ,hole-expansion ,reaming ,bevel edge ,and tapping, for surface milling, step plane ,slope ,and milling groove , for cuttingand milling curve ,curve surface and cam.
· Have the function of stepless speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole.
The fuselage and main components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.

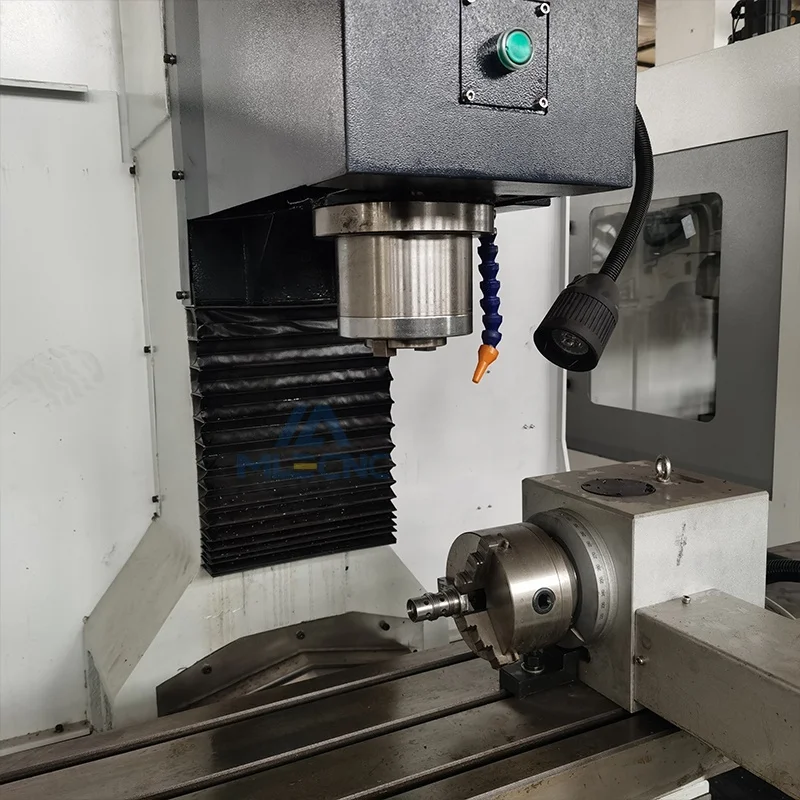

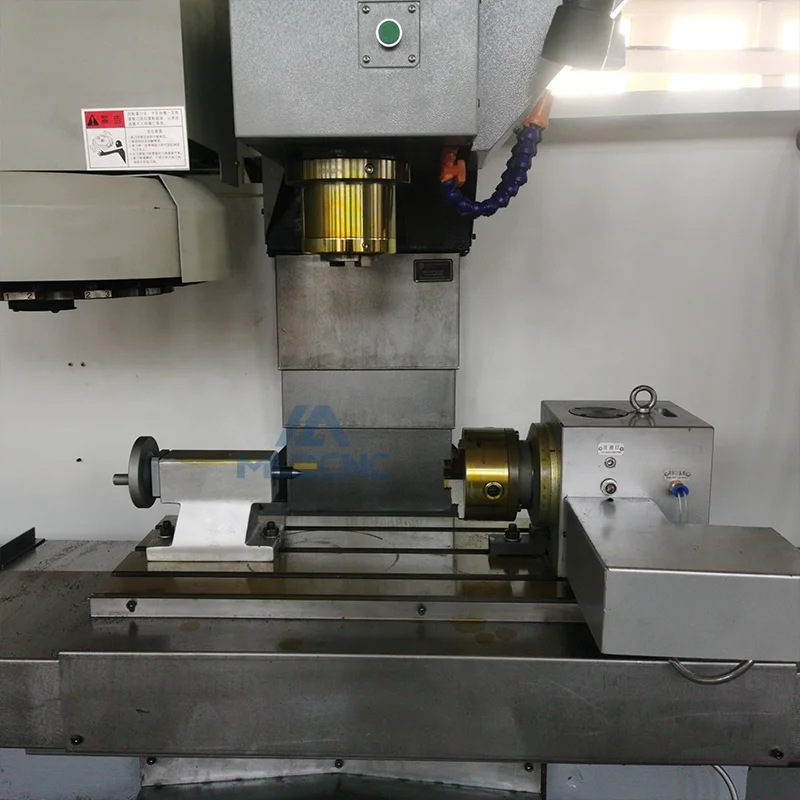

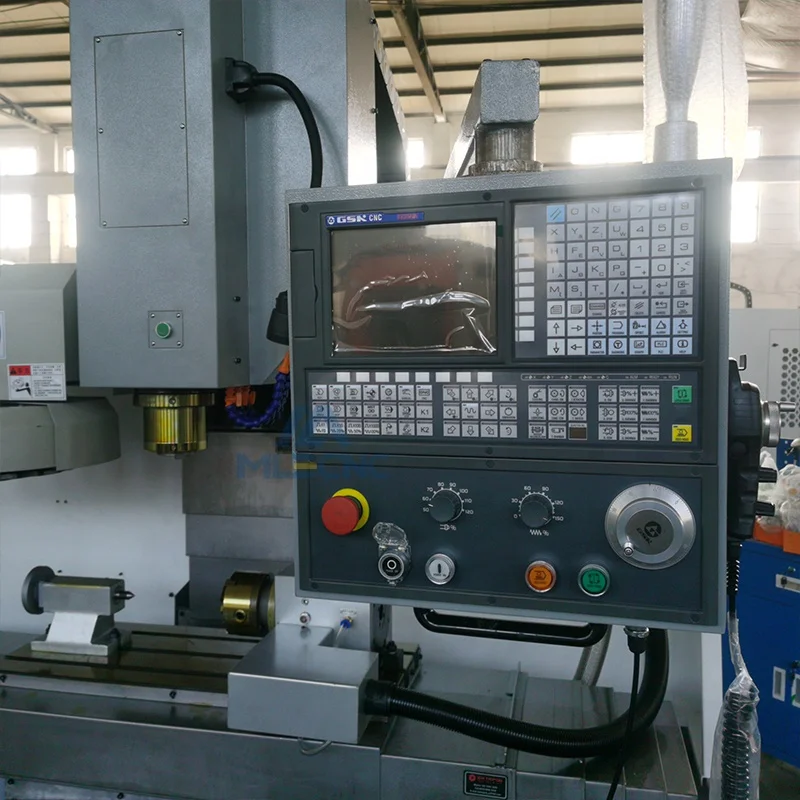

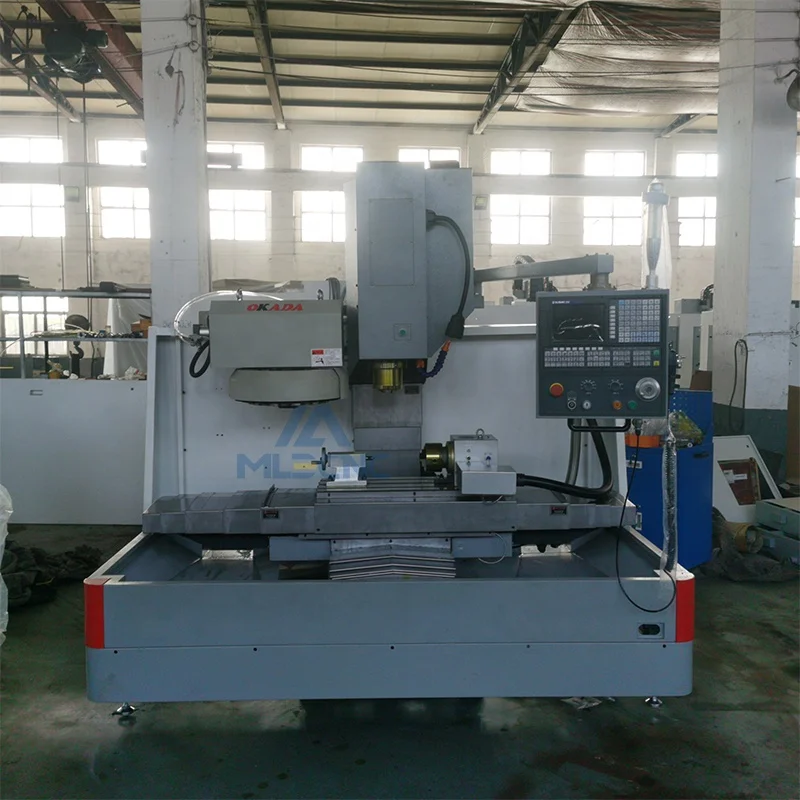

Machine Photos
Product Paramenters
Specification | XH7136 | XK7136 |
Table travel | 900×400×460mm | 900×400×460mm |
Table size | 1250×360mm | 1250×360mm |
Max. table load | 430kg | 430kg |
Number/width/distance of T-slot | 3-14-80mm | 3-14-80mm |
Distance from spindle nose to table surface | 100-580mm | 100-580mm |
Distance from spindle axis to column guideway | 460mm | 460mm |
Spindle taper | BT40 | BT40 |
Spindle speed range | 60-8000rpm | 60-8000rpm |
Spindle motor power | 5.5kw | 5.5kw |
X/Y.Z axis motor | 7.5/7.5/10NM | 7.5/7.5/10NM |
X/Y/Z rapid feed speed | 18000mm/min | 18000mm/min |
X/Y/Z feed speed | 2.5-3000mm.min | 2.5-3000mm.min |
Tool magazine capability | 16 | -- |
Max. tool length | 200mm | -- |
Max. weight of tool | 5kg | -- |
Positioning accuracy | ±0.016mm | ±0.016mm |
Repeat positioning accuracy | ±0.008mm | ±0.008mm |
Total power capacity | 15KVA | 15KVA |
Air pressure required | 42862 | 42862 |
Overall dimension | 225×185×225cm | 225×185×225cm |
Machine weight | 2800kg | 2800kg |
Standard Accessories
Standard :
1,Siemens 808D controller
2,Arm type ATC
3,Japan NSK bearing
4,Germany R+W coupling
5,Automatic lubrication system
6,Cool-heat ex-changer
7,cooling system
2,Arm type ATC
3,Japan NSK bearing
4,Germany R+W coupling
5,Automatic lubrication system
6,Cool-heat ex-changer
7,cooling system
Optional :
1.Mitsubishi FANUC
2.CNC dividing head
3.NC rotary table
4.Automatic chip conveyor
5.Fourth axis
2.CNC dividing head
3.NC rotary table
4.Automatic chip conveyor
5.Fourth axis
Products Details
Spindle Uint
BT40 8000rpm Spindle
Tool Changer
BT40 16T ATC
20T ATC
Worktable
Table size : 1250x360mm
Travel: 900*400*460mm
4-axis
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
Похожие товары

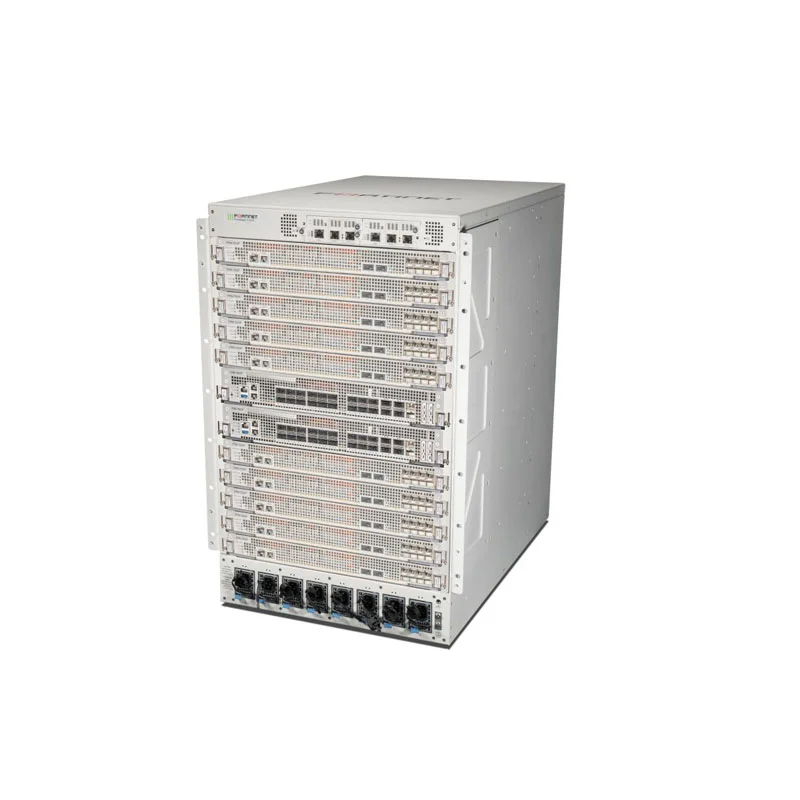

Fortinet FG-7121F Fortigate7121F брандмауэр Оригинальное изделие совершенно новым или Лицензия программного обеспечения forticare ATP UTP(UTM)
407 979,00 $

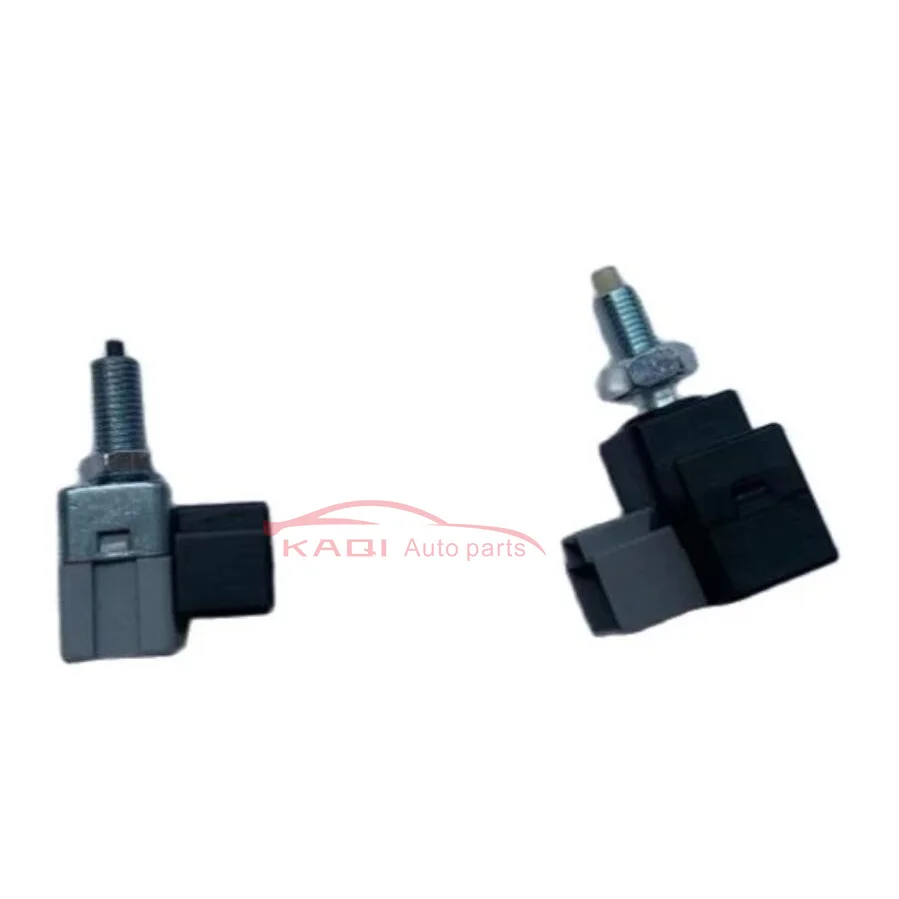

Датчик переключателя стоп-сигнала подходит для пикапа JAC T6 T8
5,00 $ - 8,00 $

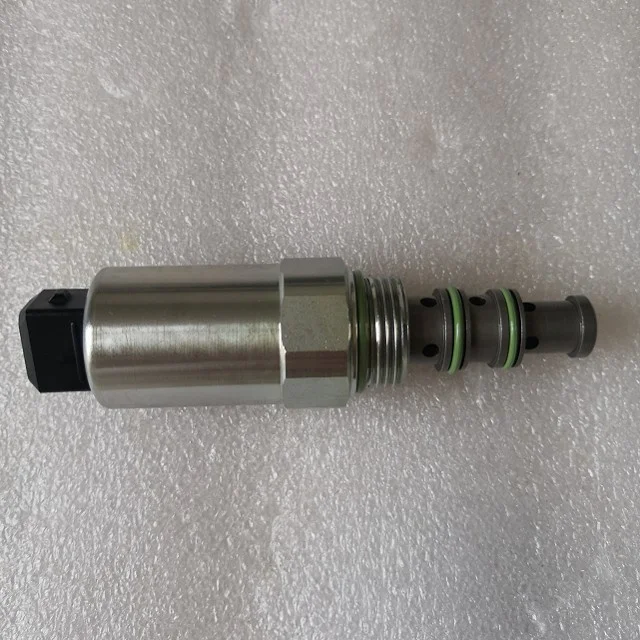

Электромагнитный клапан экскаватора Rexroth R900701407 R900734911 R900578535
100,00 $

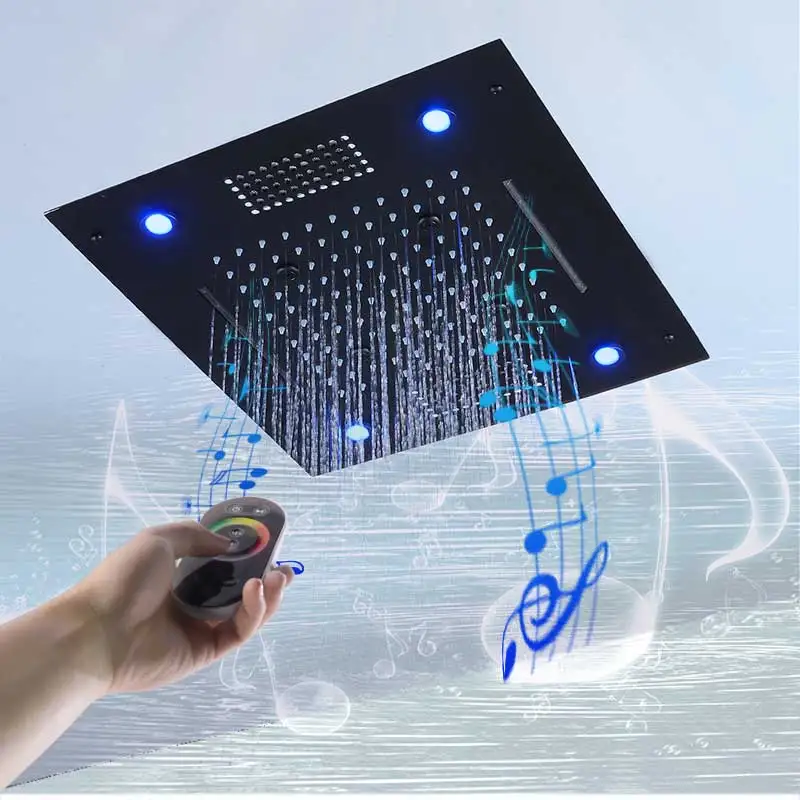

Пользовательский цвет термостатический Роскошные красочные заряженными ионами светодиодных ламп, квадратный потолочный светильник SUS304 400*400 мм ванная комната музыка насадки для душа
272,50 $ - 285,60 $

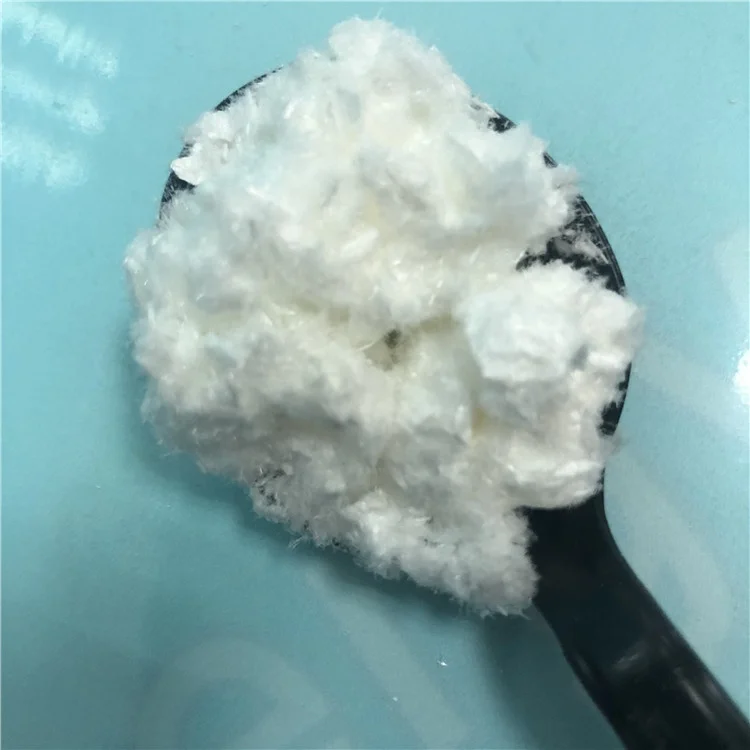

Обработка воды, химический ингибитор коррозии, натриевая соль бензотриазола BTA Cas:95-14-7

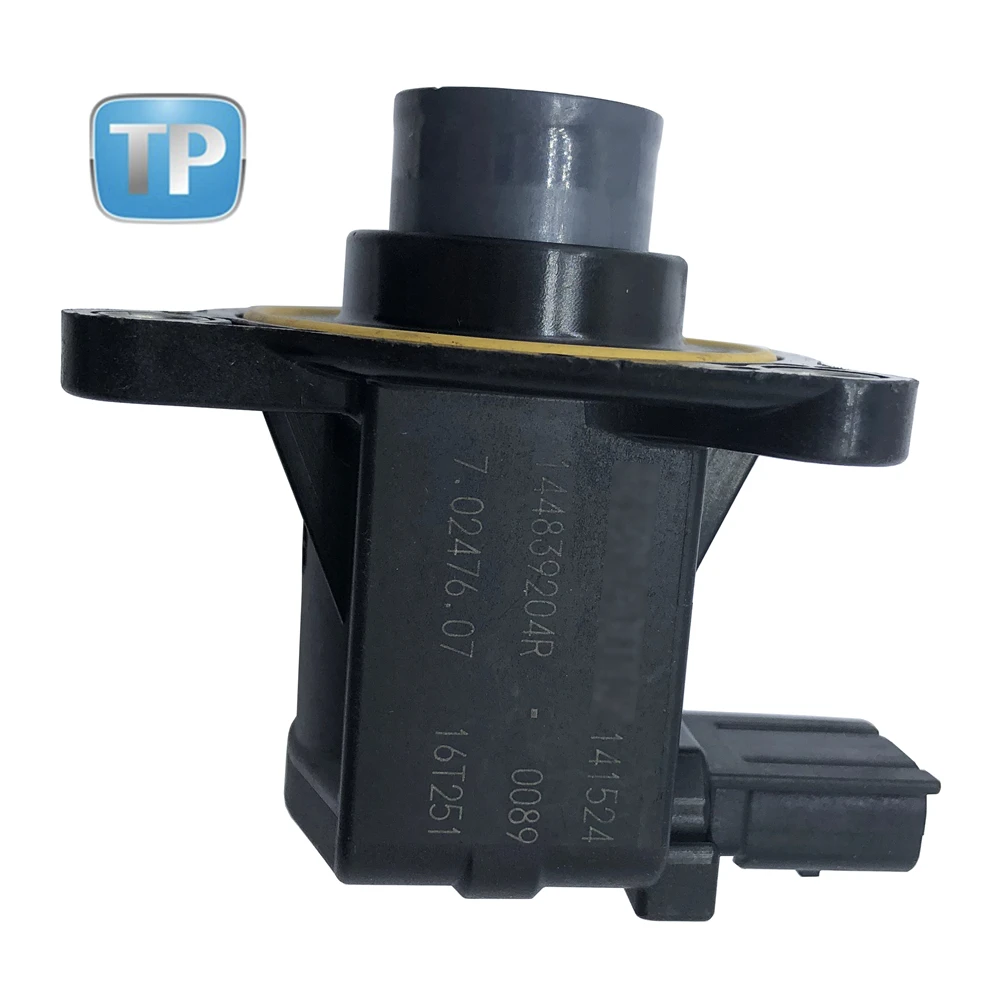

Автоматический турбо-Переключатель электромагнитный клапан OEM 7.02476.09.0 144839204R 14 48 392 04R совместим
